M I N I T A B H E A D Q U A R T E R S

Alexander Constructors, Inc.

Building Construction

Erin E. Hess

Construction Management

Senior Thesis Presentation

April 15, 2003


Presentation outline

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Presentation Outline

Presentation Outline

  • Project Description

  • Cladding System

  • Mechanical System

  • Green Building

  • Summary & Conclusions


Project description

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

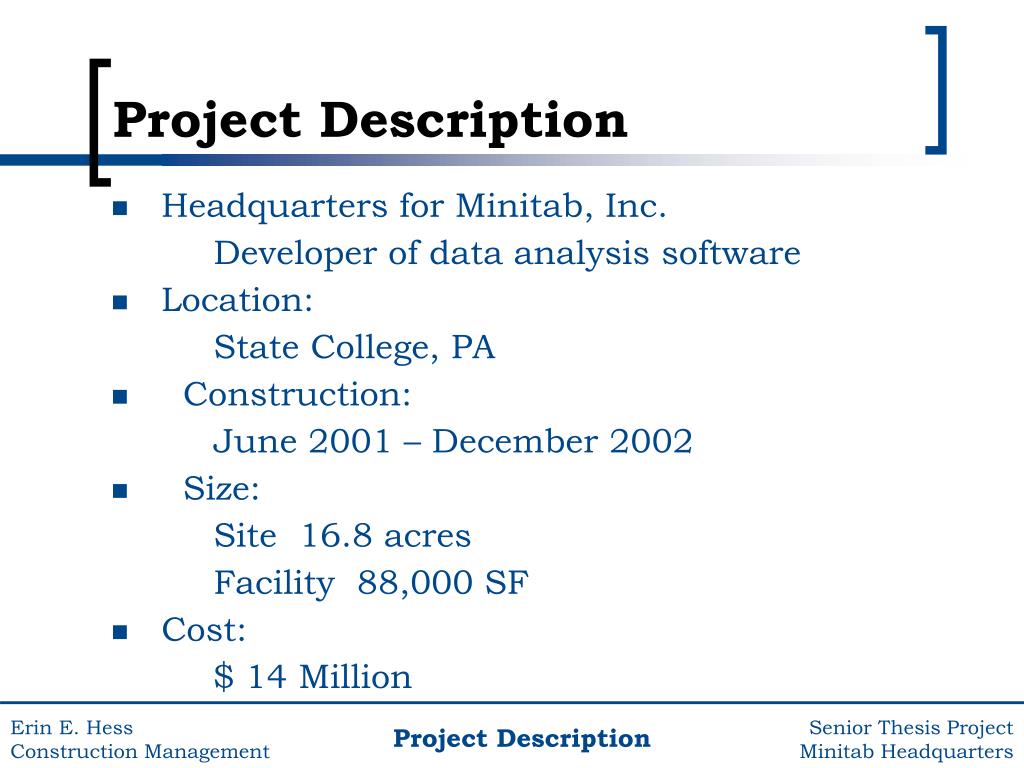

Project Description

Project Description

  • Headquarters for Minitab, Inc.

    Developer of data analysis software

  • Location:

    State College, PA

  • Construction:

    June 2001 – December 2002

  • Size:

    Site 16.8 acres

    Facility 88,000 SF

  • Cost:

    $ 14 Million


Architecture

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Project Description

Architecture

  • Four Story

  • Exposed Basement

  • Full four-story atrium with glass elevators, pond, and waterfall

  • 209 offices, 18 conference rooms, theater, exercise area with locker rooms, game room


Contractor selection

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Project Description

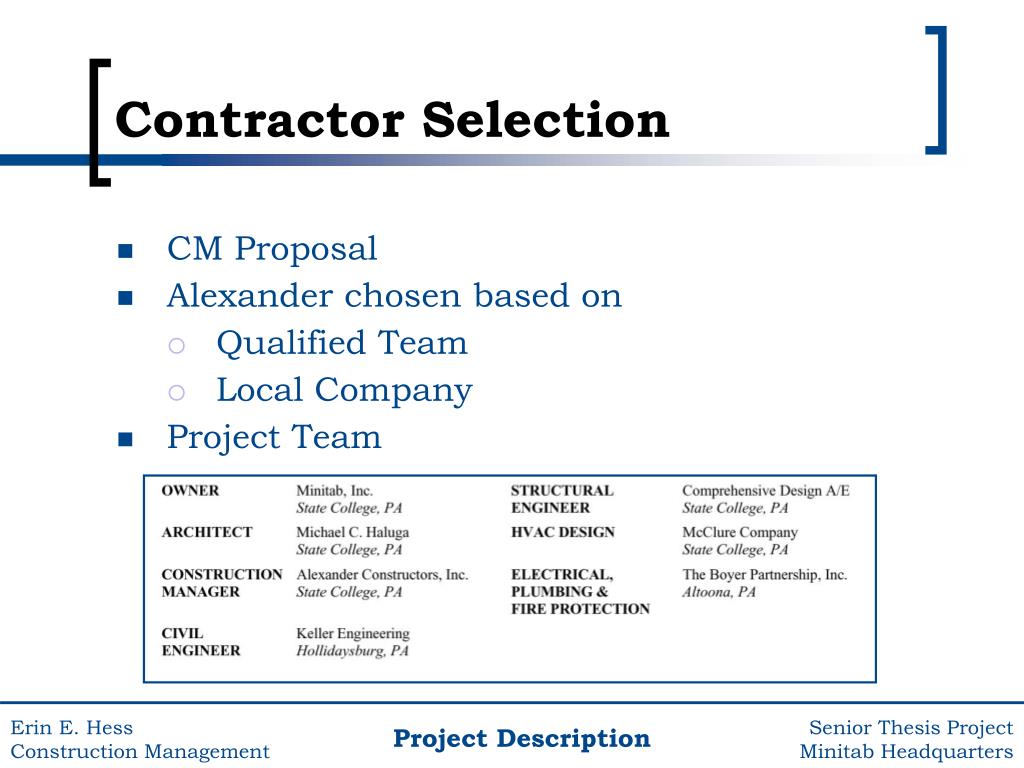

Contractor Selection

  • CM Proposal

  • Alexander chosen based on

    • Qualified Team

    • Local Company

  • Project Team


Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Project Description

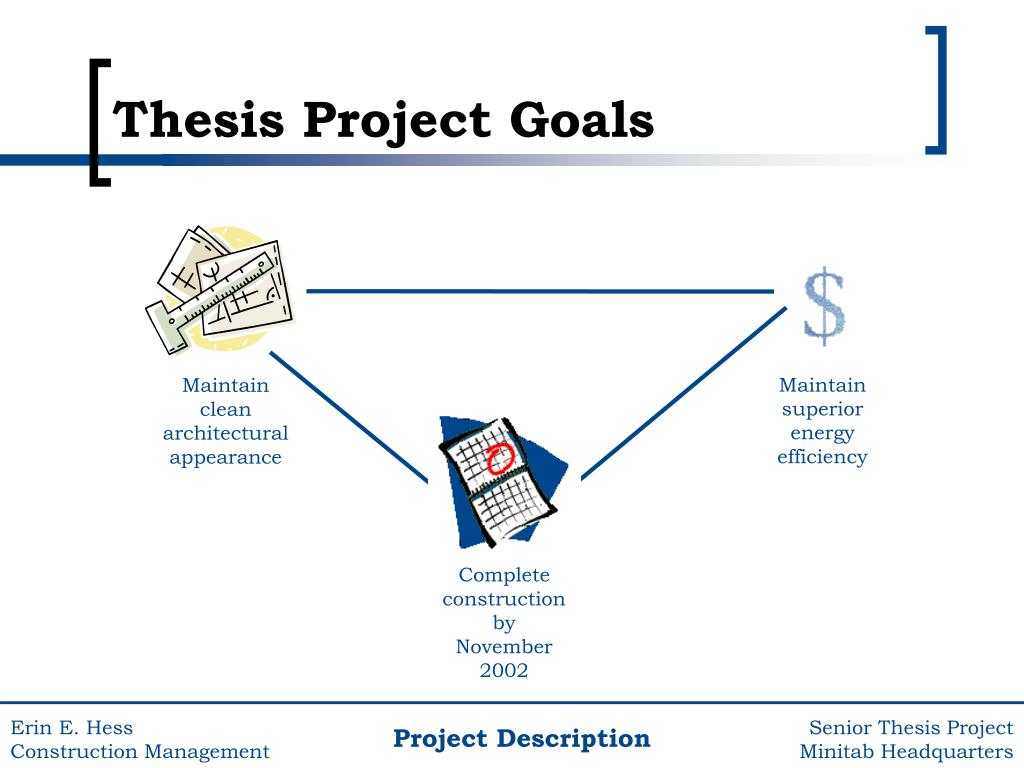

Thesis Project Goals

Maintain superior energy efficiency

Maintain clean

architectural appearance

Complete construction by

November 2002


Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

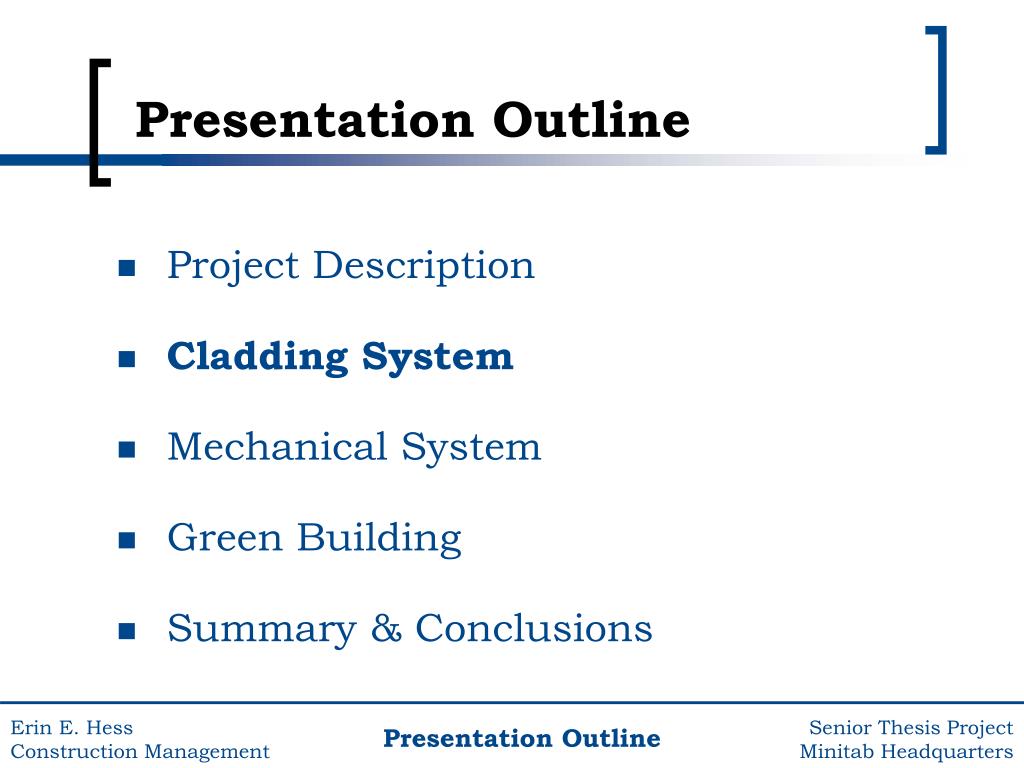

Presentation Outline

Presentation Outline

  • Project Description

  • Cladding System

  • Mechanical System

  • Green Building

  • Summary & Conclusions


Existing cladding system

Prefabricated EIFS panels

Ribbon windows

GFRC panels

Rear entrance constructed & finished on-site

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Project Description

Existing Cladding System

  • Exterior Insulation Finish System (EIFS)

    • Prefabricated, panelized system

  • Four foot, seamless mullion ribbon windows

  • Glass fiber reinforced panels


Desired Appearance

Clean lines

Economic Performance

Energy efficient, maintain R-20

Life Cycle Cost

Installation

Maintenance & Repair

Energy Savings

Inflation

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

Cladding System


Photo courtesy Tindall Corporation:

Houston Co. Spec., Perry, GA

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

Precast Concrete Panel

  • Maintain Architectural Appearance

    • Variety of finishes and colors

  • Thermal Efficiency

    • Add rigid insulation to precast assembly

  • Maintenance

    • Durable

    • Cost efficient

    • Resistant to moisture.


Thirty year study period

Exterior façade area 23,000 SF

Maintain insulation value of R-20

ASTM Standard Practice for Measuring Life Cycle Costs of Buildings and Building Systems

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

Life Cycle Cost Analysis


Eifs installation cost

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

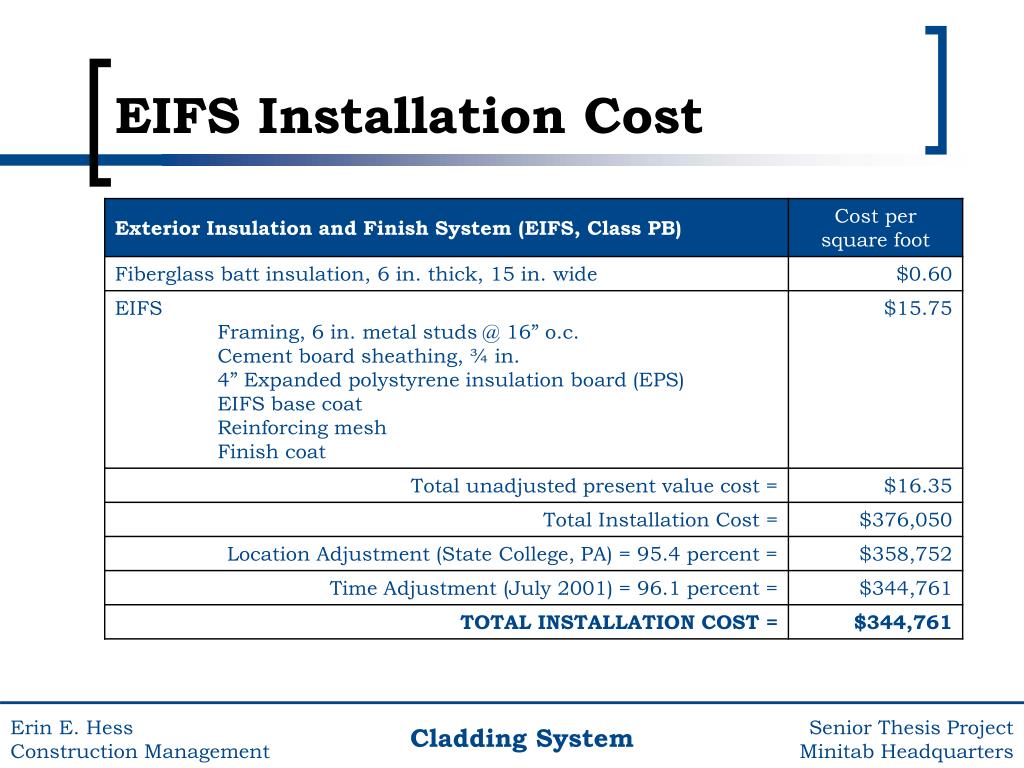

EIFS Installation Cost


Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

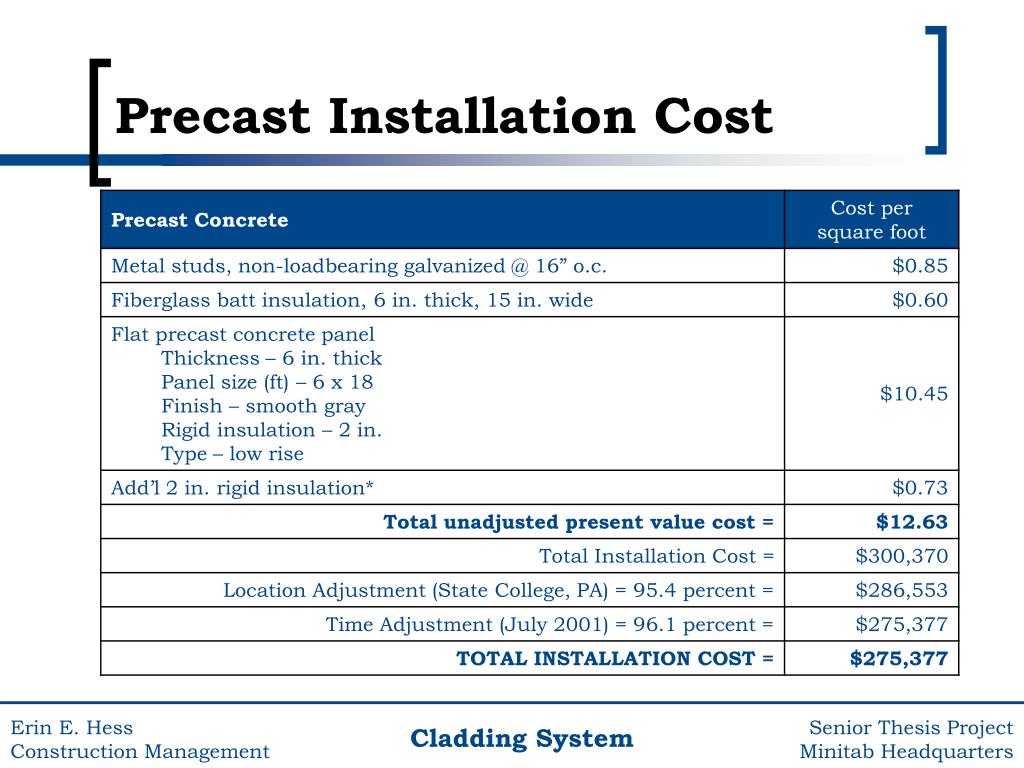

Precast Installation Cost


Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

Projected Maintenance Costs


Life cycle cost

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

Life Cycle Cost

  • Installation

    • EIFS - $344,761

    • Precast - $275,377

  • Maintenance

    • EIFS - $18,437

    • Precast - $28,262

  • Total Life Cycle Cost

    • EIFS - $363,198

    • Precast - $303,639


Structural impact

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

Structural Impact

  • Typical Structural Frame

    • Bays 24’-0” x 19’-9”/19’-5”

  • Panel Size

    • 24’-0” x 7’-3”


Structural impact1

Tributary area = 242 SF

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

Structural Impact

  • Calculation of Additional Loading


Structural impact2

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

Structural Impact


Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

Structural Impact

  • Design Load Increase

    • 13,777 pounds per bay; 8% increase

  • Original Perimeter Columns

    • W12X45

    • Design Load Capacity = 350 kips

  • Resized Perimeter Columns

    • W12X50

    • Design Load Capacity = 393 kips; 12.3% increase

  • Increased Steel

    • 30 Perimeter columns, each 38 ft. in length

    • Increase of 5 plf = 2.85 tons => $4,047.


Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

Schedule Analysis

  • EIFS – Fork lift


Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

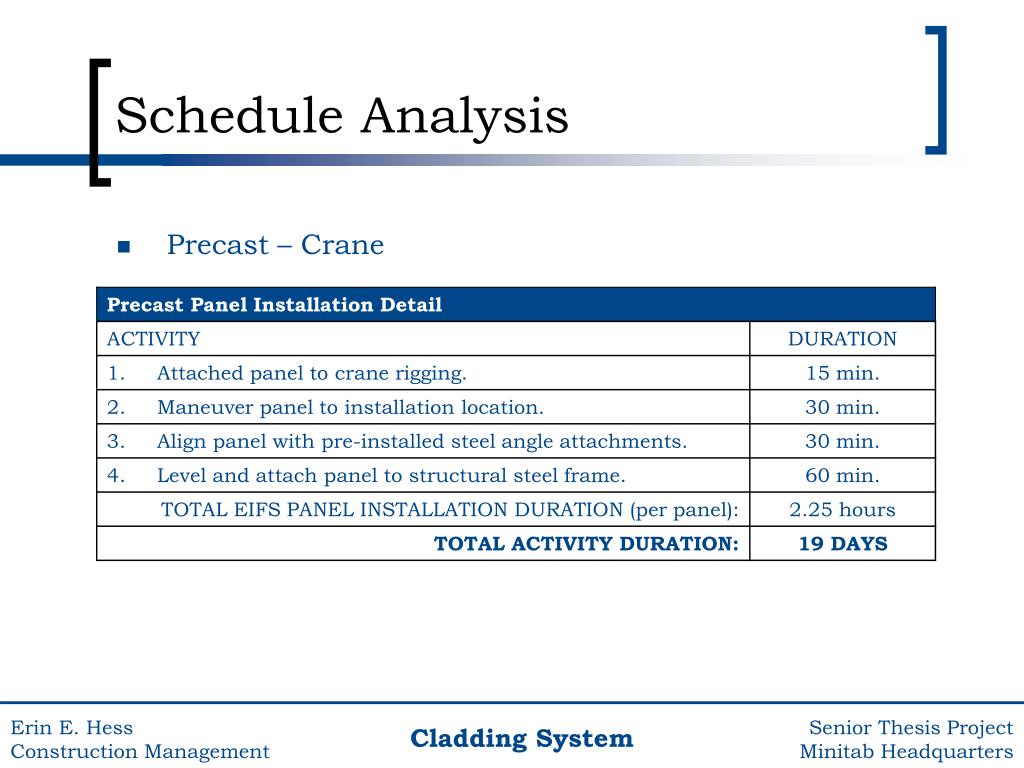

Schedule Analysis

  • Precast – Crane


Cladding system summary

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Cladding System

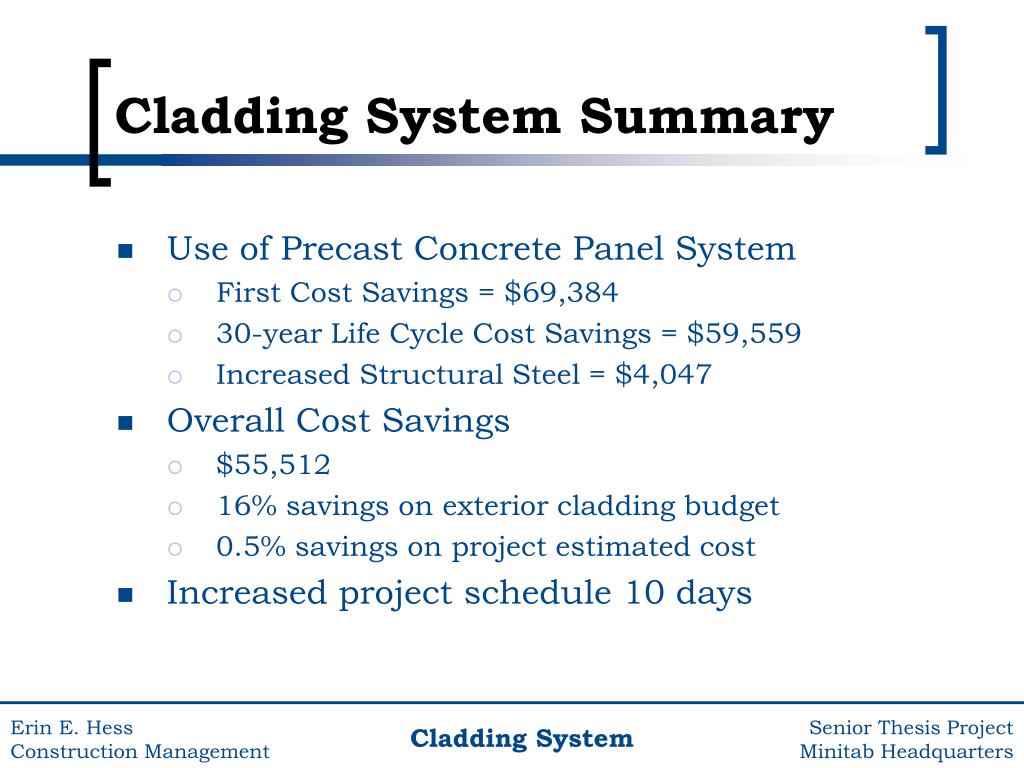

Cladding System Summary

  • Use of Precast Concrete Panel System

    • First Cost Savings = $69,384

    • 30-year Life Cycle Cost Savings = $59,559

    • Increased Structural Steel = $4,047

  • Overall Cost Savings

    • $55,512

    • 16% savings on exterior cladding budget

    • 0.5% savings on project estimated cost

  • Increased project schedule 10 days


Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Presentation Outline

Presentation Outline

  • Project Description

  • Cladding System

  • Mechanical System

  • Green Building

  • Summary & Conclusions


Original mechanical system

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Project Description

Original Mechanical System

  • Dedicated outdoor air system with parallel radiant panel system

  • Ventilation system – temperature control, air quality, and latent (moisture) load

  • Radiant panels address remainder of sensible load (temperature)


Mechanical system redesign

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Mechanical System

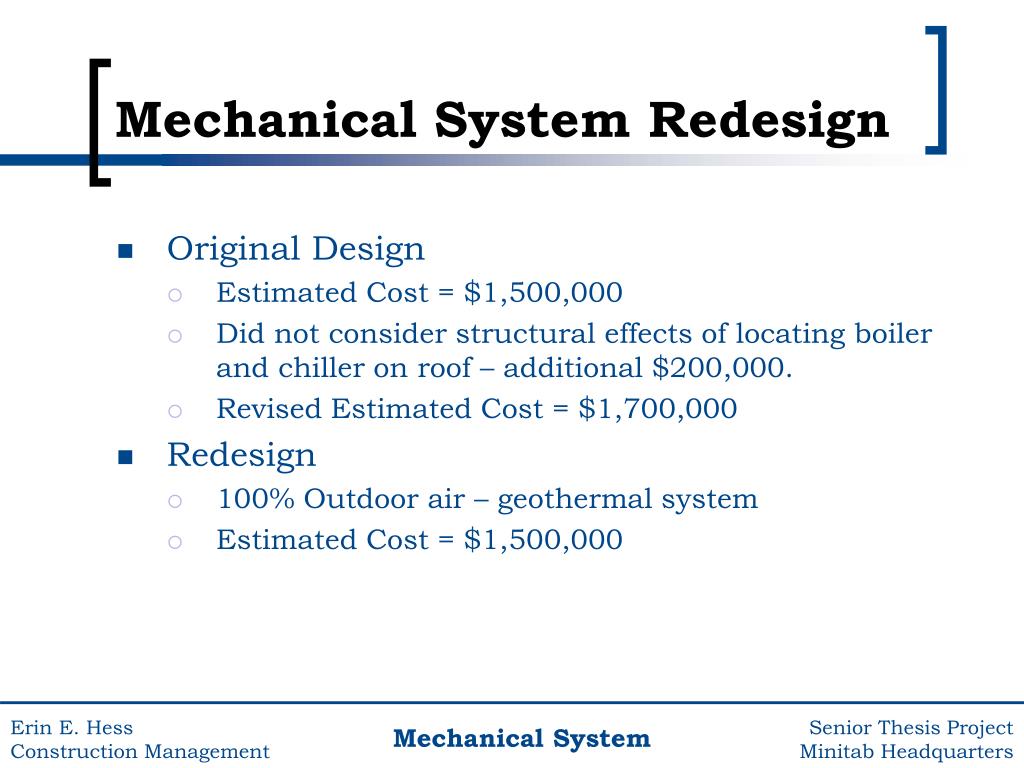

Mechanical System Redesign

  • Original Design

    • Estimated Cost = $1,500,000

    • Did not consider structural effects of locating boiler and chiller on roof – additional $200,000.

    • Revised Estimated Cost = $1,700,000

  • Redesign

    • 100% Outdoor air – geothermal system

    • Estimated Cost = $1,500,000


Mechanical system

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Mechanical System

Mechanical System

  • 100% Outdoor Air – Geothermal System

    • Energy-efficient

    • Environmentally clean

    • Cost effective

  • Minitab Geothermal System

    • 40,000 lf of pipe – 100 wells @ 400 ft. each

    • 278 high-efficiency heat pumps

    • Air to air heat recovery system


Geothermal system

Geothermal Well Field

Individual heat pumps for each space above the ceiling in the corridor.

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Mechanical System

Geothermal System


Geothermal system1

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Mechanical System

Geothermal System

  • Maintain energy efficiency

  • Maintain indoor air quality

  • Maintain service load requirements

  • Eliminate structural and architectural redesign

    • Cost Savings = $200,000


Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Presentation Outline

Presentation Outline

  • Project Description

  • Cladding System

  • Mechanical System

  • Green Building

  • Summary & Conclusions


Green building

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Green Building

Green Building

“We hire the best people and then provide them with an environment that enables them to do their best work.”

  • Atmosphere conducive to:

    • Employee health

    • Quality of life

    • Productivity


Benefits of a green building

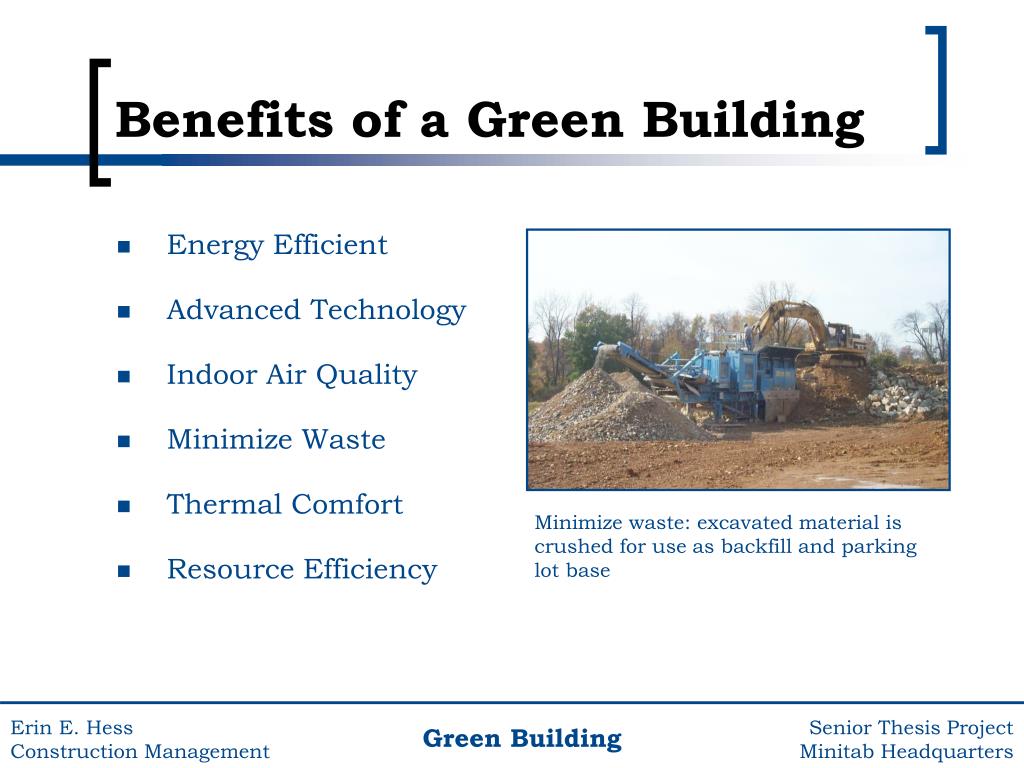

Minimize waste: excavated material is crushed for use as backfill and parking lot base

Erin E. Hess

Construction Management

Senior Thesis Project

Minitab Headquarters

Green Building

Benefits of a Green Building

  • Energy Efficient

  • Advanced Technology

  • Indoor Air Quality

  • Minimize Waste

  • Thermal Comfort

  • Resource Efficiency


Leed certification

Erin E. Hess backfill and parking lot base

Construction Management

Senior Thesis Project

Minitab Headquarters

Green Building

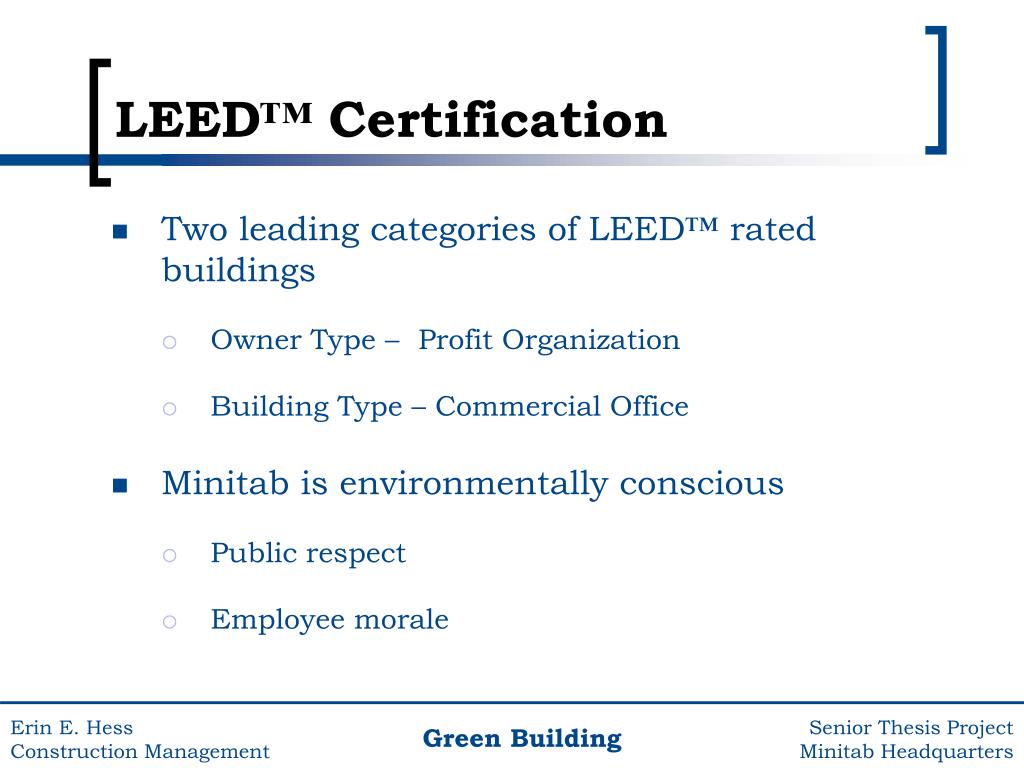

LEED™ Certification

  • Two leading categories of LEED™ rated buildings

    • Owner Type – Profit Organization

    • Building Type – Commercial Office

  • Minitab is environmentally conscious

    • Public respect

    • Employee morale


Leed certification1

Erin E. Hess backfill and parking lot base

Construction Management

Senior Thesis Project

Minitab Headquarters

Green Building

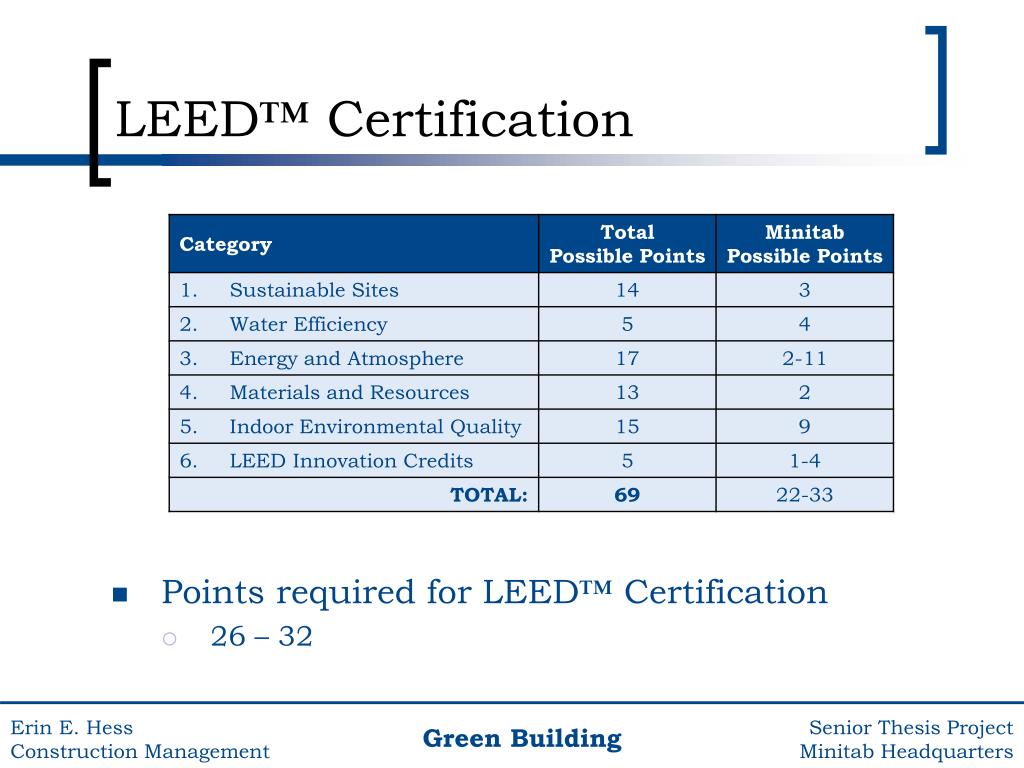

LEED™ Certification

  • Points required for LEED™ Certification

    • 26 – 32


Green building1

Erin E. Hess backfill and parking lot base

Construction Management

Senior Thesis Project

Minitab Headquarters

Green Building

Green Building

  • Associated Benefits

    • Significant gains in worker health

    • Improved satisfaction

    • Increased productivity

    • Higher profits

    • Decreased employee turnover

      Added value to corporation and building.


Erin E. Hess backfill and parking lot base

Construction Management

Senior Thesis Project

Minitab Headquarters

Presentation Outline

Presentation Outline

  • Project Description

  • Cladding System

  • Mechanical System

  • Green Building

  • Summary & Conclusions


Summary conclusions

Erin E. Hess backfill and parking lot base

Construction Management

Senior Thesis Project

Minitab Headquarters

Summary & Conclusions

Summary & Conclusions


Acknowledgements

Erin E. Hess backfill and parking lot base

Construction Management

Senior Thesis Project

Minitab Headquarters

Acknowledgements

Acknowledgements

  • AE Faculty

  • AE Classmates

  • Family & Friends

  • Alexander Constructors, Inc.

  • Minitab, Inc.


Questions

Erin E. Hess backfill and parking lot base

Construction Management

Senior Thesis Project

Minitab Headquarters

Questions

Questions


ad
