  1. Mining And its environmental impact

  2. Outline • 1. Types of Mining (and why we use them) • 2. Beneficiation • 3. Smelting • 4. Environmental Concerns of 1 through 3

  3. What determines the type of mining? • Underground v.s. Surface Mining v.s. Solution • Depth of below surface • Size of the ore body • Shape of the ore body • Grade • Type of Ore

  4. Depth and Size

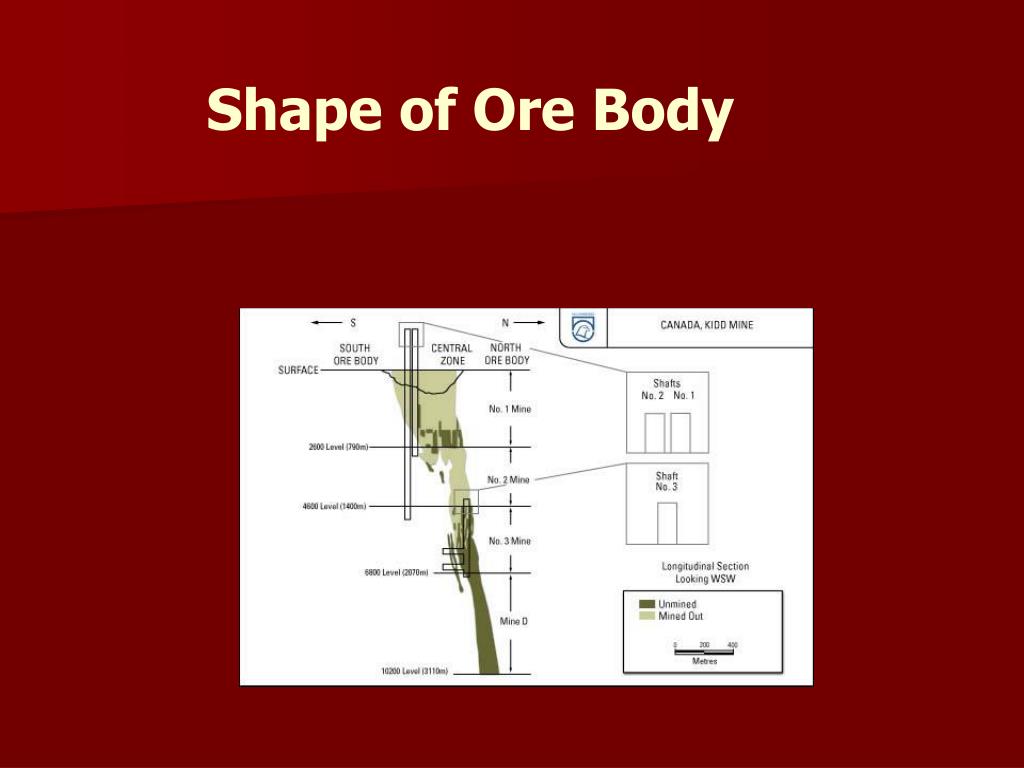

  5. Shape of Ore Body

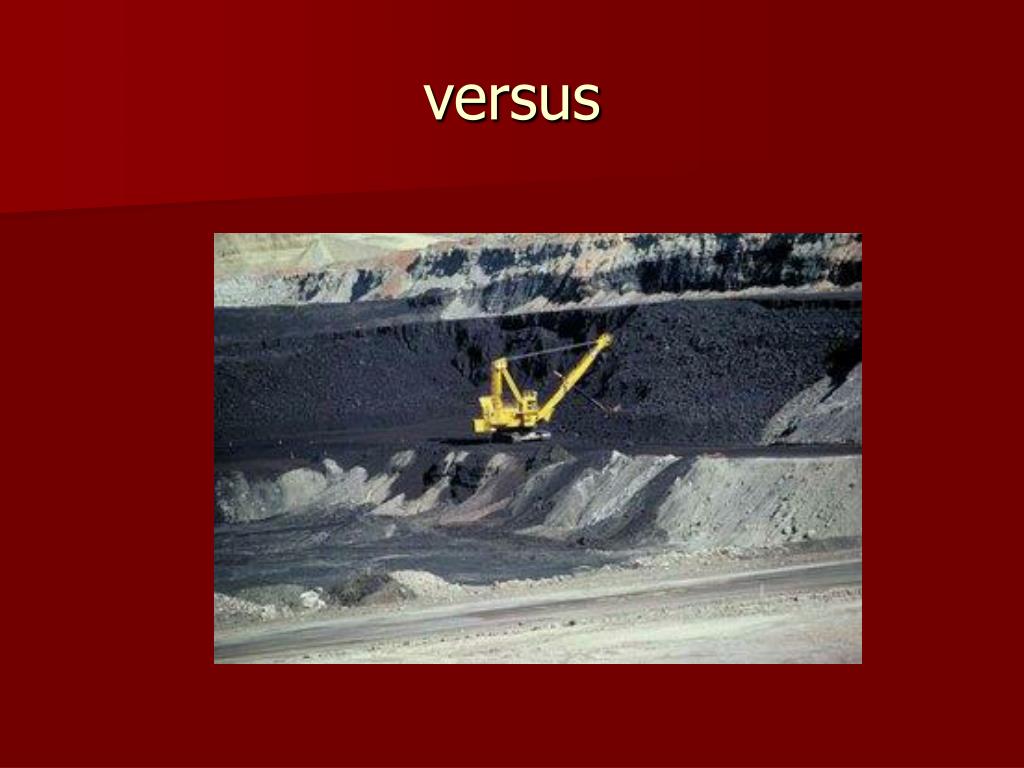

  6. versus

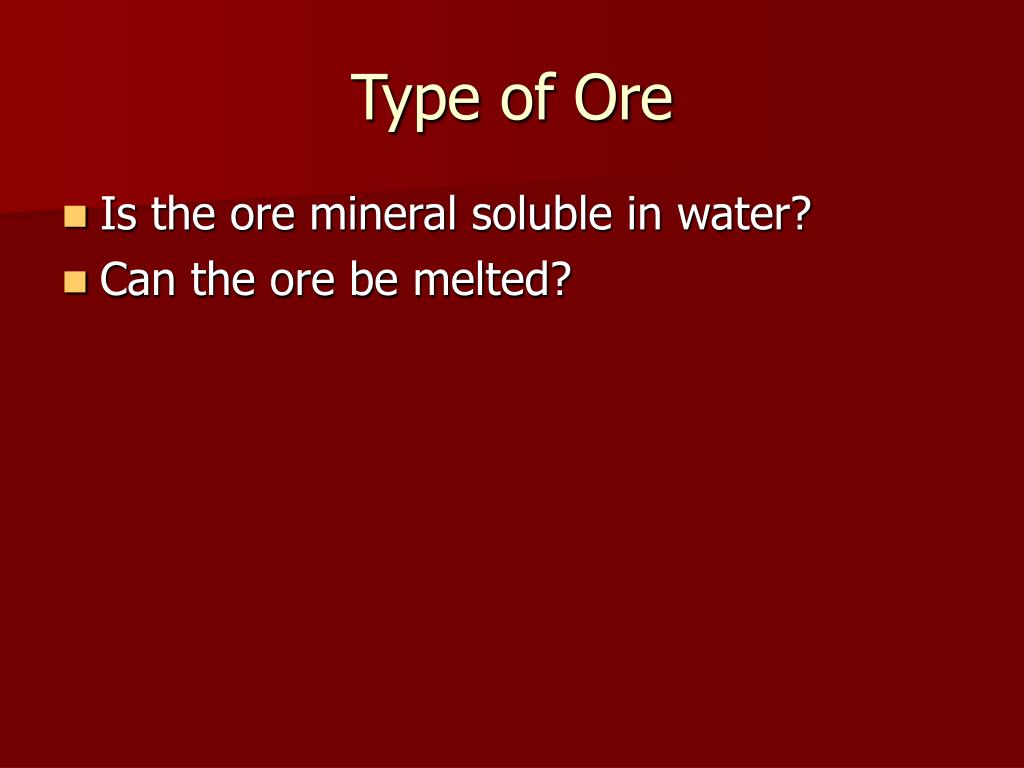

  7. Type of Ore • Is the ore mineral soluble in water? • Can the ore be melted?

  8. What are the types of mining? • Surface • Strip • Open Pit • Placers--Dredging • Underground • Solution

  9. When do you use Surface Mining? • Large tonnage • High rates of production • Overburden (including rock) is thin

  10. Strip Mining of Coal Kansas Geological Survey

  11. Open Pit Mining

  12. Some photos and machinery used in open-pit mining

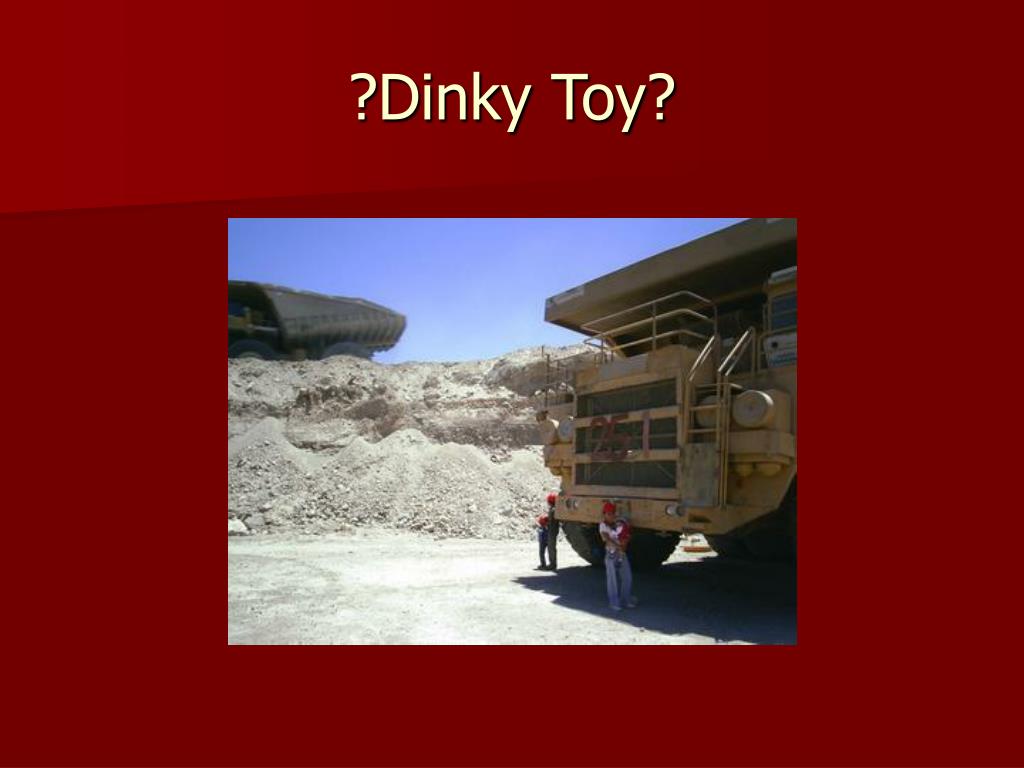

  13. ?Dinky Toy?

  14. Drilling in pit

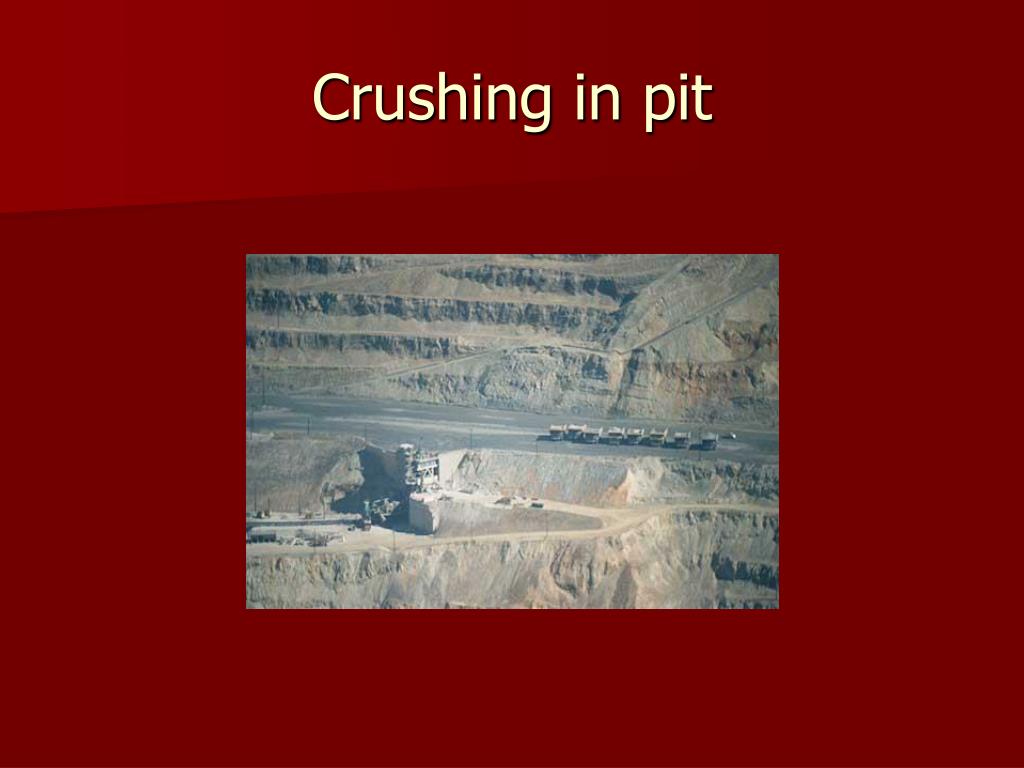

  15. Crushing in pit

  16. Loading ore in pit

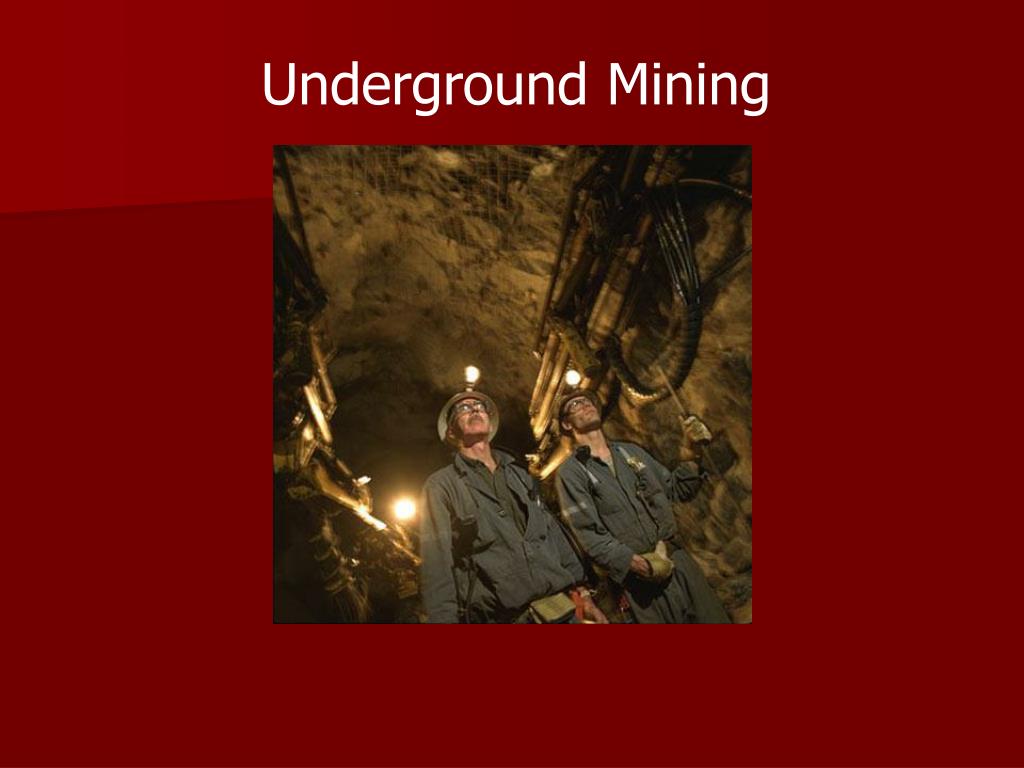

  17. Underground Mining

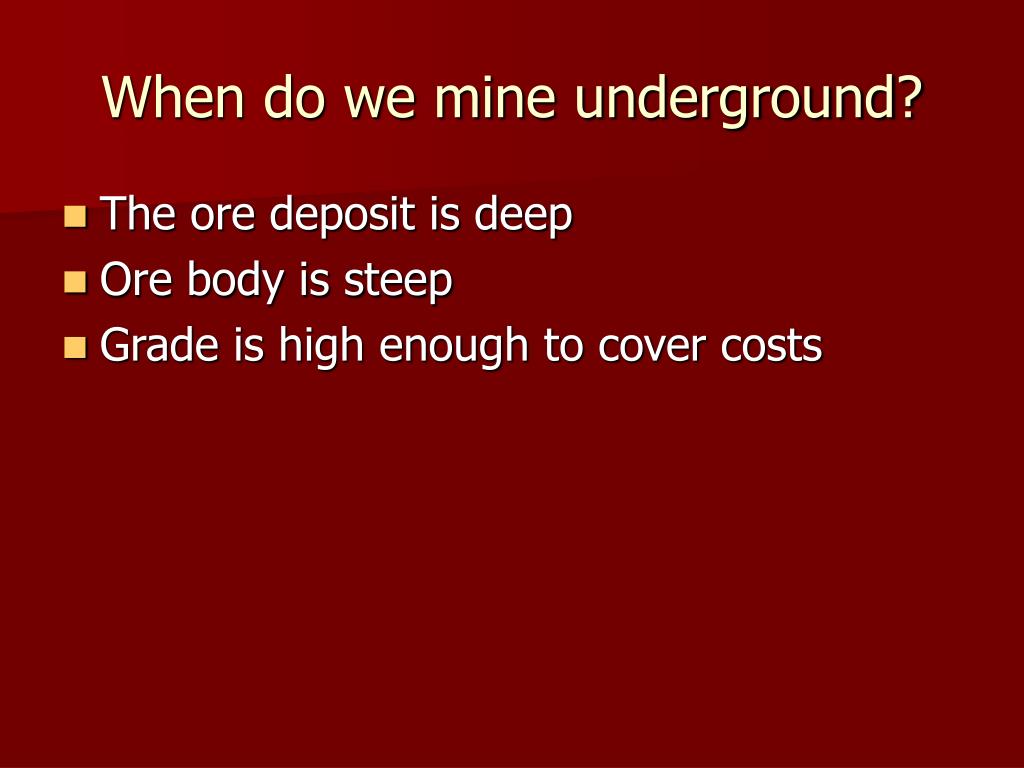

  18. When do we mine underground? • The ore deposit is deep • Ore body is steep • Grade is high enough to cover costs

  19. Some types of underground mining • Room and Pillar • Cut and Fill • Long wall (coal) • Shrinkage Stoping • Block Caving

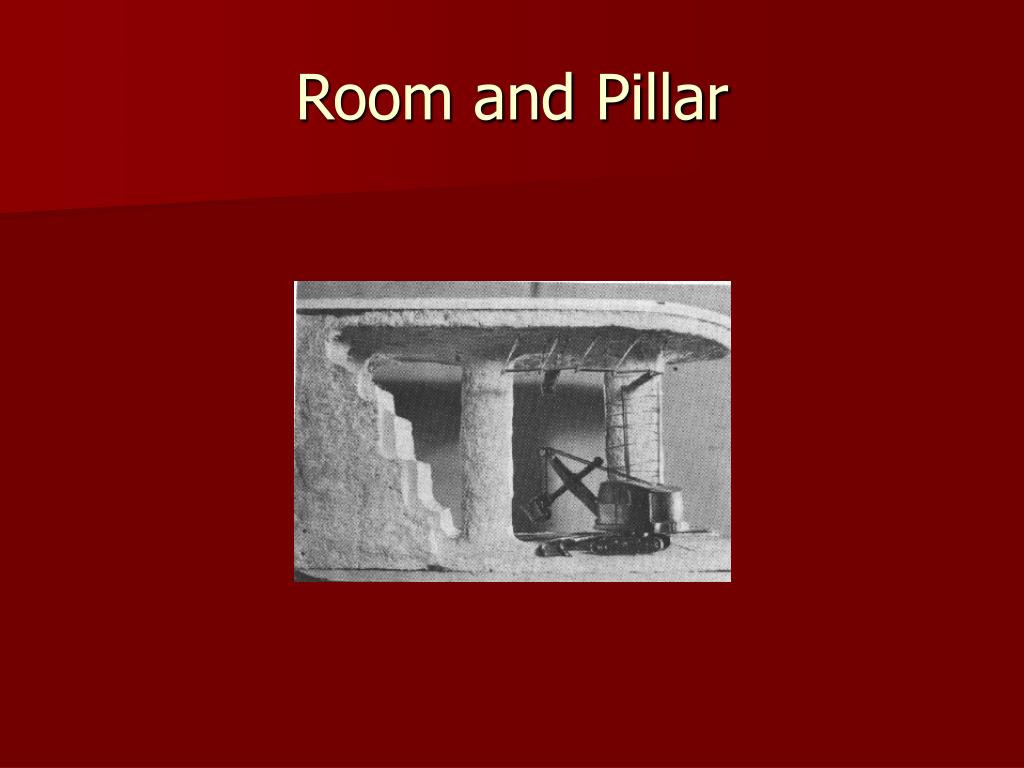

  20. Room and Pillar

  21. Cut and Fill

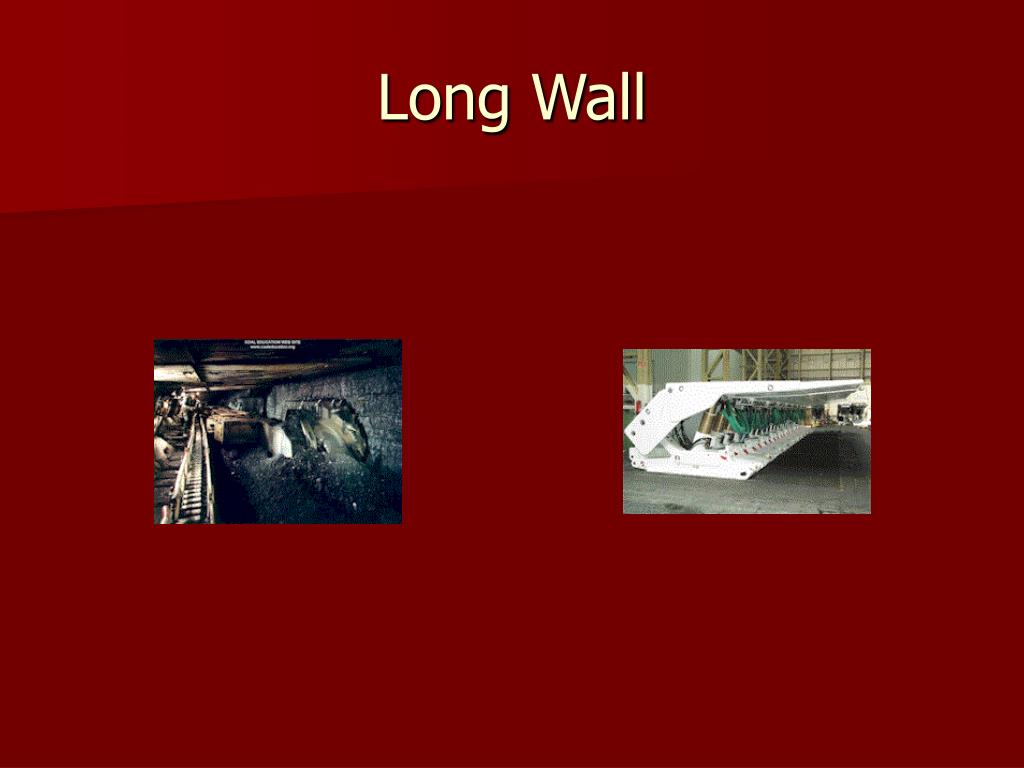

  22. Long Wall

  23. Shrinkage Stoping

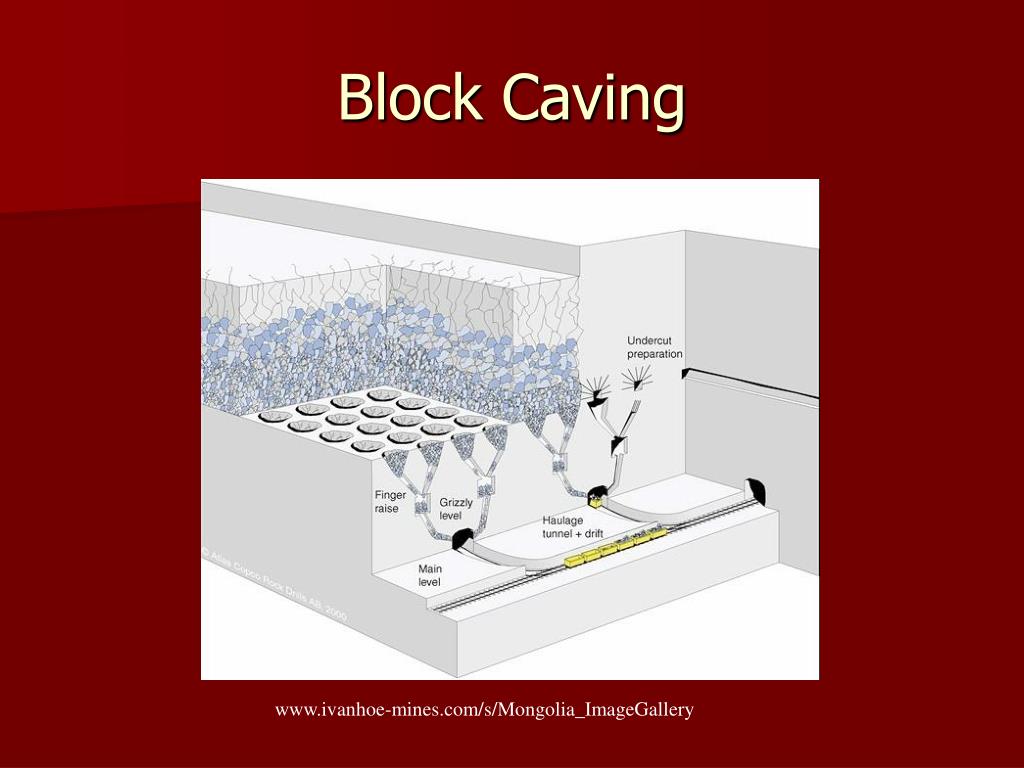

  24. Block Caving www.ivanhoe-mines.com/s/Mongolia_ImageGallery

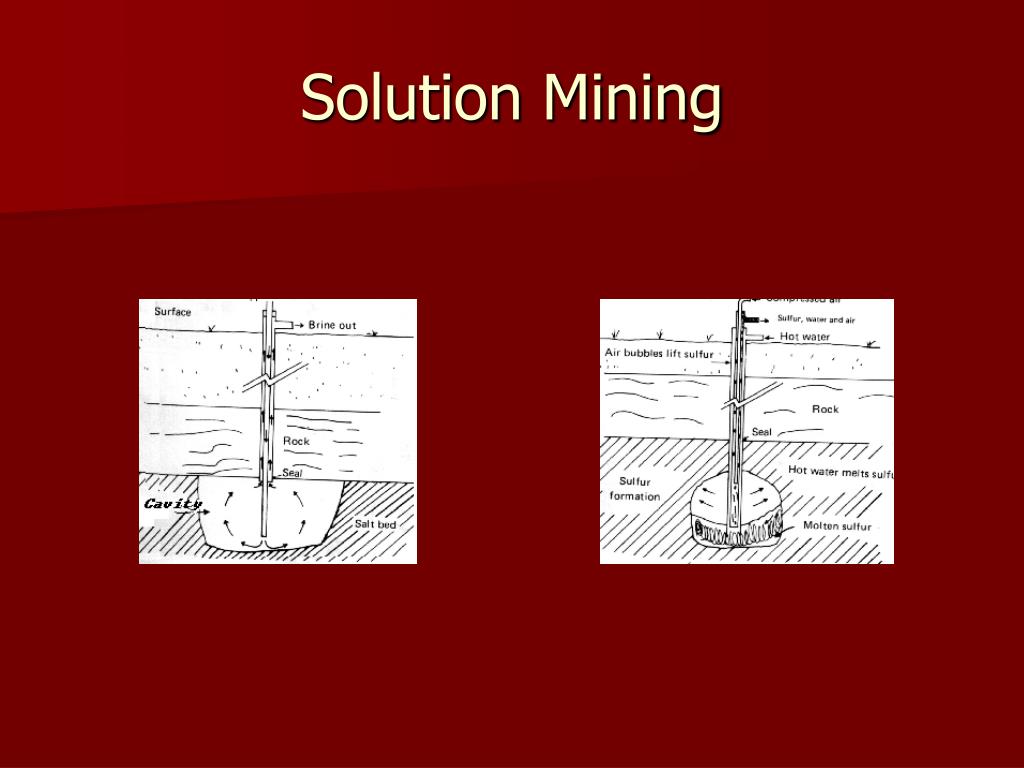

  25. Solution Mining

  26. Beneficiation Means of separation of ore mineral from waste material (or gangue minerals) Also known as Liberation

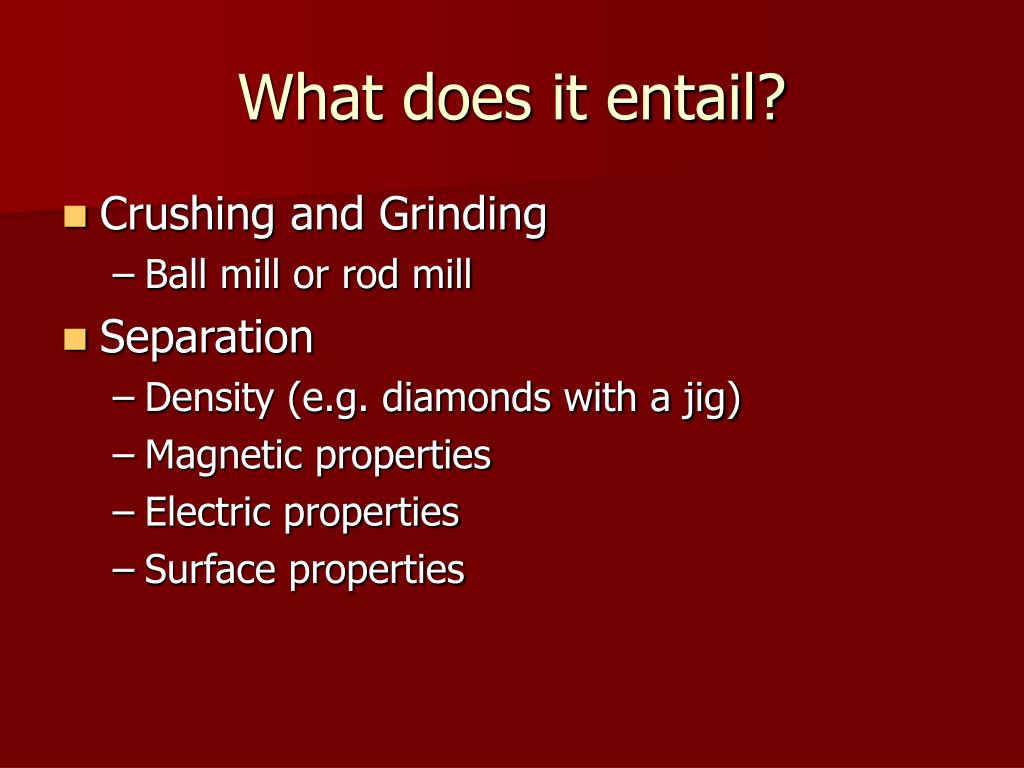

  27. What does it entail? • Crushing and Grinding • Ball mill or rod mill • Separation • Density (e.g. diamonds with a jig) • Magnetic properties • Electric properties • Surface properties

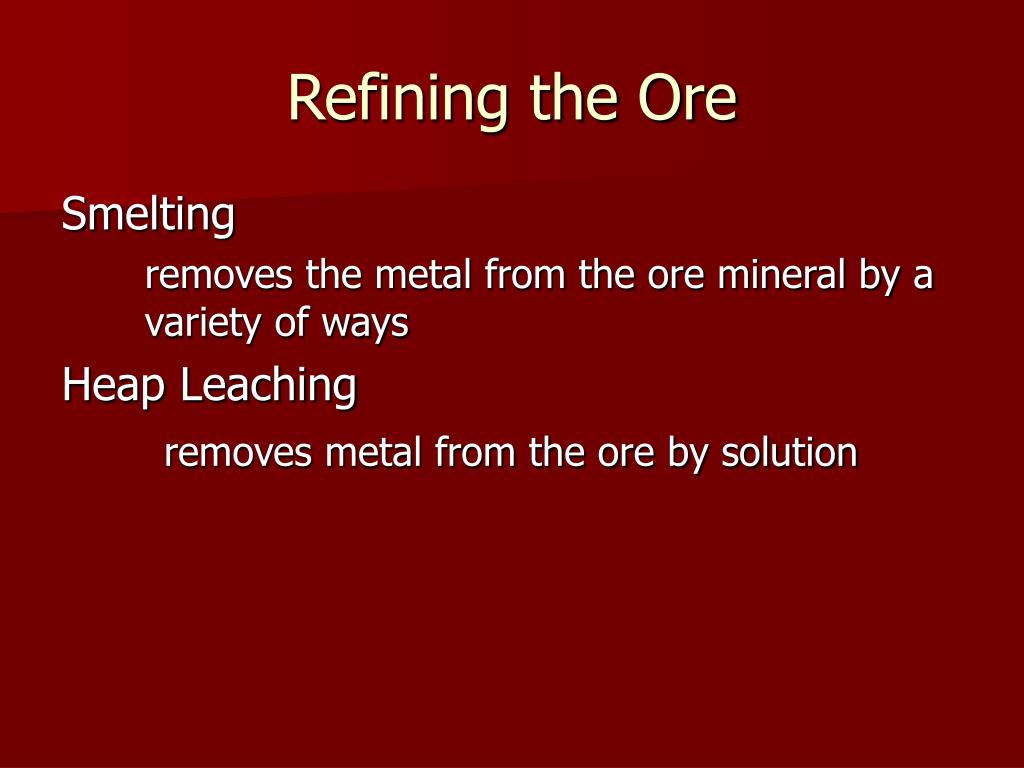

  28. Refining the Ore Smelting removes the metal from the ore mineral by a variety of ways Heap Leaching removes metal from the ore by solution

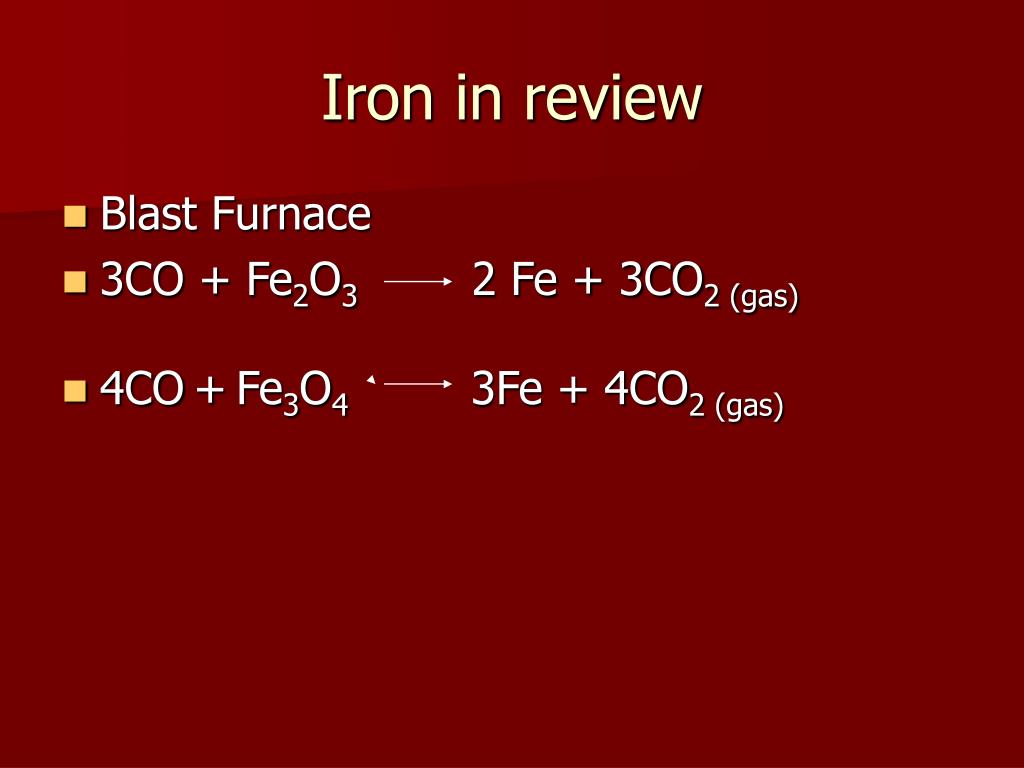

  29. Iron in review • Blast Furnace • 3CO + Fe2O3 2 Fe + 3CO2 (gas) • 4CO+Fe3O4 3Fe + 4CO2 (gas)

  30. Sulphide Minerals • Are sometimes roasted • Heated in air without melting to transform sulphides to oxides • Gives off H2S and SO2 • Then oxides processed like Fe

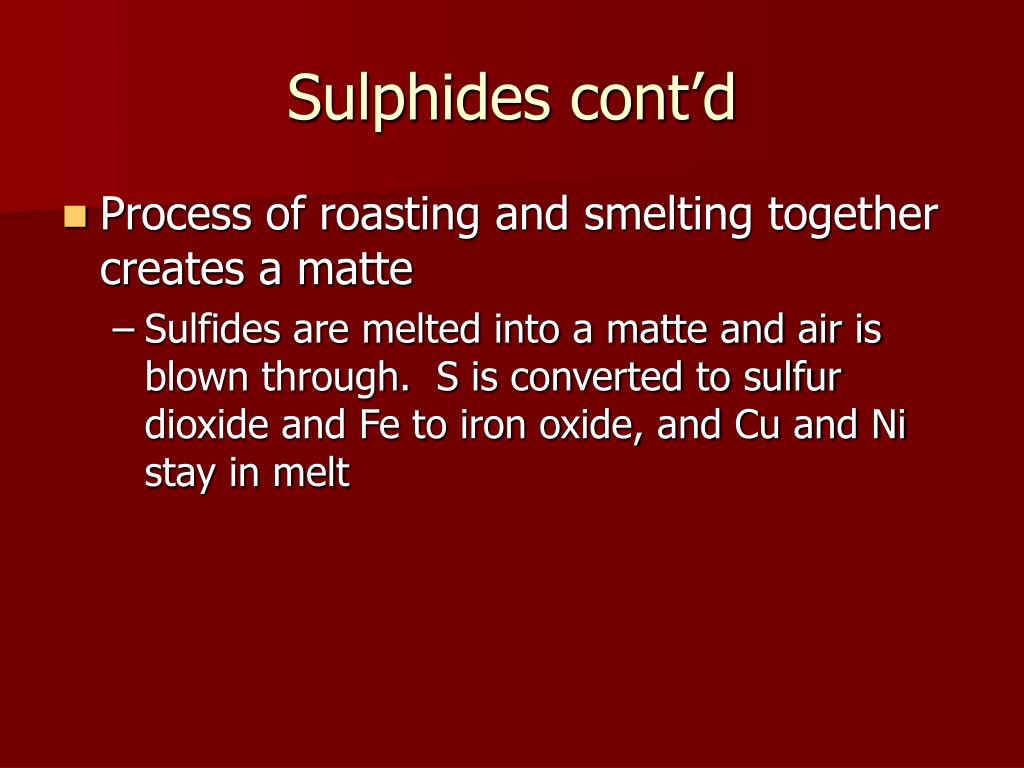

  31. Sulphides cont’d • Process of roasting and smelting together creates a matte • Sulfides are melted into a matte and air is blown through. S is converted to sulfur dioxide and Fe to iron oxide, and Cu and Ni stay in melt

  32. Smelting

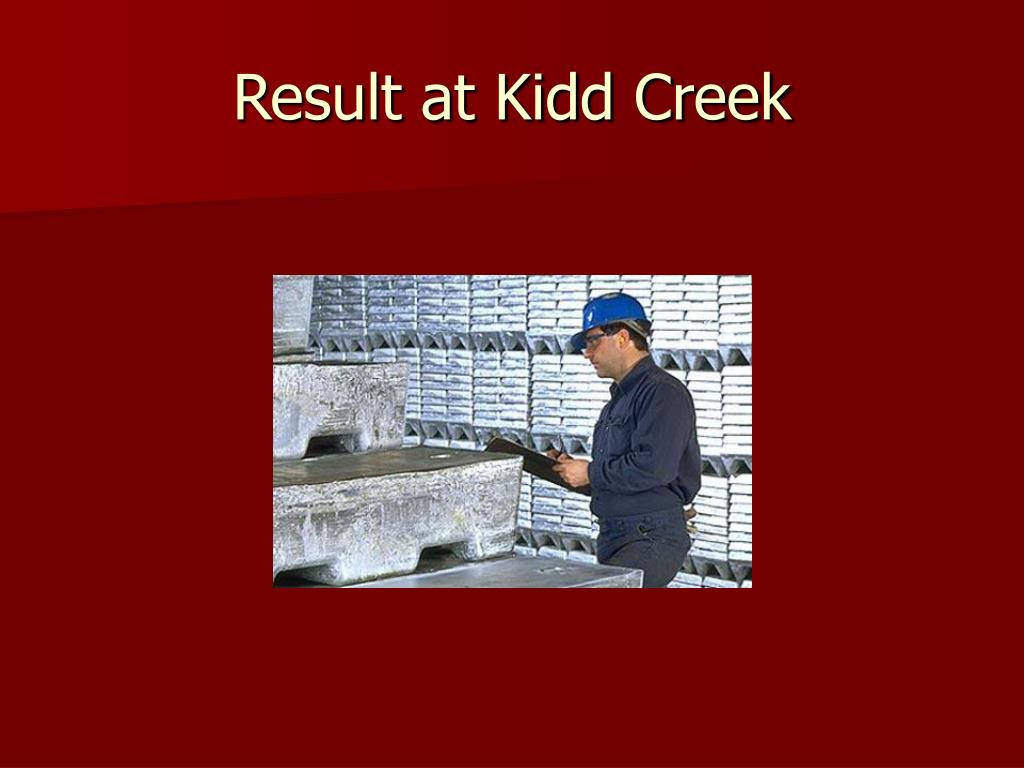

  33. Result at Kidd Creek

  34. Sulphides cont’d • Solvent extraction/electroplating • Used where rock contains Cu but in too little amounts to be recovered by classical methods

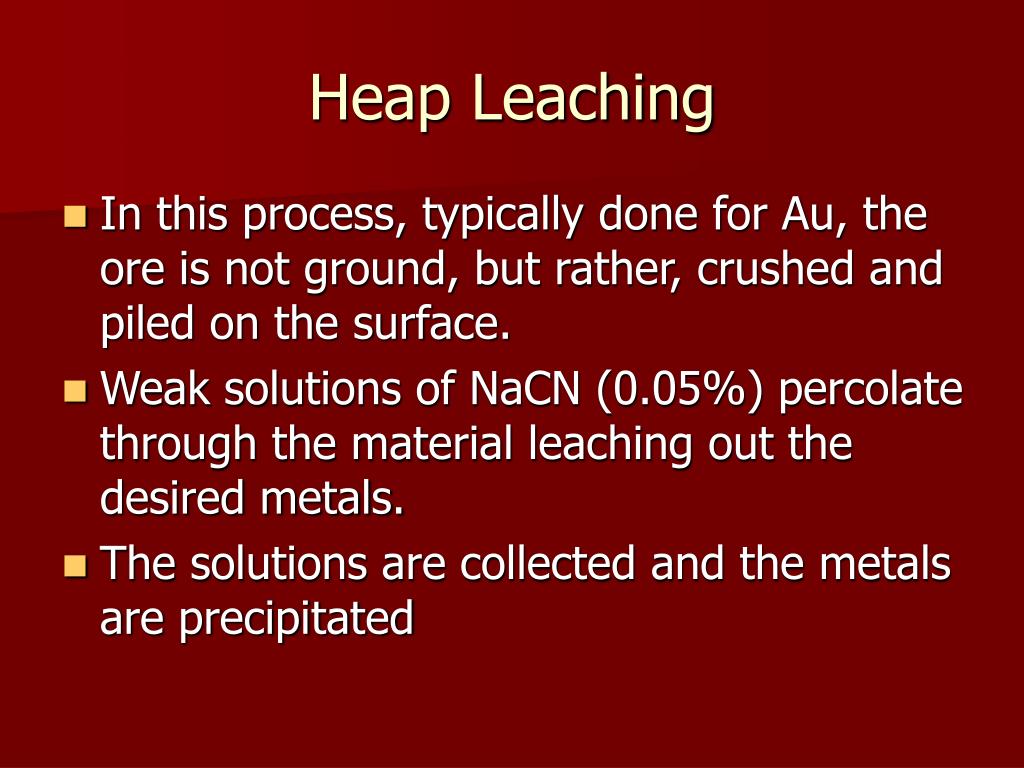

  35. Heap Leaching • In this process, typically done for Au, the ore is not ground, but rather, crushed and piled on the surface. • Weak solutions of NaCN (0.05%) percolate through the material leaching out the desired metals. • The solutions are collected and the metals are precipitated

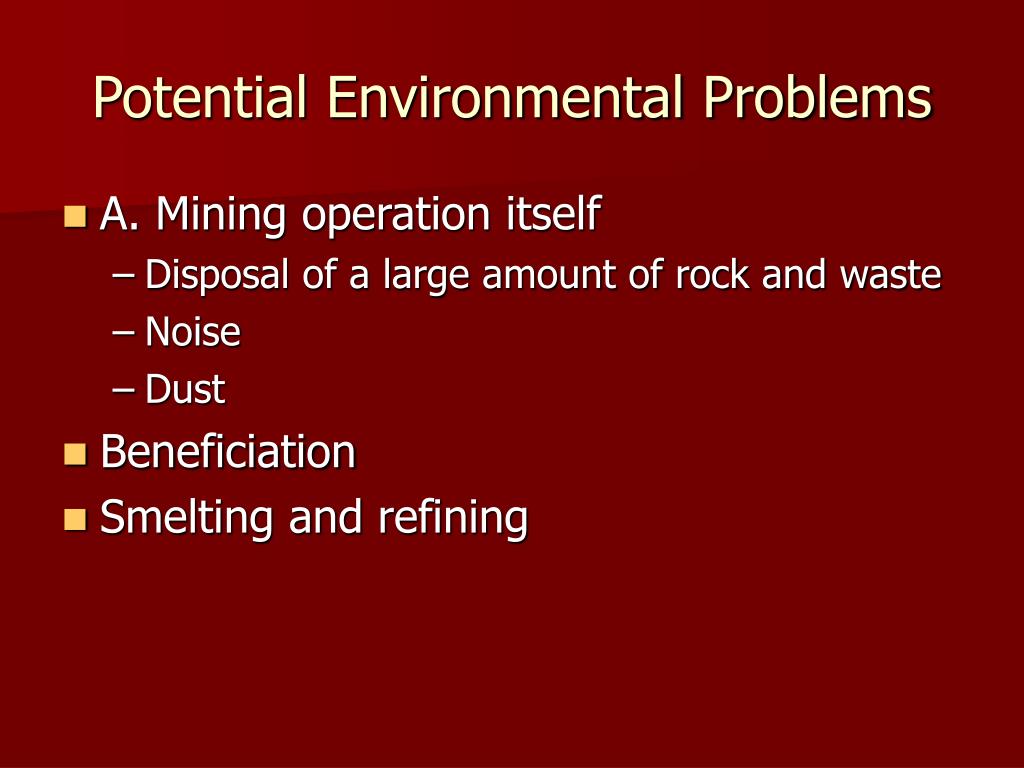

  36. Potential Environmental Problems • A. Mining operation itself • Disposal of a large amount of rock and waste • Noise • Dust • Beneficiation • Smelting and refining

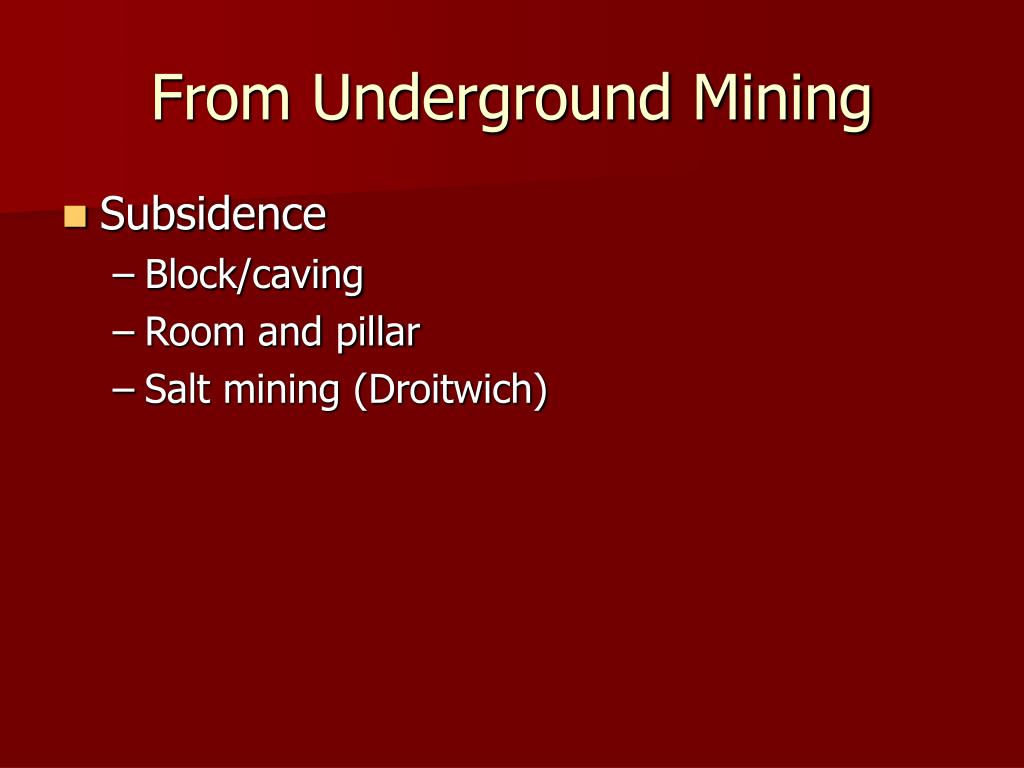

  37. From Underground Mining • Subsidence • Block/caving • Room and pillar • Salt mining (Droitwich)

  38. Subsidence in rancher’s field

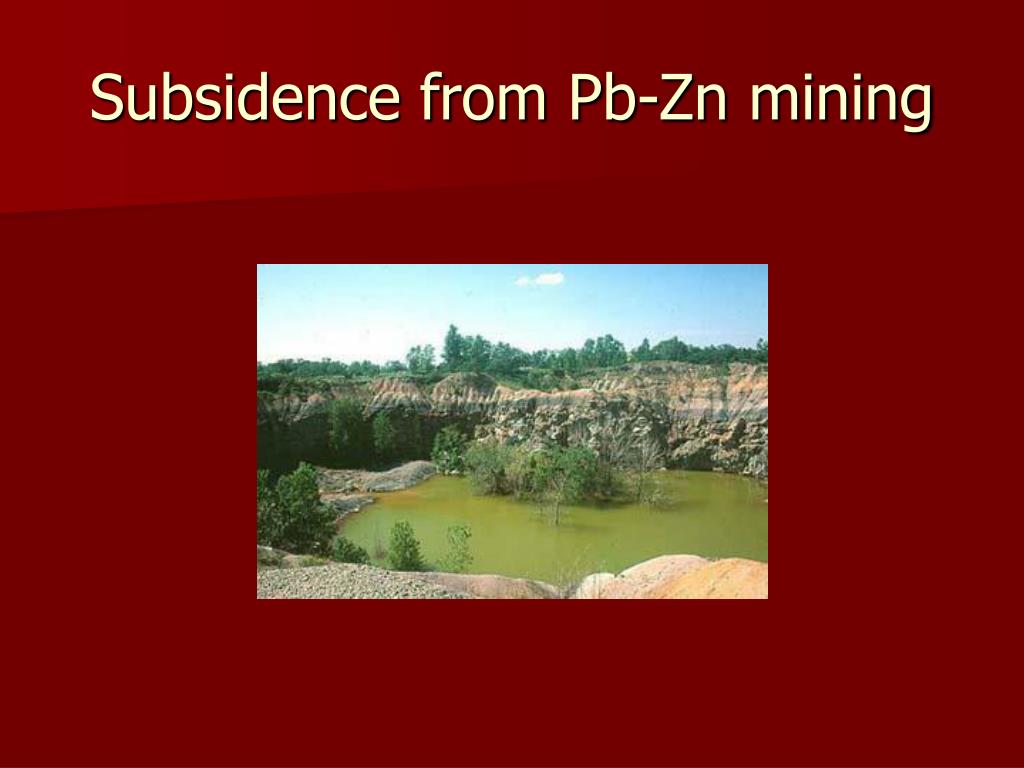

  39. Subsidence from Pb-Zn mining

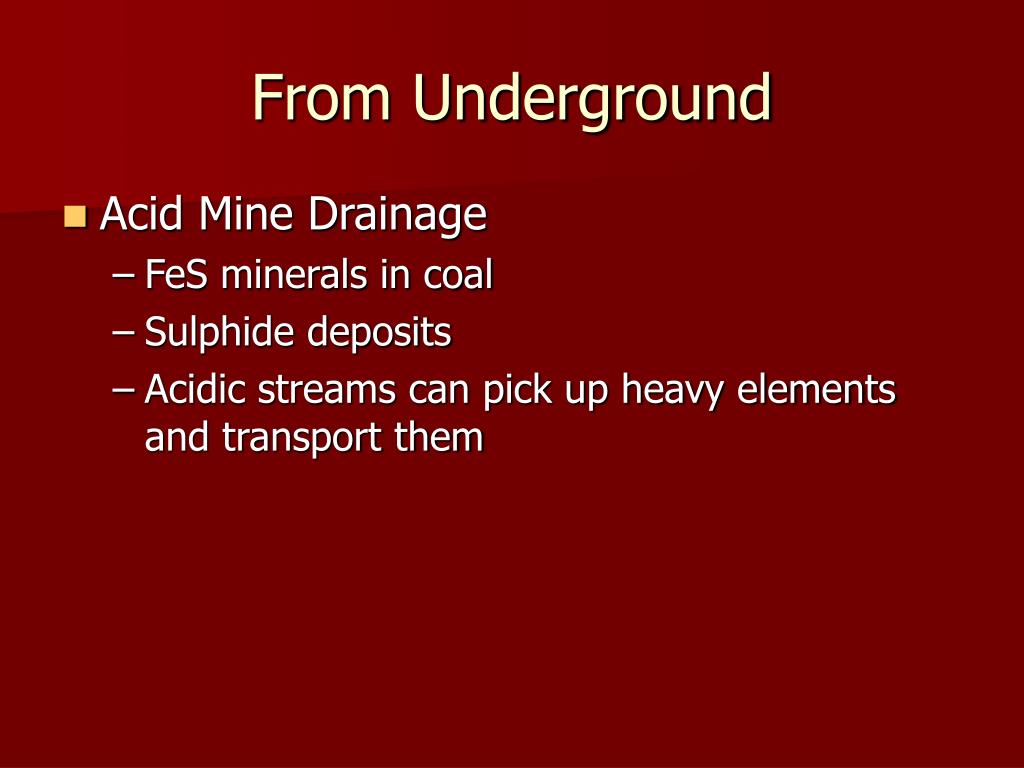

  40. From Underground • Acid Mine Drainage • FeS minerals in coal • Sulphide deposits • Acidic streams can pick up heavy elements and transport them

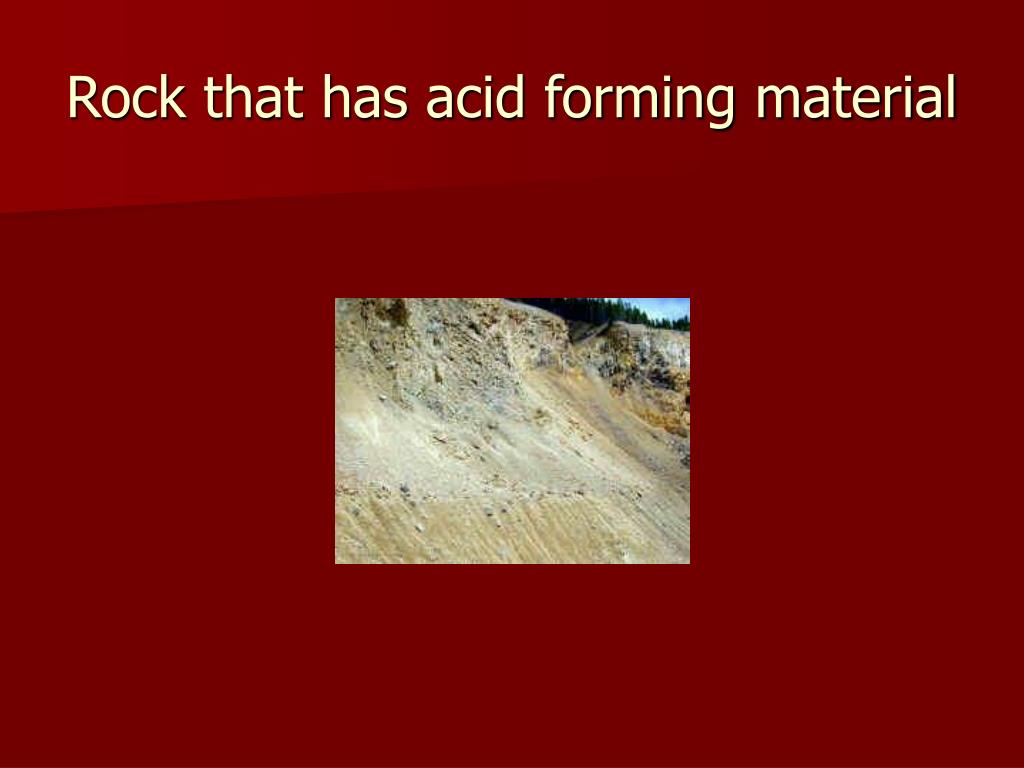

  41. Rock that has acid forming material
