New precise a k measurement as a test of internal conversion theory

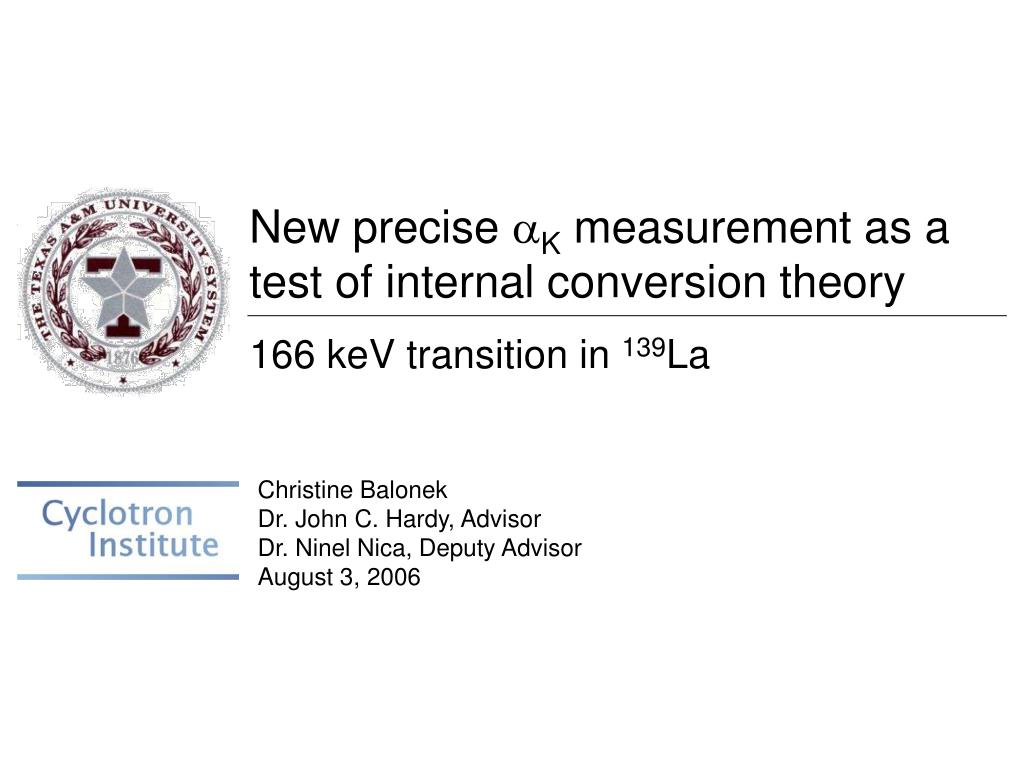

New precise aK measurement as a test of internal conversion theory

166 keV transition in 139La

Christine Balonek

Dr. John C. Hardy, Advisor

Dr. Ninel Nica, Deputy Advisor

August 3, 2006


Overview

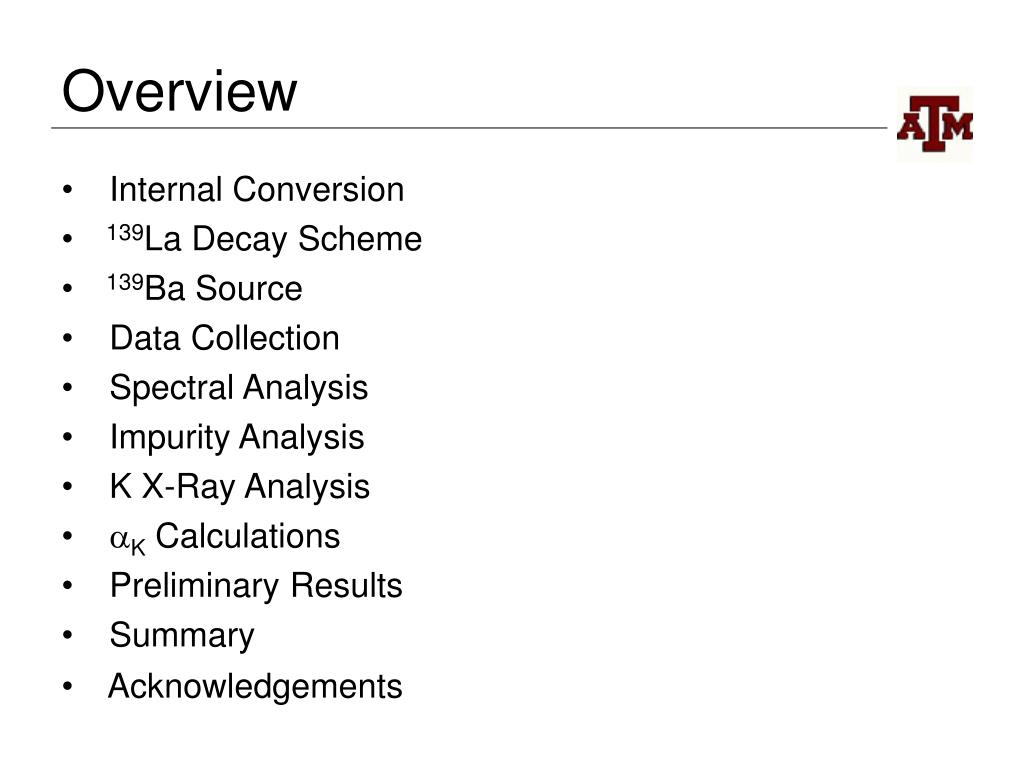

Overview

  • Internal Conversion

  • 139La Decay Scheme

  • 139Ba Source

  • Data Collection

  • Spectral Analysis

  • Impurity Analysis

  • K X-Ray Analysis

  • aK Calculations

  • Preliminary Results

  • Summary

  • Acknowledgements


Internal conversion

L shell

e-

~10-18 s

K shell

g-ray

Hole

x-ray

e-

~10-17 s

Internal Conversion

  • Nuclear de-excitation energy transferred to an electron

    • Electron is emitted and followed by an x-ray

    • In competition with g-ray emission

  • Internal Conversion Coefficient

  • Impact

    • Nuclear decay schemes

      • Spin and parity assignments

      • Transition rates

      • Branching ratios

    • Detector calibration


New precise a k measurement as a test of internal conversion theory

139La Decay Scheme

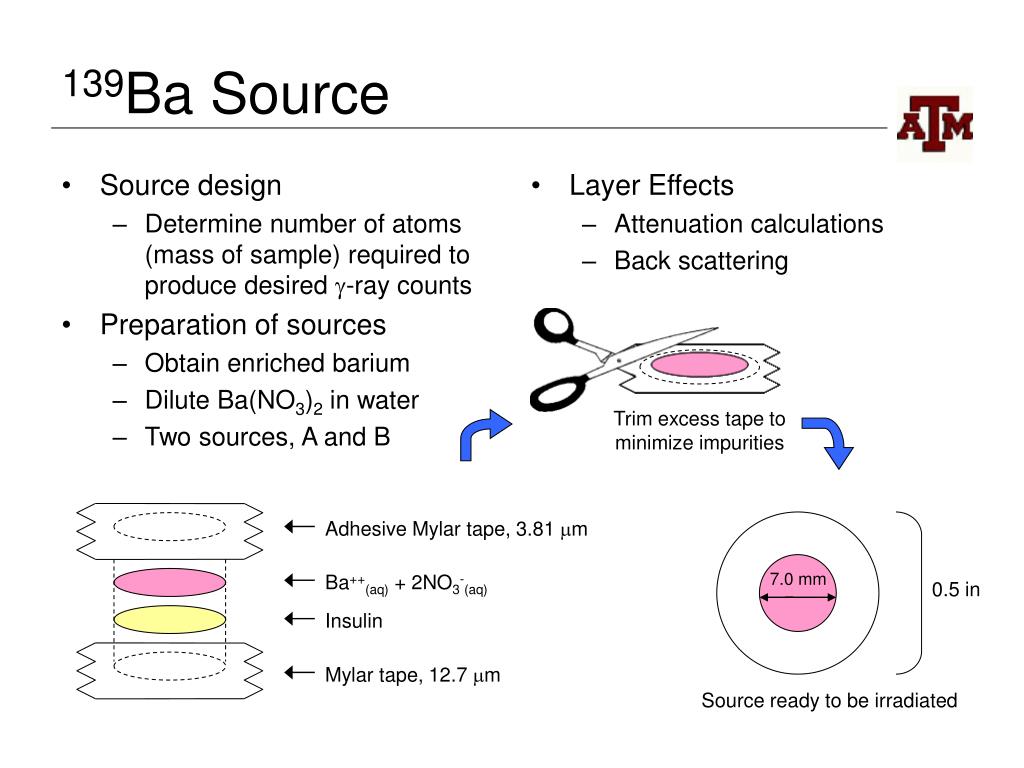

139 ba source

Trim excess tape to minimize impurities

Adhesive Mylar tape, 3.81 mm

Ba++(aq) + 2NO3-(aq)

Insulin

Mylar tape, 12.7 mm

139Ba Source

  • Layer Effects

    • Attenuation calculations

    • Back scattering

  • Source design

    • Determine number of atoms (mass of sample) required to produce desired g-ray counts

  • Preparation of sources

    • Obtain enriched barium

    • Dilute Ba(NO3)2 in water

    • Two sources, A and B

7.0 mm

0.5 in

Source ready to be irradiated


Data collection

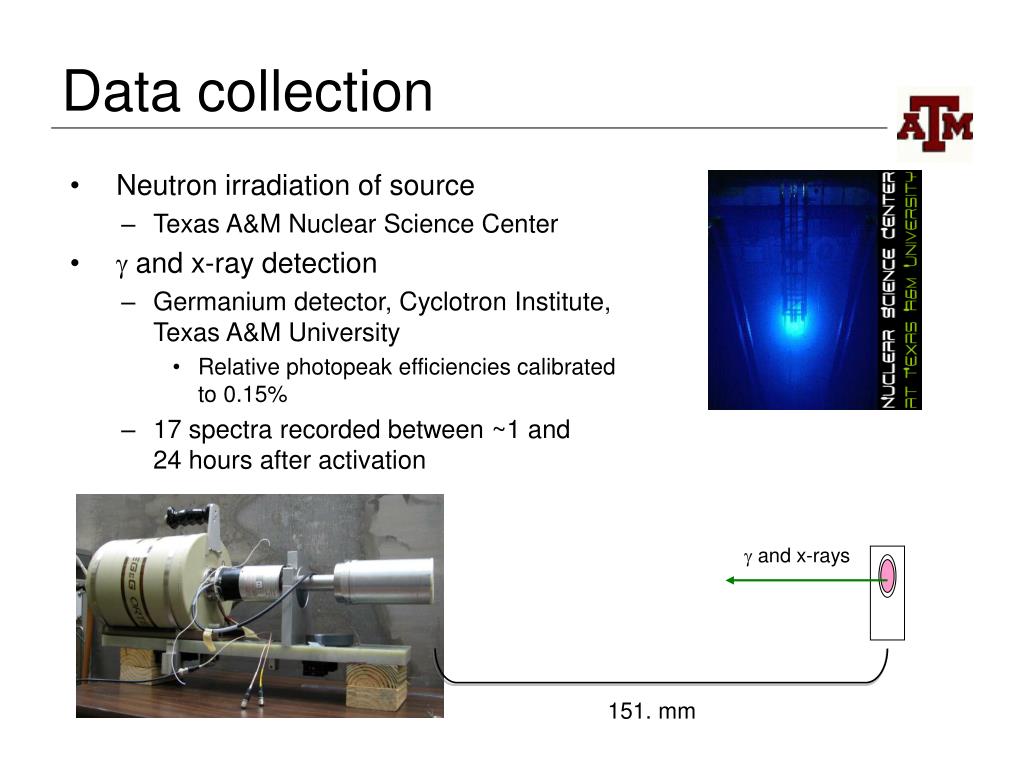

Data collection

Neutron irradiation of source

Texas A&M Nuclear Science Center

g and x-ray detection

Germanium detector, Cyclotron Institute, Texas A&M University

Relative photopeak efficiencies calibrated to 0.15%

17 spectra recorded between ~1 and 24 hours after activation

g and x-rays

151. mm


New precise a k measurement as a test of internal conversion theory

Spectral Analysis

  • Source A, Sept. 2005 irradiation, spectrum 1

    • 52.7 min elapsed time / 46.9 min live time (~0.6 half lives)


New precise a k measurement as a test of internal conversion theory

g-ray

Ka

Kb

x-rays

Impurity Analysis

x-ray impurities

29.623 keV to 42.290 keV

g-ray impurities

163.138 keV to 168.638 keV


New precise a k measurement as a test of internal conversion theory

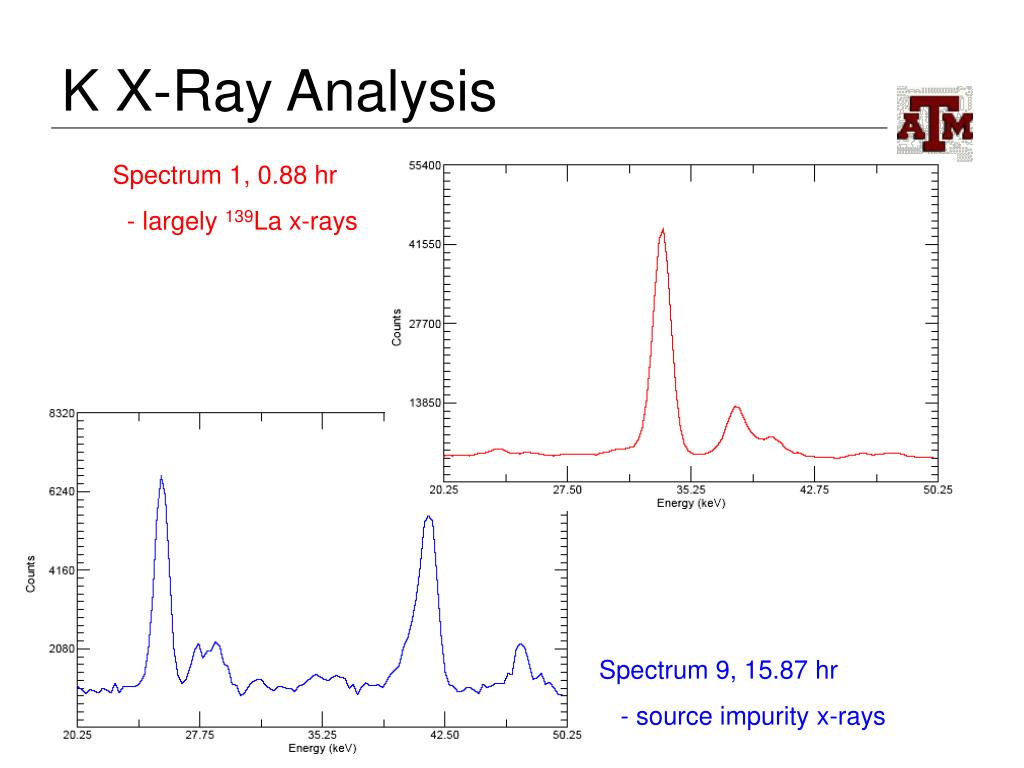

K X-Ray Analysis

Spectrum 1, 0.88 hr

- largely 139La x-rays

Spectrum 9, 15.87 hr

- source impurity x-rays


New precise a k measurement as a test of internal conversion theory

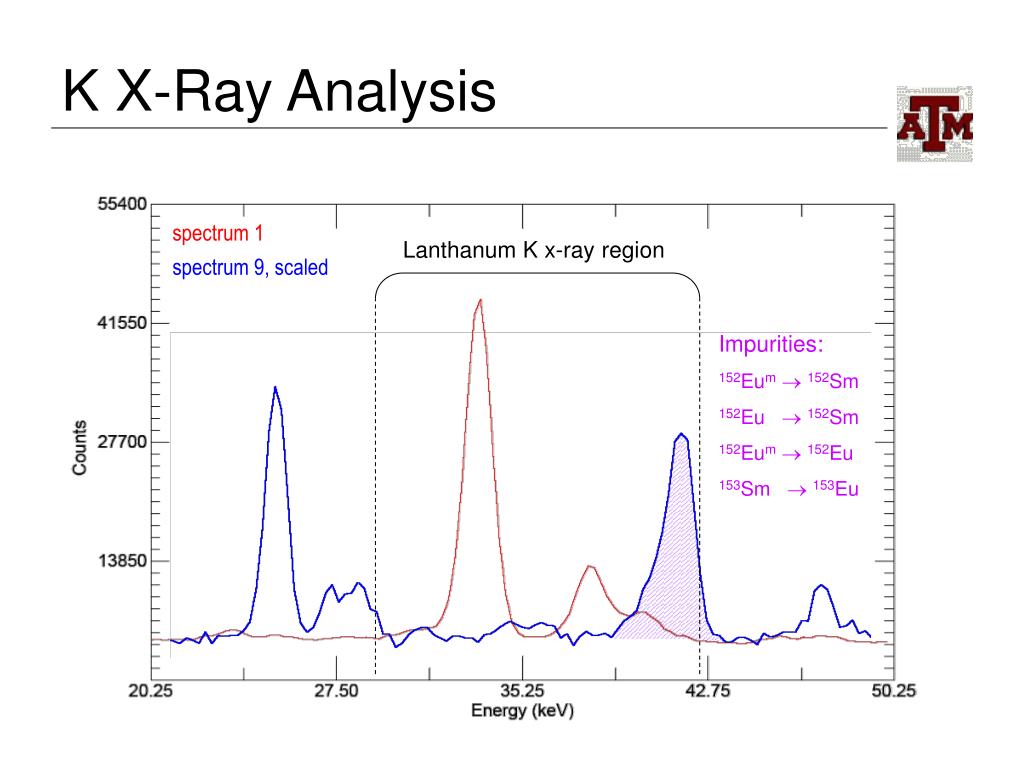

K X-Ray Analysis

spectrum 1

Lanthanum K x-ray region

spectrum 9, scaled

Impurities:

152Eum152Sm

152Eu  152Sm

152Eum  152Eu

153Sm  153Eu


New precise a k measurement as a test of internal conversion theory

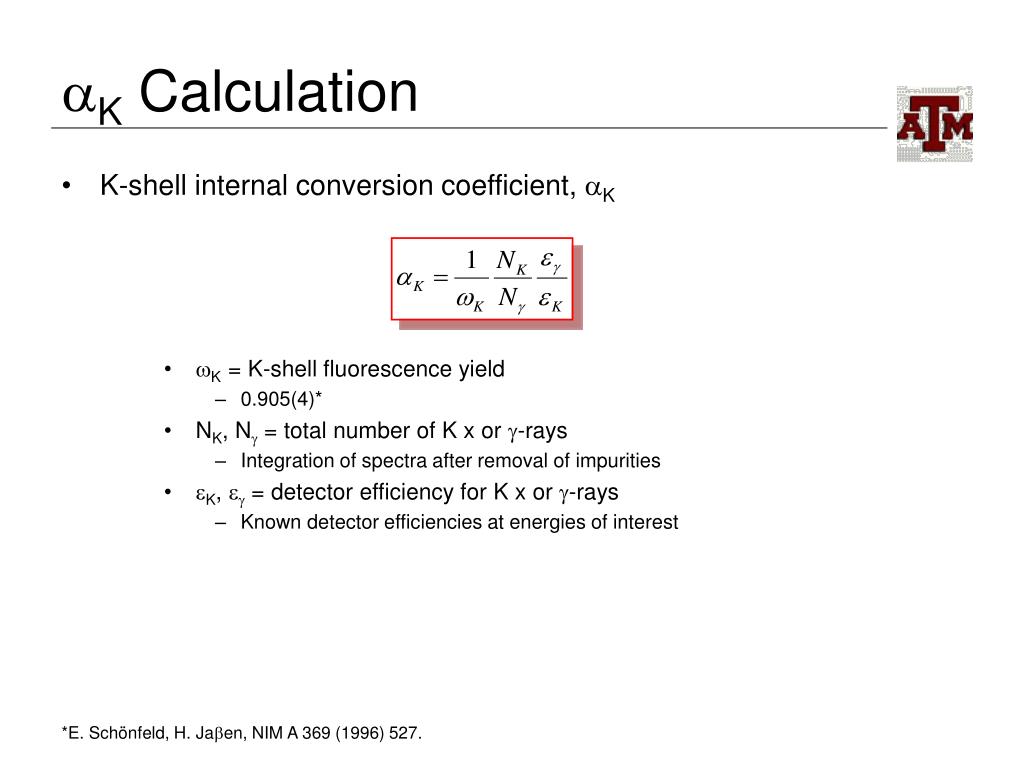

aK Calculation

  • K-shell internal conversion coefficient, aK

    • wK = K-shell fluorescence yield

      • 0.905(4)*

    • NK, Ng = total number of K x or g-rays

      • Integration of spectra after removal of impurities

    • eK, eg = detector efficiency for K x or g-rays

      • Known detector efficiencies at energies of interest

*E. Schönfeld, H. Jaben, NIM A 369 (1996) 527.


New precise a k measurement as a test of internal conversion theory

Preliminary Results

Source A, Sept. 2005 Irradiation

Source B, July 2006 Irradiation

Theoretical Calculations


New precise a k measurement as a test of internal conversion theory

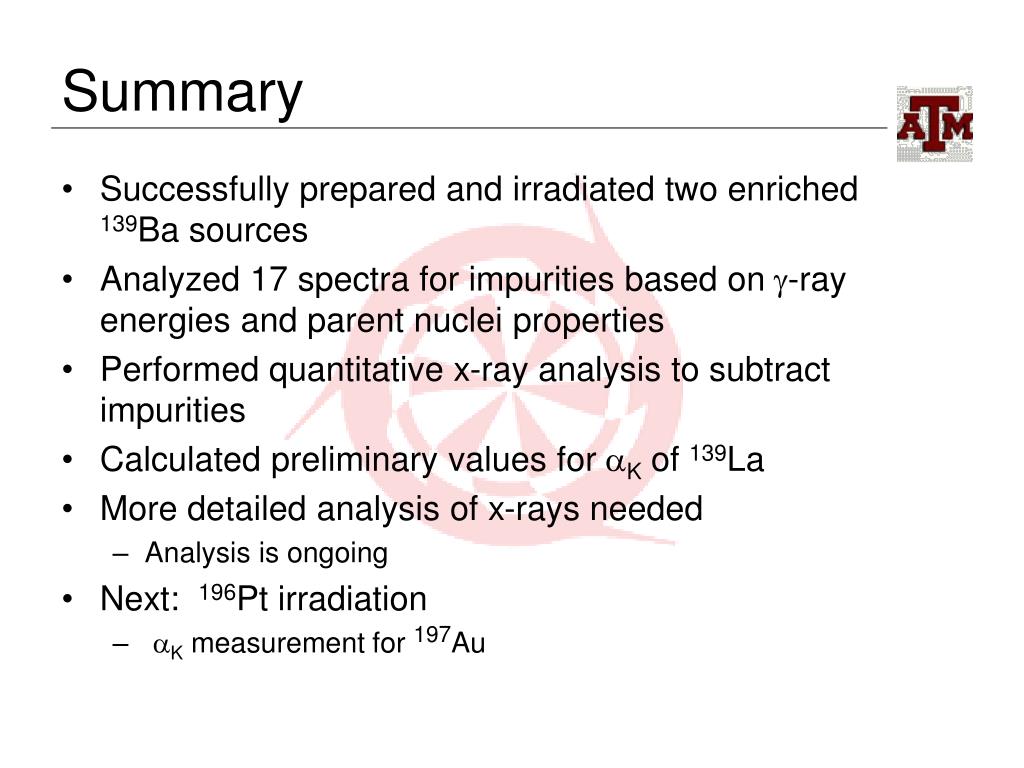

Summary

  • Successfully prepared and irradiated two enriched 139Ba sources

  • Analyzed 17 spectra for impurities based on g-ray energies and parent nuclei properties

  • Performed quantitative x-ray analysis to subtract impurities

  • Calculated preliminary values for aK of 139La

  • More detailed analysis of x-rays needed

    • Analysis is ongoing

  • Next: 196Pt irradiation

    • aK measurement for 197Au


Acknowledgements

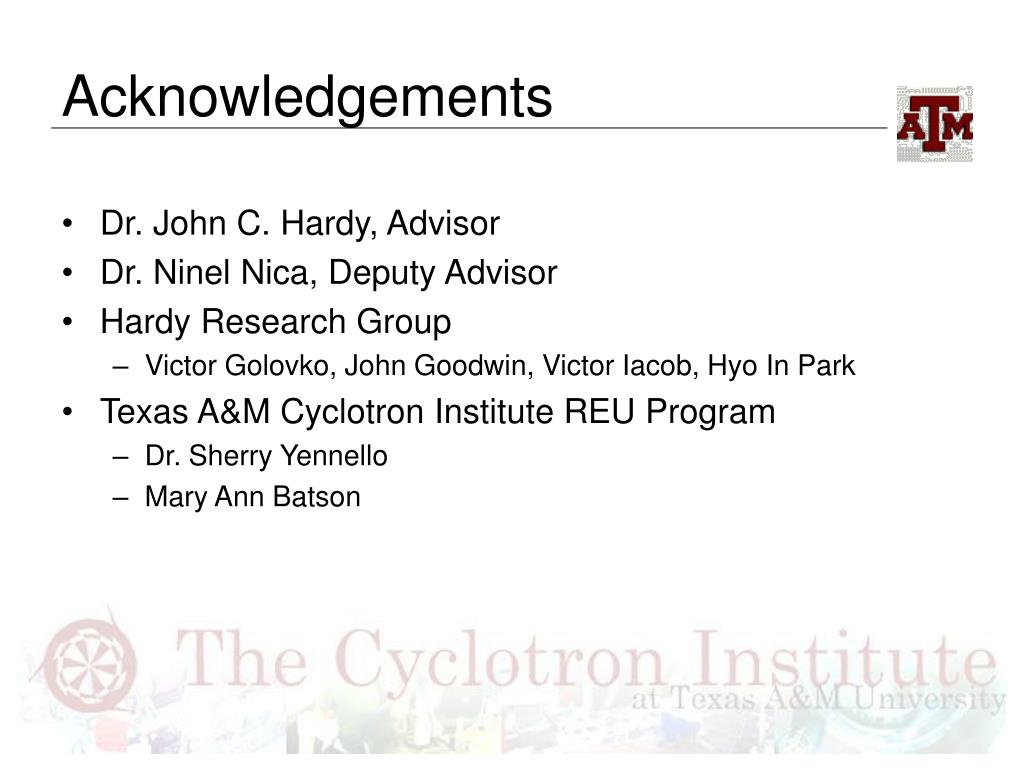

Acknowledgements

  • Dr. John C. Hardy, Advisor

  • Dr. Ninel Nica, Deputy Advisor

  • Hardy Research Group

    • Victor Golovko, John Goodwin, Victor Iacob, Hyo In Park

  • Texas A&M Cyclotron Institute REU Program

    • Dr. Sherry Yennello

    • Mary Ann Batson
