Computer architecture

Computer Architecture

Virtual Memory


What do we want

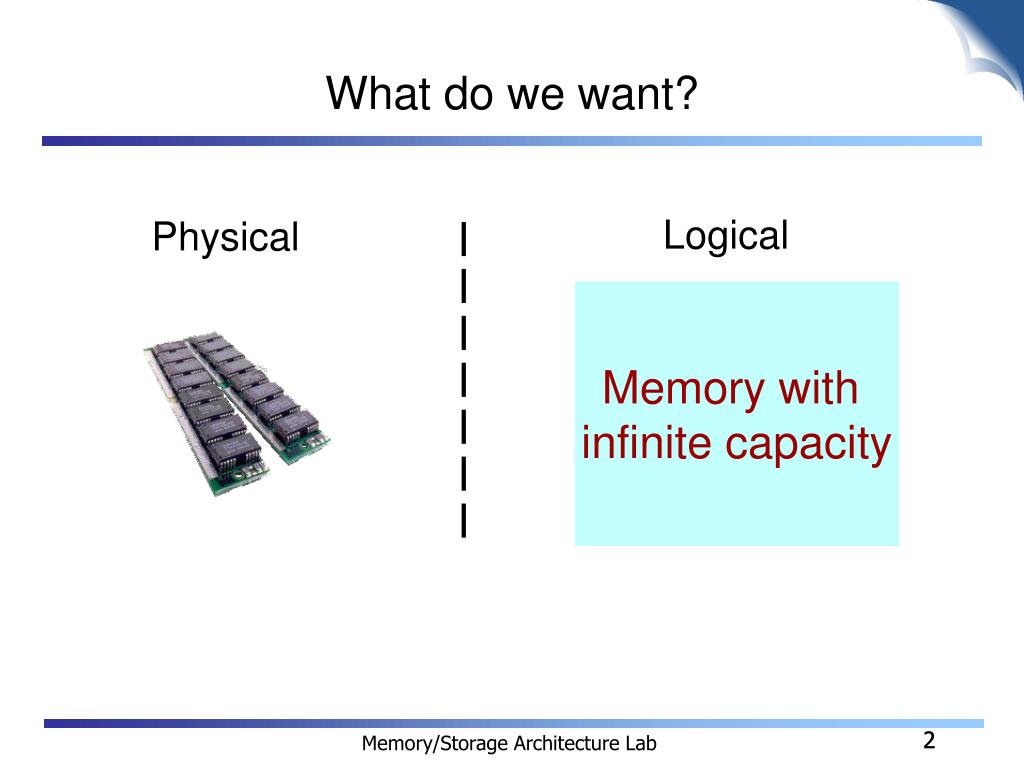

What do we want?

Logical

Physical

Memory with

infinite capacity


Virtual memory concept

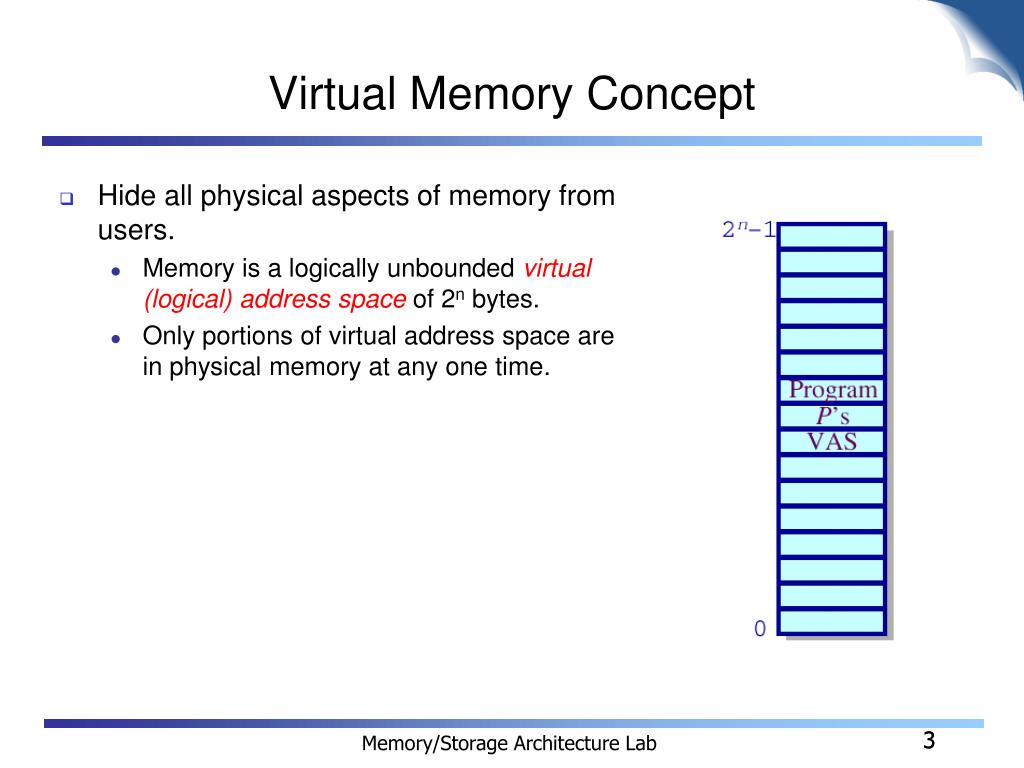

Virtual Memory Concept

  • Hide all physical aspects of memory from users.

    • Memory is a logically unbounded virtual (logical) address space of 2n bytes.

    • Only portions of virtual address space are in physical memory at any one time.


Paging

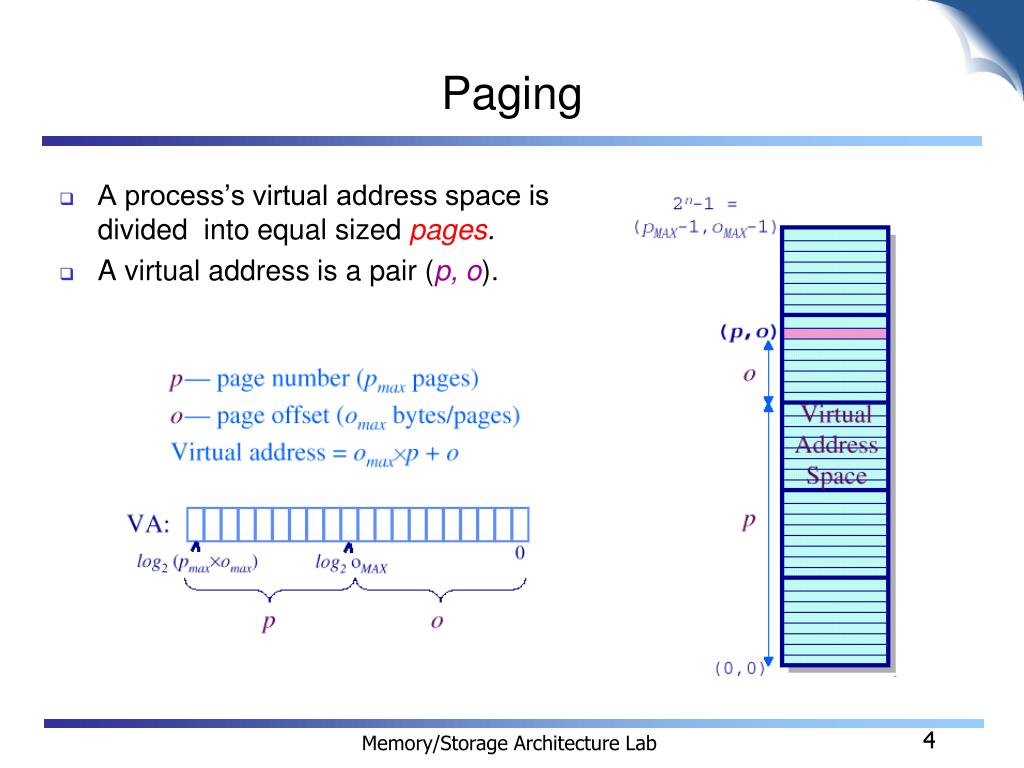

Paging

  • A process’s virtual address space is divided into equal sized pages.

  • A virtual address is a pair (p, o).


Paging1

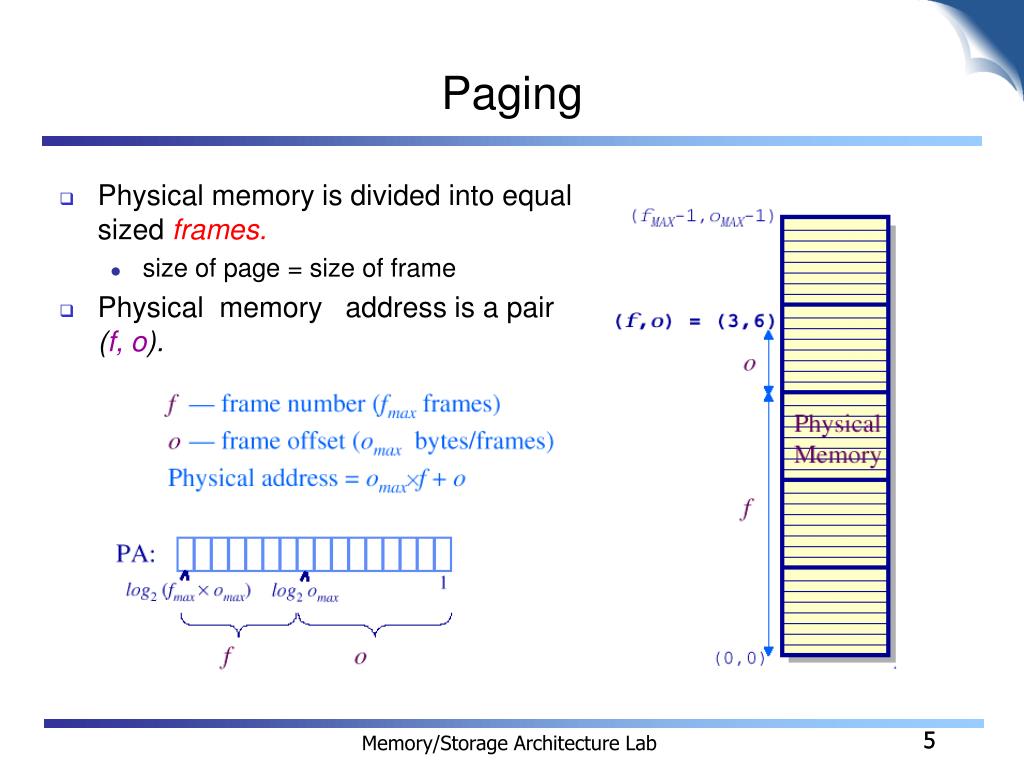

Paging

  • Physical memory is divided into equal sized frames.

    • size of page = size of frame

  • Physical memory address is a pair (f, o).


Paging2

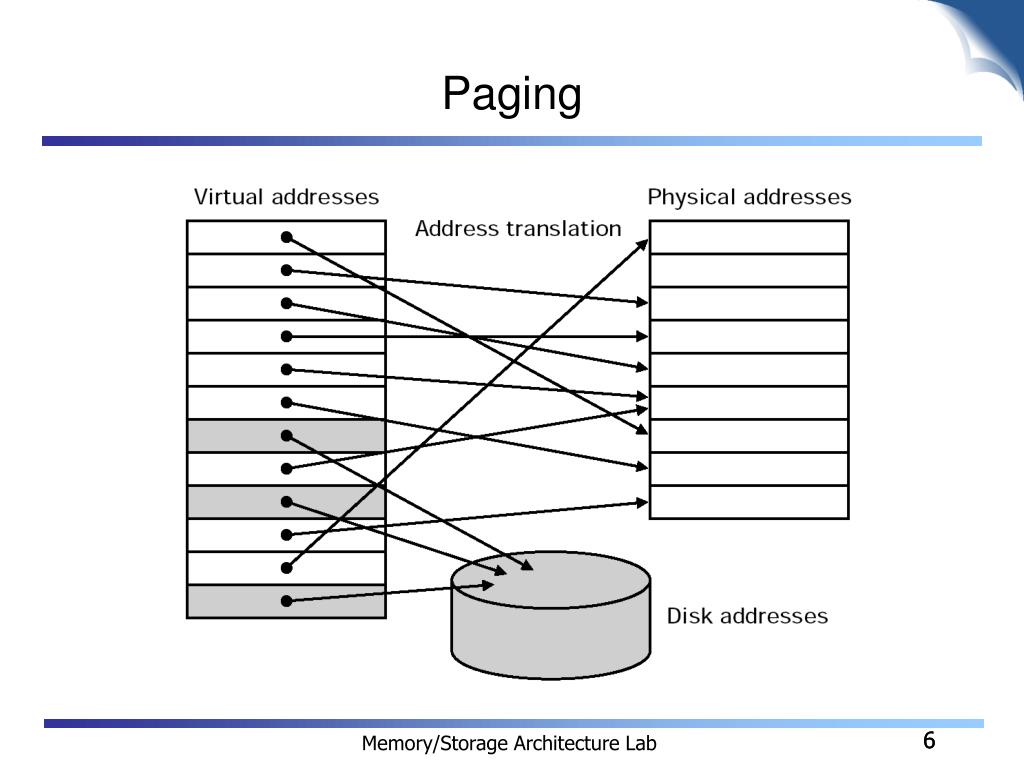

Paging


Mapping from a virtual to a physical address

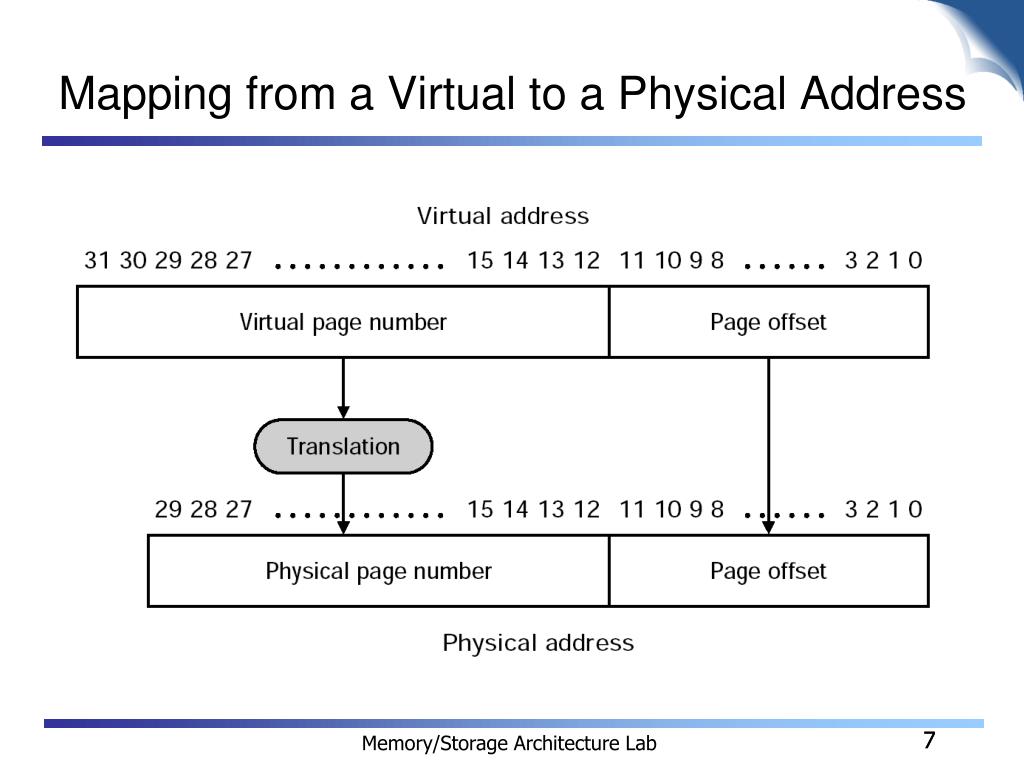

Mapping from a Virtual to a Physical Address


Paging virtual address translation

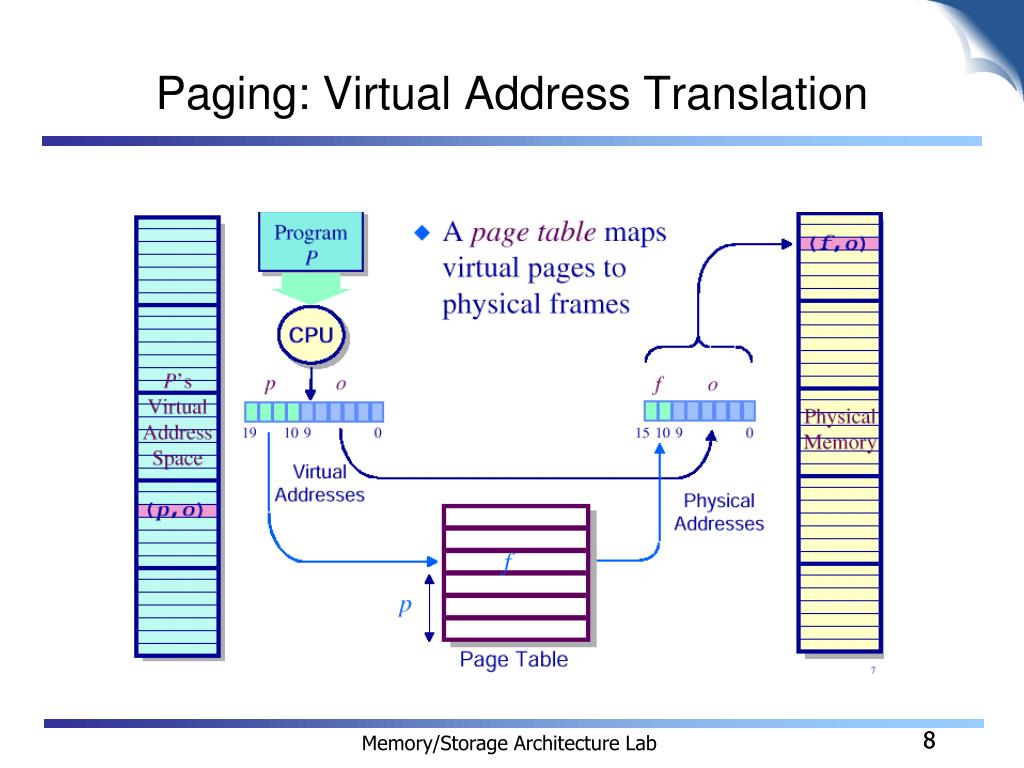

Paging: Virtual Address Translation


Paging page table structure

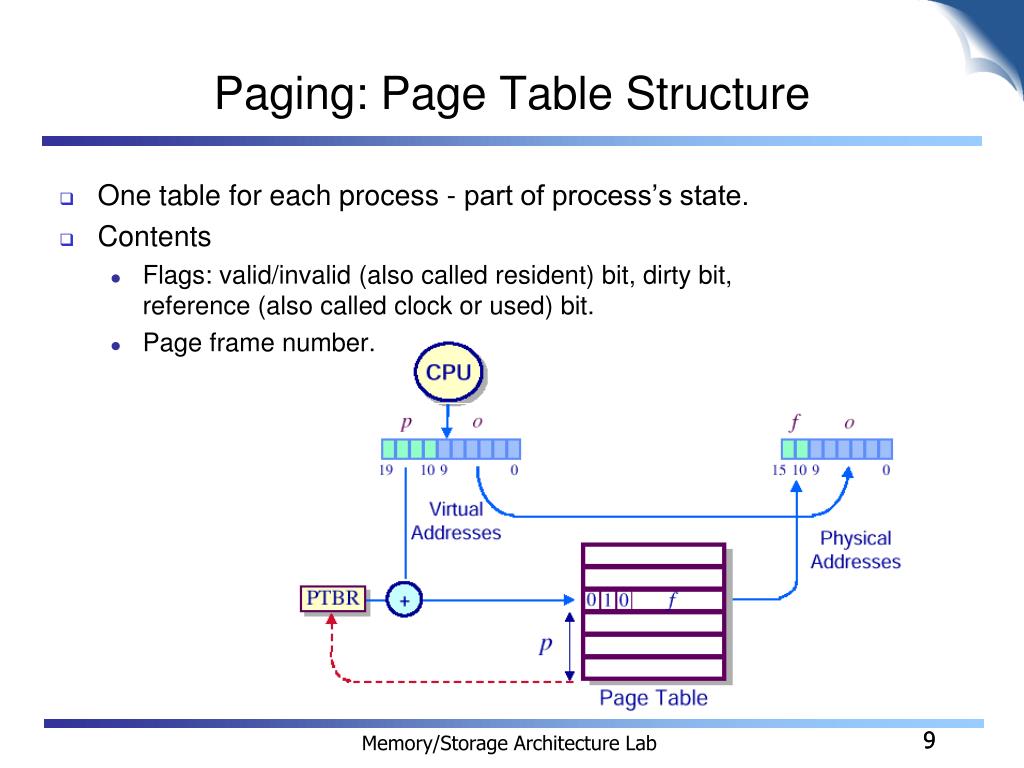

Paging: Page Table Structure

  • One table for each process - part of process’s state.

  • Contents

    • Flags: valid/invalid (also called resident) bit, dirty bit, reference (also called clock or used) bit.

    • Page frame number.


Paging example

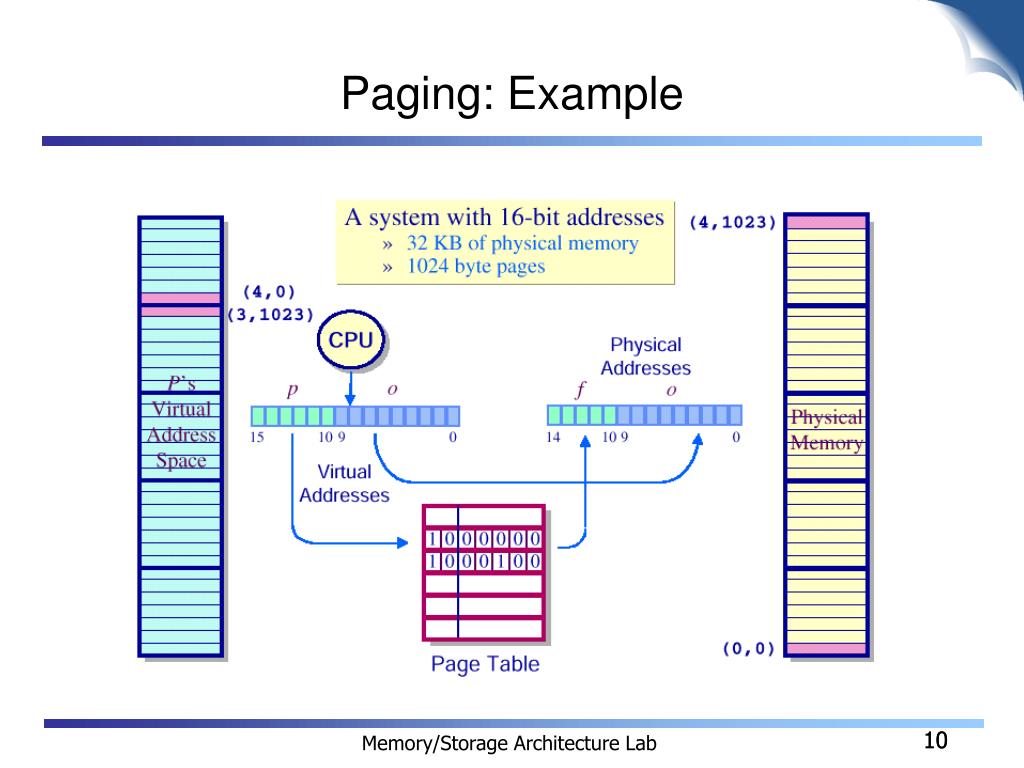

Paging: Example


Demand paging

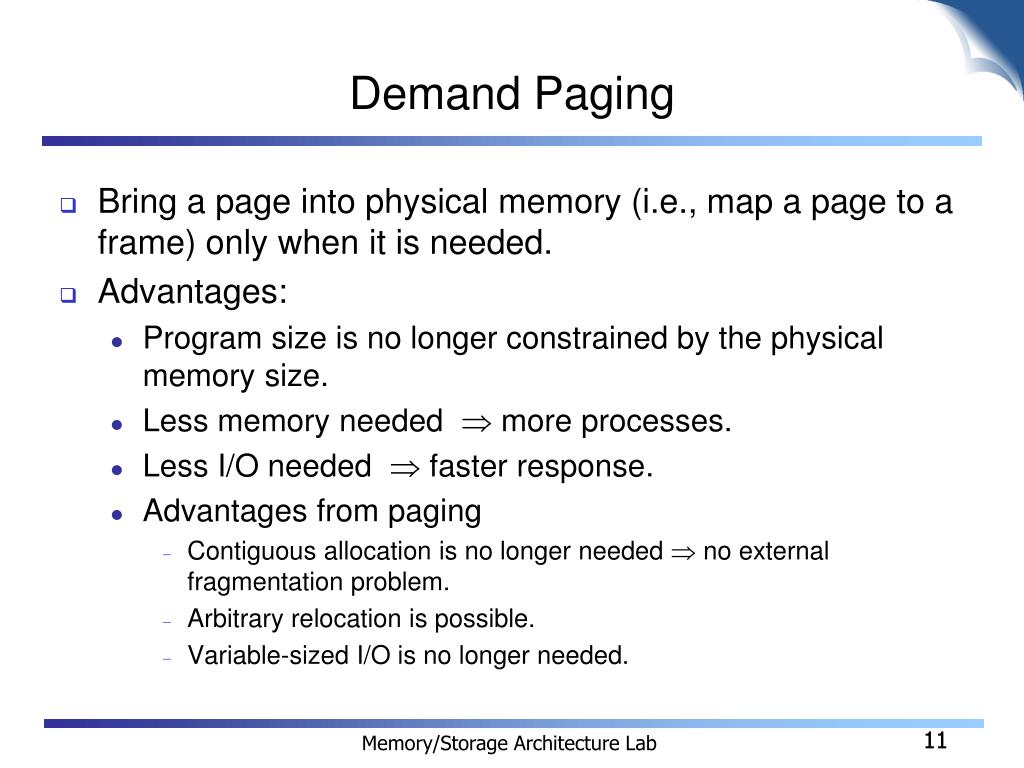

Demand Paging

  • Bring a page into physical memory (i.e., map a page to a frame) only when it is needed.

  • Advantages:

    • Program size is no longer constrained by the physical memory size.

    • Less memory needed  more processes.

    • Less I/O needed  faster response.

    • Advantages from paging

      • Contiguous allocation is no longer needed  no external fragmentation problem.

      • Arbitrary relocation is possible.

      • Variable-sized I/O is no longer needed.


Translation look aside buffer tlb

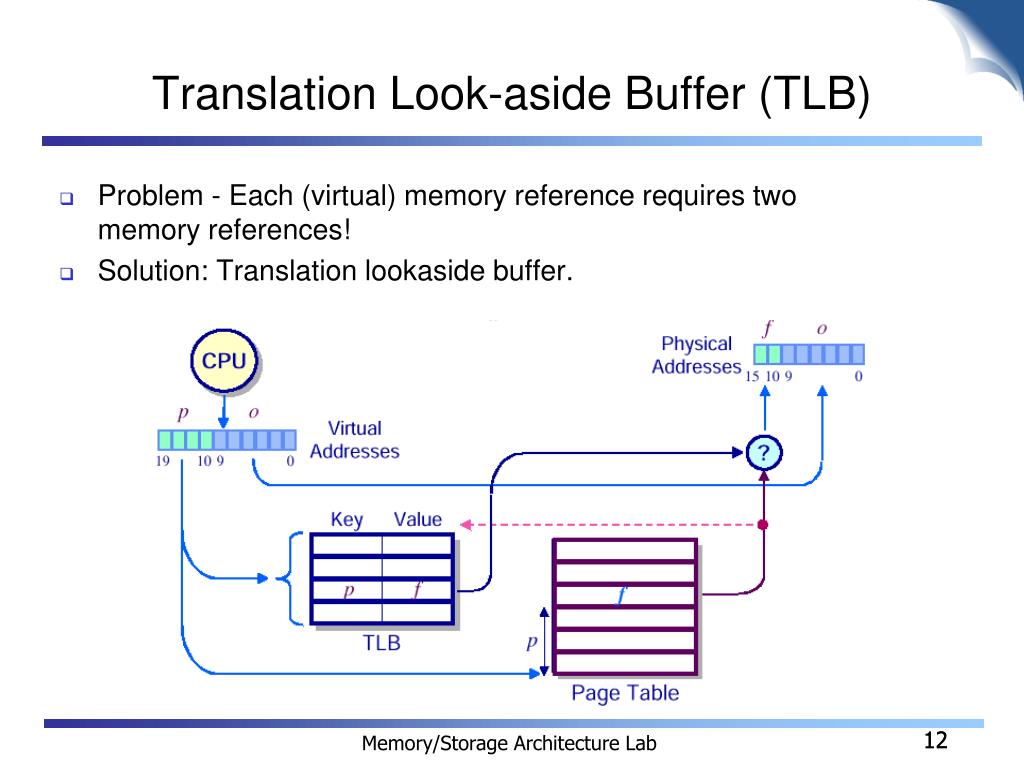

Translation Look-aside Buffer (TLB)

  • Problem - Each (virtual) memory reference requires two memory references!

  • Solution: Translation lookaside buffer.

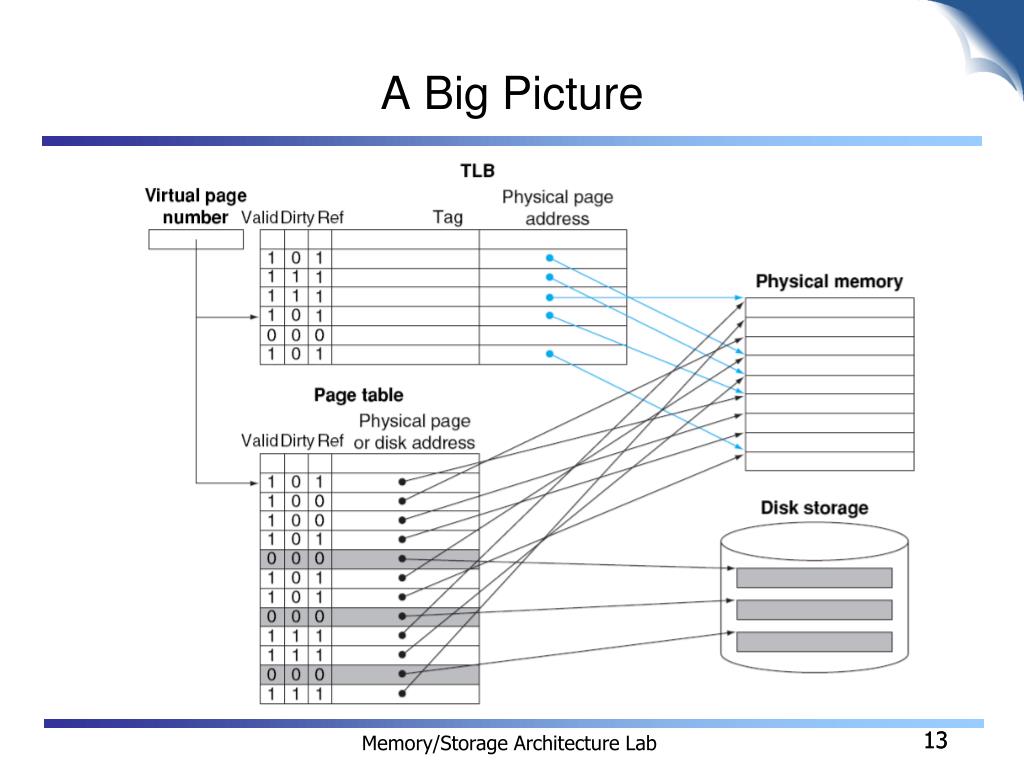

A big picture

A Big Picture

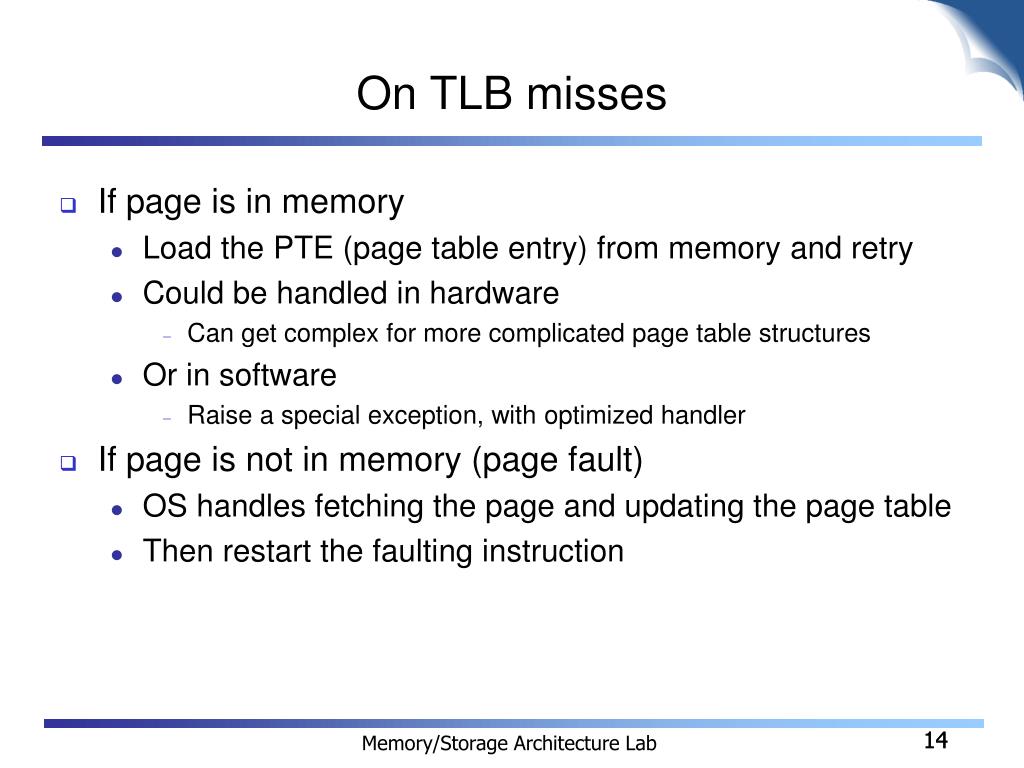

On tlb misses

On TLB misses

  • If page is in memory

    • Load the PTE (page table entry) from memory and retry

    • Could be handled in hardware

      • Can get complex for more complicated page table structures

    • Or in software

      • Raise a special exception, with optimized handler

  • If page is not in memory (page fault)

    • OS handles fetching the page and updating the page table

    • Then restart the faulting instruction


Tlb miss handler

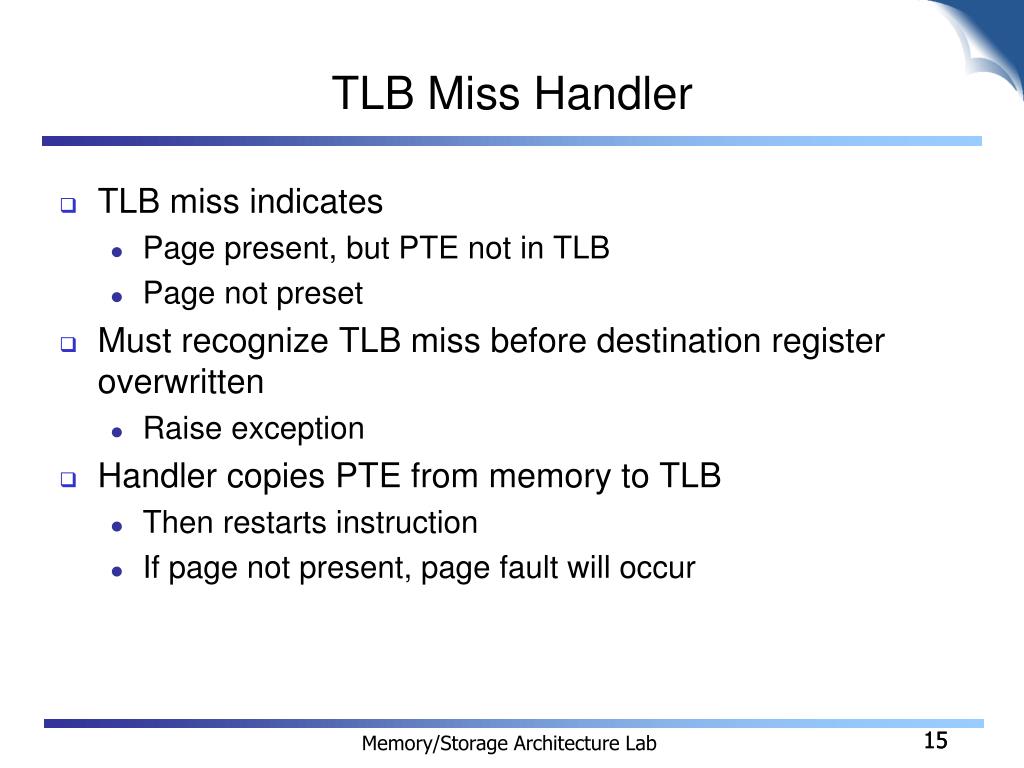

TLB Miss Handler

  • TLB miss indicates

    • Page present, but PTE not in TLB

    • Page not preset

  • Must recognize TLB miss before destination register overwritten

    • Raise exception

  • Handler copies PTE from memory to TLB

    • Then restarts instruction

    • If page not present, page fault will occur


Page fault handler

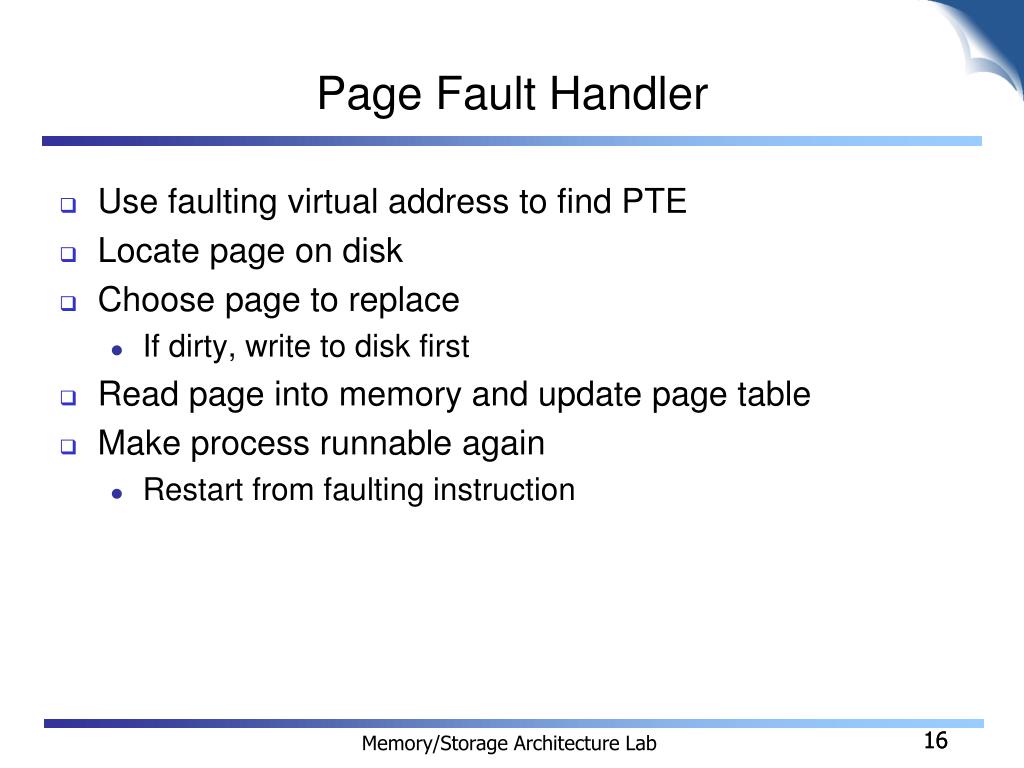

Page Fault Handler

  • Use faulting virtual address to find PTE

  • Locate page on disk

  • Choose page to replace

    • If dirty, write to disk first

  • Read page into memory and update page table

  • Make process runnable again

    • Restart from faulting instruction


Paging protection and sharing

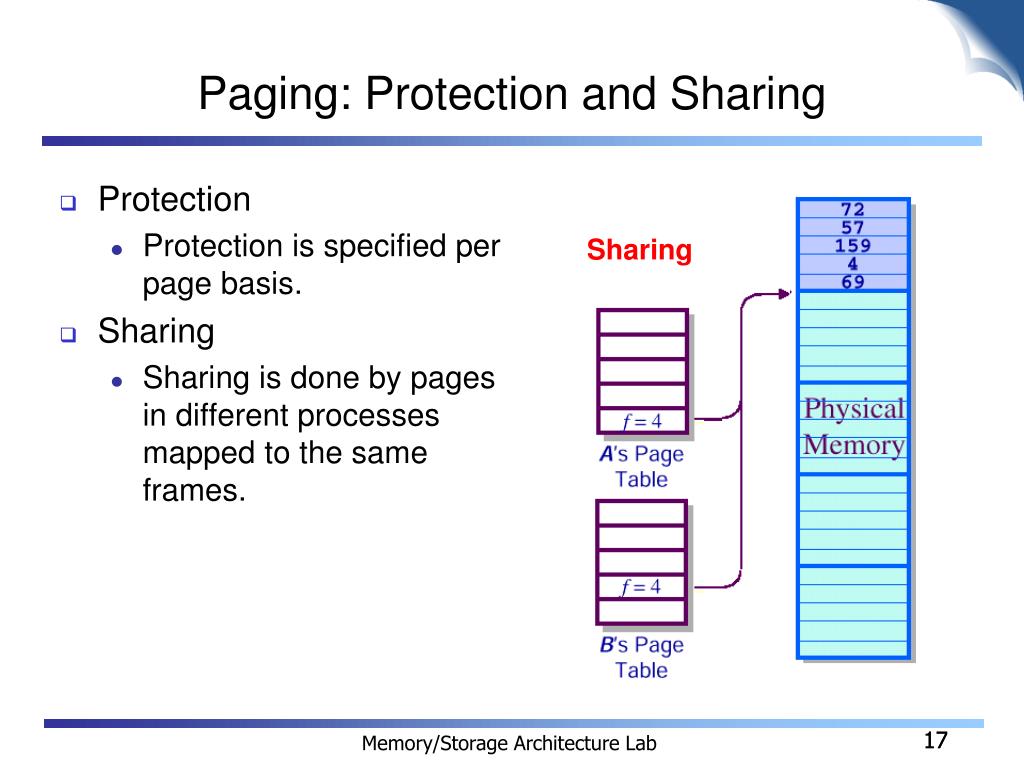

Paging: Protection and Sharing

  • Protection

    • Protection is specified per page basis.

  • Sharing

    • Sharing is done by pages in different processes mapped to the same frames.

Sharing


Virtual memory performance

Virtual Memory Performance

  • Example

    • Memory access time: 100 ns

    • Disk access time: 25 ms

    • Effective access time

      • Let p = the probability of a page fault

      • Effective access time = 100(1-p) + 25,000,000p

      • If we want only 10% degradation

        • 110 > 100 + 25,000,000p

        • 10 > 25,000,000p

        • p < 0.0000004 (one fault every 2,500,000 references)

  • Lesson: OS had better do a good job of page replacement!


Replacement algorithm lru least recently used algorithm

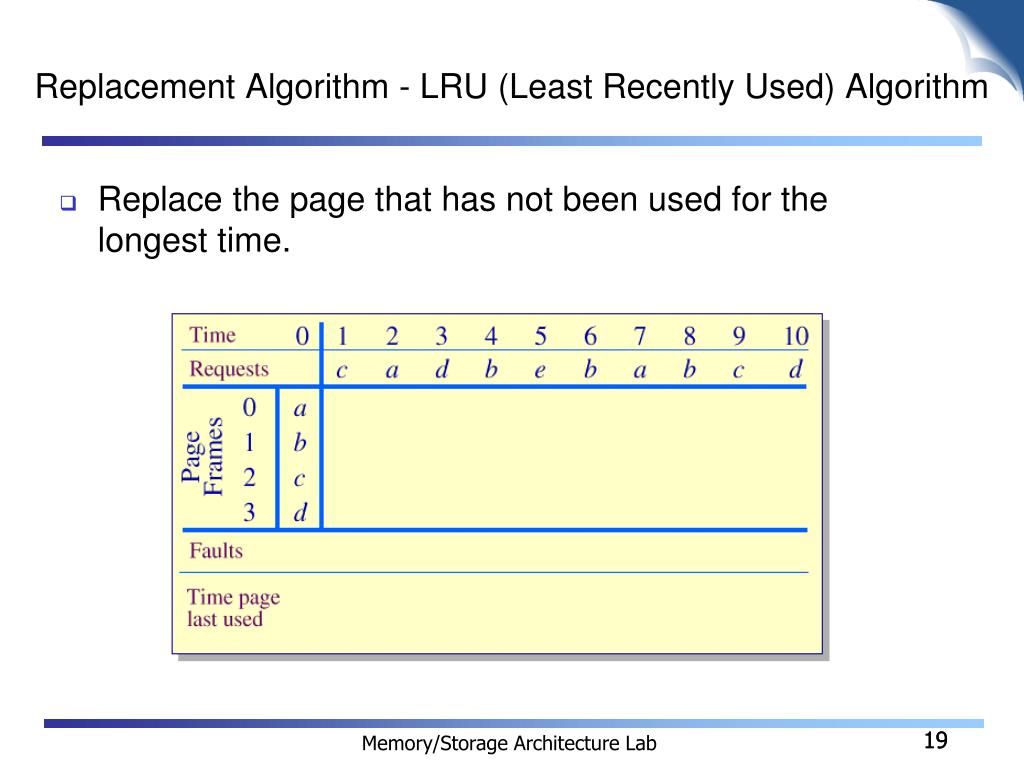

Replacement Algorithm - LRU (Least Recently Used) Algorithm

  • Replace the page that has not been used for the longest time.


Lru algorithm implementation

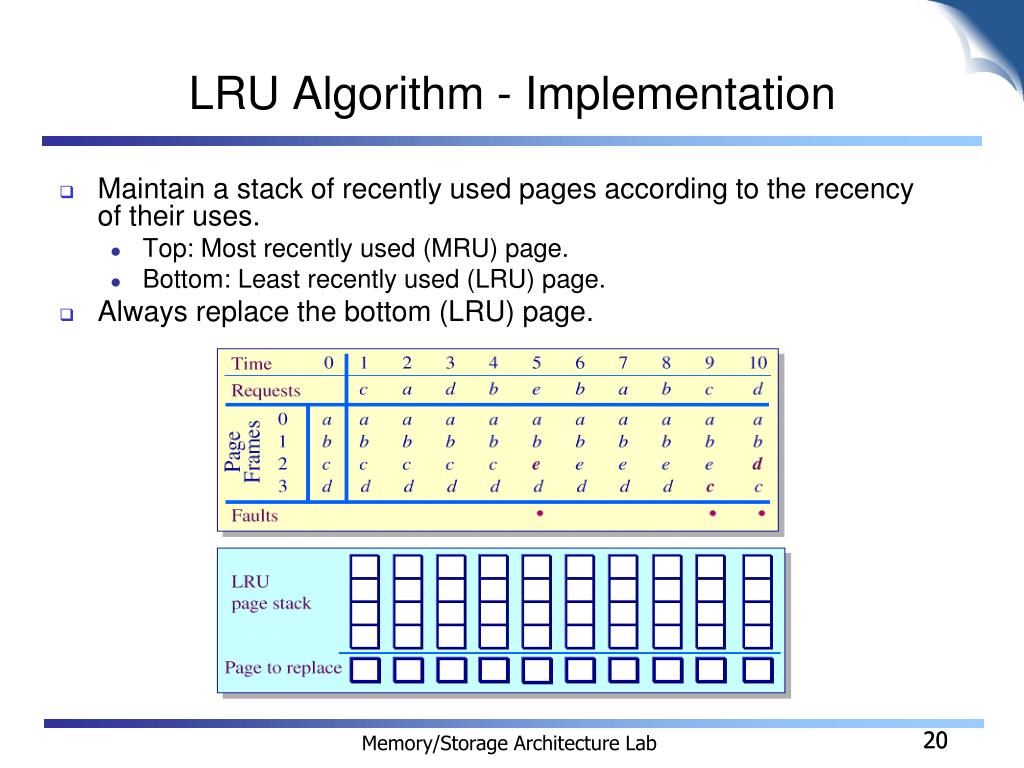

LRU Algorithm - Implementation

  • Maintain a stack of recently used pages according to the recency of their uses.

    • Top: Most recently used (MRU) page.

    • Bottom: Least recently used (LRU) page.

  • Always replace the bottom (LRU) page.


Lru approximation second chance algorithm

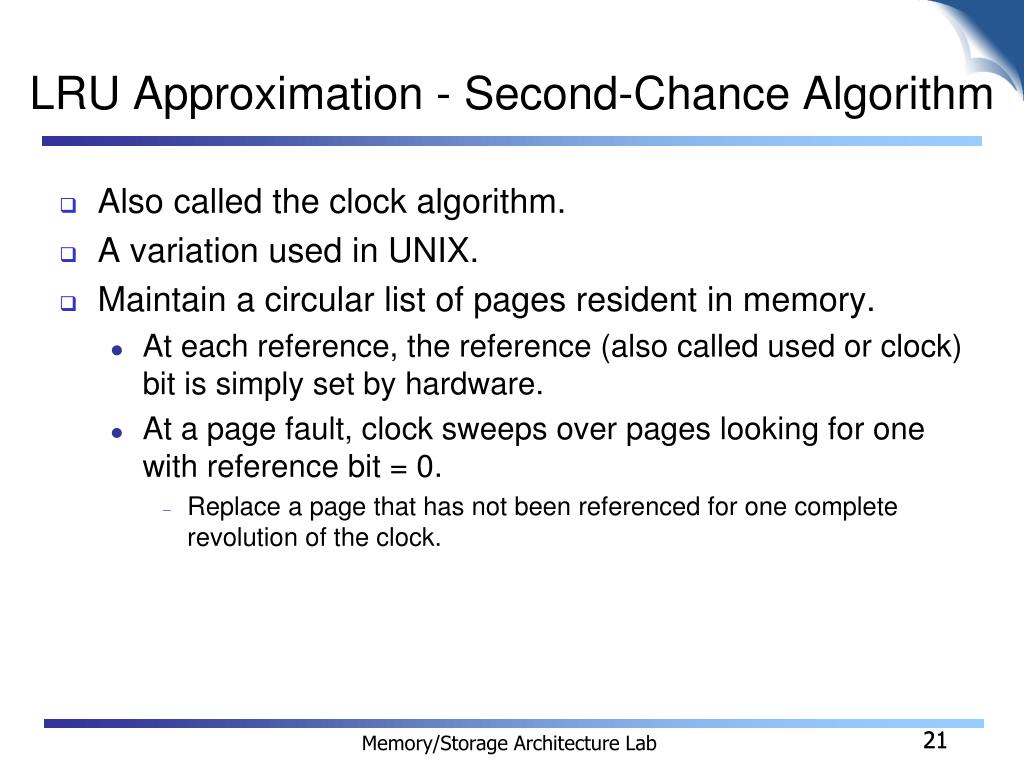

LRU Approximation - Second-Chance Algorithm

  • Also called the clock algorithm.

  • A variation used in UNIX.

  • Maintain a circular list of pages resident in memory.

    • At each reference, the reference (also called used or clock) bit is simply set by hardware.

    • At a page fault, clock sweeps over pages looking for one with reference bit = 0.

      • Replace a page that has not been referenced for one complete revolution of the clock.


Second chance algorithm

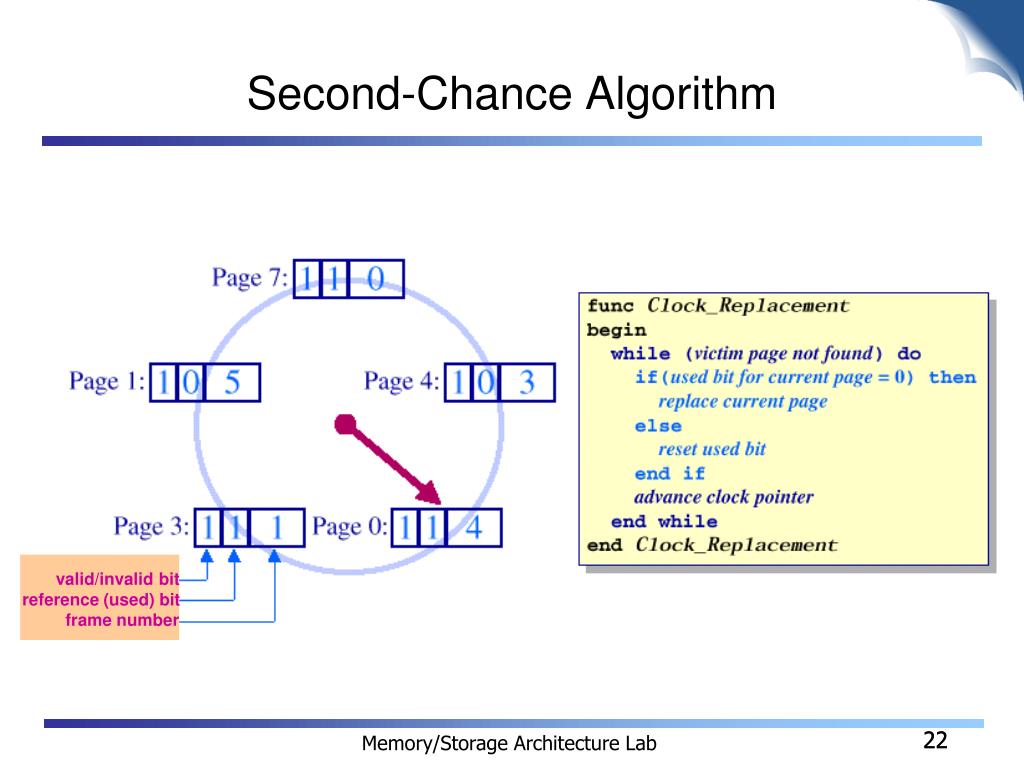

Second-Chance Algorithm

valid/invalid bit

reference (used) bit

frame number


Page size

Page Size

  • Small page sizes

    +less internal fragmentation, better memory utilization.

    -large page table, high page fault handling overheads.

  • Large page sizes

    +small page table, small page fault handling overheads.

    -more internal fragmentation, worse memory utilization.


I o interlock

I/O Interlock

  • Problem - DMA

    • Assume global page replacement.

    • A process blocked on an I/O operation appears to be an ideal candidate for replacement.

    • If replaced, however, I/O operation can corrupt the system.

  • Solutions

    1. Lock pages in physical memory using lock bits, or

    2. Perform all I/O into and out of OS space.


Segmentation with paging

Segmentation with Paging


Segmentation with paging1

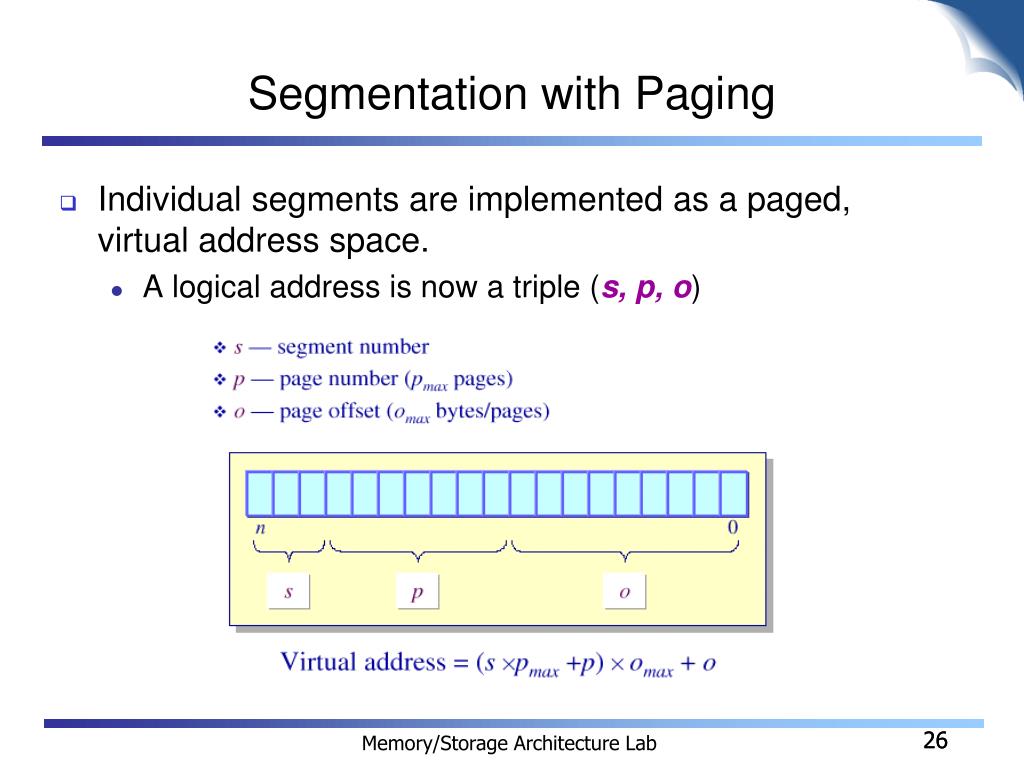

Segmentation with Paging

  • Individual segments are implemented as a paged, virtual address space.

    • A logical address is now a triple (s, p, o)

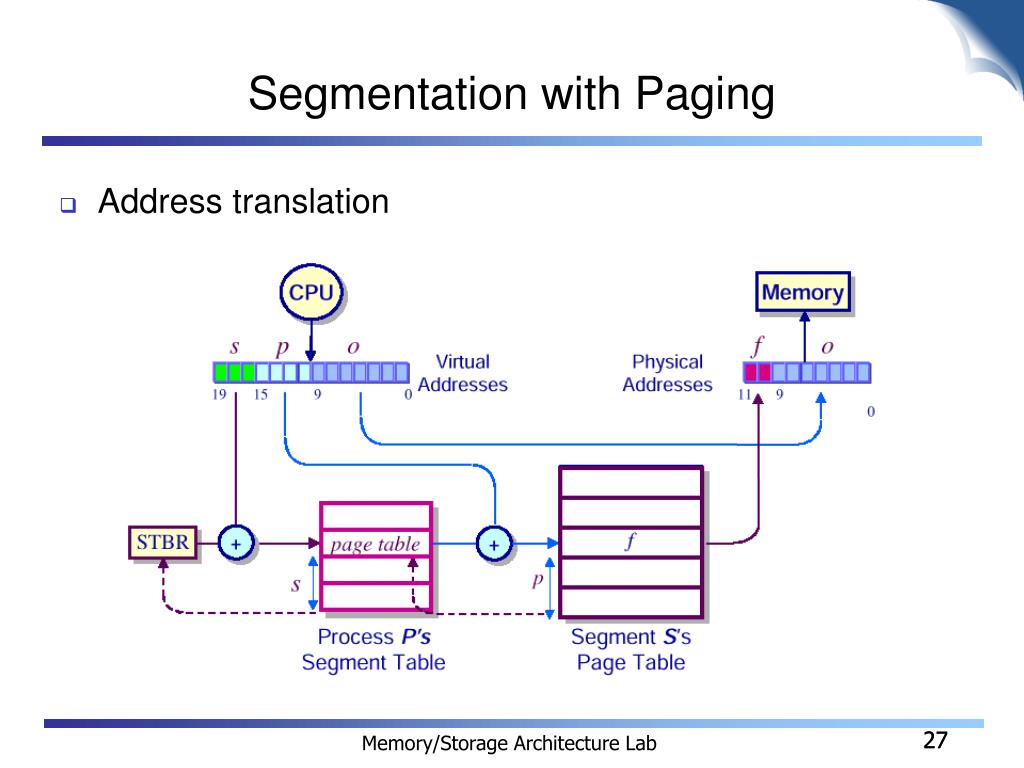

Segmentation with paging2

Segmentation with Paging

  • Address translation

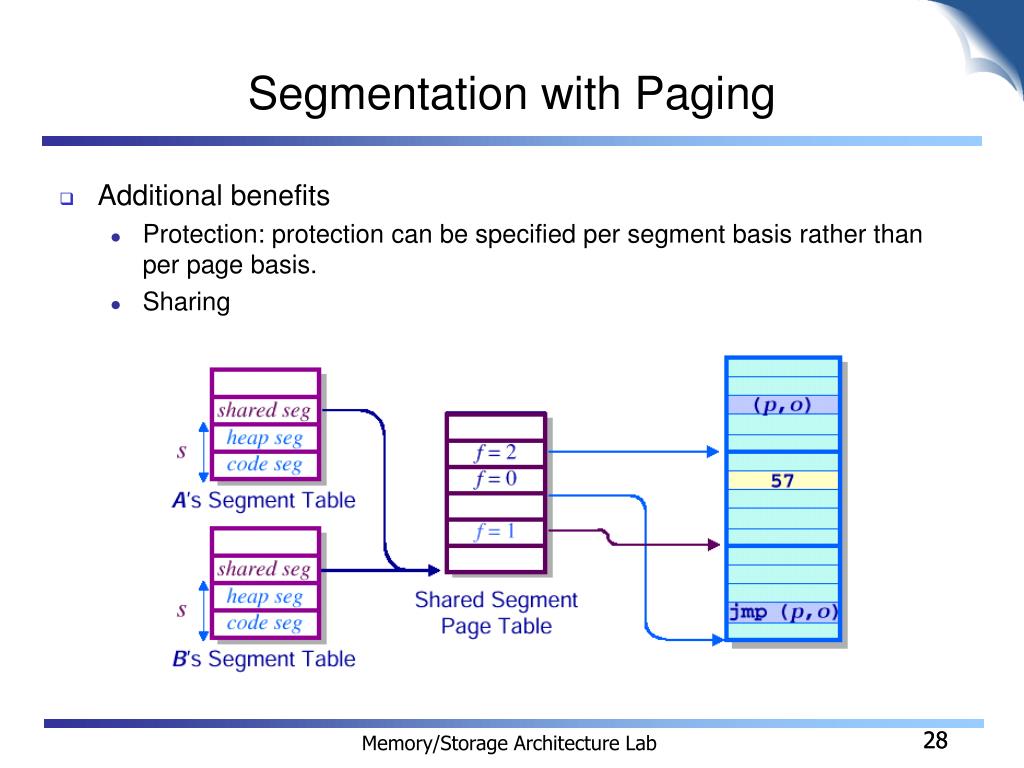

Segmentation with paging3

Segmentation with Paging

  • Additional benefits

    • Protection: protection can be specified per segment basis rather than per page basis.

    • Sharing


Typical memory hierarchy the big picture

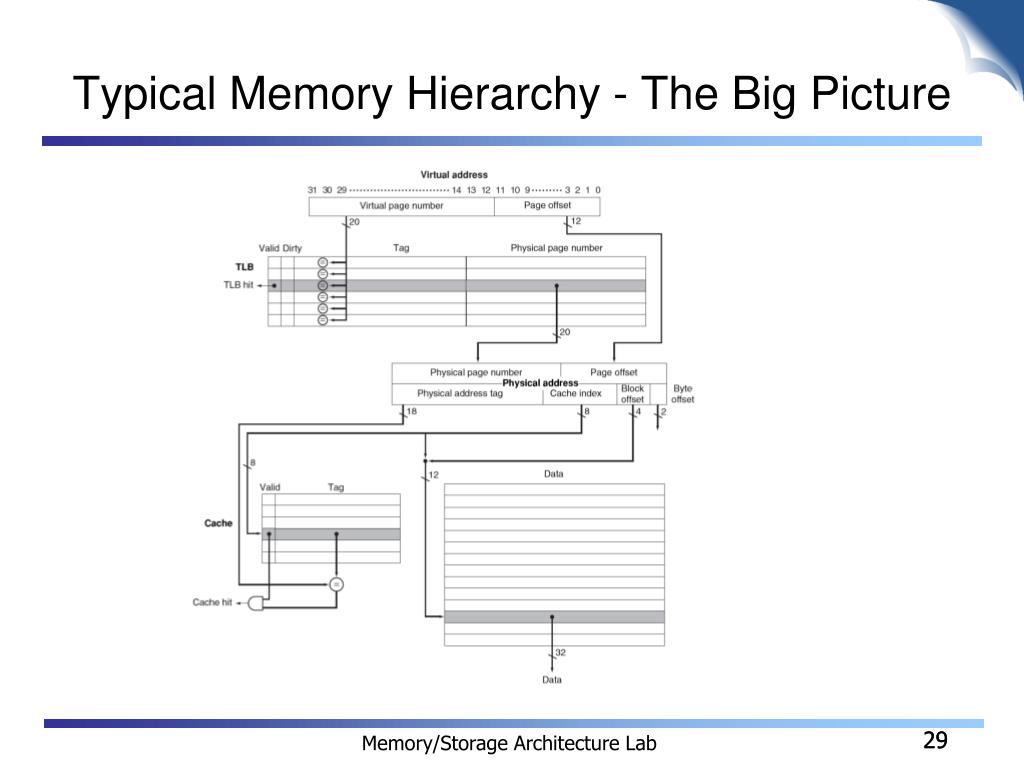

Typical Memory Hierarchy - The Big Picture


Typical memory hierarchy the big picture1

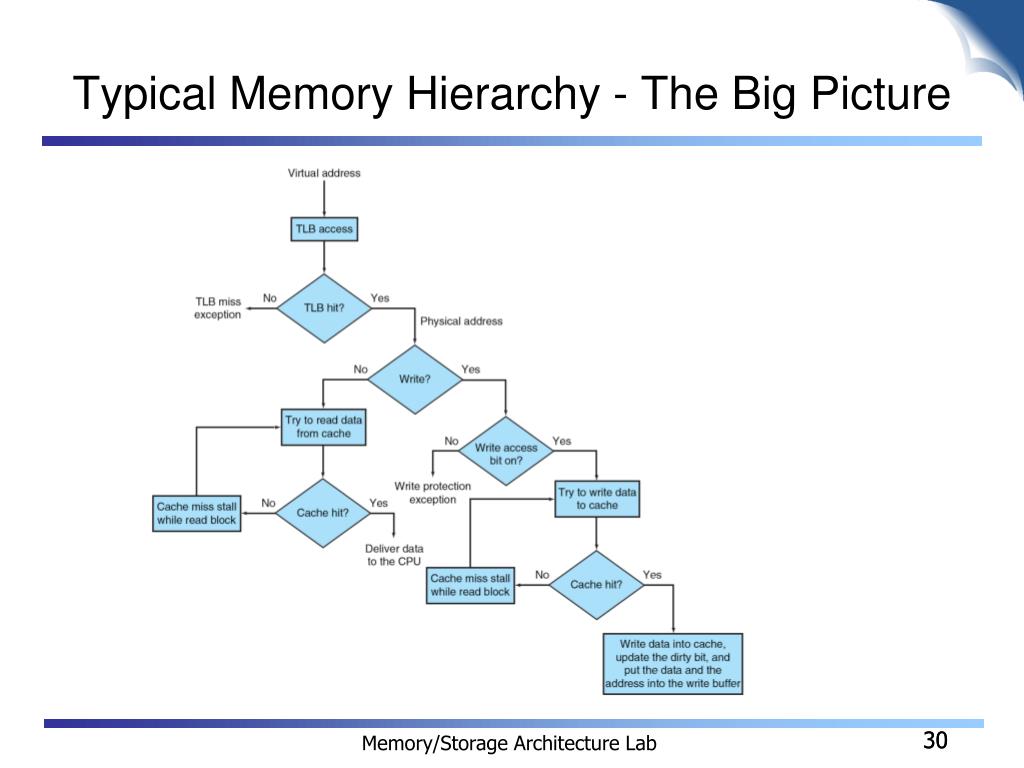

Typical Memory Hierarchy - The Big Picture


Typical memory hierarchy the big picture2

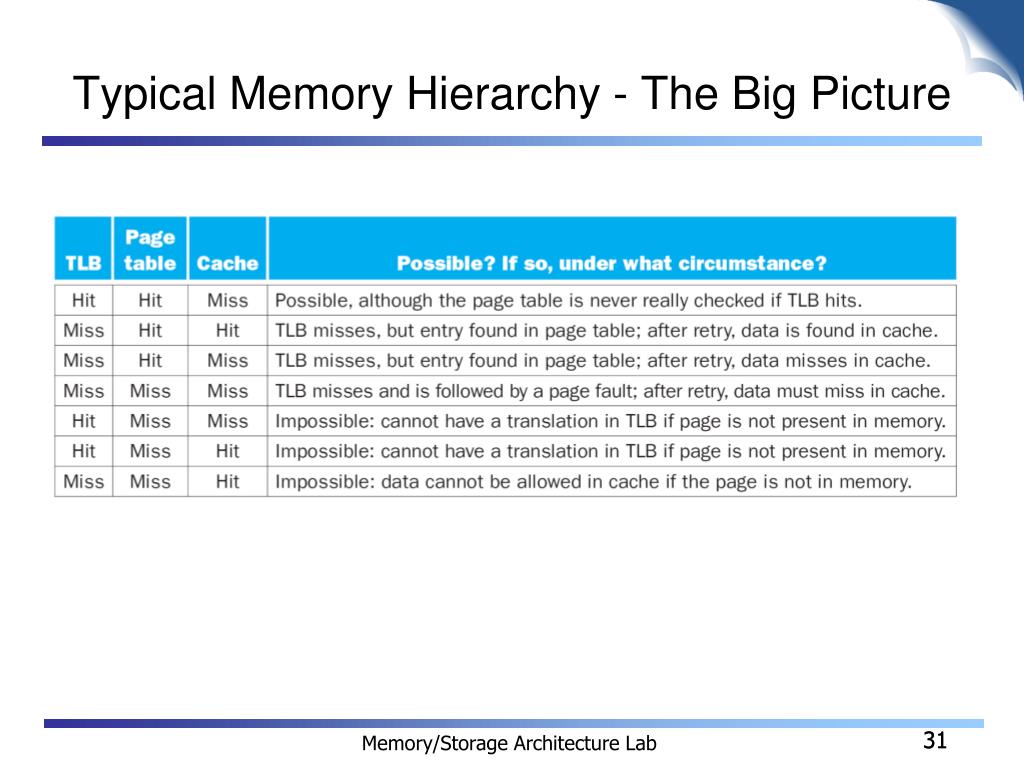

Typical Memory Hierarchy - The Big Picture


A common framework for memory hierarchies

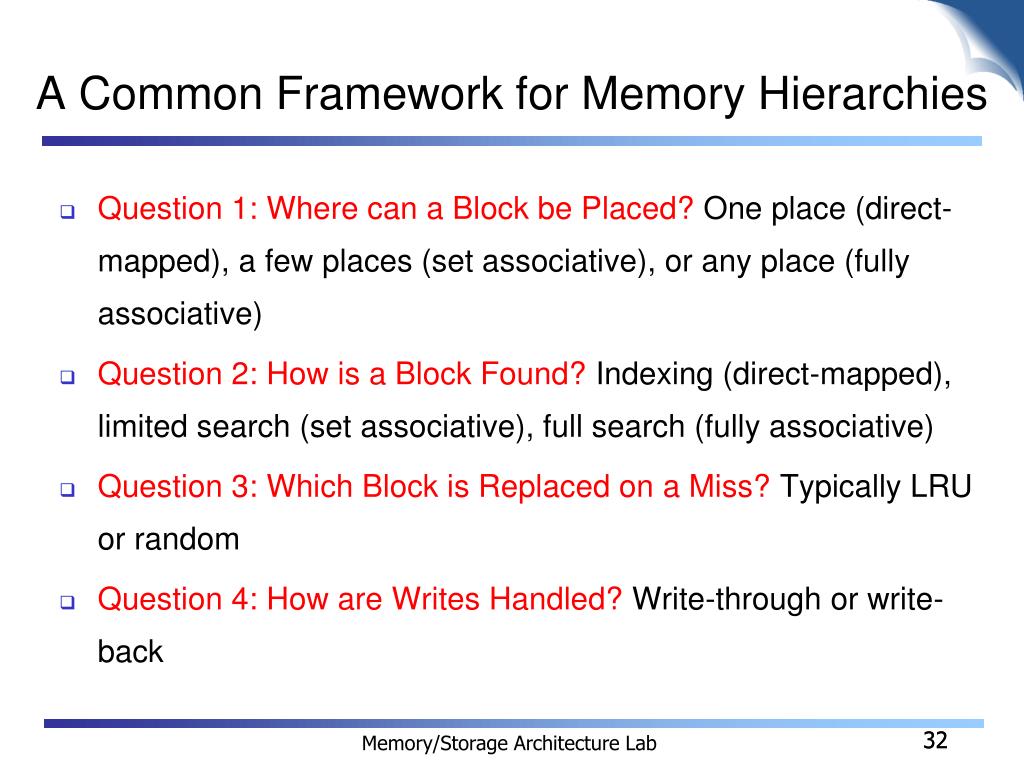

A Common Framework for Memory Hierarchies

  • Question 1: Where can a Block be Placed? One place (direct-mapped), a few places (set associative), or any place (fully associative)

  • Question 2: How is a Block Found? Indexing (direct-mapped), limited search (set associative), full search (fully associative)

  • Question 3: Which Block is Replaced on a Miss? Typically LRU or random

  • Question 4: How are Writes Handled? Write-through or write-back
