  1. TM Transworld No Boundaries No Limitations No Conventions .. JUST INVENTION Customer Satisfaction Value For Money

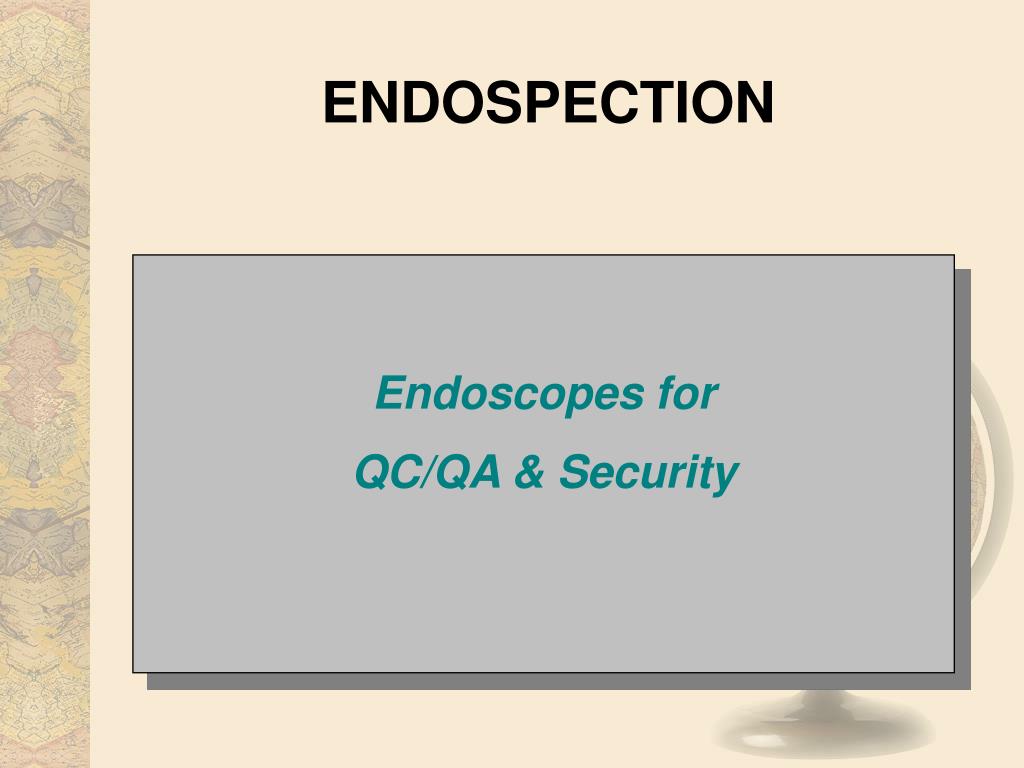

  2. ENDOSPECTION Endoscopes for QC/QA & Security

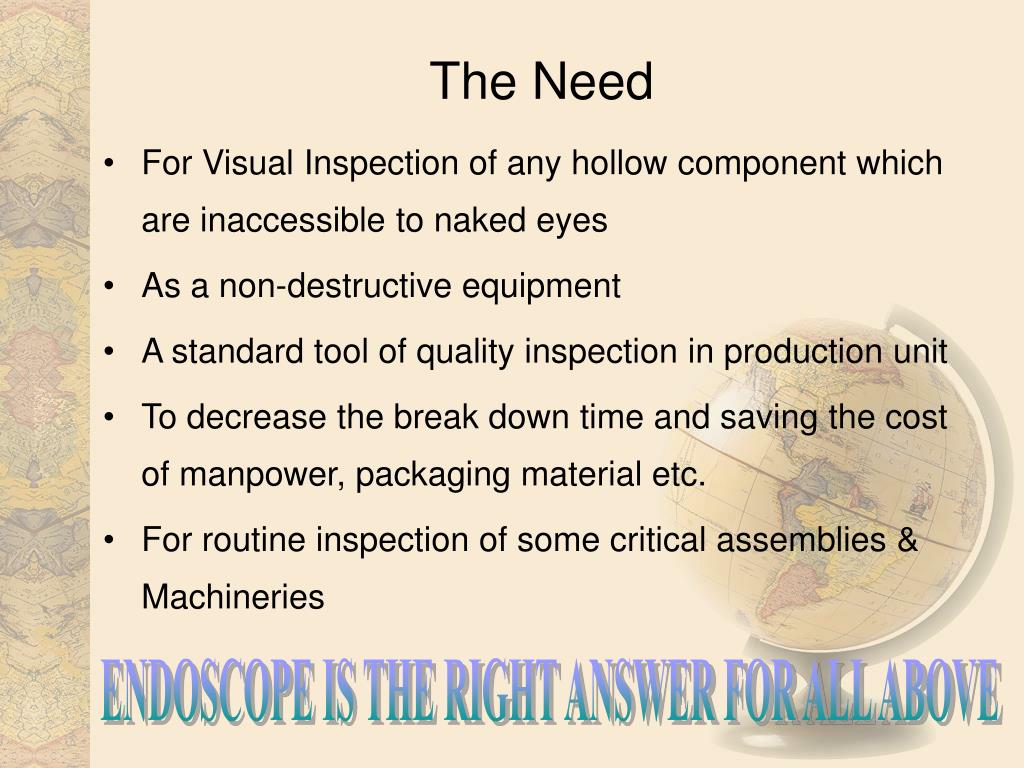

  3. The Need • For Visual Inspection of any hollow component which are inaccessible to naked eyes • As a non-destructive equipment • A standard tool of quality inspection in production unit • To decrease the break down time and saving the cost of manpower, packaging material etc. • For routine inspection of some critical assemblies & Machineries ENDOSCOPE IS THE RIGHT ANSWER FOR ALL ABOVE

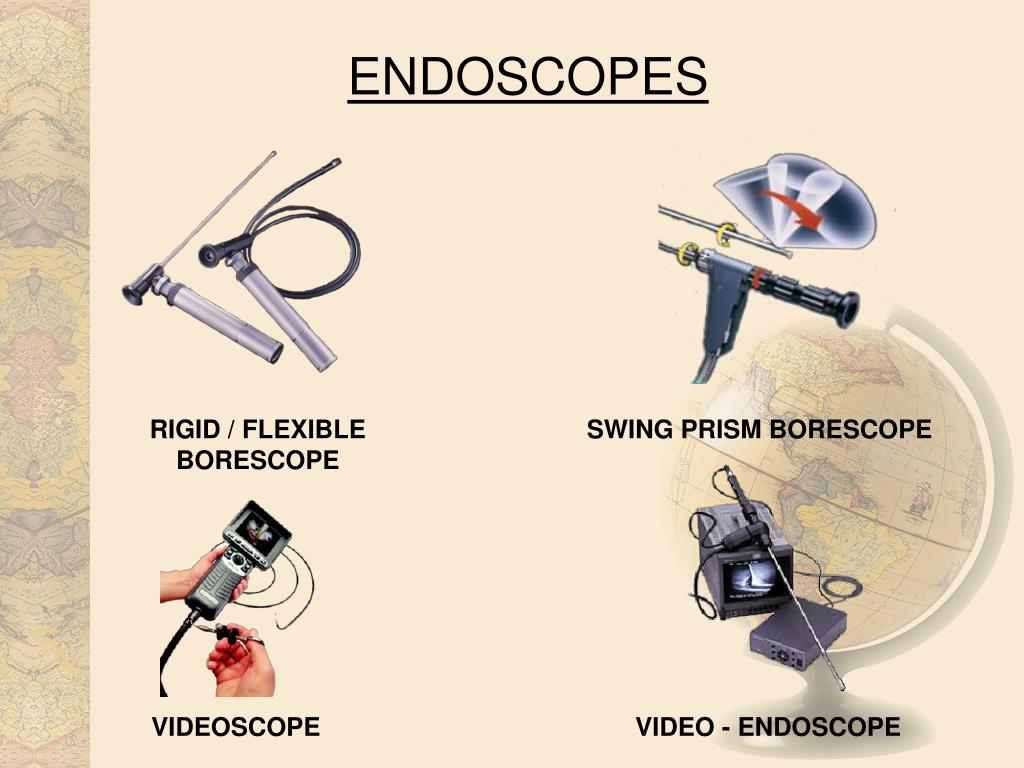

  4. RIGID / FLEXIBLE BORESCOPE SWING PRISM BORESCOPE VIDEOSCOPE VIDEO - ENDOSCOPE ENDOSCOPES

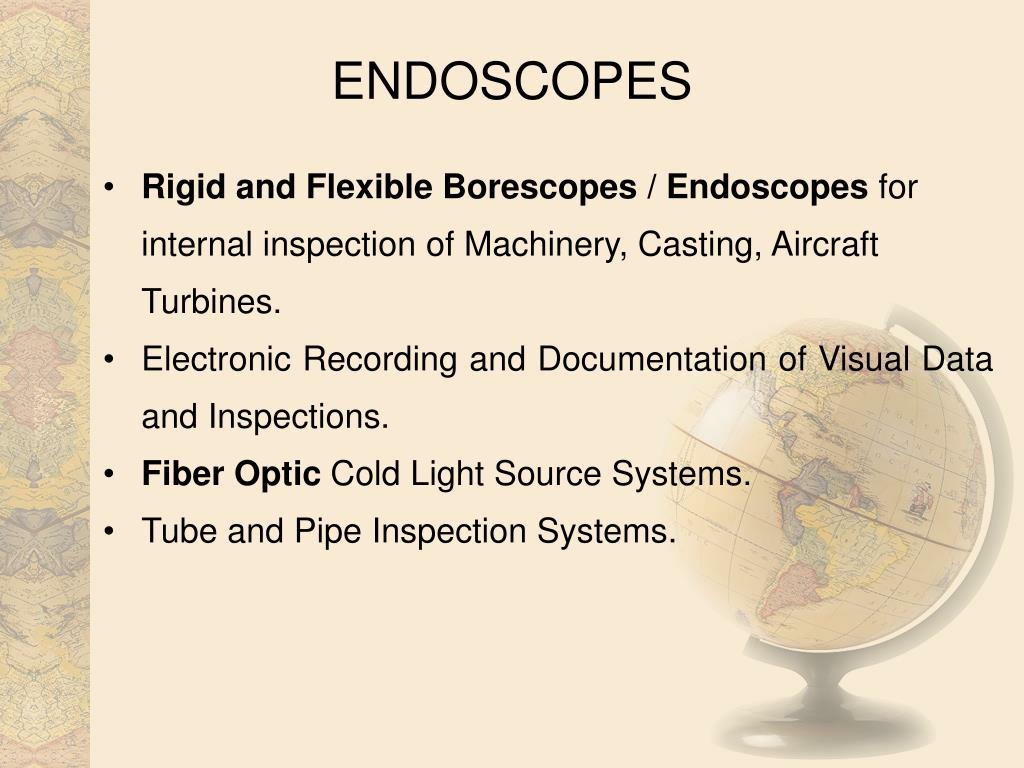

  5. ENDOSCOPES • Rigid and Flexible Borescopes / Endoscopes for internal inspection of Machinery, Casting, Aircraft Turbines. • Electronic Recording and Documentation of Visual Data and Inspections. • Fiber Optic Cold Light Source Systems. • Tube and Pipe Inspection Systems.

  6. AVIATION NAVAL SHIPS POWER GAS MANUFACTURING FOUNDRY PROCESS INDUSTRIES LAW ENFORCEMENT APPLICATONS

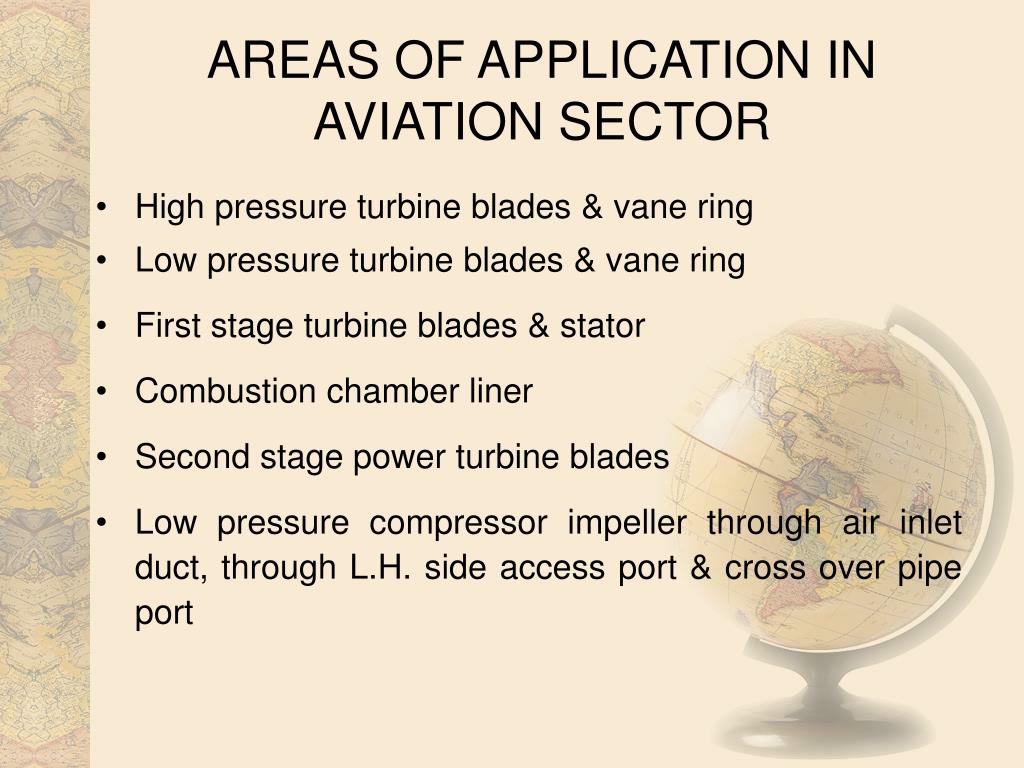

  7. AREAS OF APPLICATION IN AVIATION SECTOR • High pressure turbine blades & vane ring • Low pressure turbine blades & vane ring • First stage turbine blades & stator • Combustion chamber liner • Second stage power turbine blades • Low pressure compressor impeller through air inlet duct, through L.H. side access port & cross over pipe port

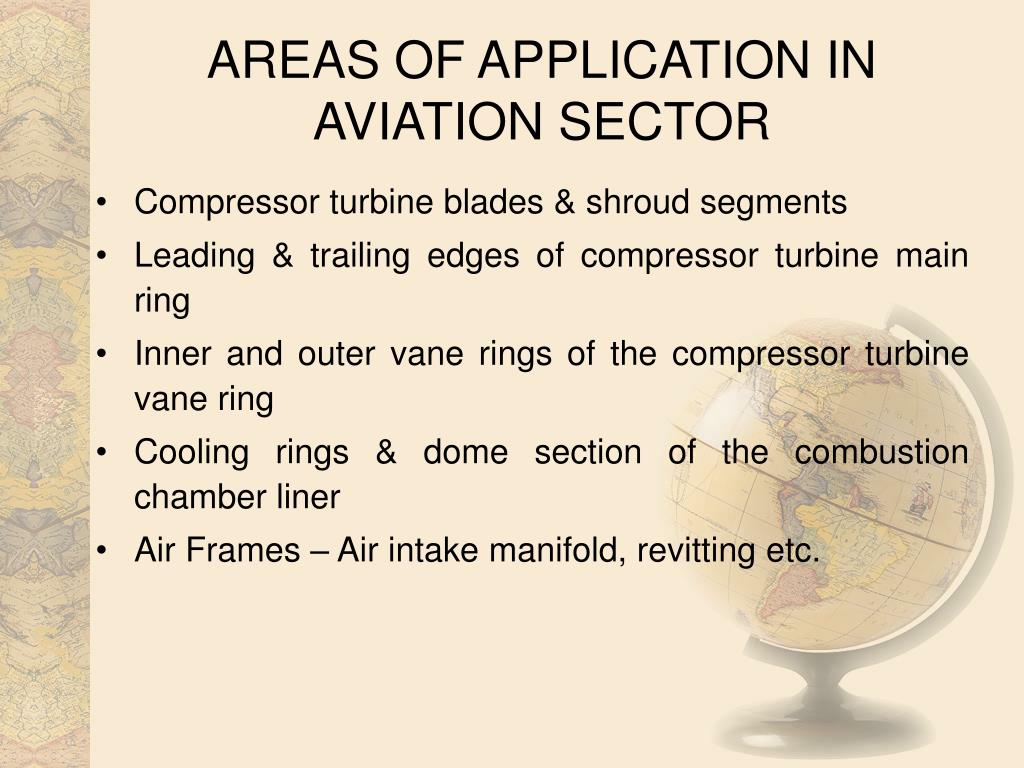

  8. AREAS OF APPLICATION IN AVIATION SECTOR • Compressor turbine blades & shroud segments • Leading & trailing edges of compressor turbine main ring • Inner and outer vane rings of the compressor turbine vane ring • Cooling rings & dome section of the combustion chamber liner • Air Frames – Air intake manifold, revitting etc.

  9. AREAS OF APPLICATION IN AVIATION SECTOR • Micro Hydraulics – Block & valve banks, port inspection • Stabilizers – for crack / deformation on the ribs • Dilution tube, inspection wheel holes • Jet pipe manifold, oil drain and exhaust nozzle box • Flame tube attachment • High pressure compressor impeller

  10. Transworld TM

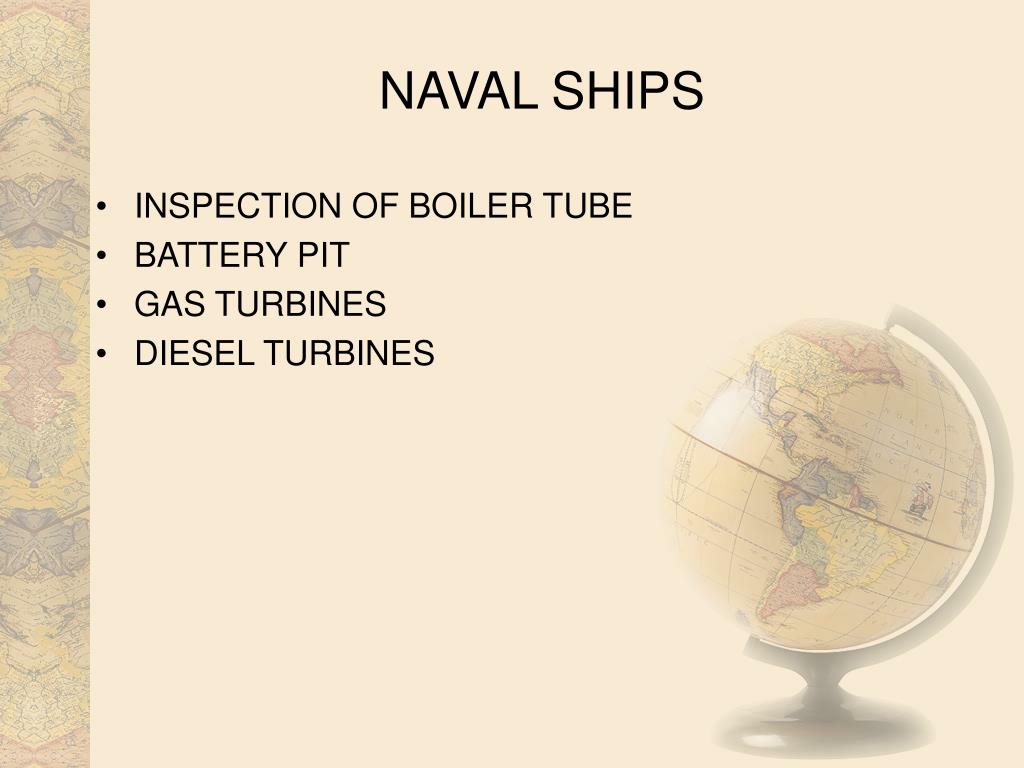

  11. NAVAL SHIPS • INSPECTION OF BOILER TUBE • BATTERY PIT • GAS TURBINES • DIESEL TURBINES

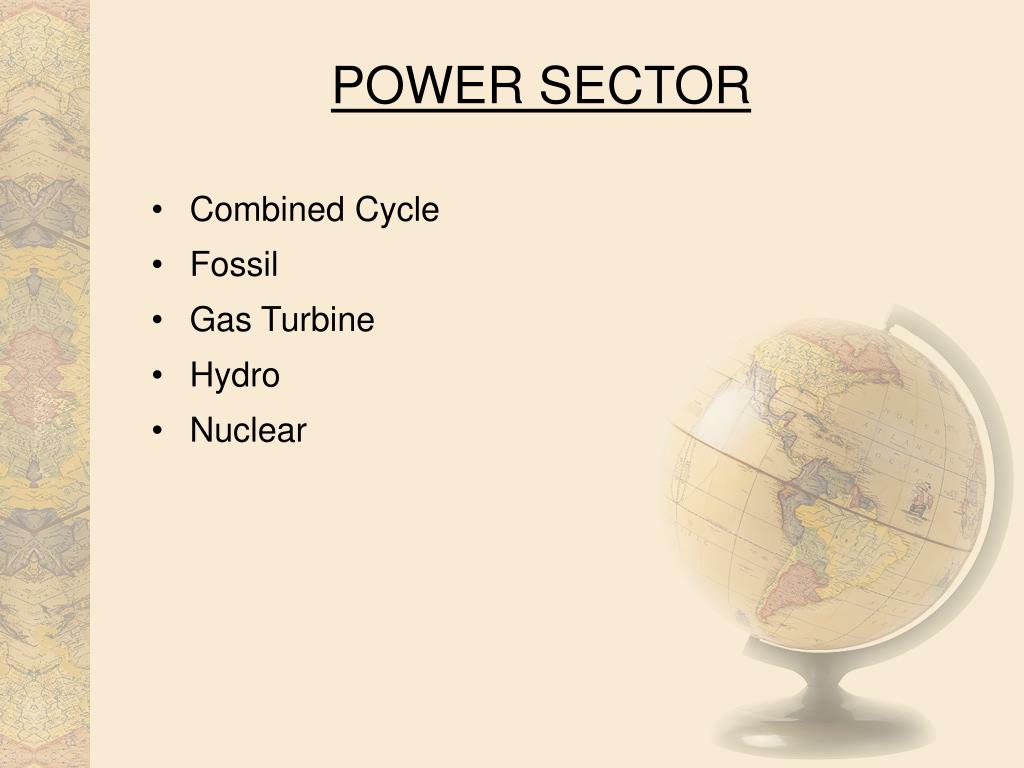

  12. POWER SECTOR • Combined Cycle • Fossil • Gas Turbine • Hydro • Nuclear

  13. Transworld TM

  14. Transworld TM

  15. Transworld TM

  16. Transworld TM

  17. Transworld TM

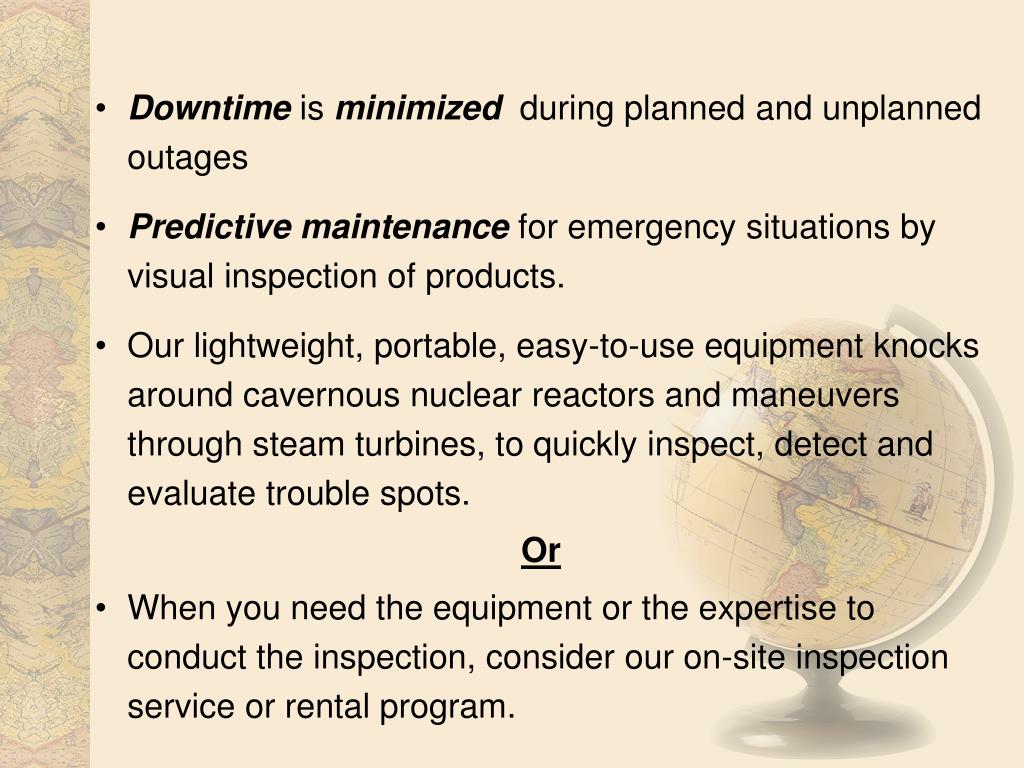

  18. Downtime is minimized during planned and unplanned outages • Predictive maintenance for emergency situations by visual inspection of products. • Our lightweight, portable, easy-to-use equipment knocks around cavernous nuclear reactors and maneuvers through steam turbines, to quickly inspect, detect and evaluate trouble spots. • Or • When you need the equipment or the expertise to conduct the inspection, consider our on-site inspection service or rental program.

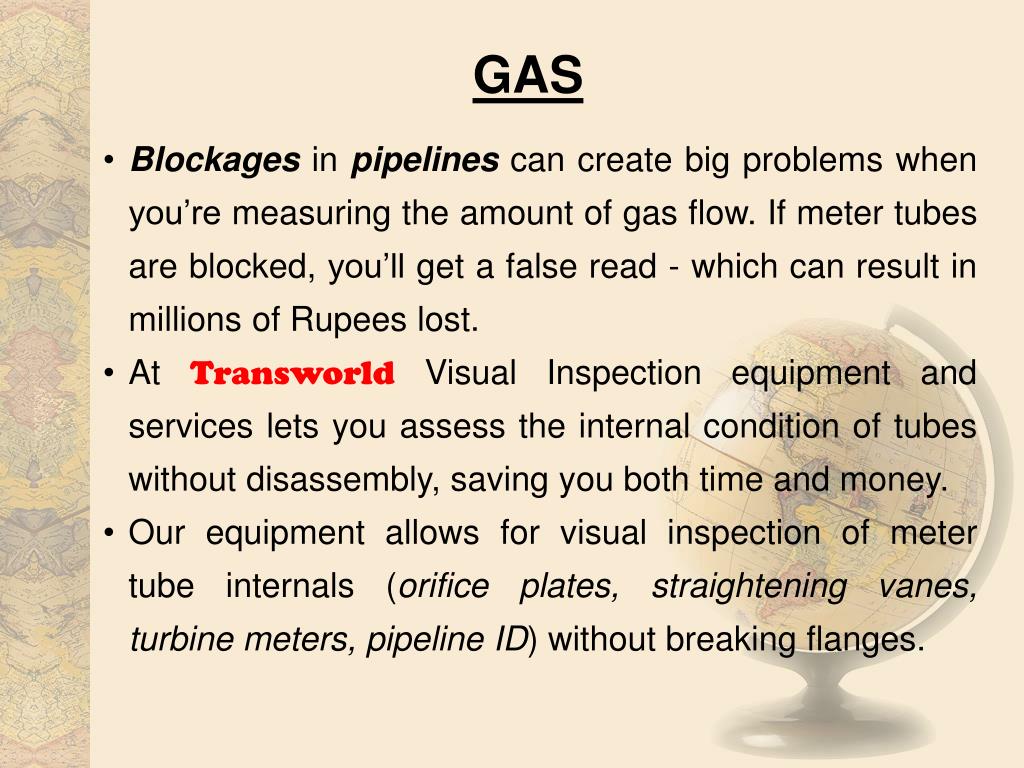

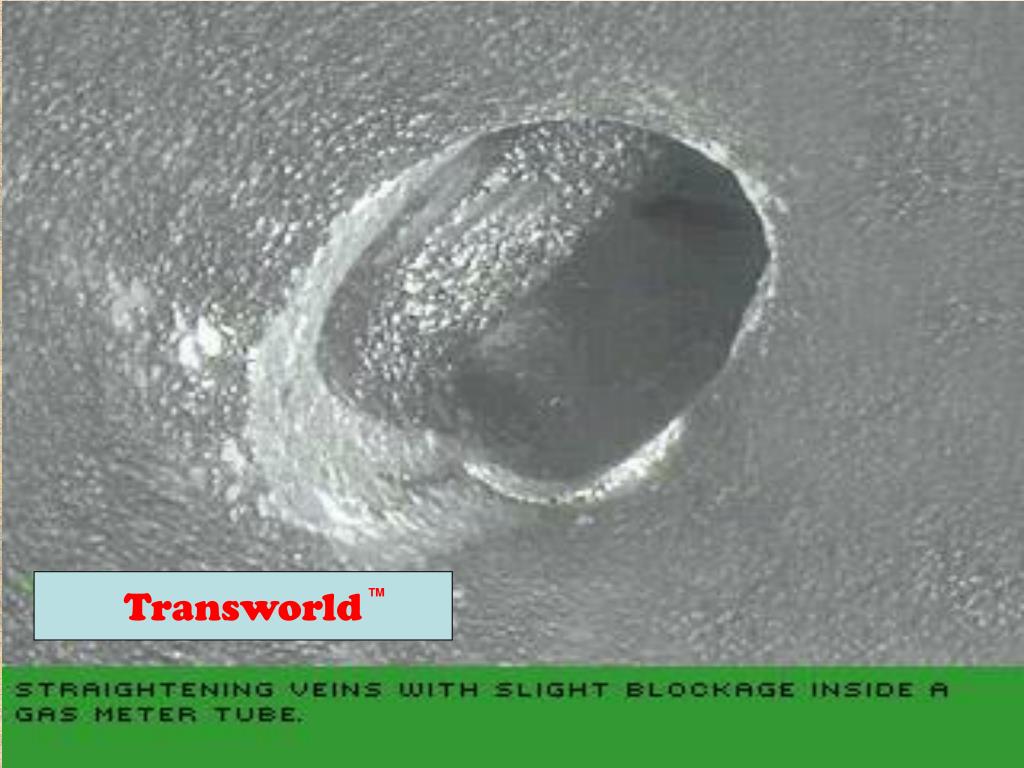

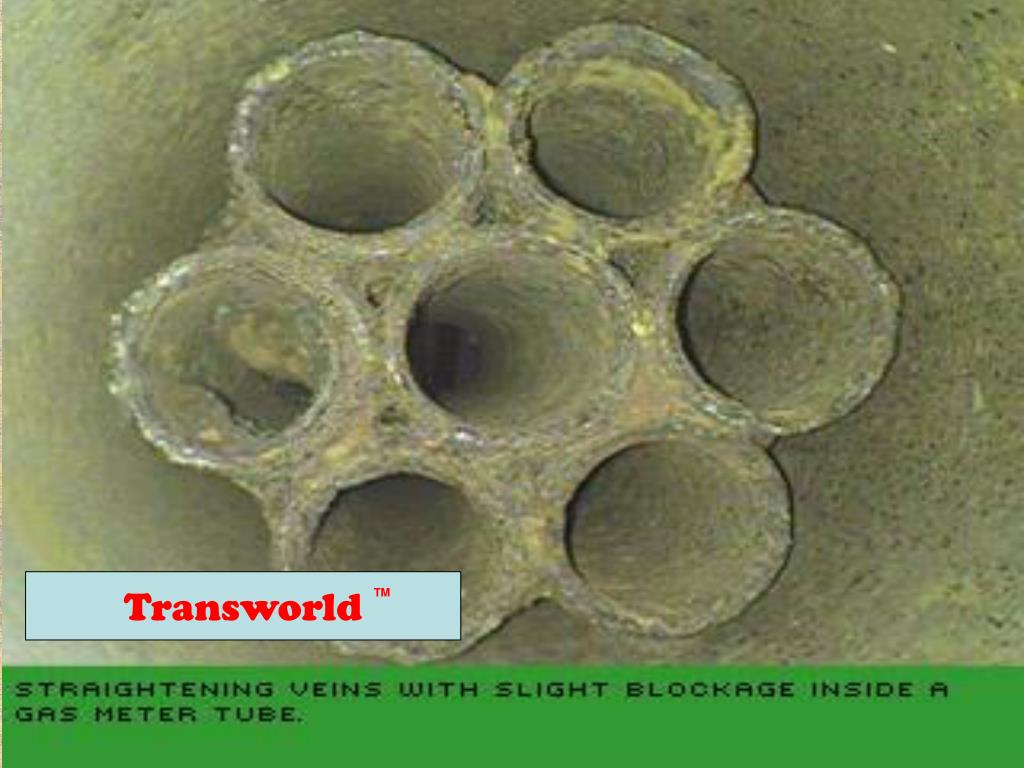

  19. GAS • Blockages in pipelines can create big problems when you’re measuring the amount of gas flow. If meter tubes are blocked, you’ll get a false read - which can result in millions of Rupees lost. • At Transworld Visual Inspection equipment and services lets you assess the internal condition of tubes without disassembly, saving you both time and money. • Our equipment allows for visual inspection of meter tube internals (orifice plates, straightening vanes, turbine meters, pipeline ID) without breaking flanges.

  20. Fast and accurate identification of cracks, blockages and corrosion in pipelines means huge savings for your company. • Trust Transworld, the visual inspection expert, to provide you with the equipment or services you need to get the job done.

  21. Transworld TM

  22. Transworld TM

  23. Transworld TM

  24. Transworld TM

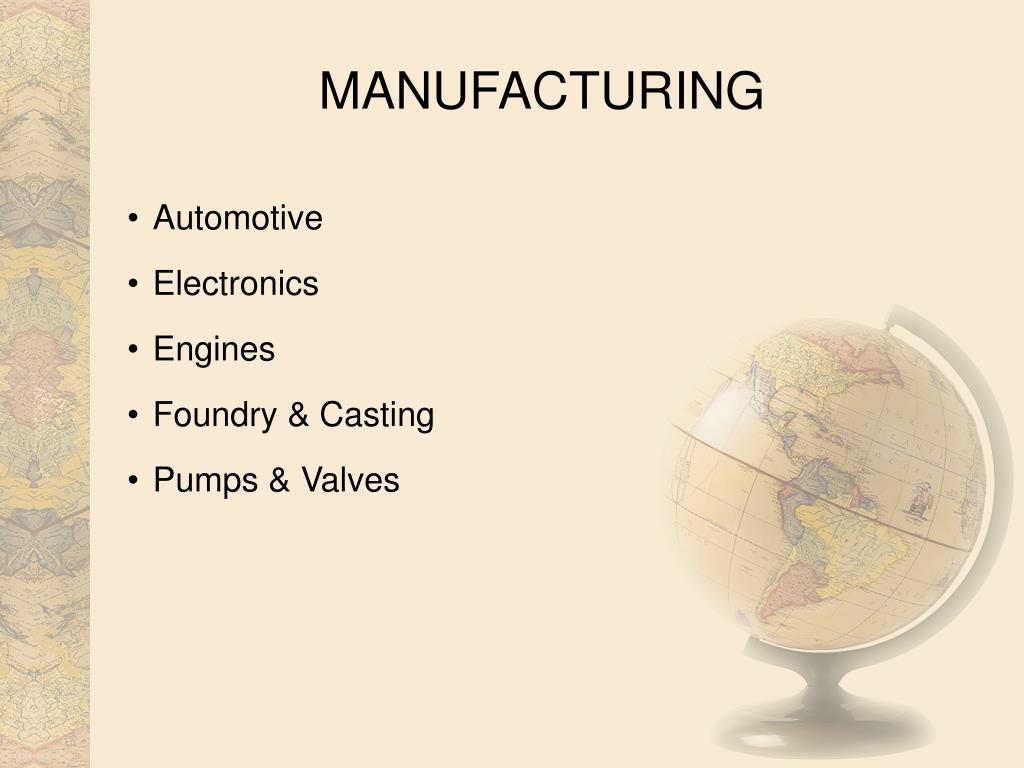

  25. MANUFACTURING • Automotive • Electronics • Engines • Foundry & Casting • Pumps & Valves

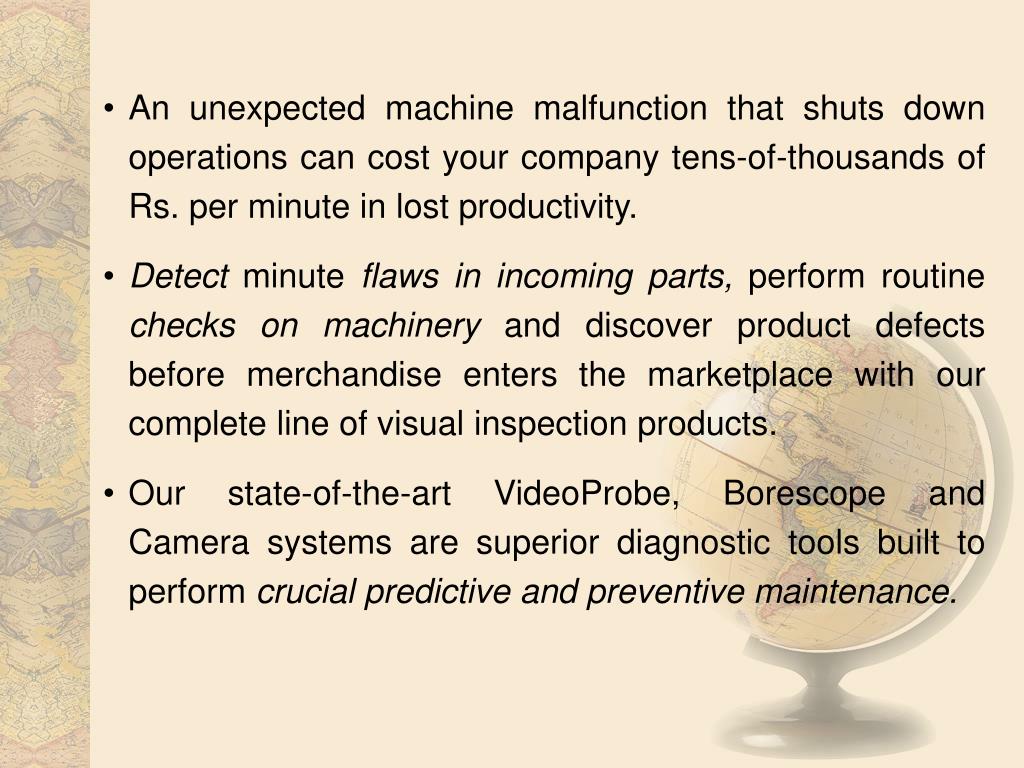

  26. An unexpected machine malfunction that shuts down operations can cost your company tens-of-thousands of Rs. per minute in lost productivity. • Detect minute flaws in incoming parts, perform routine checks on machinery and discover product defects before merchandise enters the marketplace with our complete line of visual inspection products. • Our state-of-the-art VideoProbe, Borescope and Camera systems are superior diagnostic tools built to perform crucial predictive and preventive maintenance.

  27. Transworld TM

  28. Transworld TM

  29. Transworld TM

  30. Transworld TM

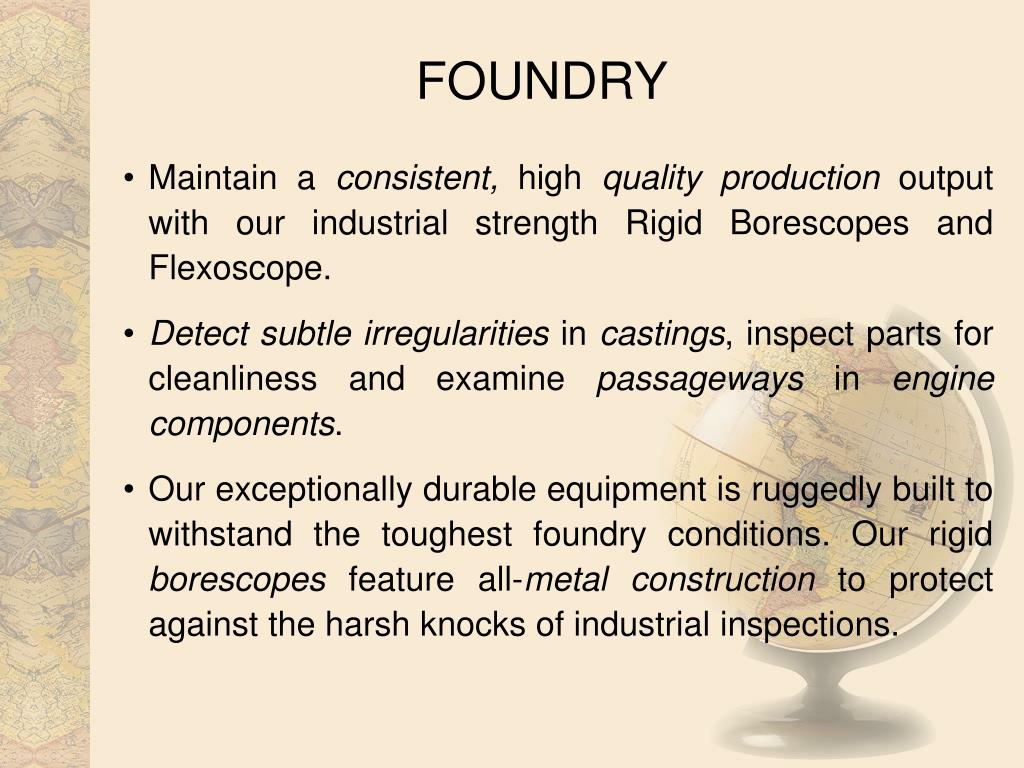

  31. FOUNDRY • Maintain a consistent, high quality production output with our industrial strength Rigid Borescopes and Flexoscope. • Detect subtle irregularities in castings, inspect parts for cleanliness and examine passageways in engine components. • Our exceptionally durable equipment is ruggedly built to withstand the toughest foundry conditions. Our rigid borescopes feature all-metal construction to protect against the harsh knocks of industrial inspections.

  32. The finest precision optics provide unsurpassed image resolution. • You’ll save on cost of ownership too, because our long-lasting equipment holds up against the harshest knocks. • Our flexoscopes are equally solid, with an abrasionresistant metal outer braid for maneuvering through unforgiving cast metal parts.

  33. Transworld TM

  34. PROCESS • Chemical • Food & Beverage • Gas Transmission • Petrochemical • Pharmaceutical • Pulp & Paper • Refining & Production • Steel

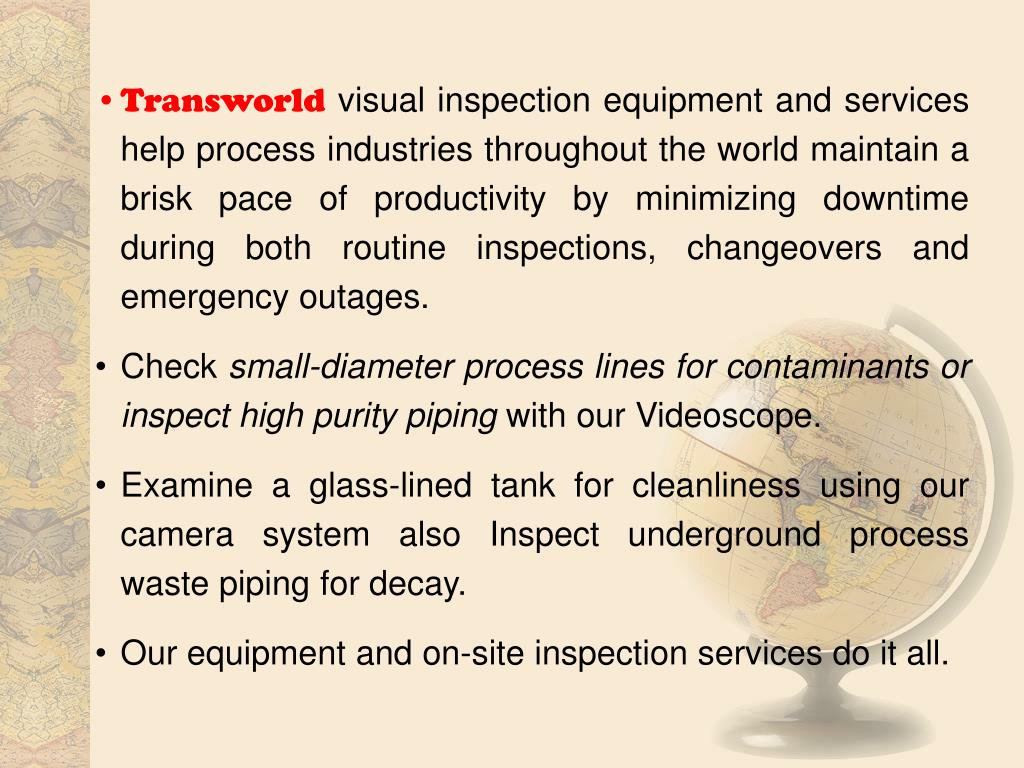

  35. Transworld visual inspection equipment and services help process industries throughout the world maintain a brisk pace of productivity by minimizing downtime during both routine inspections, changeovers and emergency outages. • Check small-diameter process lines for contaminants or inspect high purity piping with our Videoscope. • Examine a glass-lined tank for cleanliness using our camera system also Inspect underground process waste piping for decay. • Our equipment and on-site inspection services do it all.

  36. Transworld TM

  37. Transworld TM

  38. Transworld TM

  39. Transworld TM

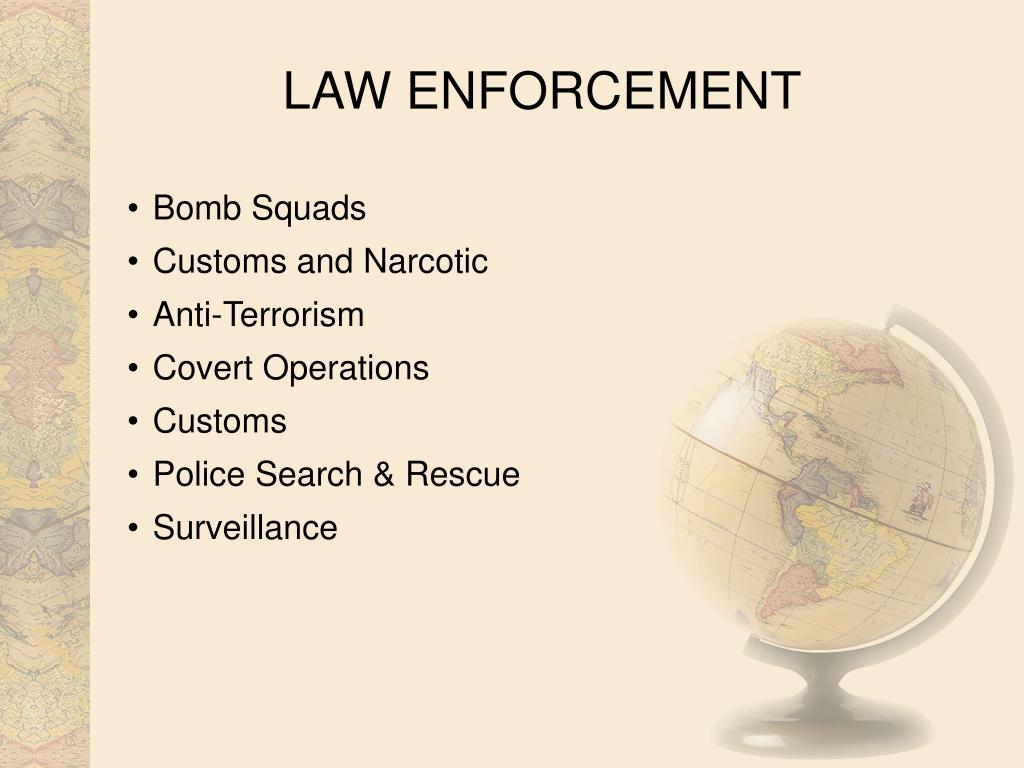

  40. LAW ENFORCEMENT • Bomb Squads • Customs and Narcotic • Anti-Terrorism • Covert Operations • Customs • Police Search & Rescue • Surveillance

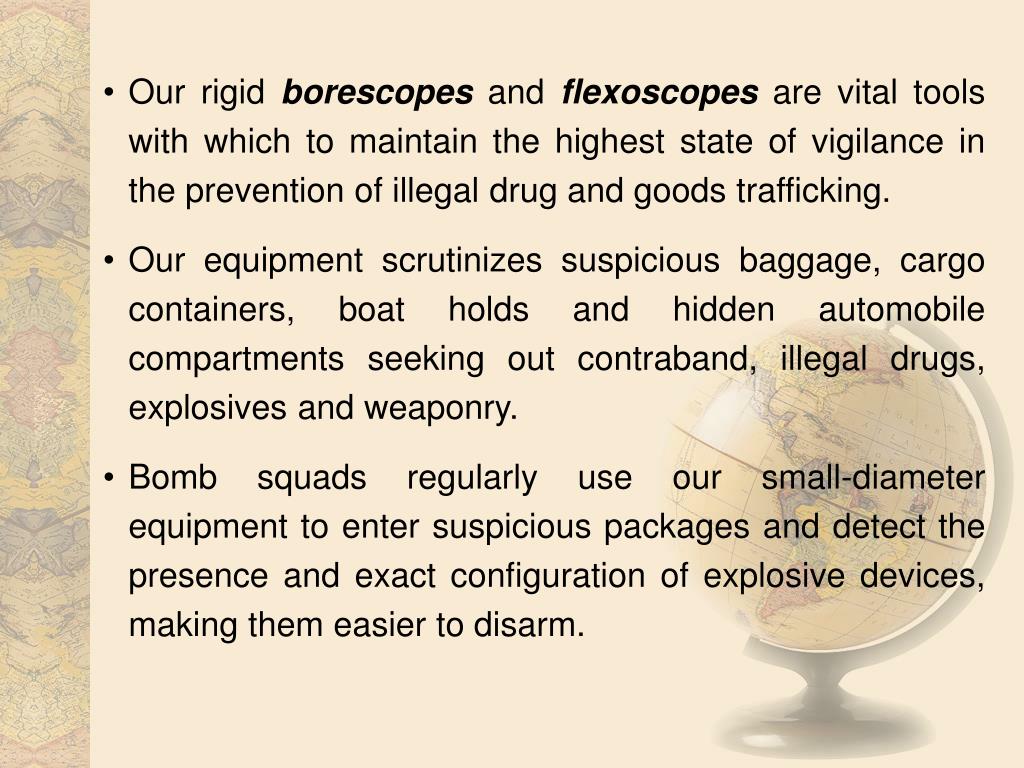

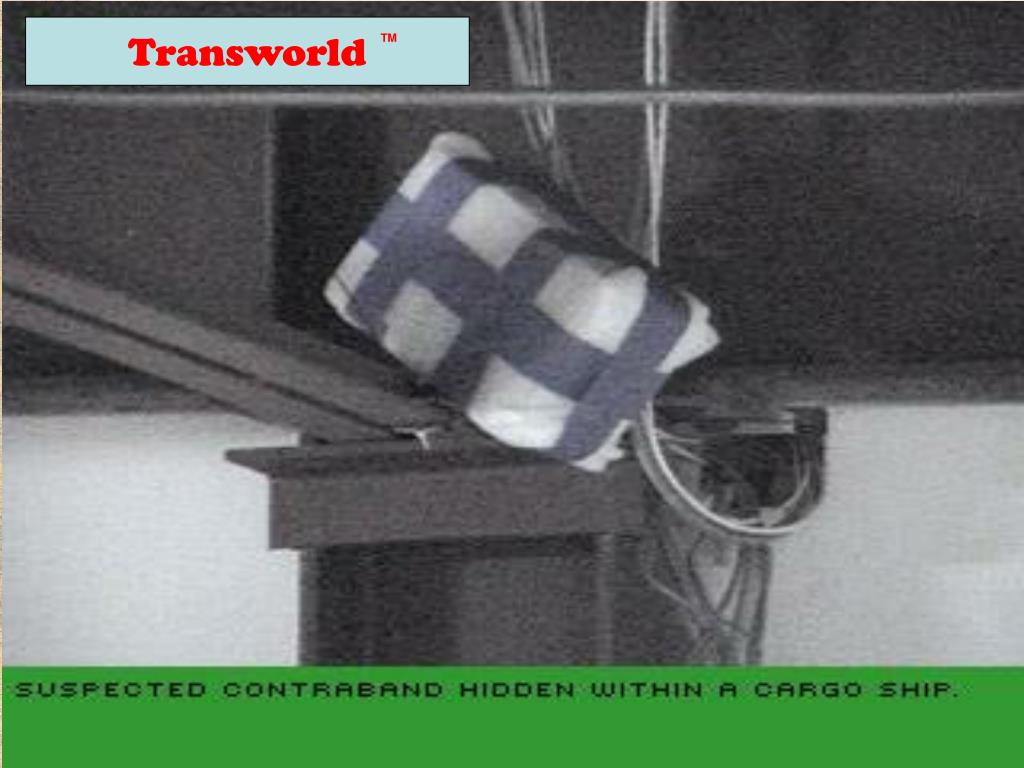

  41. Our rigid borescopes and flexoscopes are vital tools with which to maintain the highest state of vigilance in the prevention of illegal drug and goods trafficking. • Our equipment scrutinizes suspicious baggage, cargo containers, boat holds and hidden automobile compartments seeking out contraband, illegal drugs, explosives and weaponry. • Bomb squads regularly use our small-diameter equipment to enter suspicious packages and detect the presence and exact configuration of explosive devices, making them easier to disarm.

  42. Transworld TM

  43. Transworld TM

  44. VIDEO INSPECTION SYSTEM

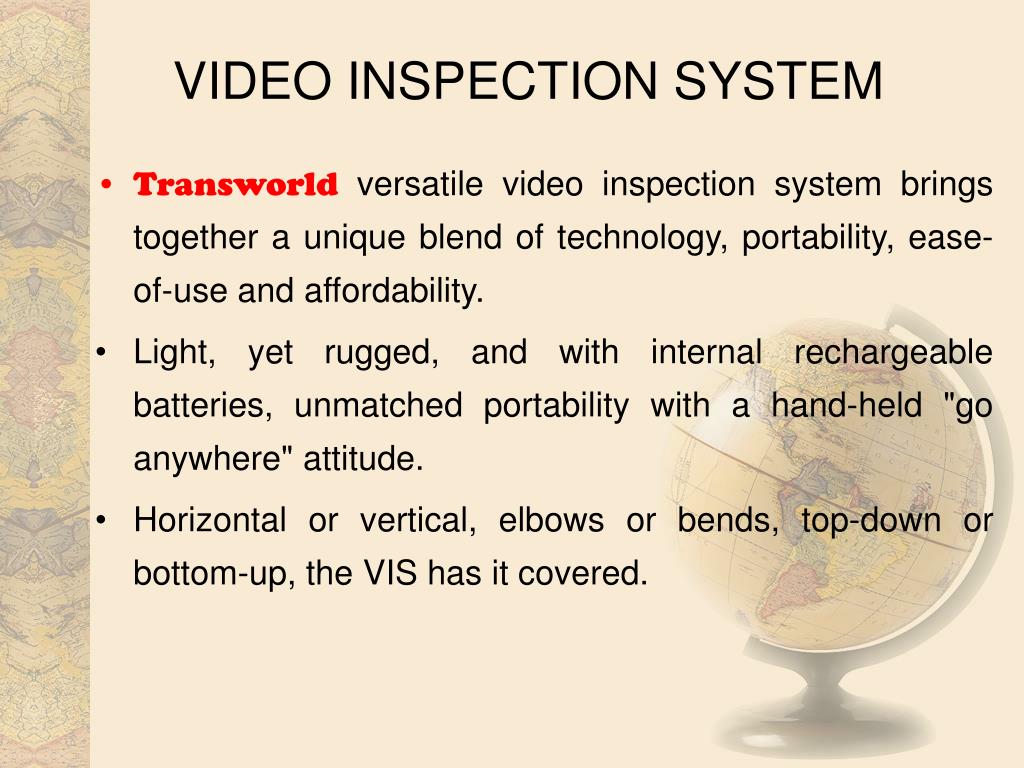

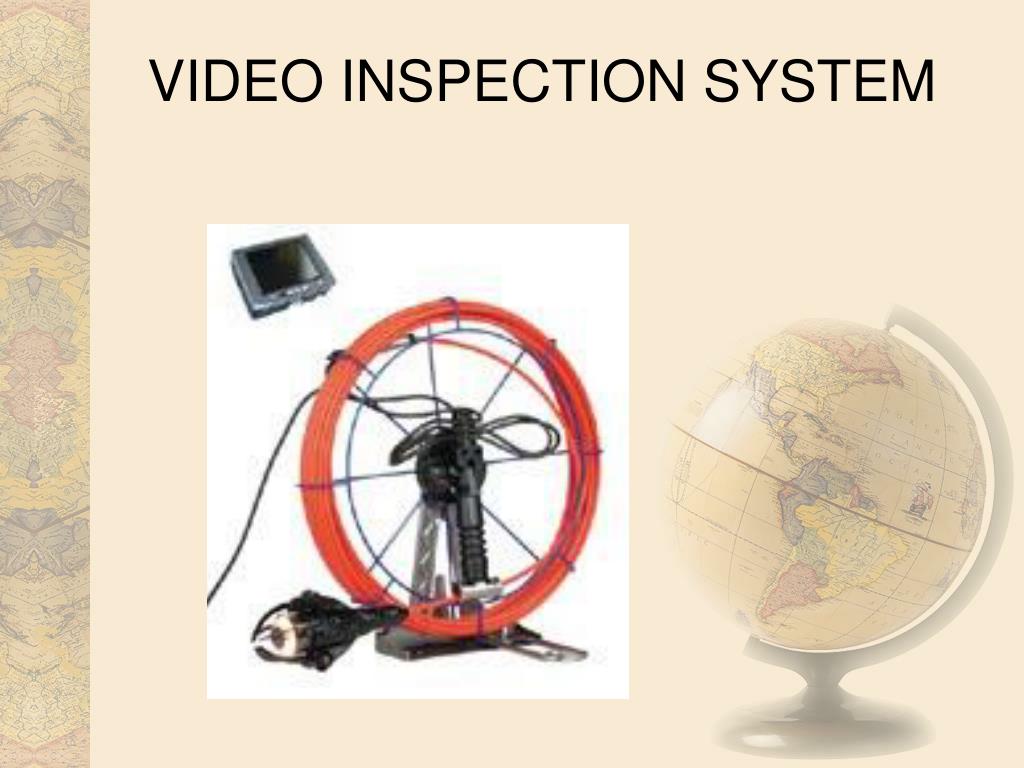

  45. VIDEO INSPECTION SYSTEM • Transworld versatile video inspection system brings together a unique blend of technology, portability, ease-of-use and affordability. • Light, yet rugged, and with internal rechargeable batteries, unmatched portability with a hand-held "go anywhere" attitude. • Horizontal or vertical, elbows or bends, top-down or bottom-up, the VIS has it covered.

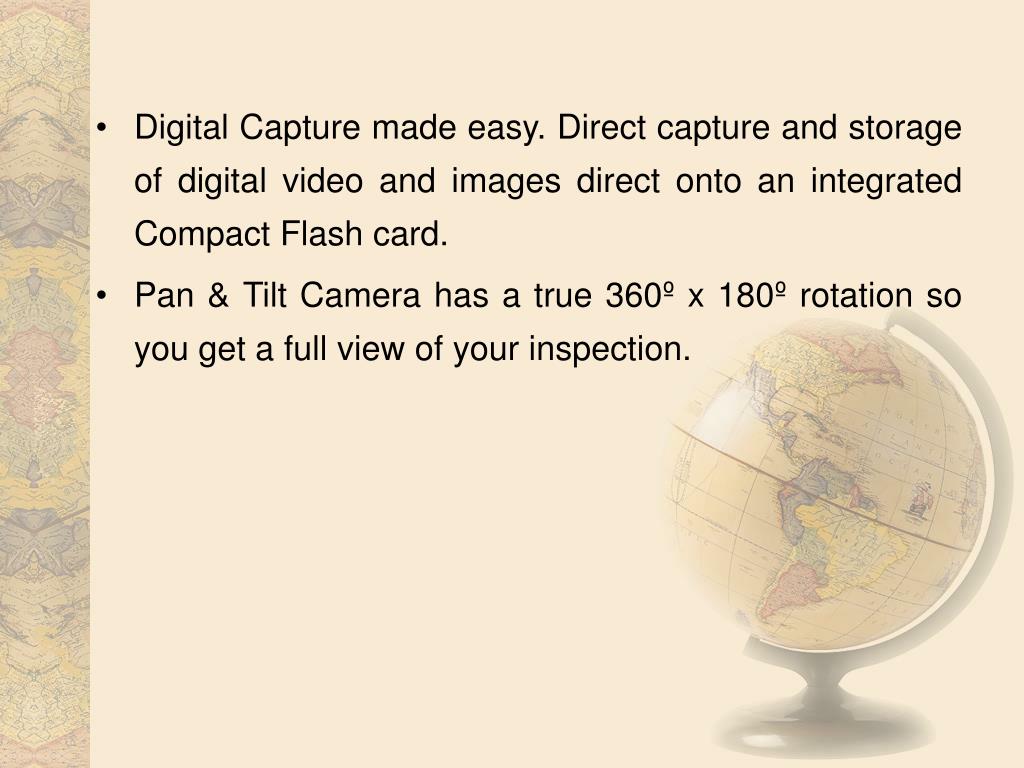

  46. Digital Capture made easy. Direct capture and storage of digital video and images direct onto an integrated Compact Flash card. • Pan & Tilt Camera has a true 360º x 180º rotation so you get a full view of your inspection.

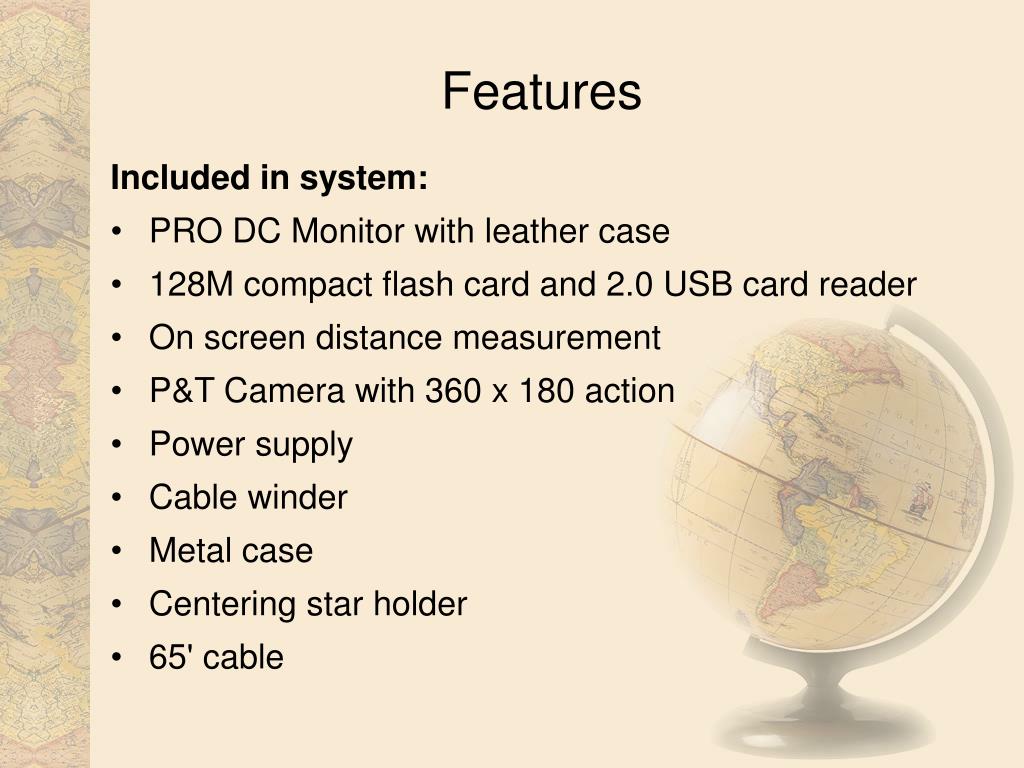

  47. Features Included in system: • PRO DC Monitor with leather case • 128M compact flash card and 2.0 USB card reader • On screen distance measurement • P&T Camera with 360 x 180 action • Power supply • Cable winder • Metal case • Centering star holder • 65' cable

  48. Applications • Chimneys • Vents • Power plants • Quality control • Pest control • Ducts • Water & sewer pipes • Construction • Home inspection • Security & surveillance • Search & rescue...and much more

  49. Transworld TM

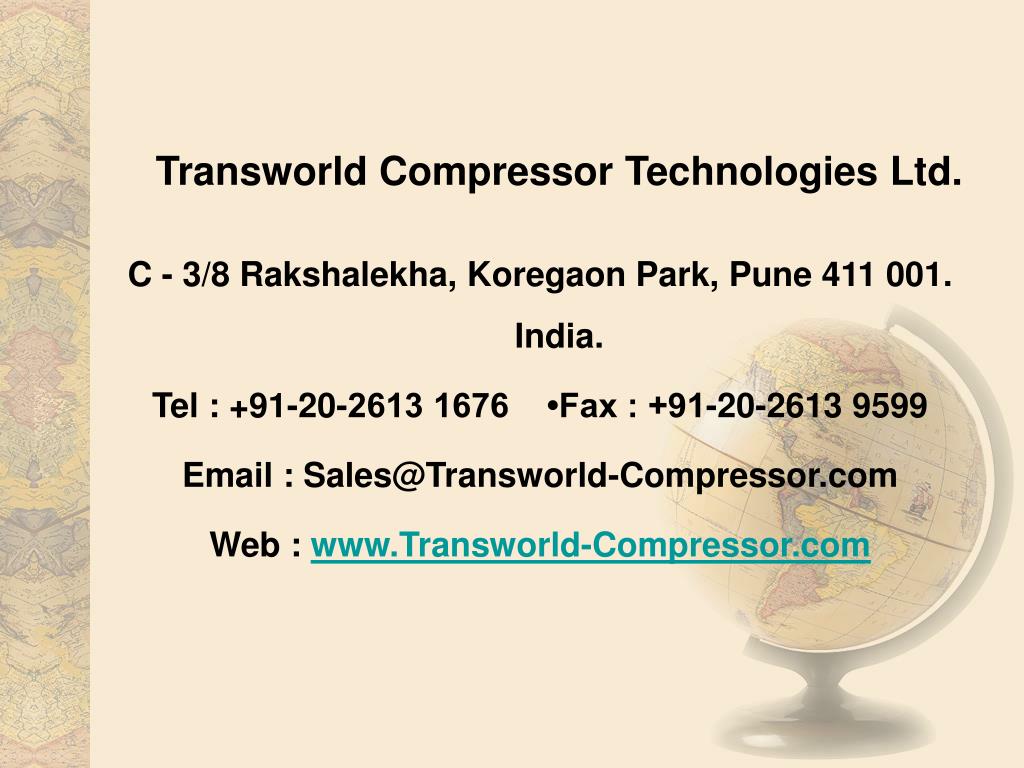

  50. Transworld Compressor Technologies Ltd. C - 3/8 Rakshalekha, Koregaon Park, Pune 411 001. India. Tel : +91-20-2613 1676 •Fax : +91-20-2613 9599 Email : Sales@Transworld-Compressor.com Web : www.Transworld-Compressor.com
