Motions of the Celestial Sphere

Motions of the Celestial Sphere. Constellations. Sky looks like a dome with the star painted on the inside. 88 constellations such as Ursa Major, Orion, etc. Asterisms are not constellations for example the Big Dipper, the Teapot, etc. Descriptions of Celestial Sphere.

rebecca-chen
Download Presentation

Motions of the Celestial Sphere

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Motions of the Celestial Sphere

  2. Constellations • Sky looks like a dome with the star painted on the inside. • 88 constellations such as Ursa Major, Orion, etc. • Asterisms are not constellations for example the Big Dipper, the Teapot, etc.

  3. Descriptions of Celestial Sphere • Zenith-directly overhead • Meridian – imaginary line running north & south through the zenith • Horizon – where the sky appears to intersect the ground. • Altitude – height of a star above horizon (degrees). The sky appear like a dome overhead.

  4. Descriptions of Celestial Sphere Stars are not a same distances. So, constellations are not real places. • North Celestial Pole (NCP) – extension of Earth’s rotation axis onto the sky. • South Celestial Pole - ditto • Celestial Equator – extension of Earth’s equator onto the sky. • Ecliptic – apparent yearly path of Sun.

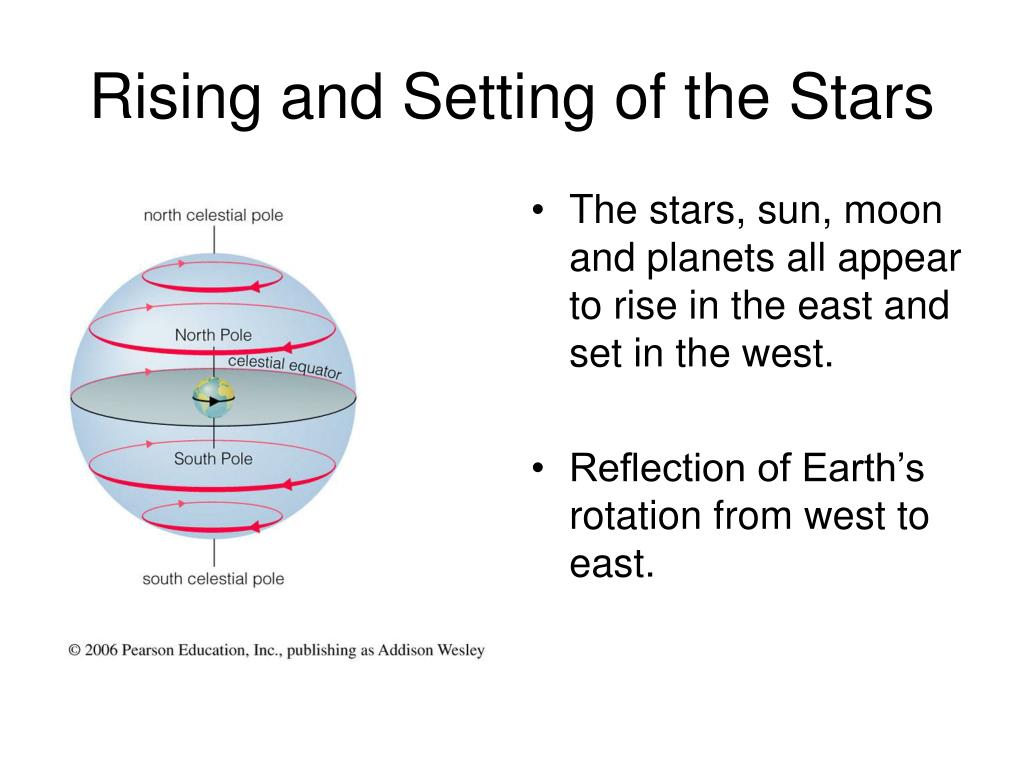

  5. Rising and Setting of the Stars • The stars, sun, moon and planets all appear to rise in the east and set in the west. • Reflection of Earth’s rotation from west to east.

  6. Local Rising and Setting of the Stars • We live on the side of the Earth. • NCP’s altitude equals your latitude. • Circumpolar stars never rise or set but circle the NCP

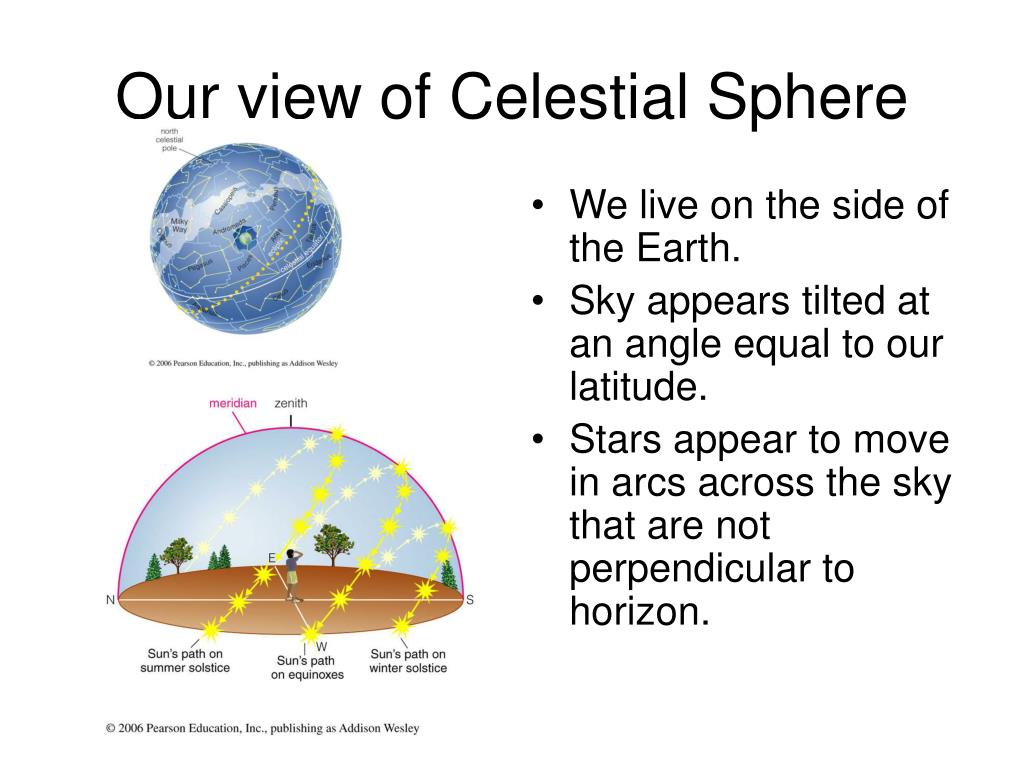

  7. Our view of Celestial Sphere • We live on the side of the Earth. • Sky appears tilted at an angle equal to our latitude. • Stars appear to move in arcs across the sky that are not perpendicular to horizon.

  8. Our view of Celestial Sphere • The sky appears to rotate around NCP. • Altitude of NCP is always equal to your latitude on Earth's surface.

  9. A space ship lands on an unknown planet. • The occupants notice that the stars never rise • or set but appear to move in circles parallel • to the horizon. • Where on the planet did the space ship land? • At the equator. • At 45 degrees latitude. • At one of the celestial poles. • Cannot be determine.

  10. Atlanta has a latitude of about 33 north degrees. • The star Polaris is very close to the Celestial North Pole. • What is the altitude of Polaris when viewed from Atlanta? • 33 degrees • 45 degrees • 57 degrees • 90 degrees

  11. This picture is a time exposure of the night sky showing star trails as the stars appear to rotate around the NCP. What is the name of the bright star near the center of the rock arch? Where are the circumpolar stars?
