  1. 5.2” TFT Module 2016

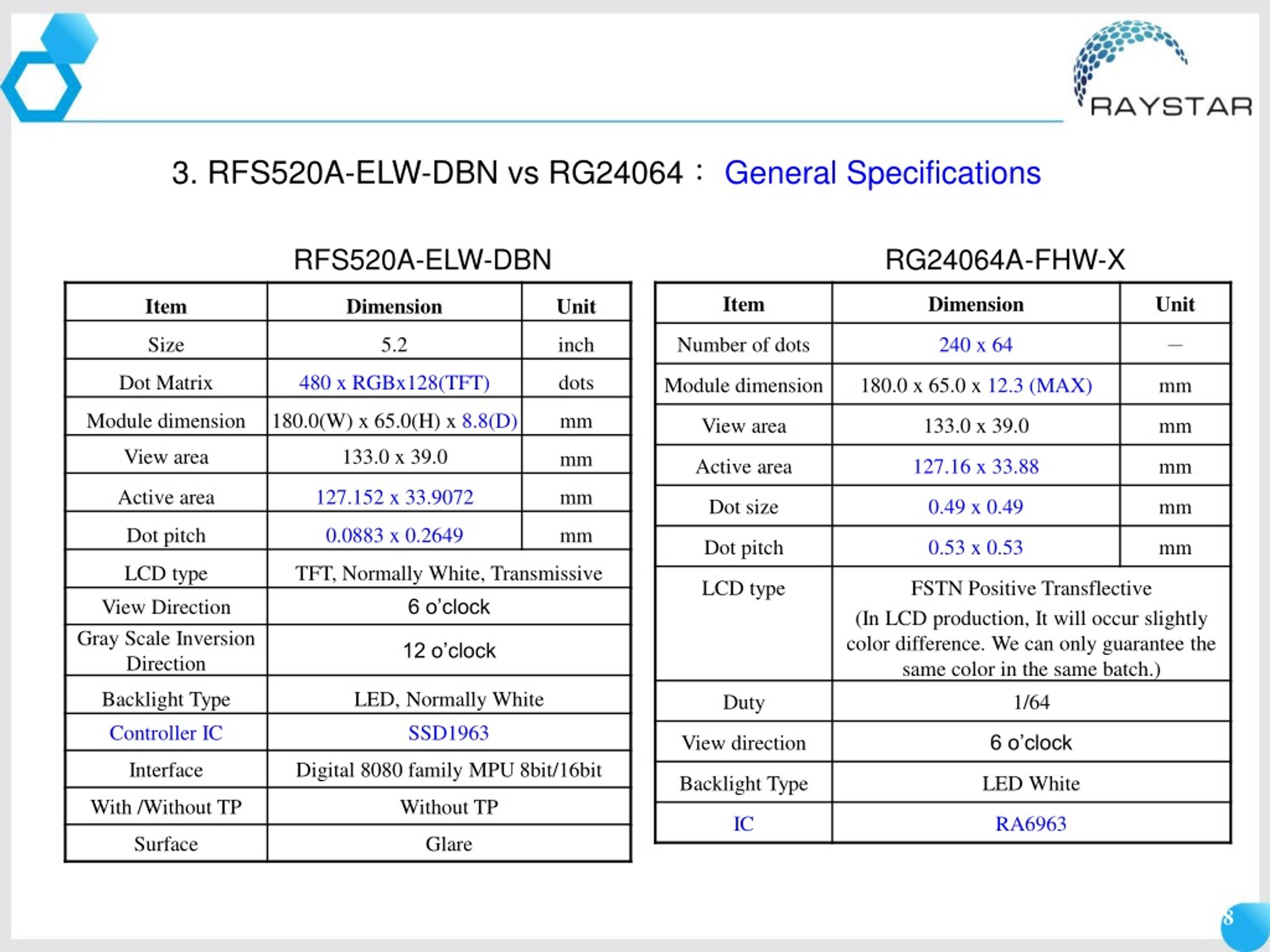

  2. 3. RFS520A-ELW-DBN vs RG24064： General Specifications RFS520A-ELW-DBN RG24064A-FHW-X Page 2 / Page 18

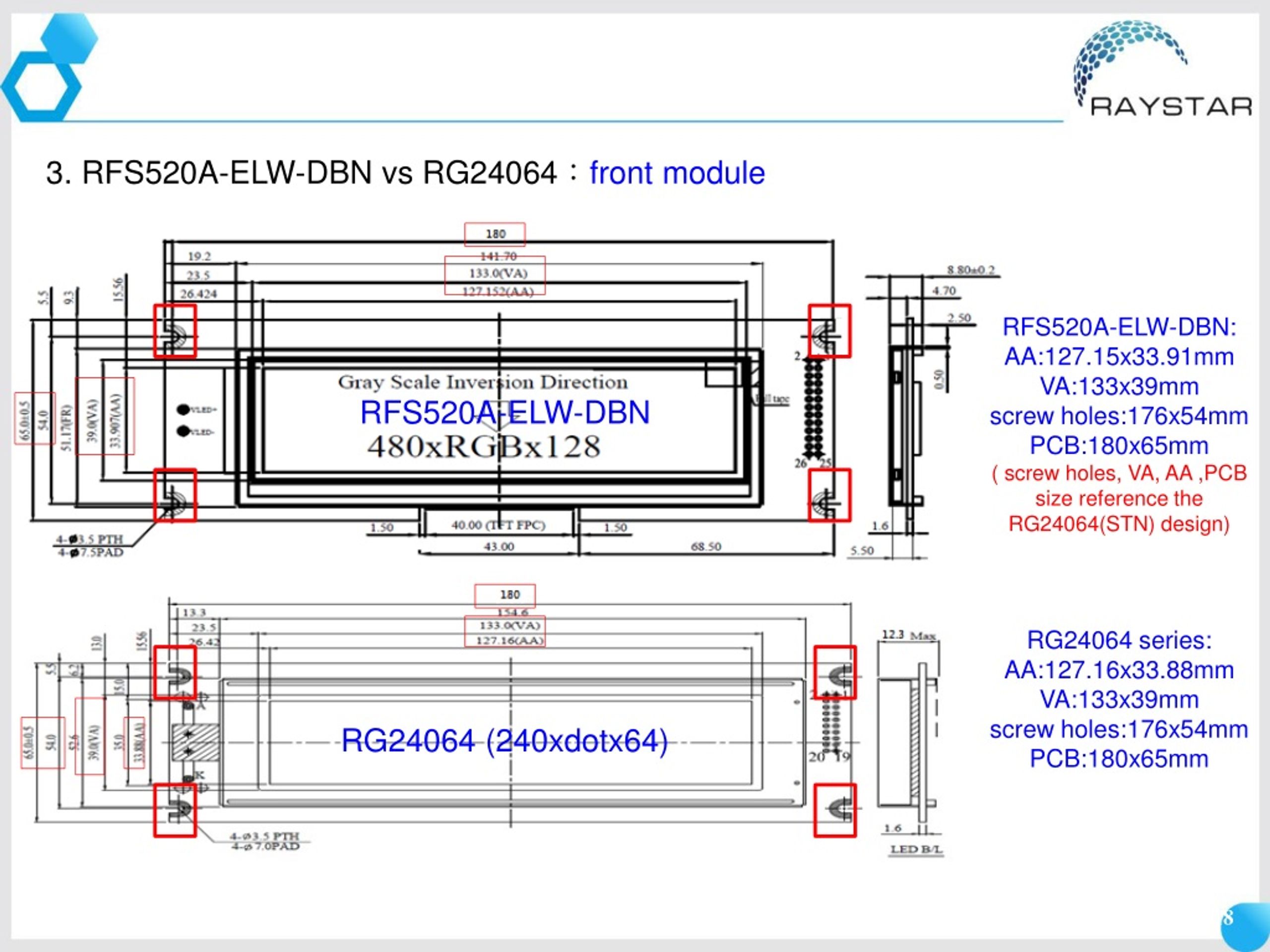

  3. 3. RFS520A-ELW-DBN vs RG24064：front module RFS520A-ELW-DBN: AA:127.15x33.91mm VA:133x39mm screw holes:176x54mm PCB:180x65mm ( screw holes, VA, AA ,PCB size reference the RG24064(STN) design) RG24064 series: AA:127.16x33.88mm VA:133x39mm screw holes:176x54mm PCB:180x65mm RFS520A-ELW-DBN RG24064 (240xdotx64) Page 3 / Page 18

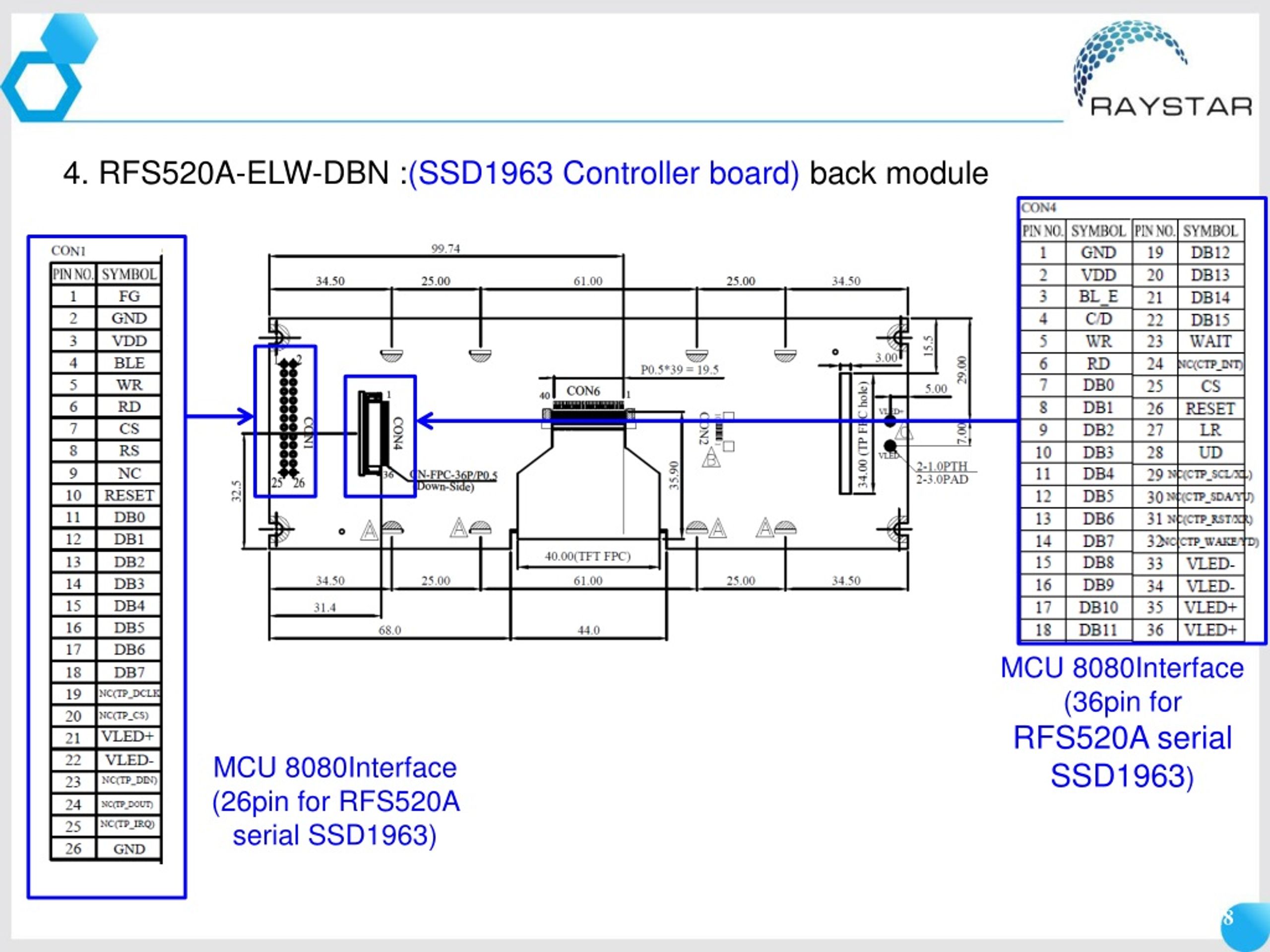

  4. 4. RFS520A-ELW-DBN :(SSD1963 Controller board) back module MCU 8080Interface (36pin for RFS520A serial SSD1963) MCU 8080Interface (26pin for RFS520A serial SSD1963) Page 4 / Page 18

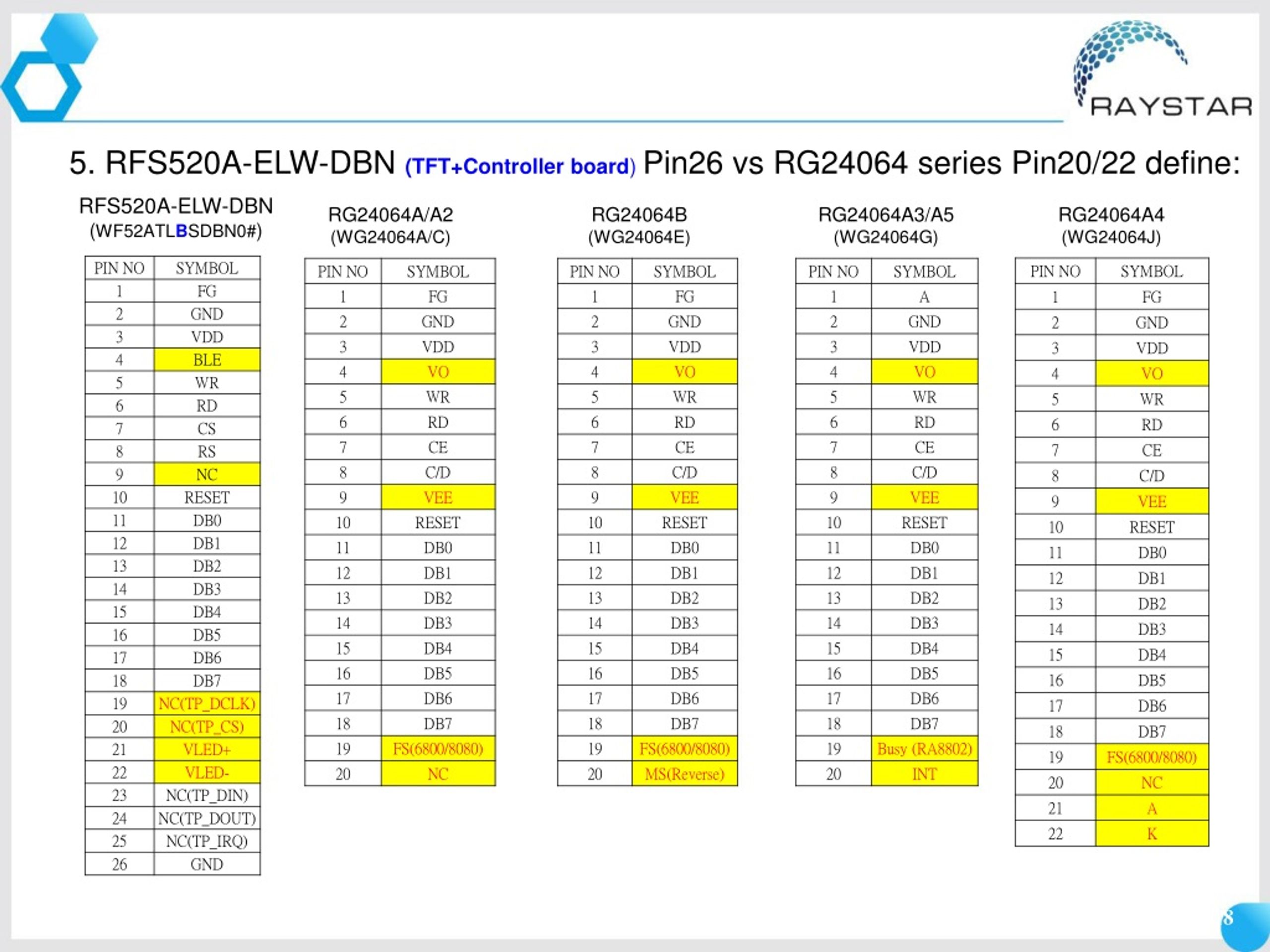

  5. 5. RFS520A-ELW-DBN (TFT+Controller board) Pin26 vs RG24064series Pin20/22 define: RFS520A-ELW-DBN (WF52ATLBSDBN0#) RG24064A/A2 (WG24064A/C) RG24064B (WG24064E) RG24064A3/A5 (WG24064G) RG24064A4 (WG24064J) Page 5 / Page 18

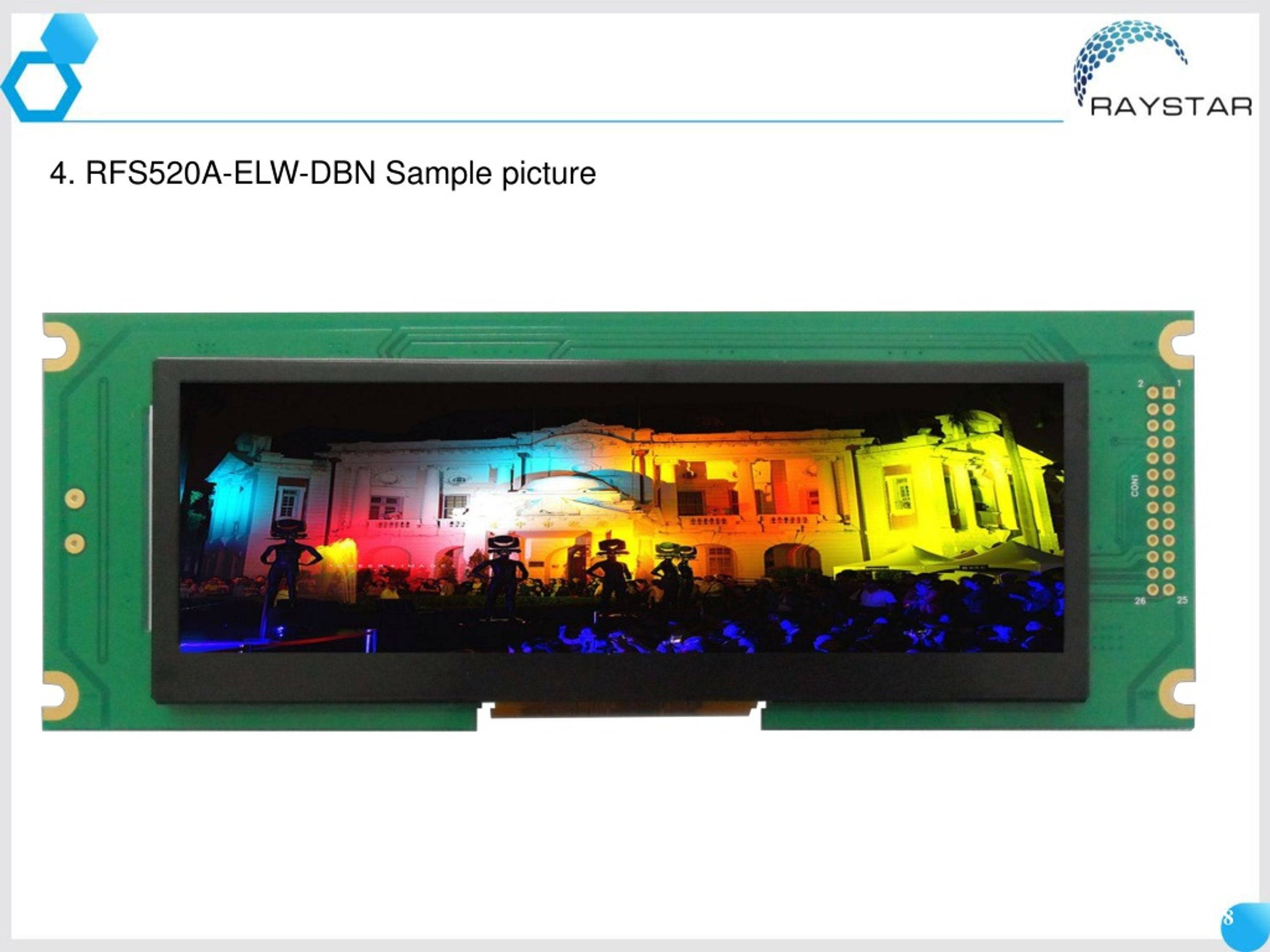

  6. 4. RFS520A-ELW-DBN Sample picture Page 6 / Page 18
