Microelectronics circuit analysis and design

Microelectronics Circuit Analysis and Design

Donald A. Neamen

Chapter 2

Diode Circuits


In this chapter we will

In this chapter, we will:

  • Determine the operation and characteristics of diode rectifier circuits, which is the first stage of the process of converting an ac signal into a dc signal in the electronic power supply.

  • Apply the characteristics of the Zener diode to a Zener diode voltage regulator circuit.

  • Apply the nonlinear characteristics of diodes to create waveshaping circuits known as clippers and clampers.

  • Examine the techniques used to analyze circuits that contain more than one diode.

  • Understand the operation and characteristics of specialized photodiode and light-emitting diode circuits.


Block diagram for ac to dc converter

Block Diagram for ac to dc Converter

The diode rectifier, filter, and voltage regulator are diode circuits.


Problem solving technique diode circuits

Problem-Solving Technique: Diode Circuits

  • Determine the input voltage condition such that the diode is conducting (on).

    • Find the output signal for this condition.

  • Determine the input voltage such that the diode is not conducting (off).

    • Find the output signal for this condition.


Half wave rectifier

Half-Wave Rectifier

Voltage Transfer Characteristics


Signals of half wave rectifier

Signals of Half Wave Rectifier

Input voltage

Output voltage

Diode voltage


Load line analysis

Load Line Analysis

Load line when vS is at its maximum forward voltage.

Load line when vS is at its most negative value.


Load line con t

Load Line (con’t)

As vS varies with time, the load line also changes, which changes the Q-point (vD and iD) of the diode.


Half wave rectifier as battery charger

Half-Wave Rectifier as Battery Charger


Full wave rectifier

Full-Wave Rectifier

Voltage transfer characteristics

Input and output waveforms


Full wave bridge rectifier

Full-Wave Bridge Rectifier

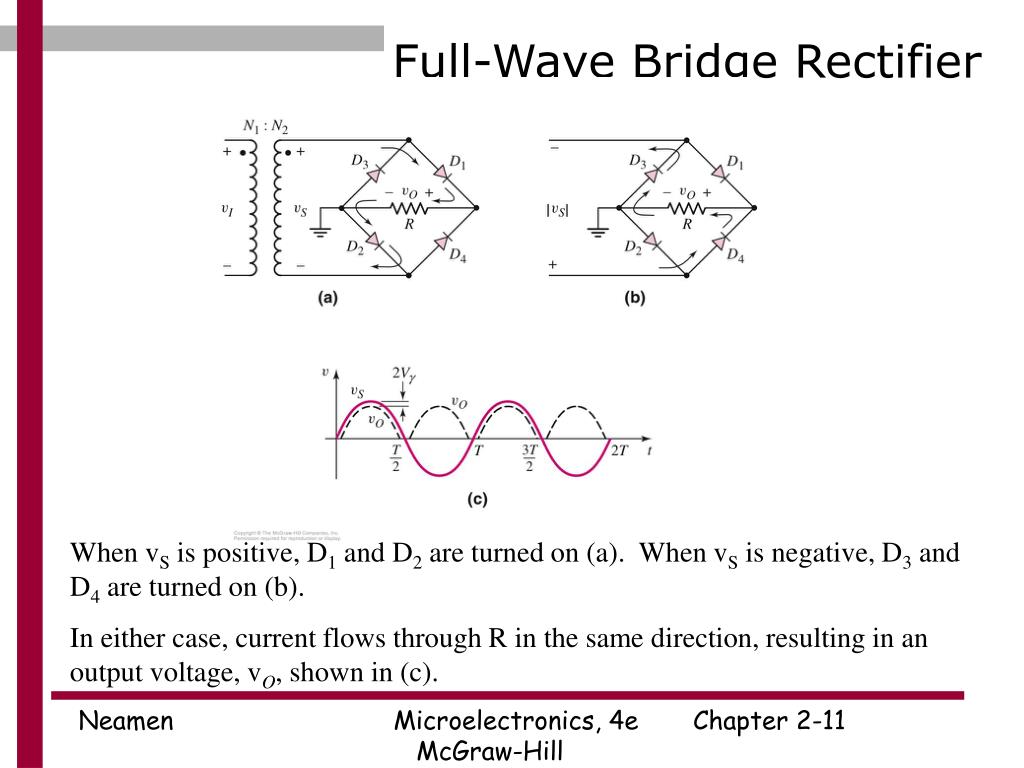

When vS is positive, D1 and D2 are turned on (a). When vS is negative, D3 and D4 are turned on (b).

In either case, current flows through R in the same direction, resulting in an output voltage, vO, shown in (c).


Full wave bridge rectifier1

Full-Wave Bridge Rectifier


Output voltage of full wave rectifier with rc filter

Output Voltage of Full-Wave Rectifier with RC Filter

The ripple on the ‘dc’ output is


Output voltage of full wave rectifier with rc filter1

Output Voltage of Full-Wave Rectifier with RC Filter

Diode conducts current for only a small portion of the period.


Equivalent circuit during capacitance charging cycle

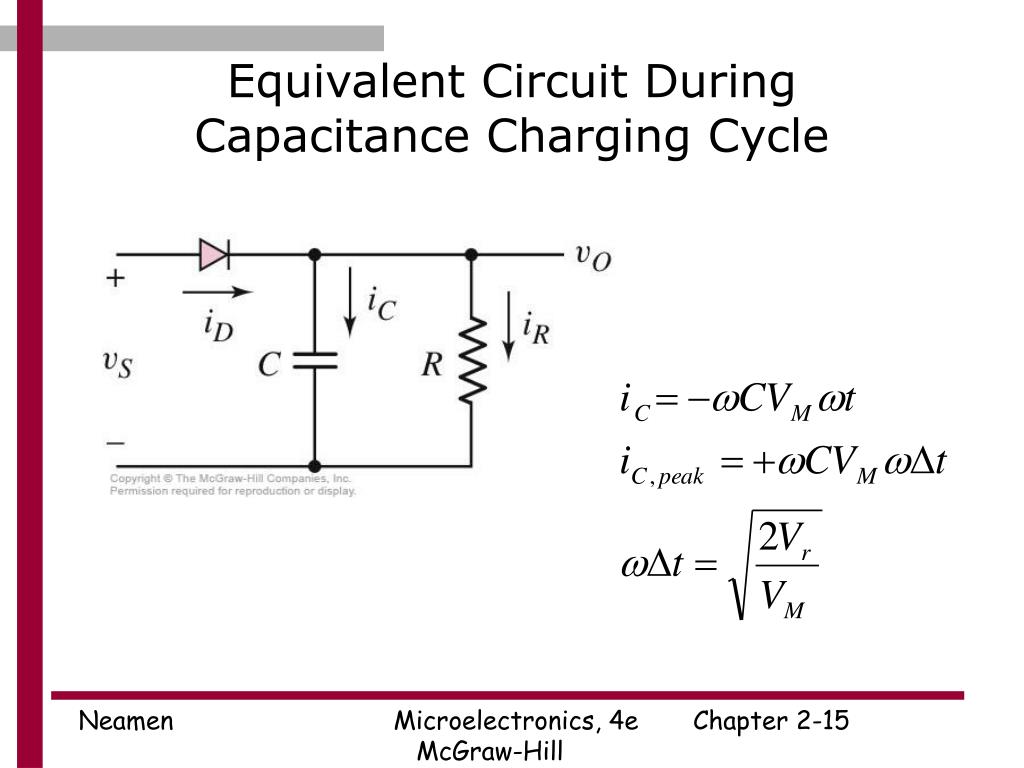

Equivalent Circuit During Capacitance Charging Cycle


Pspice schematic of diode bridge circuit

PSpice Schematic of Diode Bridge Circuit

Steady state output voltage for a 60Hz sine wave input with peak value of 13.4V.


Demodulation of amplitude modulated signal

Demodulation of Amplitude-Modulated Signal

Modulated input signal

Detector circuit

Demodulated output signal


Voltage doubler circuit

Voltage Doubler Circuit


Equivalent circuits for input cycles

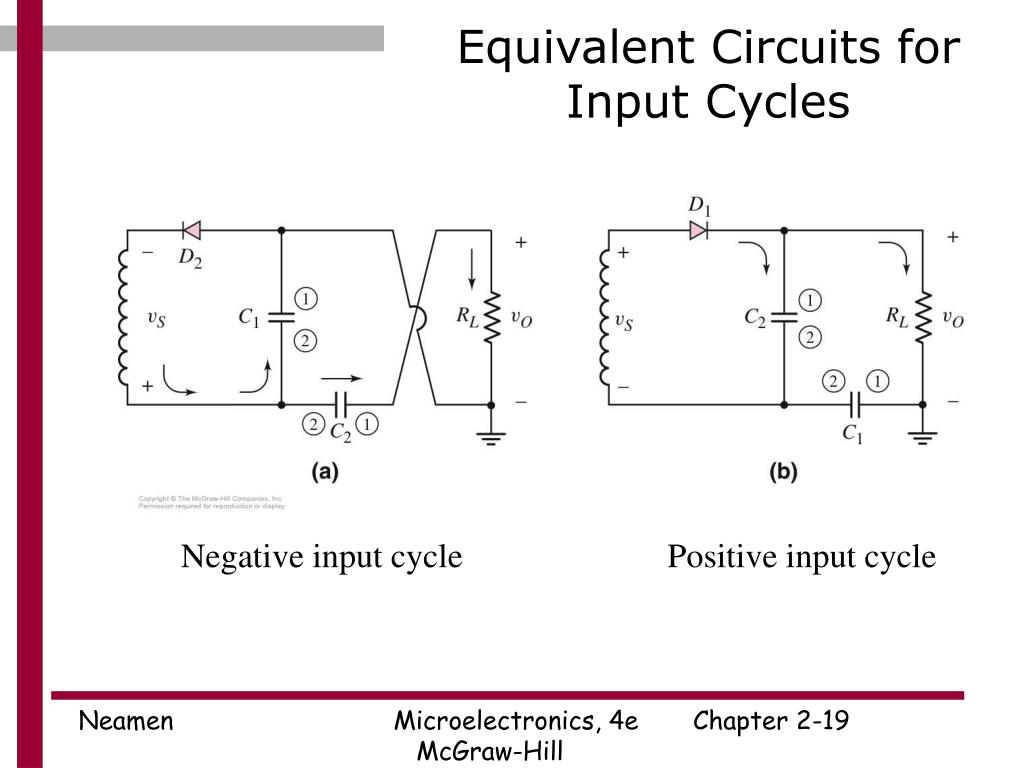

Equivalent Circuits for Input Cycles

Negative input cycle Positive input cycle


Voltage regulator

Voltage Regulator

The characteristics of the Zener diode determines VL.


Design example 2 5

Design Example 2.5


Load line analysis1

Load Line Analysis

The reverse bias I-V is important for Zener diodes.


Voltage rectifier with nonzero zener resistance

Voltage Rectifier with nonzero Zener resistance

The Zener diode begins to conduct when VPS = VZ.

When VPS≥ VZ:VL = VZ

IL = VZ/RL,, but VZ≠ constant

I1 = (VPS – VZ)/Ri

IZ = I1 - IL


Voltage transfer characteristics of limiter circuit

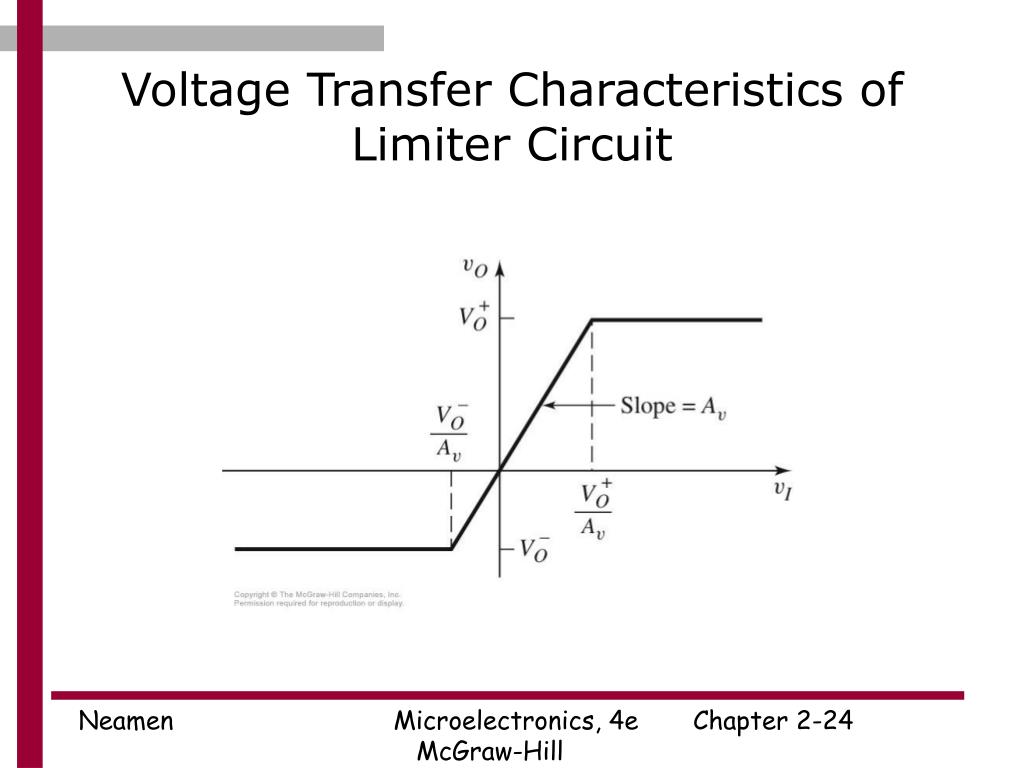

Voltage Transfer Characteristics of Limiter Circuit


Single diode clipper

Single Diode Clipper


Additional diode clipper circuits

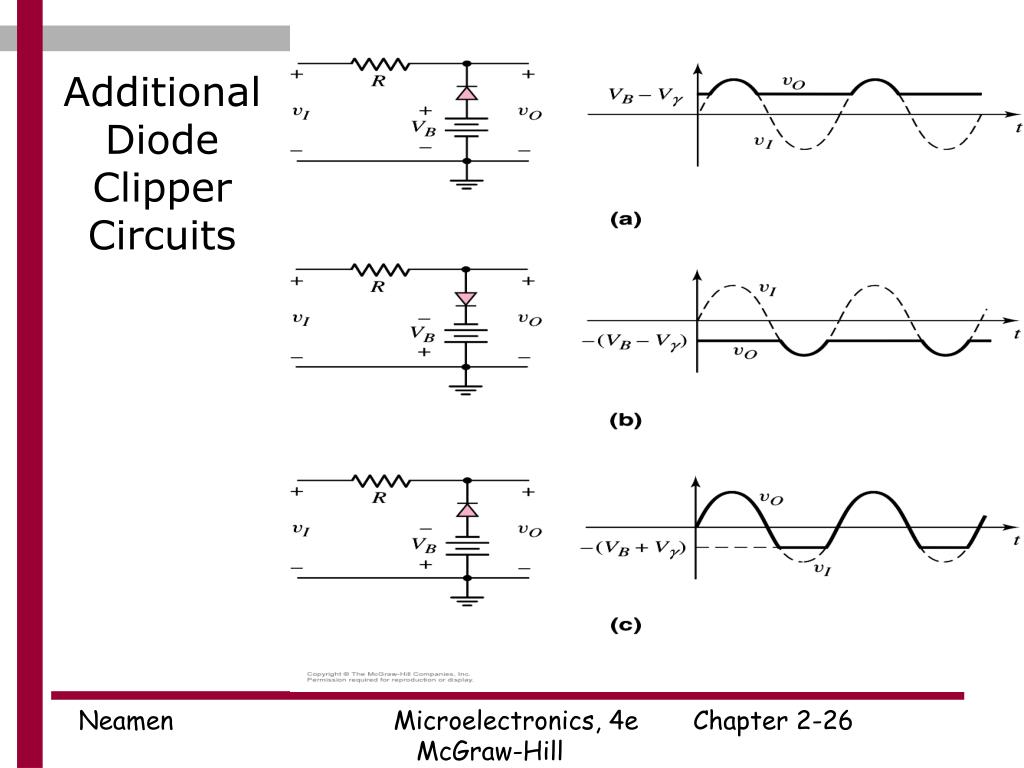

Additional Diode Clipper Circuits


Parallel based diode clipper circuit

Parallel-Based Diode Clipper Circuit


Series based diode clipper circuits

Series-Based Diode Clipper Circuits


Parallel based clipper circuit using zener diodes

Parallel-Based Clipper Circuit Using Zener Diodes


Diode clamper circuit

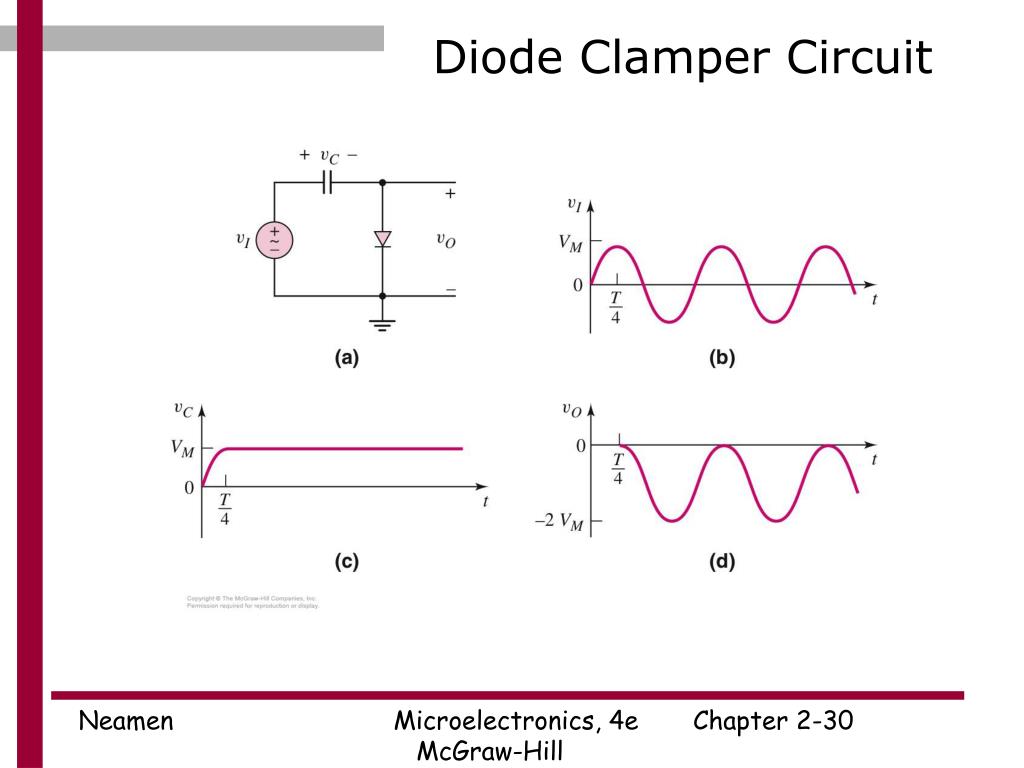

Diode Clamper Circuit


Diode clamper circuit with voltage source

Diode Clamper Circuit with Voltage Source


Diode and resistor in series

Diode and Resistor In Series

Voltage shift between input and output voltages in transfer characteristics is because the diode only conducts when v1≥ Vg.


Diode with input voltage source

Diode with Input Voltage Source

Output voltage is a constant when the diode is not conducting, when v1≥ Vs - Vg.


2 diode circuit

2 Diode Circuit

Voltage transfer characteristics

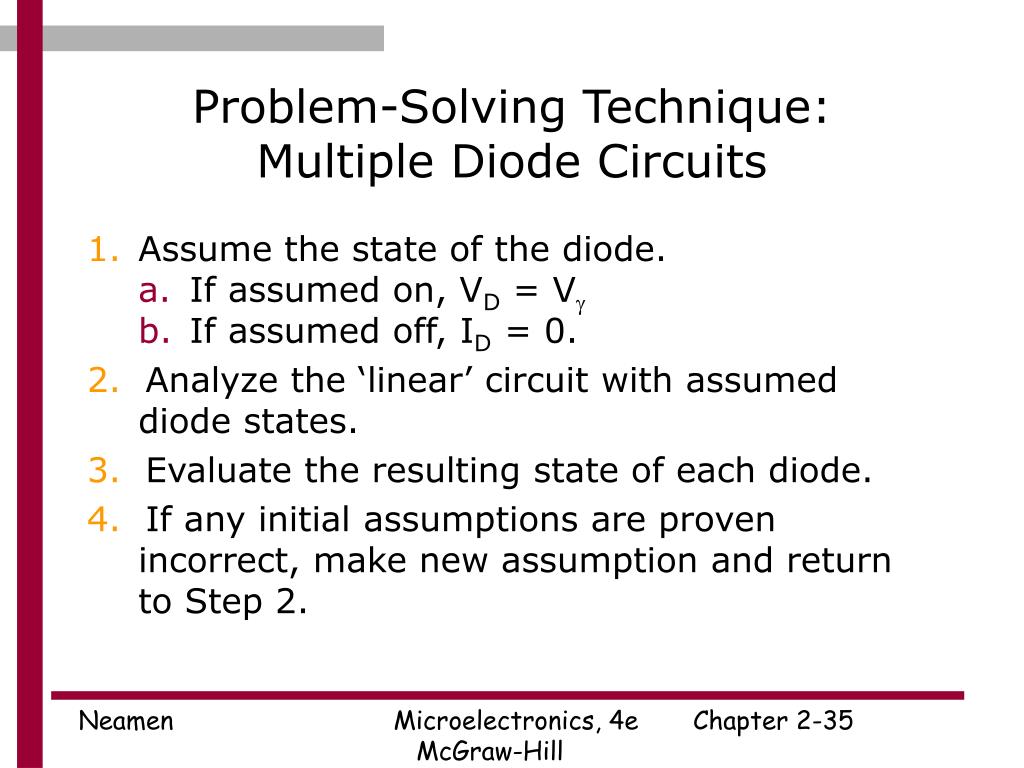

Problem solving technique multiple diode circuits

Problem-Solving Technique: Multiple Diode Circuits

  • Assume the state of the diode.

    • If assumed on, VD = Vg

    • If assumed off, ID = 0.

      2. Analyze the ‘linear’ circuit with assumed diode states.

      3. Evaluate the resulting state of each diode.

      4. If any initial assumptions are proven incorrect, make new assumption and return to Step 2.


Exercise problem

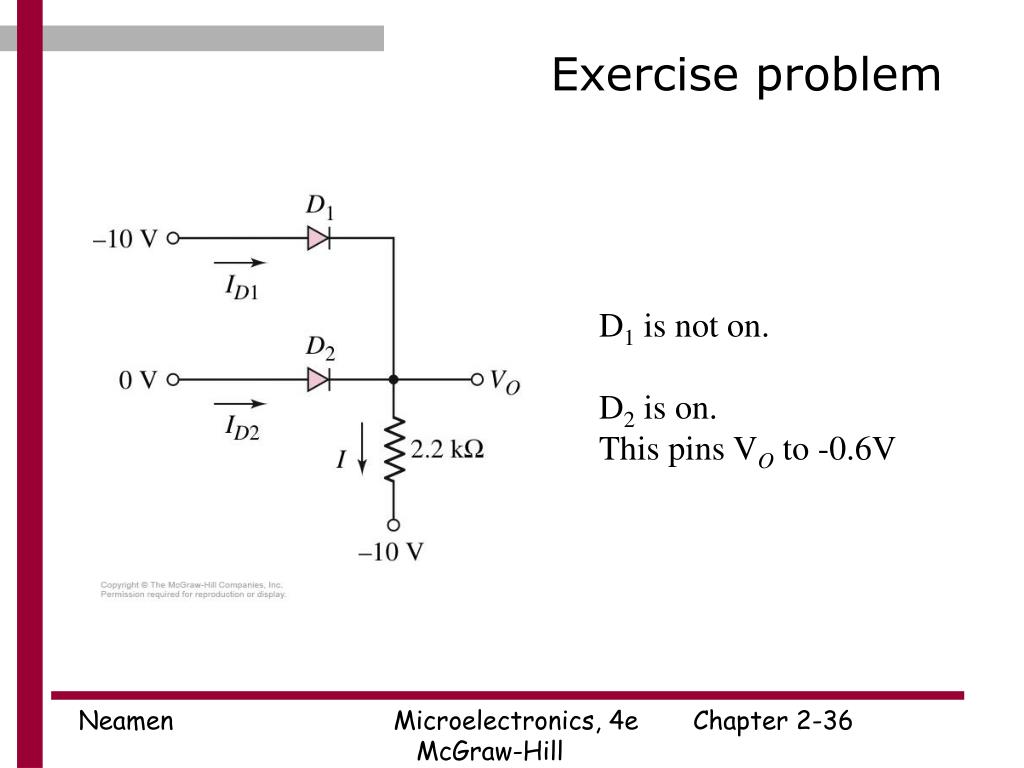

Exercise problem

D1 is not on.

D2 is on.

This pins VO to -0.6V


Diode logic circuits 2 input or gate

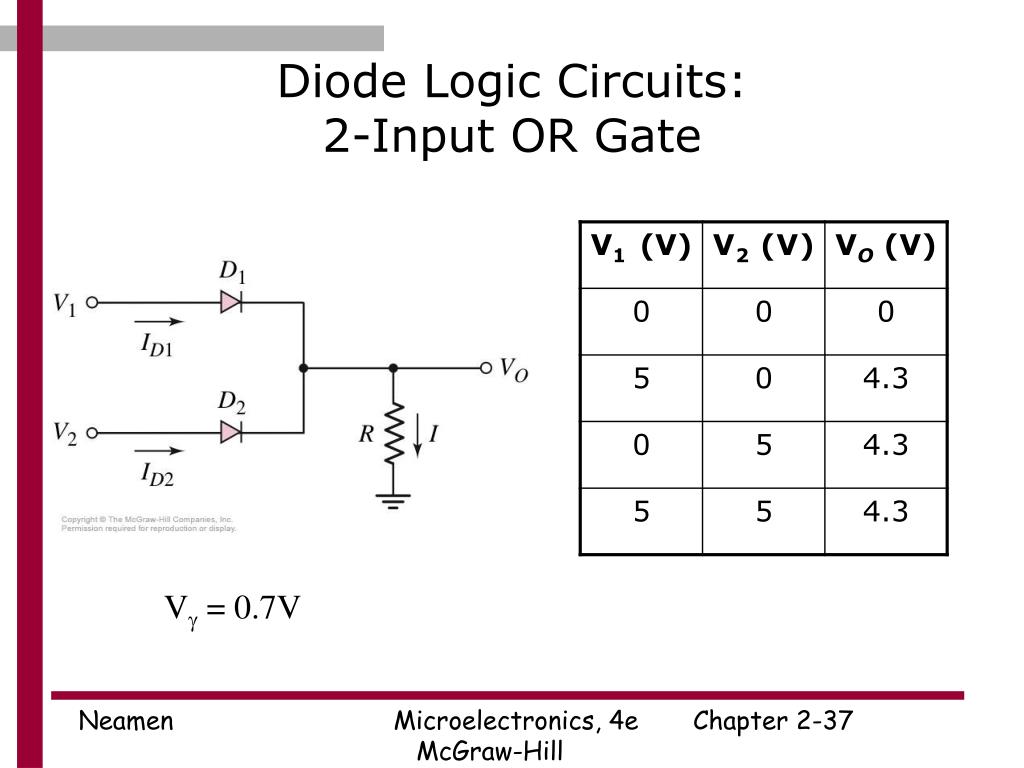

Diode Logic Circuits:2-Input OR Gate

Vg = 0.7V


Diode logic circuits 2 input and gate

Diode Logic Circuits:2-Input AND Gate

Vg = 0.7V


Photodiode circuit

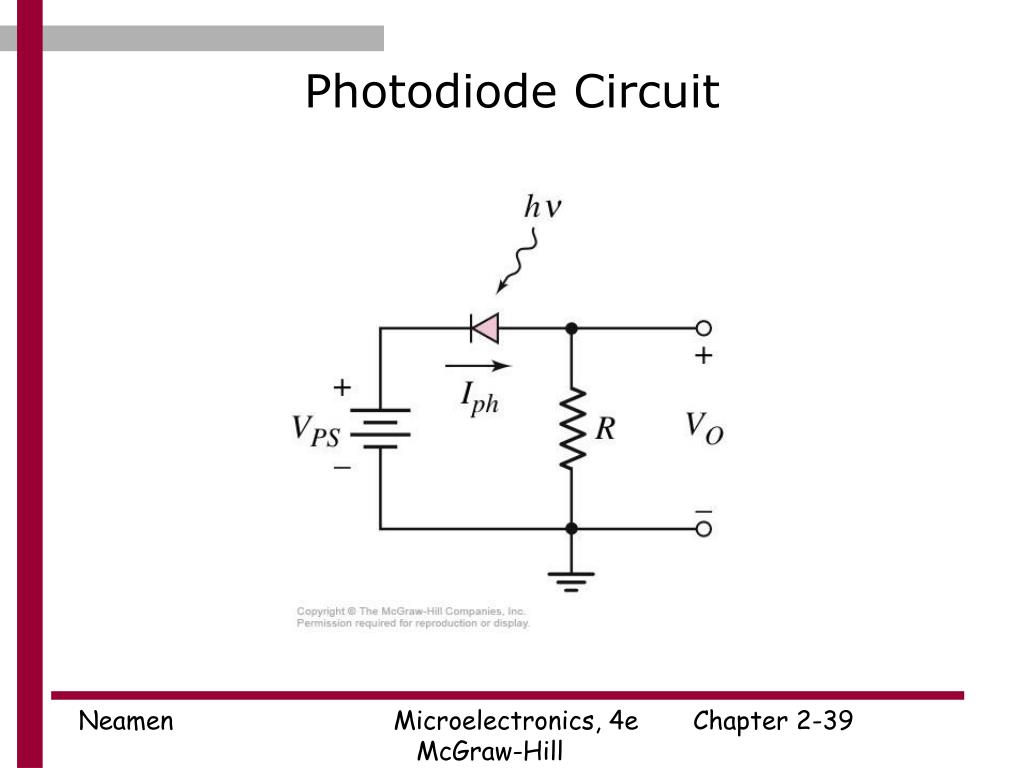

Photodiode Circuit


Optoisolator

Optoisolator


Design dc power supply circuit

Design DC Power Supply Circuit
