Presentation Transcript


A register of standardised geographic names as a part of the spatial data infrastructure

A register of standardised geographic namesas a part of thespatial data infrastructure

Topics

  • Finland – a multilingual country

  • Some aspects on the modelling of geographic names

  • Geographic Names Register (GNR) of NLS Finland

  • GNR Web Feature Service (WFS)

  • Fields of application of GNR data and services

    Teemu Leskinen

    National Land Survey of Finland

    ICC 2009, Santiago, Chile, 15–21 November 2009


Finland a multilingual country

Finland – a multilingual country

  • 5.3 million inhabitants

  • 340 000 km²

  • Finnish and Swedish are the official state languages

  • Saami languages are official in the four northernmost municipalities

    • North Saami, Inari Saami, Skolt Saami

  • Municipality is the basic administrative and linguistic unit

  • The 348 municipalities by linguistic status 1 January 2009:

    • 291 monolingual Finnish-speaking

    • 19 monolingual Swedish-speaking

    • 19 bilingual Finnish–Swedish

    • 15 bilingual Swedish–Finnish

    • 4 multilingual Finnish–Saami


Multilingual areas in finland

Multilingual areas in Finland


Helsinki is a bilingual city with a finnish speaking majority finnish names above swedish names

Helsinki is a bilingual city with a Finnish-speaking majority (Finnish names above Swedish names)


A register of standardised geographic names as a part of the spatial data infrastructure

Rymättylä (above) is a monolingual Finnish-speaking municipality (Finnish names above Swedish names) and Nagu (Nauvo in Finnish, below) a bilingual municipality with a Swedish-speaking majority (Swedish names above Finnish names)


A register of standardised geographic names as a part of the spatial data infrastructure

Finnish, North Saami, Inari Saami and Skolt Saami names in Inari municipality


Some aspects on the modelling of geographic names

Some aspects on the modelling of geographic names

  • Names as attributes of spatial/topographic objects?

    • In some cases no problem (e.g. administrative units)

    • Often the identity, definition, classification, geometry, and other attributes of these objects do not correspond with the named features in the real world

  • Names of non-modelled features?

    • Elevations, depressions, islands, coastal land formations, stretches of water bodies or even populated places are seldom modelled as spatial objects

    • They all are important places referred to by their names in any type of communication

  • Common approach: separate/integrated names register/database

    • Names are often subject to (national) standardisation

    • Names data are often maintained/supervised centrally by e.g. a national names authority

    • Persistent identifiers can be used to link names data with respective spatial objects

    • Names data may be accessed directly via standard (e.g. WFS) interfaces

    • Feature or name oriented model?

    • A register of named places or a register of place names?

    • Are names attributes of places or places attributes of names?


Geographic names register gnr of nls finland

Geographic Names Register (GNR) of NLS Finland

  • Goals of development

    • Feature oriented model

    • Persistent identifiers for named places and names

    • Integration with the NLS cartographic data production

  • Rationale for modelling

    • Multilingual and multi-names circumstances in Finland

    • Multi-product and multi-scale production environment of the NLS

  • Two integrated parts

    • Place Name Register (PNR)

    • Map Name Register (MNR)


Place name register pnr

Place Name Register (PNR)

  • About 800 000 named places and their names

  • Scale-less, no cartographic information

  • Designed to handle places with several names

  • Includes data on named places, e.g.

    • Type (some 50 feature types; feature type groups)

    • Location (centre point, mouth for a river)

    • Place id for e.g. interoperability (SDI) and change-only updates

  • Includes data on place names, e.g.

    • Spelling (standardised, unabbreviated, correct capitalisation)

    • Language and language status information

    • Place name id for e.g. interoperability (e.g. linguistic purposes) and

      change-only updates

  • Includes objects Place and Place name


A register of standardised geographic names as a part of the spatial data infrastructure

language

spelling

objecthistory

objecthistory

featuretype

featuretypegroup

Place Name Register

administrative

area

SDI and

interoperability

municipal

language

status

map sheet

located in

place id

place name id

object co-

ordinates

Placename

1

1..*

Place


Map name register mnr

Map Name Register (MNR)

  • Cartographic multi-scale representation of PNR Place names

  • Includes Map names (occurrences in map) as objects

  • Map name = cartographic text variables set for a PNR Place name

    • Position (lower left corner of the text)

    • Direction (pair of relative co-ordinates (dx,dy))

    • Spacing (whether the (dx,dy) also indicates the length of the text)

    • Bending (polyline of relative co-ordinates (dx,dy))

    • Font (e.g. Univers Medium, Univers Bold)

    • Letter tilt (angle, in degrees)

    • Text size (graphic size, mm/100)

    • Text colour (code)

    • Capitalisation (whether the name is written capitalised in this product)

  • Nationwide Map Name Registers by product/map series

    • Maintenance integrated with other spatial/map data production in respective scales:

    • 1:25 000 (800 000 names, completed)–1:1 million

    • 1:100 000 (200 000 names, completed)–1:2 million

    • 1:250 000 (65 000 names, completed)–1:4.5 million

    • 1:500 000


A register of standardised geographic names as a part of the spatial data infrastructure

spelling

objecthistory

objecthistory

alternative

text form

featuretype

product

group

product

featuretypegroup

co-ordinate

system

Geographic Names Register

administrative

area

SDI and

interoperability

municipal

language

status

map sheet

is located

language

place id

place name id

object co-

ordinates

Placename

1

1..*

Place

1

map name id

0..*

Mapname

cartography

name

placement

typography

scale

class


A register of standardised geographic names as a part of the spatial data infrastructure

SDI and interoperability

  • Place(named feature)

  • - object co-ordinates (mouth for a river)

  • feature type (river)

  • place id

”A river flowing into the Gulf of Finland in Helsinki”

A river

  • Place name(s)

  • spelling (Vantaa, Vanda å)

  • language (Finnish, Swedish)

  • place id, place name id

Vantaa

Vanda å

  • Map namesby product

  • selection of names

  • possible repeated

  • occurrences

  • unique position, direction,

  • spacing and bending

  • unique typography

  • place name id, map name id

Vanda å

Vantaa

Vanda å

Vantaa

Vantaa

Vanda å

Vantaa

Vantaa

Vanda å

Vanda å

Large    Small

Scale

V a n t a a

V a n d a å


Gnr web feature service wfs products

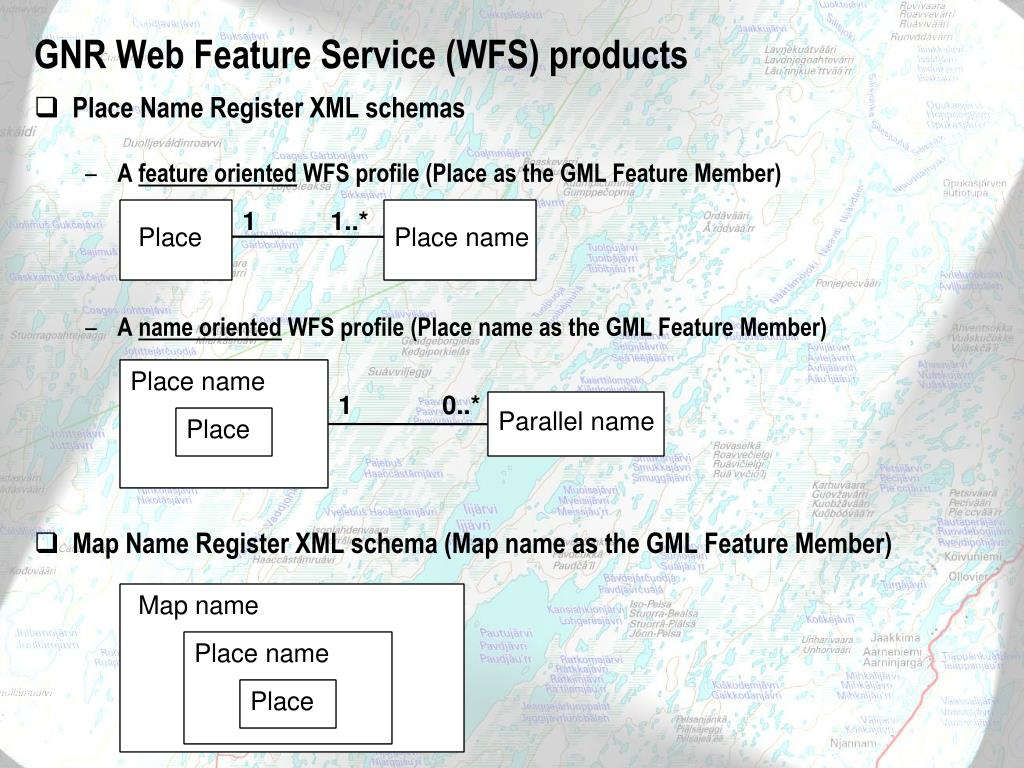

GNR Web Feature Service (WFS) products

1

1..*

Place

Place name

  • Place Name Register XML schemas

    • A feature oriented WFS profile (Place as the GML Feature Member)

    • A name oriented WFS profile (Place name as the GML Feature Member)

  • Map Name Register XML schema (Map name as the GML Feature Member)

Place name

1

0..*

Parallel name

Place

Map name

Place name

Place


Fields of application of gnr data and services

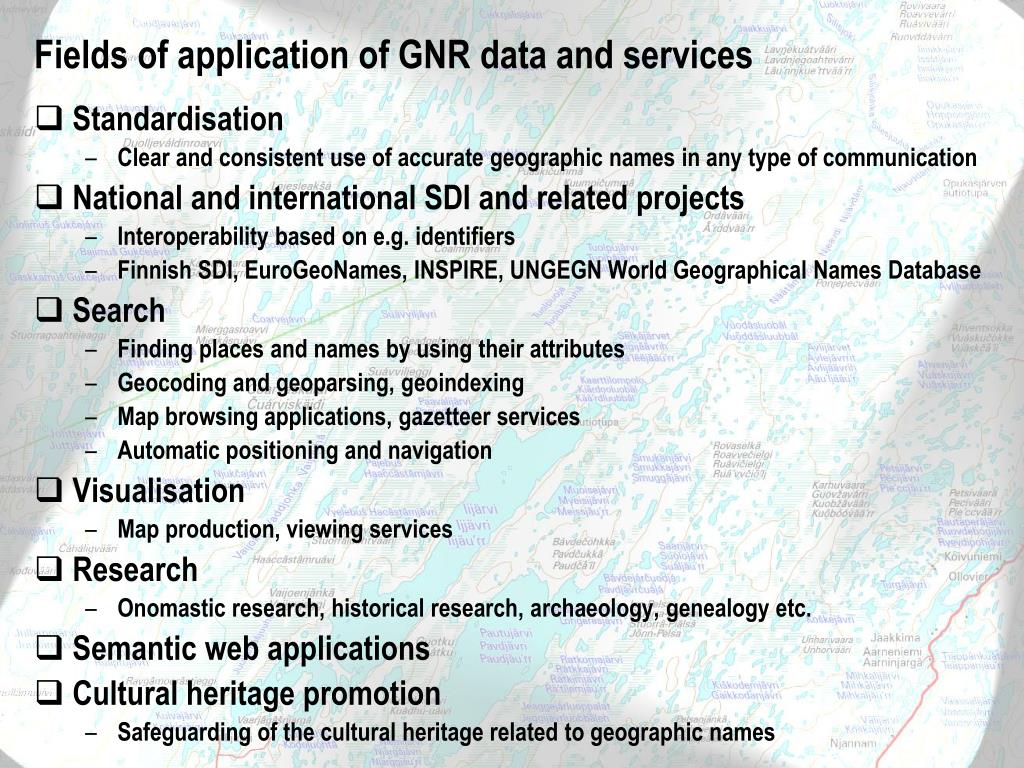

Fields of application of GNR data and services

  • Standardisation

    • Clear and consistent use of accurate geographic names in any type of communication

  • National and international SDI and related projects

    • Interoperability based on e.g. identifiers

    • Finnish SDI, EuroGeoNames, INSPIRE, UNGEGN World Geographical Names Database

  • Search

    • Finding places and names by using their attributes

    • Geocoding and geoparsing, geoindexing

    • Map browsing applications, gazetteer services

    • Automatic positioning and navigation

  • Visualisation

    • Map production, viewing services

  • Research

    • Onomastic research, historical research, archaeology, genealogy etc.

  • Semantic web applications

  • Cultural heritage promotion

    • Safeguarding of the cultural heritage related to geographic names


A register of standardised geographic names as a part of the spatial data infrastructure

THANK YOU!
