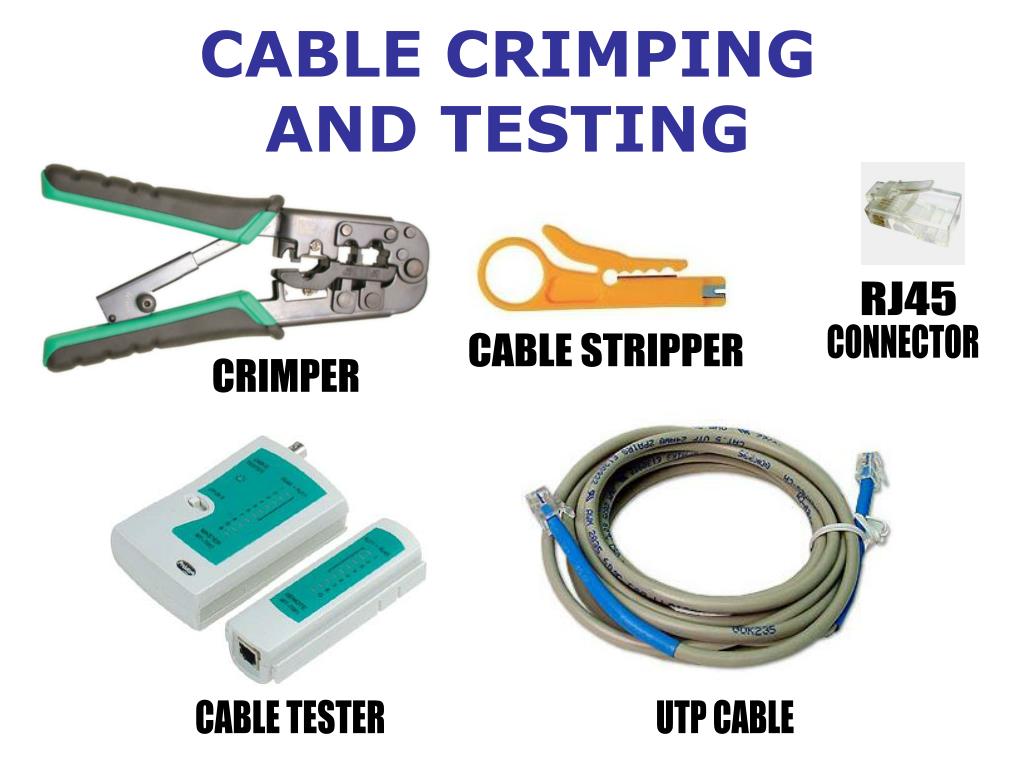

  1. CABLE CRIMPING AND TESTING RJ45 CONNECTOR CABLE STRIPPER CRIMPER CABLE TESTER UTP CABLE

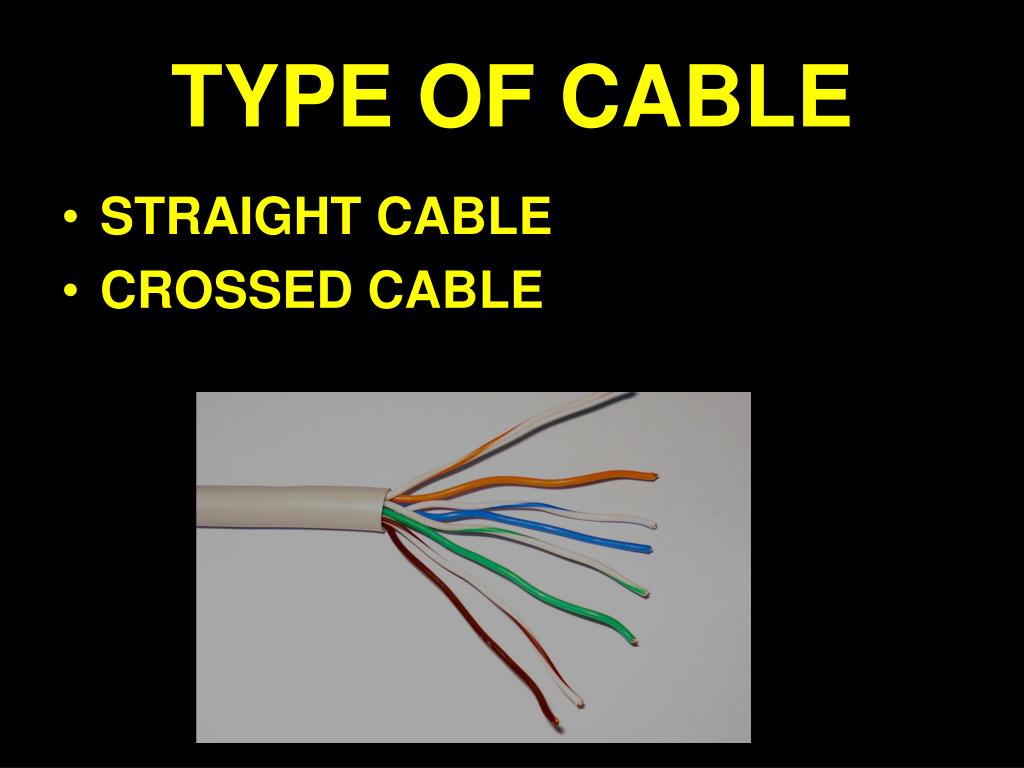

  2. TYPE OF CABLE • STRAIGHT CABLE • CROSSED CABLE

  3. straight cable pc to hub

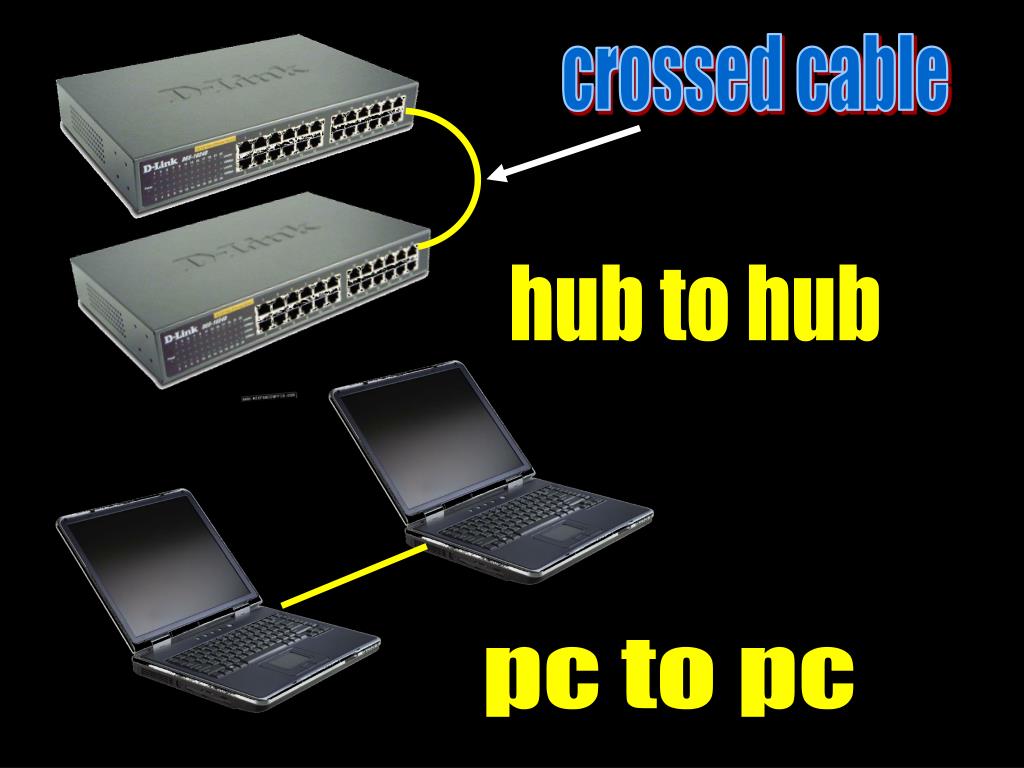

  4. crossed cable hub to hub pc to pc

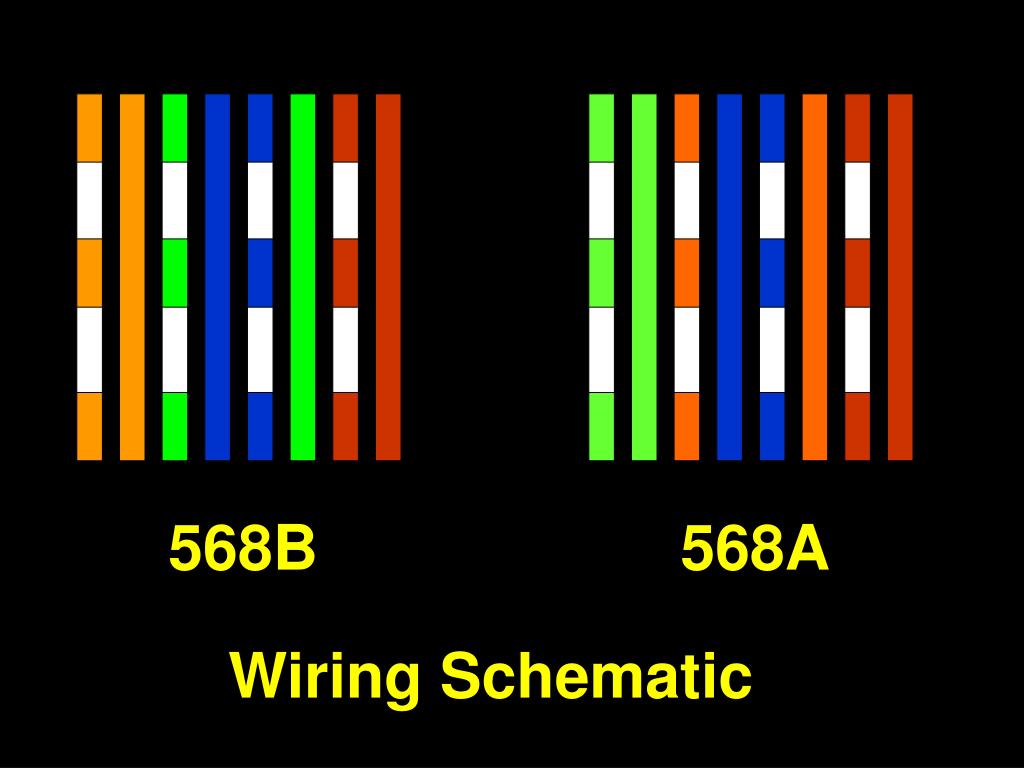

  5. 568B 568A Wiring Schematic

  6. Analogy 568B 568A GO AND BUY ORANGE, BROWN

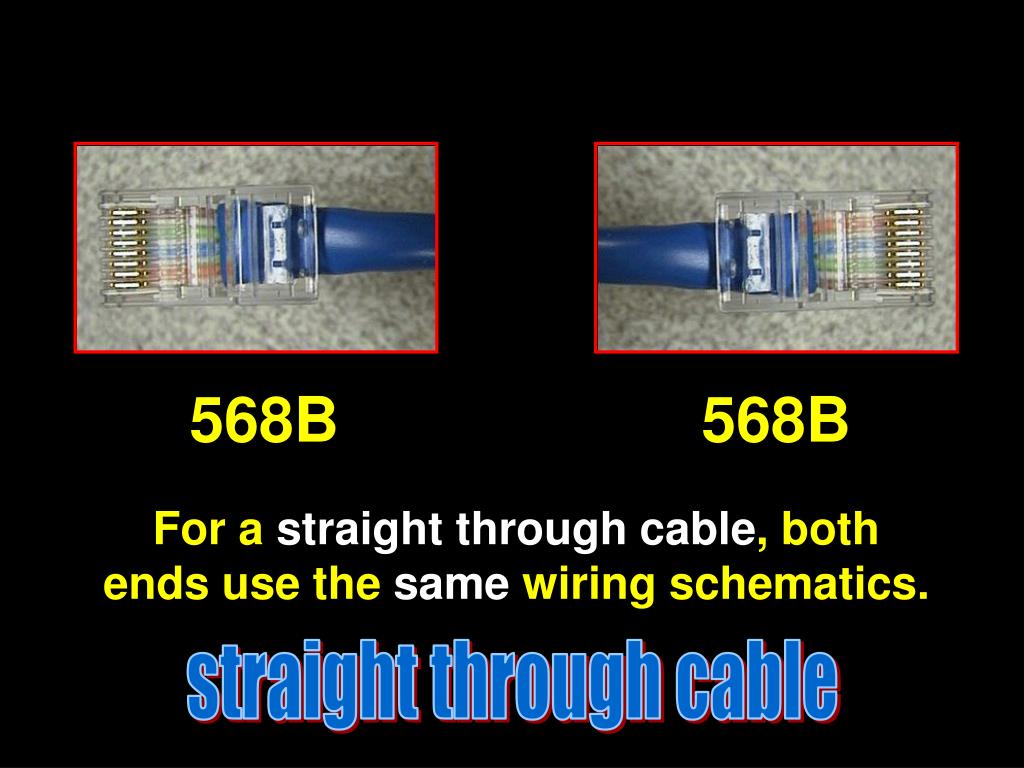

  7. 568B 568B For a straight through cable, both ends use the same wiring schematics. straight through cable

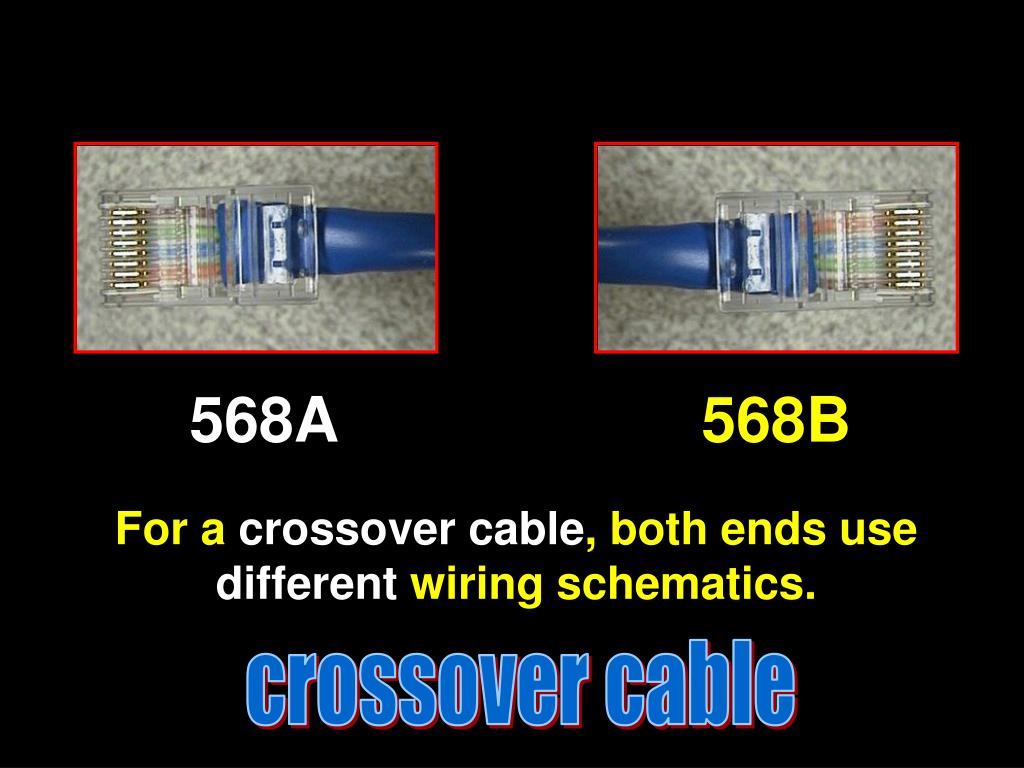

  8. 568A 568B For a crossover cable, both ends use different wiring schematics. crossover cable

  9. RJ45 pair twisted wire connector

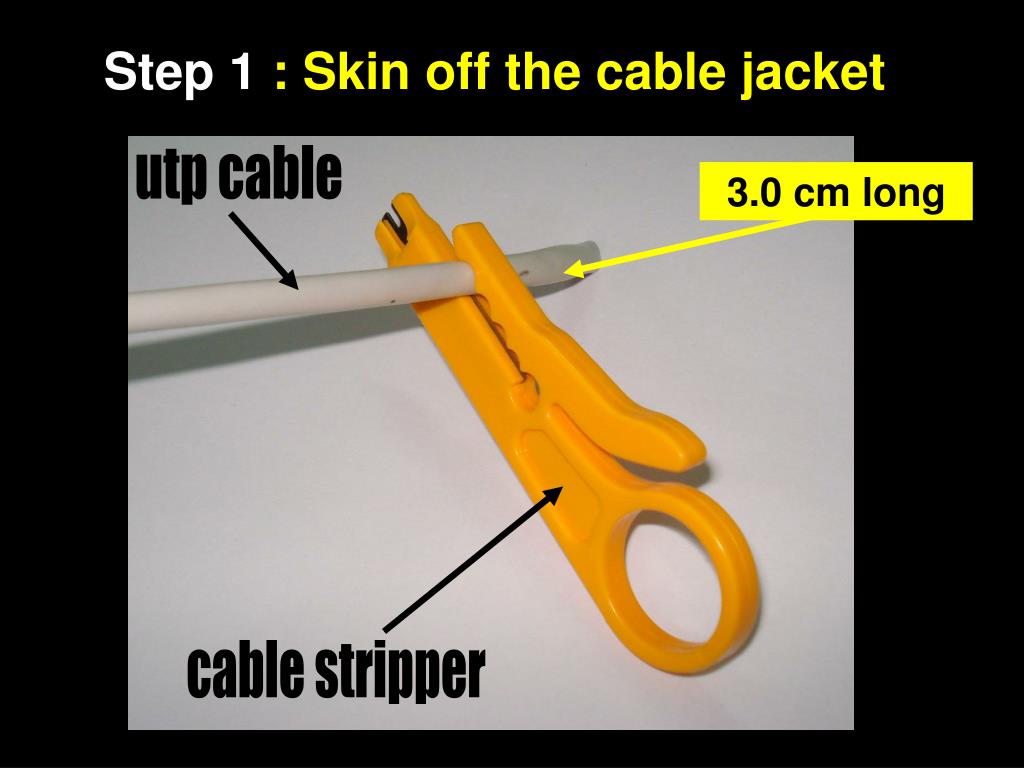

  10. Step 1 : Skin off the cable jacket utp cable 3.0 cm long cable stripper

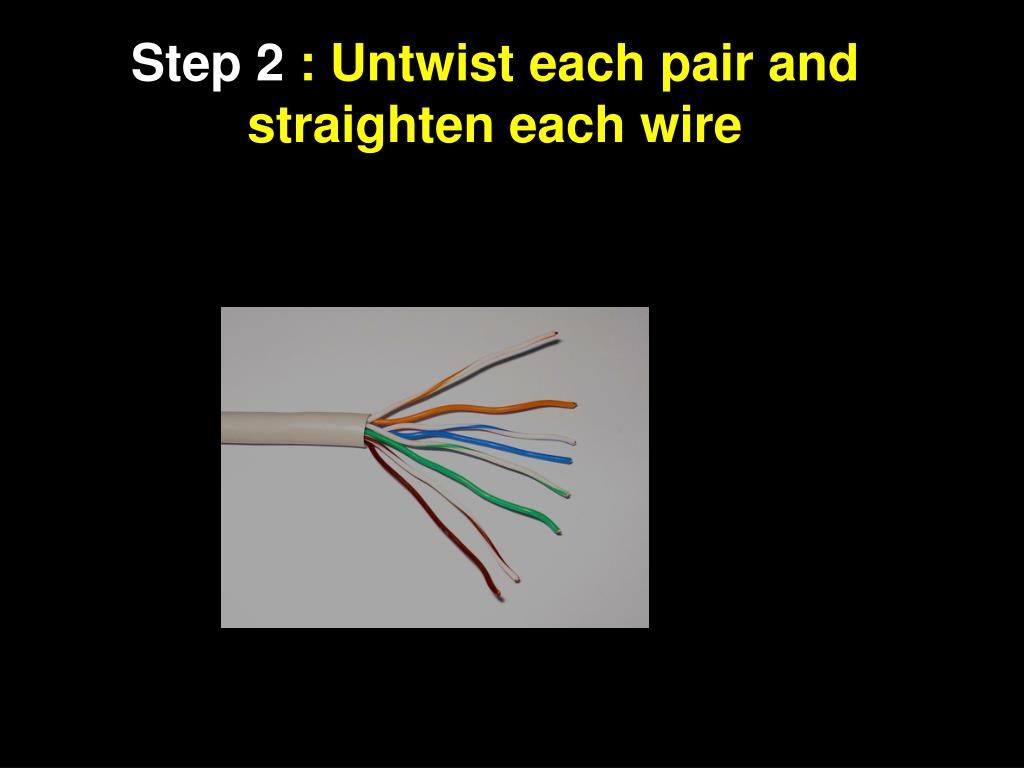

  11. Step 2 : Untwist each pair and straighten each wire

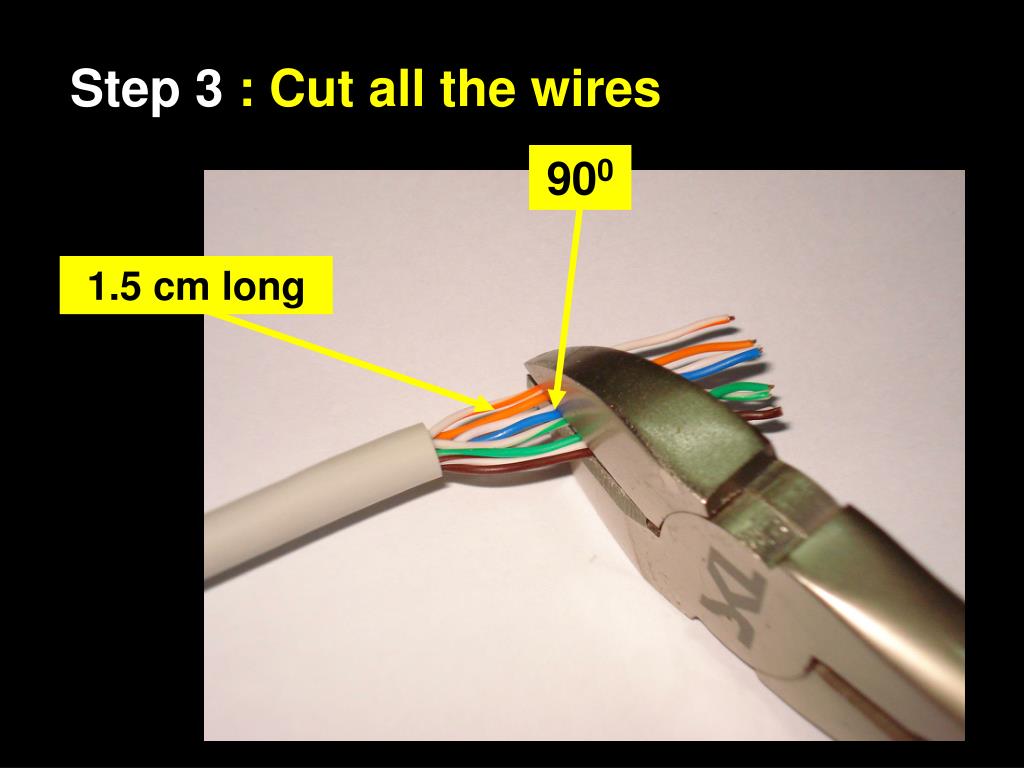

  12. Step 3 : Cut all the wires 900 1.5 cm long

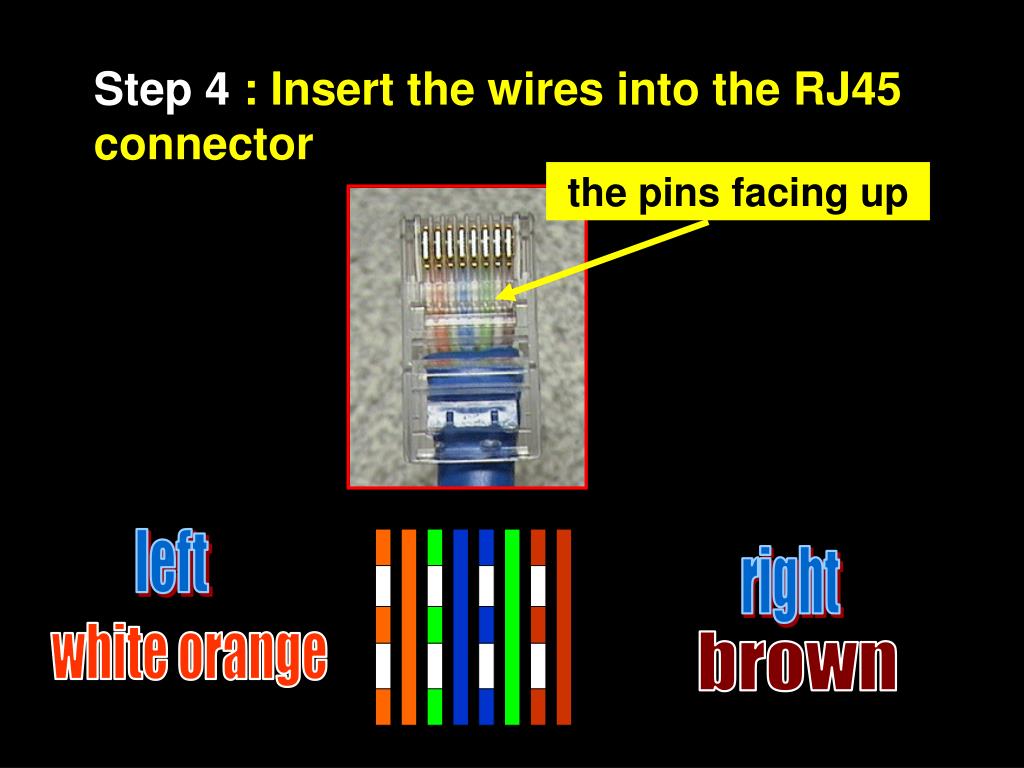

  13. Step 4 : Insert the wires into the RJ45 connector the pins facing up left right white orange brown

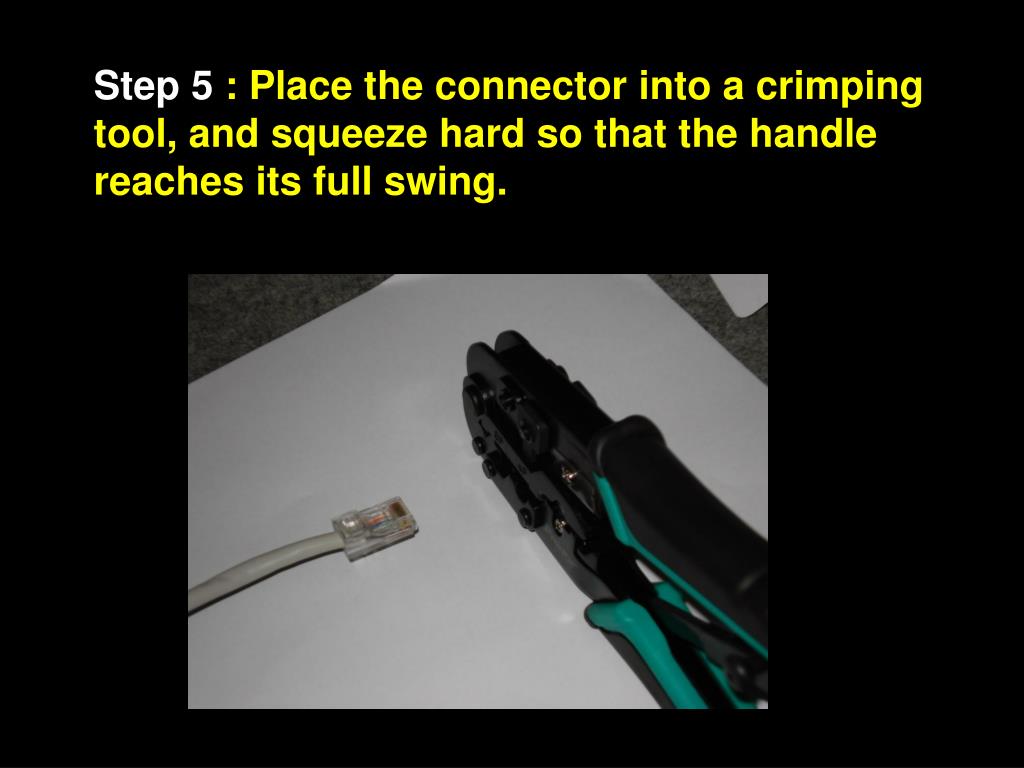

  14. Step 5 : Place the connector into a crimping tool, and squeeze hard so that the handle reaches its full swing.

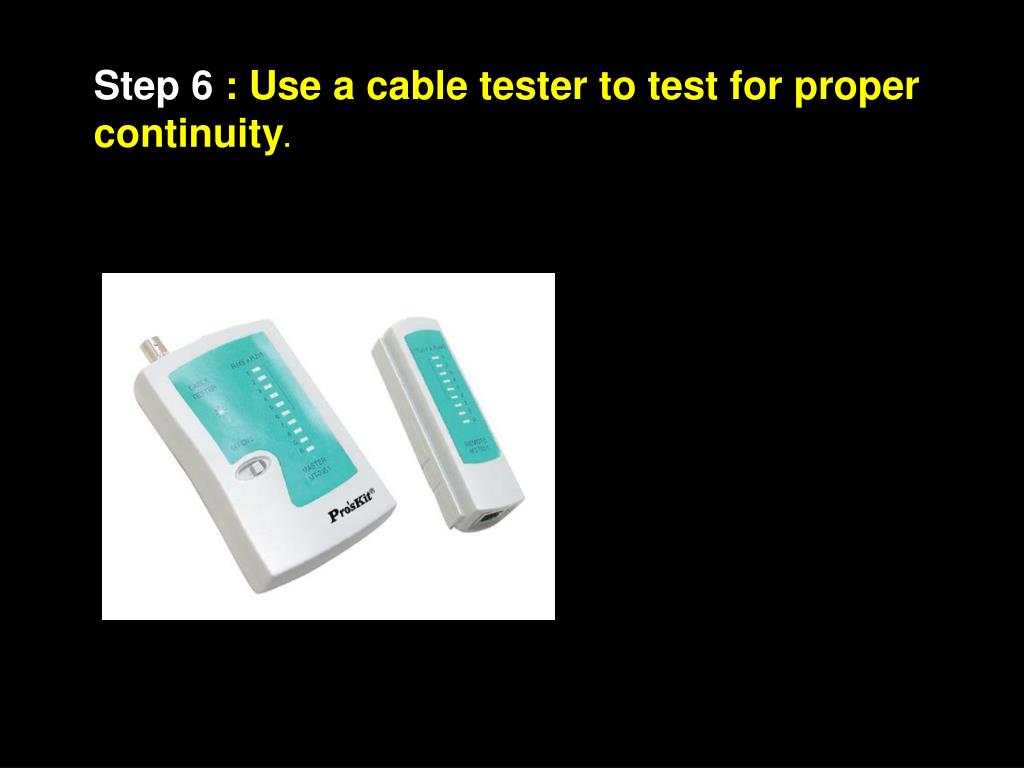

  15. Step 6 : Use a cable tester to test for proper continuity.

  16. straight cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  17. straight cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

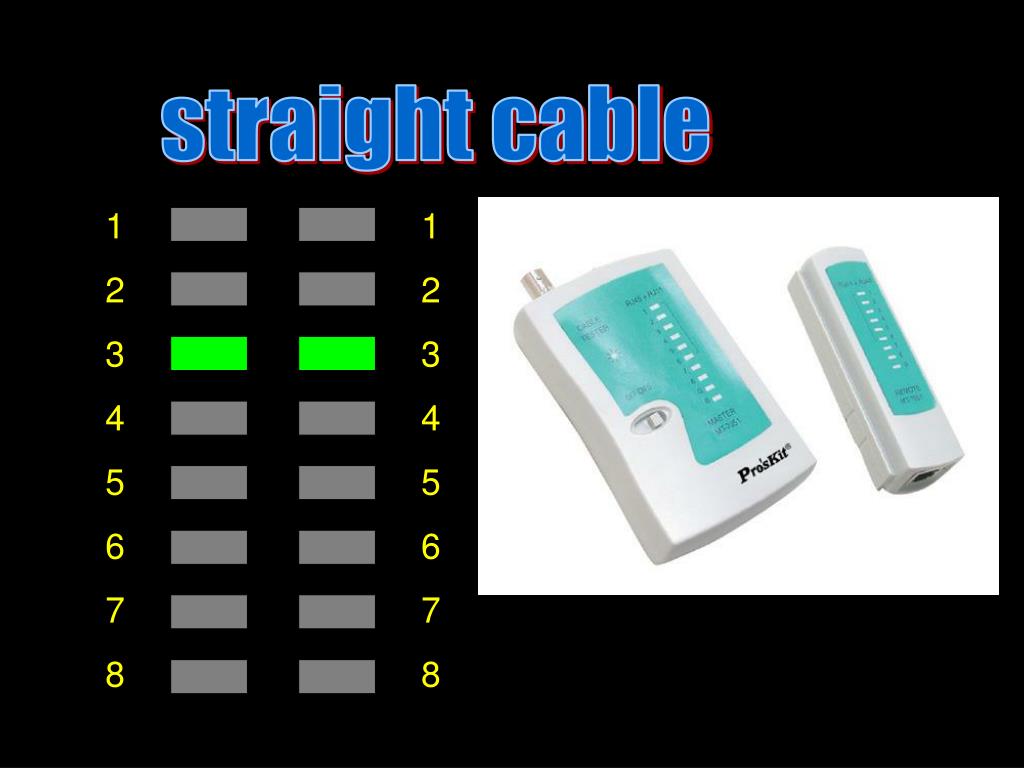

  18. straight cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  19. straight cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  20. straight cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  21. straight cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  22. straight cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  23. straight cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

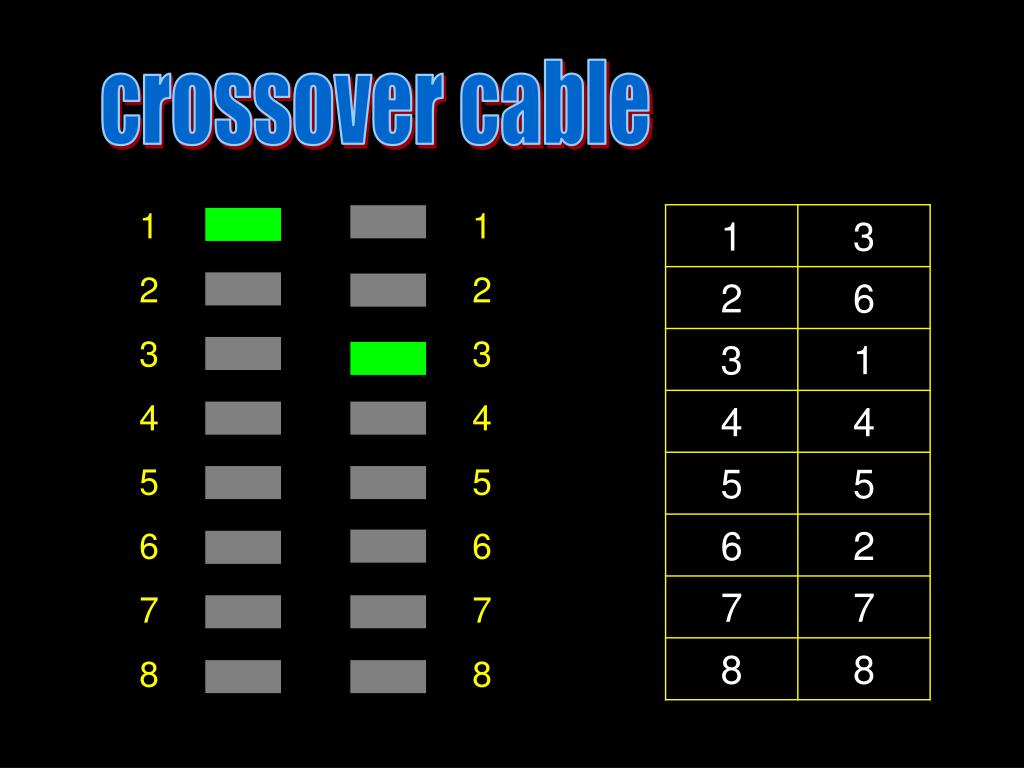

  24. crossover cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  25. crossover cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  26. crossover cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

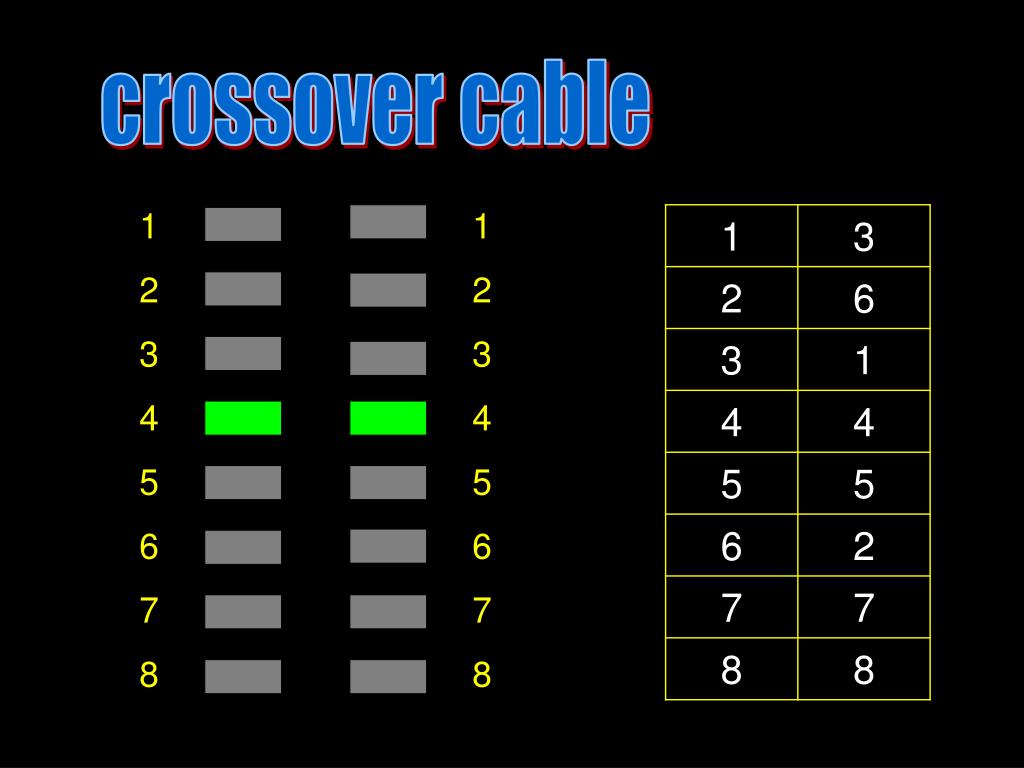

  27. crossover cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  28. crossover cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  29. crossover cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  30. crossover cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  31. crossover cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

  32. straight cable

  33. crossover cable
