Presentation Transcript


09 02 2012

Update on DLL and slow control design

Joan MauricioLa Salle (URL)19/12/2012

09/02/2012

1


09 02 2012

Requirements

  • 1 ns resolution.

  • DNL < 100 ps.

  • 3 independent adjustable phases:

    • ICECAL Integrator clock.

    • ICECAL T&H clock.

    • ADC clock.

  • Radiation tolerant design. Policies:

    ≥ 5 um between NMOS diffusion and N-Well.

    • Guard rings between PMOS and NMOS transistors.

      Slow control:

      • SPI.

      • Triple voting registers.

19/12/2012

2


09 02 2012

VCDL Design – Basic Delay Element

  • Starved Inverter.

  • vControl is servo controlled by the Phase Comparator.

  • coarse is tuned externally:

    • Process compensation.

    • Duty Cycle adjust.

19/12/2012

3


09 02 2012

VCDL Design – 1ns Delay Element

~ 330/500ps

  • Weak inverters ensures 180º phase between differential paths.

  • Output inverters isolate Delay Element from MUXs:

P+ ring

NMOS

P+ ring

N+ ring

PMOS

N+ ring

PMOS

N+ ring

P+ ring

NMOS

4

P+ ring


09 02 2012

VCDL Design – 25ns Delay Line

  • 250 Monte Carlo simulations (Process+Mismatch):

    • Misamtch does not affect significantly.

    • DLL can be adjusted to 25 ns despite Process Variations.

5


09 02 2012

25:1 Multiplexor and Output Buffer

~ 1100ps

~ 1500ps

~ 1500ps

~ 400ps

~ 330 / 500ps

outEn

  • Used to choose the desired output from the VCDL.

  • Multiplexing is done in two steps (groups of 5).

  • Output Buffer reduces rise/fall time.

19/12/2012

6


09 02 2012

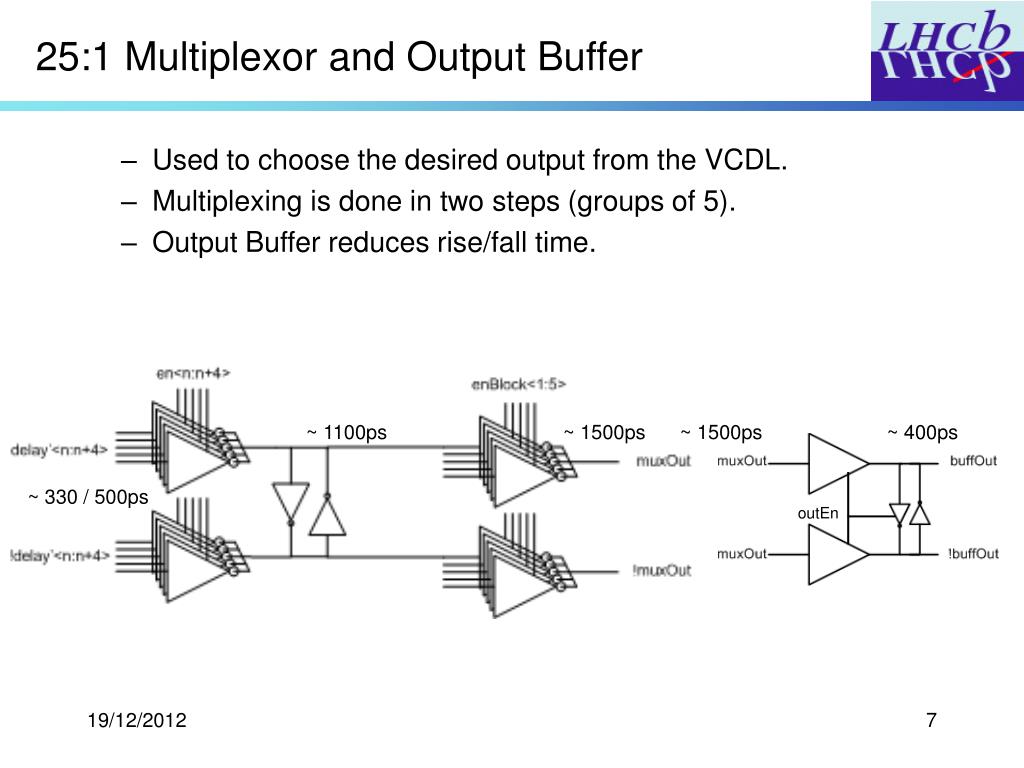

25:1 Multiplexor and Output Buffer

~ 1100ps

~ 1500ps

~ 1500ps

~ 400ps

~ 330 / 500ps

outEn

  • Used to choose the desired output from the VCDL.

  • Multiplexing is done in two steps (groups of 5).

  • Output Buffer reduces rise/fall time.

19/12/2012

7


09 02 2012

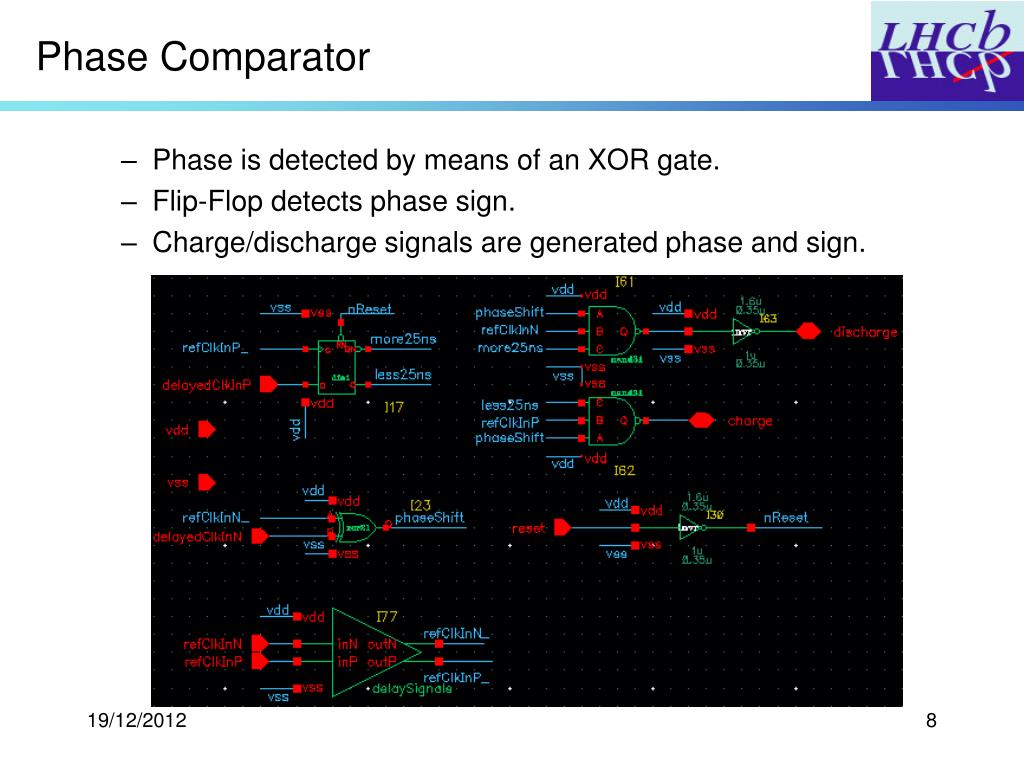

Phase Comparator

  • Phase is detected by means of an XOR gate.

  • Flip-Flop detects phase sign.

  • Charge/discharge signals are generated phase and sign.

19/12/2012

8


09 02 2012

DLL Channel Top View

Phase Comp.

+

Charge Pump

VCDL

VCDL

Integrator and T&H Clock generation

ADC Clock generation

vControl

vControl

LVDS2CMOS

cmosClk

cmosClk

coarse

coarse

25:1 Mux

25:1 Mux

ADCClk

T&HClk

INTClk

19/12/2012

9


09 02 2012

Slow Control – Triple voting

Decision

DFC

2,0

DFC

3,0

DFC

0,1

DFC

1,1

Decision

DFC

0,0

DFC

1,0

Decision

DFC

2,1

DFC

3,1

DFC

0,2

DFC

1,2

Decision

DFC

2,2

DFC

3,2

  • The objective is to minimize the chances of a charged particle corrupts configuration or status registers.

  • Interleaving factor 4 reduces the probability of 3-Voting errors.

> 115 um

DFC<m,n> = Flip Flop

m = bit number <0,4>

n = voting register <0,2>

19/12/2012

10


09 02 2012

Slow Control – Triple voting

19/12/2012

11


09 02 2012

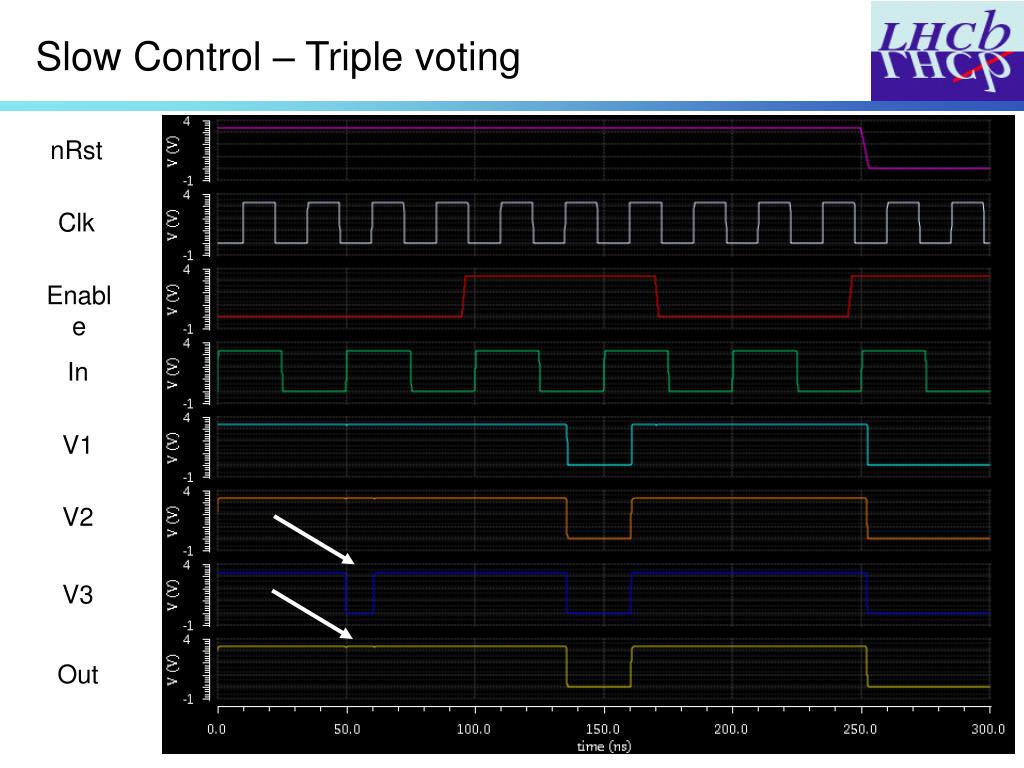

Slow Control – Triple voting

nRst

Clk

Enable

In

V1

V2

V3

Out

12


09 02 2012

Slow Control – SPI

ICECAL Ch =

· Analog.

· DLL.

· Slow control.

ICECAL Ch1

ICECAL Ch2

SPI Master

SPI Decoder

ICECAL Ch3

ICECAL Ch4

SPI Decoderinterfaceswith SPI Masterandgenerates R/W, Chip Enable, Sclk, Sdasignals for eachchannel

19/12/2012

13
