Presentation Transcript
database entry of irradiation data

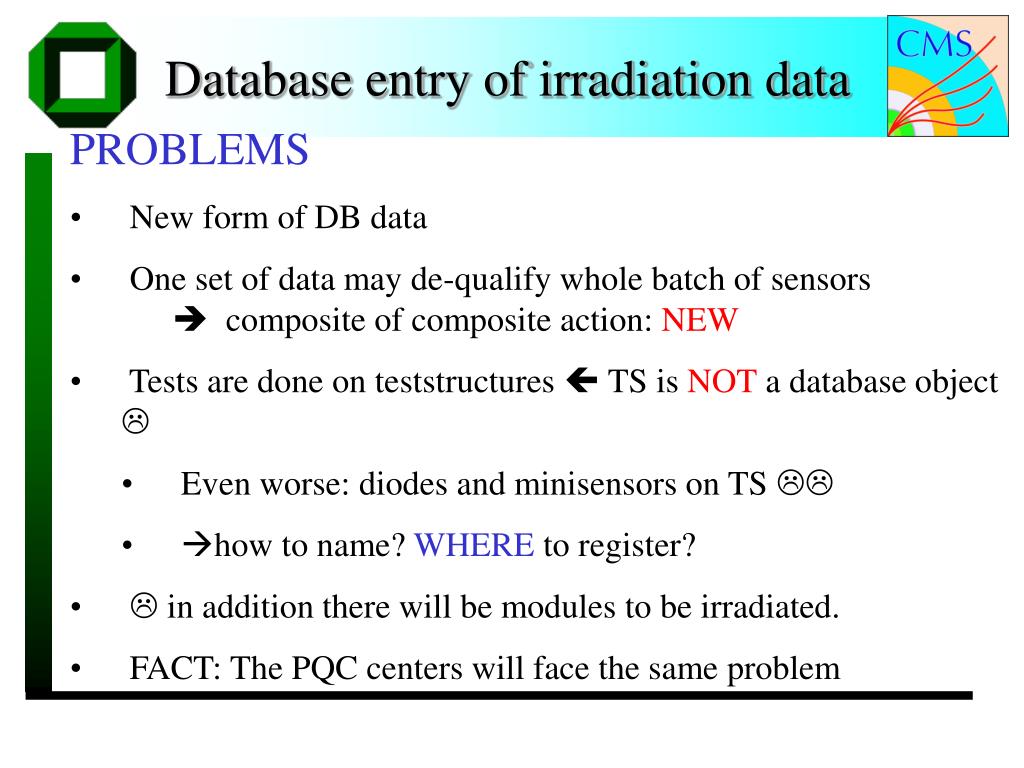

Database entry of irradiation data
  • PROBLEMS
  • New form of DB data
  • One set of data may de-qualify whole batch of sensors  composite of composite action: NEW
  • Tests are done on teststructures  TS is NOT a database object 
    • Even worse: diodes and minisensors on TS 
    • how to name? WHERE to register?
  •  in addition there will be modules to be irradiated.
  • FACT: The PQC centers will face the same problem
steps to go and possible solution
Steps to go, and possible solution
  • The composite of composite action has to be introduced in the DB scheme
  • IQC and also PQC tables could be inserted in the QTC existing DB objects
    • Addition of new tables
    • Optional, since only a fraction will be irradiated
  • M200 and pre-series is approaching fast!
      • Many pre-series sensors are delivered and tested
preliminary irrad tables already exist in xml
Preliminary Irrad tables already exist in XML
  • Tables are done and already underwent one iteration between Karlsruhe and Louvain
  • We will have 3 simple tables:
    • diodeminisensorsensor
    • Tables show the results from the agreed measurements:

ONE Ramp, values @Vbias=400V, difference of values before and after irradiation @Vbias=400V

db content for sensor minissensor
DB content (for sensor & minissensor)
  • ENV: Date,Time;Irrad_Date;Comment;Humidity,Temp

Duration; operator; location; status

  • GLOBAL: I_TOT, V_dep; C_TOT; alpha (before and after irrad)
  • IRRAD-SPECS: fluence(p,n); dose(p,n); energy(p,n)
  • STRIP-PARAMETERS: X* [Rpoly;Cint;Ileak;Rint (CAC optional)]@Vstandard =400V

Delta of all strip parameters before and after irrad

  • Raw Data: IV,CV, ONE RAMP {Rpoly;Cint;Ileak;Rint (CAC optional)} vs. Voltage
tables for diode
Tables for diode

Tables for sensors and minisensors are similar but more extensive.

addition for sensor and minisensor
Addition for sensor and minisensor

<result name="Rpoly_V1_MOhm" value=„1.7 1.67 1.72 1.72 ..."/>

<result name="Rpoly_delta_V1_MOhm" value=".10"/>

<result name="I_strip_V1_nA" value="552.00"/>

<result name="I_strip_delta_V1_nA" value="0"/>

<result name="C_ac_V1_pF" value=„500.00"/>

<result name="C_ac_delta_V1_pF" value="0"/>

<result name="C_int_1Mhz_V1_pF" value=„3.1 3.1 3.1"/>

<result name="C_int_1MHz_delta_V1_pF" value=0"/>

<result name="R_int_V1_MOhm" value="552.00 500 520 "/>

<result name="R_int_delta_V1_MOhm" value="552.00"/>

<result name=„Voltage_V" value=„10 20 30 .....540 550"/>

<result name="C_tot_pF" value="22530.00 21370.00 ..... 1855.00 1855.00"/>

<result name="Rpoly_MOhm" value="52.10 95.48 ...... 194.36 194.94"/>

<result name="C_int_1MHz_pF" value="52.10 95.48 .... 194.36 194.94"/>

<result name="I_strip_nA" value="0.32 0.33 ...... 0.32 0.29"/>

<result name="C_ac_100Hz_pF" value="52.10 95.48 ........194.36 194.94"/>

<result name=„R_int_MOhm" value=„0.68 1.38........100.00100.00"/>

</action>

pending actions
Pending Actions
  • Agreement how to label tables for diode, sensor, minisensor!?!

Is the diode, the irrad. Sensor and the minisensor a component of the sensor (same ID)? YES!!!!!!

Are they seperate objects; where will they be registered?

NO!!!!!!!!!

  • @DB people implementation of the „composite of composites“
  • Implementation of the agreed! Tables into the DB (discussion underway)
  • Labview vi for the XML output (will be done by KA)
  • FINAL OK: MANUALLY (proposal from software)
