Superposition and disturbing rock layers

Superposition and Disturbing Rock Layers

Pgs 59 - 63


The principle of superposition

The Principle of Superposition

  • Rock layers are formed from the bottom up.

  • Each layer is believed to be created laying flat.

  • The principle of superposition states that younger rocks lie above older rocks in undisturbed sequence.

  • Just like a sky scraper is built from the bottom up.


Disturbing forces

Disturbing Forces

  • Rock layers are disturbed by forces within the Earth and from tectonic forces.

  • The forces tilt or fold rock layers.

  • Sometimes older rock layers get on top of younger layers.

  • To help solve this dilemma, geologists construct a geologic column to help them.


Geologic column

Geologic Column

  • Geologists gather information from rock sequences around the world to construct and accurate geologic column.

  • The geologic column is the ideal sequence of rock layers that contain all the known fossils and rock formations on Earth arranged from oldest to youngest.

  • Geologic columns help scientists interpret rock sequences.

  • Sometimes they use the column to put rock sequences in order.


Rock layer disturbances

Rock layer disturbances

  • Some features cut across rock layers that make them difficult to interpret.

  • Faults – a break in the Earth’s crust

  • Intrusion – molten rock from the Earth’s interior that squeezes into existing rock and cools.

  • Folding – when rock layers bend and buckle from Earth’s internal forces.

  • Tilting – when internal forces slant rock layers without folding them.


Gaps in the record

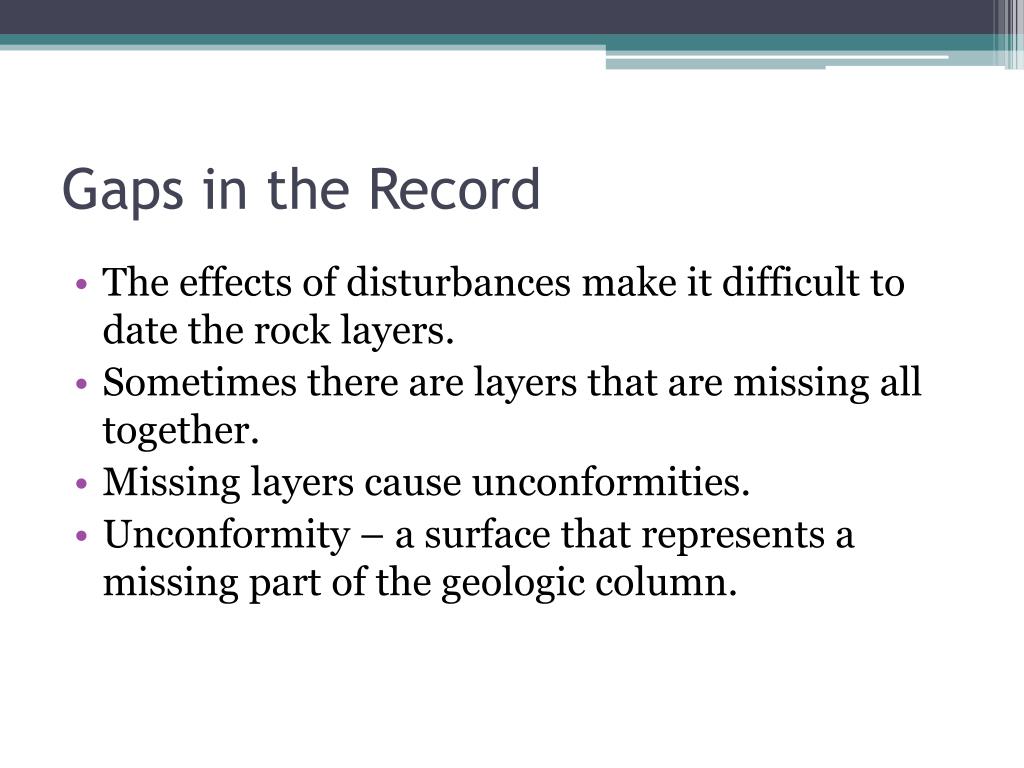

Gaps in the Record

  • The effects of disturbances make it difficult to date the rock layers.

  • Sometimes there are layers that are missing all together.

  • Missing layers cause unconformities.

  • Unconformity – a surface that represents a missing part of the geologic column.


Unconformities

Unconformities

  • When geologists find unconformities, they must figure out if the missing layer was actually there or somehow removed.

  • Nondeposition – the deposition process stops and then resumes again later.

  • Erosion – sometimes parts of layers or entire layers of rock are eroded away before deposition restarts.


Types of unconformities

Types of Unconformities

  • There are three types of unconformities.

  • Disconformity

    • Where part of a sequence of parallel rock layers is missing

    • Often hard to see and the most common.

  • Nonconformity

    • Sedimentary rock layers lie on top of an eroded surface of igneous or metamorphic.

  • Angular unconformity

    • Exists between horizontal rock layers and tilted or folded rock layers.
