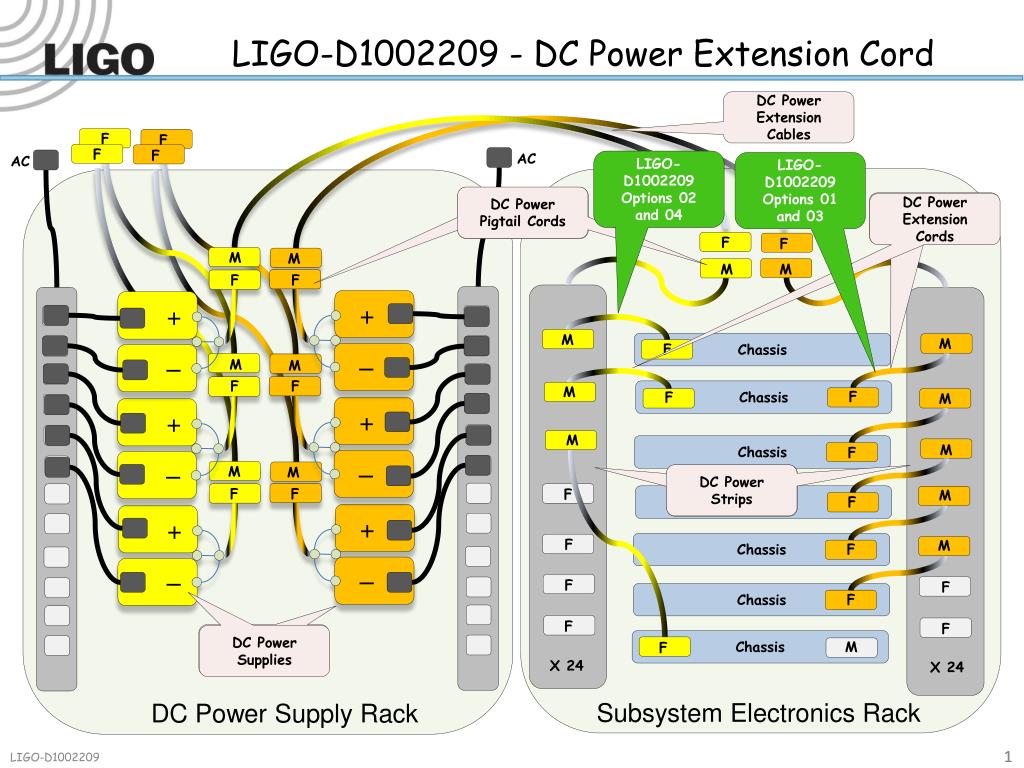

  1. LIGO-D1002209 - DC Power Extension Cord DC Power Extension Cables AC AC LIGO-D1002209 Options 02 and 04 LIGO-D1002209 Options 01 and 03 DC Power Pigtail Cords Pigtail Cords Extension Cords DC Power Extension Cords F F F F F F M M M M F F + + + + + + M M Chassis F – – – – – – M M F F M Chassis F F M M Chassis M F M M DC Power Strips Power Strips F F F M Chassis F F M Chassis F F F Chassis F F F Power Supplies DC Power Supplies Chassis M F X 24 X 24 Subsystem Electronics Rack DC Power Supply Rack 1

  2. DC Power Extension Cords Standard 3-foot cords, molded backshells and screws on both connectors F D1002209 Opt 01 Orange 16/3 13A McMaster-Carr 7394K33 Cable D1002209 Opt 01 Conec 3003W3PXX42A10X Connector D1002209 Opt 01 Conec 3003W3SXX42A10X Connector M D1002209 Opt 03 Orange 12/3 25A McMaster-Carr 7394K13 Cable D1002209 Opt 03 Conec 3003W3PXX42A10X Connector D1002209 Opt 03 Conec 3003W3SXX42A10X Connector D1002209 Opt 02 Yellow 16/3 13A McMaster-Carr 8046K13 Cable D1002209 Opt 02 Conec 303W3CPXX42A10X Connector D1002209 Opt 02 Conec 303W3CSXX42A10X Connector M F D1002209 Opt 04 Yellow 12/3 25A McMaster-Carr 8046K16 Cable D1002209 Opt 04 Conec 303W3CPXX42A10X Connector D1002209 Opt 04 Conec 303W3CSXX42A10X Connector

  3. D1002209 - DC Power Extension Cord - Connectors A1 A1 A2 A2 Connectors A3 A3 Plus Plus Return Return 18 VDC 24 VDC Minus Minus

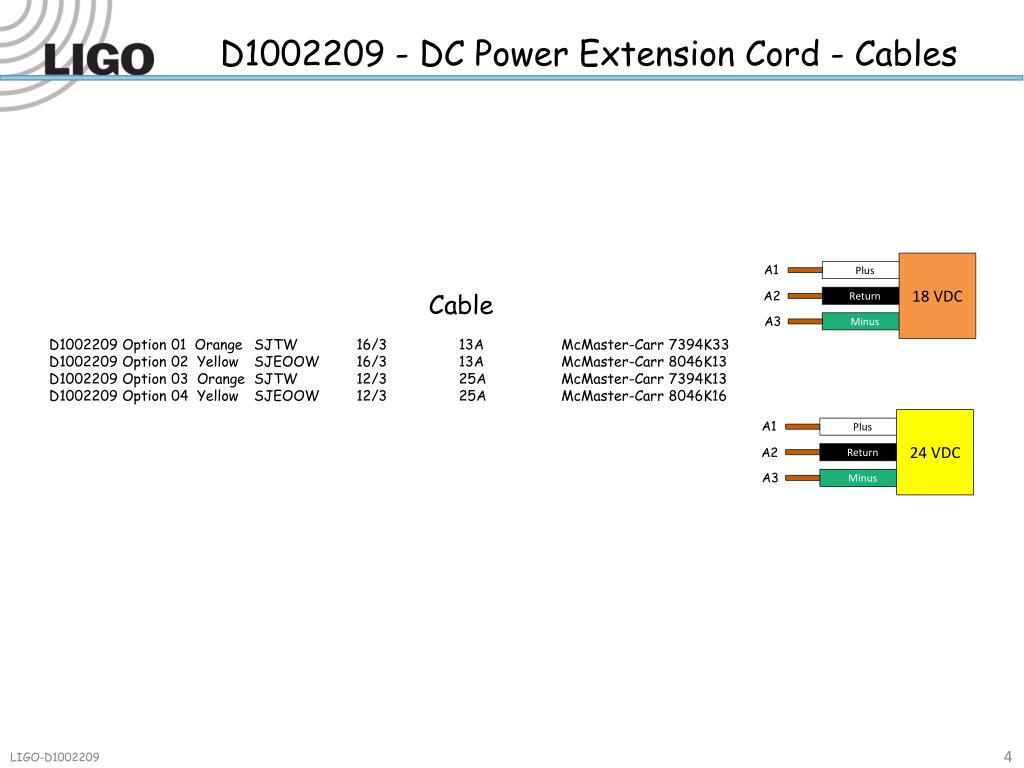

  4. D1002209 - DC Power Extension Cord - Cables A1 A1 A2 A2 A3 A3 Cable D1002209 Option 01 Orange SJTW 16/3 13A McMaster-Carr 7394K33 D1002209 Option 02 Yellow SJEOOW 16/3 13A McMaster-Carr 8046K13 D1002209 Option 03 Orange SJTW 12/3 25A McMaster-Carr 7394K13 D1002209 Option 04 Yellow SJEOOW 12/3 25A McMaster-Carr 8046K16 Plus Plus Return Return 24 VDC 18 VDC Minus Minus

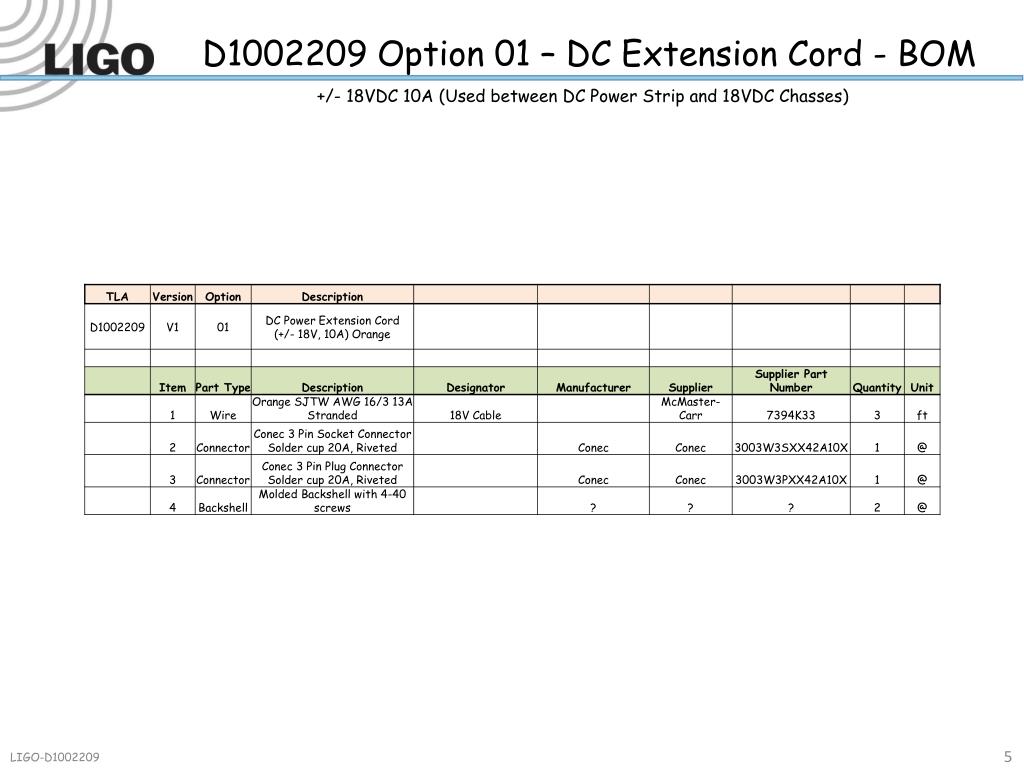

  5. D1002209 Option 01 – DC Extension Cord - BOM +/- 18VDC 10A (Used between DC Power Strip and 18VDC Chasses)

  6. D1002209 Option 02 – DC Extension Cord - BOM +/- 24VDC 10A (Used between DC Power Strip and 24VDC Chasses)

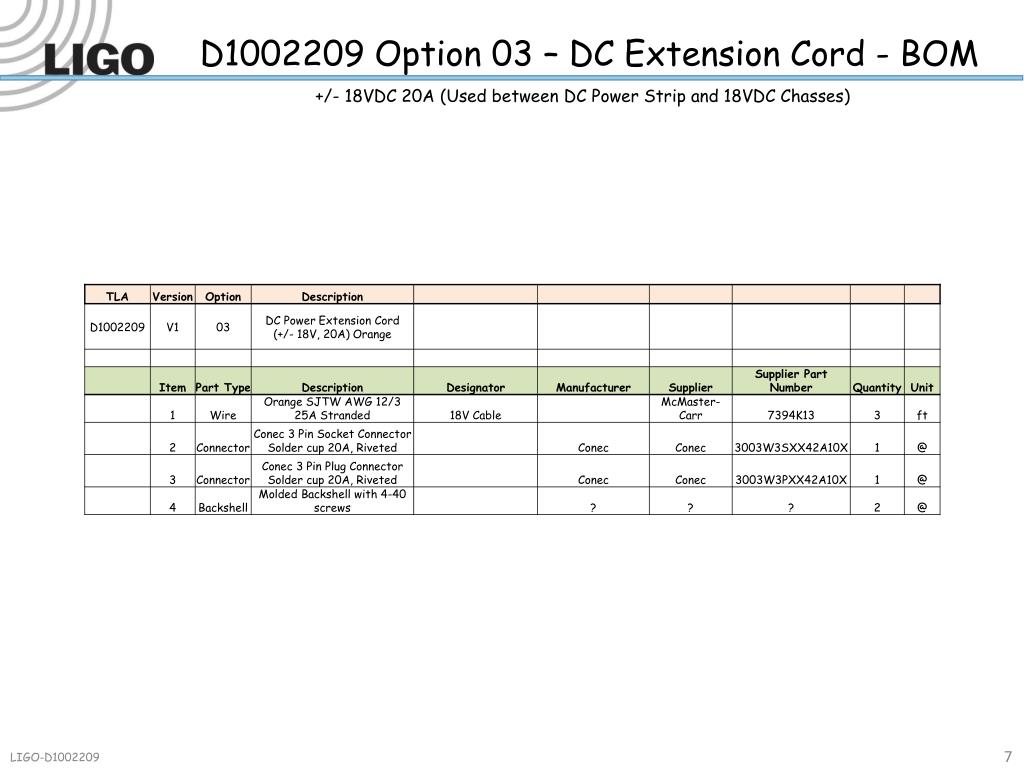

  7. D1002209 Option 03 – DC Extension Cord - BOM +/- 18VDC 20A (Used between DC Power Strip and 18VDC Chasses)

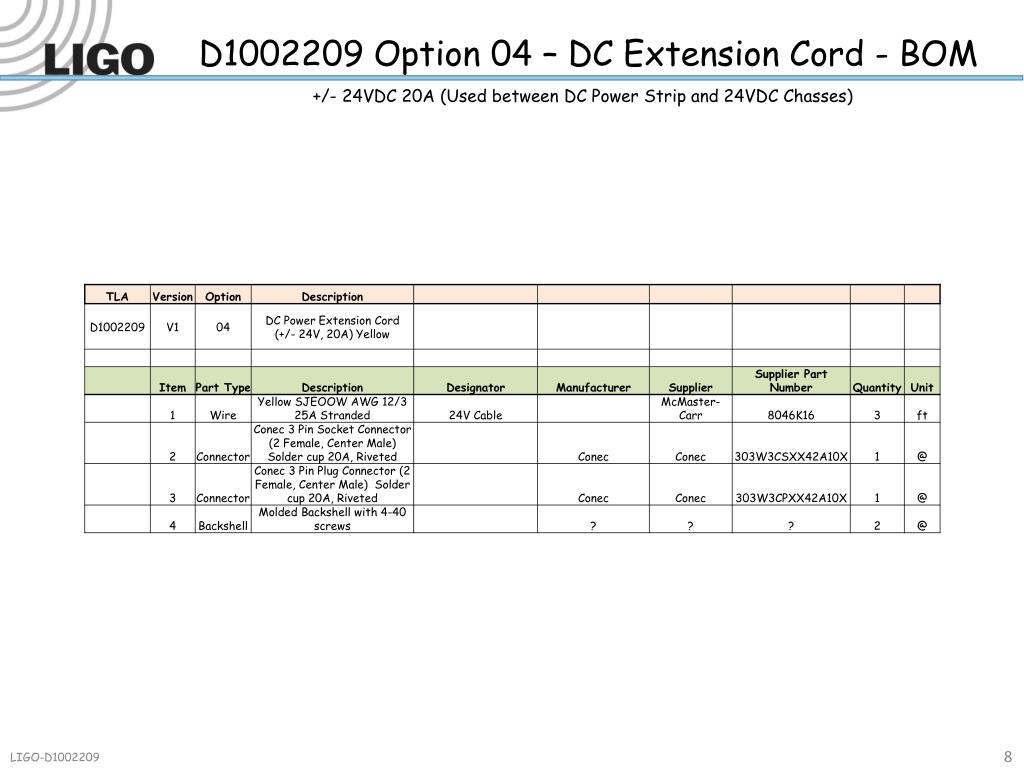

  8. D1002209 Option 04 – DC Extension Cord - BOM +/- 24VDC 20A (Used between DC Power Strip and 24VDC Chasses)
