Crimped wire reinforcements as a cost effective alternative to mse wall reinforcements

Crimped Wire Reinforcements as a

Cost Effective Alternative to

MSE Wall Reinforcements

Dr. James Bay, PhD

Department of Civil and Environmental Engineering

Utah State University

J. Aaron Jensen, E.I.

American Geotechnics

ITD PDC

3 April 2013


Purpose

Purpose

  • To test steel wire mats with extensible characteristics in a full-scale MSE wall

  • To make an observation of how the wall behaves; in an active state or at some at-rest condition

  • To further expand MSE wall understanding and technology

  • To provide a MSE reinforcement product that will be effective and lower costs

  • To provide the industry with a reinforcement material that will load to an active state without the negative effects of creep


K value for aashto design

K Value for AASHTO Design

  • kr = K * ka

  • K is an index for active state behavior or at-rest behavior

  • K value determines factors applied to loads dependent on reinforcement type

Fig. 11.10.6.2.1-3 AASHTO Bridge Design


Yielding to an active state requires small wall deflections of 0 1 0 2 of the wall height

Yielding to an active state requires small wall deflections of 0.1% - 0.2 % of the wall height*

For a 20 ft high wall that is only deflections of 0.25 in.- 0.5 in.

The deflections must increase progressively as the wall is constructed

*Boneparte, R.A. (1988). Reinforcement extensibility in reinforced soil wall design,

Kluvwer Academic Publishers, London.

Clough, G.W., and Duncan, J.M. (1991) “Earth Pressures” Foundation engineering handbook

(2nd ed.) H.Y.Fand & V.N. Reinhold, New York, pp 224-235.


Crimped steel bars provide the required extensibility

Crimped steel bars provide the required extensibility

Overburden

pressure

Crimped steel

W3.5 Wire


Crimp behavior

Crimp Behavior

  • Crimps do not decrease the ultimate load if bend radii conform to AASHTO specs (Suncar, 2010)

  • Crimps stiffen as deformation progresses

  • Crimps do not creep like geosynthetics

  • 2-3 crimps in a bar provide sufficient extensibility

  • Allow the soil to carry more stress than an inextensible wire mat


General wall design

General Wall Design

  • Design based on AASHTO LRFD method

  • Crimped steel wire reinforcements were assumed to behave as a fully extensible product (kr=ka)

  • External and global stability requirement were met according to specifications


Summary of wall design

Summary of Wall Design

  • Longitudinal wire spacing = 16 in.

  • Transverse wire spacing = 24 in.

  • Lift thickness = 2.0 ft with 1.0 ft compaction lifts

  • Soil friction angle, f = 38

  • Soil unit weight, g = 120 pcf

  • kr = ka (extensible)

  • No sacrificial steel (temporary wall)

  • W5.0 wire mats in bottom half of wall

  • W3.5 wire mats in top half of wall


Aashto design tensions

AASHTO Design Tensions


Elevation of mse wall

Elevation of MSE Wall


Instrumentation

Instrumentation

  • W 3.5 and W 5.0 wires are too small to easily attach strain gages

  • Constructed “Dog Bone” style force sensors

  • Each sensor uses a complete Wheatstone bridge: 2 axial gages and 2 Poisson’s gages

  • Each sensor was individually calibrated

  • Mat wires were cut, and sensors clamped to mats


Force sensors

Force Sensors


Wall construction

Wall Construction

  • Constructed at Utah State University in an abandoned sand and gravel pit

  • Constructed from August 9 – 13, 2011

  • Utilized separate, heavier gage face mats


Foundation and face mat

Foundation and Face Mat


Mats and sensors

Mats and Sensors


Protecting sensors with clean sand

Protecting Sensors with Clean Sand


Surveying face deflections

Surveying Face Deflections


Surveying face deflections1

Surveying Face Deflections


Wall construction1

Wall Construction


Completed wall

Completed Wall


Summary of wall measurements

SUMMARY OF WALL MEASUREMENTS


Force measurement summary

Force Measurement Summary

  • Successfully measured Tmax for each mat

  • Lost only 1 out of 48 sensors during construction, and it was a redundant sensor

  • Post construction there has been some additional sensor loss, and possible baseline shift

  • Monitoring continued through summer 2012


Deflections summary

Deflections Summary

  • Achieved target deformations of 0.25 in. – 0.5 in.

  • Deformations progressed during construction

  • Deformations from the first two lifts above a mat were greater than what was required to achieve an active state

  • No appreciable long-term deformations were measured

  • Wall was exhumed during summer 2013 and each crimp deflection was measured


Behavior and comparisons

BEHAVIOR AND COMPARISONS


Measured reinforcement forces vs aashto predictions

Measured Reinforcement Forces vs. AASHTO Predictions


Definition in aashto commentary c11 10 6 2

Definition in AASHTO Commentary (C11.10.6.2)

  • “Inextensible reinforcements reach their peak strength at strains lower than the strain required for the soil to reach its peak strength.”

  • “Extensible reinforcements reach their peak strength at strains greater than the strain required for the soil to reach its peak strength.”

  • Crimped reinforcement clearly satisfies this criterion for extensible reinforcement.


Aashto code only differentiates between metallic and geosynthetic reinforcement

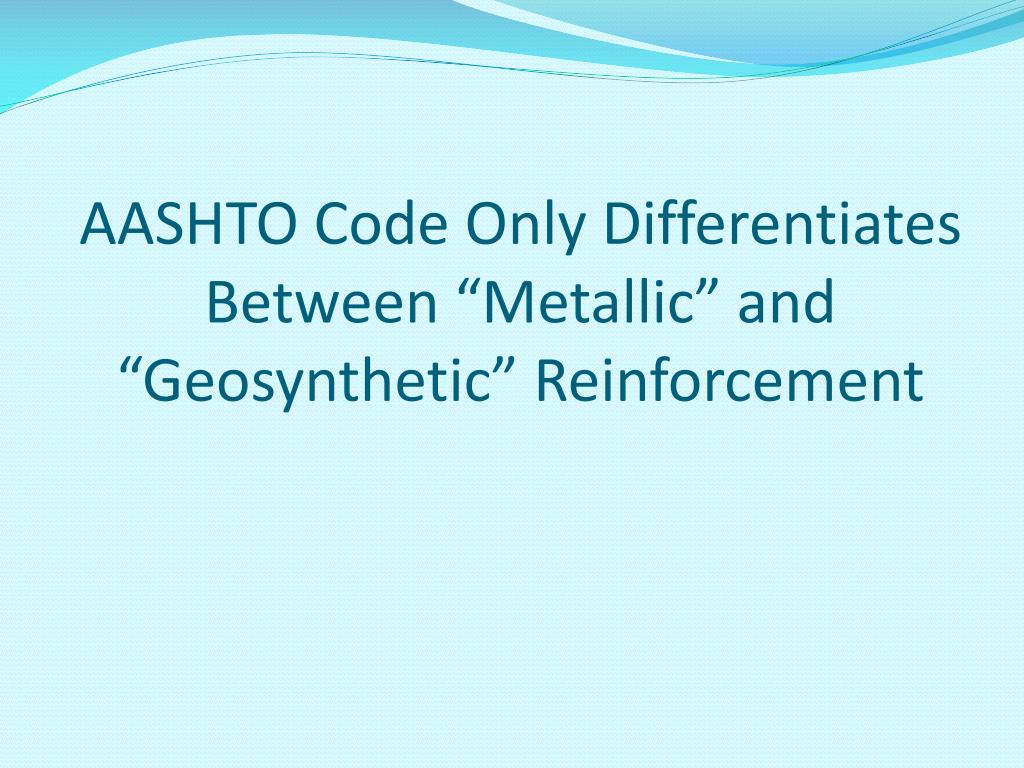

AASHTO Code Only Differentiates Between “Metallic” and “Geosynthetic” Reinforcement


Summary of aashto comparisons

Summary of AASHTO Comparisons

  • AASHTO significantly over-predicts tension except at the top of the wall

  • Designing for extensible reinforcement results in significantly lower design tensions than for inextensible reinforcement


The k stiffness method

The K-Stiffness Method

  • Empirical approach based upon measurements in a wide variety of walls

  • Uses non-triangular pressure distributions, similar to those for braced and tied-back excavations, to predict reinforcement tension

  • Pressure distributions are based upon the stiffness of wall elements


Stiffness of various mse wall reinforcements

Stiffness of Various MSE Wall Reinforcements


Measured reinforcement forces vs k stiffness predictions

Measured Reinforcement Forces vs. K-Stiffness Predictions


Crimped wire reinforcements as a cost effective alternative to mse wall reinforcements

After Allen and Bathurst, 2003


Summary of k stiffness predictions

Summary of K-Stiffness Predictions

  • The K-Stiffness method predicts measured reinforcement tension more accurately than AASHTO

  • Crimps in the USU wall decreased the reinforcement stiffness by 85%, resulting in a 40% decrease in tension in the reinforcement compared to un-crimped mats

  • Crimped steel wire reinforcement (semi-extensible reinforcement) is slightly stiffer than geosynthetics, but much more flexible than conventional metallic reinforcement


Observations regarding usu wall

Observations Regarding USU Wall

  • CRIMPS WORK!!! The wall behaves like a wall with extensible reinforcement

  • AASHTO generally over-predicted reinforcement tensions.

  • The K-Stiffness method better predicted reinforcement tensions

~


Continuing work

Continuing Work

  • Constructing and possibly instrumenting permanent or temporary walls using crimped wire mats to develop additional case studies

  • Modifying crimp geometry to reduce deformations at low tension


References

REFERENCES

AASHTO. (2010). AASHTO LRFD Bridge Design Specifications (5th ed.). American Association of State Highway and Transportation Officials, Washington D.C.

Allen, T. M., & Bathurst, R. J. (2003). Prediction of Reinforcement Loads in Reinforced Soil Walls. Washington State Department of Transportation, Seattle, WA.

Bonaparte, R., & Schmertmann, G. (1988). “Reinforcement extensibility in reinforced soil wall design.” The Application of Polymetric Reinforcement in Soil Retaining Structures, P. Jarret & A. McGown, edo., Kluwer Academic Publishers, Norwell, 409-457.

Suncar, O. (2010). Pullout and Tensile Behavior of Crimped Steel Reinforcement for MSE Walls. Utah State University, Logan, UT.

Yannas, S. F. (1985). Corrosion Susceptibility of Internally Reinforced Soil-Retaining Walls. FHWA RD-83-105. Federal Highway Administration, U.S. Department of Transportation, Washington D.C.


Questions

Questions?
