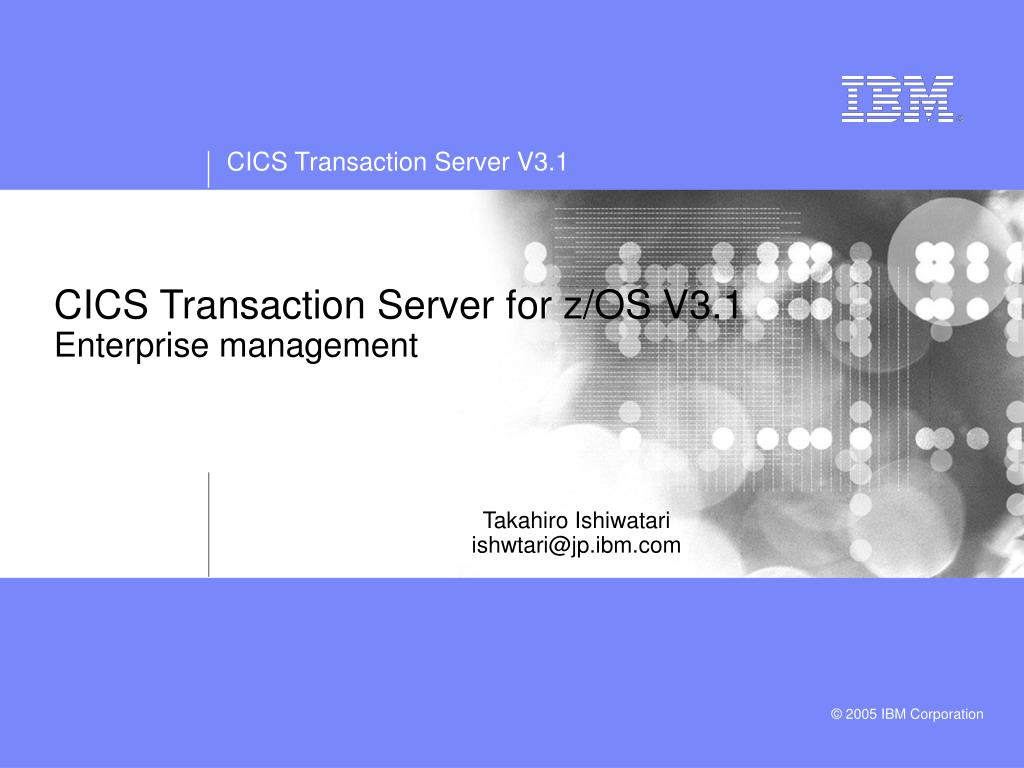

CICS Transaction Server for z/OS V3.1Enterprise management

Takahiro Ishiwatari

[email protected]


Cics transaction server for z os v3 1 enterprise management

Enterprise Management - Notes

This presentation will describe the capabilities provided by the enhancements for enterprise management in CICS Transaction Server 3.1.


Acknowledgements

Acknowledgements

  • The following are trademarks of International Business Machines Corporation in the United States, other countries, or both: IBM, CICS, CICS/ESA, CICS TS, CICS Transaction Server, DB2, MQSeries, OS/390, S/390, WebSphere, z/OS, zSeries, Parallel Sysplex.

  • Java, and all Java-based trademarks and logos, are trademarks of Sun Microsystems, Inc. in the United States, other countries, or both.

  • Microsoft, Windows, Windows NT, and the Windows logo are trademarks of Microsoft Corporation in the United States, other countries, or both.

  • Other company, product, and service names and logos may be trademarks or service marks of others.


Cics transaction server for z os v3 1 enterprise management

Enterprise Management - Notes

This page intentionally left blank.


Agenda

Agenda

  • CICSPlex SM overview

  • BATCHREP access enhancements

  • WUI functional enhancements

  • WUI usability enhancements

  • Simplification of BAS in WUI

  • Support for CICS new functions


Cics transaction server for z os v3 1 enterprise management

Enterprise Management - Notes

This page intentionally left blank.


Cicsplex sm overview

CICSPlex SM overview

  • Included in CICS TS

  • Provides a single system view to CICS regions (CICSplex)

    • Operation

    • Monitoring

    • Real Time Analysis

    • Workload Management

    • Business Application Services

z/OS

z/OS

CICSPlex SM

CICSPlex SM

CICS

CICS

CICS

CICS

CICS

CICS

CICS

CICS

CICSplex


Cics transaction server for z os v3 1 enterprise management

Enterprise Management - Notes

  • CICSPlex SM (CPSM) is a system management tool for multiple CICS regions (CICSplex) as if they were a single system. It provides single system image and single point of control for the CICSplex.

  • It is included in the CICS TS package, and provides functionality such as

    - Operation

    - Monitoring

    - Real Time Analysis

    - Workload Management

    - Business Application Services

  • It also provides APIs that enable programs to access information about the CICSplex.

  • The enhancement in CICS TS 3.1 is in the operation area, and the business application service.


Cpsm interfaces

CPSM Interfaces

  • TSO EUI

    • mostly used in earlier releases

  • Web User Interface

    • browser interface, easier to use


Cics transaction server for z os v3 1 enterprise management

Enterprise Management - Notes

These are the CPSM interfaces provided.

The TSO end user interface is accessed through ISPF. Users can manage all of the CICS regions and resources in the CICSplex from this single view. Because the size of the screen is limited, many scrolling activities may be necessary if there number of items to be displayed is large.

The Web User Interface is a browser based interface, more data is displayed in the window and provides an easier and intuitive navigation. With the definitional capabilities added in CICS TS V2.3, most of the CPSM activities can be accessed through the WUI.

The TSO interface is planned to be removed in the next release.


Cicsplex sm enhancements in v3 1

CICSPlex SM enhancements in V3.1

  • BATCHREP access enhancements

  • WUI functional enhancements

  • WUI usability enhancements

  • BAS rationalization

  • Support for CICS new functions


Cics transaction server for z os v3 1 enterprise management

Enterprise Management - Notes

This shows the enhancements to CPSM in V3.1. Most of the enhancements are in the Web user interface, it will have more functionality and better usability. It will enable users to replace the current TSO end user interface.


Batchrep in previous releases

BATCHREP in previous releases

  • Batched repository update facility

    • An interface to create/maintain CPSM definitionsvia batch job

    • Submission of job done through BATCHREP view in TSO EUI

      • update job will run within the CMAS

    • Information held in an internal table, not accessible to APIs


Cics transaction server for z os v3 1 enterprise management

Enterprise Management - Notes

  • BATCHREP is a facility to create or maintain CPSM definitions through batch processing. It allows users to create, update, or remove CICSPlex SM definitions, or add an association to a definition, as in adding an association between a CICS system and a CICS system group, without going through each CPSM TSO user interface view.

    The batch job is submitted through the BATCHREP view in the TSO user interface, and a batch like transaction will run in the CMAS to access the CPSM data repository. Information about the job status was held in an internal table that was not accessible to CPSM APIs, so the Web user interface did not have an interface for BATCHREP.


Batchrep access enhancements

BATCHREP access enhancements

  • BATCHREP resource table

    • Table externalized

    • Execute/Check actions added

    • PROCESS(STARTED/STOPPED) field to indicate status of job

  • Access from WUI

    • BATCHREP view on WUI

    • Uses CPSM APIs to access BATCHREP resource table

  • Batch utility program

    • Enables definitions to be maintained from a job step

    • EYU9XDBC program

      • update job will run within the specified CMAS

    • Uses CPSM APIs to access BATCHREP resource table


  • Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    CPSM in CICS TS V3.1 will externalize the BATCHREP resource table. This will enable access from CPSM APIs. Actions CHECK and EXECUTE are added. CHECK will perform a syntax check to the supplied input commands. EXECUTE submits the BATCHREP processing. There will also be a new field PROCESS added in the resource table to indicate the status of the job.

    This table will enable WUI to access the batched repository update facility. A new view is supplied in WUI to run the BATCHREP job.

    In addition to the access from WUI, there will also be a new a batch utility program supplied that can be submitted through JCL. This will enable CPSM definitions to be maintained from a job step, without using the user interfaces. The program name is EYU9XDBC. It will issue a series of CPSM APIs to run the BATCHREP processing.


    Batchrep wui view

    BATCHREP WUI view


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    This is a screen shot of the WUI view for BATCHREP.

    The view will show BATCHREP tasks that are currently running. The EXECUTE and CHECK buttons on the bottom will allow users to input the necessary parameters.


    Batch utility program

    Batch utility program

    • sample JCL & output

    //BATCHREP EXEC PGM=EYU9XDBC,REGION=0M

    //STEPLIB DD DISP=SHR,DSN=CICSTS31.CPSM.SEYULOAD

    //SYSPRINT DD SYSOUT=*

    //SYSIN DD *

    CMASNAME(IYK4Z0E1)

    CHECK

    INPUTDSN(GALLEN.WORK.JCL)

    INPUTMEMBER(BCH5955)

    PRINTNODE(LOCAL)

    OUTPUTUSER(GALLEN)

    /*

    CICSPlex/SM Batched Repository Update Utility Version 310

    Parameters specified:

    CMASNAME(IYK4Z0E1)

    CHECK

    INPUTDSN(GALLEN.WORK.JCL)

    INPUTMEMBER(BCH5955)

    PRINTNODE(LOCAL)

    OUTPUTUSER(GALLEN)

    EYUXD0908I A batched repository update has been submitted to run in CMAS IYK4Z0E1.

    EYUXD0909I CICSPlex SM Batched Repository Update Utility is terminating.


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    This is an example of the batch utility program.

    The input parameters will be supplied in the SYSIN DD statement. The output of the utility program will be written to SYSOUT and the messages will indicate whether the job was successfully submitted.


    Wui functional enhancements

    WUI functional enhancements

    • Make WUI more equivalent to TSO EUI

      • by enhancing…

        • Dynamic selection lists

        • Filter confirmation

        • Result set warning count

        • User group profiles

        • Favorites support


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    These are the functional enhancements in the Web user interface that will be provided in CPSM in CICS TS 3.1. They are targeted to make the WUI more functionally equivalent to the TSO end user interface.


    Dynamic selection lists

    Dynamic selection lists

    • TSO EUI provides selection lists in administration views

      • Input for attributes and parameters

        • selection of CICS region names from existing definition

        • selection of existing definitions to create a reference to them

        • etc.

  • WUI enabled to generate dynamic selection lists

    • Fields that are capable for dynamic selection lists are marked with an icon

      • clicking the icon will open a selection list screen

      • filters applicable to the list


  • Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    Dynamic selection list enable easier definitional capabilities. When creating a definition for CPSM, if a certain field is left blank, a screen will be displayed showing the list of valid values for that field. This function will now be provided in the WUI.

    There will be an icon to the right of the text input box indicating that the field is enabled for dynamic selection list. When the icon is clicked a view will be shown with the valid values for that field. There is also a filtering capability for the list.


    Filter confirmation

    Filter confirmation

    • Specify a filter criteria before displaying the view

      • In prior releases, filtering was possible only after the view was displayed

      • TSO EUI can specify filters as part of the command

        • e.g. LOCTRAN C* ENABLED

  • WUI view editor changes

    • specify a filter confirmation screen to be displayed before data retrieval

      • IBM supplied views will not have filter confirmation as default


  • Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    The TSO interface provides the ability to specify filters prior to showing the view. From the command line, users can specify which view they want to display and additionally specify a filter. If the filter is specified, only the matching resources will be shown on first display. Users will have the opportunity to enter filter values regardless of the size of result set that will be returned .

    In previous releases of the WUI, filtering could be done only after opening the first view.

    In CICS TS 3.1 users have the ability to specify filters before displaying the first view. If the view is enabled for filter confirmation, a filter confirmation screen will be shown before displaying the tabular view. The filter confirmation can be enabled through the WUI view editor. The IBM supplied view will not have filter confirmation as default.


    Setting filter confirmations

    Setting filter confirmations


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    This is a sample flow of setting the filter confirmation.

    It is enabled through the View editor.


    Result set warning count

    Result set warning count

    • Issue a warning if the request returns more data than expected

      • provide the opportunity to alter filters or cancel the request before execution

      • Maximum size of a result set specified in …

        • user group profile, if WUI is running with security

          • set by an administrator

        • DEFAULTWARNCNT parameter in WUIPARM

          • default is 0, meaning no warning issued

  • Warning count screen


  • Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    The WUI can now be tailored to issue warnings before it opens a view that will generate large numbers of records. Following a warning users will have the opportunity to alter the filter values on the view in order to reduce the number of results returned. This improves WUI performance by reducing unnecessary waits.

    The threshold for the warning can be set in a user group profile. If the user does not have an associated user group, or if security is inactive in the WUI server, the DEFAULTWARNCNT parameter in the WUI startup parameter will be used. The default is 0, meaning that the warning count is not enabled.


    User group profiles

    User group profiles

    • Set profiles for groups of users

      • groups such as..

        • Operators, Sysprogs, Developers, etc.

      • user group profile contains information for

        • result set warning count

        • default main menu and navigation menu

        • default context and scope, CMAS context

      • if not retrieved from profile, defaults from WUIPARM is used

      • New “User Group” object to store profile information

      • Security needs to be activated in the WUI

  • Setting up the user group

    • To create a user group…

      • Use the new User Editor to create the user group profile

      • Create a user group with the same name in the ESM

    • Associate user to the user group in ESM


  • Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    • The systems administrators will have the ability to set profiles of users as a group. The group could be for operators, sysprogs, developers, etc.

    • User group contains information about result set warning count, the default main menu and navigation menu names, the default context & scope. Different navigational menus and warning counts can be set for different type of users. In this way administrators can configure the WUI in different ways to suit different groups of users in order to present an interface that is more tailored to individual needs. For users that are not associated with user groups, the WUI startup parameter will supply the default settings.

    • The new User Editor can be used to create user group profiles. To set up user groups;

    • - create a user group with the User Editor

      - create a user group with the same name in the security manager

      - associate the user to a user group in the security manager

      - activate security in the WUI server.


    Managing user group profiles

    Managing user group profiles

    • User Editor (for administrators)

      • “User groups” screen

        • Can create, edit, delete a user group and its profile


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    The administrators will use the User Editor to create/edit/delete user groups. This is a sample view of the User Editor to create a user group profile.


    Favorites support

    Favorites support

    • Faster access to frequently used views

      • New “Favorites” in Navigation frame

      • “Add to favorites” icon on tabular and detail views

        • Added to new “USER” object in WUI repository

      • Favorites editor to create/update/delete/rename favorites

    Add to favorites

    Favorites link

    Favorites editor


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    In CICS TS 3.1, all WUI users now have the ability to save tabular and detail views on an ad-hoc basis to an easily-accessible and editable menu of favorites. This allows users to reach frequently used views with just one click. Administrators have the additional authority to update the favorites .

    There will be an icon on tabular and detail views that will enable users to add the view to their favorites list. The link to the view will be added on the navigation frame under “favorites”.

    There is a new Favorites Editor, which will enable users to maintain their favorites list.


    Adding a favorite

    Adding a favorite

    • Click icon on view

      • Displays a screen to add a title

      • the view will be accessible from the Navigation frame


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    To add a favorite, simply click on the icon on top of the view and enter the name of the link.

    The link will be shown on the navigation frame.


    Favorites editor

    Favorites editor

    • To alter the list of Favorites

      • Move

        • change position of an item on the favorites list

      • Copy

        • copy an existing favorite to a different name

      • Edit

        • change the title, context and scope, filter settings

      • Delete

        • delete an item


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    The Favorites editor can be used to maintain the favorites list.


    Favorites editor sample editing a favorite

    Favorites editor sample – editing a favorite


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    This is an example of using the favorites editor, changing the context and scope settings.


    Managing favorites for other wui users

    Managing favorites for other WUI users

    • User Editor (for administrators)

      • “Users” screen

        • Can create, edit, delete a user and its favorite list


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    Administrators can also manage the user’s favorites list through the User editor. This example shows an example of editing a users favorite.


    Wui usability enhancements

    WUI usability enhancements

    • White space reduction

      • Select/deselect buttons

      • High density views

        • Two-column detail views

      • Expand/collapse filters

  • Other improvements

    • Usage of colors


  • Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    The Web user interface has some improvements in its usability and presentation. The improvements are focused on reducing white space area, maximize the use of screen space in WUI views and menus.


    Select deselect buttons

    Select / deselect buttons

    • “Select all” and “Deselect all” buttons replaced with icons

      • to select all

      • to deselect all

      • text will show when pointer is moved above the icon

    Deselect all

    CPSM WUI

    in

    CICS TS V2.3

    CPSM WUI

    in

    CICS TS V3.1


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    The “Select all” and “Deselect all” button has been changed to an icon, thus reducing the some white space on tabular views.

    For Internet Explorer, an alt text will appear when the pointer is above the icon.


    High density views

    High density views

    • Two-column detailed views

      • Increase the amount of data displayed on screen

        • reduce the need for screen scrolling

      • Can be created using the View Editor

        • IBM supplied views will remain single-column


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    In previous releases, a detail view of a resource was displayed in one column. Because all the attributes were positioned on the left side of the view, it left a large amount of white space in the right side of the view.

    The use of screen space on detail views has been improved by providing the ability to display the information in two columns rather than one. Users can design their own two-column detail views using the View editor.

    IBM supplied views will remain single columned.


    Creating multi column views

    Creating multi-column views

    column 1

    column 2


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    This shows an example of creating a two-column detail view using the View editor. Selecting the view type as “Two column detail form” will enable attributes to be positioned in two column.


    Expand collapse filters

    Expand / collapse filters

    • Can collapse filters when not in use

      • To display more data in tabular views

      • Filters expanded

      • Filters Collapsed

      • New FILTERSTYLE parameter in WUIPARM

        • FILTERSTYLE ( EXPAND | COLLAPSE )

        • specifies how the filters should be displayed by default


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    The filters on the views are now collapse-able. If the filters are not needed users can collapse the filters to provide more screen space for data. Collapsed filters can be expanded whenever necessary. The ‘+’ or ‘-’ icon on the left can be used to expand or collapse the filters.

    The new WUI startup parameter FILTERSTYLE specifies the state of the filters to be shown when the view is accessed.


    Other improvements

    Other improvements

    color intensity changes to

    - filters

    - column headers

    - piano lining

    CPSM WUI

    in

    CICS TS V2.3

    CPSM WUI

    in

    CICS TS V3.1


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    Other improvements are for the usage of colors and intensity. The lighter color and intensity for the filter area, column headers and piano lining makes it easier to see the data being displayed.


    Simplification of bas in wui

    Simplification of BAS in WUI

    • WUI view changes

      • BAS on a separate CICS administration menu panel

        • 2 submenus

          • “Standard” for an RDO like model

          • “Advanced” for full function BAS using Resource Assignments

        • menus between definitional and operational tasks

    Standard model

    Advanced model

    CICS System

    CICS System

    Resource Group

    Resource Group

    Resource Group

    Resource Group

    Resource Description

    Resource Description

    Resource Group

    Resource Group

    Resource Assignment

    Resource Group

    Resource Group

    Resource Group

    Resource Group

    Resource Group

    Resource Group

    Resource

    Resource

    Resource

    Resource

    Resource

    Resource


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    There has been some simplification of BAS (Business Application Service) views in the WUI .

    BAS provides two models to maintain CICS resource definitions. One is the standard model, which is much like the CEDA model in CICS, and the other is the advanced model, which a single resource can be deployed with different attributes, to different CICS systems.

    The navigation for BAS in WUI has been changed to supply submenus for each of the models.


    New bas administration views

    New BAS Administration views


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    This shows the BAS administration view and its submenus for the two models.


    Bas resingrp view

    BAS RESINGRP view

    • New RESINGRP view in WUI

      • In CICS TS V2, only shows a single resource type in the group

        • xxxINGRP views

      • New RESINGRP base table added accessible via API


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    There is a new view in WUI to manage BAS resources.

    Previously, the WUI displayed list of resources in a resource group by types, using xxxINGRP views (ex. TRNINGRP, FILINGRP, TRMINGRP, etc.)

    There is a new table added in CPSM called RESINGRP which can be accessed via CPSM API. By accessing this table the WUI will provide a new RESINGRP view that will show all the resources associated in a resource group.


    Support for new cics functions

    Support for new CICS functions

    • New or changed resource tables for the following function

      • Support for inbound/outbound HTTP/1.1

      • Inter-program data transfer (Big commareas)

      • SSL enhancements

      • EXEC CICS PERFORM/COLLECT STAT enhancements

      • OTE enhancements

      • CICS Web services

      • Other changes

        • Remove 1-byte console ID support

        • Remove Hot-pooling support


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    CPSM will have support for all the new functions provided in CICS TS V3.1.


    Cpsm external changes

    CPSM external changes

    • Resource tables

      • made available to API

        • BATCHREP

      • In support for new functions

        • URIMPDEF, URIMAP, HOST, PIPEDEF, PIPELINE, WEBSVDEF, WEBSERV, RESINGRP

      • changes in existing tables


    Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    This shows the changes made to the CPSM resource tables.


    Summary

    Summary

    • WUI enhanced to provide functional equivalence to TSO EUI

      • BATCHREP

      • Dynamic picklist

      • Result set warning count

      • etc.

  • Improved presentation and ease of use

    • White space reduction

    • WUI changes to BAS

  • Support new functions in CICS


  • Cics transaction server for z os v3 1 enterprise management

    Enterprise Management - Notes

    CPSM WUI has been improved in several ways in order to provide a user experience that is equivalent to that of the TSO end user interface. These enhancements are aimed at making the Web User Interface more powerful and more usable, and eventually functionally equivalent to the TSO EUI.

    There are improvements with the visual presentation of the WUI, along with some usability enhancements for working with BAS through the WUI.

    CPSM will have support for all the new functions provided in CICS TS V3.1.


  • Login
