  1. Wei-Hsin Lee June 2008 Shared-Dictionary Compression over HTTP (SDCH)‏

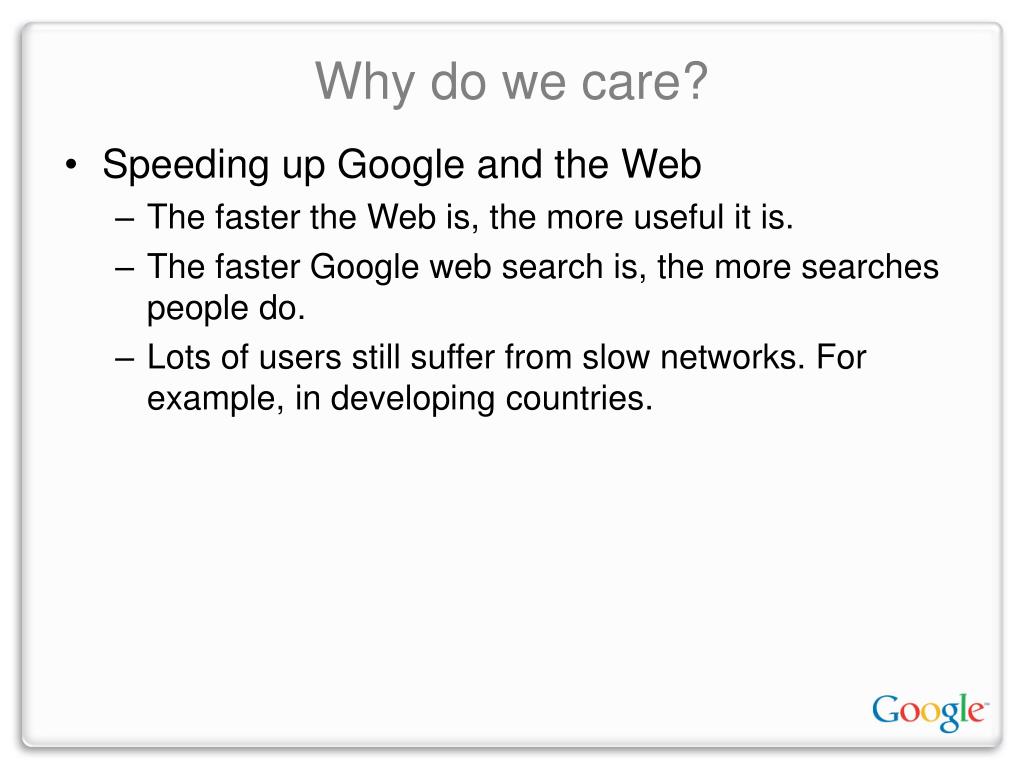

  2. Why do we care? • Speeding up Google and the Web • The faster the Web is, the more useful it is. • The faster Google web search is, the more searches people do. • Lots of users still suffer from slow networks. For example, in developing countries.

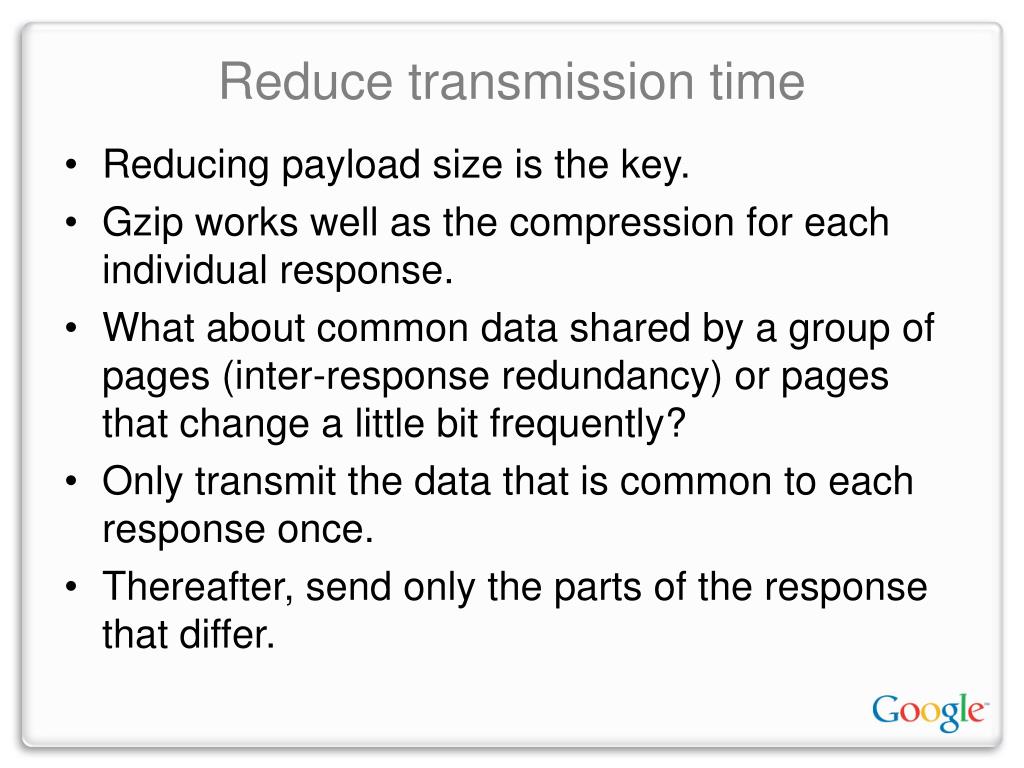

  3. Reduce transmission time • Reducing payload size is the key. • Gzip works well as the compression for each individual response. • What about common data shared by a group of pages (inter-response redundancy) or pages that change a little bit frequently? • Only transmit the data that is common to each response once. • Thereafter, send only the parts of the response that differ.

  4. Why not RFC 3229? • RFC3229 “Delta Compression in HTTP” • Good for saving bandwidth • But • Too many states for server to track • The possible states of www.google.com/search is bigger than all possible search results. • Only applicable to the same URL • Discourages aggressive caching. • No benefit for similar pages that don’t share an URL.

  5. Shared-Dictionary Compression over HTTP (SDCH)‏ • An addition to HTTP • Small set of states (dictionaries) shared between client and server. • Dictionaries are scoped by domain name and path. Just like cookies. It allows dictionaries to apply to multiple URLs.

  6. SDCH protocol details • SDCH defines • How client informs server of its capability and state. • How the server should respond to client when the client is SDCH capable. • How dictionaries get loaded into client. • Implement VCDIFF (RFC 3284) differential compression format with enhancements • Interleave instructions with data so that each network packet can be decoded as it arrives. (chunked encoding) • Checksum to ensure data integrity

  7. Example 1

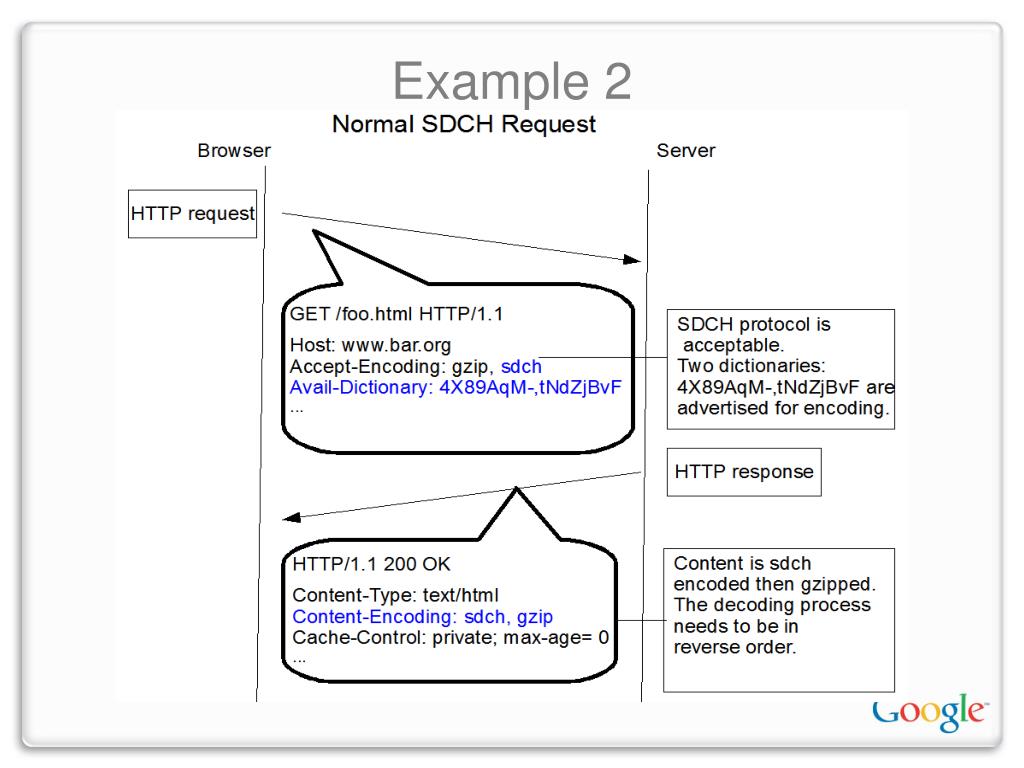

  8. Example 2

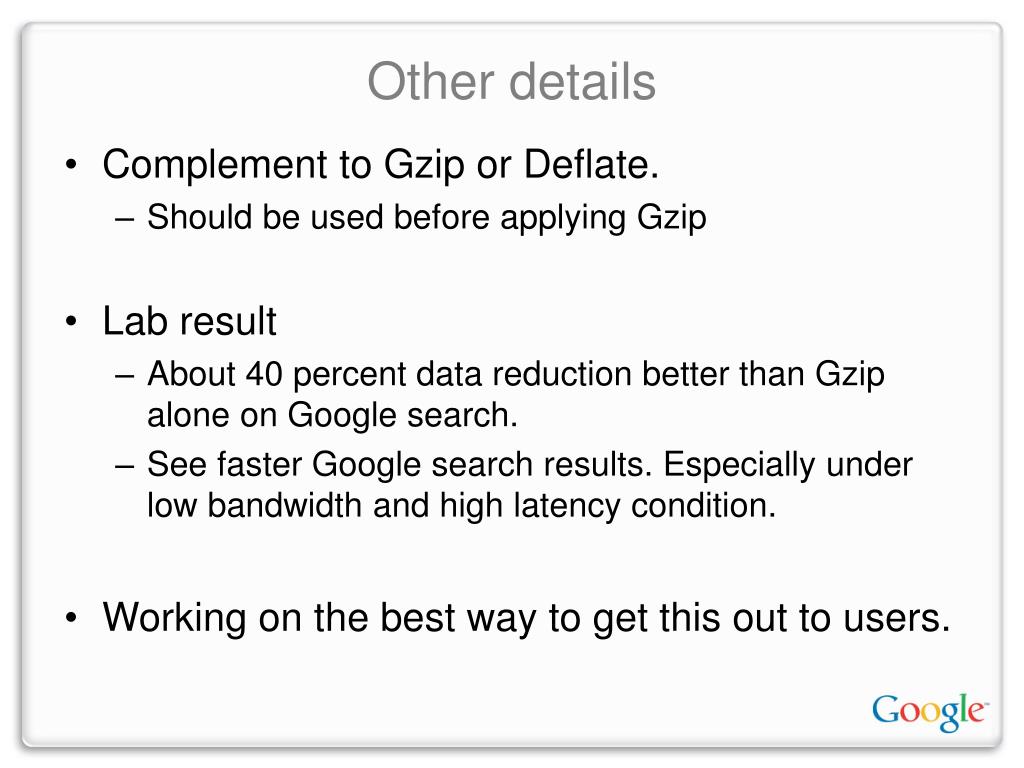

  9. Other details • Complement to Gzip or Deflate. • Should be used before applying Gzip • Lab result • About 40 percent data reduction better than Gzip alone on Google search. • See faster Google search results. Especially under low bandwidth and high latency condition. • Working on the best way to get this out to users.

  10. Your help counts! • Please join the group • http://groups.google.com/group/SDCH • Protocol spec, and the encoder/decoder code will be there soon. • Getting your hands dirty is even better! • Make your web site use SDCH. • Make Squid or Apache web servers SDCH capable.

  11. Don’t forget to join the group. http://groups.google.com/group/SDCH
