Presentation Transcript

Nesc a programming language for motes l.jpg

nesC:A Programming Languagefor Motes

David Gay, Phil Levis, Eric Brewer, Rob von Behren, Nikita Borisov, Mike Chen, David Culler

Intel Research, UC Berkeley

The state of the motes l.jpg

The State of the Motes

  • TinyOS programs hard to write

    • No compiler:

      • verbose, unwieldy syntax

      • many compile-time checks missing

    • No support for common idioms:

      • state-machine-like programs

      • split-phase operations

      • atomicity guarantees, etc

A long term solution l.jpg

A Long-term Solution

  • We are working on an improved language

    • Component-based

    • Better support for common idioms

      • split-phase ops, state-machines, etc

    • Clean atomicity model

  • Very much in the design/investigation stage

A short term solution nesc l.jpg

A Short-term Solution: nesC

  • A cleaned up language for TinyOS

  • Goals:

    • Easier to use

    • Allow whole-program optimisations

    • Base for language experimentation

  • Pronounced “nestlé”

Nesc easier to use l.jpg

nesC: Easier to Use

  • Nicer syntax

  • Check errors

    • Missing connections

    • Type errors in connections

    • Cycles, incorrect directions

  • Interfaces:

    • Group related functionality (caller, callee):

      • sendMsg:

        • users: call send(m), implement sendDone(m)

        • implementer: implement send(m), call sendDone(m)

    • Concise wiring

The old model l.jpg



C code

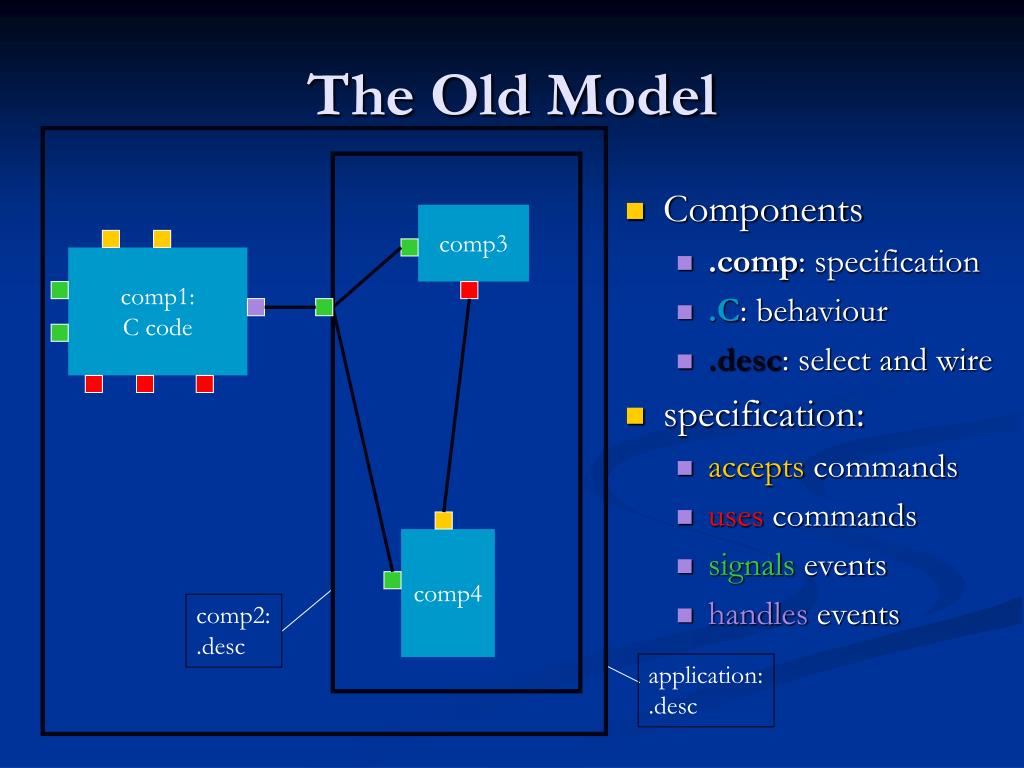

The Old Model

  • Components

    • .comp: specification

    • .C: behaviour

    • .desc: select and wire

  • specification:

    • accepts commands

    • uses commands

    • signals events

    • handles events

The old model continued l.jpg

The Old Model, continued

  • 4 kinds of components:

    • .desc only (ex: cnt_to_leds):

      • top-level components and wiring for an application

    • .C and .comp (ex: CLOCK):

      • a component implemented in C

    • .desc and .comp (ex: GENERIC_COMM):

      • a component implemented by connecting other components

    • .C, .comp and .desc (ex: INT_TO_RFM):

      • a component implemented in C with predefined wiring to other components

The nesc model l.jpg





The nesC Model

  • Components: 1 file

    • specification

    • implementation

      • module: C behaviour

      • configuration:select and wire

  • specification

    • provides interface

    • requires interface





The nesc model continued l.jpg

The nesC Model, continued

  • 2 kinds of components

    • module: was .C and .comp

    • configuration: was .desc and .comp

  • What happened to the other 2 kinds of components ?

    • .desc only (ex: cnt_to_leds):

      • use a configuration with empty specification { }

    • .C, .comp and .desc (ex: INT_TO_RFM):

      • use a configuration and module (2 files)

      • naming convention: IntToRfm (configuration), IntToRfmM (module)

      • allows module to be re-used with different wiring

Interfaces l.jpg


  • Group related functionality, e.g.:

    • split-phase operation (send, sendDone)

    • standard control interface: init, power

  • Specifies bi-directional calls (defines, uses):

    interface SendMsg {

    defines command result_t send(uint16_t to, TOS_MsgPtr msg);

    uses event result_t sendDone(TOS_MsgPtr msg, result_t ok);


  • if component C with interface I has function f:

    • if I is required and f is uses, C must define f

    • if I is provided and f is defines, C must define f

Some interfaces l.jpg

Some Interfaces

interface Leds {

defines {

command result_t init();

command result_t redOn();

command result_t redOff();

command result_t redToggle();




interface StdControl {

defines {

command result_t init();

command result_t power(char mode);



interface Clock {

defines command result_t setRate(char interval, char scale);

uses event result_t fire();


Some more interfaces l.jpg

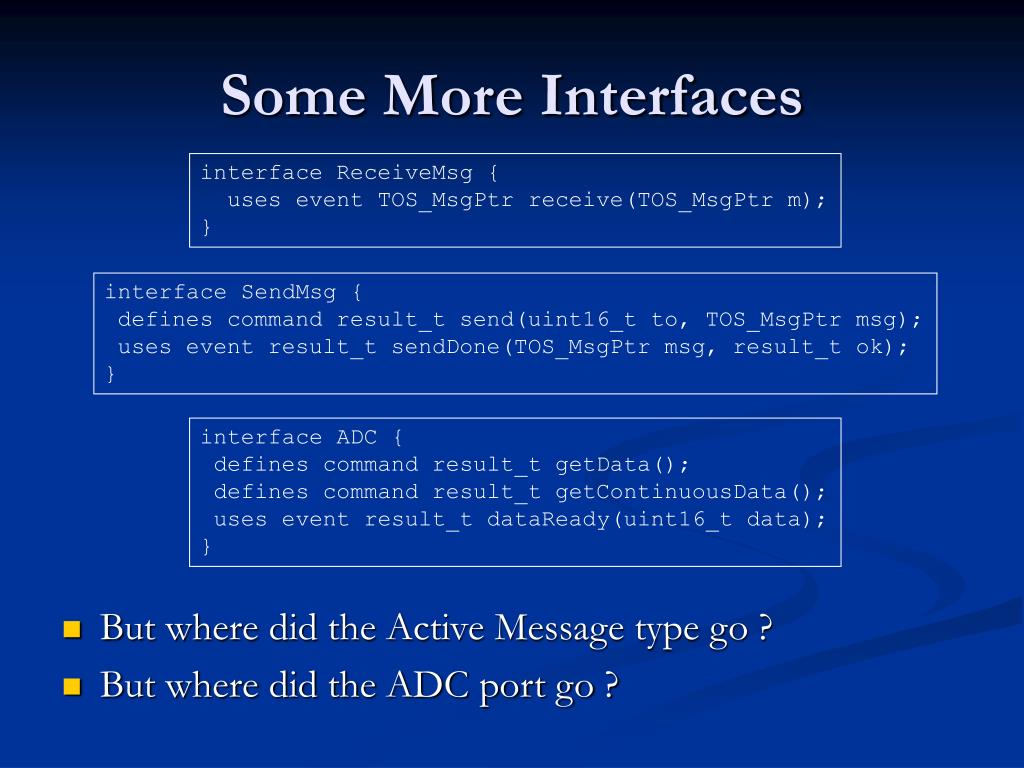

Some More Interfaces

interface ReceiveMsg {

uses event TOS_MsgPtr receive(TOS_MsgPtr m);


  • But where did the Active Message type go ?

  • But where did the ADC port go ?

interface SendMsg {

defines command result_t send(uint16_t to, TOS_MsgPtr msg);

uses event result_t sendDone(TOS_MsgPtr msg, result_t ok);


interface ADC {

defines command result_t getData();

defines command result_t getContinuousData();

uses event result_t dataReady(uint16_t data);


Parameterised interfaces l.jpg

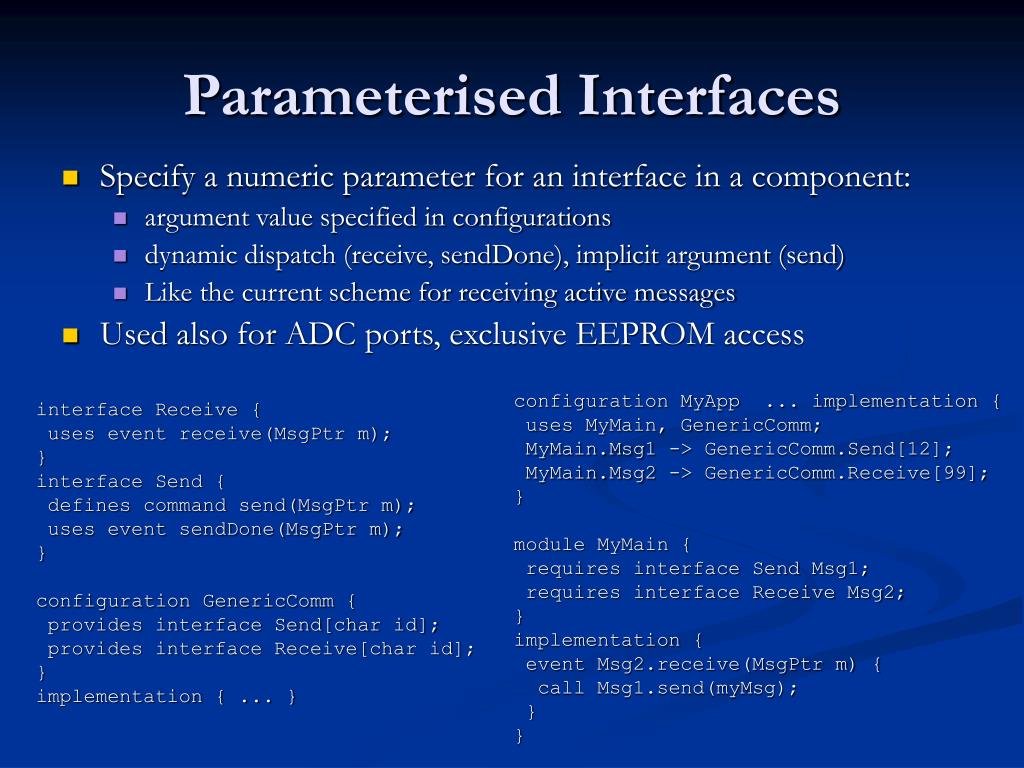

Specify a numeric parameter for an interface in a component:

argument value specified in configurations

dynamic dispatch (receive, sendDone), implicit argument (send)

Like the current scheme for receiving active messages

Used also for ADC ports, exclusive EEPROM access

configuration MyApp ... implementation {

uses MyMain, GenericComm;

MyMain.Msg1 -> GenericComm.Send[12];

MyMain.Msg2 -> GenericComm.Receive[99];


module MyMain {

requires interface Send Msg1;

requires interface Receive Msg2;


implementation {

event Msg2.receive(MsgPtr m) {

call Msg1.send(myMsg);



Parameterised Interfaces

interface Receive {

uses event receive(MsgPtr m);


interface Send {

defines command send(MsgPtr m);

uses event sendDone(MsgPtr m);


configuration GenericComm {

provides interface Send[char id];

provides interface Receive[char id];


implementation { ... }

Miscellaneous features l.jpg

Miscellaneous Features

  • default events and commands (cf: _NULL_FUNC)

    • some commands, events not always connected

    • specify default behaviour in the absence of connection, e.g.:

      default event TOS_MsgPtr receive(TOS_MsgPtr msg) { return msg; }

  • includes is used to include C types/constants/etc for use in an interface or component

    • these types are accessible to all components that use the interface or component

    • use, e.g., to share packet format specification across components

  • nesC source code is not preprocessed

Implementation l.jpg


  • nesc1 takes a “closed” component (no interfaces) and:

    • Checks nesC errors

      • Unknown/multiply-defined interfaces, components, etc

      • Connections (missing, cyclical, type-incorrect, wrong direction)

    • Checks (most) C errors

    • Generates one C-file for the application

      • Includes only reachable code (prunes out unreachable functions)

      • Generated in reverse-topological-call-order

        • Allows gcc’s inliner to do a much better inlining job

  • avr-gcc compiles nesc1 output

    • Generated code has #line directives, so clean error messages

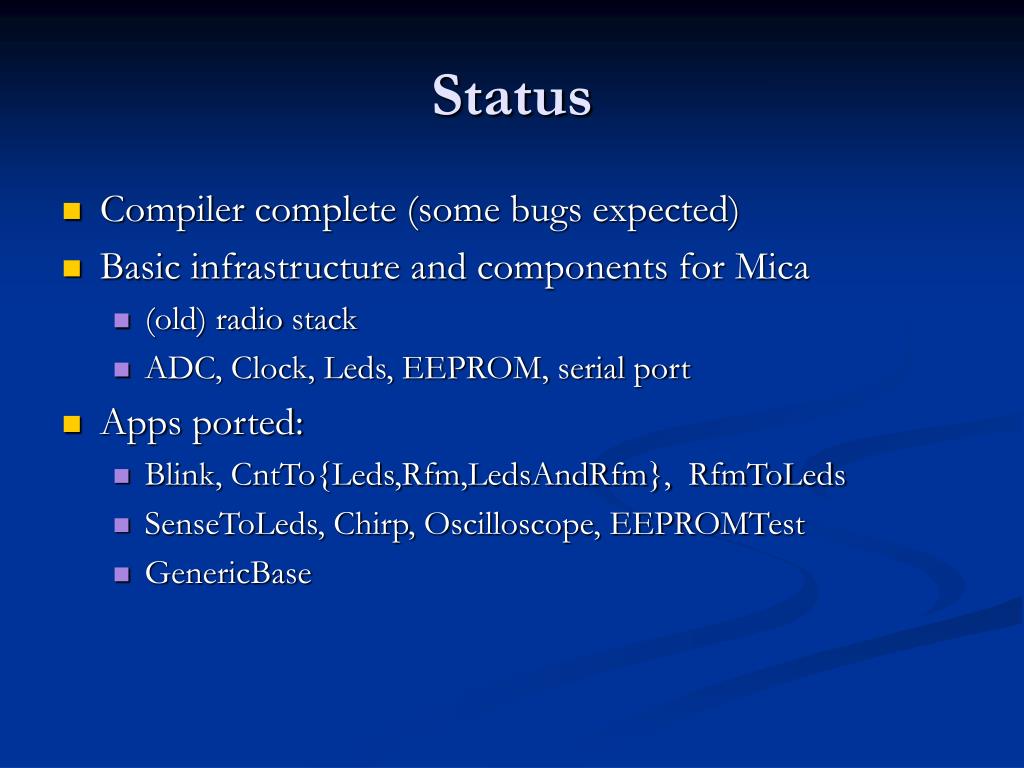

Status l.jpg


  • Compiler complete (some bugs expected)

  • Basic infrastructure and components for Mica

    • (old) radio stack

    • ADC, Clock, Leds, EEPROM, serial port

  • Apps ported:

    • Blink, CntTo{Leds,Rfm,LedsAndRfm}, RfmToLeds

    • SenseToLeds, Chirp, Oscilloscope, EEPROMTest

    • GenericBase

Status code size l.jpg

Status: Code Size

Plans l.jpg


  • Goal: Switch all TinyOS C code to nesC

    • Stage 1: convert all “standard” components & apps

      • Who: The TinyOS team

      • Support: Mica, Rene2, all sensor boards

    • Stage 1a: Phil Levis will “port” TOSSIM to nesC

    • Stage 1b: Eric Brewer will write porting guide, nesC tutorial

    • Stage 2: distribute nesC in next TinyOS release

    • Stage 3: discontinue support for macros/perl scripts

  • Goal: Improve nesC

    • See Eric’s talk

Open issues l.jpg

Open Issues

  • Naming Convention (Java-inspired)

  • Interface design

  • Revisit some component designs

  • Directory structure

Conclusions l.jpg


  • nesC much nicer to use than TinyOS

    • No more obscure C compiler warnings/errors

    • No more obscure bugs due to typos

    • No more obscure infinite loops due to wiring restrictions

  • nesC produces smaller code than TinyOS

    • Prunes unreachable code

    • Inlining across component boundaries

  • The best is yet to come!

    • Short-term: multiple instantiation, better inlining selection, packet format specification

    • Long-term: language improvements for bug prevention

Packet format specification l.jpg

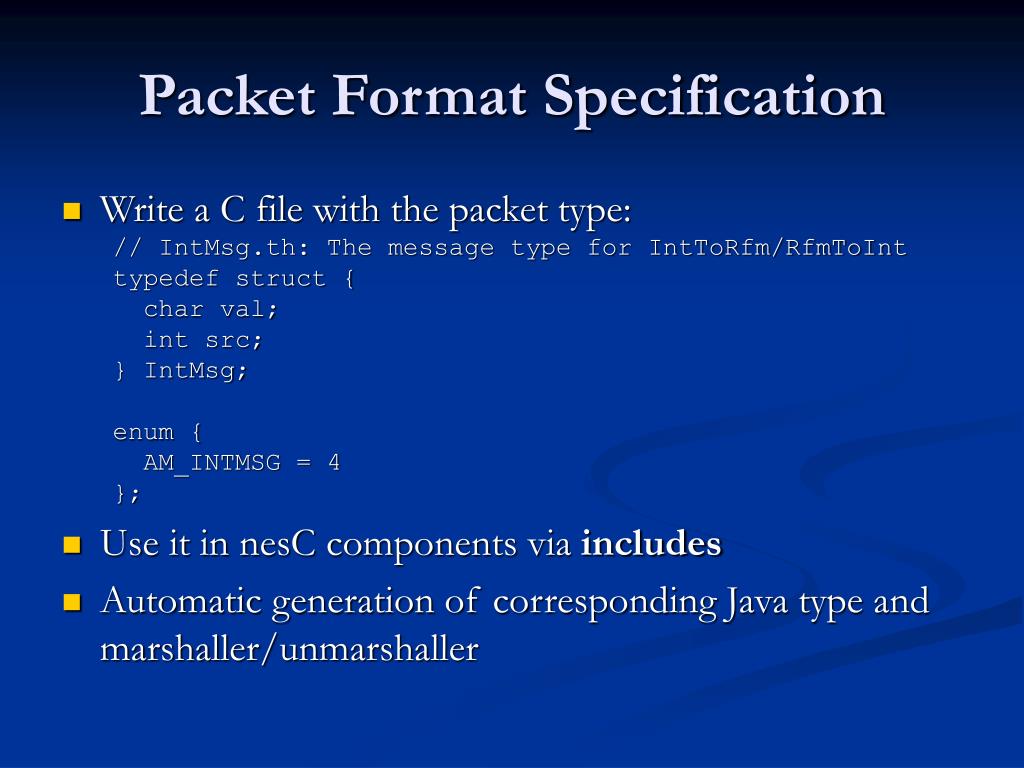

Packet Format Specification

  • Write a C file with the packet type:

    // The message type for IntToRfm/RfmToInt

    typedef struct {

    char val;

    int src;

    } IntMsg;

    enum {

    AM_INTMSG = 4


  • Use it in nesC components via includes

  • Automatic generation of corresponding Java type and marshaller/unmarshaller

Components l.jpg

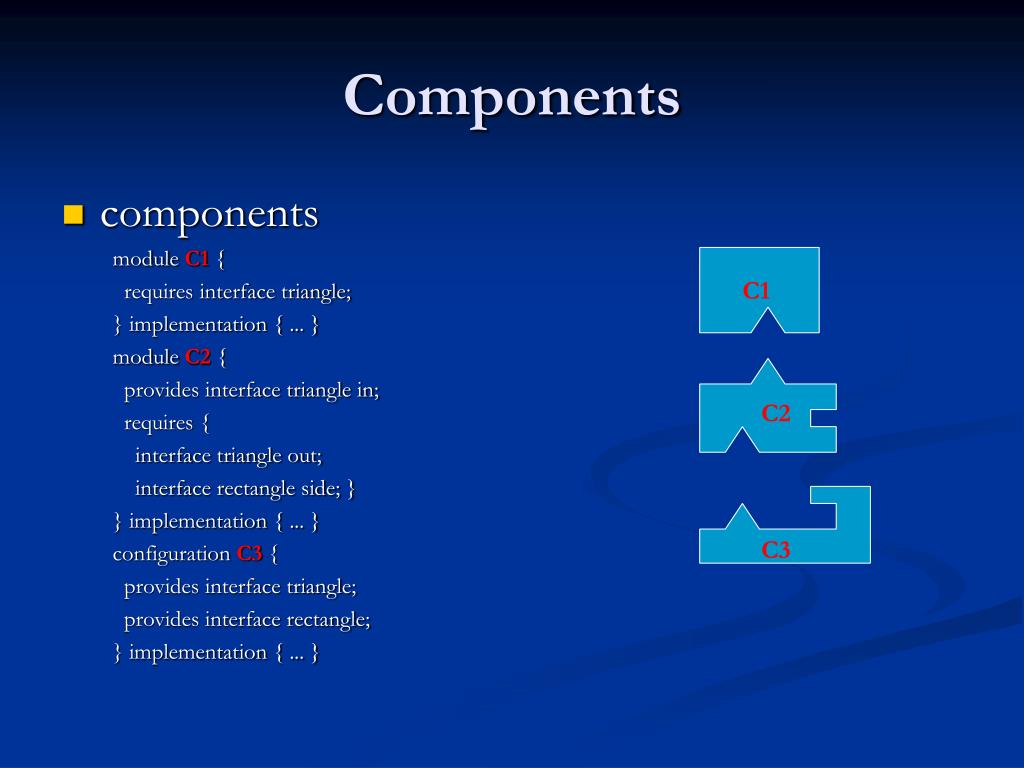

  • components

    module C1 {

    requires interface triangle;

    } implementation { ... }

    module C2 {

    provides interface triangle in;

    requires {

    interface triangle out;

    interface rectangle side; }

    } implementation { ... }

    configuration C3 {

    provides interface triangle;

    provides interface rectangle;

    } implementation { ... }

Configurations l.jpg







  • Connect components

    configuration app { }

    implementation {

    uses c1, c2, c3;

    c1 -> c2; // implicit interface sel.

    c2.out -> c3.triangle;

    c3 <- c2.side;


  • Partial configurations:

    component c2c3 {

    provides interface triangle t1;


    implementation {

    uses c2, c3;

    t1 ->;

    c2.out -> c3.triangle;

    c3 <- c2.side;


Modules l.jpg

“C” implementation of components

all top-level declarations private, except those specified in the components interface

module C2 {

provides interface send in;

requires interface send out;

} implementation {

enum { ready, busy } state;

command in.send(Message m) {

if (state == busy) return 0;

state = busy;

call out.send(m);

return 1;


event out.send_done(Message m) {

state = ready;

signal in.send_done(m);
