  1. BLOODSTAIN PATTERNS

  2. BLOOD COMPONENTS Plasma • fluid portion of normal unclotted blood • red blood cells, white blood cells, and platelets are suspended in it

  3. BLOOD COMPONENTS Serum • liquid portion of clotted blood

  4. SURFACE TENSION OF BLOOD • held together by strong cohesive molecular forces • “outer skin” • Surface tension lightly less that that of water • Liquid mercury is about 10x greater • Blood does not fall in teardrop configuration

  5. SURFACE TENSION • To create splatters, an external force must overcome surface tension of blood

  6. SURFACE TENSION Surfaces • Generally, clean glass or smooth tile, very little splatter • Rough texture, wood or concrete, significant splatter

  7. GEOMETRY OF BLOODSTAIN • Can determine direction of flight by examining edge characteristics

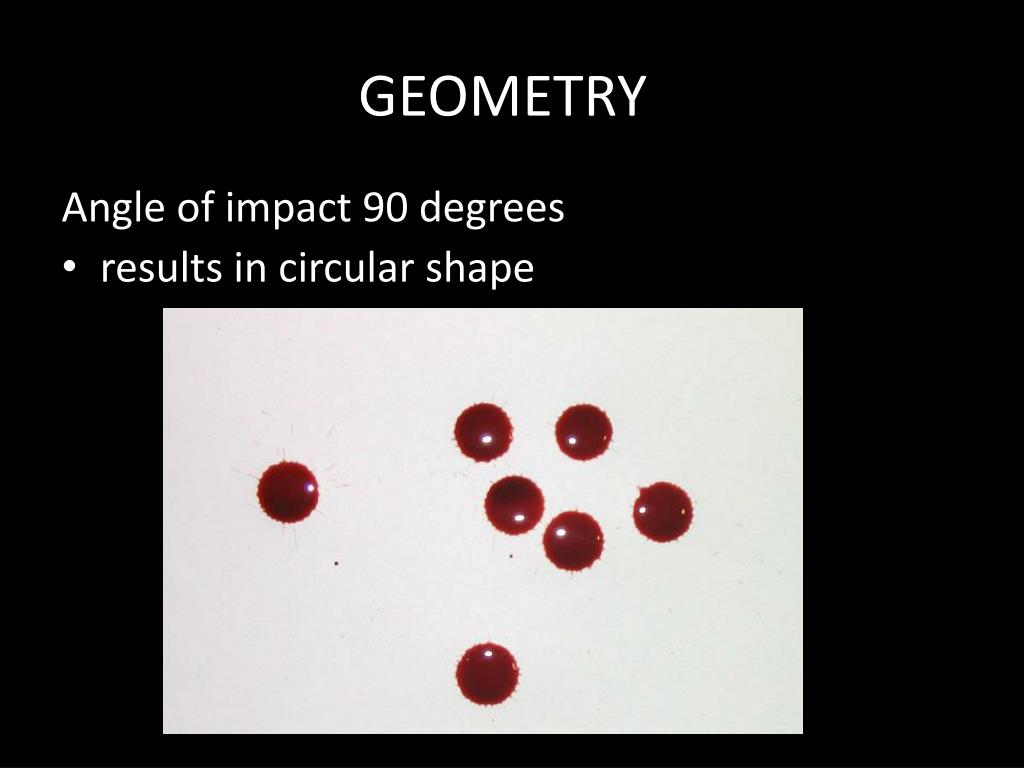

  8. GEOMETRY Angle of impact 90 degrees • results in circular shape

  9. GEOMETRY Angle of impact Less than 90 degrees • Elongated

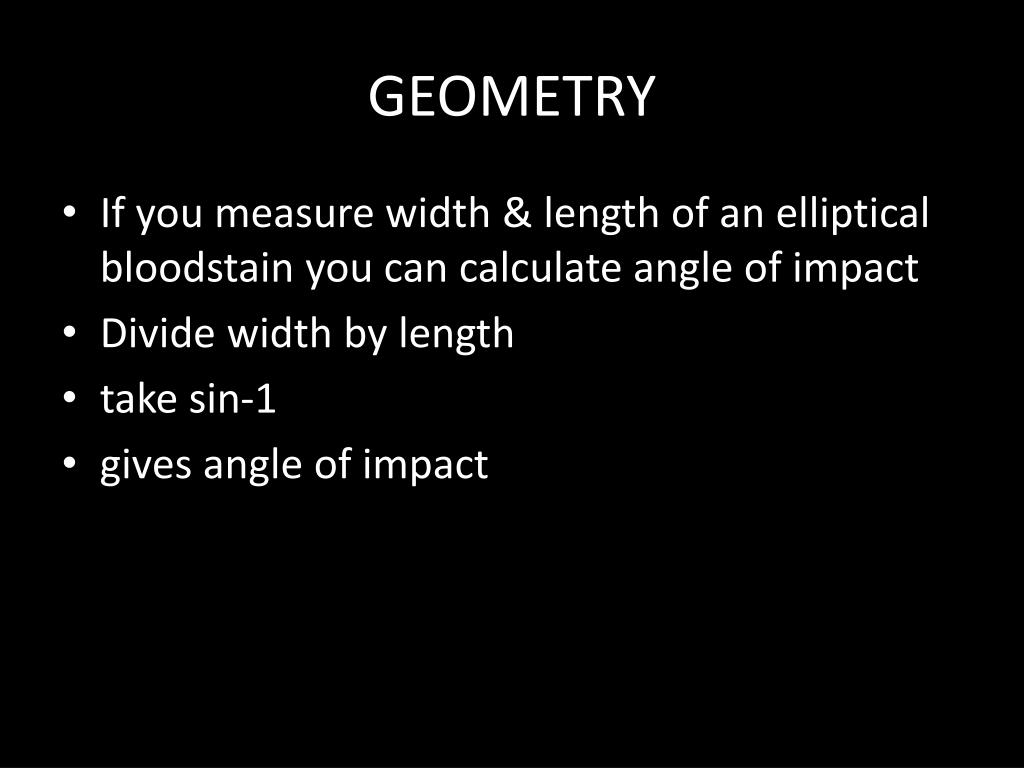

  10. GEOMETRY • If you measure width & length of an elliptical bloodstain you can calculate angle of impact • Divide width by length • take sin-1 • gives angle of impact

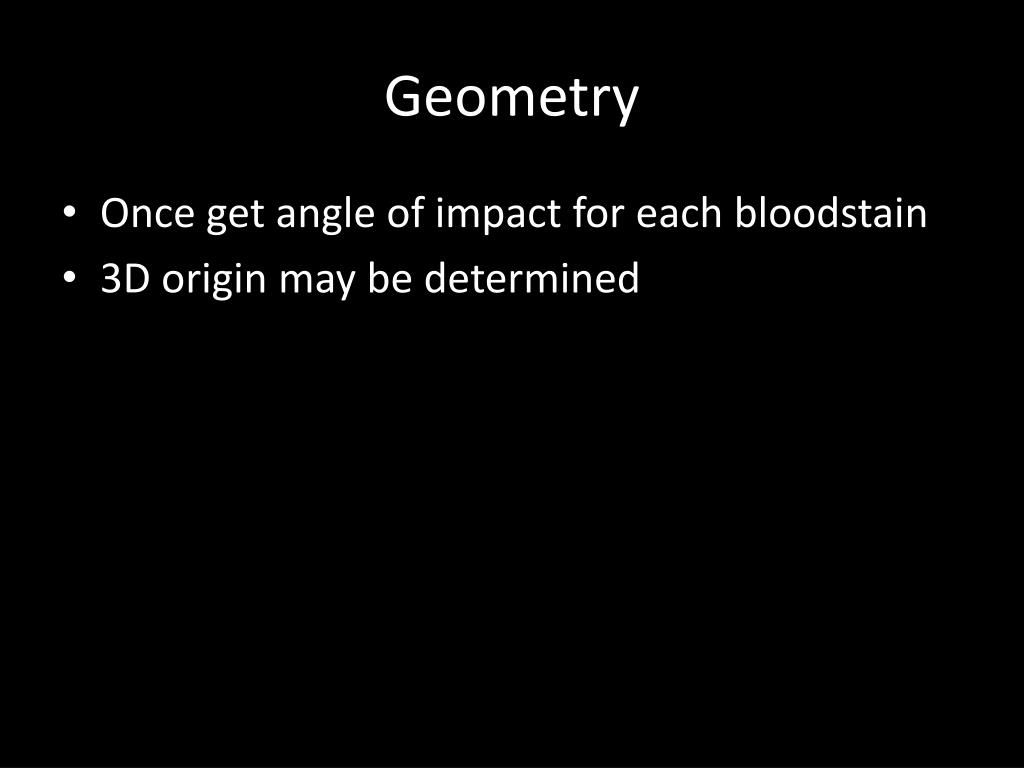

  11. Geometry • Once get angle of impact for each bloodstain • 3D origin may be determined

  12. DIRECTION OF TRAVEL • Narrow end of elongated blood stain points in direction of travel

  13. SPATTERED BLOOD • random distribution of bloodstains that vary in size that may be produced buy a variety of mechanisms

  14. SPATTERED BLOOD Examples: • Gunshot • Beating • Stabbing • power tools • Arterial • cast-off • passive

  15. SPATTERED BLOOD • may allow determination of an area • or location of origin of blood source

  16. SPATTERED BLOOD • If found on a suspect’s clothing, it may place that person at scene of violent altercation

  17. SPATTERED BLOOD • May allow determination of mechanism by which pattern was created

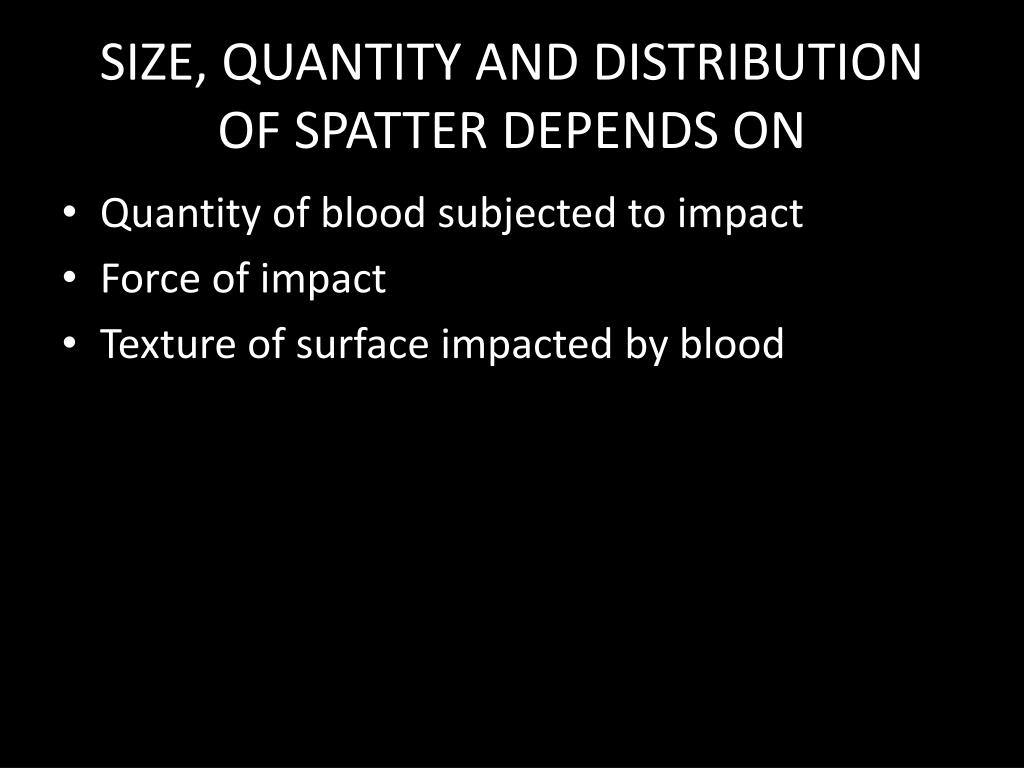

  18. SIZE, QUANTITY AND DISTRIBUTION OF SPATTER DEPENDS ON • Quantity of blood subjected to impact • Force of impact • Texture of surface impacted by blood

  19. GUNSHOT • High Velocity Spatter • Misting effect • Varying sizes of impact spatters • Depend of caliber of weapon, location, number of shots, etc.

  20. Gunshot

  21. EXAMPLE BACK SPATTER

  22. EXAMPLE GUNSHOT IMPACT SPATTER

  23. Beating and Stabbing Impact SpatterMedium Velocity Spatter • Generally size range 1-3 mm in diameter

  24. Castoff Bloodstain PatternsLow Velocity Spatter • Blood flung from object – such as bat or knife

  25. Passive BloodstainsLow Velocity • Blood dripping from injured person

  26. What happens when blood hits blood? • Drip patterns

  27. Large Volume Bloodstains • Splashing and ricochet • Often from victim with large wound or vomiting

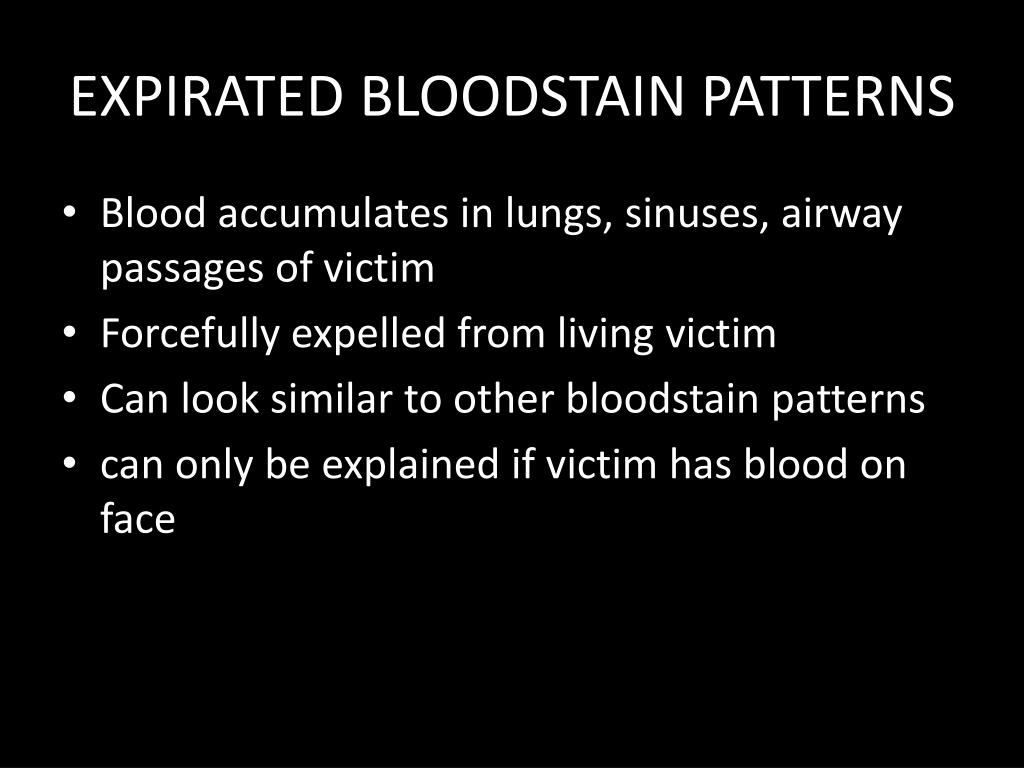

  28. EXPIRATED BLOODSTAIN PATTERNS • Blood accumulates in lungs, sinuses, airway passages of victim • Forcefully expelled from living victim • Can look similar to other bloodstain patterns • can only be explained if victim has blood on face

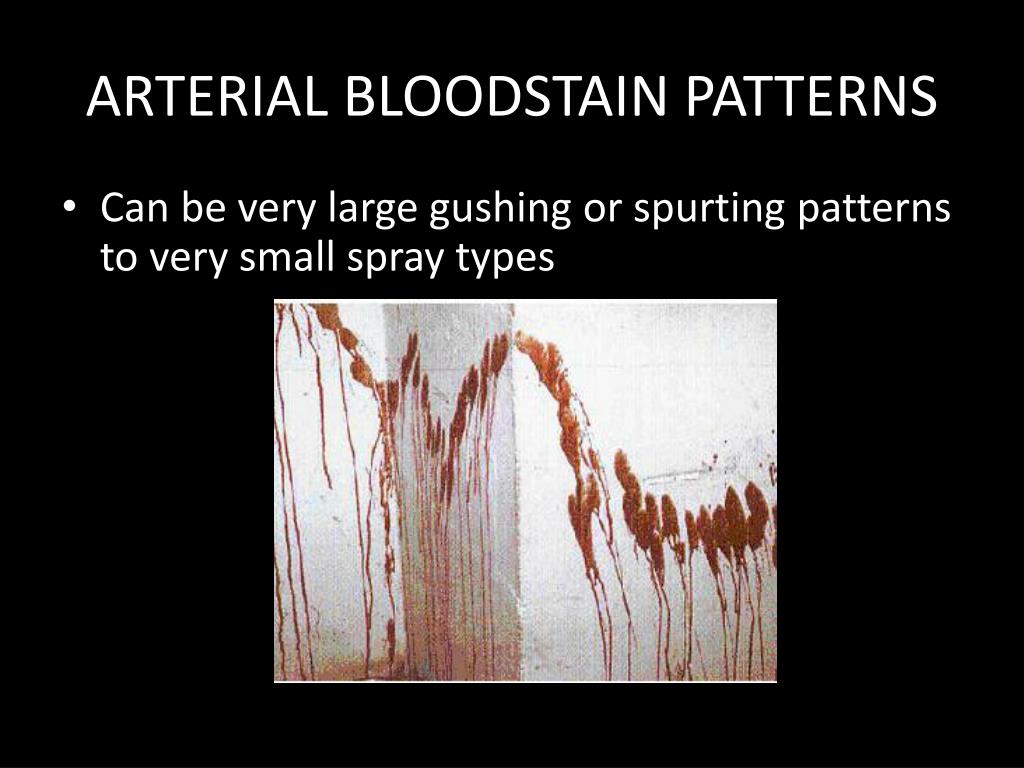

  29. ARTERIAL BLOODSTAIN PATTERNS • Can be very large gushing or spurting patterns to very small spray types

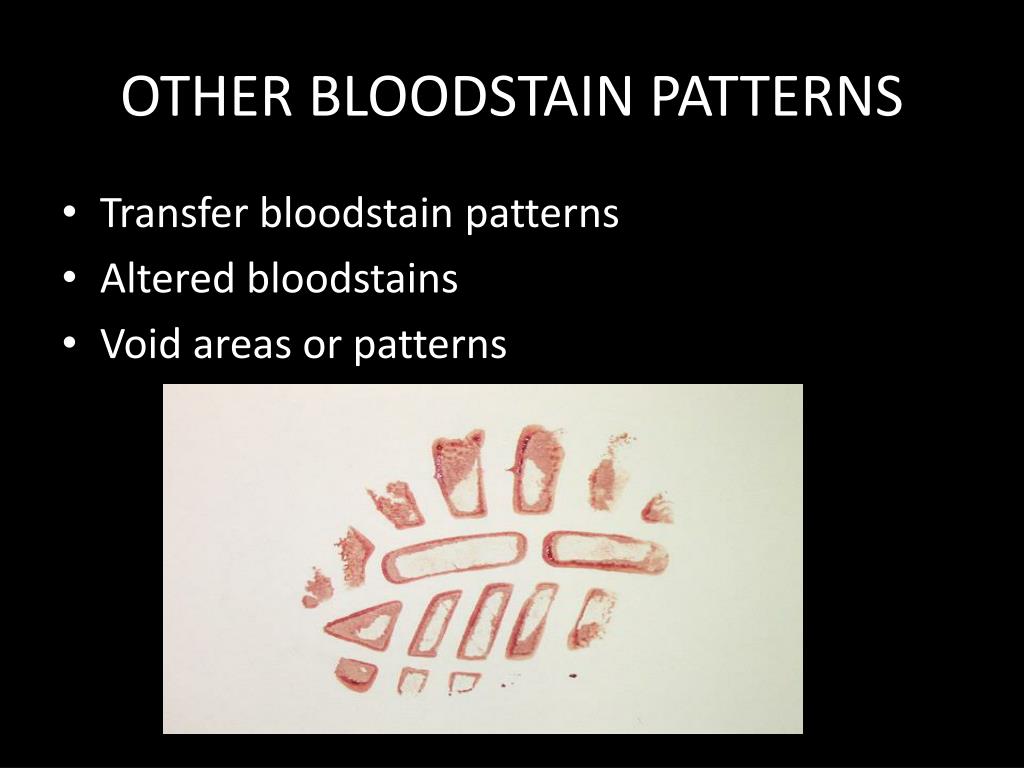

  30. OTHER BLOODSTAIN PATTERNS • Transfer bloodstain patterns • Altered bloodstains • Void areas or patterns

  31. INTERPRETATION OF BLOODSTAINS ON CLOTHING AND FOOTWEAR • Whose blood is it? • How did it get there?

  32. LUMINOL • Used for latent bloodstains at crime scene

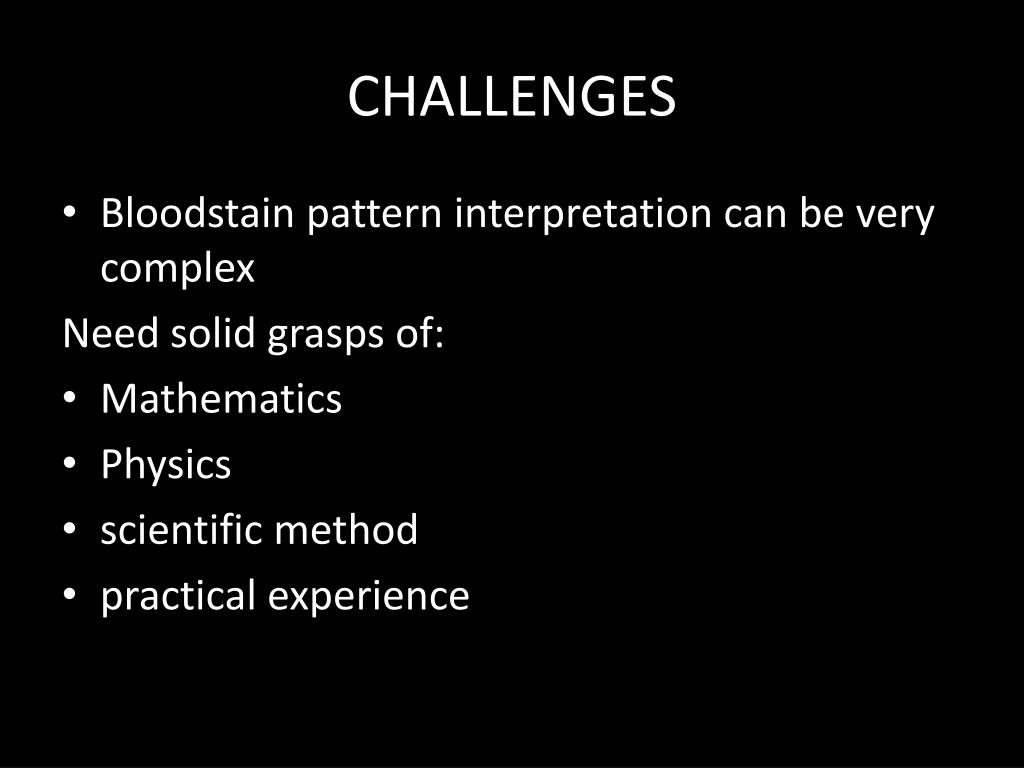

  33. CHALLENGES • Bloodstain pattern interpretation can be very complex Need solid grasps of: • Mathematics • Physics • scientific method • practical experience
