Raptor X Modules - Modular UPS Systems

The Raptor X Modules UPS is right for facilities with sensitive and mission-critical tools with its online double-conversion topology and low Total Harmonics Distortion of less than 1%. Read more - https://bit.ly/3x8fojh

raptorpowersystems
Download Presentation

Raptor X Modules - Modular UPS Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

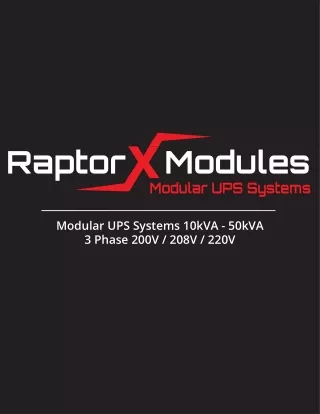

  1. Modules Modular UPS Systems Raptor Modular UPS Systems 10kVA - 50kVA 3 Phase 200V / 208V / 220V

  2. Modules Modular UPS Systems Raptor True Online Modular UPS 10-kVA - 50kVA 10kVA Power Modules N+5 up to 50kVA Each System Contains a Monitoring/Bypass Module and up to 5 x 10kVA UPS Modules Rack, modular, scalable, hot-swappable, true online double conversion UPS systems ranging from 10kVA to 50kVA. The RaptorXModule UPS System is ideal for commercial data centers, shipboard applications, and other mission critical environments. Fully Integrated Solution Up to 98% Efficient Hot-Swappable Low 1% THD Intutitive HMI RaptorXModule UPS Systems | (800) 258-0129 | info@raptorpowersystems.com

  3. Modules Modular UPS Systems Raptor True Online Modular UPS 10kVA - 50kVA Enterprise level system management with a 7” LCD touch screen HMI Mission Critical Features Rack Modular Design High Power Density Fully Integrated Modular design, com- patable with 19” stan- dard rack cabinets. 10kVA power module in a 2U enclosure. Integrate with external batteries, bypass, and PDU. Intutitive HMI Display Intelligent Charging Self-Aging Mode 7” Color LCD to manage and monitor the entire system. Intelligent charging & discharging control for max battery life Energy cycle technolo- gy allows for full load operation. Low 1% THD Frequency Range Remote Management Less than 1% THD attached to a linear load. Wide 40Hz to 70Hz input avoids uneccasa- ry shutdowns. Remote control and monitoring via SNMP interface. RaptorXModule UPS Systems | (800) 258-0129 | info@raptorpowersystems.com

  4. Modules Modular UPS Systems Raptor SPECIFICATIONS MODEL Capacity Power Module INPUT Phase RXM050/10x 50kVA/50kW RXM 030/10X 30kVA/ 30kW PD10X(10Kva/10Kw) RXM020/10X 20kVa/20kW 3 Phase + Neutral + Ground ( 200V / 208V / 220V) 187 ~ 260 Vac (Line - Line), Full Load; 125 V ~ 187Vac (Line - Line), Load Derated Linearly 40Hz - 70Hz > 0.99 THDi , 4% @ 100% Linear Load Voltage Range Frequency Range Power Factor THDi OUTPUT Voltage Voltage Regula?on Power Fator THD Crest Factor Overload Capability BATTERY Voltage Charge Power Charge Voltage Precision SYSTEM System E?ciency Display IP Class Interface Opera?on / Storage Temperature Rela?ve Humidity Nosie PHYSICAL Cabinet Weight (lbs) Power Module Weight (lbs) Cabinet Dimensions W*D*H (in) Power Module Dimensions W*D*H (in) 200V / 208V / 220V 1.50% 1 THD < 1% ( Linear Load), THD < 5.5% (Non- Linear Load) 3:01 100% for 10 Min; 125% for 1 min; 150% for 30S; 150% for 200ms ± 120 VDC 20 % of System Power ± 1 % Normal Mode: 93%; ECO Mode: 98%; Ba?ery Mode: 92.5% 7.0 " Color Touch Screen LCD + LED + Keyboard IP20 Standard: RS2632, RS485, Dry Contacts; Op?onal SNMP 0-40 °C / -40-70°C 0 - 95 % (Non - Condensing) 58 dB @ Full Load, 52dB @ 45% Load (1 Meter Away) 187 112 92 33.73 19 x 29.5 x 40.6 19 x 29.5 x 22.6 17 x 23 x 3.3 19 x 27.4 x 15.6 RaptorXModule UPS Systems | (800) 258-0129 | info@raptorpowersystems.com
