Guardian Breaker Panels

The Guardian series breaker panels are designed specifically for cryptocurrency mining. The power ranges from 400 to 1200 amps. If a higher capacity is required, see our Panel Guards, which are available in sizes ranging from 1200A to 4000A.

raptorpowersystems
Download Presentation

Guardian Breaker Panels

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

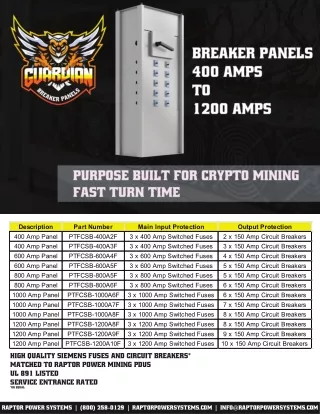

  1. part# rps-pdu-cm-5 Description 400 Amp Panel 400 Amp Panel 600 Amp Panel 600 Amp Panel 800 Amp Panel 800 Amp Panel 1000 Amp Panel 1000 Amp Panel 1000 Amp Panel 1200 Amp Panel 1200 Amp Panel 1200 Amp Panel Part Number PTFCSB-400A2F PTFCSB-400A3F PTFCSB-600A4F PTFCSB-600A5F PTFCSB-800A5F PTFCSB-800A6F PTFCSB-1000A6F PTFCSB-1000A7F PTFCSB-1000A8F PTFCSB-1200A8F PTFCSB-1200A9F PTFCSB-1200A10F Main Input Protection 3 x 400 Amp Switched Fuses 3 x 400 Amp Switched Fuses 3 x 600 Amp Switched Fuses 3 x 600 Amp Switched Fuses 3 x 800 Amp Switched Fuses 3 x 800 Amp Switched Fuses 3 x 1000 Amp Switched Fuses 3 x 1000 Amp Switched Fuses 3 x 1000 Amp Switched Fuses 3 x 1200 Amp Switched Fuses 3 x 1200 Amp Switched Fuses 3 x 1200 Amp Switched Fuses Output Protection 2 x 150 Amp Circuit Breakers 3 x 150 Amp Circuit Breakers 4 x 150 Amp Circuit Breakers 5 x 150 Amp Circuit Breakers 5 x 150 Amp Circuit Breakers 6 x 150 Amp Circuit Breakers 6 x 150 Amp Circuit Breakers 7 x 150 Amp Circuit Breakers 8 x 150 Amp Circuit Breakers 8 x 150 Amp Circuit Breakers 9 x 150 Amp Circuit Breakers 10 x 150 Amp Circuit Breakers High quality siemens fuses and circuit breakers* matched to raptor power mining pdus ul 891 listed service entrance rated *or equal RAPTOR POWER SYSTEMS | (800) 258-0129 | raptorpowersystems.com | info@raptorpowersystems.com
