Goliath Crypto Mining Racks

Purpose-built racks for crypto mining with w/integrated PDUs, conduit holders, network switch holders, wire management, & proprietary miner supports for maximum airflow.

raptorpowersystems
Download Presentation

Goliath Crypto Mining Racks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

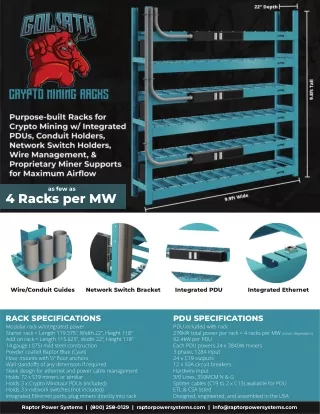

  1. DESIGNED AND MANUFACTURED IN THE USA as few as 4 Racks per MW part# rps-pdu-cm-5-F Wire/Conduit Guides Network Switch Bracket Integrated PDU Integrated Ethernet RACK SPECIFICATIONS Modular rack w/integrated power Starter rack = Length 119.375”, Width 22”, Height 118” Add on rack = Length 115.625”, Width 22”, Height 118” 14 gauge (.075) mild steel construction Powder coated Raptor Blue (Cyan) Floor mounts with ½” floor anchors Wall standoffs of any dimension if required Sleek design for ethernet and power cable management Holds 72 x S19 miners or similiar Holds 3 x Crypto Minotaur PDUs (included) Holds 3 x network switches (not included) Integrated Ethernet ports, plug miners directly into rack PDU SPECIFICATIONS PDU included with rack 276kW total power per rack = 4 racks per MW (miner dependent) 92.4kW per PDU Each PDU powers 24 x 3840W miners 3 phase, 128A input 24 x C19 outputs 12 x 50A circuit breakers Hardwire input 3/0 Lines, 350MCM N & G Splitter cables (C19 to 2 x C13) available for PDU ETL & CSA listed Designed, engineered, and assembled in the USA Raptor Power Systems | (800) 258-0129 | raptorpowersystems.com | info@raptorpowersystems.com
