CUSTOM PDUs

Raptor Power Systems' custom PDU designs are the result of a collaborative effort between our experienced power engineers and our valued clients. Understanding the application and environment is the most important aspect of designing a custom PDU. Read more - https://bit.ly/3ApA5J8

raptorpowersystems
Download Presentation

CUSTOM PDUs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

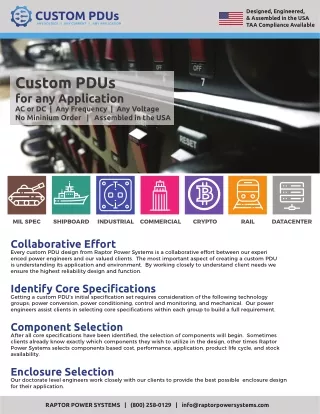

  1. Designed, Engineered, & Assembled in the USA TAA Compliance Available CUSTOM PDUs ANY VOLTAGE | ANY CURRENT | ANY APPLICATION Custom PDUs for any Application AC or DC | Any Frequency | Any Voltage No Mininium Order | Assembled in the USA COMMERCIAL DATACENTER SHIPBOARD CRYPTO INDUSTRIAL RAIL MIL SPEC ??????????????????? Every custom PDU design from Raptor Power Systems is a collaborative effort between our experi enced power engineers and our valued clients. The most important aspect of creating a custom PDU is understanding its application and environment. By working closely to understand client needs we ensure the highest reliability design and function. ??????????????????????????? Getting a custom PDU's initial specification set requires consideration of the following technology groups; power conversion, power conditioning, control and monitoring, and mechanical. Our power engineers assist clients in selecting core specifications within each group to build a full requirement. Component Selection After all core specifications have been identified, the selection of components will begin. Sometimes clients already know exactly which components they wish to utilize in the design, other times Raptor Power Systems selects components based cost, performance, application, product life cycle, and stock availability. Enclosure Selection Our doctorate level engineers work closely with our clients to provide the best possible enclosure design for their application. RAPTOR POWER SYSTEMS | (800) 258-0129 | info@raptorpowersystems.com

  2. CUSTOM PDUs ANY VOLTAGE | ANY CURRENT | ANY APPLICATION EXTERNAL PDU OPTIONS 01. Input Circuit Protection UL 489 input circuit breakers in AC or DC and 1, 2 or 3 pole configurations. 5 4 6 02. Output Circuit Protection UL 1077 output circuit break- ers in AC or DC and 1, 2 or 3 pole configurations. 04. LCD Meters Voltage, current, and tem- perature meters. 3 1 2 7 11 9 10 8 05. EPO Emergency power off, on PDU or external. 06. Rack Handles Rugged handles assist in maintence and installation of PDU. 07. Input Power Plug Power plug in NEMA, IEC, CSA, MIL SPEC, or Industrail configurations. 08. Input Power Cord SJOW, SOOW, THHN, MTW, or low-smoke halogen free. 15 12 13 14 10. Output Connectors NEMA, IEC, CSA, MIL SPEC, or industrial connectors for any application. 13. Communication Port Connection port for remote control and monitoring soft- ware. 11. AUX Outputs Ulitility outputs for maintence and supplemental voltage configurations. 14. Ground Stud TVSS or MIL SPEC external ground stud. 15. Enclosure Rack, vertical mount, wall mount, table top, free stand- ing, EMI shielded, or portable. 12. Remote Power Seperate power input for remote control and monitor- ing 09. Strain Relief Cord grips/strain reliefs for all power cord types. Designed, Engineered, & Assembled in the USA TAA Compliance Available RAPTOR POWER SYSTEMS | (800) 258-0129 | info@raptorpowersystems.com

  3. CUSTOM PDUs ANY VOLTAGE | ANY CURRENT | ANY APPLICATION INTERNAL PDU OPTIONS 01. Internal COM Port Panel to controller internal connection. 2 3 1 4 02. Remote Switches Control switches via remote and/or internal signals. 5 03. RC Controller Raptor Connect controller board doubles as a webserver for internal software hosting. 04. Current Transformers Measure current on the input or outputs up to 500A per measurement. 6 7 8 13 9 12 05. Power Supply Add 5VDC or 12VDC for con- troller, EPO, or relay power. 14 11 10 06. Relay Card Mechanical or solid state relays to control outputs, EPO, and remote signals. 07. Machine Crimps High reliability crimps created with automated machining for precision and consistency. 12. Mains Power Supply Switch power from AC to DC to power DC loads from an AC source. 09. Surge Suppression MOV and surge suppression modules to protect critical loads. 13. EMI Filter EMI/FRI filtering for clean power output. 10. Voltage Conversion Change voltage via transform- er or digital double conver- sion. 11. Sequencing Circuitry Auto Sequence outputs on and off based on power con- ditions and for load shedding. 08. Integrated UPS internal UPS for critical load backup and controlled shut- down. 14. EPO Circuitry Emergency power off and daisy chain control circuitry. Designed, Engineered, & Assembled in the USA TAA Compliance Available RAPTOR POWER SYSTEMS | (800) 258-0129 | info@raptorpowersystems.com
