Presentation Transcript


Slide1 l.jpg

engineering-resource.com


Absorption anam saeed l.jpg

AbsorptionAnam Saeed

engineering-resource.com


Absorption l.jpg

Absorption

Unit operation and is mass transfer phenomena where the solute of a gas are removed by being placed in contact with a nonvolatile liquid solvent that removes the components from the gas.

Solvent:

Liquid applied to remove the solute from a gas stream.

Solute:

Components to be removed from an entering stream.

engineering-resource.com


Slide4 l.jpg

Purpose :The purpose of such gas scrubbing operations may be any of the following;For Separation of component having the economic value.As a stage in the preparation of some compound.For removing of undesired component (pollution).Types of absorption:Physical absorption Chemical Absorption

engineering-resource.com


Slide5 l.jpg

Physical Absorption:In physical absorption mass transfer take place purely by diffusion and Physical absorption occurs when the absorbed compound dissolves in the solvent. These properties are temperature dependent, and lower temperatures generally favor absorption of gases by the solvent.Chemical Absorption:Chemical absorption occurs when the absorbed compound and the solvent react.

engineering-resource.com


Slide6 l.jpg

Types of absorber:Packed column Plate column1. Packed column:Packed towers are columns filled with packing materials that provide a large surface area to facilitate contact between the liquid and gas. Packed tower absorbers can achieve higher removal efficiencies.2.Plate column:Plate, or tray, towers are vertical cylinders in which the liquid and gas are contacted in stepwise fashion on trays (plates). Liquid enters at the top of the column and flows across each plate and through a downspout (down comer) to the plates below. Gas moves upwards through openings in the plates, bubbles into the liquid, and passes to the plate above.

engineering-resource.com


Slide7 l.jpg

engineering-resource.com


Packed column l.jpg

Packed column:

engineering-resource.com


Packed tower internals 1 tower shell 2 mist eliminator l.jpg

Packed Tower Internals:1.Tower shell: 2.Mist eliminator:

engineering-resource.com


3 packing 4 distributors l.jpg

3. Packing:4. distributors:

engineering-resource.com


5 redistributors 6 support plates l.jpg

5.Redistributors:6.Support plates:

engineering-resource.com

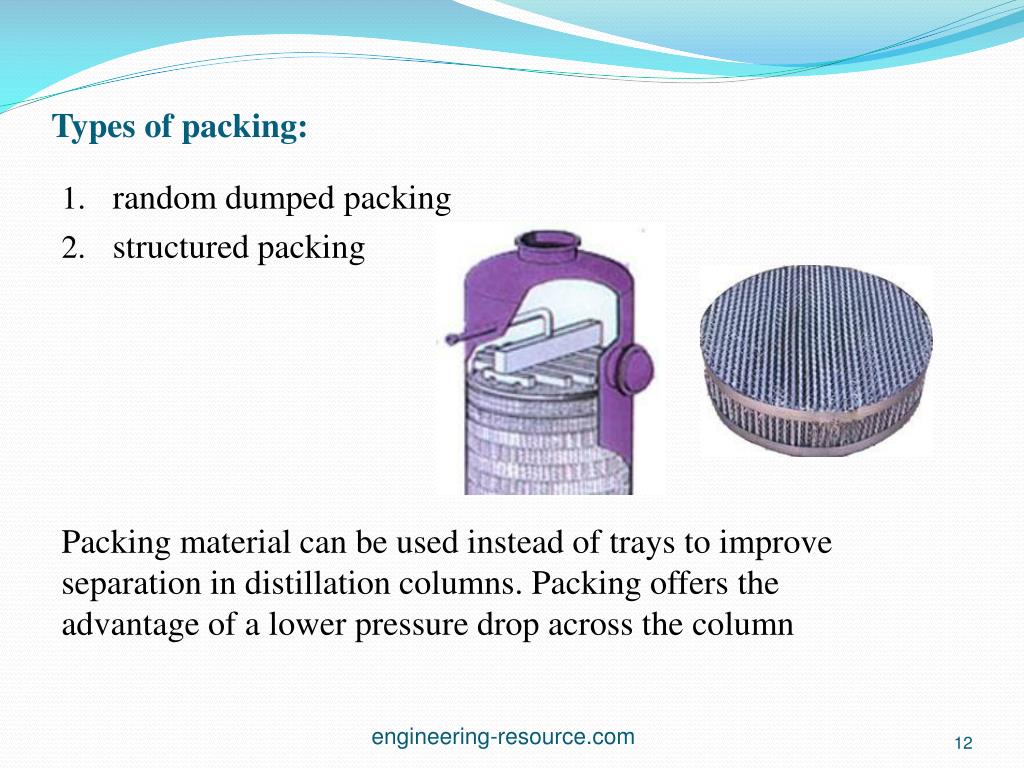

Types of packing l.jpg

Types of packing:

  • random dumped packing

  • structured packing

    Packing material can be used instead of trays to improve separation in distillation columns. Packing offers the advantage of a lower pressure drop across the column

engineering-resource.com


Rashing rings l.jpg

Rashing Rings:

Carbon rings metal rings ceramic rings

engineering-resource.com


Pall rings l.jpg

Pall rings:

engineering-resource.com


Intalox saddle l.jpg

Intalox saddle:

engineering-resource.com


Slide16 l.jpg

engineering-resource.com


Slide17 l.jpg

engineering-resource.com


Slide18 l.jpg

engineering-resource.com


Contact between a liquid and gas l.jpg

Contact between a liquid and gas:

Channeling often occurs in a packed tower.  This phenomenon takes place when the fluid moving down the column moves towards the region of greatest void space; this occurs at the region near the wall where the packing is not tightly packed.  Thus, liquid redistributors are used to redirect the fluid flow towards the column center.

Channeling:

engineering-resource.com


Slide20 l.jpg

Packing Characteristics:

           Packing materials must have the following characteristics: a large wetted surface area per unit volume of packed space (this allows a large interfacial area to exist), a large void volume (needed for low pressure drops), good wetting characteristics, corrosion resistance, low bulk density, and low cost.  No one type of packing will possess all these characteristics

engineering-resource.com


Pressure drop and limiting flow rates l.jpg

Pressure drop and limiting flow rates:

engineering-resource.com


Thank you l.jpg

Thank you
