Design and analysis of algorithms heapsort

Design and Analysis of AlgorithmsHeapsort

HaidongXue

Fall 2013, at GSU


Max heap

Max-Heap

  • A complete binary tree, and …

every level is completely filled,except possibly the last, which is filled from left to right

Yes

No

Yes


Max heap1

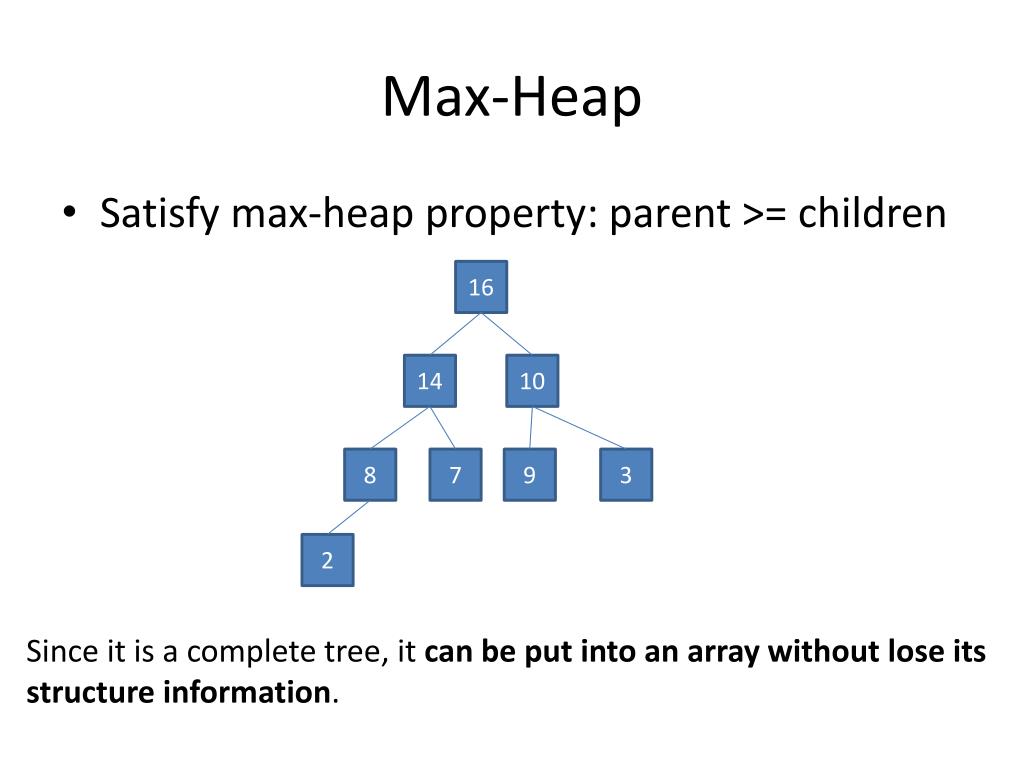

Max-Heap

  • Satisfy max-heap property: parent >= children

16

14

10

8

7

9

3

2

Since it is a complete tree, it can be put into an array without lose its structure information.


Max heap2

Max-Heap

16

14

10

8

7

9

3

2

1

2

3

5

7

8

4

6


Max heap3

Max-Heap

  • Use an array as a heap

1

For element at i:

Parent index =parent(i)= floor(i/2);

Left child index = left(i)=2*i;

Right child index =right(i)=2*i +1

Last non-leaf node = floor(length/2)

16

2

3

14

10

4

5

6

7

8

7

9

3

8

i=3

2

floor(i/2)=floor(1.5)=1

2*i = 6

2*i+1=7

floor(length/2)=4

7

9

3

2

14

16

10

8

1

2

3

5

7

8

4

6


Max heapify

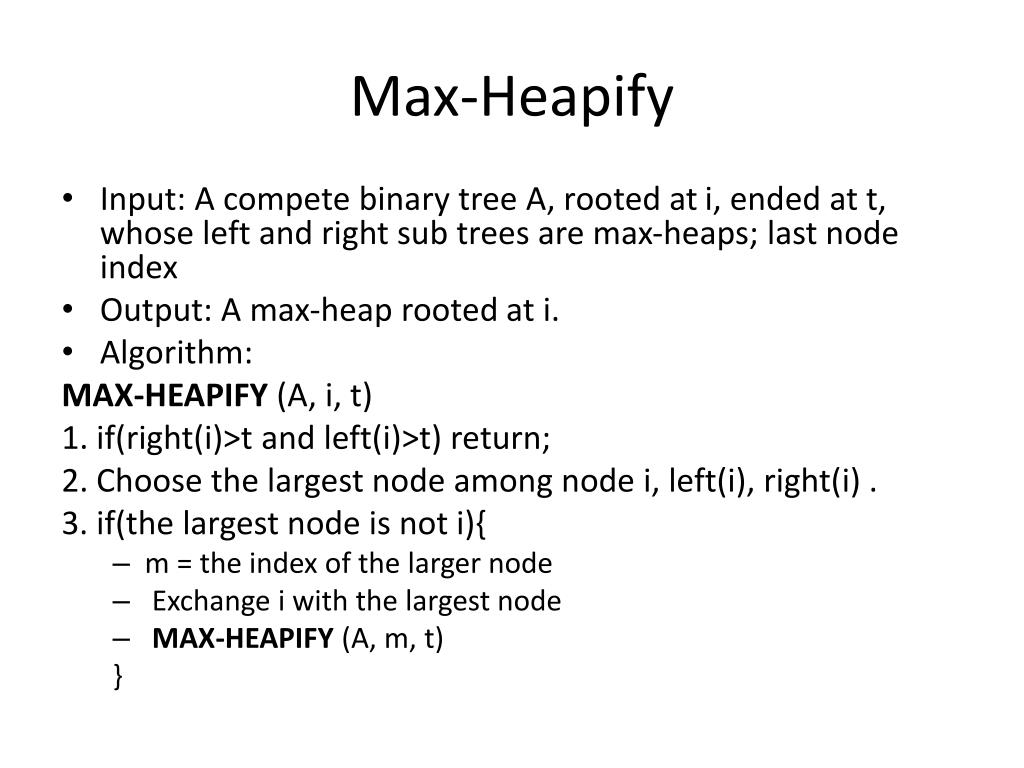

Max-Heapify

  • Input: A compete binary tree A, rooted at i, ended at t, whose left and right sub trees are max-heaps; last node index

  • Output: A max-heap rooted at i.

  • Algorithm:

    MAX-HEAPIFY (A, i, t)

    1. if(right(i)>t and left(i)>t) return;

    2. Choose the largest node among node i, left(i), right(i) .

    3. if(the largest node is not i){

    • m = the index of the larger node

    • Exchange i with the largest node

    • MAX-HEAPIFY (A, m, t)

      }


Max heapify example

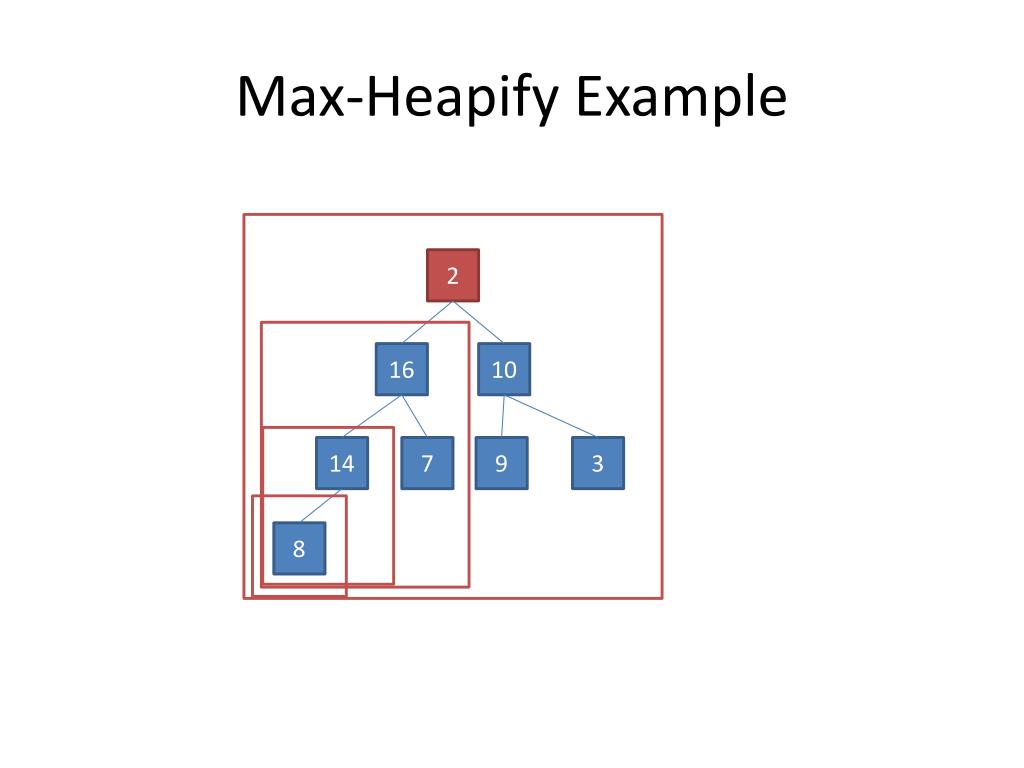

Max-Heapify Example

2

16

10

14

7

9

3

8


Heapsort for a heap

Heapsort for a heap

  • Input: a max-heap in array A

  • Output: a sorted array A

    HEAP-SORT Algorithm:

    1. BUILD-MAX-HEAP(A)

    2. Last node index i = A’s last node index

    3. From the last element to the second in A{

    exchange (i, root);

    i--;

    MAX-HEAPIFY(A, root, i);

    }


Heapsort example

Heapsort example

16

14

10

3

9

8

7

2


Heapsort example1

Heapsort example

14

8

10

3

9

2

7

16


Heapsort example2

Heapsort example

10

8

9

14

3

2

7

16


Heapsort example3

Heapsort example

9

8

3

14

10

2

7

16


Heapsort example4

Heapsort example

8

7

3

14

10

2

9

16


Heapsort example5

Heapsort example

7

2

3

14

10

8

9

16


Heapsort example6

Heapsort example

3

2

7

14

10

8

9

16


Array max heap

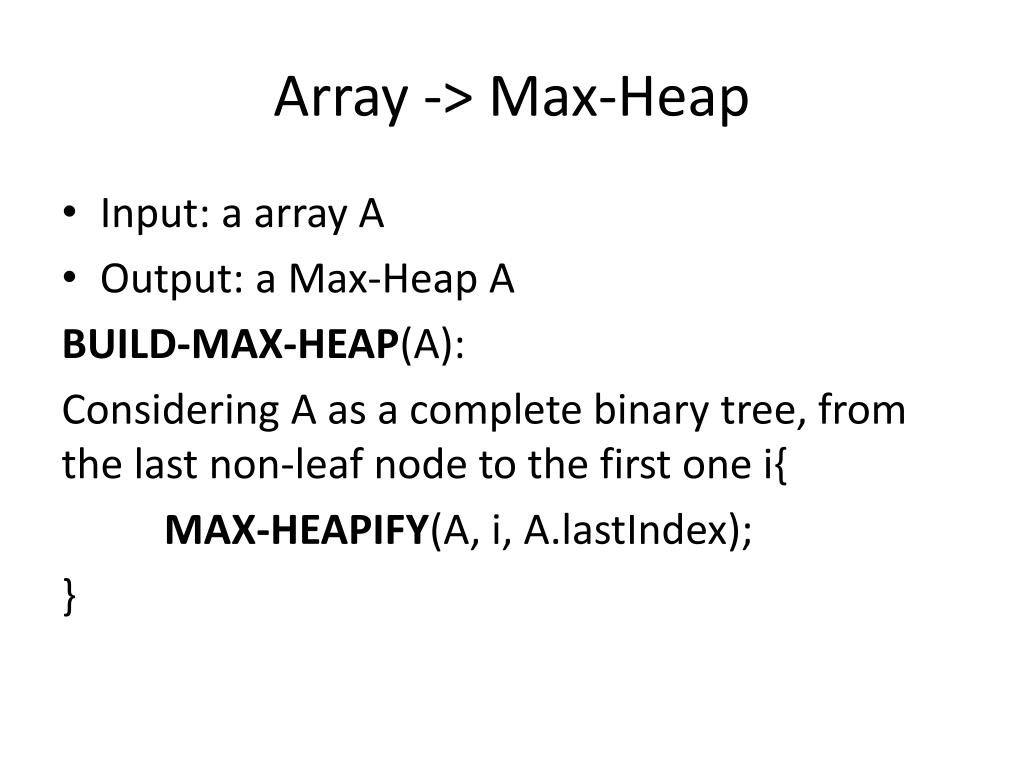

Array -> Max-Heap

  • Input: a array A

  • Output: a Max-Heap A

    BUILD-MAX-HEAP(A):

    Considering A as a complete binary tree, from the last non-leaf node to the first one i{

    MAX-HEAPIFY(A, i, A.lastIndex);

    }


Build heap example

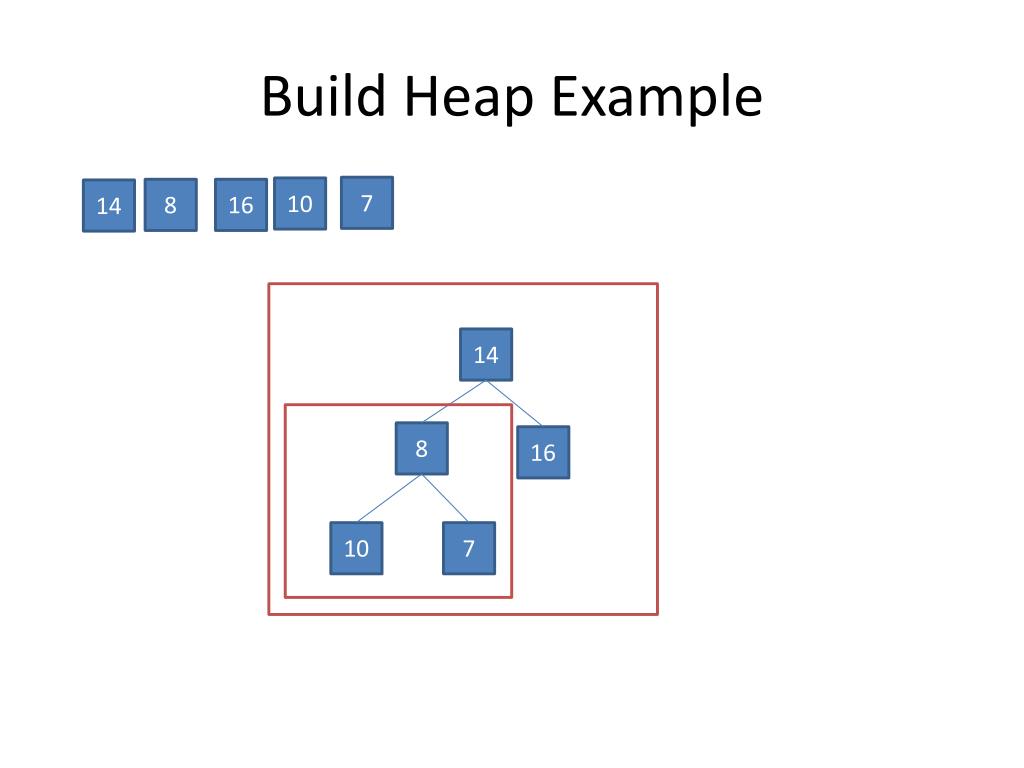

Build Heap Example

7

10

8

16

14

14

8

16

10

7


Heapsort

Heapsort

  • Input: array A

  • Output: sorted array A

    Algorithm:

    1. BUILD-MAX-HEAP(A)

    2. Last node index i = A’s last node index

    3. From the last element to the second in A{

    exchange (i, root);

    i--;

    MAX-HEAPIFY(A, root, i);

    }


Analysis of heapsort

Analysis of Heapsort

  • Input: array A

  • Output: sorted array A

    Algorithm:

    1. BUILD-MAX-HEAP(A)

    2. Last node index i = A’s last node index

    3. From the last element to the second in A{

    exchange (i, root);

    i--;

    MAX-HEAPIFY(A, root, i);

    }

O(nlgn) (or O(n) see page 157-159 for why)

O(n)

O(nlgn)
