Software Repository Architecture Concept An Enterprise Computing Example

1. Software Repository Architecture ConceptAn Enterprise Computing Example CSE691 - Software Modeling & Analysis Fall 2000 Jim Fawcett

2. Enterprise Computing • Implements processes necessary for the conduct of business. • Provides access to corporate information to all those who need it wherever they work and live. • Controls the state of corporate information. • applies business rules to ensure coherent transformations • probably requires transaction management • manages user roles, allowing different levels of access as appropriate for the individual user (not everyone has access to payroll attributes) • Provides decision support for management. • Is usually distributed, has very large data sets, but must deliver acceptable performance. SW Repository

3. Software Repository • A place to store and dispense an organization’s reusable software components • Supports very productive development of software by making accessible a large store of existing software components. • Its prime mission is to help user’s quickly locate useful parts out of a base of many thousands of components. • A secondary mission is to provide tools to help administer the database: • carefully controlling change • supporting certified status for proven components • providing associate status for new components, being considered for certification SW Repository

4. Software Repository Activities • Stores and manages a very large base of reusable software. • Supports browsing a well defined hierarchy of components. • Provides information and status attachments at any level. • Uses internet to provide access for on-site teams through encrypted channels. • Provides access based on role models. • Supports configuration of subsets for individual projects and pro-grams, building of test-beds. • Supports management of software builds. • Supports planning, tracking status and issue resolutions. • Supports configuration management and code analyses, perhaps by attaching a third party tool. SW Repository

5. Repository Structure • The repository holds systems, programs, modules, and files, with information that relates to each of these. • Repository Data Structure: • a system is a list of programs, summary and status information, system-level documents, and a make file • a program is a list of components, summary and status information, program-level documents, and a make file • a component is a list of files, summary and status information, component-level documents, and a make file • a file has versions and status attachments • Indexes: • an index is a text summary, status information, and a list of lower-level elements with links to their indexes, e.g., a program index has a set of links to its constituent modules and files. SW Repository

6. Repository Structure SW Repository

7. Repository Services • Browsing through reusable components • extracting indexes (lists of systems, programs, components, files) • viewing code • examining summary and status information • Searching based on: • hierarchy subset • keywords supplied with each index • component name fragment • date interval • content of status information • content of summary information. SW Repository

8. Repository Structure SW Repository

9. More Services • Managing access based on user role. • Enforcing security. • Managing updates: • adding (and infrequently deleting) files • changing file entries shown on system, program, and component indexes • managing file caches on a user’s desktop • Synchronizing database updates between core library and project subsets. • Creating views based on role models and what is being browsed. • A make file might not show up in a view unless explicitly requested. • A view could be restricted to code or to attached documents. SW Repository

10. SW Repository

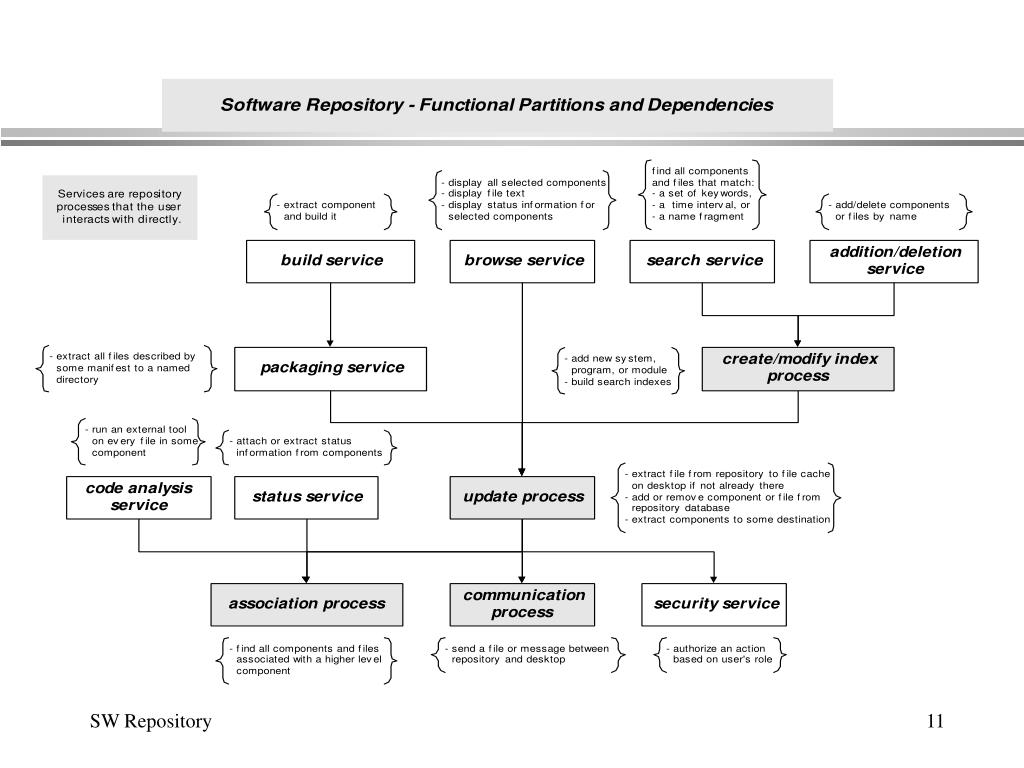

11. SW Repository

12. Role-Based Access • Provides access based on role models: • developers, quality assessment personnel have unlimited read-only access • team leaders have write access to their team’s assigned components • configuration management and repository administrators have unlimited access • Supports configuring the role model attributes by function, e.g.: • core library • project library • project baselines SW Repository

13. Still More Services • Providing tools and scripts for code analysis. • Building execution images from manifests. • a manifest is just a temporary system • Collecting status information from a manifest. • Packaging for shipment. • Client-side repository software would provide view control and caching of data. • Server-side repository software would provide a well-defined set of relatively independent services on the repository data. • Client-side will provide significant local support for repository services to unload server. SW Repository

14. SW Repository

15. SW Repository

16. Estimating Workload • 1,500 developers • 500 managers, QA personnel, CM personnel, librarians, administrators • Assume one-half of these clients request simultaneous service at 9:30 A.M. and 4:30 P.M. • Assume that each service: • requires 500 KBytes of RAM to execute • opens 10 files SW Repository

17. SW Repository

18. Need for Middleware • 1000 concurrent clients want to run applications that average: • 500 KB memory • maintain 10 open files • Without some sort of process management clients at peak load need from the server: • 1000 connections • 1000 processes • 500 MB memory • 10,000 open files • No server can survive this assault. SW Repository

19. System Load SW Repository

20. Estimating Server Load • If 1000 clients login between 9:30 and 11:00 A.M. • Arrival rate is 11 clients per minute. • Service rate should be at least than 4 times the arrival rate to keep queuing delays from impacting the user. • Service rate, averaged over all services and weighted by frequency of use of each service, should be at least 44 requests per minute. • So average service time should be no more than about 1.4 seconds. • Conclusions: • We can’t allow a user to stay connected to the server. Clients must send requests that take on the average no more than 1.4 seconds to complete. Requests result in files being served to client for browsing on the client’s desktop • At quitting time, clients send files to be checked in to a holding area to be processed over night (but only if this is a project server). SW Repository

21. Middleware Support • Maintains a pool of idle processes for the various services supported. • When a request for service arrives it wakes a process of the proper type and starts it working on the request. • Maintains a pool of file handles. Supplies them as needed to a requesting process. • May support the queuing of messages from multiple clients to a single server. • May support the perception of a client/server session by saving session state in cookies on the client side while working on other client’s requests. • May support multiple servers sharing a single service queue. SW Repository

22. Need for Middleware SW Repository

23. Browse Function • Browse activity probably entails a few brief flurries of activity between desktop and library interspersed with long periods of quiescence (user is busy at the desktop). • Browse mode has state: • part of hierarchy being browsed • user’s role • current working data set • current build manifest • Implication is that we should do all stateful browsing on the client desktop, and ask the server only to serve up files and indexes that don’t exist on desktop or are out of date there. How do we do that? • use message queuing middleware (request file transfer, status, …) SW Repository

24. Queue Manager • Queue Manager software provides services for enqueuing and dequeuing messages on a user’s desktop and on server supporting asynchronous message transfer. • The queue manager uses OS and network support to establish a connection between source and destination. • These should be transient connections. • On the sender’s side application software threads call a thread-safe enqueue function to post the message to a queue for delivery. • The queue manager’s thread calls its thread-safe dequeue function to extract the message to send across the network. • On the receiver’s side the queue manager’s thread receives the message and enqueues it to the destination queue. The receiver’s application thread dequeues it for processing. SW Repository

25. SW Repository

26. SW Repository

27. Estimating a User’s Data Set • While in browse mode a developer will need to access a lot of components: • search by keyword, date, status content, summary content, name • may access every index in the data set • may examine manual pages of several hundred files • This implies the need for high performance access to about: 250 components * 500 lines * 25 bytes per line = 3,125,000 bytes of data • Practical to send to the user’s desktop as long as server sends only updates to data cached on the client’s desktop. Client side software needs to help clean up the resulting mess. SW Repository

28. Estimating Server Data Set Size • Assume that the organization has: • projects ranging in size from a few hundred thousand source lines of code (SLOCs) to about 5,000,000 lines. • Assume that 90 percent of each is built from reused components once repository has been refined and established for a few years. • Assume that any one project uses at most about 20 percent of the available components because we support programs in many different business areas. • This implies 5,000,000 * 0.9 *5 = 22,500,000 SLOCs • If the average component is 500 lines there are: 45,000 components under control • if there are 5 files average per component: 225,000 files under control SW Repository

29. Repository Data Set Size SW Repository

30. Partitioning the Data Set • No single project wants to be buried under this mountain of data. • its important that any project has access to the entire core library • a project wants to create a subset for its development operations which will evolve as the project matures • this will need to be synchronized with the core library at well defined points in the program • Both usability and performance (but not cost) will benefit from partitioning the repository into a set of dedicated servers with access to a core library server. SW Repository

31. Repository Partitions SW Repository

32. Performance Issues • Some of the repository activities are local: • administrator connected to the core library server • Some are very remote: • project team working in Australia communicating over satellite links • Communication levels are: • function to function • thread to thread • process to process • process to disk • computer to computer • network to network • continent to continent • Each level could imply an order of magnitude speed difference. SW Repository

33. Architecture Issues • If we partition activities badly we could wind up: • sending mouse clicks from Australia to Syracuse. • sending megabytes of data to the desktop at each step of a browse operation • sharing a communication channel among hundreds of users • MiddlewareOne role of middleware is to support high performance processing for many users across machine and network boundaries. • Three-Tier ArchitectureLooks like we need three tiers of processing: • Client side presentation and execution of local services • Server side file serving and database synchronization • Transportation and caching services as middleware SW Repository

34. Design Issues • If we design the repository badly we could wind up: • sending file duplicates to many places with no way to track them • getting satellite libraries and core library incoherent, e.g., having different data describing the same item or different items describing the same data • allowing routine operations to corrupt configuration management data • TransactionsOne way to manage these issues is to use transactions. Transactions define a set of operations as a group which must all succeed or all fail. SW Repository

35. Desktop - Library Middleware • Activities - controlled by role model • transfer indexes and files • execute build • construct package • add status and summary information • create new components from existing files • add new file versions • add new files • delete components • delete files SW Repository

36. Architecture Concept Document Outline • Executive Summary • Introduction • definition of repository • goals of repository tool • distributed database • effective access • tools for maintaining reusable component library • services provided • Estimate of server load • arrival rate of clients • required service time based on queue analyses • implications for repository architecture • can’t stay connected • must be message-based SW Repository

37. Outline - Continued • Distributed Architecture • partitioning of database into core library and project libraries • partitioning of repository activities • services and core processes • association, communication, update • association based on association indexing • communication is based on message overlaying sockets • update user cache, repository database, and synchronization • browse, search, build, status, analysis, packaging, security, add/delete • client vs server activities • client: data caching, browse, search, build, packaging, analysis • server: file serving, security, add/delete, synchronization, status SW Repository

38. Outline - Continued • Detailed Service Analysis • browsing: • show activity diagram • discuss desktop data caching in some detail, e.g., how does the update process work on the user’s desktop • when should the server send indexes? • at startup or on demand? • with data caching as you’ve described it, analyze the client load on server • how does partitioning the database into core library and project libraries affect server load - be quantitative • another service • you choose and then carry out an analysis something like the analysis of the browse service outlined above • each service will have somewhat different analysis requirements • you can always substitute prototyping code for detailed analysis SW Repository

39. Outline - Continued • Extension of the Repository Architecture to parallel servers • use m-server queue performance chart to show how using m servers will affect the number of clients the repository can handle • plot client load vs. number of servers • our analysis showed that one server can handle about 1000 clients • keep the avg. queue length the same in all cases, e.g. 0.4 waiting • Messaging system • use your project #3 to provide prototype data for analysis • show your prototype architecture (builds customer confidence that you can actually build the system) • Make sure that you provide an Executive Summary and a summary for each of the sections described above. • load estimate, distributed architecture, browsing service, other service, extension, messaging SW Repository

40. Appendix A Transaction Processing SW Repository

41. Transactions • Transaction • A series of processing steps that results in a specific function or activity being completed, ensuring that a set of actions is treated as a single unit of work. • Transactions Support the ACID Properties: • Atomicity: a transaction is an indivisible unit of work. All of its actions either succeed (commit) or they all fail (rollback). • Consistency: after execution a transaction leaves the system in a correct state or it must abort. • Isolation: a transaction’s behavior is not affected by other transactions that execute concurrently. • Durability: After a transaction commits its effects are permanent, even if the system fails. SW Repository

42. Build and Update Transaction • Suppose a system is composed of several programs. Some of these share the use of a lower-level module which is being updated to install a bug-fix. • The transaction consists of • building the each of the affected programs with the new version of the fixed module • if each build is successful and if individual programs pass an automated battery of regression tests then the transaction commits. Otherwise it rolls back. • Committing the transaction implies that the system definition and each of its program definitions are updated in the corresponding indexes to use the new module version. • Evidently a specialized transaction processor is needed here. SW Repository

43. Two Phase Commits • If a transaction is created with a nested structure of lower-level transactions a two-phase commit is needed. • The root transaction (at the top level) asks if all its child transactions are ready to commit. • Each child in turn asks its children (if it has any) if they are ready to commit. • When all the leaves are ready and any transactional processing that is needed at each upper-level also succeeds then the transaction is committed. • This commit processing proceeds in two phases: • recursively querying children about their readiness to commit • flowing back all the replies • committing if at each level the commit is affirmed. This is accomplished by the root flowing down a commit command recursively to each child. SW Repository

44. Transaction Processing Monitors • TP Monitors • TP Monitors manage transactions by coordinating an application’s use of a set of services. • They were introduced to run classes of applications that can serve thousands of clients. • TP Monitors control the traffic that links lots of clients with lots of application programs. • TP Monitors manage transactions from their point of origin (a client) across one or more servers and back to the origin. • Using TP Monitors an application requires no specialized code other than begin/end transaction. • TP Monitors guarantee that unrelated services work together in ACID unison. • References: • 3-Tier Client/Server at work, Edwards, Wiley, 1999 SW Repository

45. Appendix B Communication Styles SW Repository

46. Communication Styles • Synchronous (blocked) or asynchronous (unblocked) • Connection-oriented or connectionless • Conversational or pseudo-conversational • Direct or queued • Client/server or cooperative roles • Partner availability and connection issues • Number of partners issue • Reference • High-Performance Client/Server, Loosley, Douglas, Wiley, 1998 SW Repository

47. (A)synchronous Communication • Synchronous communcation • The initiating process sends a message (request) and waits for a response before it can continue processing. Remote Procedure Calls (RPCs) are synchronous. • Asynchronous communication • The initiating process is unblocked - it can continue processing after sending a request, perhaps sending more messages to the same destination server or to others without waiting for a reply. Asynchronous communication requires middleware between client and server that supports a messaging model. SW Repository

48. Connection or Connection-less • Connection-Oriented • Two parties first connect, exchange messages, then disconnect. • Connection-less • No connection is established. The sender simply sends a message and the server acts on the message with no further relationship with the requester. SW Repository

49. Conversational or Pseudo-Conversational • Conversational • A connection-oriented exchange of messages is conducted. • If a server has many active connections at any given time, many are likely to be idle, waiting for the next client message. This wastes server memory and CPU cycles. • Pseudo-Conversational • Upon completion of a request\response pair the server process terminates, or is reassigned, after saving any necessary session state with the client in a cookie. When a new message arrives it carries a cookie so that its session can continue. • This allows both the process and connection to be shared among several clients. SW Repository

50. Direct or Queued Communication • Direct Communication • Middleware accepts a message from the initiating process and passes it directly to the server process. This is usually done with a synchronous call from the client. • Queued Communication • Queue Manager middleware places the message in a queue. The target process retrieves the message from the queue when it is ready. A response, if required, is posted by the server, via the middleware queue manager, to a client queue. The posting process unblocks as soon as the Queue Manager accepts the message. SW Repository
