Interaction-Based HPC Modeling of Social, Biological, and Economic Contagions Over Large Networks

1. Interaction-Based HPC Modeling of Social, Biological, and Economic Contagions Over Large Networks Jiangzhuo Chen Joint work with Keith Bisset, Chris J. Kuhlman, V.S. Anil Kumar, and Madhav Marathe Winter Simulation Conference December 13, 2011 Network Dynamics & Simulation Science Laboratory

2. Talk Outline • Background • Contagions and large networks • Motivations for HPC ABMS • Challenges for HPC ABMS methodology • GDS (graphic dynamical system) • Our HPC simulation tools for large-scale GDS’s : • InterSim • EpiSimdemics • EpiFast • Performance and examples • Summarize

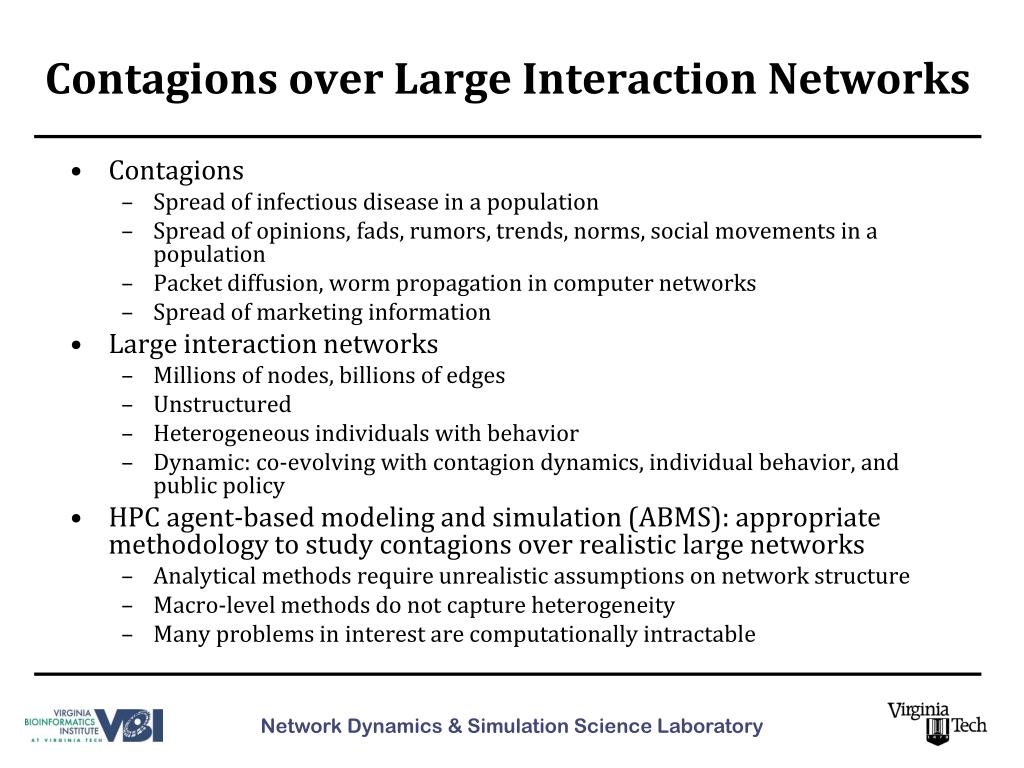

3. Contagions over Large Interaction Networks • Contagions • Spread of infectious disease in a population • Spread of opinions, fads, rumors, trends, norms, social movements in a population • Packet diffusion, worm propagation in computer networks • Spread of marketing information • Large interaction networks • Millions of nodes, billions of edges • Unstructured • Heterogeneous individuals with behavior • Dynamic: co-evolving with contagion dynamics, individual behavior, and public policy • HPC agent-based modeling and simulation (ABMS): appropriate methodology to study contagions over realistic large networks • Analytical methods require unrealistic assumptions on network structure • Macro-level methods do not capture heterogeneity • Many problems in interest are computationally intractable

4. Challenges with HPC ABMS Tools • Performance • Scalability of running time and memory usage: e.g. epidemics in the global population with 7 billion agents • High communication cost for synchronizations • Capability • Representation of complicated contagion processes • Representation of complex behavior & policy • Representation of coupled multi-networks with multiple contagions • Demand for short overall time-to-solution • Large simulation configuration space: huge factorial design • Randomness: many replicates • Often require efficient (adaptive) experiment design • Motivation for multiple tools in the performance-capability spectrum: choose the right tool for the right problem

5. Graph Dynamical System (GDS) • G(V=agents, E=interactions) • B: set of state values; each node has a state • F: set of local transition functions; each node vi has a function fiin F • Typical fi depends on history of states of vi and its neighbors in G • R: update scheme for local transition functions and state updates • E.g. synchronous scheme (SyDS): good for parallelization; sequential scheme (SDS) Output of GDS: sequence of configurations C(t)= state of each node at time t

6. Extensions to The Basic GDS • Probabilistic state transitions • Multiple networks with multiple contagions (multiple sets of local transition functions) • State vector • Asymmetric interactions • Agents come and go • Interventions • Change node or edge properties • Cannot be modeled by local transition functions

7. An Example of GDS Infectious disease propagation in social contact network with SEIR model • G: social contact network • B: {Susceptible, Exposed, Infectious, Removed} • F: transitions with between-host disease propagation and within-host disease progression • SE probabilistically if any neighbor is in I; independent disease transmissions, prob. depends on properties of: infectious node, susceptible node, and their interaction • Probabilistic timed transition EIR • R: synchronous update work home school S E I R work

8. Interventions in an epidemiological GDS • Pharmaceutical interventions: vaccination or antiviral changes an individual’s role in the transmission chain • Lower susceptibility or infectiousness • Non-pharmaceutical interventions: social distancing measures change people activities and hence the social network • Sick leave, school closure, isolation, etc.

9. Example of Interventions: Vaccination work home school work

10. Example of Interventions: No School work home school work

11. Example of Interventions: Work Closure work home school work

12. Talk Outline • Background • Contagions and large networks • Motivations for HPC ABMS • Challenges for HPC ABMS methodology • GDS (graphic dynamical system) • Our HPC simulation tools for large-scale GDS’s : • InterSim • EpiSimdemics • EpiFast • Performance and examples • Summarize

13. InterSim, EpiSimdemics, EpiFast: Overview • Common properties: • Agent based simulation of diffusion over networks (GDS) • Synchronous state updates • Implementation: C++/MPI parallel code; runs on any distributed memory system • Differences: • Scope of contagion modeling: InterSim > EpiSimdemics > EpiFast • Intervention modeling: EpiSimdemics > EpiFast > InterSim • Performance: EpiFast > EpiSimdemics > InterSim • Software extendibility: InterSim > EpiSimdemics > EpiFast • Network representation: InterSim ≈ EpiFast  EpiSimdemics • Preciseness of simulation: EpiSimdemics > (InterSim, EpiFast) • Parallel communication model: InterSim ≈ EpiSimdemics ≠ EpiFast • Communication cost: InterSim > EpiSimdemics > EpiFast • Memory requirement: InterSim > EpiSimdemics > EpiFast

14. Some Other Simulation Tools • Epidemiological agent based simulation frameworks: • Ferguson et al. 2003. Planning for smallpox outbreaks. Nature 425 (6959): 681–685. • Longini et al. 2005. Containing Pandemic Influenza at the Source. Science 309 (5737): 1083–1087. • Parker and Epstein 2011. A Distributed Platform for Global-Scale Agent-Based Models of Disease Transmission. ACM Transactions on Modeling and Computer Simulation 22. • General purpose simulators: • Perumalla 2005. μsik: A Micro-Kernel for Parallel/Distributed Simulation Systems. In Proceedings of the 19th PADS. • Hybinette et al. 2006. SASSY: A Design for Scalable Agent-Basd Simulation System Using a Distributed Discrete Event Infrastructure. In Proceedings of the 2006 WSC. • North and Macal 2009. Foundations of and Recent Advances in Artificial Life Modeling with Repast 3 and Repast Simphony. In Artificial Life Models in Software, 37–60. Springer. • Perumalla and Seal 2011. Discrete Event Modeling and Massively Parallel Execution of Epidemic Outbreak Phenomena. SIMULATION, to appear. • D’Souza et al. 2007. SugarScape on Steroids: Simulating over a Million Agents at Interactive Rates. In Proceedings of Agent2007 Conference. • Aaby et al. 2010. Efficient Simulation of Agent-Based Models on Multi-GPU and Multi-Core Clusters. In Proceedings of SIMUTools ’10.

15. Scopes of NDSSL Tools InterSim GDS EpiSimdemics EpiFast Intervention

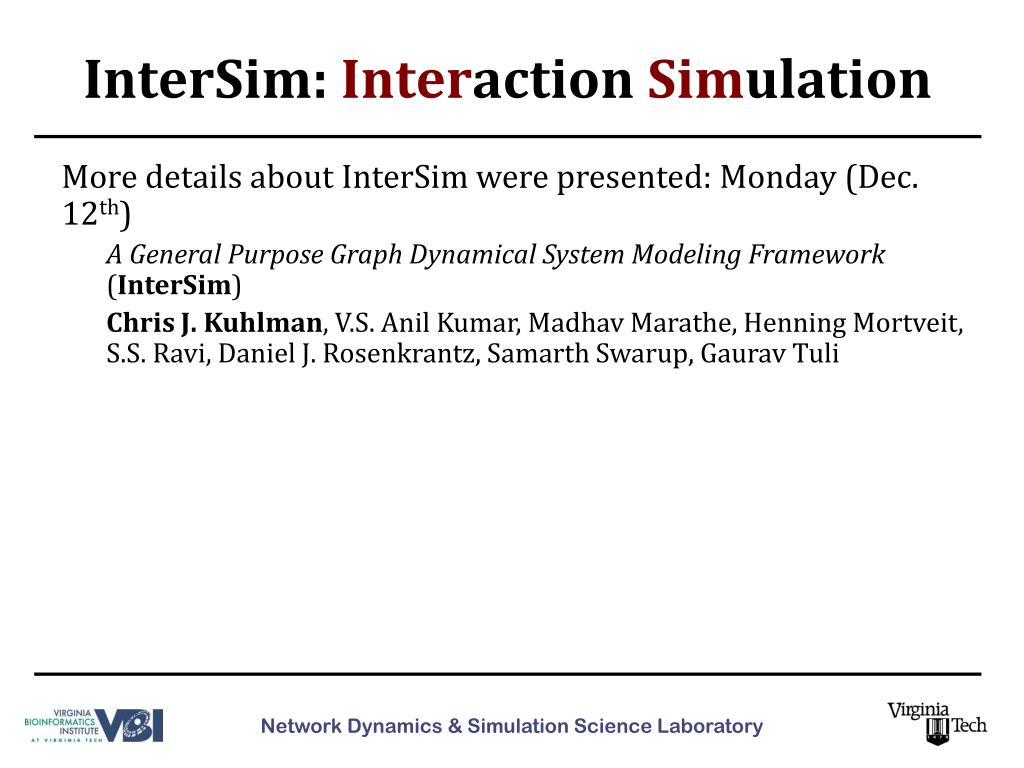

16. InterSim: Interaction Simulation More details about InterSim were presented: Monday (Dec. 12th) A General Purpose Graph Dynamical System Modeling Framework (InterSim) Chris J. Kuhlman, V.S. Anil Kumar, MadhavMarathe, Henning Mortveit, S.S. Ravi, Daniel J. Rosenkrantz, Samarth Swarup, GauravTuli

17. InterSim • Modeling of diffusion dynamics • Most general, can be used for any GDS • Open software framework which can be easily extended with user supplied node interaction models (NIM’s) • Already implemented: SEIR model, different threshold models, generalized cellular automata, computer network communication algorithms • Software implementation • C++/MPI implementation • Agent-to-agent interaction graph as input • Symmetric computation model • Communications between each pair of PE’s

18. InterSim • Performance • High versatility (general local transition functions) • Fast turn-around time: time from problem specification to simulation results • NIM can be implemented and verified within hours • Large memory usage: a NIM instance for each agent • Large communication cost • Limitations • Very limited interventions based on local data • Difficult to scale to very large scale networks (e.g. NYC contact network)

19. EpiSimdemics • Modeling of diffusion dynamics • Discrete event & discrete time simulation • second-by-second details • Ordered interactions among agents • Local state transition functions: probabilistic timed transition systems • highly configurable disease model • Diffusion through co-location of agents • Software implementation • C++/MPI implementation • Agent-location graph as input • agent-agent interactions are computed on-the-fly • Symmetric computation model; communications between each pair of PE’s • Very sophisticated interventions • Change infectivity/vulnerability of agents • Change agents’ activity schedules (hence interactions)

20. Disease Model in EpiSimdemics: An Example

21. EpiSimdemics Algorithm Generate the population Set initial infections Based on activities move the people to the locations Compute interactions among the people at the locations Some exposed people may become infected After their activities, the people are moved back to their home PE Update state of person at his home PE

22. EpiSimdemics • Performance • Scalable to very large networks (106~109 agents) • Simulation running time: magnitude of minutes for large urban populations • Limitations • Interactions occur only through co-location • Local transition functions must be PTTS • System synchronization at every time step (every simulation day) • Interventions are based on either local or global information, not neighborhood information • There must exist a minimum latent period • Between agent’s state transition and that the transition can affect other agents Christopher Barrett, Keith Bisset, Stephen Eubank, Xizhou Feng, Madhav Marathe. EpiSimdemics: an efficient and scalable framework for simulating the spread of infectious disease on large social networks. In Proceedings of ACM/IEEE conference on SuperComputing (SC'08), 2008.

23. EpiFast: FastEpidemic Simulation • Modeling of diffusion dynamics • Discrete time simulation • Local state transition function: SEIR (a simple PTTS) • Diffusion through agent-agent contacts: independent transmissions • Software implementation • Highly portable C++/MPI implementation • Master-workers model • One master PE: communication & coordination • Many worker PE: diffusion computation • Each agent is assigned to single worker PE • Communications between master PE and each worker PE • Predefined adaptive/conditional interventions • Pharmaceutical or non-pharmaceutical: change properties of existing nodes and edges in network • On day <t> or when a given threshold <x> is met, apply intervention <i> on subpopulation <s> • Extremely fast and scalable

24. EpiFast • Performance • Among the fastest epidemic simulations that can handle realistic synthetic populations and provide comparable support for realistic intervention measures. • Network of 16 million nodes and 900 million edges: <20 minutes per replicate on as few as 32 processors • Scales well on distributed memory systems • Good strong and weak scaling properties • Limitations • SEIR only • Network edges (contacts) are not ordered by time • Network remains the same from day to day unless with interventions • Synchronizes every simulation day • Interventions directly change existing edges in contact network; changes are approximate Keith Bisset, Jiangzhuo Chen, XizhouFeng, V. S. Anil Kumar, and MadhavMarathe. EpiFast: A Fast Algorithm for Large Scale Realistic Epidemic Simulations on Distributed Memory Systems. In Proceedings of the 23rd International Conference on Supercomputing (ICS), 2009.

25. Strong Scaling of EpiFast

26. Performance Comparison Execution time (in seconds) for one diffusion instance

28. Example: Epidemic Curves from Simulations

29. Summary • Study of contagions over large realistic interaction networks needs high performance computing and agent based modeling and simulation methodology • Various HPC ABMS tools complement each other w.r.t. range of applicability and performance: no single tool can satisfy all simulation needs; choose the right tool

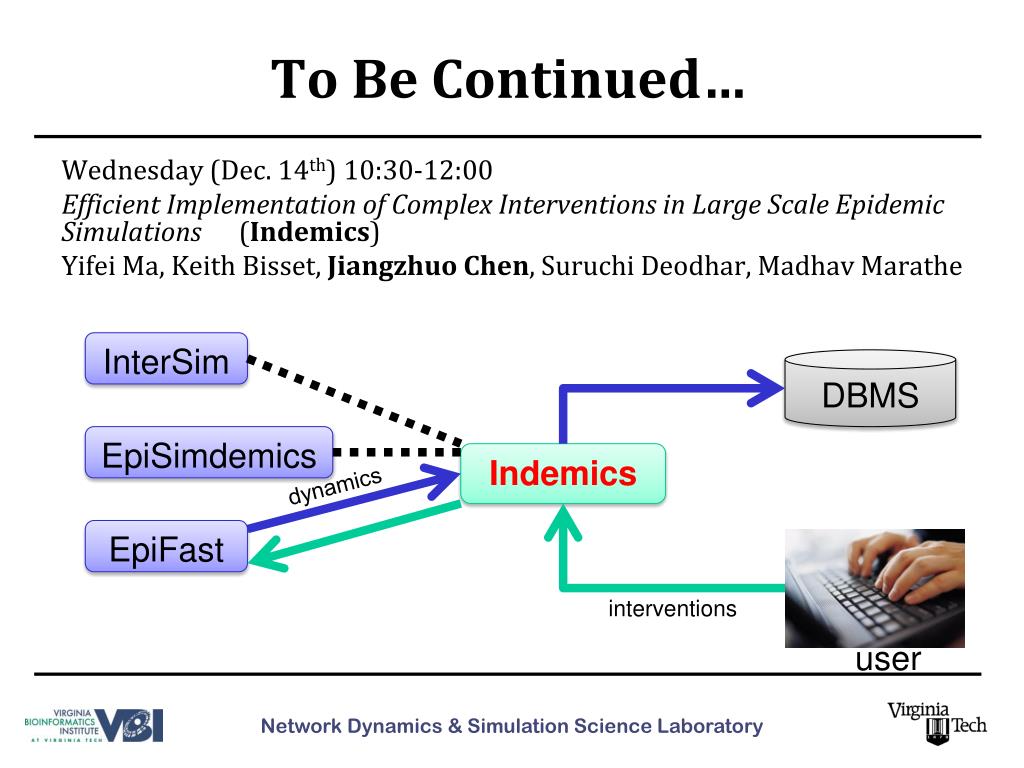

30. To Be Continued… Wednesday (Dec. 14th) 10:30-12:00 Efficient Implementation of Complex Interventions in Large Scale Epidemic Simulations (Indemics) Yifei Ma, Keith Bisset, Jiangzhuo Chen, SuruchiDeodhar, MadhavMarathe InterSim DBMS EpiSimdemics Indemics dynamics EpiFast interventions user
