Grow with the leader

Grow. With the Leader.

Wyse c10le

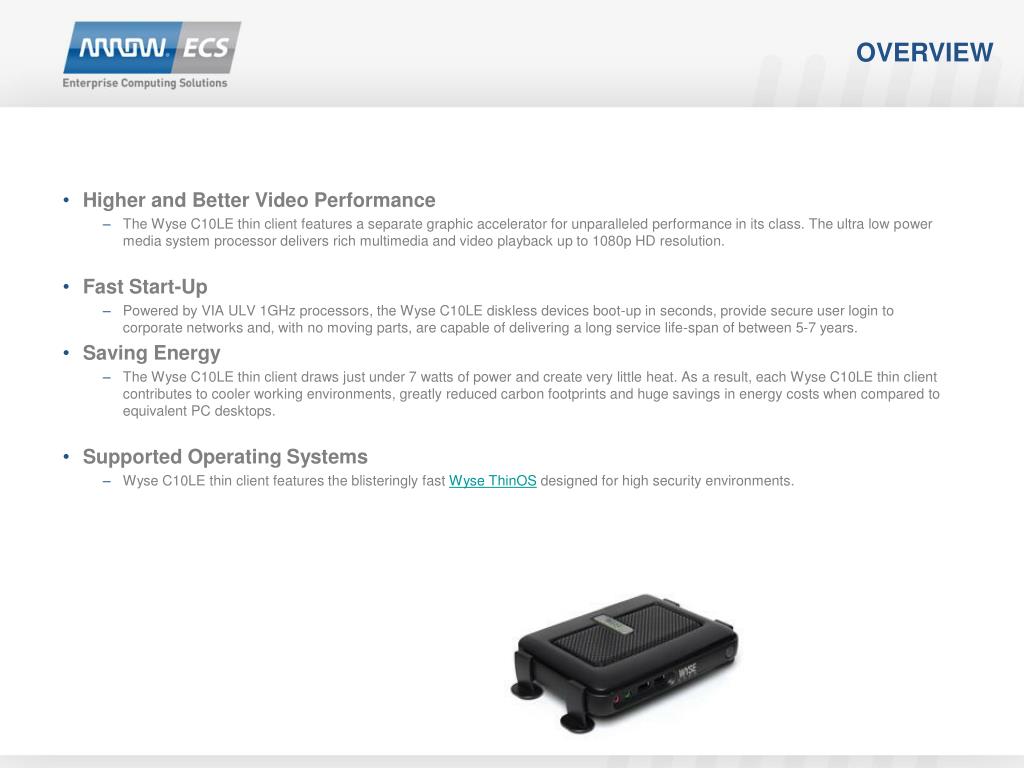

  • Higher and Better Video Performance

    • The Wyse C10LE thin client features a separate graphic accelerator for unparalleled performance in its class. The ultra low power media system processor delivers rich multimedia and video playback up to 1080p HD resolution.

  • Fast Start-Up

    • Powered by VIA ULV 1GHz processors, the Wyse C10LE diskless devices boot-up in seconds, provide secure user login to corporate networks and, with no moving parts, are capable of delivering a long service life-span of between 5-7 years.

  • Saving Energy

    • The Wyse C10LE thin client draws just under 7 watts of power and create very little heat. As a result, each Wyse C10LE thin client contributes to cooler working environments, greatly reduced carbon footprints and huge savings in energy costs when compared to equivalent PC desktops.

  • Supported Operating Systems

    • Wyse C10LE thin client features the blisteringly fast Wyse ThinOS designed for high security environments.



 At a glance:

  •  Performance

    • New generation

    • ULV VIA 1GHz processor

    • Separate graphic accelerator for unparalleled video performance

  • Future proof

    • Featuring and designed to last longer:

    • Gigabit Ethernet

    • DVI-I output with dual frame buffers

    • Fast 802.11n WiFi (select models)

  •  Green

    • Draws under 7 watts of power when connected to one keyboard, PS/2 mouse and monitor

    • Small size form factor to reduce environmental footprint from manufacturing up to end of life recycling

  •  Virtualization

    • The C class can be enhanced by the Wyse TCX suite to deliver the best user experience and offload the server with Wyse Collaborative processing Architecture (CPA)

  •  Management

    • Features Wyse Device Manager (workgroup edition)

  • Zero footprint on the desktop

    • The C class can be fitted behind monitors or on the wall using an optional mounting bracket to achieve zero footprint on the desktop and secure the device

    • Supplied with horizontal standing feet and vertical feet available as an option



Processor: VIA 1GHz

Chipset: VIA VX855

Memory: 128MB Flash / 512MB RAM DDR2

I/O peripheral support: One DVI-port, DVI to VGA (DB-15) adapter includedDual-video Support with optional DVI-I to DVI-D plus VGA-monitor splitter cable (sold separately)Four USB 2.0 ports (2 on front, 2 on back)Two PS/2 portsOne Mic InOne Line OutEnhanced PS/2 Keyboard with Windows Keys (104 keys)PS/2 Optical mouse included

Networking: 10/100/1000 Base-T Gigabit EthernetInternal 802.11 b/g/n (optional) eliminates theft of external wireless adapters

Display: VESA monitor support with Display Data Control (DDC) for automatic setting of resolution and refresh rateDual monitor supportedSingle: [email protected], Color depth: 8, 15, 16, 24 or 32bpp,Two independent full resolution frame buffersDual: [email protected], Color Depth: 8, 15, 16, 24 or 32bpp

Audio:Output: 1/8-inch mini jack, full 16 bit stereo, 48KHz sample rateInput: 1/8-inch mini jack, 8 bit stereo microphone

Physical characteristics: Height: 1.38 inches (34mm)Width: 6.94 inches (177mm)Depth: 4.75 inches (121mm)

Shipping Weight: 6 lbs. (2.7kg)

Mountings: Horizontal feet (optional vertical stand)Optional VESA mounting bracket

Device Security: Built-in Kensington security slot (cable sold separately)

Power: Worldwide auto-sensing 100-240 VAC, 50/60 Hz. Energy Star V.5.0 compliant power supplyAverage power usage with device connected to 1 keyboard with 1 PS/2 mouse and 1 monitor: Under 7 Watts

Temperature Range: Horizontal and Vertical positions: 50° to 104° F (10° to 40° C)

Humidity: 20% to 80% condensing10% to 95% non-condensing

Safety Certifications: German EKI-ITB 2000, ISO 9241-3/-8cULus 60950, TÜV-GS, EN 60950FCC Class B, CE, VCCI, C-TickWEEE, RoHS Compliant

Warranty: Three-year hardware warranty
