Plant canopy analysis

Plant Canopy Analysis

Gaylon S. Campbell, Ph.D.

Decagon Devices and Washington State University


Radiant energy and plant canopy analysis

Radiant energy and plant canopy analysis

  • Why do we care about the radiation environment of plant canopies?

    • Calculate Leaf Area Index (LAI)

      • Crop growth stage

      • Ecosystem health

      • Radiation use efficiency


Radiant energy and plant canopy analysis1

Radiant energy and plant canopy analysis

  • Must have detailed knowledge of light environment to use photosynthesis models

  • Partitioning ET into E and T

    • Need to know fraction of energy intercepted by canopy and fraction transmitted to soil


Intercepted par and biomass production

Intercepted PAR and Biomass Production

  • Cumulative intercepted photosynthetically active radiation (PAR) linearly related to total biomass production


Tools for detailed analysis

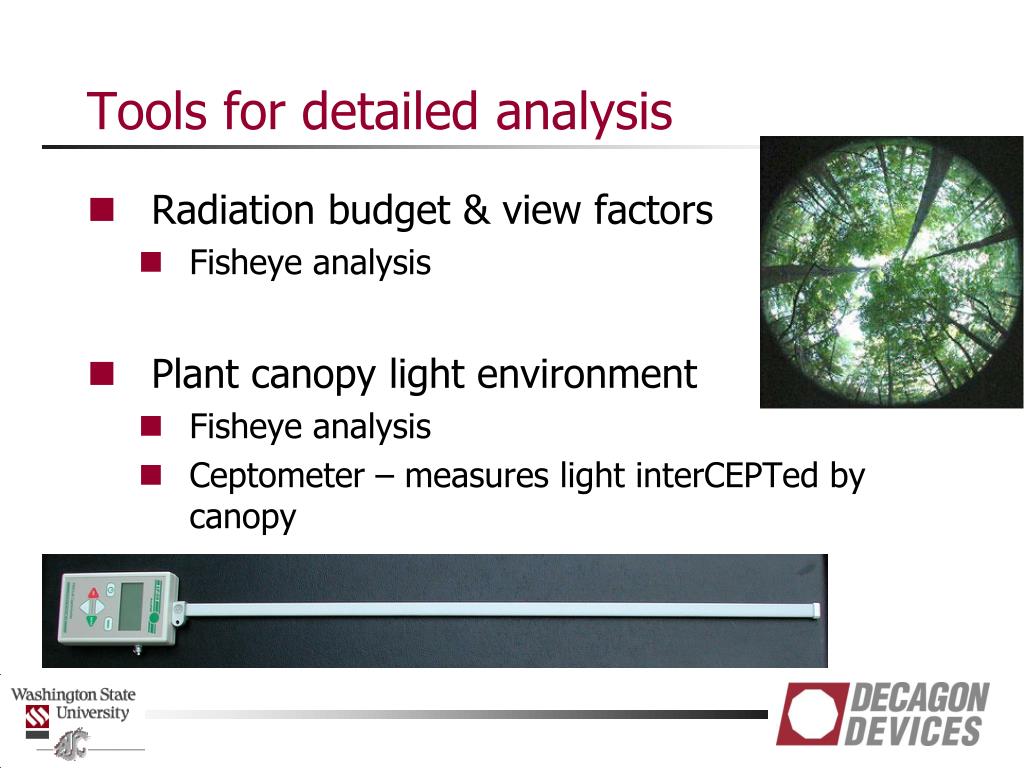

Tools for detailed analysis

  • Radiation budget & view factors

    • Fisheye analysis

  • Plant canopy light environment

    • Fisheye analysis

    • Ceptometer – measures light interCEPTed by canopy

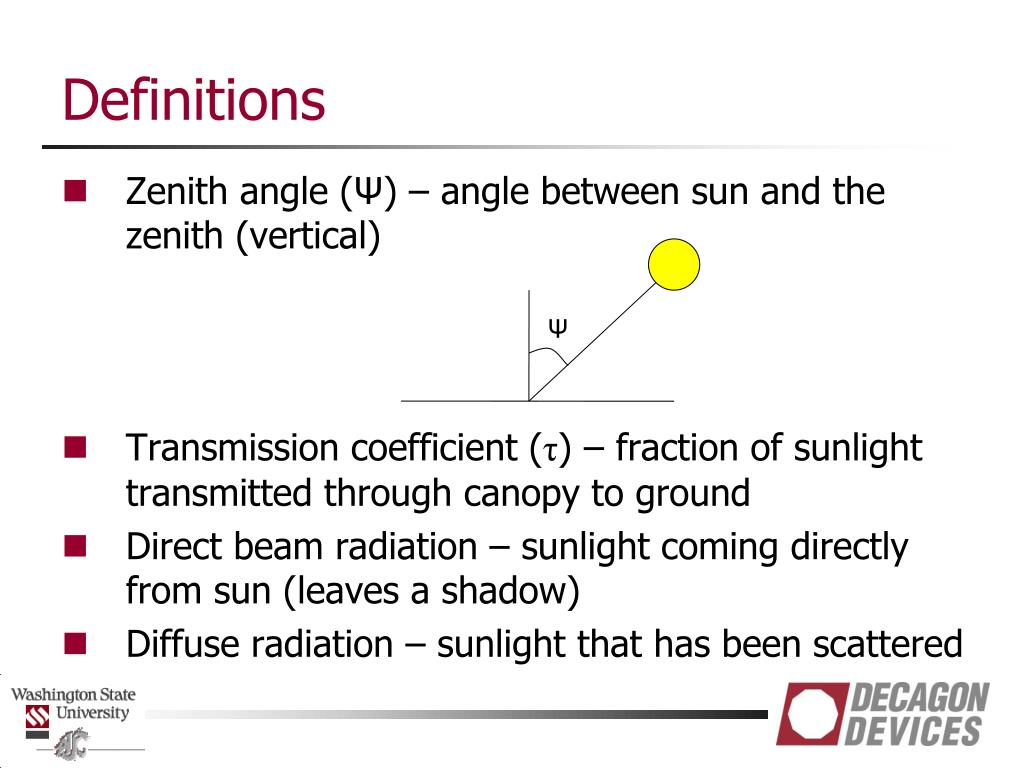

Definitions

Definitions

  • Zenith angle (Ψ) – angle between sun and the zenith (vertical)

  • Transmission coefficient (τ) – fraction of sunlight transmitted through canopy to ground

  • Direct beam radiation – sunlight coming directly from sun (leaves a shadow)

  • Diffuse radiation – sunlight that has been scattered

Ψ


Plant canopy light environment leaf area index lai

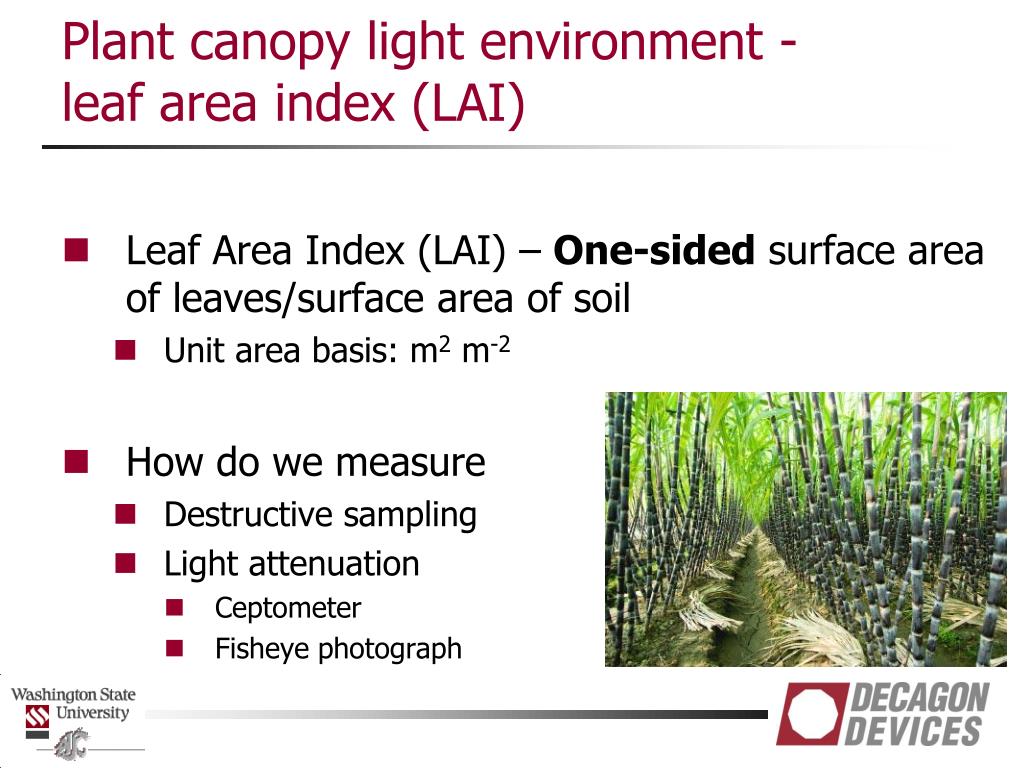

Plant canopy light environment -leaf area index (LAI)

  • Leaf Area Index (LAI) – One-sided surface area of leaves/surface area of soil

    • Unit area basis: m2 m-2

  • How do we measure

    • Destructive sampling

    • Light attenuation

      • Ceptometer

      • Fisheye photograph

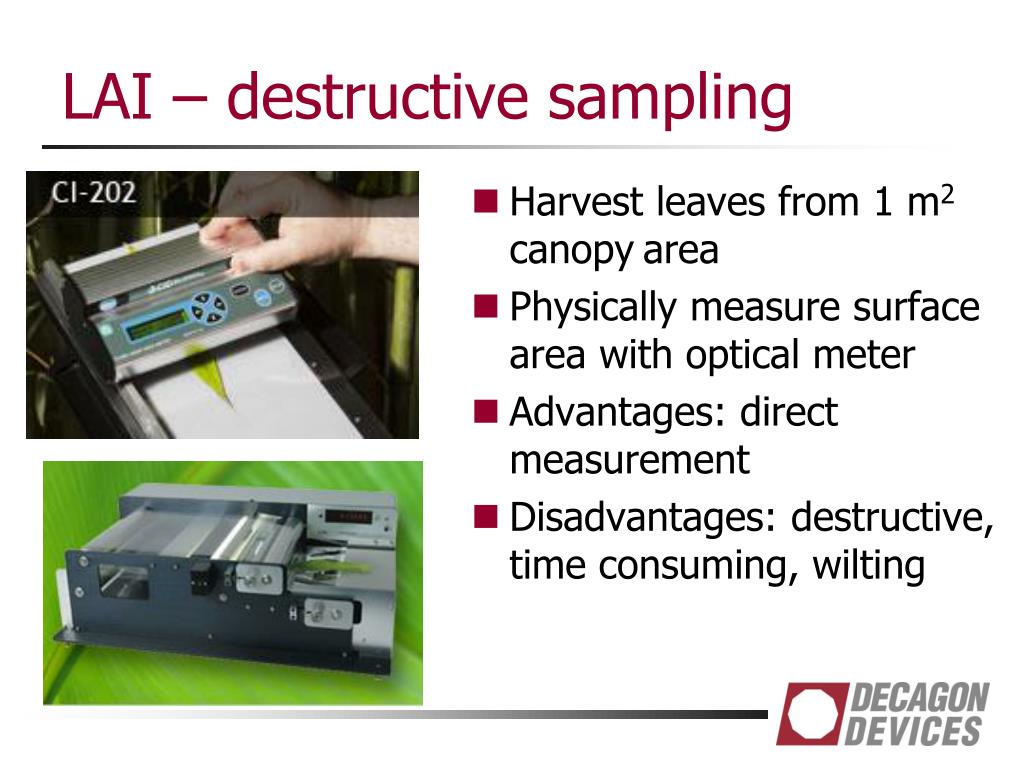

Lai destructive sampling

LAI – destructive sampling

  • Harvest leaves from 1 m2 canopyarea

  • Physically measure surface area with optical meter

  • Advantages: direct measurement

  • Disadvantages: destructive, time consuming, wilting


Lai light attenuation theory

LAI-light attenuation theory

Leaf with area = a

Unit ground Area

a

a

A

a

  • t is transmission and n is the number of leaves

  • This is only true if all of the leaves are horizontal

LAI


Real canopies leaves aren t all horizontal

Real canopies (leaves aren’t all horizontal)

  • Leaf angle distribution parameter (χ)

    • Describes the orientation of the leaves

spherical canopy

χ= 1

(most canopies)

vertical canopy

χ= 0

(onions < 1)

horizontal canopy

χ= ∞

(strawberries χ= 3)


Extinction coefficient

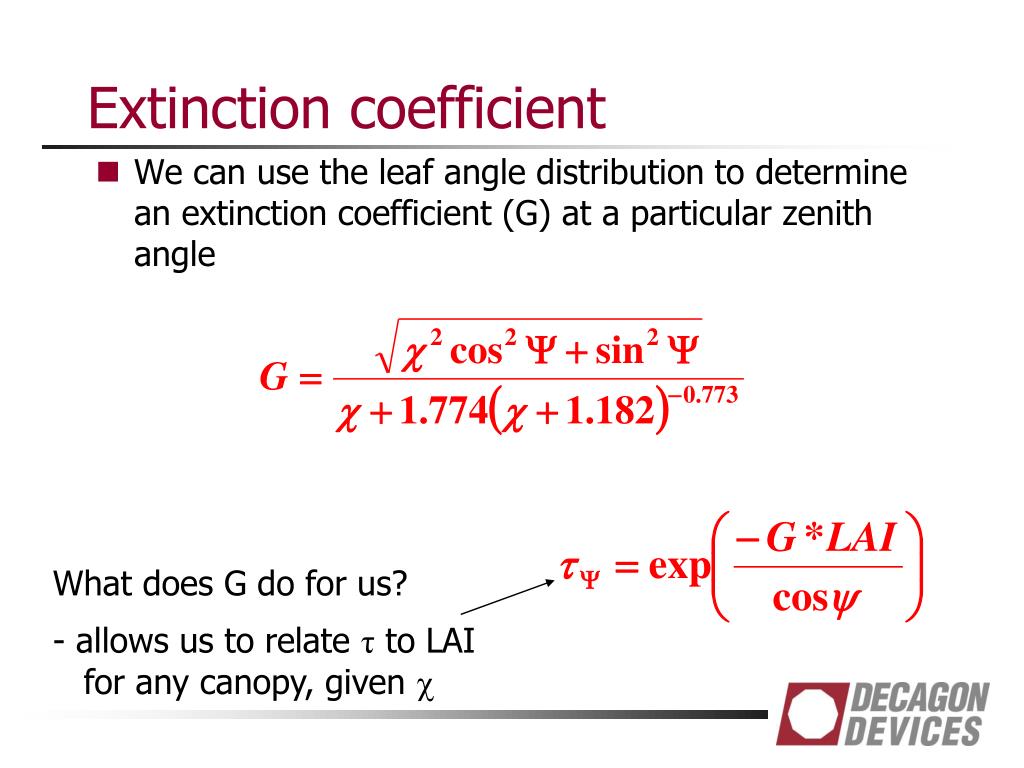

Extinction coefficient

  • We can use the leaf angle distribution to determine an extinction coefficient (G) at a particular zenith angle

What does G do for us?

- allows us to relate τto LAI for any canopy, given c


What parameters do we need to calculate lai

What parameters do we need to calculate LAI?

  • Zenith angle (ψ)

    • Time and location

      • latitude and longitude

  • Canopy extinction coefficient (G)

    • Calculate from leaf angle distribution (χ) = 1 for most canopies

  • Canopy transmission coefficient (τ)

    • Estimate from fisheye image

    • Use ceptometer to measure directly


Lai from ceptometers

LAI from Ceptometers

  • Measure above-canopy radiation

  • Measure below-canopy radiation

  • Meter calculates τ

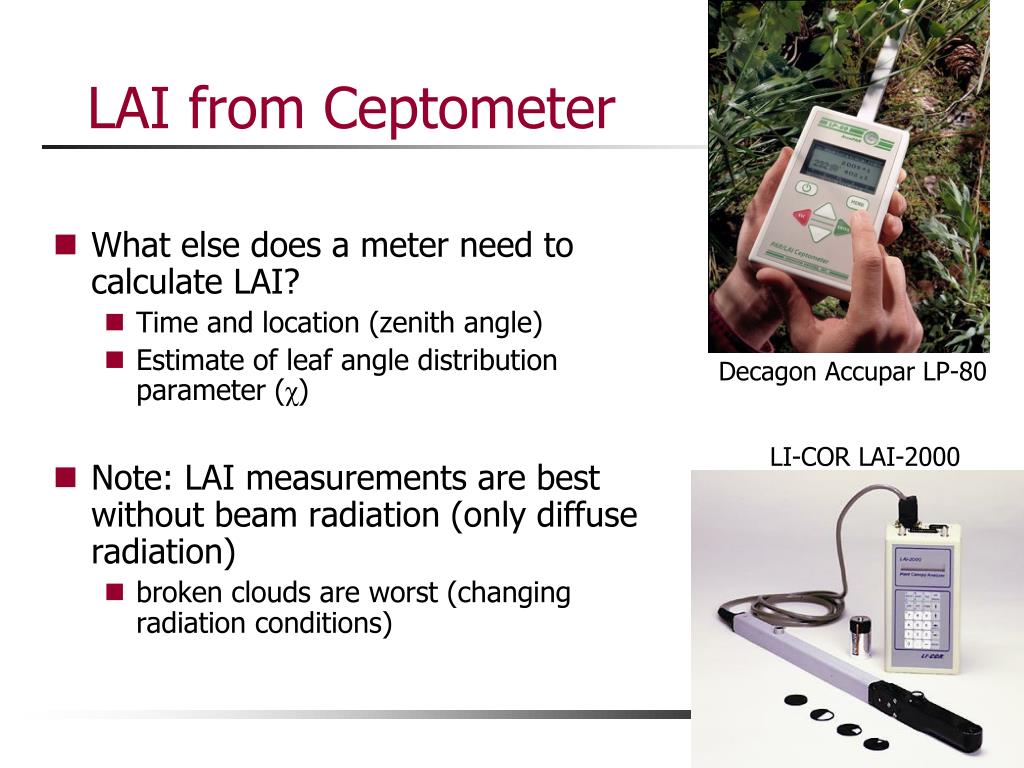

Lai from ceptometer

LAI from Ceptometer

  • What else does a meter need to calculate LAI?

    • Time and location (zenith angle)

    • Estimate of leaf angle distribution parameter (χ)

  • Note: LAI measurements are best without beam radiation (only diffuse radiation)

    • broken clouds are worst (changing radiation conditions)

Decagon Accupar LP-80

LI-COR LAI-2000

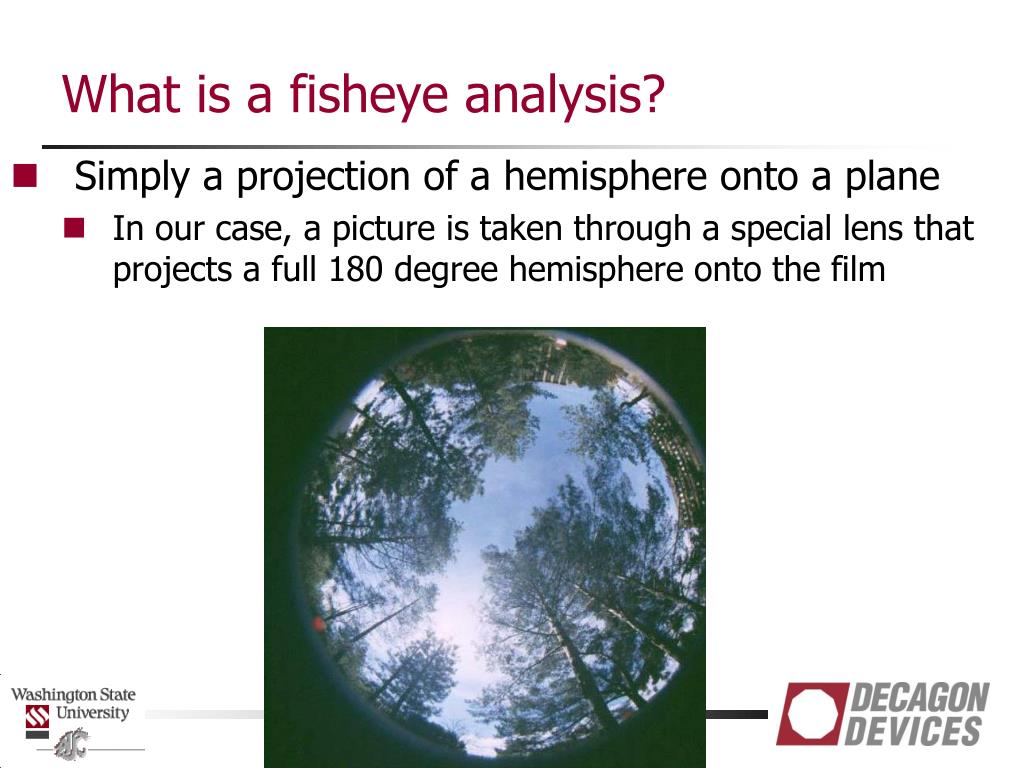

What is a fisheye analysis

What is a fisheye analysis?

  • Simply a projection of a hemisphere onto a plane

    • In our case, a picture is taken through a special lens that projects a full 180 degree hemisphere onto the film

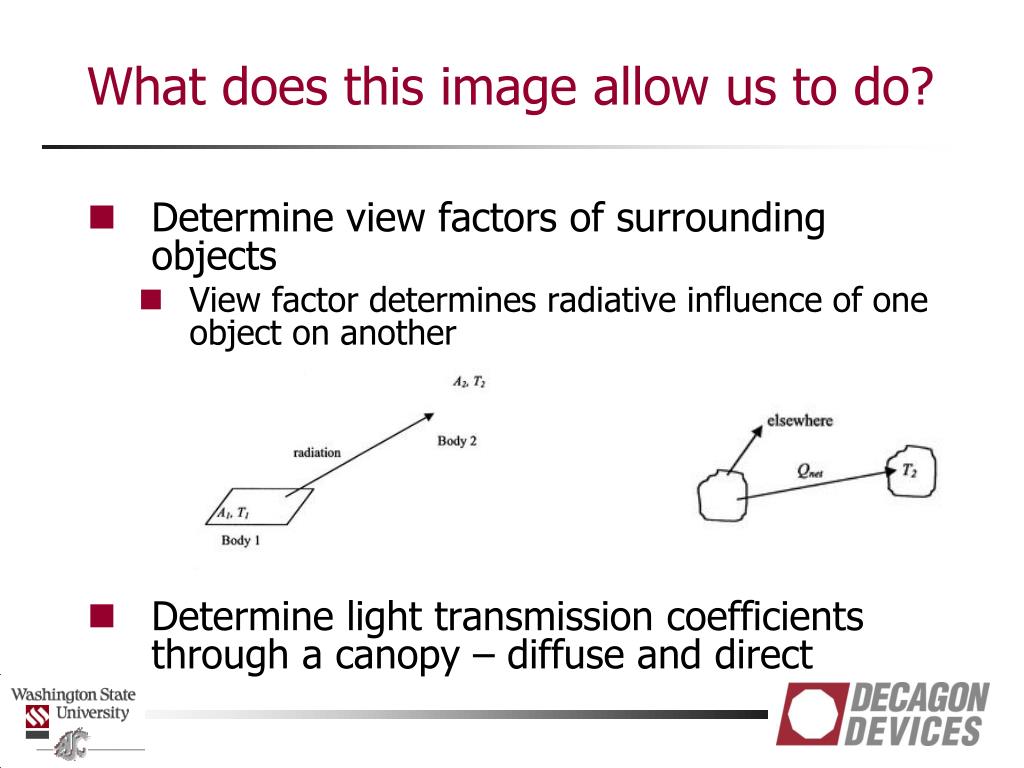

What does this image allow us to do

What does this image allow us to do?

  • Determine view factors of surrounding objects

    • View factor determines radiative influence of one object on another

  • Determine light transmission coefficients through a canopy – diffuse and direct

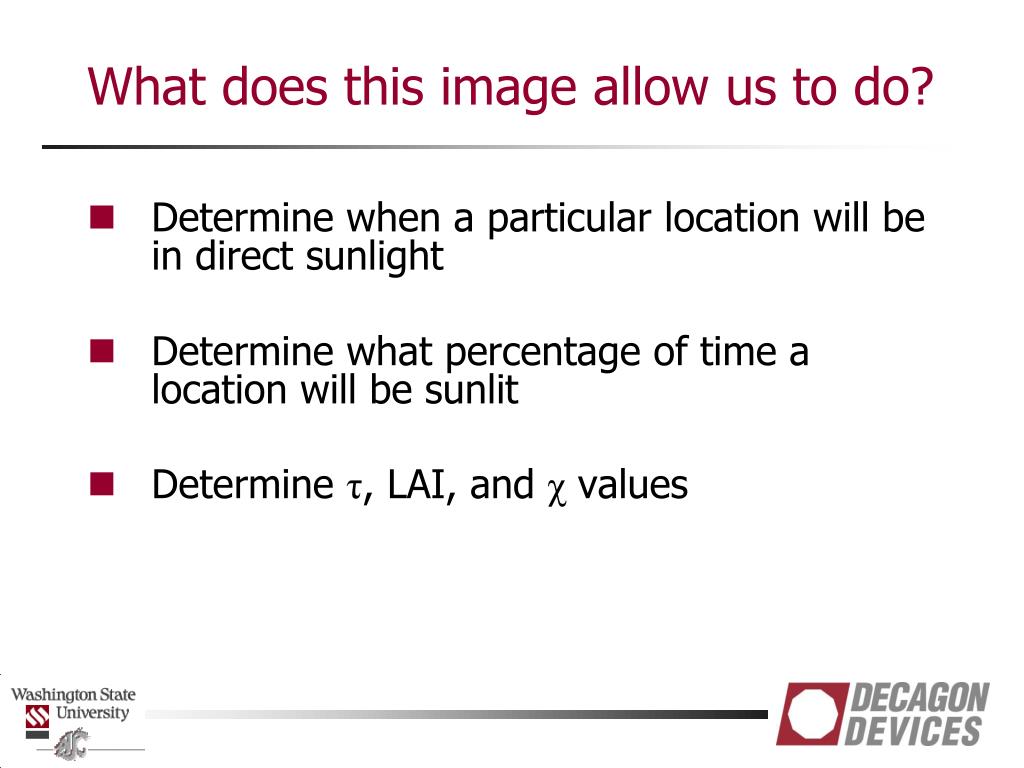

What does this image allow us to do1

What does this image allow us to do?

  • Determine when a particular location will be in direct sunlight

  • Determine what percentage of time a location will be sunlit

  • Determine τ, LAI, and χ values


Plant canopy analysis

Determining view factors

  • Simplest analysis

  • Aobject is the area of the picture taken up by the object of interest

  • Atotalis the total area of the photograph


View factors

View Factors


Determining transmission coefficients

Determining transmission coefficients

  • Project the fisheye picture onto a grid


Plant canopy analysis

30

330

60

300

90 E

270 W

240

120

150

210

180 S


Determining transmission coefficients1

Determining transmission coefficients

  • Visually estimate the fraction of sky visible in each grid sector (1 = full sky)

  • Average the value for each zenith angle band = τψ


Plant canopy analysis

t ~ 0.05

30

t ~ 0.7

330

60

300

90 E

270 W

240

120

t = 1.00

150

210

180 S


Calculating average understory radiant fluxes

Calculating average understory radiant fluxes

  • τd is the transmission coefficient for diffuse radiation

    • But, if we average over a day or longer, it approximates the total radiation transmission coefficient so:

Φbc = average radiant flux density below canopy

ST avg = average total radiation above canopy

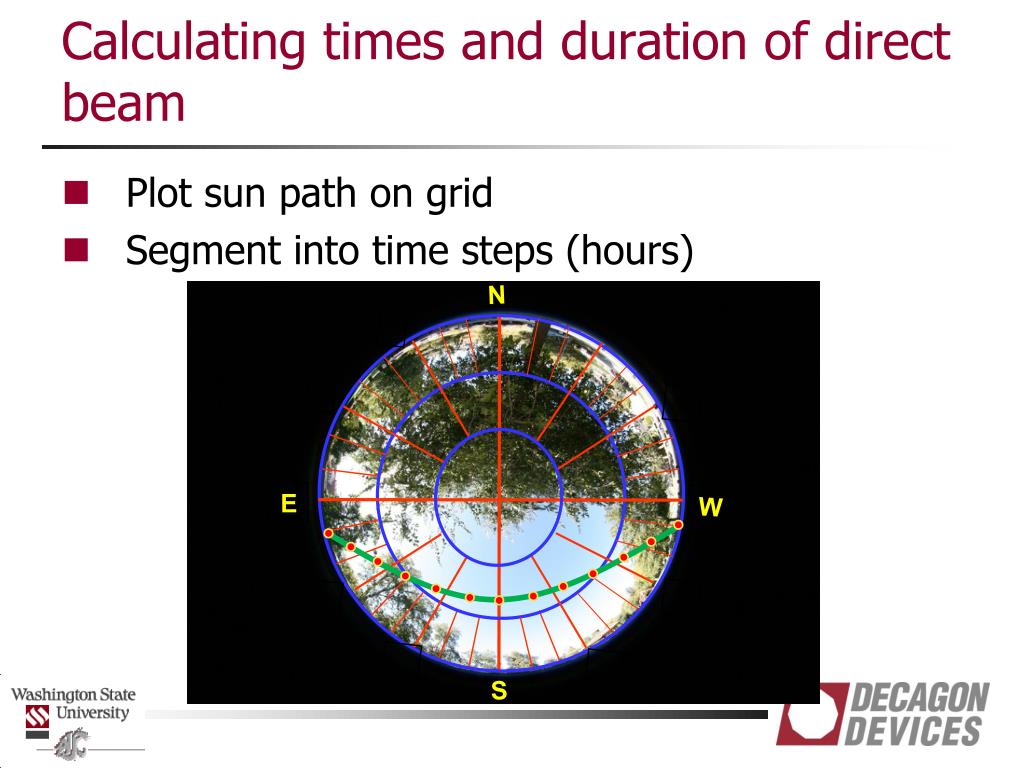

Calculating times and duration of direct beam

Calculating times and duration of direct beam

  • Plot sun path on grid

  • Segment into time steps (hours)

N

E

W

S


Lai from fisheye photo

LAI from fisheye photo

  • First method

  • G58 = 0.5 for all leaf angle distributions!

  • Determine τ at ψ = 58° from fisheye photo


Plant canopy analysis

LAI from fisheye photo(method 2: use solver in excel)

  • Determine τ at ψ=15, 45, and 75° from fisheye photo

  • Calculate G at each zenith angle with an arbitrary value of χ

  • Calculate new values of τ for each zenith angle using G from step 2 and an arbitrary LAI value

  • Calculate sum of squared errors between τfisheye and τarbitrary

  • Use solver to minimize SSE by adjusting arbitrary LAI and χ values

  • Results in decent estimate for both LAI and χ!

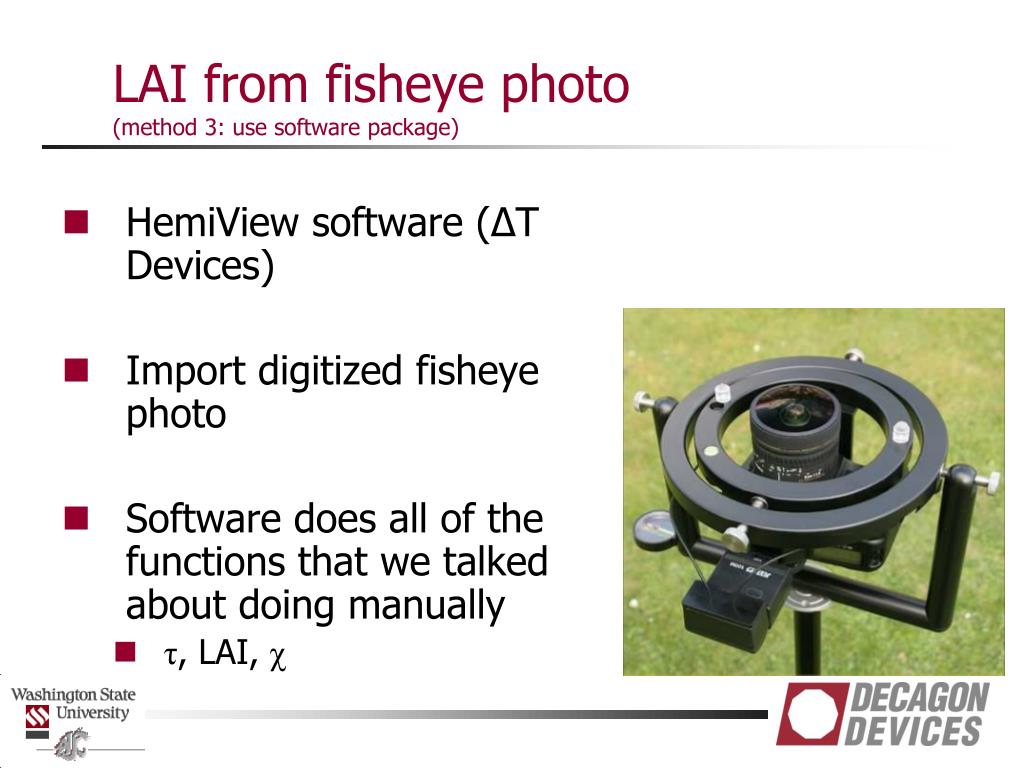

Lai from fisheye photo method 3 use software package

LAI from fisheye photo(method 3: use software package)

  • HemiView software (ΔT Devices)

  • Import digitized fisheye photo

  • Software does all of the functions that we talked about doing manually

    • τ, LAI, χ
