  1. Energy Efficient Designs with Wide Dynamic Range Vivek De Intel Fellow Director of Circuit Technology Research Circuits Research Lab Intel Labs

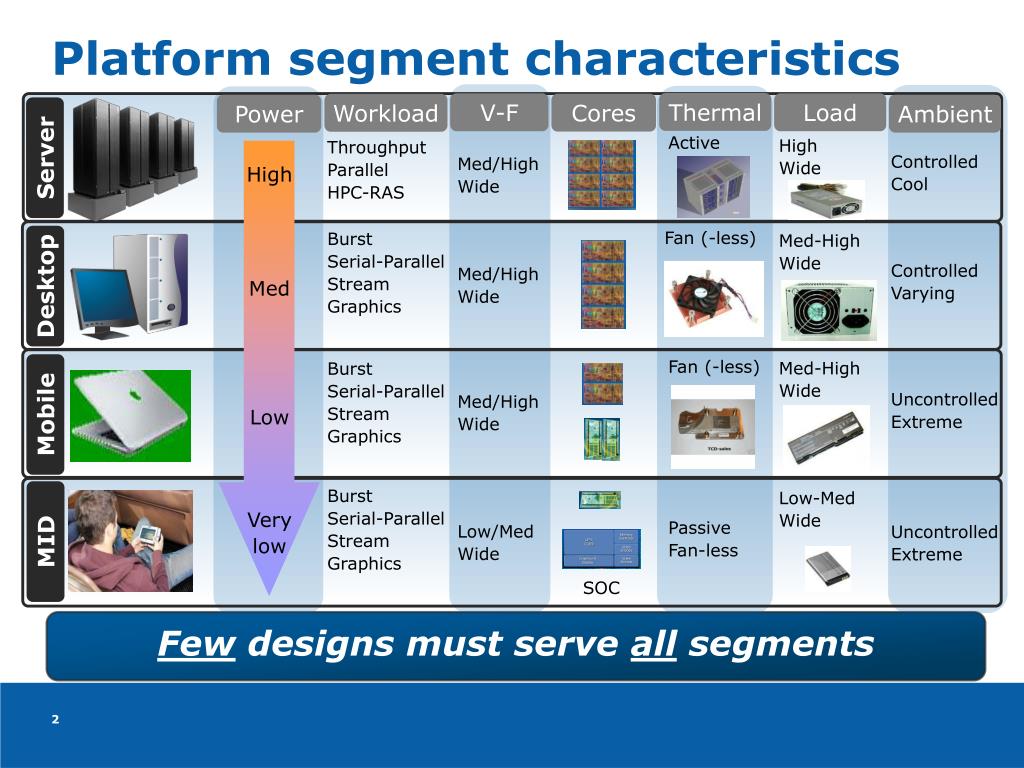

  2. Thermal V-F Load Cores Workload Power Ambient Active High Wide Throughput Parallel HPC-RAS Server Controlled Cool Med/High Wide High Fan (-less) Burst Serial-Parallel Stream Graphics Med-High Wide Controlled Varying Med/High Wide Desktop Med Fan (-less) Med-High Wide Burst Serial-Parallel Stream Graphics Uncontrolled Extreme Med/High Wide Mobile Low Burst Serial-Parallel Stream Graphics Low-Med Wide Very low Passive Fan-less Low/Med Wide Uncontrolled Extreme MID SOC Platform segment characteristics Few designs must serve all segments

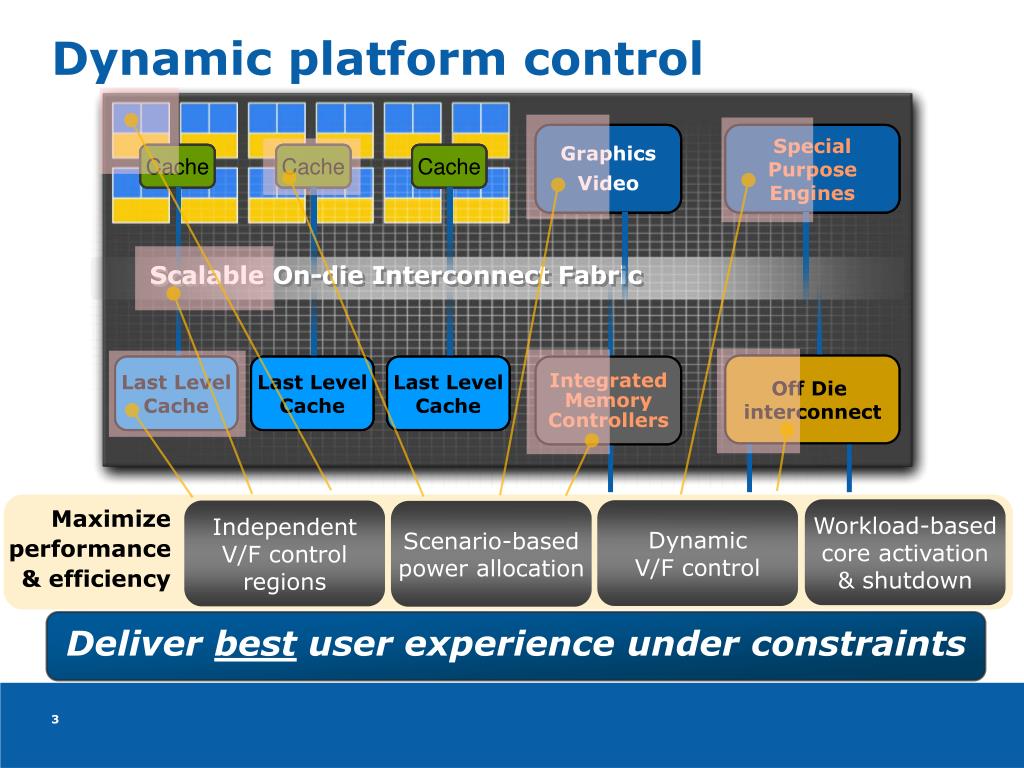

  3. Dynamic platform control Workload-based core activation & shutdown Dynamic V/F control Independent V/F control regions Scenario-based power allocation Maximize performance & efficiency Deliver best user experience under constraints

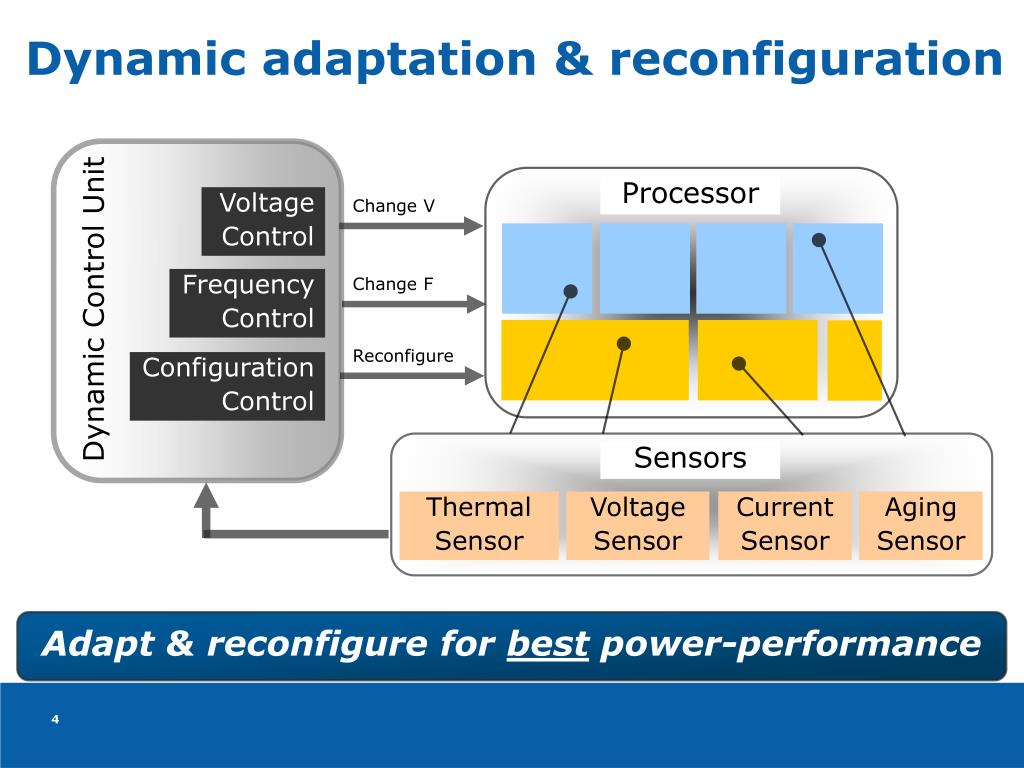

  4. Processor Voltage Control Change V Frequency Control Change F Dynamic Control Unit Reconfigure Configuration Control Sensors Thermal Sensor Voltage Sensor Current Sensor Aging Sensor Dynamic adaptation & reconfiguration Adapt & reconfigure for best power-performance

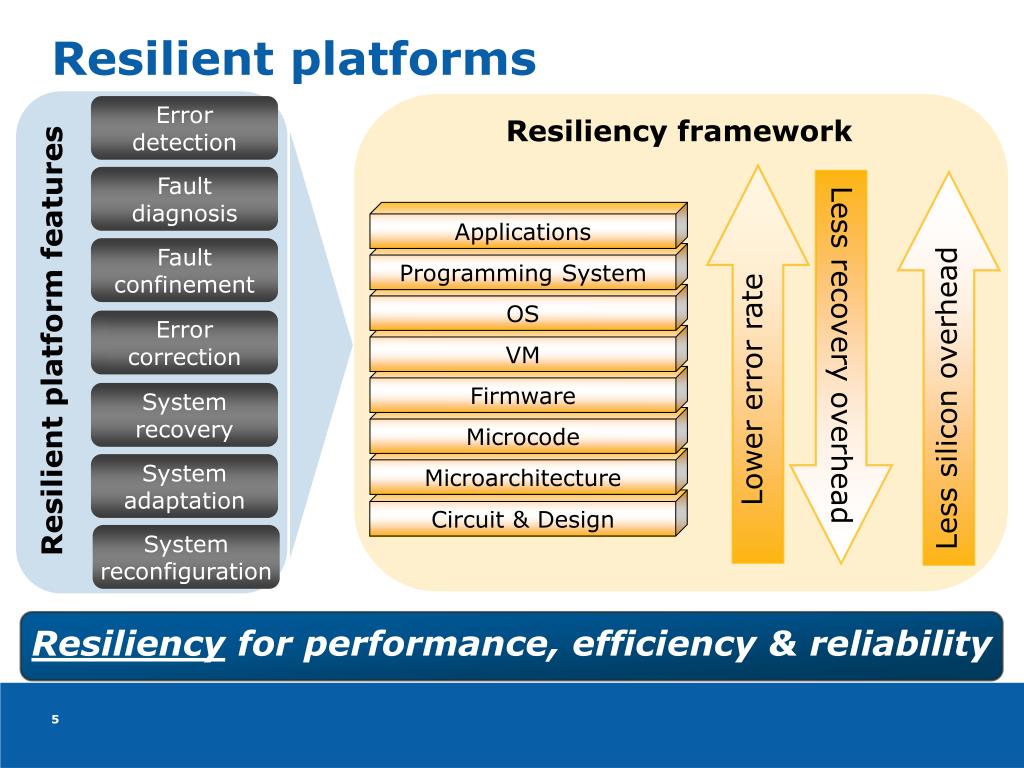

  5. Resiliency framework Applications Programming System OS VM Less recovery overhead Firmware Lower error rate Less silicon overhead Microcode Microarchitecture Circuit & Design Resilient platforms Error detection Fault diagnosis Fault confinement Error correction Resilient platform features System recovery System adaptation System reconfiguration Resiliency for performance, efficiency & reliability

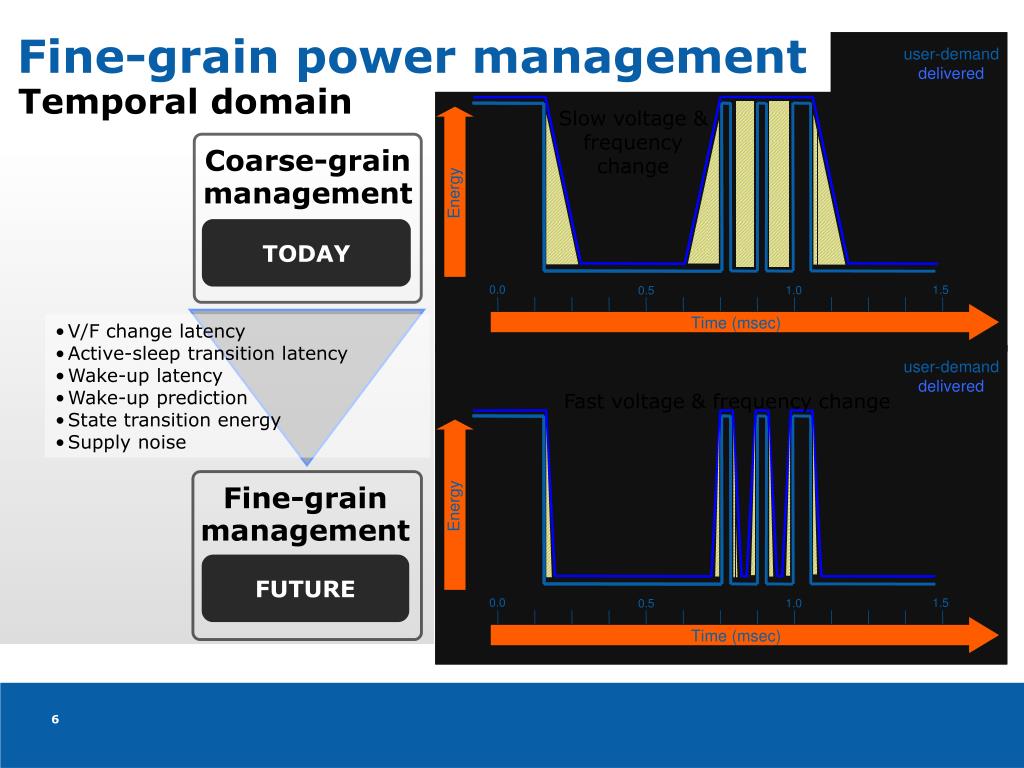

  6. Fine-grain power management TFLOPS at 62 watts Temporal domain Slow voltage & frequency change Coarse-grain management TODAY • V/F change latency • Active-sleep transition latency • Wake-up latency • Wake-up prediction • State transition energy • Supply noise Fast voltage & frequency change Fine-grain management FUTURE

  7. Fine-grain power management Spatial domain Fine-grain management Coarse-grain management • Each core/cluster at optimum voltage • Each core/cluster at optimum frequency • Same voltage to all cores • Same frequency for all cores • V/F domain interfaces • Synchronization overhead • Clock generation/distribution • Power grid routing • Optimum V/F for non-cores • Sub-core clock/leakage gating FUTURE TODAY

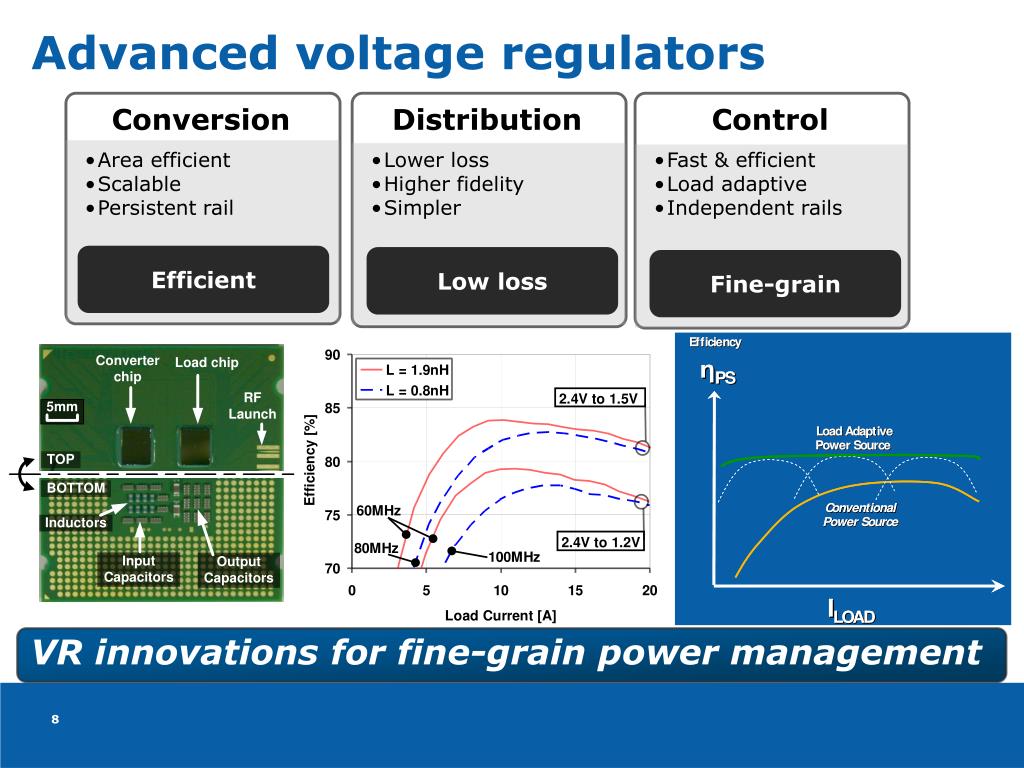

  8. Control Distribution Conversion • Fast & efficient • Load adaptive • Independent rails • Lower loss • Higher fidelity • Simpler • Area efficient • Scalable • Persistent rail Low loss Fine-grain Efficient Advanced voltage regulators VR innovations for fine-grain power management

  9. Research testchip 12.64mm I/O Area single tile 1.5mm 2.0mm 21.72mm PLL PLL TAP TAP I/O Area I/O Area

  10. FP Engine 1 FP Engine 1 Sleeping: 90% lesspower Data Memory Data Memory Sleeping:57% less power Instruction Memory Instruction Memory Sleeping:56% less power FP Engine 2 FP Engine 2 Sleeping: 90% lesspower Router Router Sleeping: 10% less power (stays on to pass traffic) Many-core power management 21 sleep regions per tile (not all shown) • Dynamic sleep • STANDBY: • Memory retains data • 50% less power/tile • FULL SLEEP: • Memories fully off • 80% less power/tile Energy efficiency of 19.4 Gflops/Watt

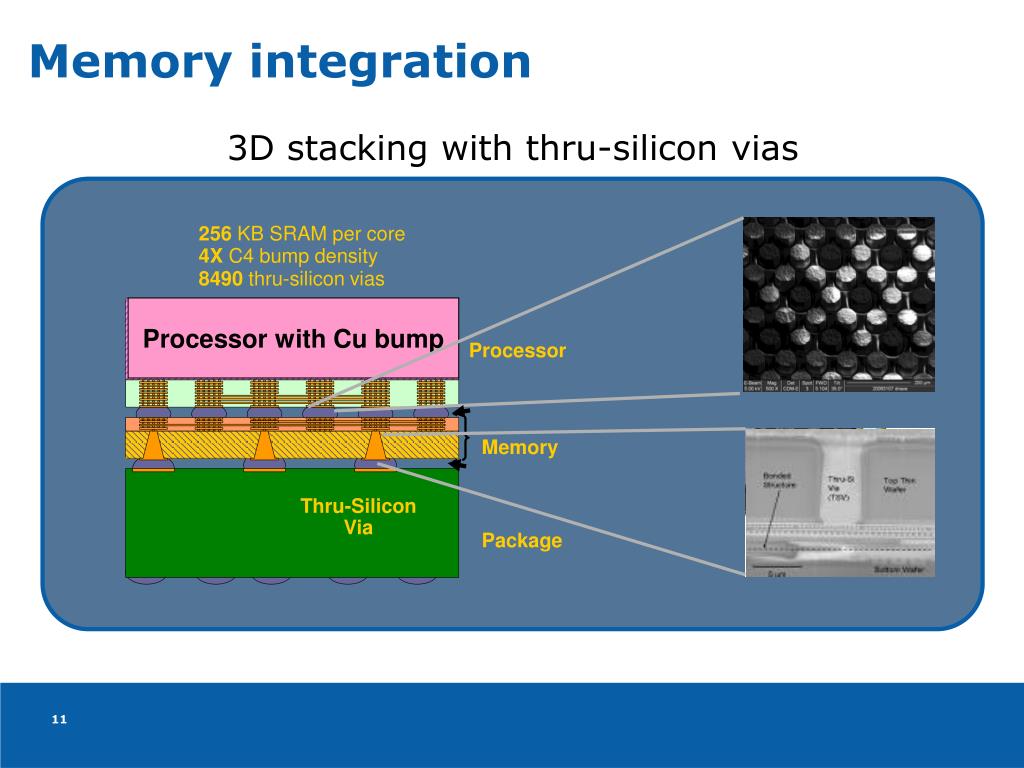

  11. 256 KB SRAM per core 4X C4 bump density 8490 thru-silicon vias Processor with Cu bump Processor Memory Thru-SiliconVia Package Memory integration 3D stacking with thru-silicon vias

  12. Voltage-frequency range limiters Vmax/Fmax limiters • Reliability • Thermals • Power delivery Vmax Voltage Fmax Vmin limiters Vmin • Circuit functional failures • Soft errors • Steep frequency roll-off • Aging Frequency Reliability & functional failures limit range

  13. V variation T variation F margin F margin V margin V margin IR drop Voltage Voltage Inductive droops Nominal T Load line variations Worst T Frequency Frequency MIS Path activity Aging Signal coupling Worst Critical path F margin V margin F margin EOL V margin Voltage Voltage Nominal BOL Frequency Frequency Voltage-frequency margins

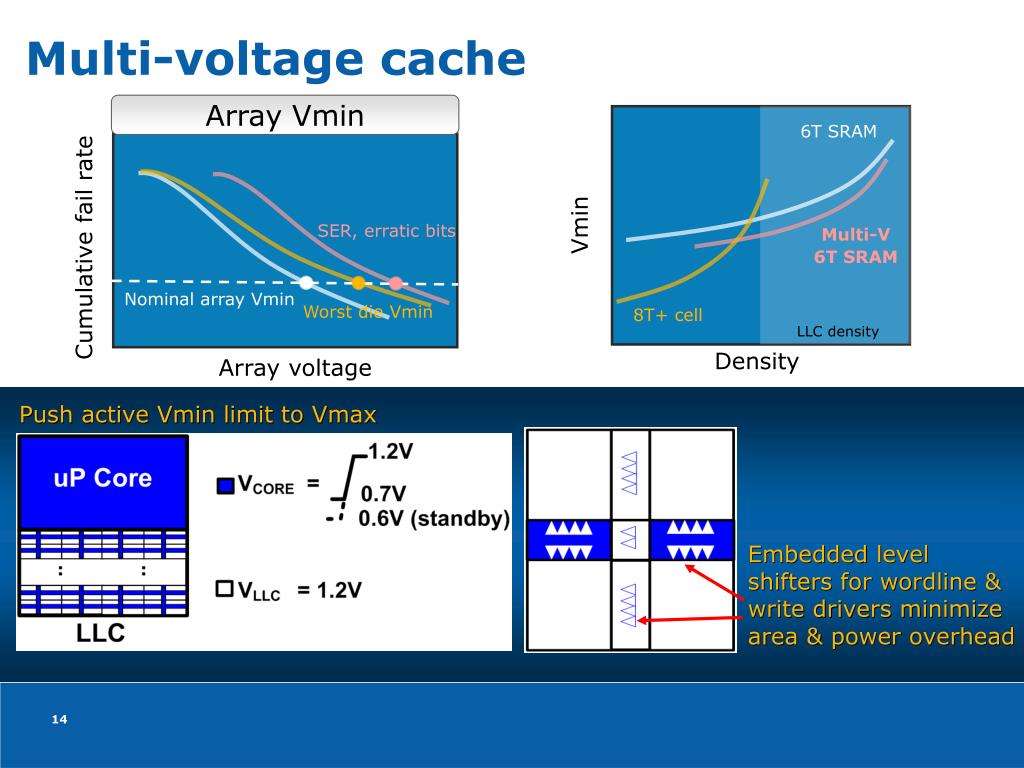

  14. Array Vmin 6T SRAM Vmin Multi-V 6T SRAM SER, erratic bits Cumulative fail rate Nominal array Vmin Worst die Vmin 8T+ cell LLC density Density Array voltage Multi-voltage cache

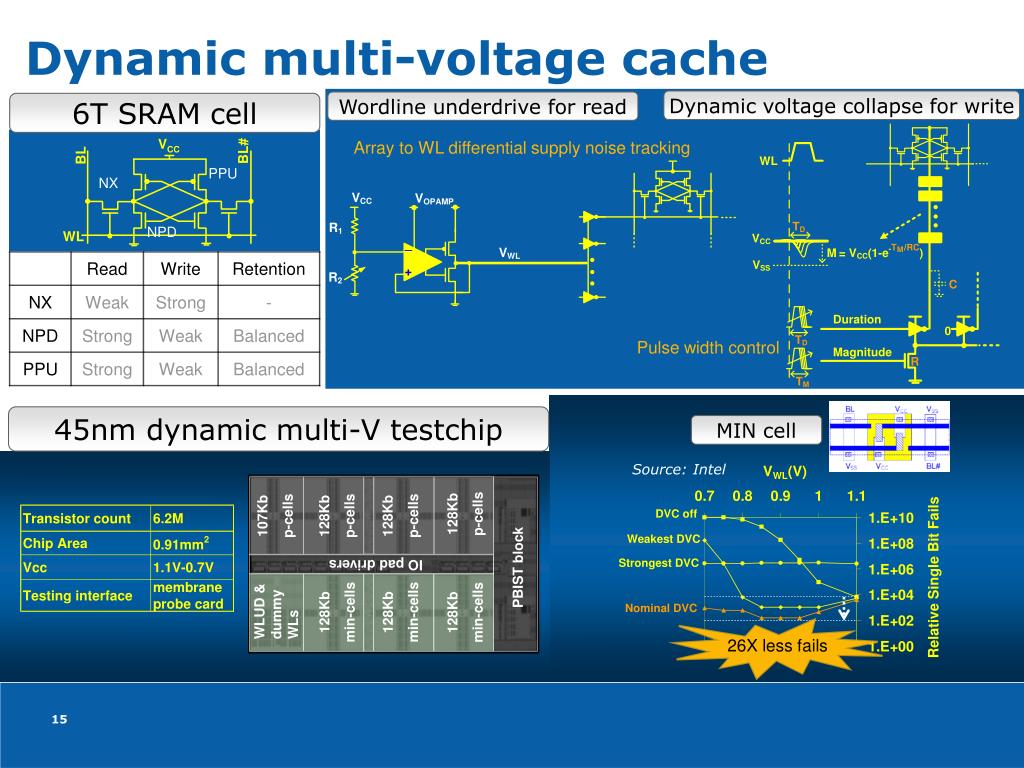

  15. 6T SRAM cell PPU NX NPD Dynamic multi-voltage cache Dynamic voltage collapse for write Wordline underdrive for read Array to WL differential supply noise tracking Pulse width control 45nm dynamic multi-V testchip MIN cell Source: Intel 26X less fails

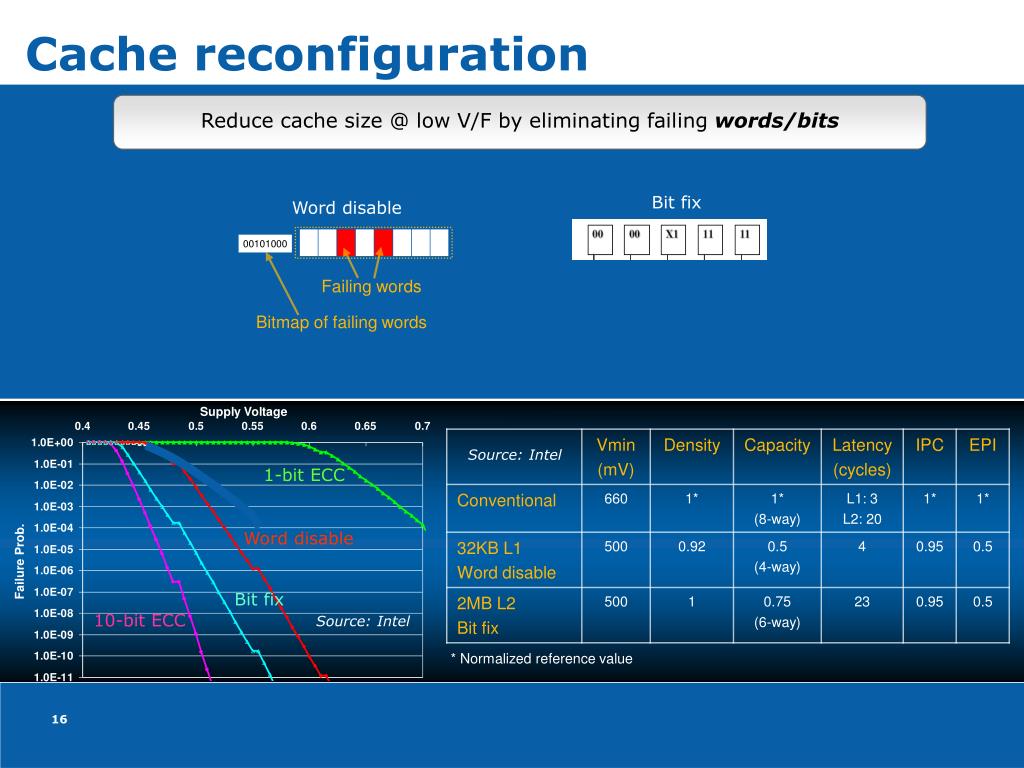

  16. Cache reconfiguration Reduce cache size @ low V/F by eliminating failing words/bits Bit fix Word disable Failing words Bitmap of failing words Source: Intel 1-bit ECC Word disable Bit fix 10-bit ECC Source: Intel * Normalized reference value

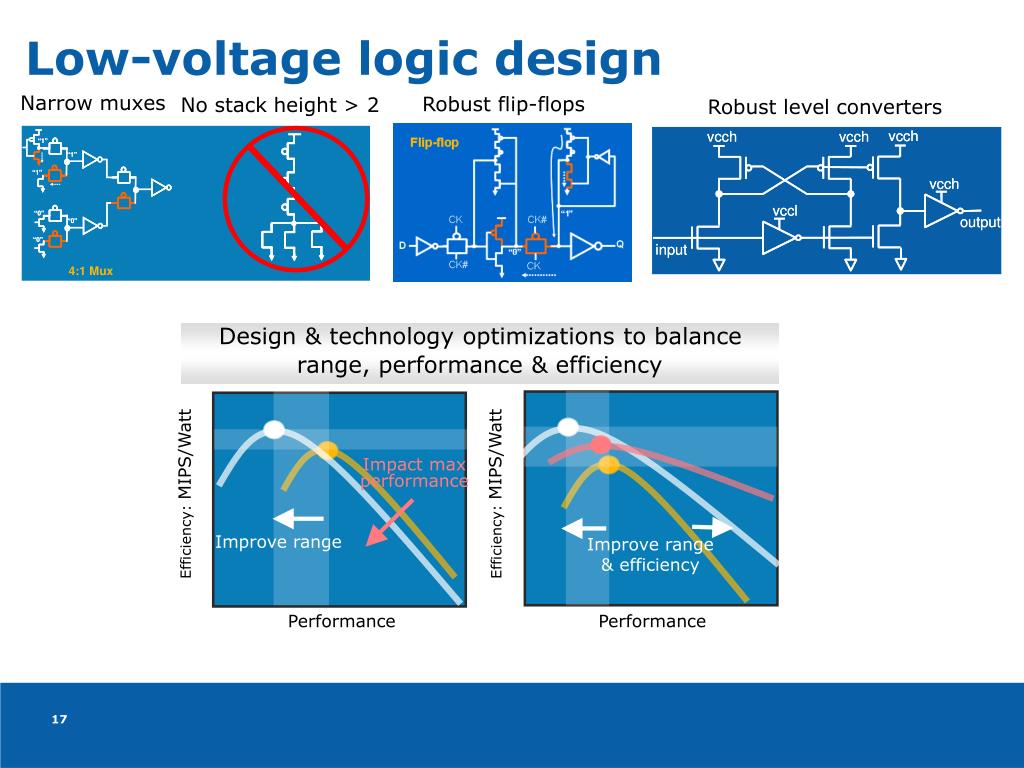

  17. Impact max performance Efficiency: MIPS/Watt Efficiency: MIPS/Watt Improve range Improve range & efficiency Performance Performance Low-voltage logic design Narrow muxes Robust flip-flops No stack height > 2 Robust level converters Design & technology optimizations to balance range, performance & efficiency

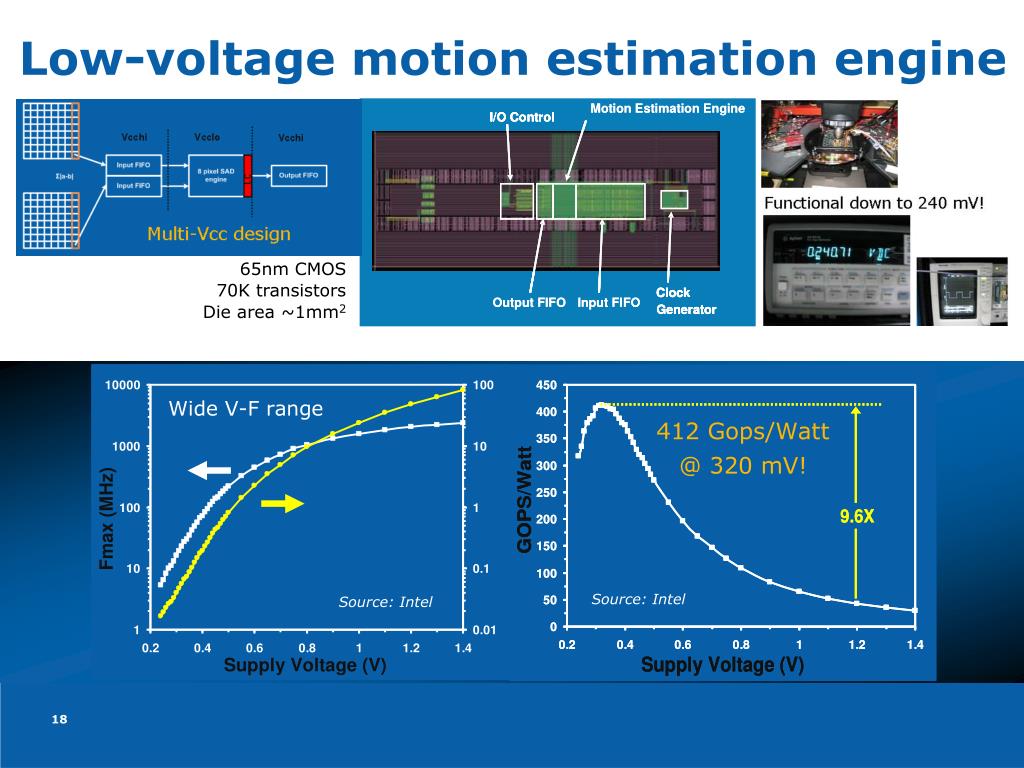

  18. Low-voltage motion estimation engine 65nm CMOS 70K transistors Die area ~1mm2

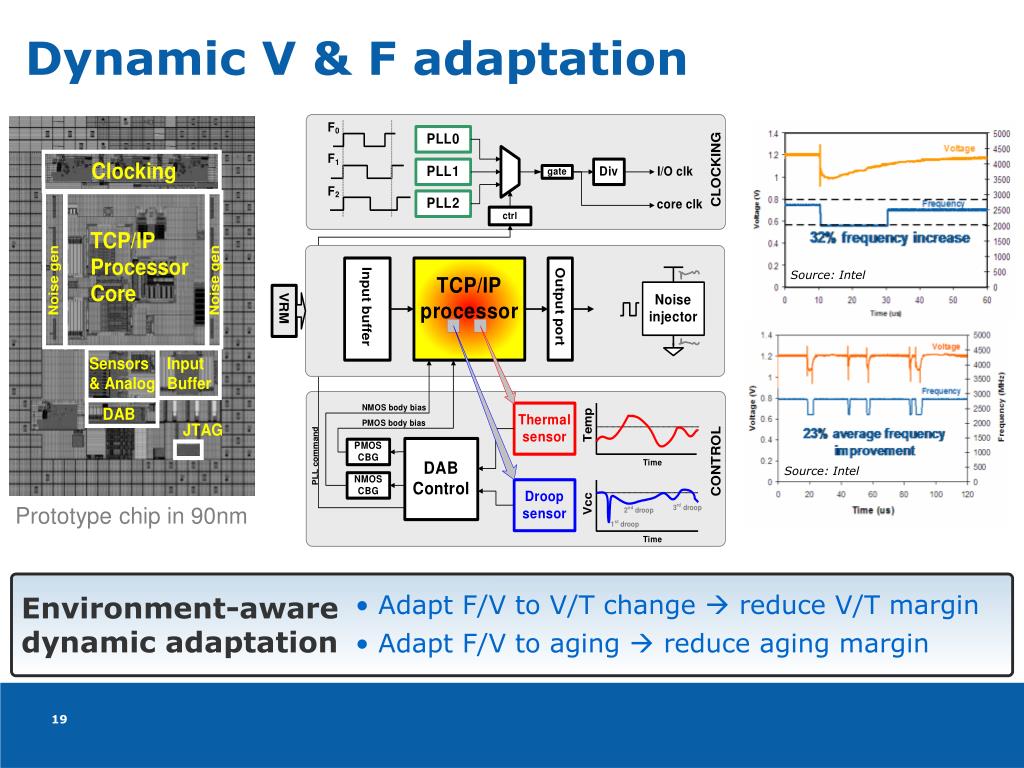

  19. Dynamic V & F adaptation Source: Intel Source: Intel Prototype chip in 90nm Environment-aware dynamic adaptation • Adapt F/V to V/T change  reduce V/T margin • Adapt F/V to aging  reduce aging margin

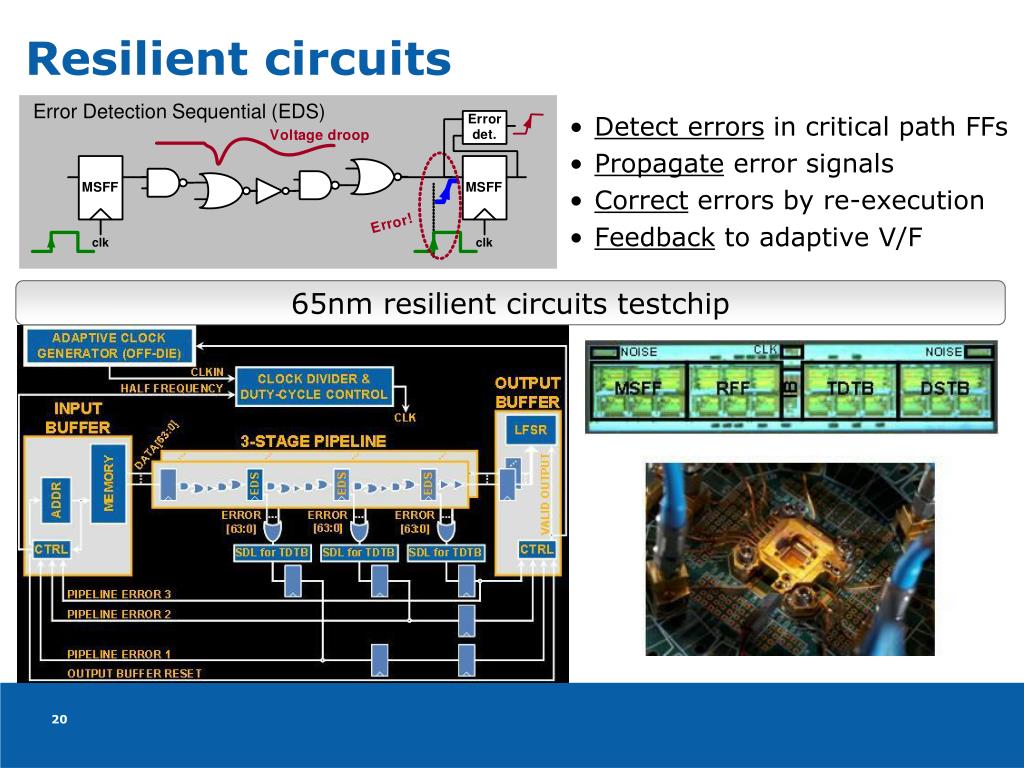

  20. Resilient circuits Error Detection Sequential (EDS) • Detect errors in critical path FFs • Propagate error signals • Correct errors by re-execution • Feedback to adaptive V/F 65nm resilient circuits testchip

  21. Resiliency experiments Response to voltage droops Source: Intel Source: Intel

  22. Summary • Energy efficiency and wide dynamic operating range are critical for all platforms • Integration, fine-grain power management, advanced voltage regulators & 3D memory stacking are key for energy efficiency • Reliability, functionality, margins & efficiency limit dynamic operating range • Multi-voltage design, dynamic adaptation, reconfiguration & resiliency are key enablers
