Presentation Transcript


Unit 5 data analysis

Unit 5 Data Analysis


Empirical rule

MM3D3

Empirical Rule


Normal distributions

Normal Distributions

  • Normal distributions are based on two parameters

    • Mean

      • If you have population data use

      • If you have sample data use

    • Standard Deviation

      • If you have population data use

      • If you have sample data use s

  • When a distribution is normal we use shorthand to show the mean and standard deviation

    • Sample: N

    • Population: N


Normal curves

Normal Curves

  • Use the parameters to find the inflection points on the curve.

    • Where the curve changes concavity


Normal curves1

Normal Curves

  • The mean is in the exact middle

  • Add and subtract the standard deviation to find the inflection points


Empirical rule1

Empirical Rule

  • 68% of the data is within one standard deviation of the mean

  • 95% of the data is within two standard deviations of the mean

  • 99.7% of the data is within three standard deviations of the mean

99.7%

95%

68%


Em p irical rule expanded

Empirical Rule Expanded

  • Sometimes, it is helpful to know the percent of the curve that is represented by each section of the distribution.


The middle 68

The middle 68 %

?

?

34%

34%


The middle 95

The middle 95 %

34%

34%

13.5%

?

?

13.5%


The middle 99 7

The middle 99.7 %

34%

34%

13.5%

13.5%

?

?

2.35%

2.35%


The tails

The Tails

34%

34%

13.5%

13.5%

0.15%

0.15%

?

?

2.35%

2.35%

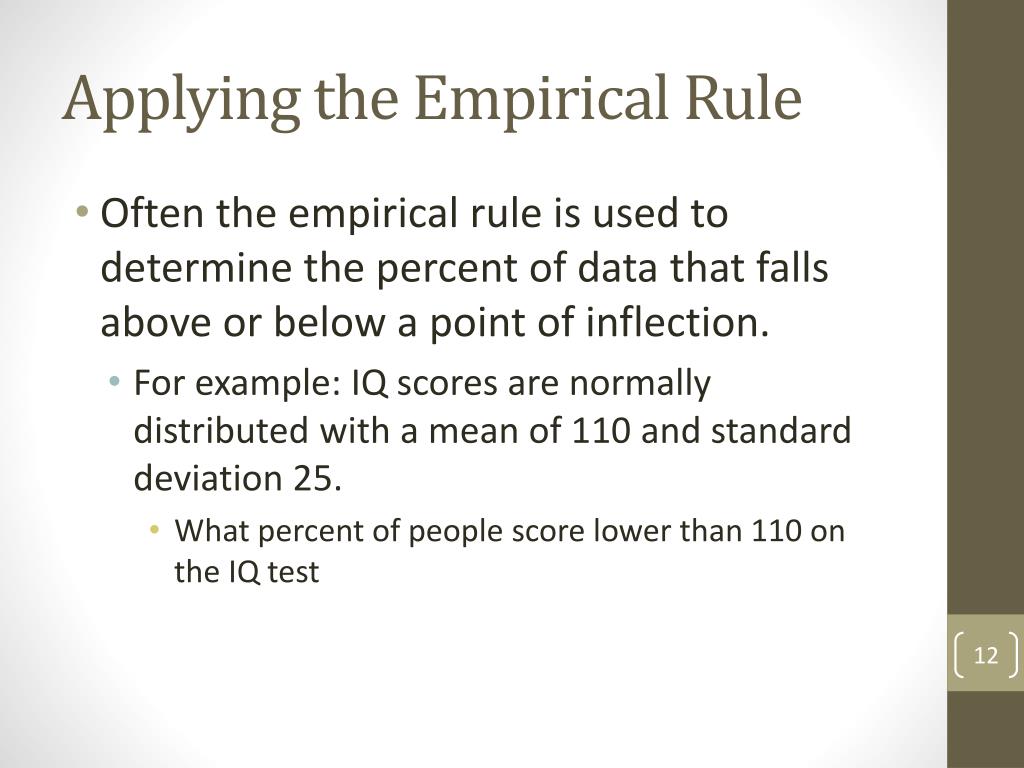

Applying the empirical rule

Applying the Empirical Rule

  • Often the empirical rule is used to determine the percent of data that falls above or below a point of inflection.

    • For example: IQ scores are normally distributed with a mean of 110 and standard deviation 25.

      • What percent of people score lower than 110 on the IQ test


Normal curves2

Normal Curves

  • IQ scores are normally distributed with a mean of 110 and standard deviation 25.

60

110

85

135

160

185

35


Iq scores

IQ Scores

  • N (110, 25)

What is the 68% range?

85-135

110

135

160

85

185

35

60


Iq scores1

IQ Scores

  • N (110, 25)

What is the 95% range?

60-160

110

135

160

85

185

35

60


Iq scores2

IQ Scores

  • N (110, 25)

What is the 99.7% range?

35-185

110

135

160

85

185

35

60


Iq scores3

IQ Scores

  • N (110, 25)

What percent falls between 85 and 160?

81.5

110

135

160

85

185

35

60


Iq scores4

IQ Scores

  • N (110, 25)

What percent falls between 35 and 135?

83.85

110

135

160

85

185

35

60


Iq scores5

IQ Scores

  • N (110, 25)

What percent falls below 85?

16

110

135

160

85

185

35

60


Iq scores6

IQ Scores

  • N (110, 25)

What percent falls below 185?

99.85

110

135

160

85

185

35

60


Iq scores7

IQ Scores

  • N (110, 25)

What percent is above 185?

0.15

110

135

160

85

185

35

60


Iq scores8

IQ Scores

  • N (110, 25)

What percent is above 60?

97.5

110

135

160

85

185

35

60


Z scores

Z-Scores


Recall empirical rule

Recall: Empirical Rule

  • 68% of the data is within one standard deviation of the mean

  • 95% of the data is within two standard deviations of the mean

  • 99.7% of the data is within three standard deviations of the mean

99.7%

95%

68%

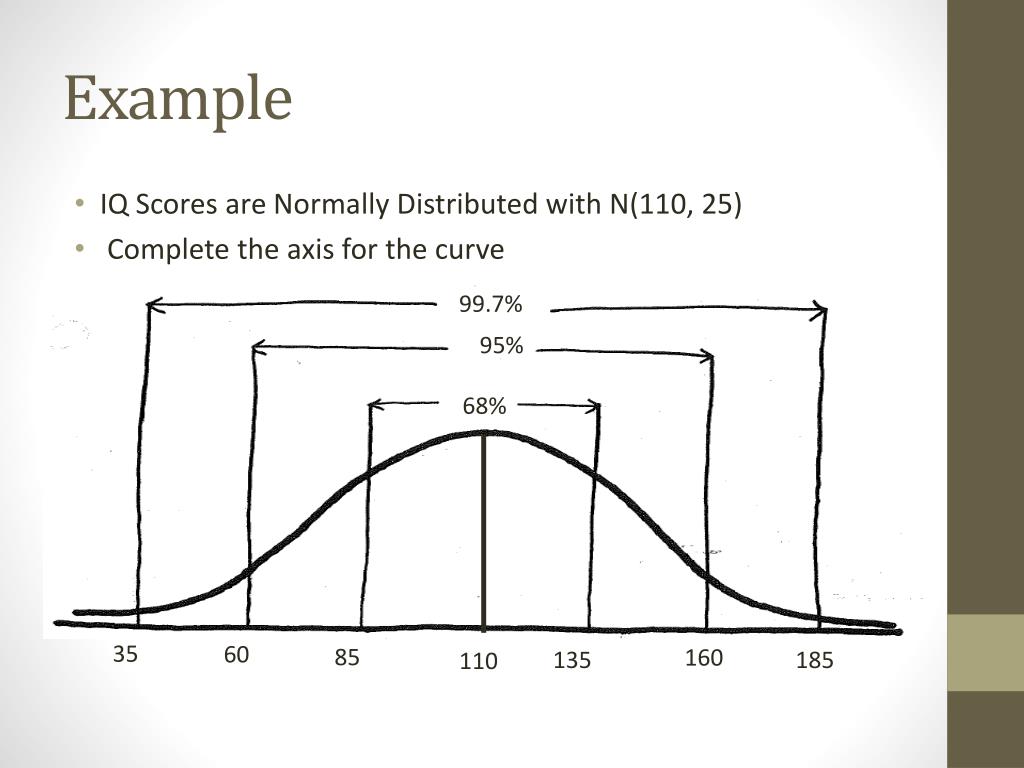

Example

Example

  • IQ Scores are Normally Distributed with N(110, 25)

  • Complete the axis for the curve

99.7%

95%

68%

35

60

85

160

135

185

110


Example1

Example

  • What percent of the population scores lower than 85?

16%

99.7%

95%

68%

35

60

85

160

135

185

110

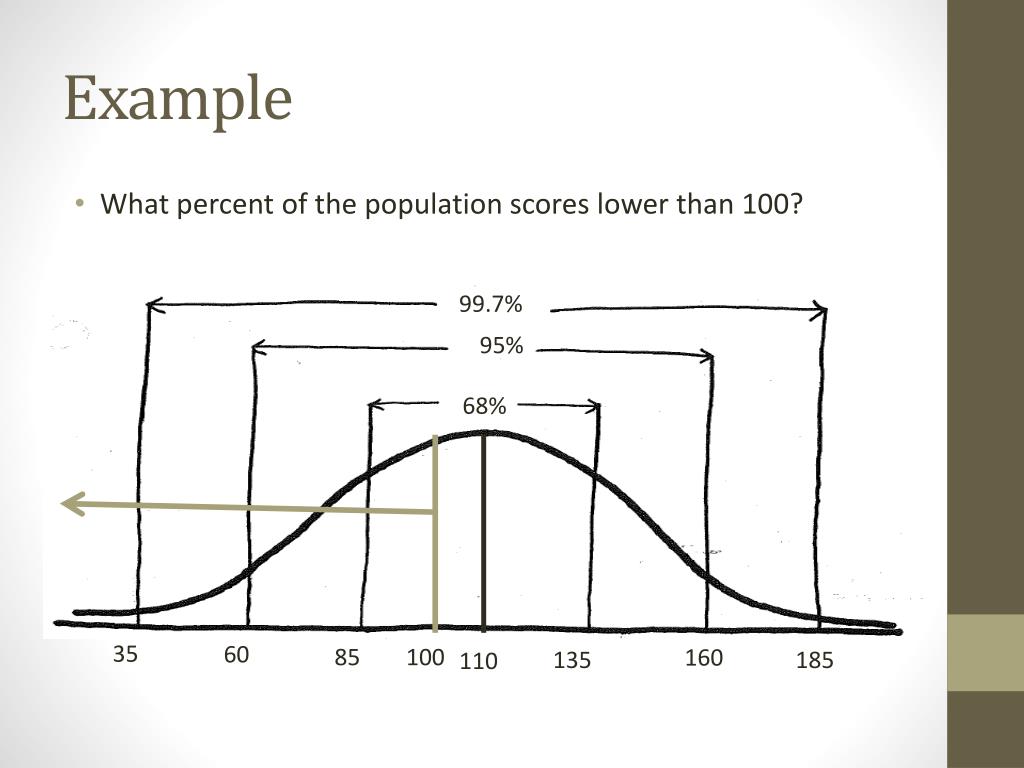

Example2

Example

  • What percent of the population scores lower than 100?

99.7%

95%

68%

35

60

85

100

160

135

185

110


Z scores1

Z Scores

  • Allow you to get percentages that don’t fall on the boundaries for the empirical rule

  • Convert observations (x’s) into standardized scores (z’s) using the formula:

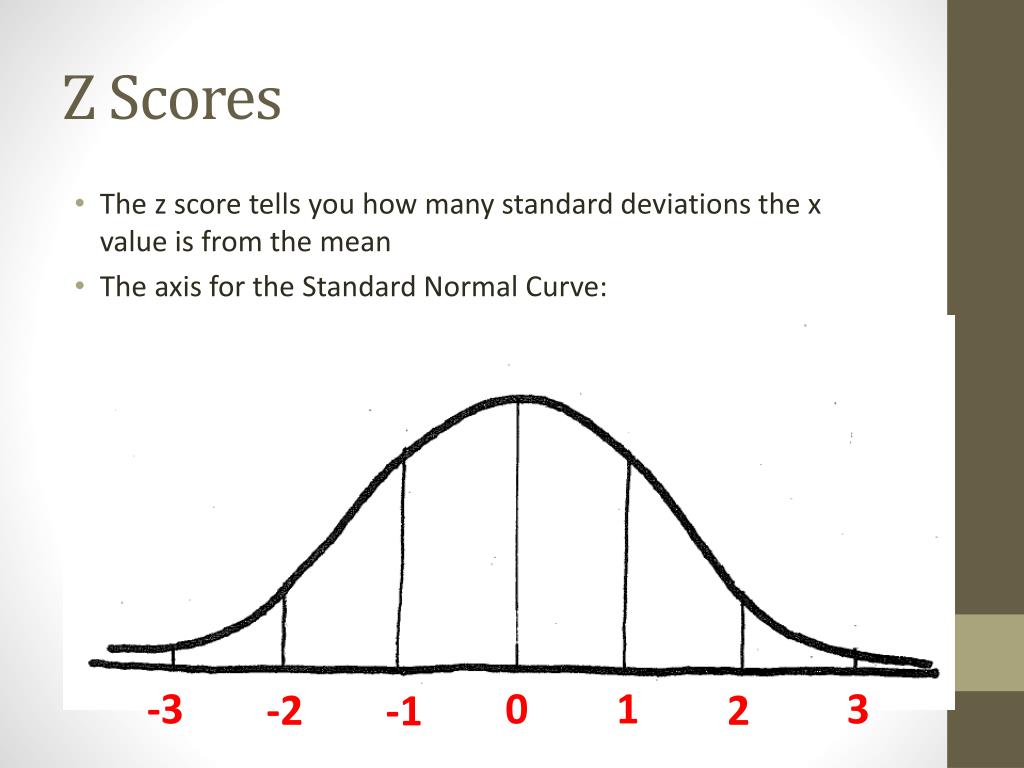

Z scores2

Z Scores

  • The z score tells you how many standard deviations the x value is from the mean

  • The axis for the Standard Normal Curve:

-3

1

0

3

-2

2

-1


Z score table

Z Score Table:

  • The table will tell you the proportion of the population that falls BELOW a given z-score.

  • The left column gives the ones and tenths place

  • The top row gives the hundredths place

  • What percent of the population is below .56?

    • .7123 or 71.23%


Z score table1

Z Score Table:

  • The table will tell you the proportion of the population that falls BELOW a given z-score.

  • The left column gives the ones and tenths place

  • The top row gives the hundredths place

  • What percent of the population is below .4?

    • .6554 or 65.54%

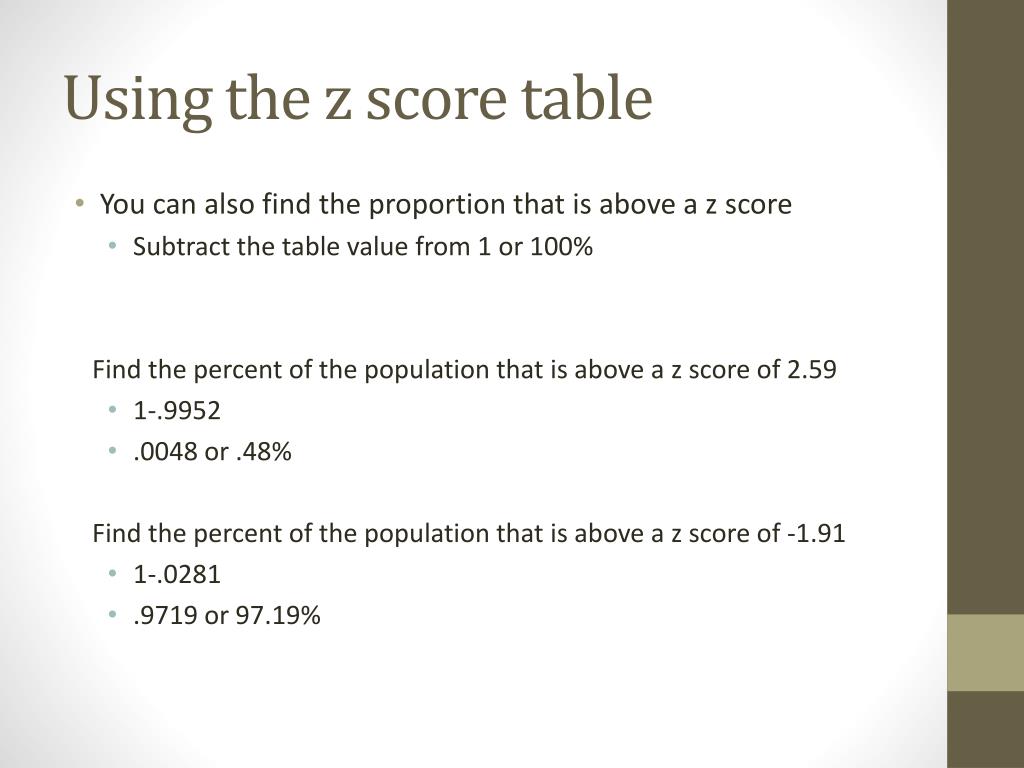

Using the z score table

Using the z score table

  • You can also find the proportion that is above a z score

    • Subtract the table value from 1 or 100%

      Find the percent of the population that is above a z score of 2.59

    • 1-.9952

    • .0048 or .48%

      Find the percent of the population that is above a z score of -1.91

    • 1-.0281

    • .9719 or 97.19%

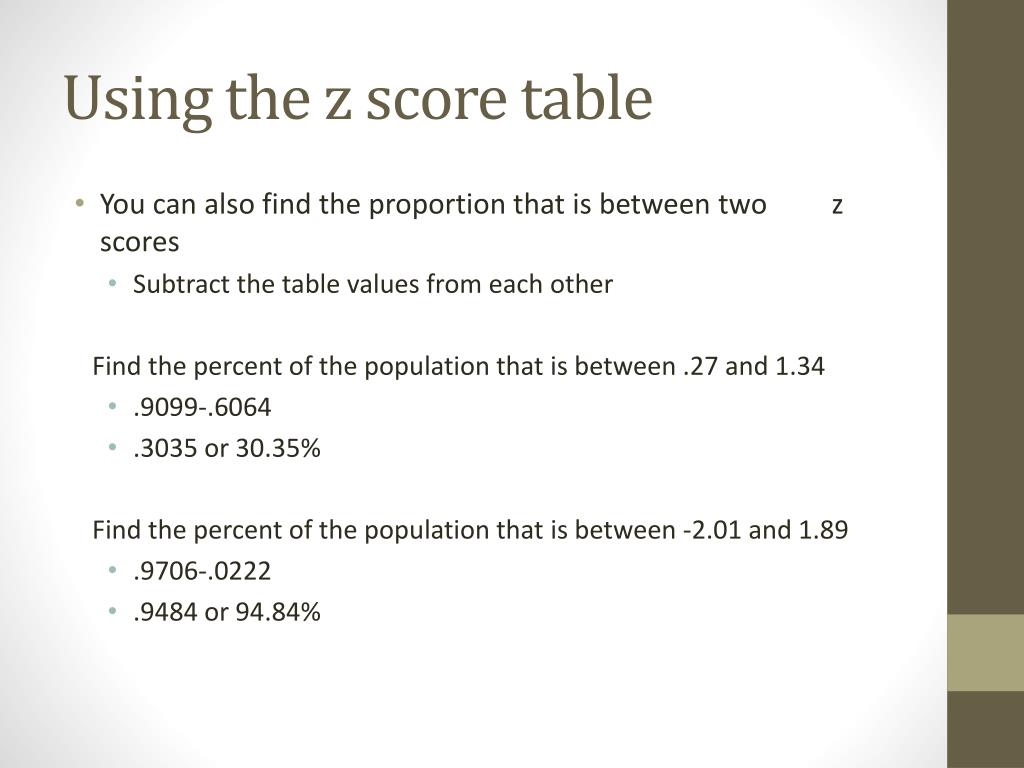

Using the z score table1

Using the z score table

  • You can also find the proportion that is between two z scores

    • Subtract the table values from each other

      Find the percent of the population that is between .27 and 1.34

    • .9099-.6064

    • .3035 or 30.35%

      Find the percent of the population that is between -2.01 and 1.89

    • .9706-.0222

    • .9484 or 94.84%

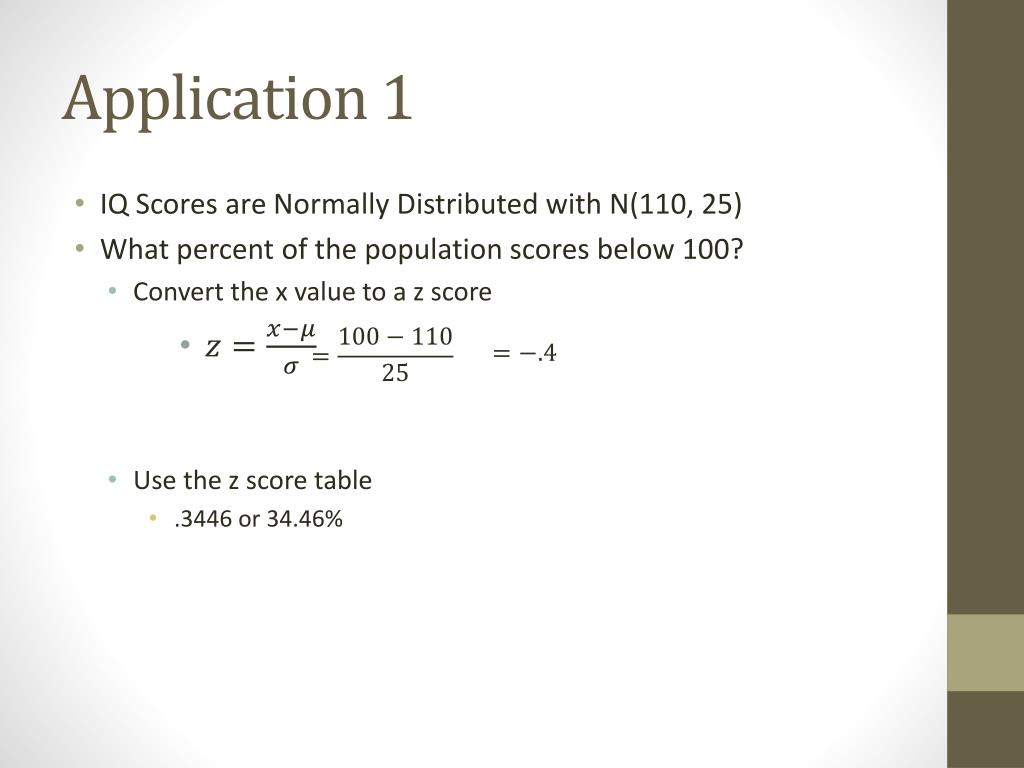

Application 1

Application 1

  • IQ Scores are Normally Distributed with N(110, 25)

  • What percent of the population scores below 100?

    • Convert the x value to a z score

    • Use the z score table

      • .3446 or 34.46%

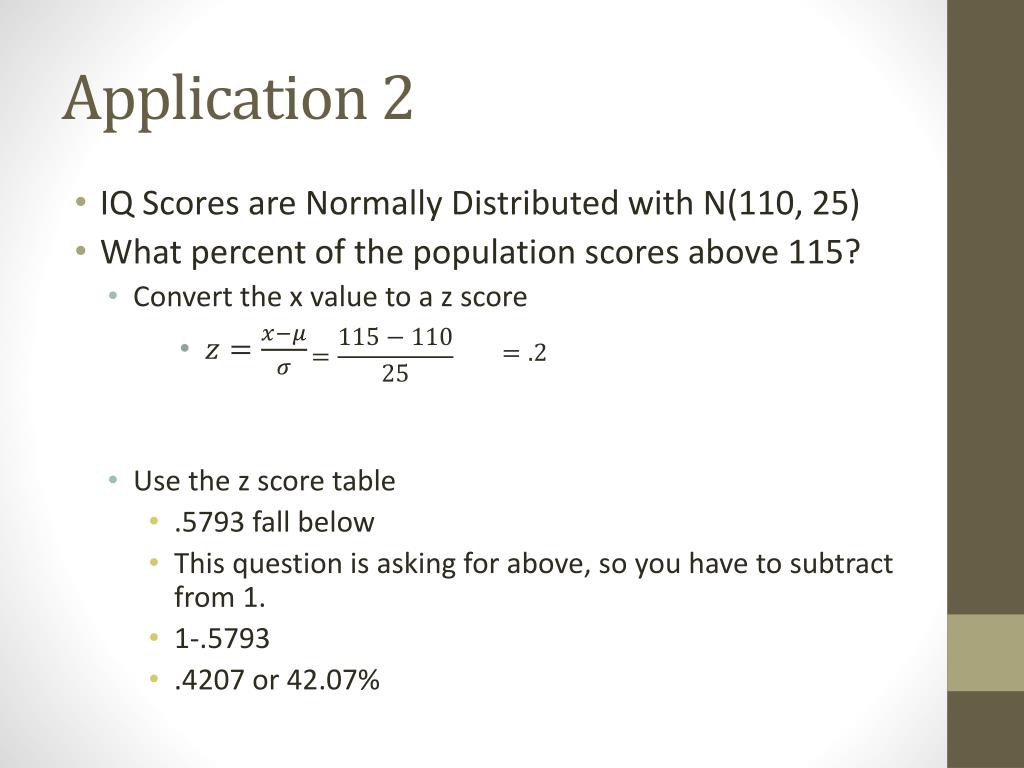

Application 2

Application 2

  • IQ Scores are Normally Distributed with N(110, 25)

  • What percent of the population scores above 115?

    • Convert the x value to a z score

    • Use the z score table

      • .5793 fall below

      • This question is asking for above, so you have to subtract from 1.

      • 1-.5793

      • .4207 or 42.07%


Application 3

Application 3

  • IQ Scores are Normally Distributed with N(110, 25)

  • What percent of the population score between 50 and 150?

    • Convert the x values to z scores

    • Use the z score table

      • .9452 and .0082

      • This question is asking for between, so you have to subtract from each other.

      • .9452-.0082

      • .9370 or 93.7%
