Vehicle characteristics and car following

Vehicle Characteristics and Car Following

George J. Andersen

Department of Psychology

University of California, Riverside

Funded by NIH AG13419-06PATH Project MOU 4220


Perceptual tasks in driving

Perceptual Tasks in Driving

  • Collision Detection

  • Obstacle avoidance

  • Longitudinal control (car following)

  • Lateral control (steering)


Perceptual tasks in driving1

Perceptual Tasks in Driving

  • Collision Detection

  • Obstacle avoidance

  • Longitudinal control (car following)

  • Lateral control (steering)


Vehicle characteristics and car following

Driving is a skill dependent on visual information

Use of simulators requires accurate presentation

of visual information used by drivers


Complexity of collision detection event specification

Complexity of Collision Detection: Event Specification

  • Vehicle motion

    • Speed

      • Constant or varying (accelerating/decelerating)

    • Path

      • Straight or curved

  • Object motion

    • Speed

      • Constant or varying (accelerating/decelerating)

    • Path

      • Straight or curved

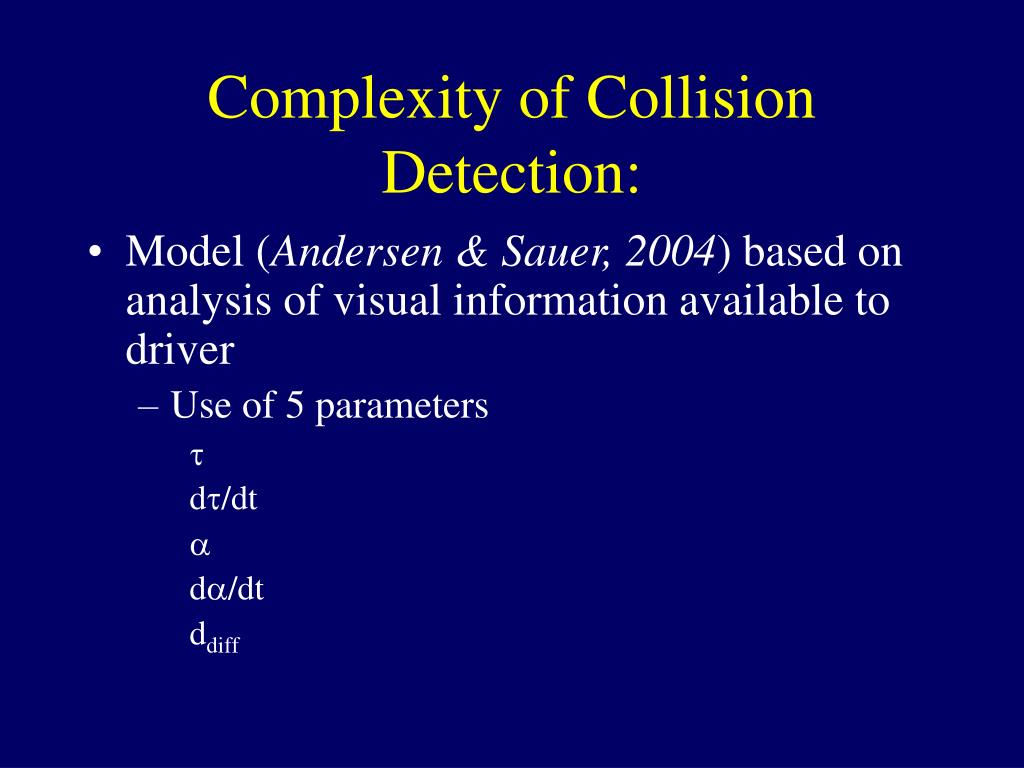

Complexity of collision detection

Complexity of Collision Detection:

  • Model (Andersen & Sauer, 2004) based on analysis of visual information available to driver

    • Use of 5 parameters

      t

      dt/dt

      a

      da/dt

      ddiff


Vehicle characteristics and car following

TopView

FrontView

t=0

t=1

q

t=q/Dq

t specifies the time to contact during constant velocity

collisions


Vehicle characteristics and car following

t =dt/dt

dt/dt used during deceleration (braking control)

When dt/dt = -0.5 vehicle will reach zero velocity at obstacle


Vehicle characteristics and car following

a is the position of

object in visual field

When a = 0 object is on a collision path

Useful when path of motion is linear


Vehicle characteristics and car following

da/dt is the change in

position of object in

visual field

When da/dt = k object is on a collision path

Useful when path of motion is curvilinear


Vehicle characteristics and car following

ddiff is comparison of two distance estimates:

dv – distance vehicle will traverse before reaching zero velocity

ds – distance of collision object

ddiff = dv – ds

dv = 1.5v2/a

v = edge rate (number of texture elements that

pass position in visual field)

a = change in number of texture

Elements that pass position in visual field

ds = (s)tan-1 q

s = size of object

q = visual angle of object


Vehicle characteristics and car following

Size information and safe deceleration to a stop


Vehicle characteristics and car following

Edge rate information and safe deceleration to a stop


Vehicle characteristics and car following

Vehicle Motion

No

F/S

V/S

F/C

V/C

No

F/S

Object

Motion

V/S

F/C

V/C

F = Fixed Speed V = Variable Speed

S = Straight Path C = Curved Path


Optical information for car following

Optical Information for Car Following

  • Information for specifying distance and change in distance

  • Information for specifying speed and change in speed


Vehicle characteristics and car following

t=0

t=1

a

FrontView

TopView

Da associated with change in distance due to change in speed


Parameters of car following model

Parameters of Car Following Model

a’

  • Initial visual angle of lead vehicle

    a

  • Current visual angle

    da/dt

  • Instantaneous change in visual angle

    J, k

  • Weighting scalar constants


Vehicle characteristics and car following

acceleration

Acceleration (km/hr2)


Vehicle characteristics and car following

a’

Desired time gap = 1.1s

W = width of lead vehicle

FVv = following vehicle (driver) speed

2 m

Lead Car

Distance headway

α

Driver


Human factors experiments

Human Factors Experiments

  • Maintain distance behind lead vehicle that varied speed

    - sine function

    - ramp function

    - sum of sines

    function


Vehicle characteristics and car following

006


Vehicle characteristics and car following

Do drivers use visual information other than visual angle?


Vehicle characteristics and car following

Edge Rate Information:

Used for Perceived

Driver (following vehicle)

speed


Vehicle characteristics and car following

a

t =

da/dt

Edge Rate and Collision Detection: Moving Objects


Vehicle characteristics and car following

t =dt/dt

Edge Rate and Collision detection during braking: Static objects


Vehicle characteristics and car following

Car Following and edge rate Experiment

Task: Car following to sine wave function

Independent Variables: Presence or absence of scene

Frequency and amplitude of lead vehicle speed

Prediction:

If edge rate used then more accurate tracking performance when scene present as compared to scene absent


Ongoing research car following in traffic

Ongoing Research: Car Following in Traffic


Edge rate and moving vehicles

Edge Rate and Moving Vehicles

Dual task performance

car following

Detect Light Change

Edge Rate Information

Presence of other moving

vehicles


Edge rate and reduced visibility

Edge Rate and Reduced Visibility

Dual task performance

car following

Detect Light Change

Edge Rate Information

Presence of Fog


Simulation design issues and recommendations

Simulation Design Issues and Recommendations

  • Simulation displays should be designed to optimize use of visual information

    • Understanding how best to do this requires understanding what are the sources of information


Simulation design issues and recommendations1

Simulation Design Issues and Recommendations

  • Factors that directly affect availability of information sources

    • Display characteristics (e.g., frame rate, spatial resolution, monitor update and flicker)

    • 3D model characteristics (e.g., complexity of world model, lighting, and texturing)

    • Viewing characteristics

      • (e.g., conflicting accommodation, eye vergence)

      • Viewing from design eye of simulation
