Presentation Transcript


Resistance in fluid systems l.jpg

Resistance In Fluid Systems

Principles of Technology

All content was received from Physics In Context


Slide2 l.jpg

When one solid object slides against another, a force of friction opposes the motion

When a solid object moves through a fluid, there is also a force that opposes the motion.

Examples

Boat moves through water

Airplane moves through air

You can feel drag when you stand in high wind

Or when you put your hand out the window of a moving car

Drag


Laminar turbulent flow l.jpg

The Drag exerted on an object by fluid depends on many factors……

Speed of the object (or fluid)

Size and shape of the object

Physical properties of the fluid

These factors make it difficult to calculate drag exactly.

You can Approximate

Simplest approximation is to ignore drag forces when they are small

Example:

Ignore drag for an object moving slowly in fluids such as air or water

Although very slow speeds

produce significant drag in fluids such as motor oil

Laminar & Turbulent Flow


Laminar turbulent flow continued l.jpg

Laminar & Turbulent Flow continued……..

  • When drag forces can’t be ignored, you can make two approximations about the fluid – the flow can be Laminar or Turbulent.

Streamline

Laminar (streamlined flow)

is a slow, smooth flow over a surface, in which the paths of individual particles do not cross

Increasing Speed

Fluid speed at surface is zero

Frictional Drag: Drag is produced by friction between layers of fluid


Laminar turbulent flow continued5 l.jpg

Laminar & Turbulent Flow continued……..

  • Turbulence produces the visible wake behind a moving boat and an invisible wake behind a moving plane or car.

Turbulent Flow

Is irregular flow with eddies and whorls causing fluid to move different directions

  • Turbulence is produced by high speeds, by shapes that are not streamlined, and by sharp bends in the path of a fluid


Laminar turbulent flow continued6 l.jpg

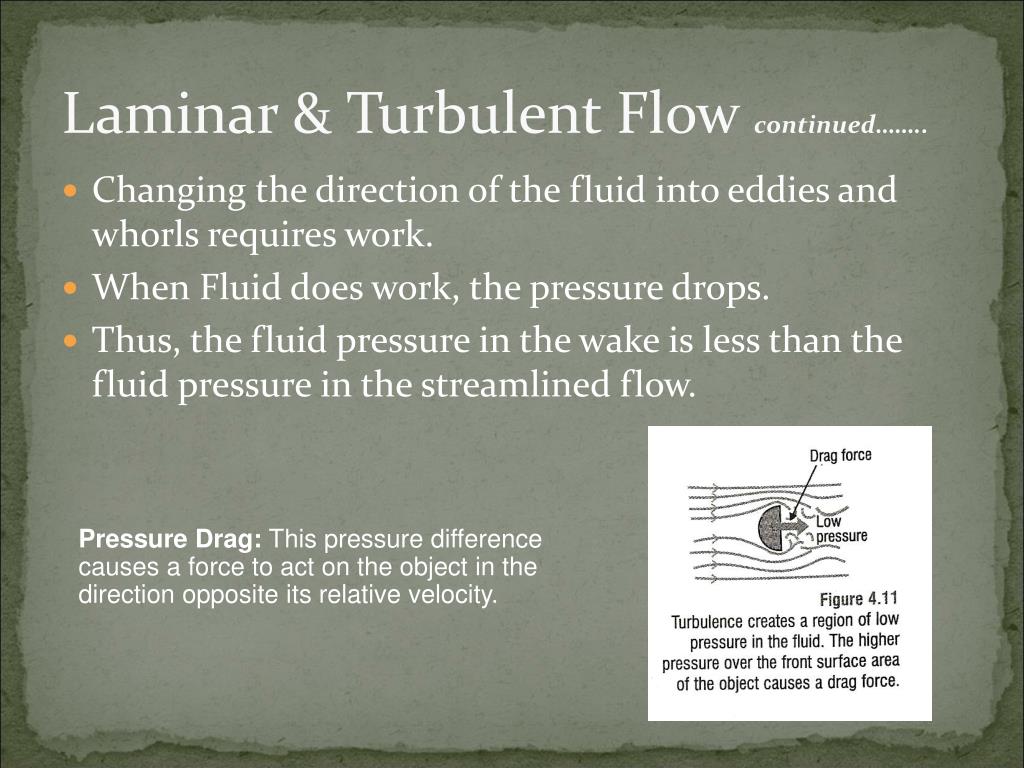

Laminar & Turbulent Flow continued……..

  • Changing the direction of the fluid into eddies and whorls requires work.

  • When Fluid does work, the pressure drops.

  • Thus, the fluid pressure in the wake is less than the fluid pressure in the streamlined flow.

Pressure Drag: This pressure difference causes a force to act on the object in the direction opposite its relative velocity.


Frictional pressure drag l.jpg

Frictional & Pressure Drag

  • Frictional drag and pressure drag both increase as speed increases

  • Low speeds, the drag forces on the car is frictional drag

  • The force increases linearly with speed

    (Doubling speed = Doubling frictional force)

  • Higher speeds, turbulence and pressure drag are more and more important.

  • This force increases as the square of the speed

  • Doubling the speed increases the pressure drag by a factor of four

The drag force on a car increases as the car’s speed increases


Viscosity l.jpg

Viscosity

  • Friction between two solid surfaces cause a resistance to movement between the surfaces

  • Viscosity is the property of a fluid that has internal friction

  • We use the Greek letter

    (eta) to represent viscosity

Example

  • Bubble gum has a high viscosities

  • Air & water have a much lower viscosities


Viscosity continued l.jpg

Viscosity continued……..

  • The fluid in contact with the top plate moves with the plate at speed v, and the fluid in contact with the bottom plate remains motionless.

  • The speed of the fluid between the top and bottom varies linearly.

  • The top plate drags layers of fluid with it.

  • The force F is required to overcome the resistance and keep the plate moving at constant speed

Top plate is pulled to the right at a constant speed v

Layer of fluid of thickness

Bottom plate held in place

The viscosity of a fluid can be measured by pulling a plate at constant speed across a layer of the fluid.


Viscosity continued10 l.jpg

Viscosity continued……..

  • When the plate moves to the right at constant speed, no net force is acting on the plate.

  • Therefore, the fluid exerts a force of friction, or drag force F drag on the plate to the left, opposing motion. The magnitude of the drag force equals F.

  • As long as the plate speed v is not so large that turbulence occurs, the fluid flow between the plates is laminar.

  • The force F required to maintain a constant speed for most fluids in laminar flow is found to be:

    • Proportional to A and v, and

    • Inversely proportional to the thickness of the fluid layer,


Viscosity continued11 l.jpg

Viscosity continued……..

  • The proportionality constant is the viscosity of the fluid.

  • Viscosity has units of (pressure) (time).

  • The SI units for viscosity are or

  • The English units are or


Viscosities of common fluids l.jpg

Viscosities of Common Fluids

Pg. 188 Chapter 4

  • Viscosity of most liquids decreases as temperature increases.

  • Viscosity of most gases increase with temperature

    Example:

  • Cold honey is thick with a high viscosity

  • Hot honey is watery with a low viscosity


Motor oil viscosity l.jpg

Motor Oil Viscosity

  • SAE – Society of Automotive Engineers

  • 10W – The viscosity of the oil when measured at 0 degrees F (the W means winter grade)

  • 30 – The viscosity of the oil when measured at 212 degrees F.


Motor oil viscosity continued l.jpg

Motor Oil Viscosity continued……..

SAE Viscosity recommendations for various climates

These oils were chilled to -35 degrees C for 16 hours. The photo was taken 30 seconds after the caps were removed from the containers.


Viscosity cool science trick l.jpg

Viscosity Cool Science Trick

  • http://www.youtube.com/watch?v=X4zd4Qpsbs8


Stokes law l.jpg

Stokes’ Law

  • IN 1845, the Irish mathematician and physicist George Stokes used viscosity and the equations of fluid flow to predict the drag force on a sphere moving through a fluid.

  • It applies to objects moving at low enough speeds that the flow of fluids around the objects is streamlined, or laminar.

  • In these cases, there is no turbulence and the only drag force on the objects is due to frictional drag.


Stokes law continued l.jpg

Stokes’ Law continued……..

  • The drag force acts in the direction opposite the object’s velocity (it opposes motion).

  • The drag force equals the product of a constant (6 for a sphere), the radius r of the object, the speed v of the object (or the relative speed between the object and fluid), and the fluid’s viscosity :


Terminal speed l.jpg

Terminal Speed

  • When an object moves through a fluid, the drag force on the object increases as the speed increases.

  • Drop a baseball from a high tower – at first it has a low speed and a low drag

  • The force of gravity acting downward is greater then the drag force acting upward.

  • Therefore, a net force acts downward on the baseball and it accelerates downward.

  • As the speed increases the drag increases, until the upward drag = the weight.

  • At this point the forces are balanced and no longer accelerates.

The terminal speed of a falling object is the constant speed that occurs when the drag force equals the gravitational force.


Terminal speed continued l.jpg

Terminal Speed continued……..

The terminal speed of a baseball is about 40 m/s, but the terminal speed of a basketball is only about 20 m/s.

Which ball has a greater drag force at any given speed?


Skydiver vs peregrine falcon l.jpg

Skydiver VS. Peregrine Falcon

  • http://www.youtube.com/watch?v=1ukf2vntU44


Poiseuille s law l.jpg

Poiseuille’s Law

  • Poiseuille’s law gives the volume flow rate of a fluid flowing through a tube or pipe.

  • Like Stokes’ law, Poiseuille’s law applies to laminar flow.

Layers nearer the wall move more slowly

Fluid in contact with the wall does not move

The fluid layer at the center moves the fastest


Poiseuille s law continued l.jpg

Poiseuille’s Law continued……..

  • Jean Louis Poiseuille was a physician who was also trained as a physicist and mathematician.

  • In the mid – 1840’s, he experimented with water flowing through glass capillary tubes as a simulation of blood flowing through small blood vessels.

  • Poiseuille learned that the rate at which fluid flows through a tube increases proportionately to the pressure applied and to the fourth power of the radius of the tube


Poiseuille s law continued23 l.jpg

Poiseuille’s Law continued……..

  • Poiseuille’s law – the volume flow rate of a fluid of viscosity through a tube or pipe of radius r and length L is:

  • The internal friction of the fluid causes the pressure to decrease as the fluid flows.

= the change in pressure of the fluid as it flows the length L

Is negative therefore V is positive


Factors affecting flow through a pipe l.jpg

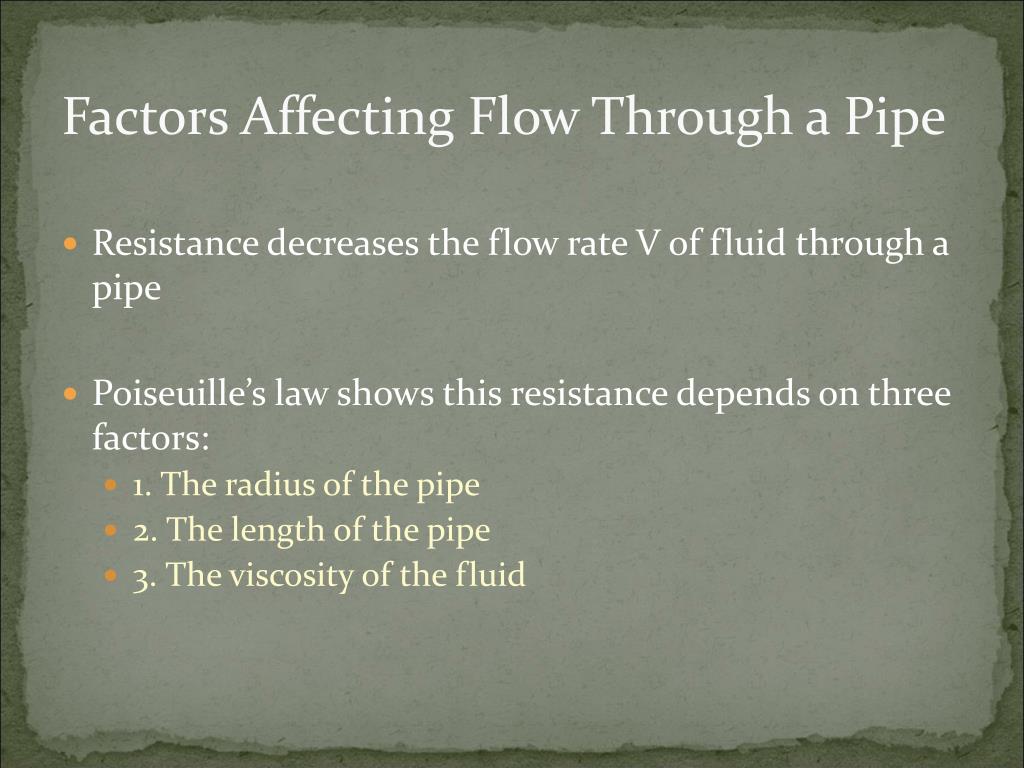

Factors Affecting Flow Through a Pipe

  • Resistance decreases the flow rate V of fluid through a pipe

  • Poiseuille’s law shows this resistance depends on three factors:

    • 1. The radius of the pipe

    • 2. The length of the pipe

    • 3. The viscosity of the fluid


Factors affecting flow through a pipe continued l.jpg

Factors Affecting Flow Through a Pipecontinued…

  • The 3 factors of resistance can be illustrated using graphs of volume flow rate versus pressure drop.

  • Fluid resistance = R as the ratio of the prime mover to the volume flow rate.

  • The prime mover in fluid systems as pressure change, or pressure drop.

  • Pressure drop is

  • is negative, so pressure drop and fluid resistance are positive.


Factors affecting flow through a pipe dependence on radius l.jpg

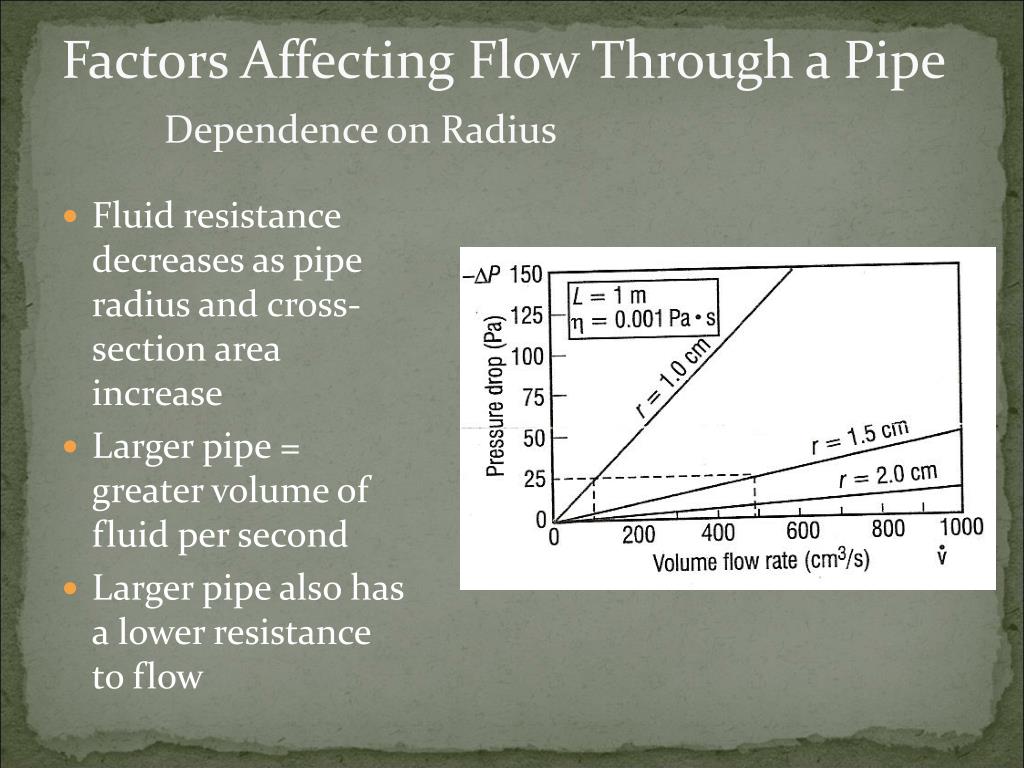

Factors Affecting Flow Through a PipeDependence on Radius

  • Fluid resistance decreases as pipe radius and cross-section area increase

  • Larger pipe = greater volume of fluid per second

  • Larger pipe also has a lower resistance to flow


Factors affecting flow through a pipe dependence on length l.jpg

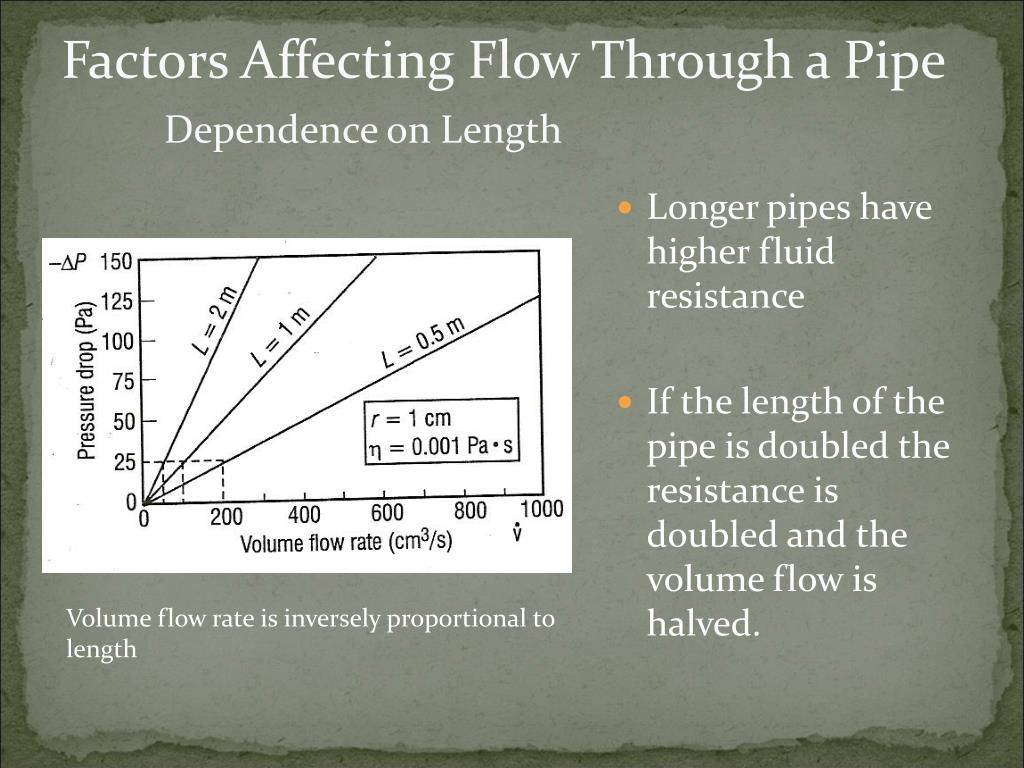

Factors Affecting Flow Through a PipeDependence on Length

  • Longer pipes have higher fluid resistance

  • If the length of the pipe is doubled the resistance is doubled and the volume flow is halved.

Volume flow rate is inversely proportional to length


Factors affecting flow through a pipe dependence on radius28 l.jpg

Factors Affecting Flow Through a PipeDependence on Radius

  • Volume flow rate is inversely proportional to viscosity.

  • If you use a fluid with half the viscosity, you double the volume flow rate


Factors affecting flow through a pipe continued29 l.jpg

Factors Affecting Flow Through a Pipecontinued…

  • If the flow becomes turbulent, resistance increases rapidly

  • Bends and Ts in a pipe or air duct cause turbulence.

  • When it is important to maintain laminar flow and reduce resistance, designers use curves with radii as large as possible rather than abrupt changes in the path of a fluid


Factors affecting flow through a pipe continued30 l.jpg

Factors Affecting Flow Through a Pipecontinued…

  • Obstructions or restrictions also cause turbulence.

    Example

  • The grill of a car is an obstruction that causes turbulence, affecting the aerodynamic drag of an automobile.

  • Filters in air ducts are restrictions


In class work l.jpg

In Class Work

  • Starting on page 196 in your text book

  • Get into groups of 3 -4 people

  • Work on the EVEN problems in groups

  • If you finish team up with another group and compare answers

  • Show work


Homework l.jpg

Homework

  • Finish EVEN problems

  • Move onto odd problems

    Due: April 15, 2008

    At the beginning of class

    Problems 1-15 (show work)
