Presentation Transcript


Osse status and future work

OSSE Status and Future work

FAB Observation Thrust Area


Osse status and future work

  • Primary Objective

  • To establish a numerical test bed that would enable a hierarchy of experiments to:

  • determine the potential impact of proposed space-based, sub-orbital, and in situ observing systems on analyses and forecasts,

  • evaluate trade-offs in observing system design, and

  • assess proposed methodology for assimilating new observations in coordination with the Joint Center for Satellite Data Assimilation (JCSDA).

  • Sub-objectives

  • To define both the advantages and limitations of a hierarchy of OSSEs that includes rapid prototyping of instrument or data assimilation concepts, as well as the more rigorous “full” OSSEs.

  • (2) To generate an OSSE/OSE process that invites participation by the broad community of agency planners, research scientists and operational centers.


Osse status and future work

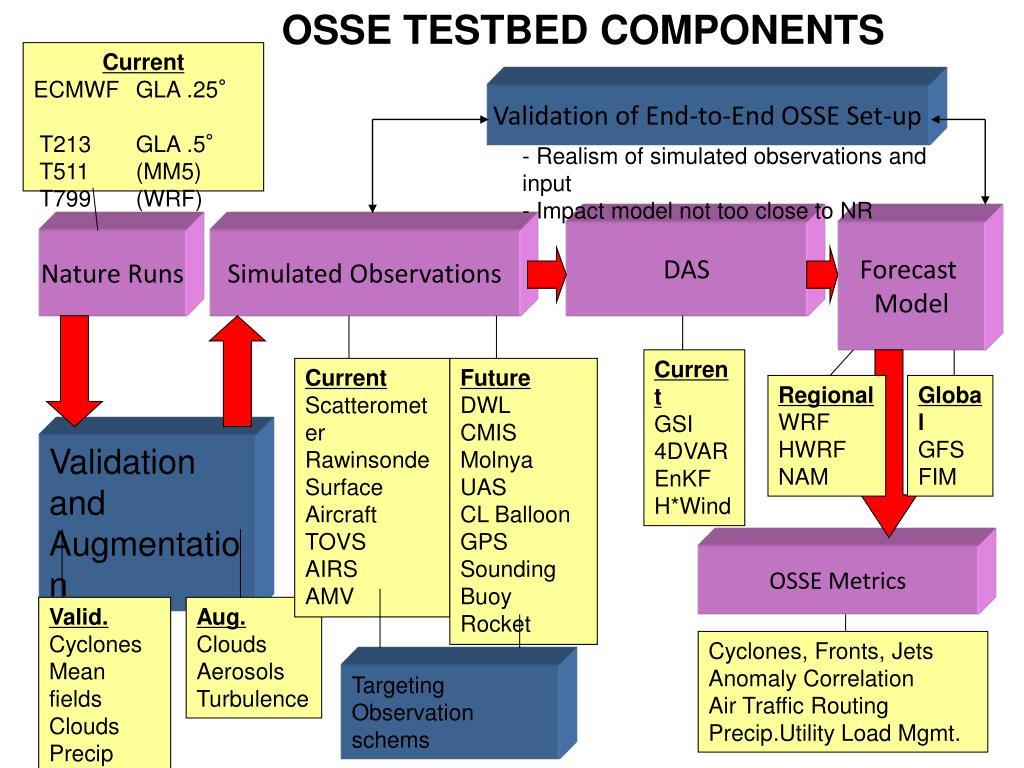

OSSE TESTBED COMPONENTS

Current

ECMWFGLA .25°

T213GLA .5°

T511(MM5)

T799(WRF)

Validation of End-to-End OSSE Set-up

- Realism of simulated observations and input

- Impact model not too close to NR

DAS

Forecast

Model

Nature Runs

Simulated Observations

Current

GSI

4DVAR

EnKF

H*Wind

Current

Scatterometer

Rawinsonde

Surface

Aircraft

TOVS

AIRS

AMV

Future

DWL

CMIS

Molnya

UAS

CL Balloon

GPS Sounding

Buoy Rocket

Global

GFS

FIM

Regional

WRF

HWRF

NAM

Validation and Augmentation

OSSE Metrics

Valid.

Cyclones

Mean fields

Clouds

Precip

Aug.

Clouds

Aerosols

Turbulence

Cyclones, Fronts, Jets

Anomaly Correlation

Air Traffic Routing

Precip.Utility Load Mgmt.

Targeting Observation schems


Accomplishments

Accomplishments

  • 3.5 year effort calibrating the NOAA joint OSSE for 5 major observation instruments;

  • First calibrated OSSE for UAS on hurricane track;

  • WISDOM OSSE;

  • Targeting observation with a ET new method and improvement of ET method efficiency (A journal paper submitted to JAS);

  • Coordination with AOML, NCEP and NSSL on NOAA OSSE testbed planning and proposals.


Osse status and future work

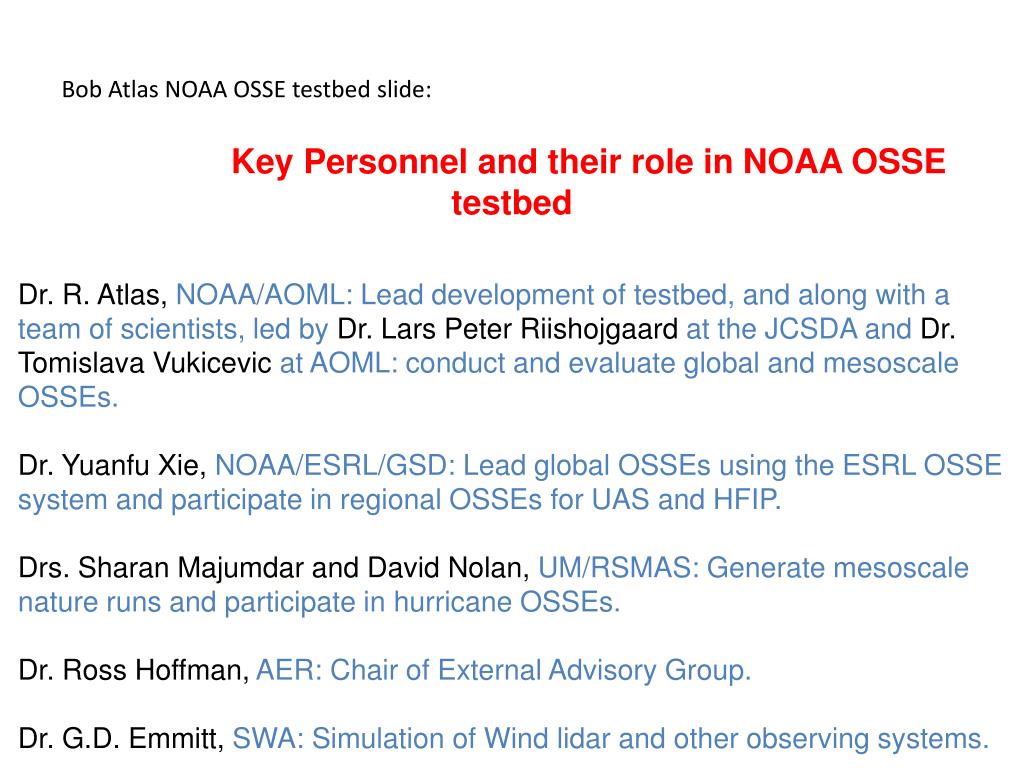

Bob Atlas NOAA OSSE testbed slide:

KeyPersonnel and their role in NOAA OSSE testbed

Dr. R. Atlas, NOAA/AOML: Lead development of testbed, and along with a team of scientists, led by Dr. Lars Peter Riishojgaardat the JCSDA and Dr. TomislavaVukicevicat AOML: conduct and evaluate global and mesoscale OSSEs.

Dr. Yuanfu Xie, NOAA/ESRL/GSD: Lead global OSSEs using the ESRL OSSE system and participate in regional OSSEs for UAS and HFIP.

Drs. SharanMajumdar and David Nolan, UM/RSMAS: Generate mesoscale nature runs and participate in hurricane OSSEs.

Dr. Ross Hoffman, AER: Chair of External Advisory Group.

Dr. G.D. Emmitt, SWA: Simulation of Wind lidar and other observing systems.


Future works

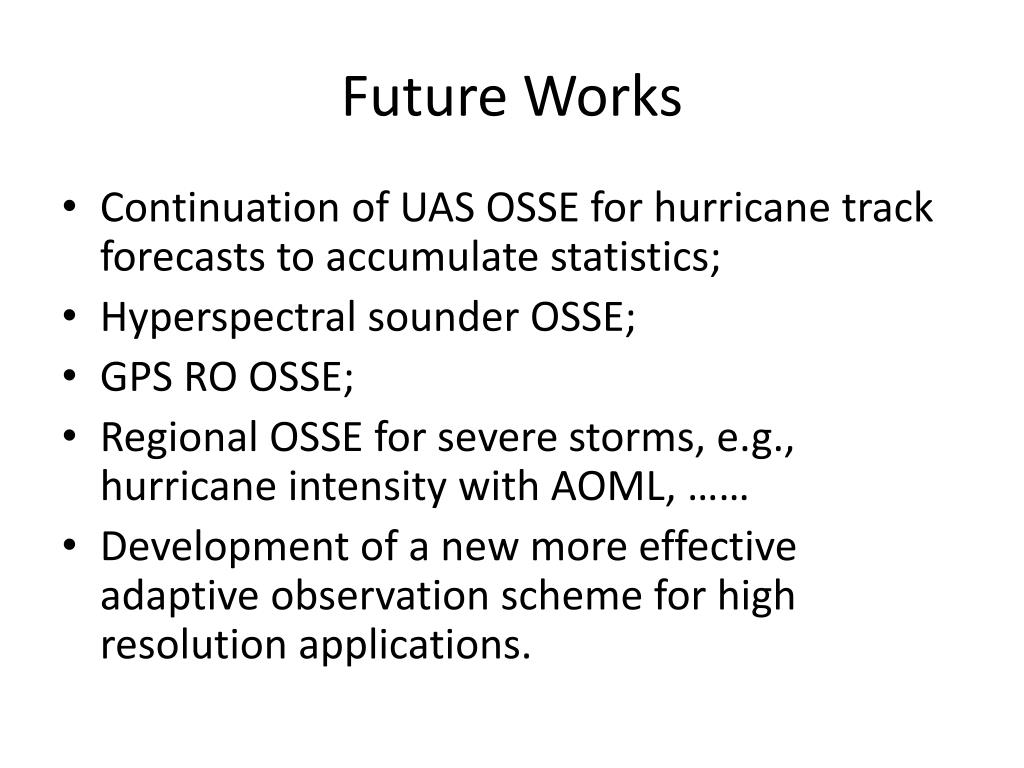

Future Works

  • Continuation of UAS OSSE for hurricane track forecasts to accumulate statistics;

  • Hyperspectral sounder OSSE;

  • GPS RO OSSE;

  • Regional OSSE for severe storms, e.g., hurricane intensity with AOML, ……

  • Development of a new more effective adaptive observation scheme for high resolution applications.
