1 / 1

Flight Profile

Flight Profile. T+40. Apogee – Drogue Chute Deployment T+30 to T+37 sec Altitude = 8400 feet AGL. T+43. T+40. T+46. T+43. T+46. T+49. T+49. T+52. 2nd Stage Engine Burnout T+16 sec Altitude = 5700 feet AGL Velocity = 310 mph. T+52. T+55. T+55. Fast Fall Under Drogue

rahim-davidson
Download Presentation

Flight Profile

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

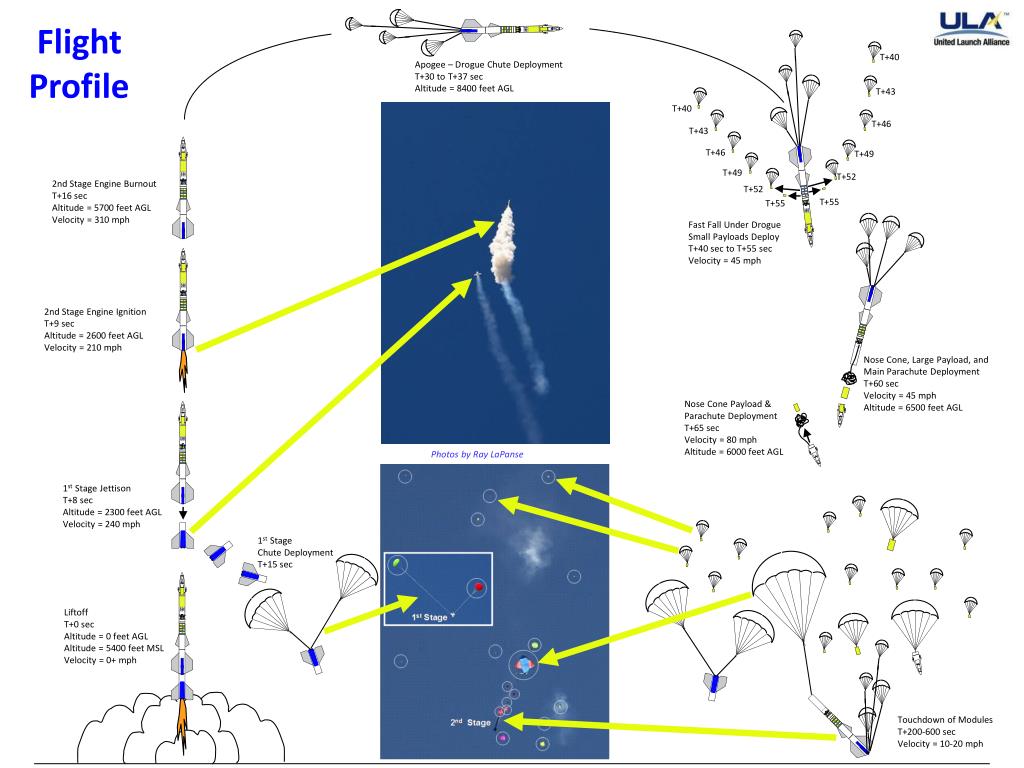

  1. Flight Profile T+40 Apogee – Drogue Chute Deployment T+30 to T+37 sec Altitude = 8400 feet AGL T+43 T+40 T+46 T+43 T+46 T+49 T+49 T+52 2nd Stage Engine Burnout T+16 sec Altitude = 5700 feet AGL Velocity = 310 mph T+52 T+55 T+55 Fast Fall Under Drogue Small Payloads Deploy T+40 sec to T+55 sec Velocity = 45 mph 2nd Stage Engine Ignition T+9 sec Altitude = 2600 feet AGL Velocity = 210 mph Nose Cone, Large Payload, and Main Parachute Deployment T+60 sec Velocity = 45 mph Altitude = 6500 feet AGL Nose Cone Payload & Parachute Deployment T+65 sec Velocity = 80 mph Altitude = 6000 feet AGL Photos by Ray LaPanse 1st Stage Jettison T+8 sec Altitude = 2300 feet AGL Velocity = 240 mph 1st Stage Chute Deployment T+15 sec Liftoff T+0 sec Altitude = 0 feet AGL Altitude = 5400 feet MSL Velocity = 0+ mph Touchdown of Modules T+200-600 sec Velocity = 10-20 mph

More Related
