  1. Section 9:Rhombuses, Rectangles, and Squares

  2. Goals • Use properties of diagonals of rhombuses, rectangles, and squares • Use properties of sides and angles of rhombuses, rectangles, and squares Anchors • Apply appropriate techniques, tools, and formulas to determine measurements. • Analyze characteristics and properties of two and three dimensional geometric shapes and demonstrate understanding of geometric relationships.

  3. Properties of Special Parallelograms Rhombus • All the properties of a parallelogram • All four sides are congruent • The diagonals are perpendicular • The diagonals bisect the interior angles x y y x 90 90 90 90 x y y x

  4. Properties of Special Parallelograms Rectangle • All the properties of a parallelogram • All sides meet at 90 • Each of the diagonals are congruent A B x x y y AC = BD E y y x x D C Makes two pairs of isosceles triangles. AE = EC = ED = EB

  5. A B D C Properties of Special Parallelograms Square • All the properties of a parallelogram • All the properties of a rhombus • All the properties of a rectangle 45 45 45 45 90 90 90 90 45 45 45 45

  6. Parallelogram Rectangles Squares Rhombuses

  7. Rectangle ABCD ABE = 10x - 5 BCA = 4x – 3 Find all angles. ABE + BCA = 90 10x - 5 + 4x - 3 = 90 X = 7 25 25 65 65 130 50 50 130 65 65 25 25

  8. Rectangle QRST QRU = 4x + 4 RUQ = 15x - 12 Find all angles. 54 54 36 36 72 108 108 72 QRU + RQU + RUQ = 180 36 36 4x + 4 + 4x + 4 + 15x - 12 = 180 54 54 X = 8

  9. 40 50 40 50 90 90 90 90 50 40 50 40 Rhombus PROD PRU = 9x - 4 PDU = 5x + 20 Find all angles. PRU = PDU 9x - 4 = 5x + 20 x = 6

  10. Rhombus JELY UEJ = 2x + 6 YLU = 4x Find all angles. 34 34 56 56 90 90 90 UEJ + YLU = 90 90 2x + 6 + 4x = 90 56 56 x = 14 34 34

  11. What special type of quadrilateral is ABCD? A ( -4 , 7 ) , B ( 6 , 9 ) , C ( 8 , 16 ) D ( -2 , 14 ) How do we do that? What do we need to know? 1 / 5 7 / 2 1 / 5 7 / 2 Length of AB = Length of BC = Length of CD = Length of AD = 2√26 √53 2√26 √53 Slope of AB = Slope of BC = Slope of CD = Slope of AD = ABCD is a parallelogram – b/c it has two sets of parallel and congruent sides.

  12. What special type of quadrilateral is EFGH? E ( 4 , -8 ) , F ( 7 , -3 ) , G ( 12 , -6 ) H ( 9 , -11 ) How do we do that? What do we need to know? 5 / 3 -3 / 5 5 / 3 -3 / 5 Length of AB = Length of BC = Length of CD = Length of AD = √34 √34 √34 √34 Slope of EF = Slope of FG = Slope of GH = Slope of EH = EFGH is a square – b/c it has two sets of parallel sides, all sides are congruent, and the slopes are negative reciprocals.

  13. What special type of quadrilateral is IJKL? I ( -9 , -9 ) , J ( -6 , -2 ) , K ( -3 , -9 ) L ( -6 , -16 ) How do we do that? What do we need to know? 7 / 3 -7 / 3 7 / 3 -7 / 3 Length of IJ = Length of JK = Length of KL = Length of IL = √58 √58 √58 √58 Slope of IJ = Slope of JK = Slope of KL = Slope of IL = IJKL is a rhombus– b/c it has two sets of parallel sides and all sides are congruent, Diagonals are perpendicular. Slope of IK = 0 and slope of JL is undefined.

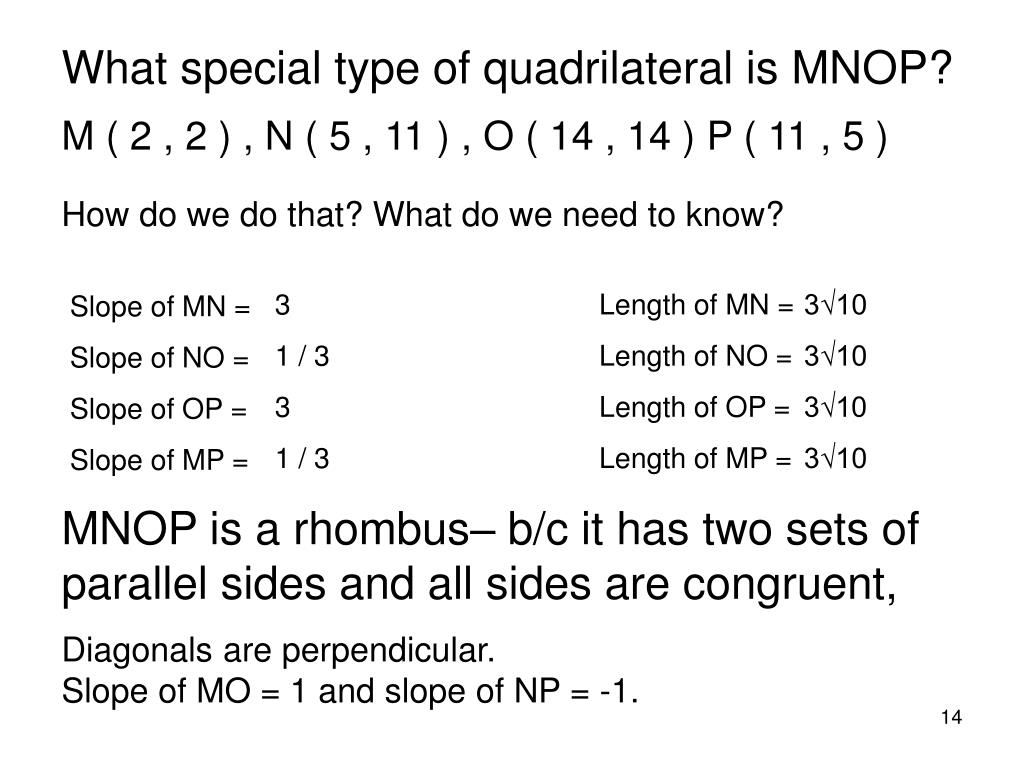

  14. What special type of quadrilateral is MNOP? M ( 2 , 2 ) , N ( 5 , 11 ) , O ( 14 , 14 ) P ( 11 , 5 ) How do we do that? What do we need to know? 3 1 / 3 3 1 / 3 Length of MN = Length of NO = Length of OP = Length of MP = 3√10 3√10 3√10 3√10 Slope of MN = Slope of NO = Slope of OP = Slope of MP = MNOP is a rhombus– b/c it has two sets of parallel sides and all sides are congruent, Diagonals are perpendicular. Slope of MO = 1 and slope of NP = -1.
