Introduction to Public Health/Communicable Diseases/Tuberculosis


An Old Disease – New Twists

A Continuing Public Health Challenge

Jane Moore, RN, MHSA

Director, TB Control & Prevention Program - VHD, 2013

Tuberculosis old disease

Tuberculosis – Old Disease

  • May have evolved from M bovis; acquired by humans from domesticated animals ~15,000 years ago

  • Endemic in humans when stable networks of 200-440 people established (villages) ~ 10,000 years ago; Epidemic in Europe after 1600 (cities)

  • 354-322 BC - Aristotle – “When one comes near consumptives… one does contract their disease… The reason is that the breath is bad and heavy…In approaching the consumptive, one breathes this pernicious air. One takes the disease because in this air there is something disease producing.”



  • 1882 – Robert Koch – “one seventh of all human beings die of tuberculosis and… if one considers only the productive middle-age groups, tuberculosis carries away one-third and often more of these…”

M tuberculosis as causative agent for tuberculosis

M tuberculosis as causative agent for tuberculosis

Robert Koch


Tb as a worldwide public health issue

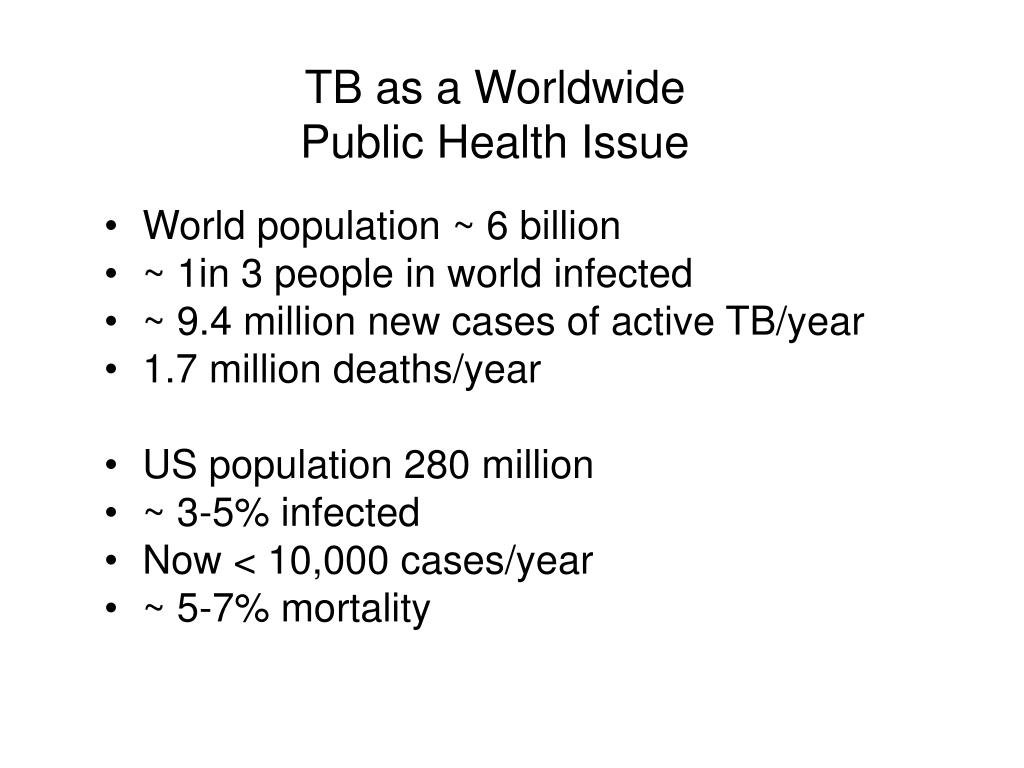

TB as a Worldwide Public Health Issue

  • World population ~ 6 billion

  • ~ 1in 3 people in world infected

  • ~ 9.4 million new cases of active TB/year

  • 1.7 million deaths/year

  • US population 280 million

  • ~ 3-5% infected

  • Now < 10,000 cases/year

  • ~ 5-7% mortality

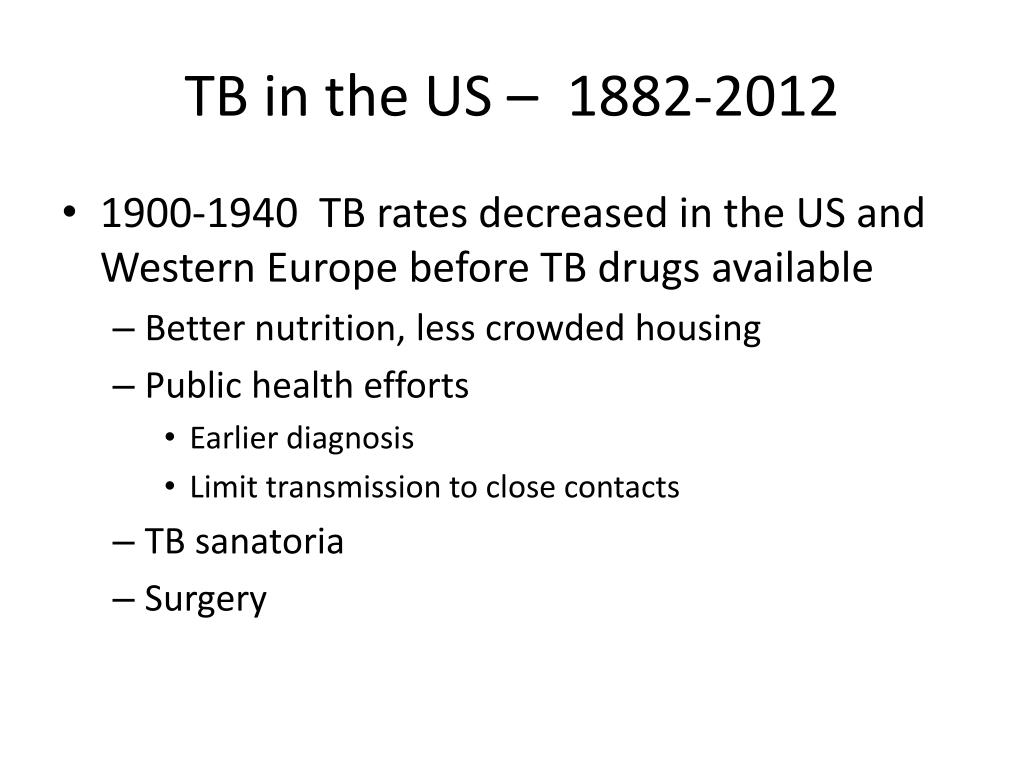

Tb in the us 1882 2012

TB in the US – 1882-2012

  • 1900-1940 TB rates decreased in the US and Western Europe before TB drugs available

    • Better nutrition, less crowded housing

    • Public health efforts

      • Earlier diagnosis

      • Limit transmission to close contacts

    • TB sanatoria

    • Surgery

Tb in the us 1882 20121

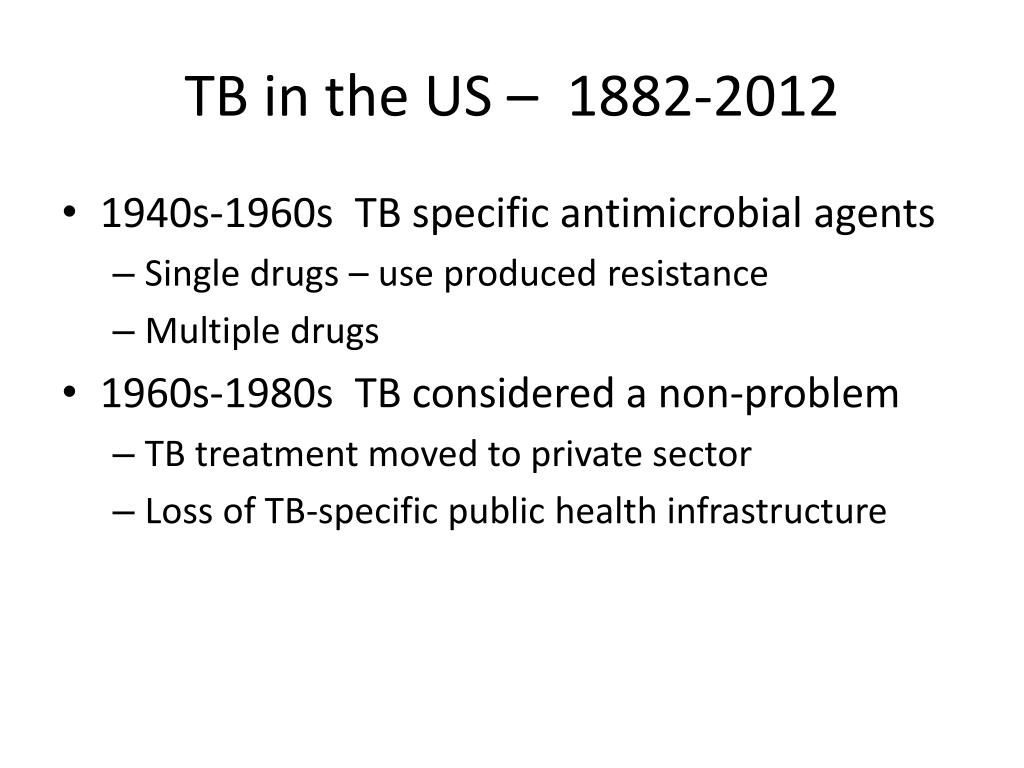

TB in the US – 1882-2012

  • 1940s-1960s TB specific antimicrobial agents

    • Single drugs – use produced resistance

    • Multiple drugs

  • 1960s-1980s TB considered a non-problem

    • TB treatment moved to private sector

    • Loss of TB-specific public health infrastructure

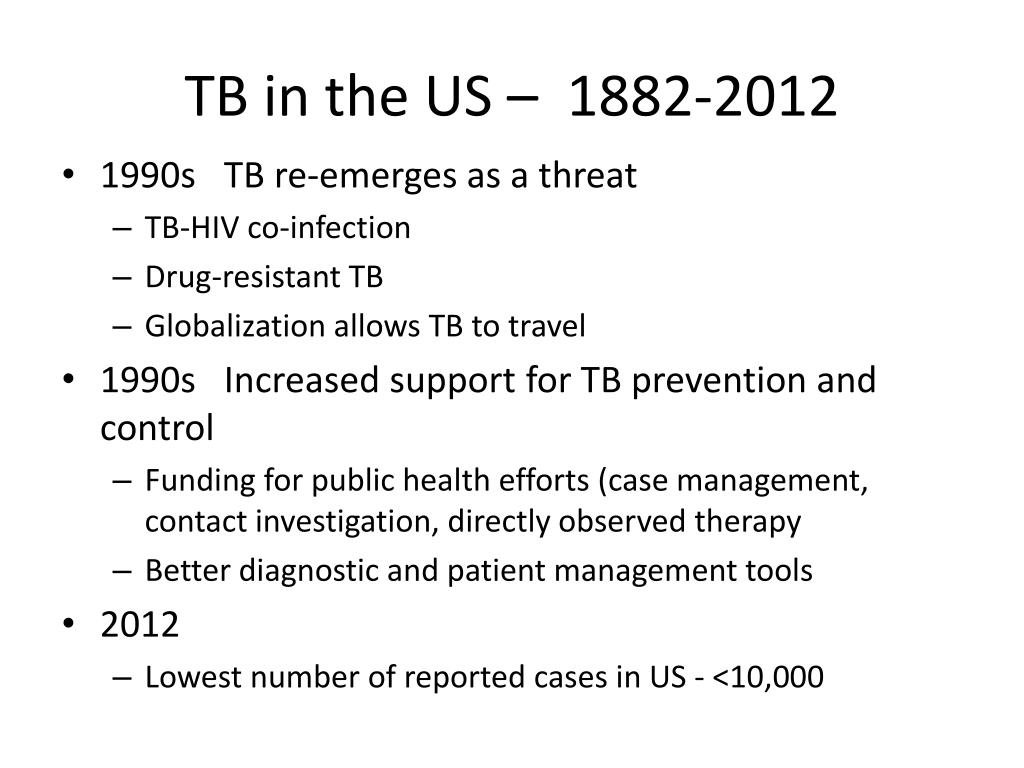

Tb in the us 1882 20122

TB in the US – 1882-2012

  • 1990s TB re-emerges as a threat

    • TB-HIV co-infection

    • Drug-resistant TB

    • Globalization allows TB to travel

  • 1990s Increased support for TB prevention and control

    • Funding for public health efforts (case management, contact investigation, directly observed therapy

    • Better diagnostic and patient management tools

  • 2012

    • Lowest number of reported cases in US - <10,000


TB Around the World

  • One-third of the world is infected with TB, an average of one new infection per second

  • Two million people died from tuberculosis in 2010, 1 every 20 seconds

  • TB is the leading killer of those with HIV

  • TB is the 2nd leading killer from an infectious disease


Global TB Incidence Rates *2011


Tb in virginia 1990 2012

TB in Virginia: 1990-2012


Virginia tb cases 2012

Virginia TB Cases - 2012

Race and Ethnicity

Place of Origin

Tb case rate per 100 000 va and us 2007 2012

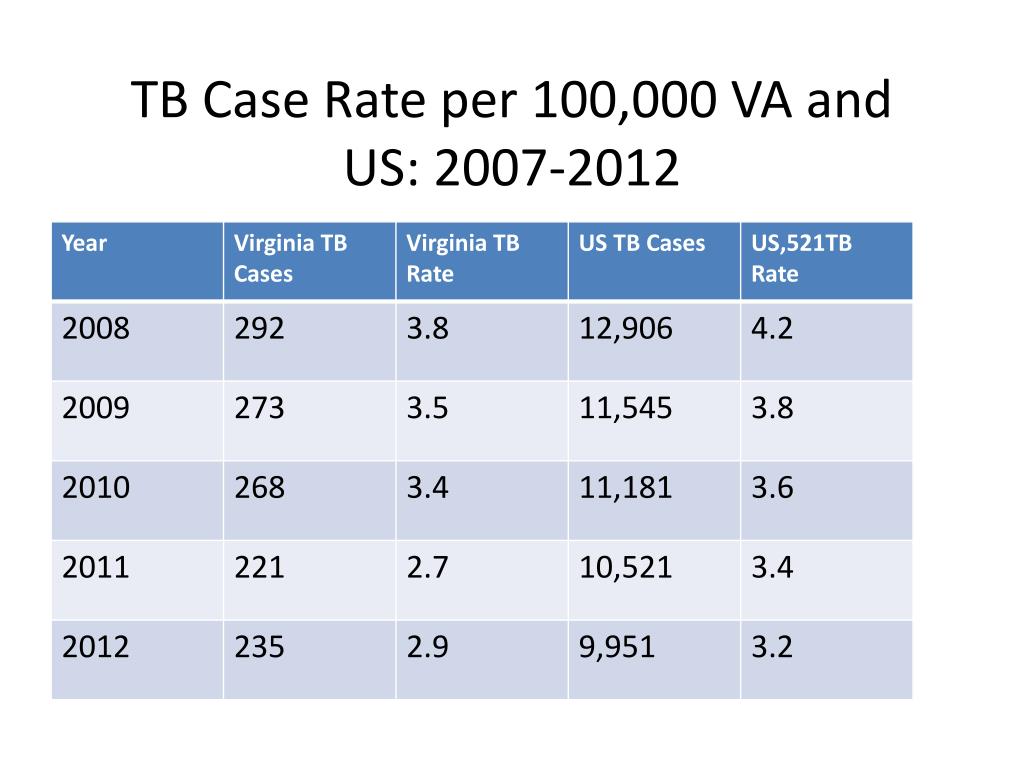

TB Case Rate per 100,000 VA and US: 2007-2012

Va tb cases by region 2007 2012

VA TB Cases by Region: 2007-2012

Tb airborne transmission

TB: Airborne Transmission

Tb invades infects the lung

TB Invades/Infects the Lung

Effective immune


Infection limited

to small area of lung

Immune response


Tb a multi system infection

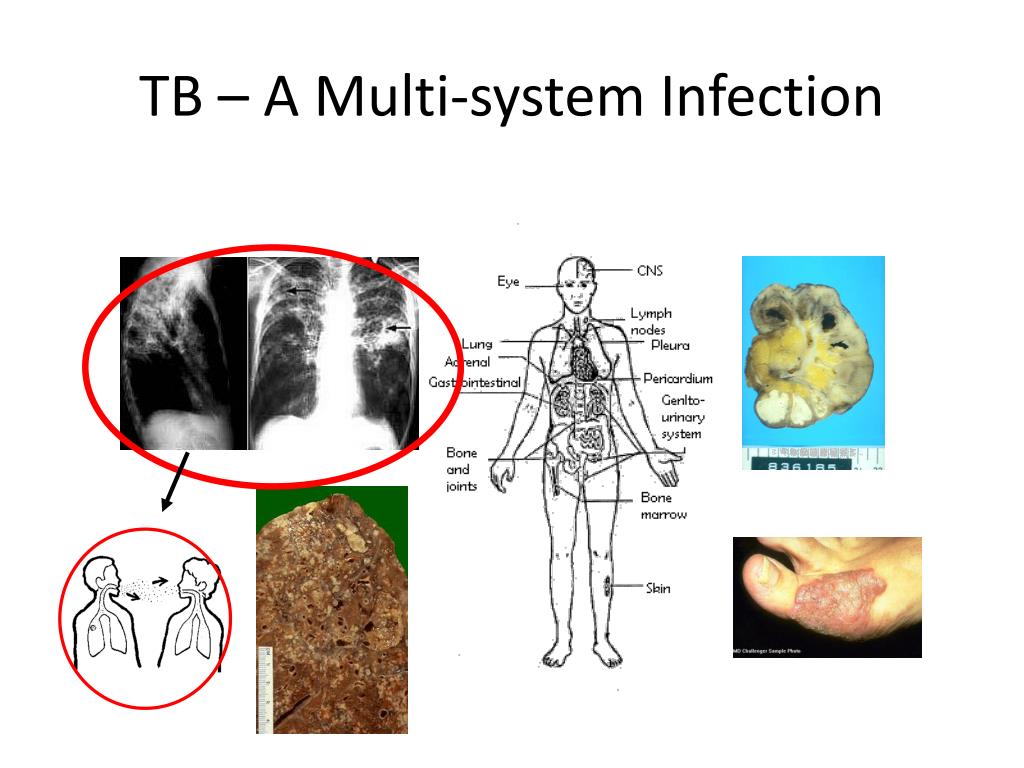

TB – A Multi-system Infection

Natural history of tb infection

Natural History of TB Infection

Exposure to TB

No infection




Latent TB


Active TB


Never develop

Active disease



Die within 2 years




Latent tb vs active tb

Latent TB vs. Active TB

Latent TB (LTBI) (Goal = prevent future active disease)

= TB Infection

= No Disease



Active TB (Goal = treat to cure, prevent transmission)

= TB Infection which has

progressed to TB Disease

= SICK (usually)





  • Most TB is curable, but…

    • Four or more drugs required for the simplest regimen

    • 6-9 or more months of treatment required

    • Person must be isolated until non-infectious

    • Directly observed therapy to assure adherence/completion recommended

    • Side effects and toxicity common

      • May prolong treatment

      • May prolong infectiousness

    • Other medical and psychosocial conditions complicate therapy

      • TB may be more severe

      • Drug-drug interactions common

Tb continues as a public health issue in the united states

TB – continues as a public health issue in the United States

  • Old public health concepts (isolation of infectious individuals, closely monitored treatment, recognition and preventive treatment for infected contacts,) are still critical, but will not eradicate TB

  • Care providers not familiar with signs/symptoms of TB

    • Diagnosis delayed

    • Inappropriate treatment

    • Drug resistance due to improper use of drugs

  • Must address both US born and newcomer populations

    • Older, remote exposure

    • Incarcerated, homeless, history of drug , alcohol use

    • Newcomers from high TB prevalence areas

Challenges to public health system

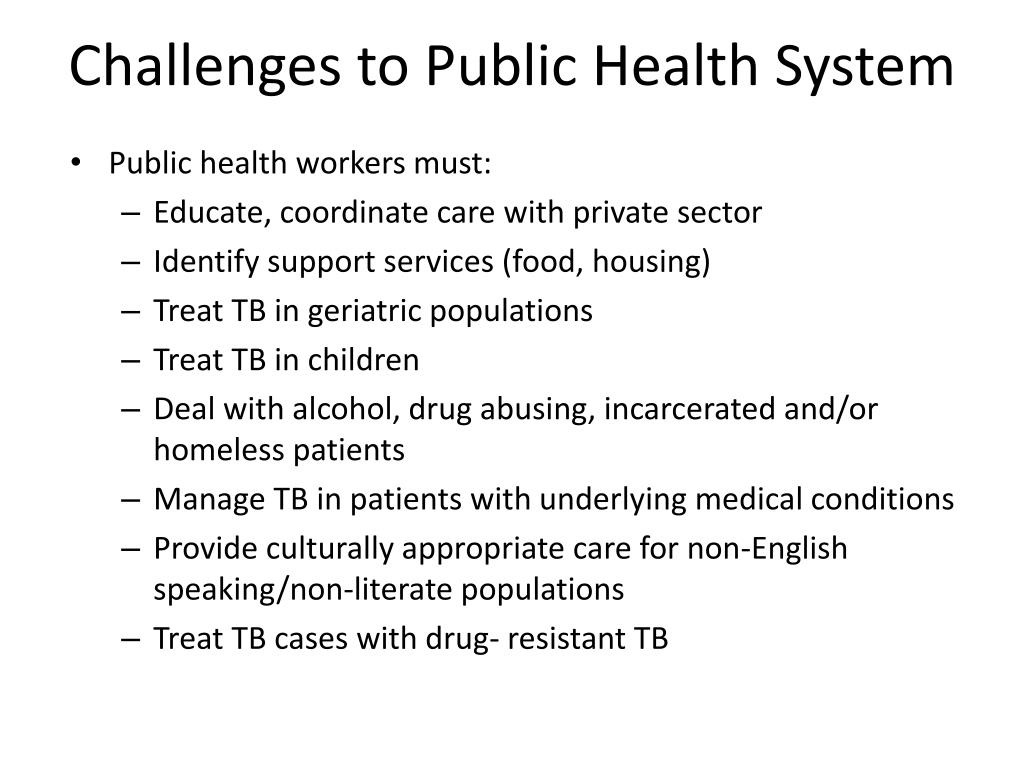

Challenges to Public Health System

  • Public health workers must:

    • Educate, coordinate care with private sector

    • Identify support services (food, housing)

    • Treat TB in geriatric populations

    • Treat TB in children

    • Deal with alcohol, drug abusing, incarcerated and/or homeless patients

    • Manage TB in patients with underlying medical conditions

    • Provide culturally appropriate care for non-English speaking/non-literate populations

    • Treat TB cases with drug- resistant TB

Addressing the challenges tb control in the us 2012

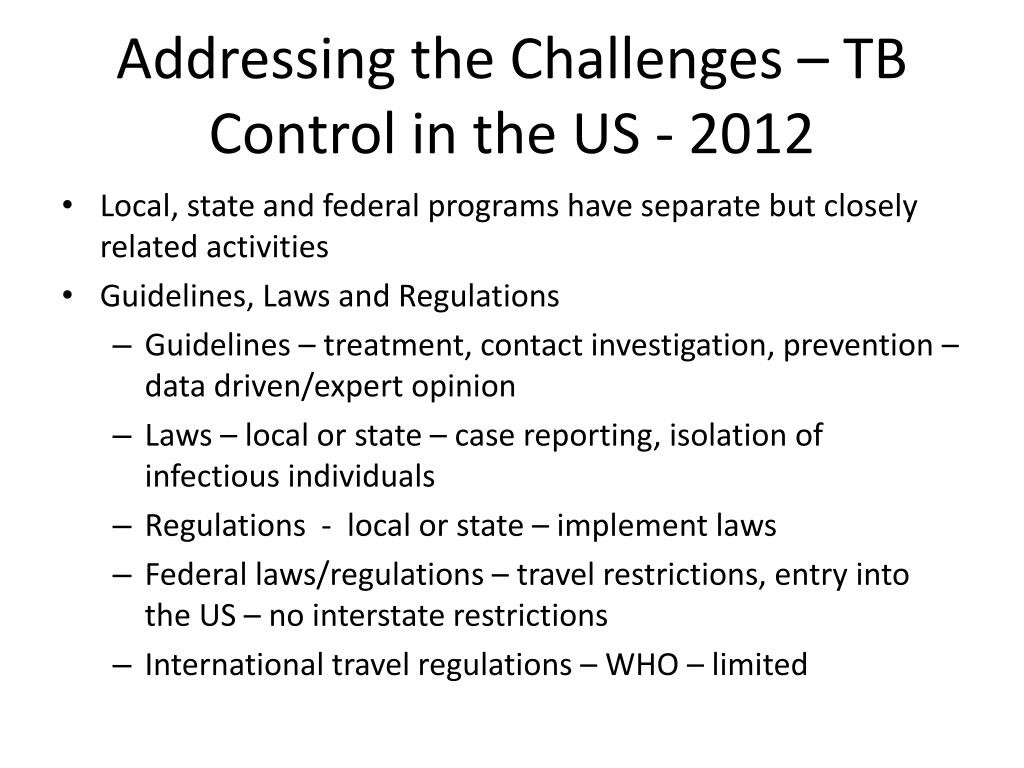

Addressing the Challenges – TB Control in the US - 2012

  • Local, state and federal programs have separate but closely related activities

  • Guidelines, Laws and Regulations

    • Guidelines – treatment, contact investigation, prevention – data driven/expert opinion

    • Laws – local or state – case reporting, isolation of infectious individuals

    • Regulations - local or state – implement laws

    • Federal laws/regulations – travel restrictions, entry into the US – no interstate restrictions

    • International travel regulations – WHO – limited


Elements of a Tuberculosis Control Program


Targeted testing/

LTBI treatment




Inpatient care

Medical evaluation

and follow-up


Non-TB medical




HIV testing and





Occupational health,

school, jail, shelter,

LTCF screening



Data collection

Coordination of

medical care



and Surveillance










Data analysis



evaluation &





of contacts

QA, QI for case


Consultation on

difficult cases

Data for local, state, national

surveillance reports


Federal TB

Control Program

State TB Control Program


State statutes,


policies, guidelines

Information for public


National surveillance


Technical assistance



Jan 2007

Vdh tb prevention and control policies and procedures

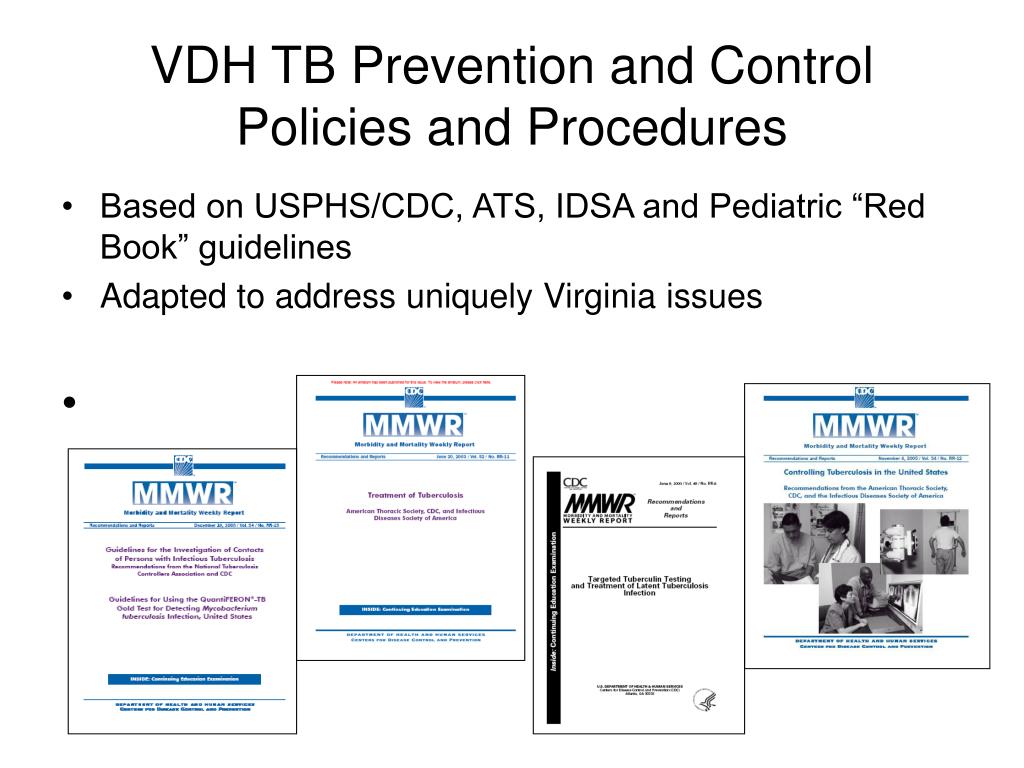

VDH TB Prevention and Control Policies and Procedures

  • Based on USPHS/CDC, ATS, IDSA and Pediatric “Red Book” guidelines

  • Adapted to address uniquely Virginia issues

Ddp tb prevention and control activities

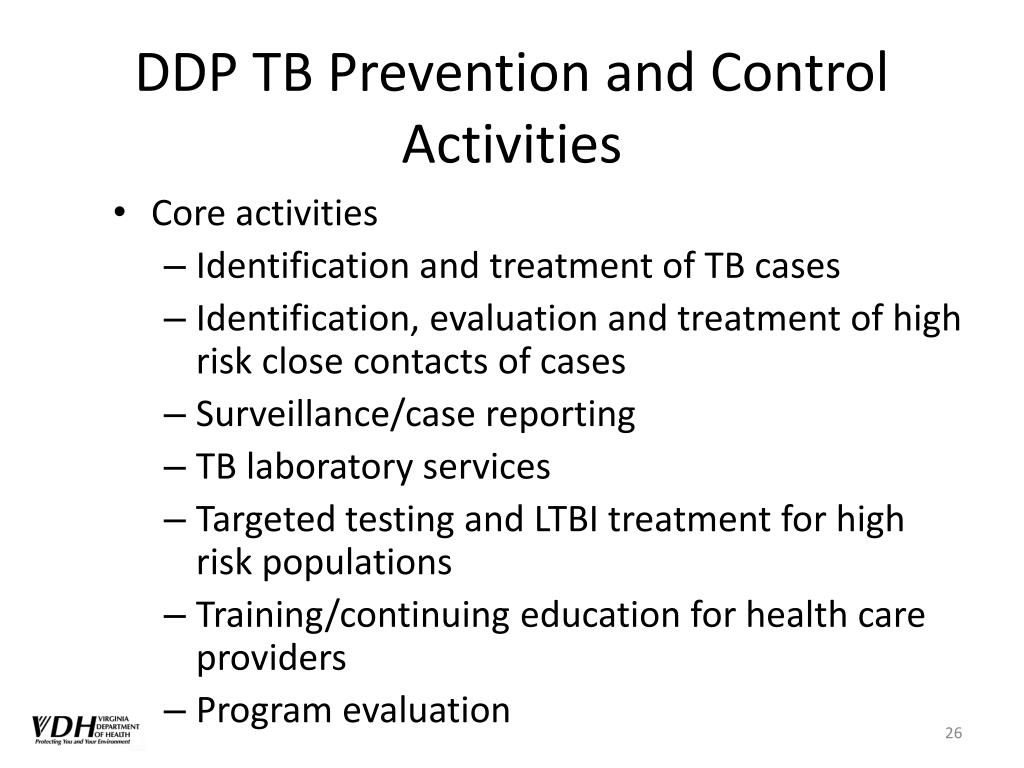

DDP TB Prevention and Control Activities

  • Core activities

    • Identification and treatment of TB cases

    • Identification, evaluation and treatment of high risk close contacts of cases

    • Surveillance/case reporting

    • TB laboratory services

    • Targeted testing and LTBI treatment for high risk populations

    • Training/continuing education for health care providers

    • Program evaluation

Tb control provided funding for tb related activities at local health departments

TB Control provided funding for TB-related activities at Local Health Departments

  • PHN/ORW/Epi Reps (VDH/DDP employees and contracts)

  • TB clinic physicians (contracts)

  • Chest x-rays and laboratory tests

  • TB medications for uninsured case patients

  • Incentives and enablers

  • Training for HDs, PHNs, ORW

Services directly provided by central office richmond

Services directly provided by Central Office (Richmond)

  • Case reporting, surveillance activities

    • Site visits to review case records, collect data

    • Data entry/management/analysis/reports

    • Feedback to local health departments

    • Data for national TB surveillance system

    • Information for local/state/federal government officials

Services directly provided by central office

Services directly provided by Central Office

  • Technical support/consultation

    • Case management

    • Contact investigations

    • Expert clinical consultation available through partnerships with EVMS and UVA

    • Case review conferences (QA, QI)

    • TB prevention/control in congregate living facilities, health care facilities

Services provided by central office

Services provided by Central Office

  • Educational activities for public and private sector HCPs, patients and the public

    • VDH conferences for public health workers

    • Speakers at private sector HCP meetings

    • Distribution of guidelines

    • Website

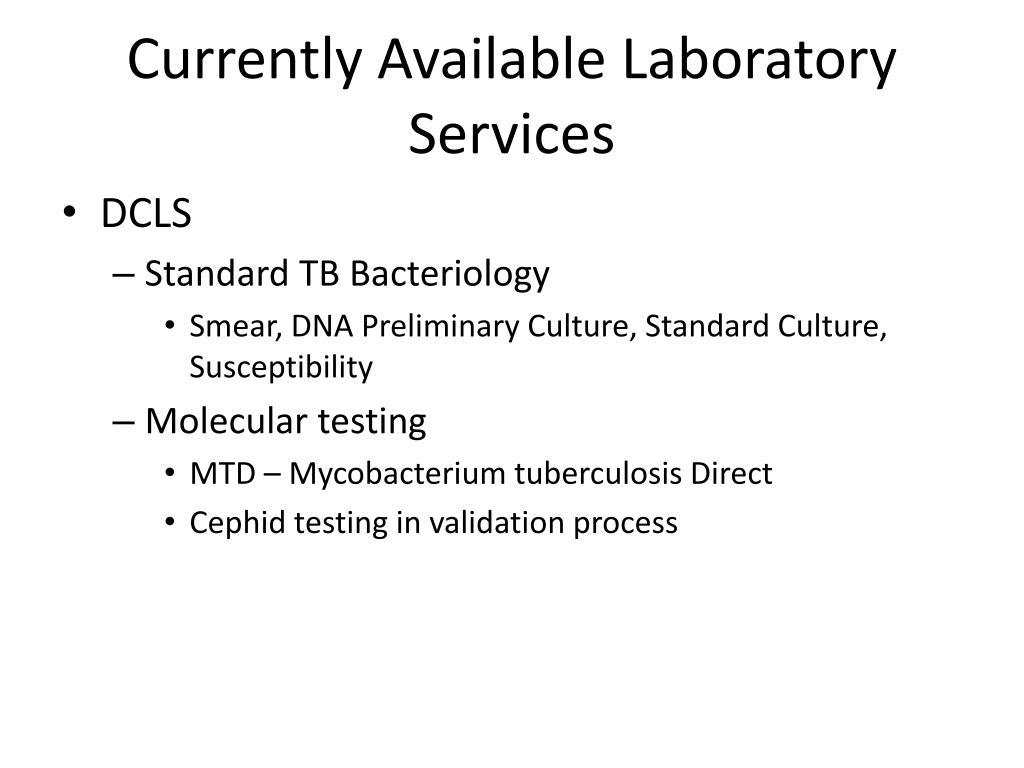

Currently available laboratory services

Currently Available Laboratory Services

  • DCLS

    • Standard TB Bacteriology

      • Smear, DNA Preliminary Culture, Standard Culture, Susceptibility

    • Molecular testing

      • MTD – Mycobacterium tuberculosis Direct

      • Cephid testing in validation process

Currently available laboratory services1

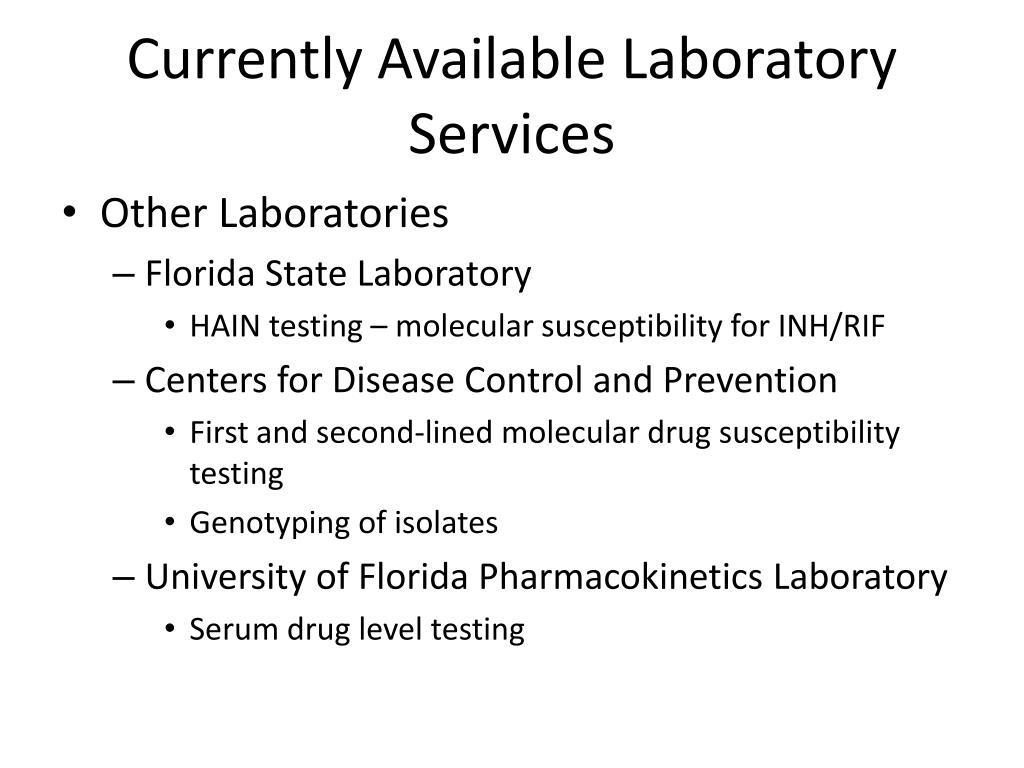

Currently Available Laboratory Services

  • Other Laboratories

    • Florida State Laboratory

      • HAIN testing – molecular susceptibility for INH/RIF

    • Centers for Disease Control and Prevention

      • First and second-lined molecular drug susceptibility testing

      • Genotyping of isolates

    • University of Florida Pharmacokinetics Laboratory

      • Serum drug level testing

Current programmatic initiatives

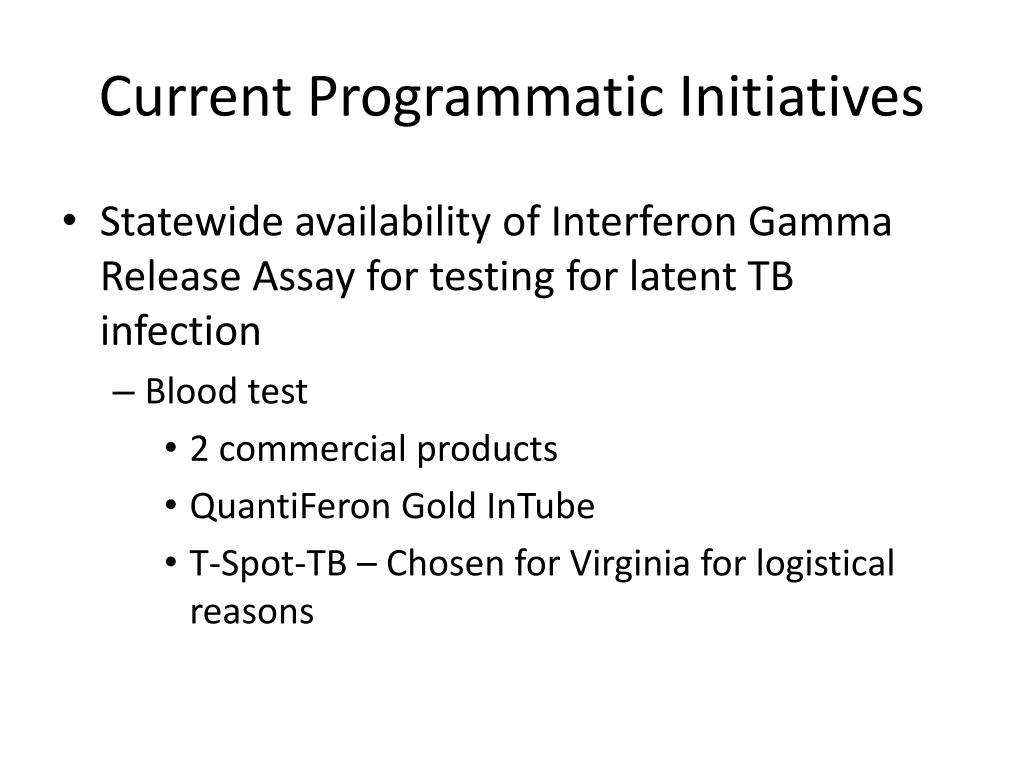

Current Programmatic Initiatives

  • Statewide availability of Interferon Gamma Release Assay for testing for latent TB infection

    • Blood test

      • 2 commercial products

      • QuantiFeron Gold InTube

      • T-Spot-TB – Chosen for Virginia for logistical reasons

Current programmatic initiatives1

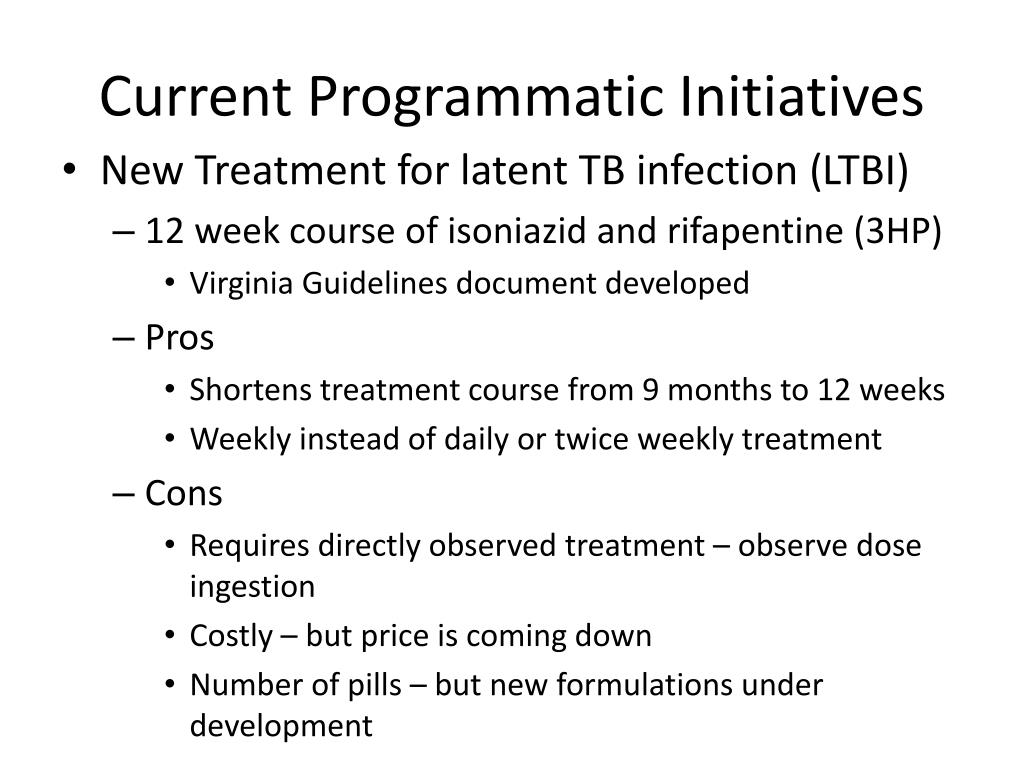

Current Programmatic Initiatives

  • New Treatment for latent TB infection (LTBI)

    • 12 week course of isoniazid and rifapentine (3HP)

      • Virginia Guidelines document developed

    • Pros

      • Shortens treatment course from 9 months to 12 weeks

      • Weekly instead of daily or twice weekly treatment

    • Cons

      • Requires directly observed treatment – observe dose ingestion

      • Costly – but price is coming down

      • Number of pills – but new formulations under development

Current programmatic initiatives2

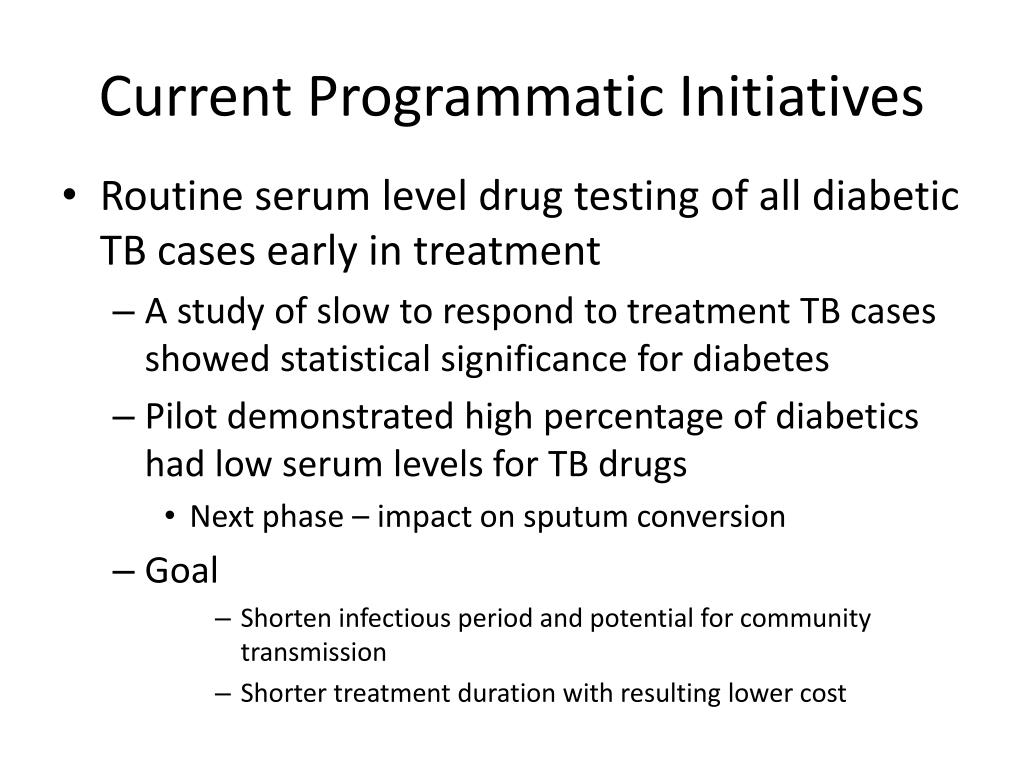

Current Programmatic Initiatives

  • Routine serum level drug testing of all diabetic TB cases early in treatment

    • A study of slow to respond to treatment TB cases showed statistical significance for diabetes

    • Pilot demonstrated high percentage of diabetics had low serum levels for TB drugs

      • Next phase – impact on sputum conversion

    • Goal

      • Shorten infectious period and potential for community transmission

      • Shorter treatment duration with resulting lower cost

Programmatic initiatives

Programmatic Initiatives

  • Increased focus on contact investigation activities

    • Monitoring ongoing evaluation of contacts, especially children and immunocompromised contacts

    • Monitoring treatment of infected contacts

Programmatic initiatives1

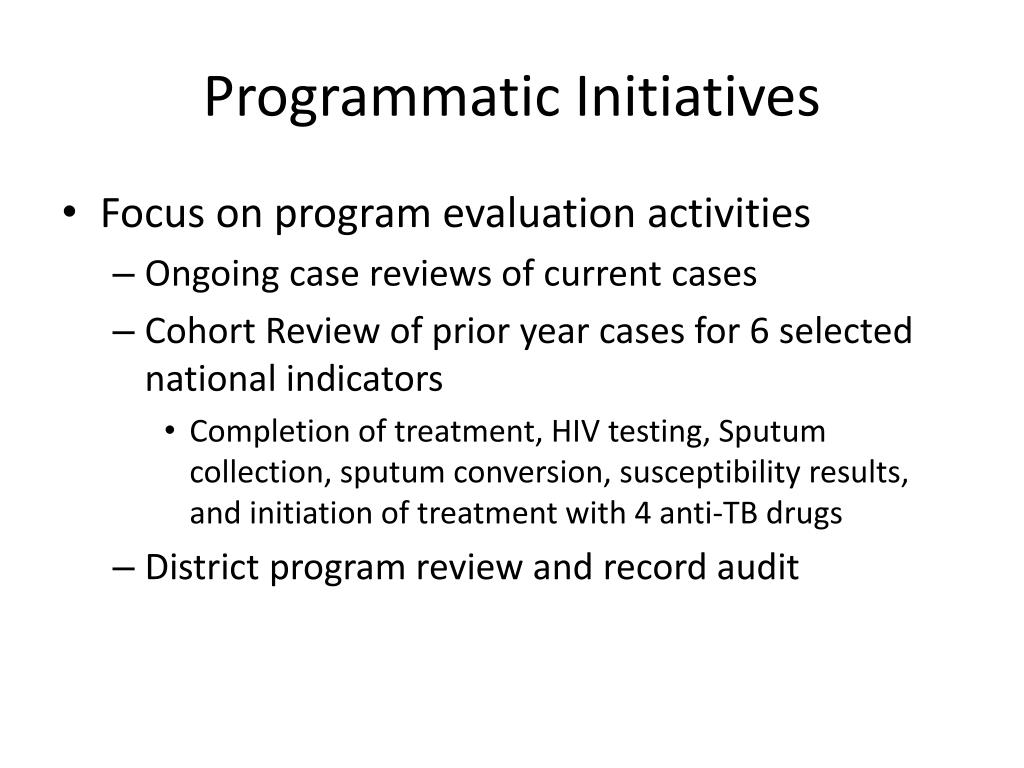

Programmatic Initiatives

  • Focus on program evaluation activities

    • Ongoing case reviews of current cases

    • Cohort Review of prior year cases for 6 selected national indicators

      • Completion of treatment, HIV testing, Sputum collection, sputum conversion, susceptibility results, and initiation of treatment with 4 anti-TB drugs

    • District program review and record audit

Current needs for tb in the us

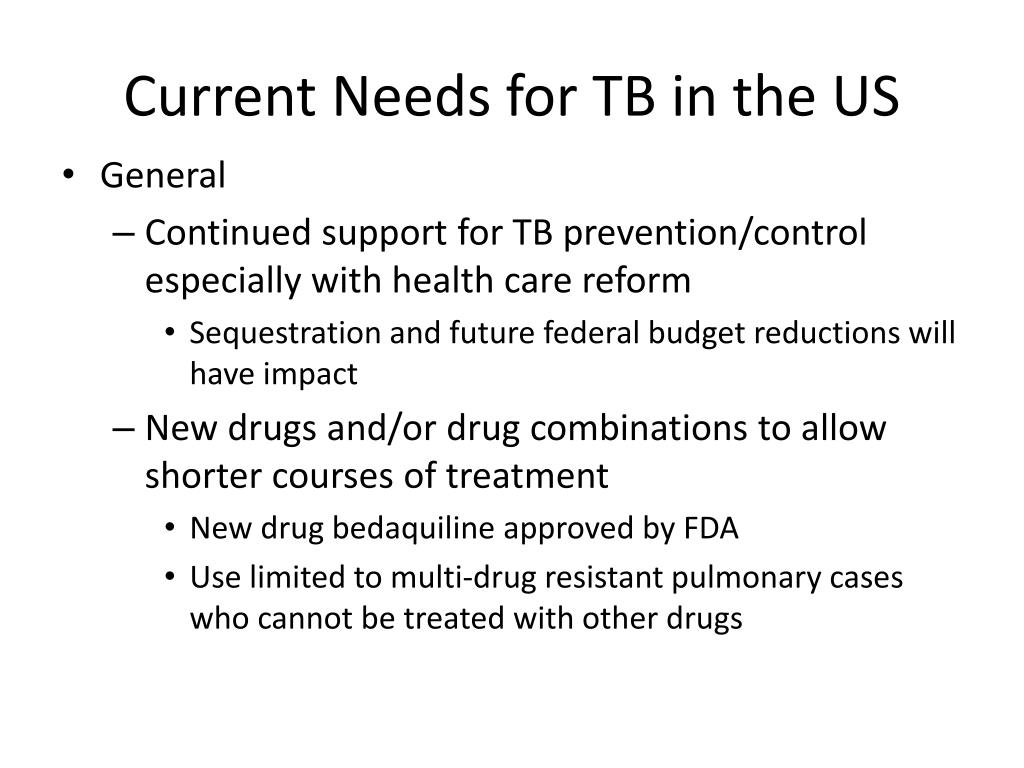

Current Needs for TB in the US

  • General

    • Continued support for TB prevention/control especially with health care reform

      • Sequestration and future federal budget reductions will have impact

    • New drugs and/or drug combinations to allow shorter courses of treatment

      • New drug bedaquiline approved by FDA

      • Use limited to multi-drug resistant pulmonary cases who cannot be treated with other drugs

Current needs for tb in the us1

Current Needs for TB in the US

  • Shorter, simpler, less expensive treatment regimens

  • Vaccine (beyond BCG)

    • Still waiting

  • Support for global TB prevention and control activities

    • Federal funding reductions for global TB activities

Current needs for tb in the us2

Current Needs for TB in the US

  • Reliable access to anti-tuberculosis drugs

    • Isoniazid – ongoing national shortage since Fall 2012

      • Use in Virginia now limited to certain persons

    • PPD Solution – not a diagnostic – classified as a Schedule VI drug in Virginia

      • Started as national shortage of Tubersol, now spread to alternative product , Aplisol

    • Multiple injectible agents used for drug resistant TB in short supply

      • National shortage for several years

Assessing the impact

Assessing the Impact

  • TB currently at lowest number and rate for both US and Virginia since records kept

    • Current drug shortages have the potential to hamper further progress in TB control and elimination

    • Priority on identifying and treating contacts to known cases

      • Using T-Spot.TB for testing contacts > age 12, skin test for younger children

      • Using isoniazid and rifapentine to treat contacts

        • Isoniazid sparing regimen

      • Others at high risk – testing & treatment deferred

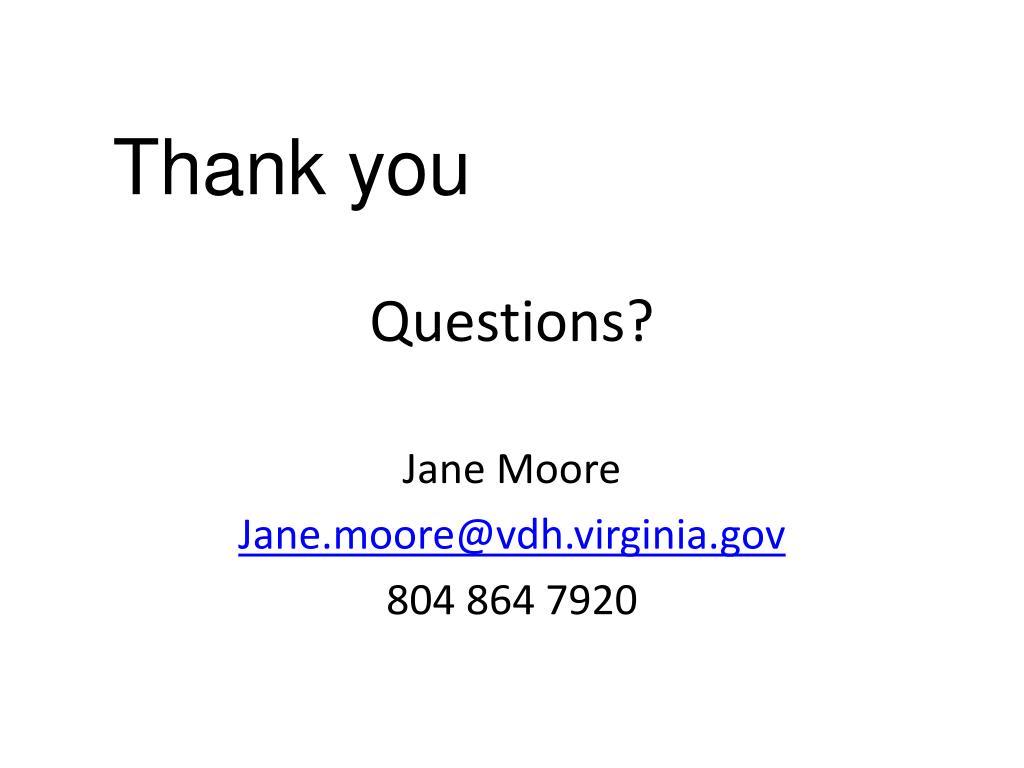

Thank you


Jane Moore

[email protected]

804 864 7920

  • Login
