Background knowledge magnetic field
Background knowledge Magnetic field

  • Magnetic field can be produced by a magnet or a current-carrying conductor.


Magnetic field lines

Neutral point

  • N S

x

N N

Magnetic field lines

  • Magnetic field lines are used to show the strength and direction of a magnetic field.

Note:

1. Field lines run from the N-pole round to the S-pole.

2. When field lines are closely-spaced, field is strong and vice-versa.


Example 1 a

S N

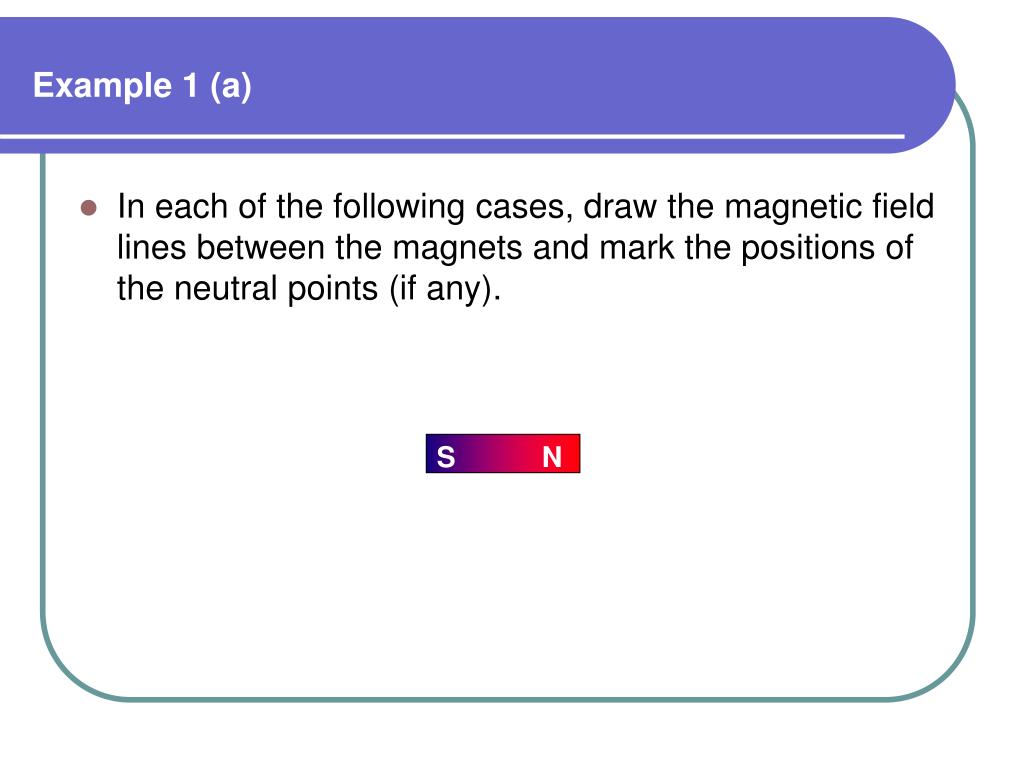

Example 1 (a)

  • In each of the following cases, draw the magnetic field lines between the magnets and mark the positions of the neutral points (if any).


Example 1 b

N

S

Example 1 (b)

  • In each of the following cases, draw the magnetic field lines between the magnets and mark the positions of the neutral points (if any).


Example 1 c

S

S

Example 1 (c)

  • In each of the following cases, draw the magnetic field lines between the magnets and mark the positions of the neutral points (if any).


Example 1 d
Example 1 (d)

  • In each of the following cases, draw the magnetic field lines between the magnets and mark the positions of the neutral points (if any).


Earth s magnetic field
Earth’s magnetic field

  • The Earth has a weak magnetic field. It is so weak that it does not affect much the field patterns of permanent magnet.

  • It is rather like the field around a huge bar magnet.

  • The south pole of the ‘earth magnet’ is actually in the north.


Earth s magnetic field1

BV

B

N

a

BH

ground

Earth’s magnetic field

  • It is convenient to resolve the earth’s field strength B into horizontal and vertical component, BH and BV respectively.

We have BH = Bcos a and BV = Bsin a.

Compass needles, whose motion is confined to a horizontal plane, are affected by BH only.


Fleming s left hand rule

F

Magnetic force

current

B

I

Fleming’s left-hand rule

  • F: force

  • B: magnetic field

  • I: current


Factors affecting magnetic force

F

Magnetic force

current

B

I

Factors affecting magnetic force

  • B: magnetic field

  • I: current

  • l: length of conductor in B-field


Current balance
Current balance

  • magnetic force F acting upwards

  • weight of the rider is equal to the magnetic force when the frame PQRS is balanced.


Magnetic force and current

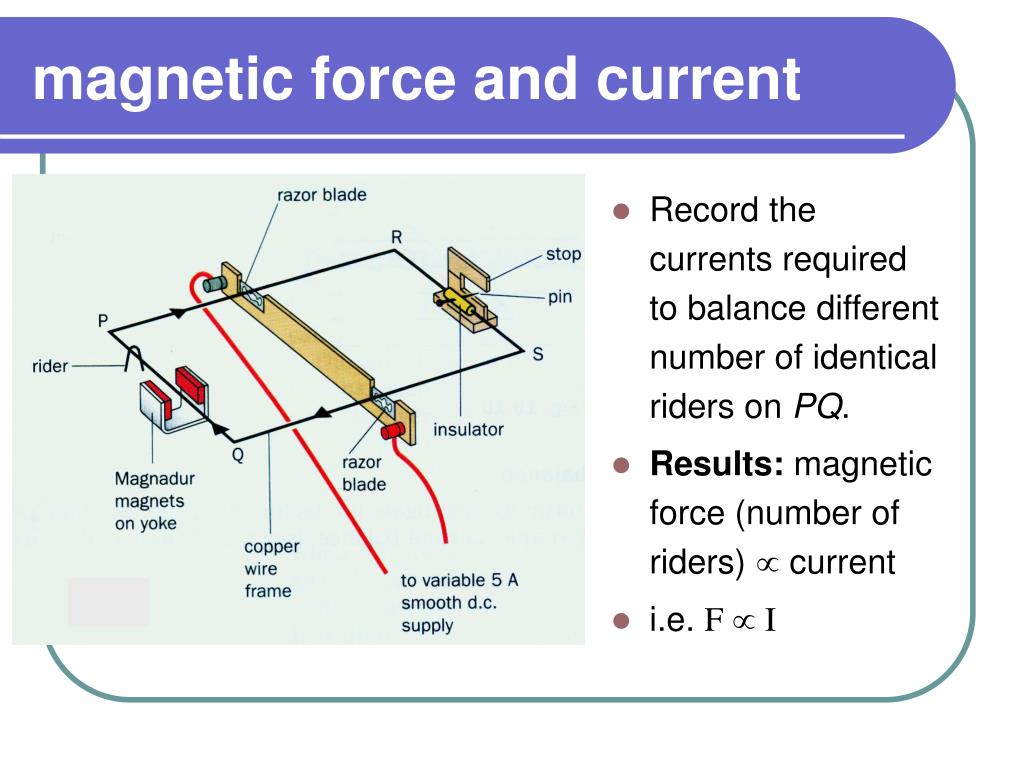

magnetic force and current

  • Record the currents required to balance different number of identical riders on PQ.

  • Results: magnetic force (number of riders)  current

  • i.e. F  I


Magnetic force and length
magnetic force and length

  • Keep the current through PQ constant.

  • Record the number of riders required to balance the metal frame when one, two and three pairs of equally strong magnadur magnets are used as shown.

  • Results:

    The magnetic force (number of riders)  length of conductor (number of pairs of magnadur magnets)

    i.e. F l


Magnetic force and magnetic field
magnetic force and magnetic field

  • Replace the magnadur magnets by a coil of many turns (for example 1100 turns) as shown below.

  • Hence, the magnetic field is provided from the coil and the magnetic field can be increased by increasing the coil current.

  • Keep the current through PQ constant.

  • Record the coil currents required to balance different number of identical riders on PQ.

  • Results:

    The magnetic force (number of riders)  magnetic field (coil current)

    i.e. F B


Conclusion
Conclusion

  • The magnetic force is increased if

    • the current is increased, (F I)

    • the magnetic field is increased, (F B)

    • there is a greater length of wire inside the magnetic field. (F l)


Precautions of using current balance

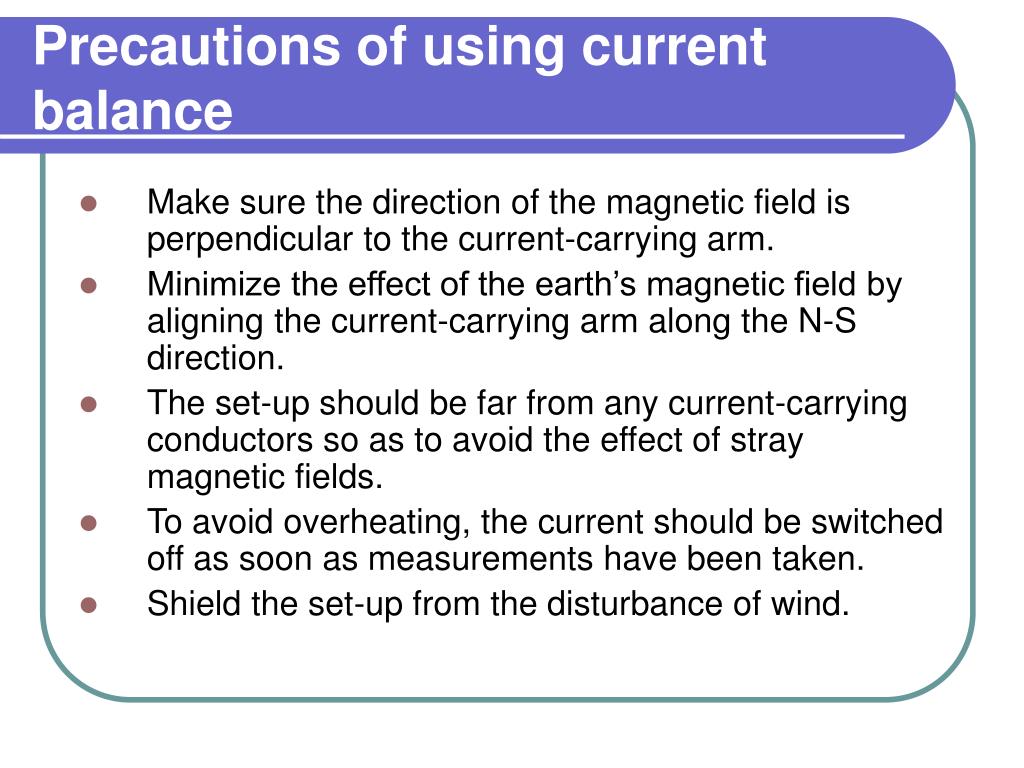

Precautions of using current balance

  • Make sure the direction of the magnetic field is perpendicular to the current-carrying arm.

  • Minimize the effect of the earth’s magnetic field by aligning the current-carrying arm along the N-S direction.

  • The set-up should be far from any current-carrying conductors so as to avoid the effect of stray magnetic fields.

  • To avoid overheating, the current should be switched off as soon as measurements have been taken.

  • Shield the set-up from the disturbance of wind.

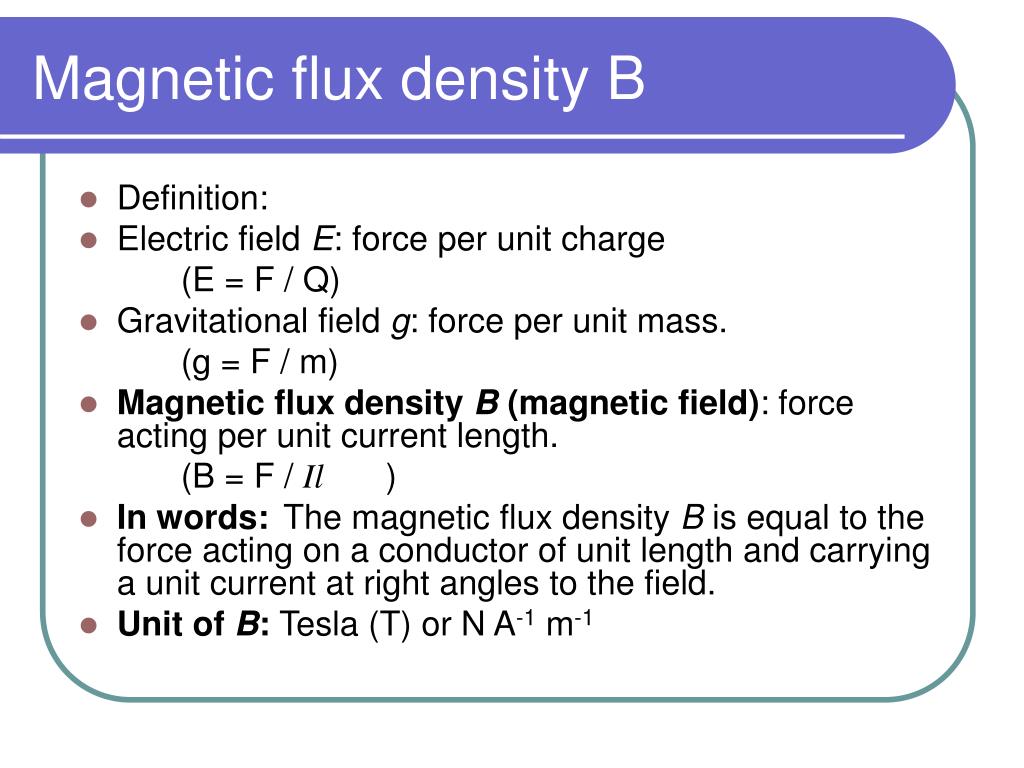

Magnetic flux density b
Magnetic flux density B

  • Definition:

  • Electric field E: force per unit charge

    (E = F / Q)

  • Gravitational field g: force per unit mass.

    (g = F / m)

  • Magnetic flux density B (magnetic field): force acting per unit current length.

    (B = F / Il )

  • In words: The magnetic flux density B is equal to the force acting on a conductor of unit length and carrying a unit current at right angles to the field.

  • Unit of B: Tesla (T) or N A-1 m-1



Magnetic force on a current carrying conductor

I sin q

I

l

B

I cos q

q

Magnetic force on a current-carrying conductor

  • From definition: B = F/Il

  • F = BIl

  • If the conductor and field are not at right angles, but make an angle q with one another, the expression becomes

    F = BIl sin q.

  • Note that:

    1. when q = 90o (conductor ⊥ field), F = BIl.

    2. when q = 0o (conductor // field), F = 0.

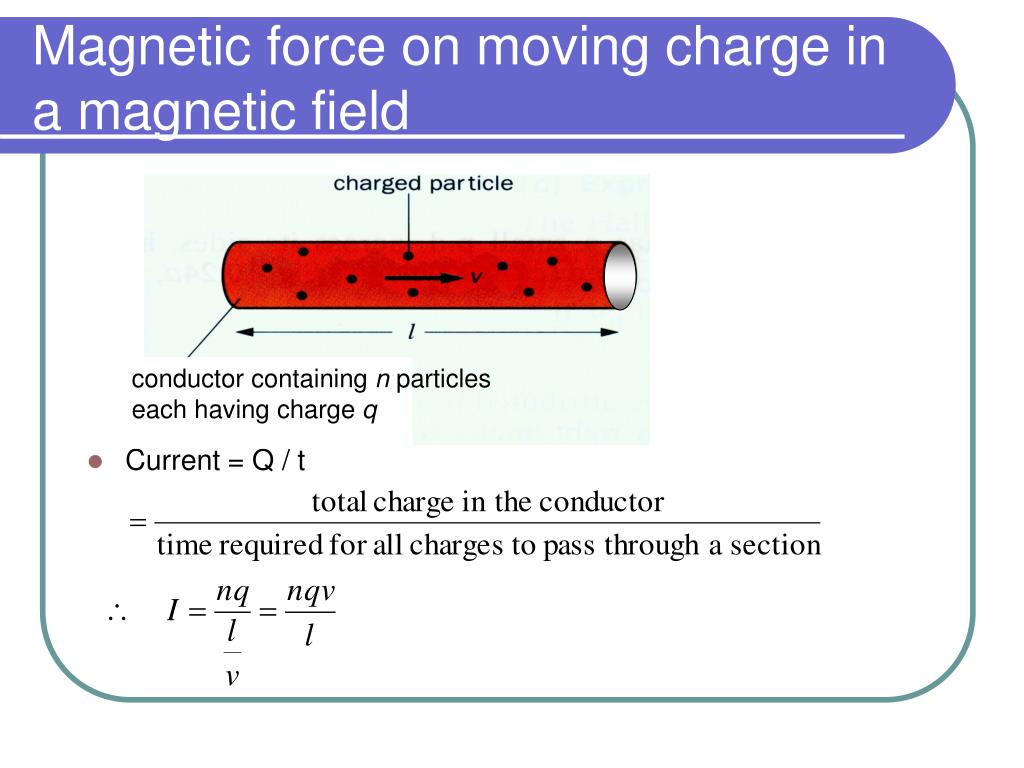

Magnetic force on moving charge in a magnetic field

conductor containing n particles each having charge q

Magnetic force on moving charge in a magnetic field

  • Current = Q / t


Magnetic force on moving charge in a magnetic field1

conductor containing n particles each having charge q

Magnetic force on moving charge in a magnetic field

  • Magnetic force acting on each moving charge

  • If the conductor makes an angle q with the magnetic field,

  • F = Bqv sinq


Motion of a charged particle in a magnetic field

Magnetic field B

+q

v

Motion of a charged particle in a magnetic field

  • 1 Moving parallel to the field

  • When a charged particle moves parallel to the magnetic field, i.e. q = 0o, there is no force acting on it. Its velocity remains unchanged and its path is a straight line.


2 moving perpendicular to the field

Circular path of motion of +q

uniform magnetic field B

uniform magnetic field B

+q

+q

2 Moving perpendicular to the field

  • Radius of circular path


2 moving perpendicular to the field1

Circular path of motion of +q

uniform magnetic field B

uniform magnetic field B

+q

+q

2 Moving perpendicular to the field

  • Period of circular motion


2 moving perpendicular to the field2

Circular path of motion of +q

uniform magnetic field B

uniform magnetic field B

+q

+q

2 Moving perpendicular to the field

  • Notes:

  • The magnetic force is always perpendicular to the motion of the charged particle; no work is done by the magnetic field.

  • Kinetic energy of the charged particle remains constant.


Example 2
Example 2

  • The path of an electron in a uniform magnetic field of flux density 0.01 T in a vacuum is a circle of radius 0.05 m. Given that the charge and mass of an electron are -1.6 x 10-19 C and 9.1 x 10-31 kg respectively. Find

    (a) the speed and

    (b) the period of its orbit.

  • Solution:


Current balance1

d1

d2

rider

Magnetic force

BIl

mechanical force

mg

Current balance

  • To measure steady magnetic field by using principle of moment.

  • Clockwise moment = anti-clockwise moment

  • mgd2 = BIld1

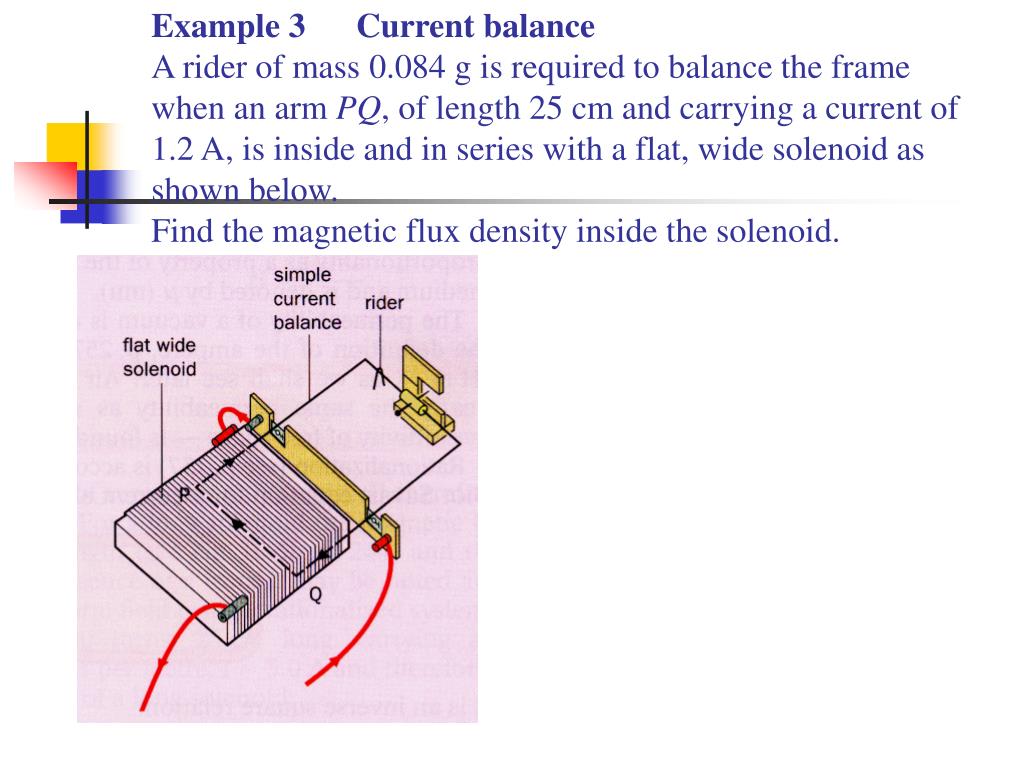

Example 3 Current balanceA rider of mass 0.084 g is required to balance the frame when an arm PQ, of length 25 cm and carrying a current of 1.2 A, is inside and in series with a flat, wide solenoid as shown below.Find the magnetic flux density inside the solenoid.


Search coil and cro
Search coil and CRO

  • A search coil is only used in measuring a varying magnetic field.

  • A typical search coil consists of 5000 turns of wire and an external diameter d ≤ 1.5 cm so that it samples the field over a small area.

  • The search coil is placed with its plane perpendicular to a varying magnetic field.


Search coil and cro1
Search coil and CRO

  • Due to the change of magnetic flux, an e.m.f., which is induced in the search coil, can be measured by a CRO.

  • The induced e.m.f. E is proportional to the flux density B and the frequency f of the varying magnetic field. i.e. E  Bf

  • The earth’s magnetic field can be ignored because it is a steady field.


Cathode-ray oscilloscope (CRO)

  • The CRO is a perfect voltmeter as its resistance is very high. It can measure both d.c. and a.c. voltages and show how they vary with time.

simulation

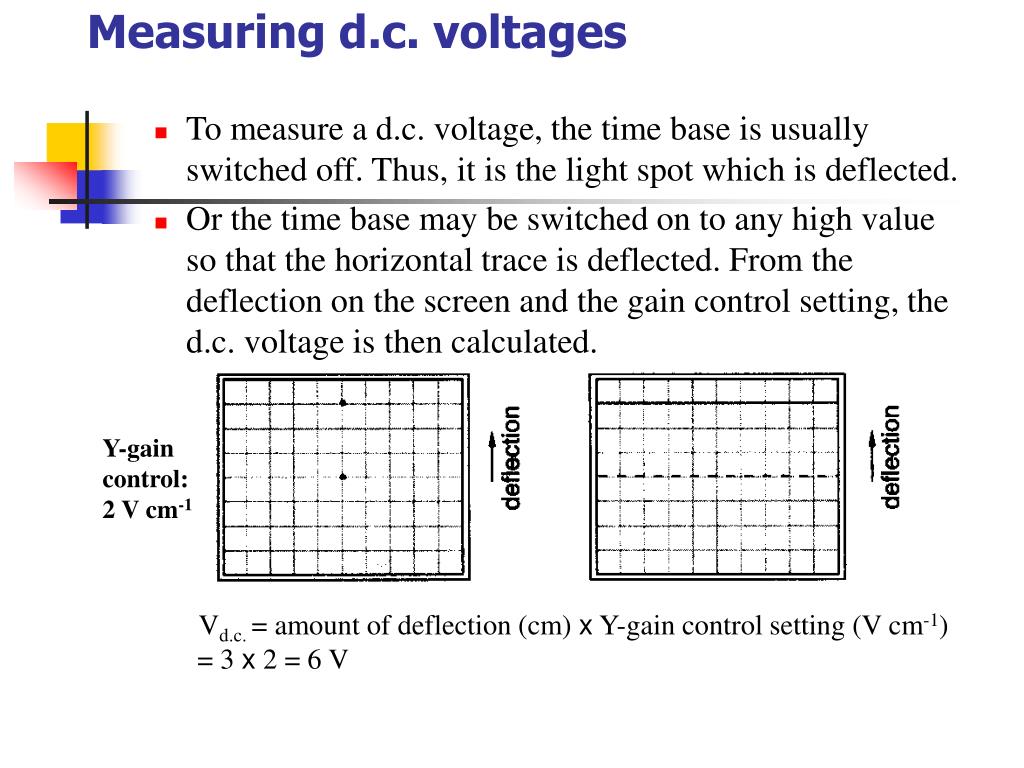

Measuring d c voltages
Measuring d.c. voltages

  • To measure a d.c. voltage, the time base is usually switched off. Thus, it is the light spot which is deflected.

  • Or the time base may be switched on to any high value so that the horizontal trace is deflected. From the deflection on the screen and the gain control setting, the d.c. voltage is then calculated.

Y-gain control:

2 V cm-1

  • Vd.c. = amount of deflection (cm) x Y-gain control setting (V cm-1)

  • = 3 x 2 = 6 V


  • Measuring a c voltages
    Measuring a.c. voltages

    • To measure an a.c. voltage, the time base is usually switched off. The waveform displayed becomes a vertical trace so that the amplitude can be easily read on the screen. The maximum voltage or peak voltage is then calculated from the gain control setting. Note that the peak voltage refers to half the length of the vertical trace.

    Y-gain control:

    5 V cm-1

    Time base setting:

    10 ms cm-1

    Peak voltage =

    Period =

    Frequency =


    1 cm

    1 cm

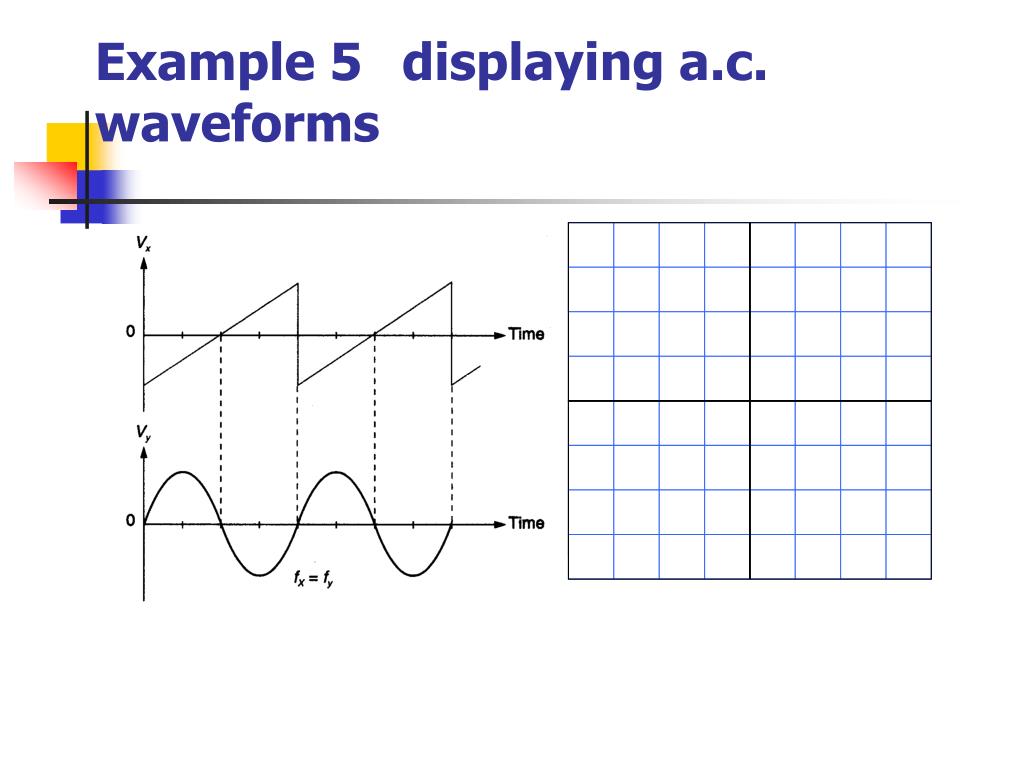

    Example 4 CRO waveformThe figure below shows a waveform on a screen.(a) If the controls on the CRO are set at 0.5 V cm-1 and 2 ms cm-1, (i) the peak voltage, and (ii) the frequency of the input signal.Solution:


    1 cm

    1 cm

    Example 4 CRO waveformThe figure below shows a waveform on a screen.(b) If the gain control is changed to 1 V cm-1, sketch the trace on the figure.Solution:


    1 cm

    1 cm

    Example 4 CRO waveformThe figure below shows a waveform on a screen. (c) If the time base control is changed to 5 ms cm-1, sketch the trace on the figure.Solution:

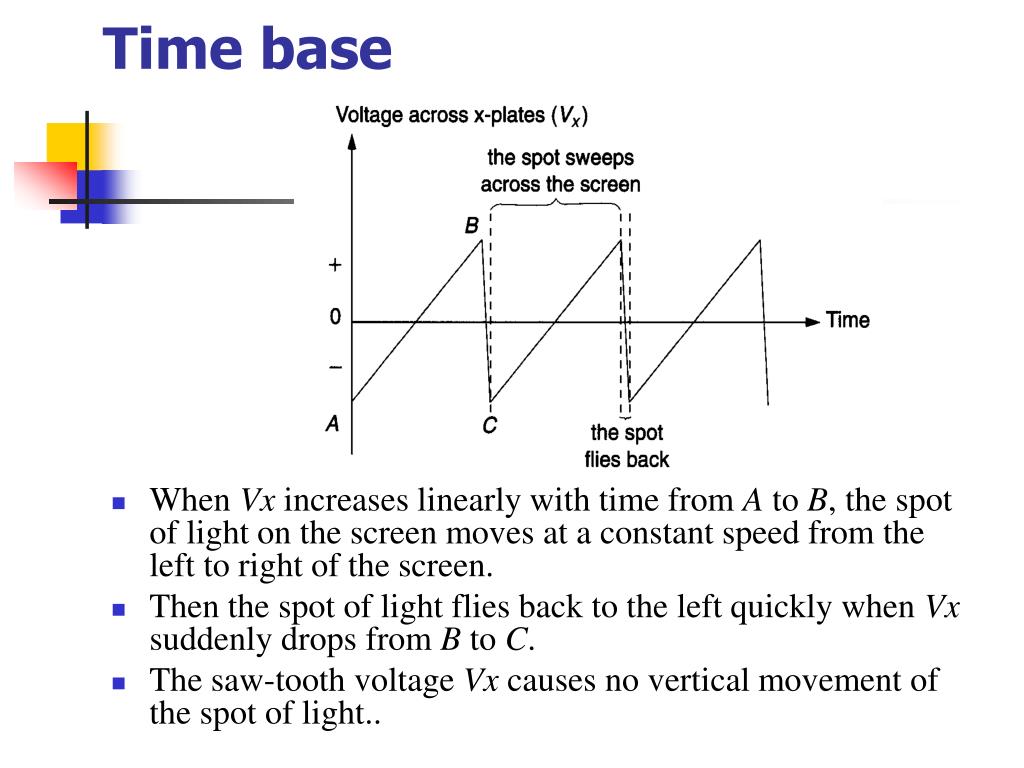

    Time base
    Time base

    • When Vx increases linearly with time from A to B, the spot of light on the screen moves at a constant speed from the left to right of the screen.

    • Then the spot of light flies back to the left quickly when Vx suddenly drops from B to C.

    • The saw-tooth voltage Vx causes no vertical movement of the spot of light..

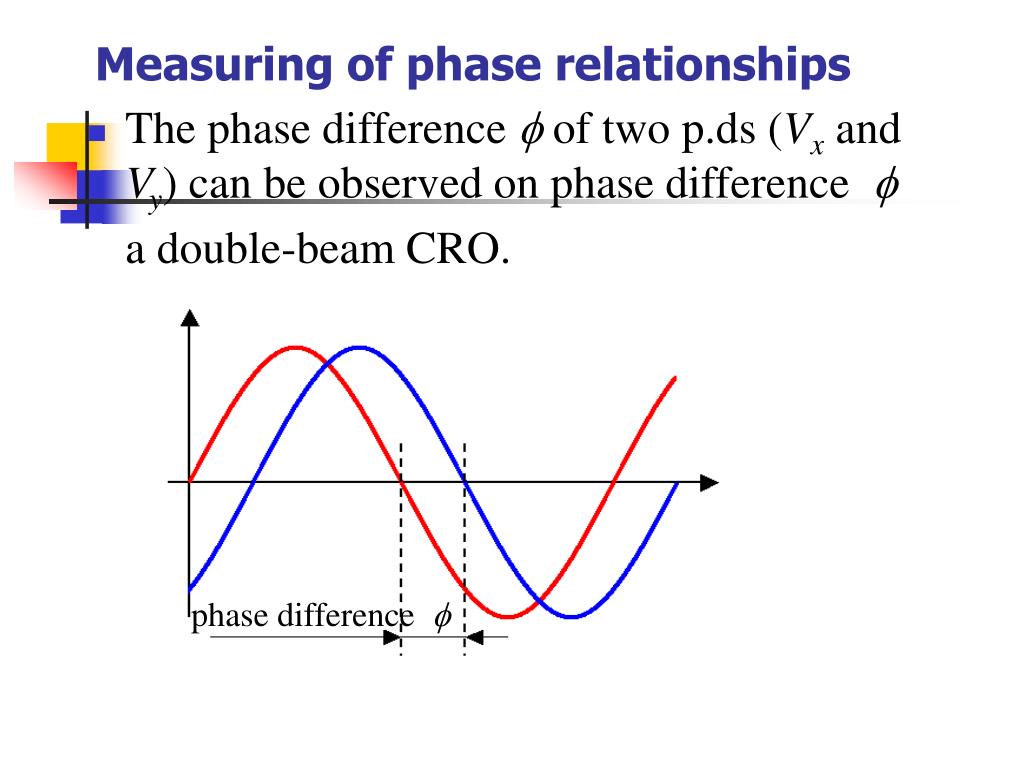

    Measuring of phase relationships

    phase difference f

    Measuring of phase relationships

    • The phase difference f of two p.ds (Vx and Vy) can be observed on phase difference f

      a double-beam CRO.


    • If a double-beam CRO is not available, the phase difference can be found by applying the two p.ds of the same frequency and amplitude to the X- and Y-plates (time base off) simultaneously.

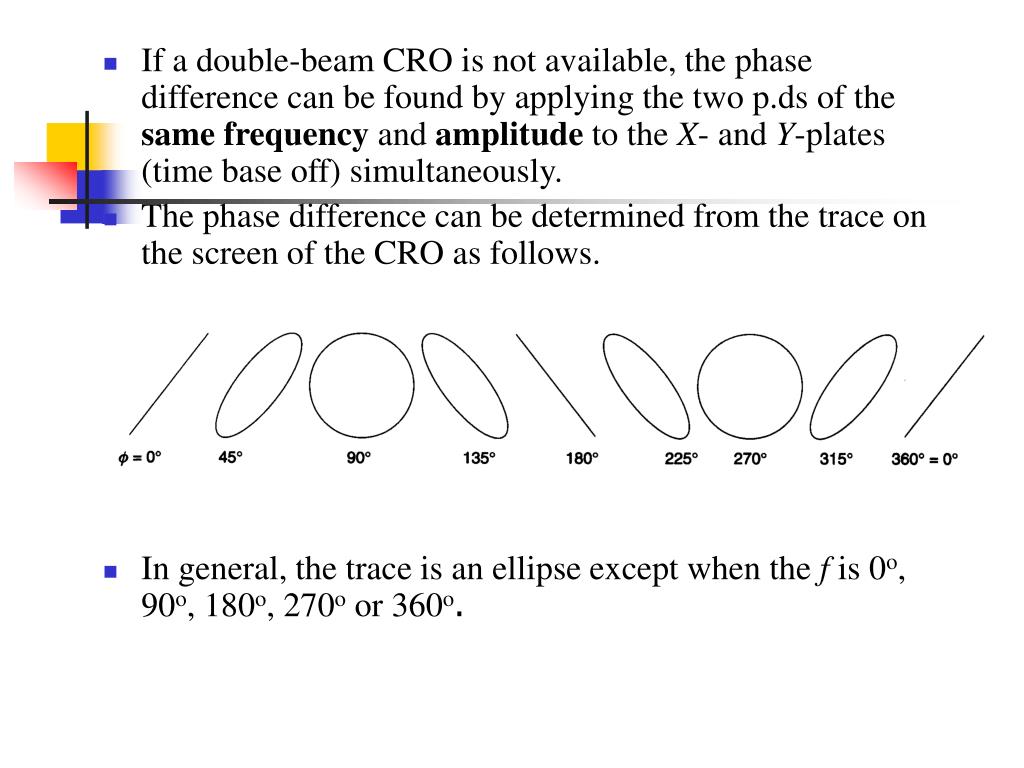

    • The phase difference can be determined from the trace on the screen of the CRO as follows.

    • In general, the trace is an ellipse except when the f is 0o, 90o, 180o, 270o or 360o.


    Comparing of frequencies
    Comparing of frequencies can be found by applying the two p.ds of the

    • When two p.ds of different frequencies fx and fy are applied to the X- and Y-plates (time base off), more complex figures are obtained, know as Lissajous’ figures.

    simulation


    In any particular case the frequency ratio can be found by
    In any particular case, the frequency ratio can be found by can be found by applying the two p.ds of the


    In any particular case the frequency ratio can be found by1
    In any particular case, the frequency ratio can be found by can be found by applying the two p.ds of the

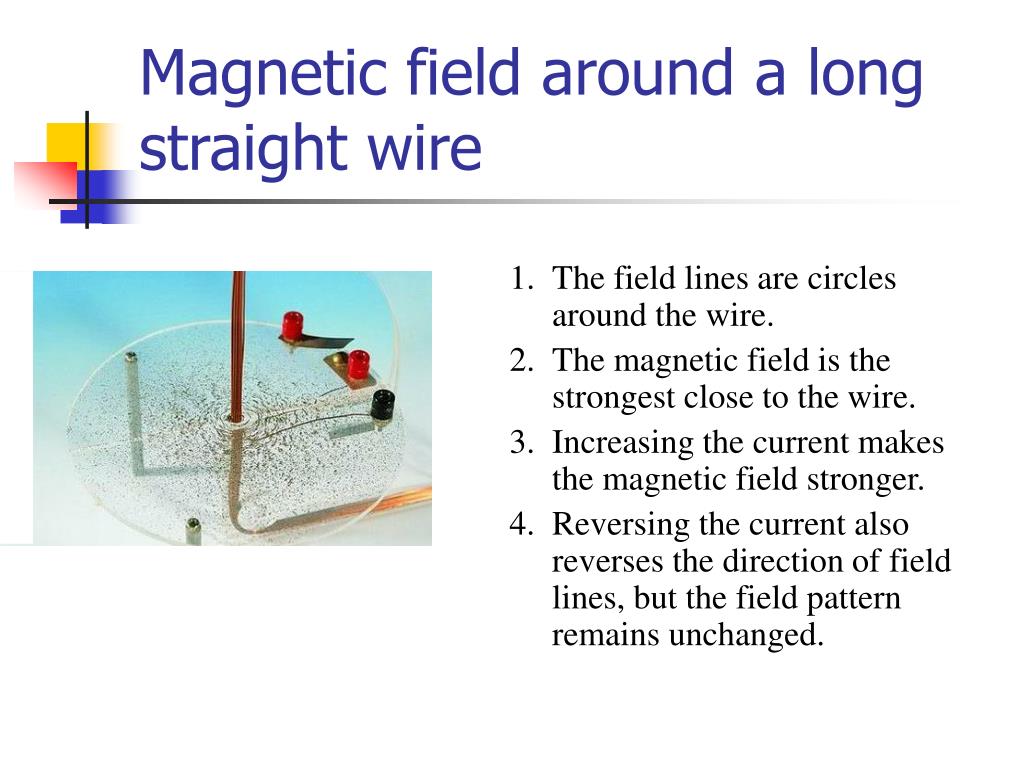

    Magnetic field around a long straight wire
    Magnetic field around a long straight wire can be found by applying the two p.ds of the

    1. The field lines are circles around the wire.

    2. The magnetic field is the strongest close to the wire.

    3. Increasing the current makes the magnetic field stronger.

    4. Reversing the current also reverses the direction of field lines, but the field pattern remains unchanged.


    Right hand grip rule
    Right hand grip rule can be found by applying the two p.ds of the

    If the right hand grips the wire so that the thumb points the same way as the current, the fingers curls the same way as the field lines.

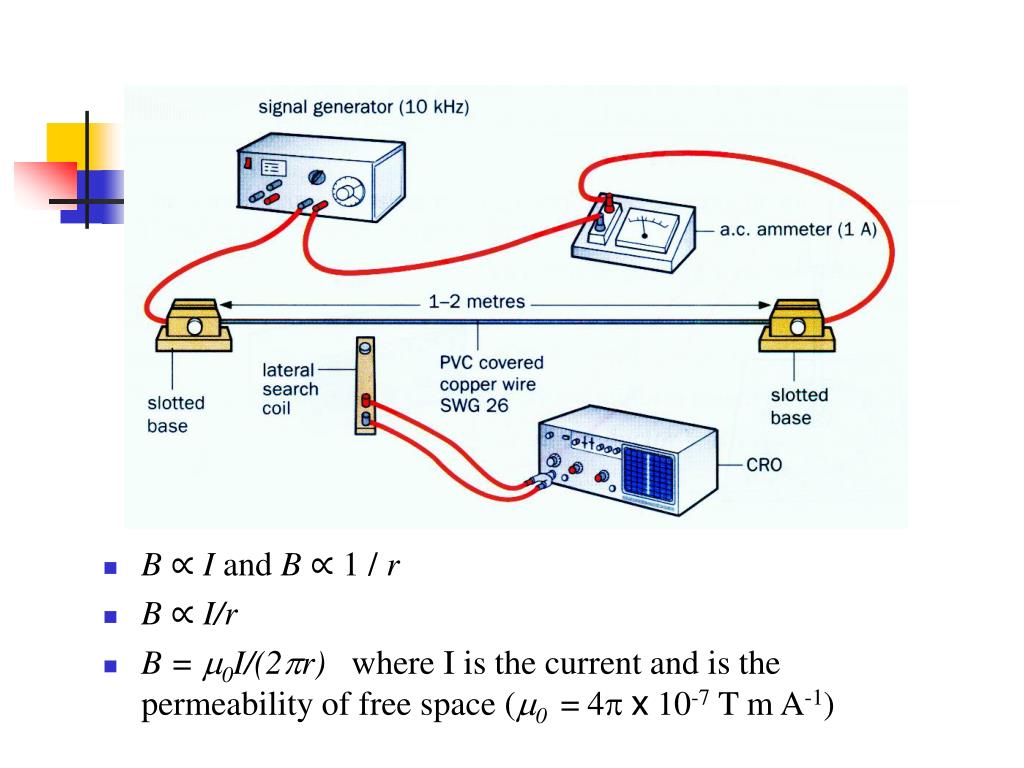

    Experiment to show that b i and b 1 r
    Experiment to show that can be found by applying the two p.ds of the B ∝ I and B ∝ 1 / r


    • B can be found by applying the two p.ds of the ∝ I and B ∝ 1 / r

    • B ∝ I/r

    • B = m0I/(2pr) where I is the current and is the permeability of free space (m0 =4px 10-7 T m A-1)


    B m 0 i 2 p r m 0 4 p x 10 7 t m a 1

    Q can be found by applying the two p.ds of the

    P

    5 mm

    5 mm

    5 mm

    I = 20 A

    I = 20 A

    X Y

    B = m0I/(2pr)(m0 =4px 10-7 T m A-1)

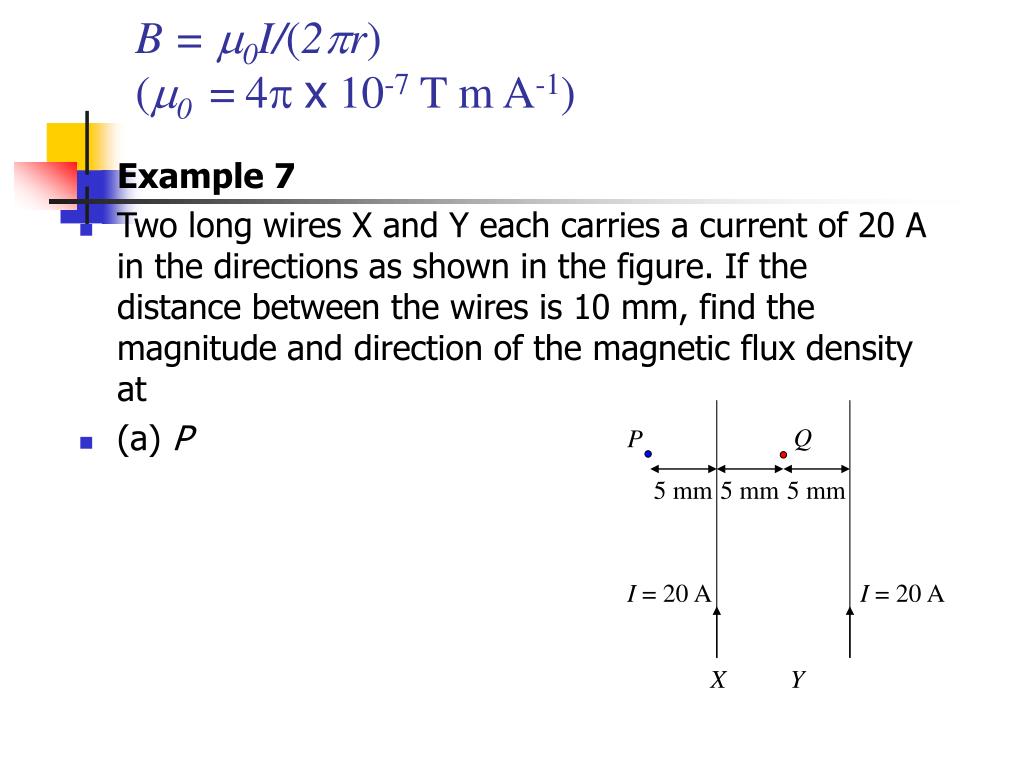

    • Example 7

    • Two long wires X and Y each carries a current of 20 A in the directions as shown in the figure. If the distance between the wires is 10 mm, find the magnitude and direction of the magnetic flux density at

    • (a) P


    B m 0 i 2 p r m 0 4 p x 10 7 t m a 11

    Q can be found by applying the two p.ds of the

    P

    5 mm

    5 mm

    5 mm

    I = 20 A

    I = 20 A

    X Y

    B = m0I/(2pr)(m0 =4px 10-7 T m A-1)

    • Example 7

    • Two long wires X and Y each carries a current of 20 A in the directions as shown in the figure. If the distance between the wires is 10 mm, find the magnitude and direction of the magnetic flux density at

    • (b) Q.


    Magnetic field around a flat coil
    Magnetic field around a flat coil can be found by applying the two p.ds of the

    • At the centre of the coil

      • The field lines are straight and at right angles to the plane of the coil

    • Outside the coil,

      • The field linesrun in loops.


    Experimental set up
    Experimental set-up can be found by applying the two p.ds of the

    • By using the experimental-setup shown, it is found that the magnetic field is

      1. directly proportional to the current and the number of turns, and

      2. inversely proportional to the radius of the coil.

    • Note: The magnetic field is greatest at the centre.


    Magnetic field due to a long solenoid

    N can be found by applying the two p.ds of the

    S

    I

    I

    Magnetic field due to a long solenoid

    • From the field pattern of the solenoid, it can be found that

      1. inside the solenoid, the field lines are straight and evenly-spaced. This indicates that the field is of uniform strength.

      2. outside the solenoid, the pattern is similar to that around a bar magnet, with one end of the solenoid behaving like a N-pole and the other end like a S-pole.


    Right hand grip rule1
    Right hand grip rule can be found by applying the two p.ds of the

    If the right hand grips the solenoid so that the fingers curls the same way as the current, the thumbs points to the north pole of the solenoid.


    Magnetic field due to a long solenoid1

    N can be found by applying the two p.ds of the

    S

    I

    I

    Magnetic field due to a long solenoid

    • The magnetic field of the solenoid can be increased by

      1. increasing the current,

      2. increasing the number of turns on the coil.


    Magnetic field due to a long solenoid2

    N can be found by applying the two p.ds of the

    S

    I

    I

    Magnetic field due to a long solenoid

    • The magnetic field of the solenoid can be increased by

      1. increasing the current,

      2. increasing the number of turns on the coil.

    • In vacuum, the magnitude of the magnetic flux density B at a point O on the axis near the centre of the solenoid of length l, having N turns and carrying a current I is given by

    • B = m0NI/l or B = m0nI where n is the number of turns per unit length (n = N/l)


    Experiment to show that b n b i and b 1 l
    Experiment to show that can be found by applying the two p.ds of the B ∝ N, B ∝ I and B ∝ 1 / l


    Magnetic field due to a long solenoid3

    N can be found by applying the two p.ds of the

    S

    I

    I

    Magnetic field due to a long solenoid

    • Note: The magnetic field within a solenoid is independent of the shape and the cross section area of the solenoid.


    Magnetic field due to a long solenoid4
    Magnetic field due to a long solenoid can be found by applying the two p.ds of the

    • At the ends of solenoid

    • The magnetic field at the ends of the solenoid is weaker. It is half that in the central region within the solenoid.


    N can be found by applying the two p.ds of the = number of turns

    l = length of solenoid


    Force between currents

    F can be found by applying the two p.ds of the 2

    B1

    Q

    P

    Force between currents

    • Magnetic field due to current through P

    • Magnetic force acting on Q

    Applying Fleming’s left hand rule, force acting on wire Q is towards wire P.


    F can be found by applying the two p.ds of the 1

    P

    Q

    B2

    • Similarly, the force acting on wire P is towards wire Q. Hence, the two wires attract each other.

    • By Newton’s third law, the magnetic force acting on P = magnetic force acting on Q.


    Summary unlike current repel like current attract
    Summary: Unlike current repel, like current attract can be found by applying the two p.ds of the

    • Parallel wires with current flowing in the same direction, attract each other.

    • Parallel wires with current flowing in the opposite direction, repel each other.


    Summary unlike current repel like current attract1
    Summary: Unlike current repel, like current attract can be found by applying the two p.ds of the

    • The force per unit length on each conductor

    • When the current I1 = I2 = 1 A, and the separation between the wires r = 1 m,

      the force per unit length on the conductor

    N m-1


    Summary unlike current repel like current attract2
    Summary: Unlike current repel, like current attract can be found by applying the two p.ds of the

    • Definition of the ampere

    • The ampere is constant current which, flowing in two infinitely long, straight, parallel conductors of negligible cross-section and placed in a vacuum 1 metre apart, produces between them a force equal to 2 x 10-7 Newton per metre of their length.


    Example 8
    Example 8 can be found by applying the two p.ds of the

    • The figure below shows two horizontal wires, P and Q, 0.2 m apart, carrying currents of 1.5 A and 3 A respectively.

    • (a) Calculate the force per metre on wire Q.

    • (b) State the direction of the force.

    • (c) State the direction and magnitude of the force per metre on wire P due to the current in wire Q

    .


    Moment and couple

    F can be found by applying the two p.ds of the

    d/2 d/2

    F

    Moment and couple

    • Couple ─ consists of 2 equal and opposite parallel forces whose lines of action do not coincide (重疊).

    F

    d

    F

    torque of couple = F x d/2 + F x d/2 = Fd


    Torque on a rectangular current carrying coil in a uniform b field

    F’ can be found by applying the two p.ds of the

    F’

    Torque on a rectangular current-carrying coil in a uniform B-field

    • Torque = F(b sin q)

      = NBIlb sin q

      = NBAI sin q


    Maximum and minimum torque on a coil

    q can be found by applying the two p.ds of the = 90o

    q = 0o

    Maximum and minimum torque on a coil

    • The maximum torque is NBAI when the plane of coil is parallel to the field (q = 90o).

    • The torque on the coil is zero when the plane of coil is perpendicular to the field (q = 0o).


    Example 9

    q can be found by applying the two p.ds of the = 40o

    Example 9

    • Example 9

    • A square coil has sides of length 5 cm. The coil consist of 20 turns of insulated wire carrying a current of 0.2 A. The plane of the coil is at an angle 40o to a uniform magnetic field of flux density of 25 mT. Calculate the torque acting on the coil.

    • Solution:


    Moving coil galvanometer
    Moving-coil galvanometer can be found by applying the two p.ds of the

    • The moving-coil meter contains a coil wound on an aluminium former around a soft-iron cylinder.

    • The coil is pivoted on bearings between the poles of a cylindrical magnet.

    • Current flows through the coil via a pair of spiral springs called hair springs.


    Theory
    Theory can be found by applying the two p.ds of the

    • When a current is passed through a coil in a magnetic field, the coil experiences a torque. The coil rotates, moving the pointer across the scale.

    • The normal of plane of the coil is always perpendicular to the magnetic field, the torque on the coil is given by

      T = NBAI sin 90o = NBAI


    Theory1
    Theory can be found by applying the two p.ds of the

    • The movement of the coil is opposed by the hair springs.

    • The restoring torque (t) exerted by the hair springs to oppose the rotation is given by

      t = kq

      where k is the torsion constant of the hairsprings


    Linear scale
    Linear scale can be found by applying the two p.ds of the

    • The coil comes to rest when the magnetic turning effect (torque) on the coil is balanced by the turning effect (restoring torque) from the hair springs.

      BANI = kq

    • Hence, I ∝ q; the galvanometer scale is linear


    Sensitivity
    Sensitivity can be found by applying the two p.ds of the

    • The current sensitivity of a galvanometer is defined as the deflection per unit current

      i.e. current sensitivity = q/I = BAN/k.

    • The voltage sensitivity of a galvanometer is defined as the deflection per unit voltage

      i.e. voltage sensitivity = q/V = q/(IR) = BAN/(kR)

      where R is the resistance of the coil.

    • The sensitivity can be increased, i.e. the coil deflects more for a certain current or voltage, by

      1. using a stronger magnet (larger B),

      2. using weaker hair springs (smaller k).

      3. using a coil with larger area (larger A), and

      4. increasing the number of turns of the coil (larger N).


    ad
