Preparing for the big one protection and recovery using windows server 2012 and system center 2012 sp

MGT327

Preparing for "The Big One": Protection and Recovery Using Windows Server 2012 and System Center 2012 SP

Hector Linares Vishal Mehrotra

Senior Program Manager Principal Program Manager Lead

Microsoft Corporation Microsoft Corporation


Overview system center 2012 vmm

Overview: System Center 2012 VMM

Service Templates

Application Deployment

Custom Command Execution

Image-based Servicing

Clouds

Application Owner Usage

Capacity and Capability

Delegation and Quota

Services

Infrastructure

Server Lifecycle Management

Multiple Hypervisors

Network Management

Storage Management

Dynamic Optimization

HA VMM Server

PowerShell

Upgrade

Custom Properties

Fabric

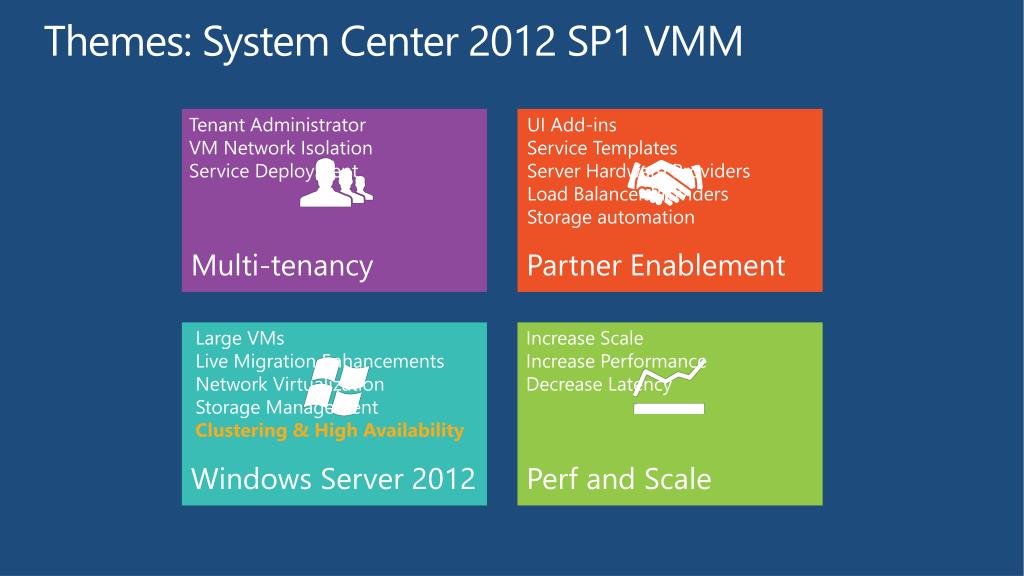

Themes system center 2012 sp1 vmm

Themes: System Center 2012 SP1 VMM

Tenant Administrator

VM Network Isolation

Service Deployment

UI Add-ins

Service Templates

Server Hardware Providers

Load Balancer Providers

Storage automation

Large VMs

Live Migration Enhancements

Network Virtualization

Storage Management

Clustering & High Availability

Increase Scale

Increase Performance

Decrease Latency


Windows server 2012 system center 2012 sp1

Windows Server 2012 + System Center 2012 SP1

Management for the private cloud

Windows Server 2012

Hyper-V & Failover Clustering

Platform for the private cloud


Preparing for the big one protection and recovery using windows server 2012 and system center 2012 sp

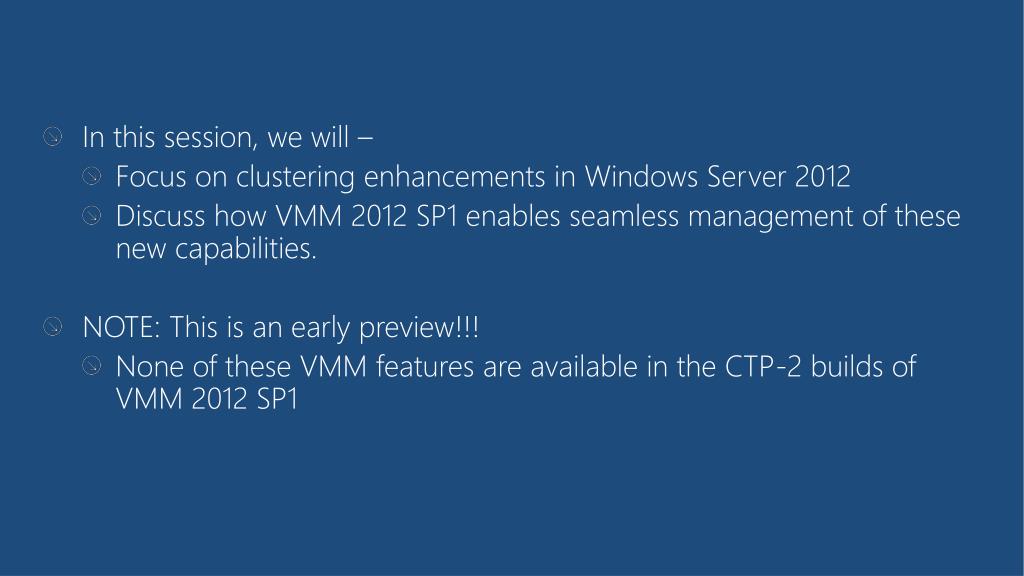

  • In this session, we will –

    • Focus on clustering enhancements in Windows Server 2012

    • Discuss how VMM 2012 SP1 enables seamless management of these new capabilities.

  • NOTE: This is an early preview!!!

    • None of these VMM features are available in the CTP-2 builds of VMM 2012 SP1


Preparing for the big one protection and recovery using windows server 2012 and system center 2012 sp

Massive clusters & CSV2


Massively scalable clusters

Massively scalable clusters!!!

  • Massive scale-out and scale-up capabilities on Windows Server 2012

    • 4x scale over Windows Server 2008 R2

      • Scale out to 64-nodes

      • Scale up to 4,000 VMs per cluster

        • Up to 1,024 VMs per node

Scale up

...

. . .

Scale out

Windows Server 2012 supports an industry best 4,000 VMs per cluster and can now massively scale out to 64 nodes in a cluster

Effortless management


Support for csv2

Support for CSV2

  • Windows Server 2012 – Next generation Scale-out app platform

    • Supports file servers - File based (SMB) storage for Hyper-V

    • Improved backup

    • Direct I/O for more scenarios

      • Better VM creation and copy performance

    • Multi-subnet support

  • VMM 2012 SP1 will:

    • Support CSV2 and CSVFS for Windows Server 2012 clusters

    • Support converting available storage to CSV2 and vice-versa

    • Continue to support CSV v1 for Windows Server 2008 R2

    • CSV2 is enabled by default for Windows Server 2012 based clusters.


Preparing for the big one protection and recovery using windows server 2012 and system center 2012 sp

Preferred Owners


Vmm 2012 sp1 support for preferred owners

VMM 2012 SP1 support for Preferred Owners

VMM 2012 SP1 will:

  • Refresh existing preferred owners settings configured on the cluster.

  • Enable you to add, edit & remove preferred owners from VMM console & PowerShell.

  • ‘Remember’ this setting as long as the VM remains within the cluster – lost if moved to a standalone host/different cluster.

  • You cannot set preferred owners during new VM creation

  • You cannot set preferred owners during new VM template creation


Placement dynamic power optimization

Placement/Dynamic & Power Optimization

On VMM 2012 SP1:

  • Warning when trying to place VM to a node that is not in the VM’s preferred owners list.

  • Dynamic optimization will move VMs that are not on a preferred owner.

  • Maintenance mode ignores this setting (i.e., not a hard block)

  • Preferred owners will be ignored in overcommit calculations.


Preparing for the big one protection and recovery using windows server 2012 and system center 2012 sp

Possible Owners


Vmm 2012 sp1 support for possible owners

VMM 2012 SP1 support for Possible Owners

VMM 2012 SP1 will:

  • Refresh existing possible owners settings configured on the cluster.

  • Enable you to add, edit & remove possible owners from VMM console & PowerShell.

  • ‘Remember’ this setting as long as the VM remains within the cluster – lost if moved to a standalone host/different cluster.

  • You cannot set possible owners during new VM creation

  • You cannot set possible owners during new VM template creation

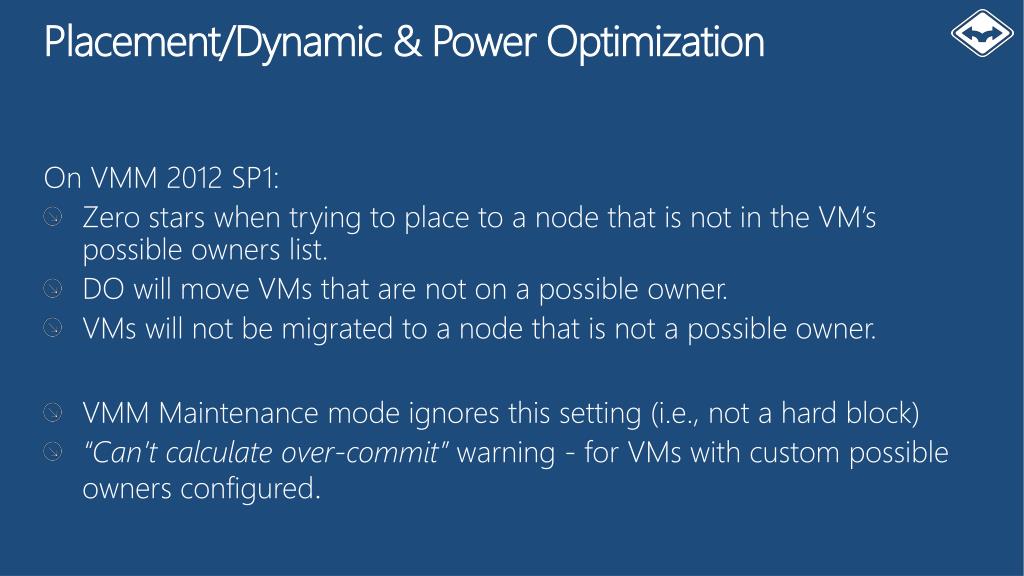

Placement dynamic power optimization1

Placement/Dynamic & Power Optimization

On VMM 2012 SP1:

  • Zero stars when trying to place to a node that is not in the VM’s possible owners list.

  • DO will move VMs that are not on a possible owner.

  • VMs will not be migrated to a node that is not a possible owner.

  • VMM Maintenance mode ignores this setting (i.e., not a hard block)

  • “Can’t calculate over-commit” warning - for VMs with custom possible owners configured.


Preparing for the big one protection and recovery using windows server 2012 and system center 2012 sp

VM Priority


Vm priority windows server 2012 clusters

VM Priority - Windows Server 2012 clusters

VM priority enables the failover cluster to:

  • Start the most important VMs first

  • Ensure the most important VMs are running

  • Pre-empt & shut down low priority VMs to free up resources for higher priority VMs to start

  • Ideal for infrastructure servers (DCs) or tiered architecture (back-end, middle-tier, customer-facing)

High

Medium

Low


Vmm 2012 sp1 support for vm priority

VMM 2012 SP1 support for VM Priority

VMM 2012 SP1 will:

  • Refresh existing VM priority settings configured for VMs on the cluster.

  • Enable you to configure VM priority from VMM console & PowerShell.

  • ‘Remember’ this setting even across VM migration (VM priority moves with VM).

  • Setting ignored for VMs on standalone, Win 7 cluster, ESX & Xen hosts

  • You can set VM priority during new VM creation

  • You can set VM priority during new VM template creation

  • VMM placement engine ignores VM priority – enforced by the failover cluster

  • Maintenance mode ignores VM priority.


Preparing for the big one protection and recovery using windows server 2012 and system center 2012 sp

VMM Availability Sets


Windows failover cluster anti affinity

Windows Failover Cluster Anti-affinity

You can configure VM anti-affinity on Windows failover clusters:

  • Feature available on Windows Server 2008 R2 & Windows Server 2012

  • Keeps specific VMs off the same cluster node.

    On failover clusters, VMM 2012 SP1 Availability Sets leverages cluster anti-affinity:

  • VMM will automatically create anti-affinity class names in accordance with configured availability set.

  • For Windows Server 2008 R2 & Windows Server 2012 clusters


Introducing vmm availability sets

Introducing VMM ‘Availability Sets’ …

Availability Set  configurable anti-affinity rules for VMs

  • VMM 2012 SP1 ensures VMs are placed on different hosts for better availability.

  • VMM Placement algorithm offers suggestions based on availability sets.

  • Works across:

    • Standalone (non-clustered) Hyper-V hosts*

    • Hyper-V clusters*

    • Xen Server hosts

    • VMware hosts

Availability Set: “DCs”

* Windows Server 2008 R2 & Windows Server 2012 based hosts

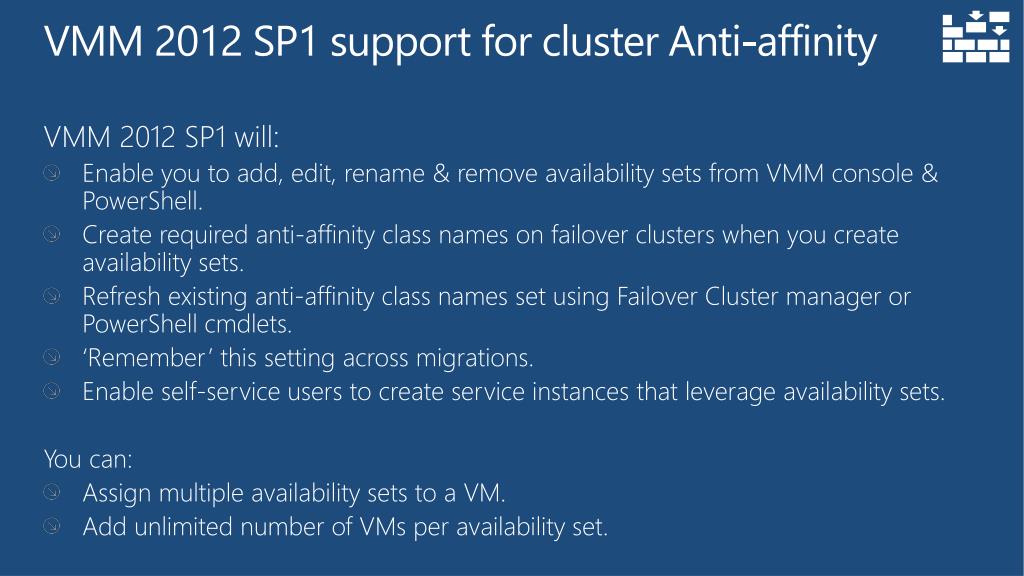

Vmm 2012 sp1 support for cluster anti affinity

VMM 2012 SP1 support for cluster Anti-affinity

VMM 2012 SP1 will:

  • Enable you to add, edit, rename & remove availability sets from VMM console & PowerShell.

  • Create required anti-affinity class names on failover clusters when you create availability sets.

  • Refresh existing anti-affinity class names set using Failover Cluster manager or PowerShell cmdlets.

  • ‘Remember’ this setting across migrations.

  • Enable self-service users to create service instances that leverage availability sets.

    You can:

  • Assign multiple availability sets to a VM.

  • Add unlimited number of VMs per availability set.


Placement dynamic power optimization2

Placement/Dynamic & Power Optimization

On VMM 2012 SP1:

  • Warnings displayed when trying to place VMs belonging to an availability set on the same host.

  • DO will try to fix cases where VMs in an availability set are on same cluster node.

  • VMM Maintenance mode ignores this setting (i.e., not a hard block)


Availability sets vmm services

Availability Sets & VMM Services

  • VMM Services can leverage ‘Availability Sets’

    • Availability sets – configured at the machine tier level

    • Ensures that VM instances of a machine tier are placed on different hosts.

  • SSUs can request availability sets for their VMs

    • Simple checkbox experience

    • Available from the VMM Service Template Designer


Management notes

Management Notes

  • Cluster Aware Update (CAU)

    • For Hyper-V clusters, the recommendation is to use VMM

    • Placement and dynamic optimization will load balance VMs

    • VMM does not call CAU APIs for draining or failback

    • VMM works for pre-Win8 and Win8

    • VMM is aware of cluster in PAUSE state

      • Cluster state will be updated to PAUSE

      • Nodes go into “Needs Attention” state

  • Application Health

    • App level awareness for failover purposes

    • Targeted at customers who do not deploy OM


Recovery

Recovery


Data protection manager overview

Data Protection Manager Overview

Disk-Based

Backup

Online Snapshots

Active Directory

Up to

Every 15 minutes

Data Protection Manager

Tape-Based

Backup

Data Protection Manager

Disaster Recovery

with offsite replication and tape


Themes system center 2012 sp1 dpm

Themes: System Center 2012 SP1 DPM

DPM Backup to Cloud

CSV 2.0

Remote SMB

Data Deduplication

VM Mobility

Increase Scale

Increase Performance

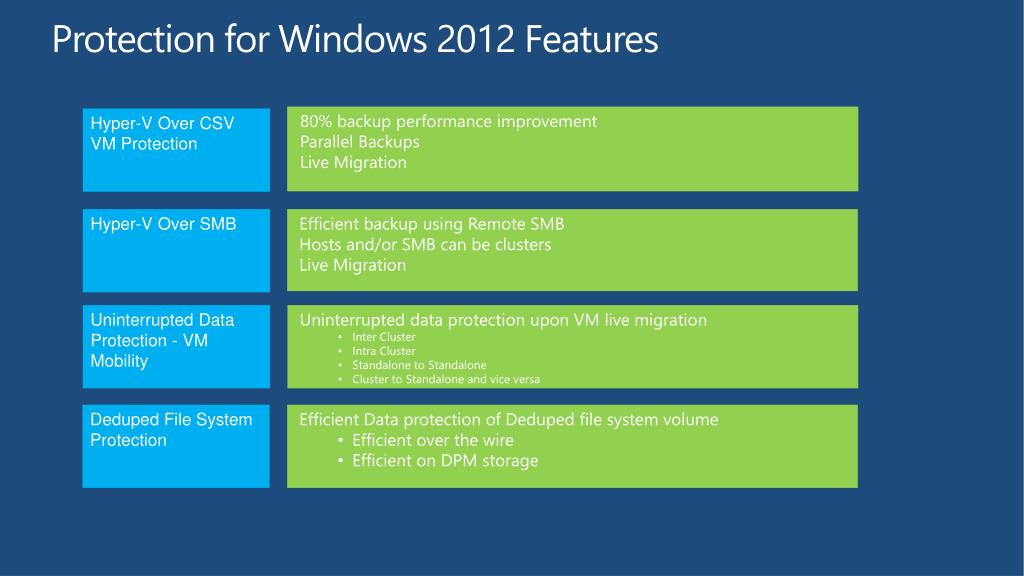

Protection for windows 2012 features

Protection for Windows 2012 Features

  • 80% backup performance improvement

  • Parallel Backups

  • Live Migration

Hyper-V Over CSV VM Protection

Hyper-V Over SMB

  • Efficient backup using Remote SMB

  • Hosts and/or SMB can be clusters

  • Live Migration

Uninterrupted Data Protection - VM Mobility

Deduped File System Protection

  • Uninterrupted data protection upon VM live migration

    • Inter Cluster

    • Intra Cluster

    • Standalone to Standalone

    • Cluster to Standalone and vice versa

  • Efficient Data protection of Deduped file system volume

    • Efficient over the wire

    • Efficient on DPM storage


Protection for csv remote smb vm mobility and dedupe

demos

Protection for CSV, Remote SMB, VM Mobility and DeDupe

Vishal Mehrotra

Principal Program Manager Lead

Microsoft Corporation


Dpm backup to cloud

DPM Backup to Cloud

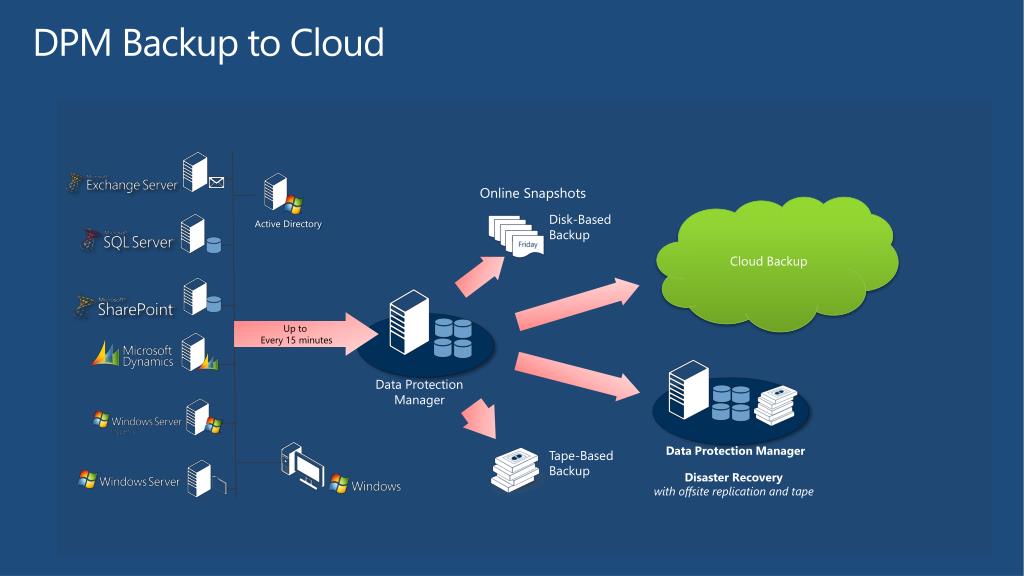

Dpm backup to cloud1

DPM Backup to Cloud

Disk-Based

Backup

Online Snapshots

Cloud Backup

Active Directory

Up to

Every 15 minutes

Data Protection Manager

Tape-Based

Backup

Data Protection Manager

Disaster Recovery

with offsite replication and tape


Dpm backup to cloud2

demo

DPM backup to cloud

Vishal Mehrotra

Principal Program Manager Lead

Microsoft Corporation


Challenges

Challenges

  • Security/Compliance

    • Can US govt. get access to my data ?

    • What happens if cloud gets hacked ?

    • What happens if cloud operations person want to misuse this data ?

    • Can Steve Ballmer get access to my data ?

    • You are safe for all of the above as data is always encrypted and private key is with YOU and not in cloud.

    • Can I control where data reside ?- Yes

  • Networking

    • Compression

    • Network Throttling


Related content

Related Content

  • Breakout Sessions

  • MGT314 - What's New in System Center 2012 SP1 - Virtual Machine Manager

  • MGT316 - Overview of Microsoft System Center 2012 SP1 - Storage Management

  • MGT317 - Overview of Microsoft System Center 2012 SP1 - Virtual Machine Manager Services

  • MGT319 - Infrastructure Management: Configure and Deploy

  • MGT320 - Microsoft System Center Virtual Machine Manager 2012: Zero to Cluster to Cloud

  • MGT321 - Service Template Creation from the Ground Up

  • MGT326 - Building a Hosted Cloud Using Microsoft System Center 2012 and Windows Server 2012

  • VIR312 - Compete to Win, Part 2: Comparing Private Cloud Capabilities

  • MGT322 – Backup your Private Cloud workloads Before its too late

  • Other Sessions

  • MGT41-HOL- Microsoft System Center 2012 Virtual Machine Manager Infrastructure Components Management

  • MGT42-HOL - Microsoft System Center 2012 Virtual Machine Manager and App Controller Creating, Deploying, and Managing Service Templates

  • MGT53-HOL - Microsoft System Center 2012 Application Self-Service and Managing Applications across Clouds

  • PRC03 - Pre-Conference Seminar - Private Cloud Immersion

  • MGT61-HOL Microsoft System Center 2012 Data Protection Manager: A First look


Resources

Resources

Learning

TechNet

  • Connect. Share. Discuss.

  • Microsoft Certification & Training Resources

http://northamerica.msteched.com

www.microsoft.com/learning

  • Resources for IT Professionals

  • Resources for Developers

  • http://microsoft.com/technet

http://microsoft.com/msdn


Preparing for the big one protection and recovery using windows server 2012 and system center 2012 sp

Required Slide

Complete an evaluation on CommNet and enter to win!


Please complete an evaluation your feedback is important

Please Complete an Evaluation Your feedback is important!

Multipleways to Evaluate Sessions

Be eligible to win great daily prizes and the grand prize of a $5,000 Travel Voucher!

Scan the Tag

to evaluate this

session now on myTechEdMobile


Preparing for the big one protection and recovery using windows server 2012 and system center 2012 sp

© 2012 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries.

The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.


  • Login
