Infra red ir spectroscopy

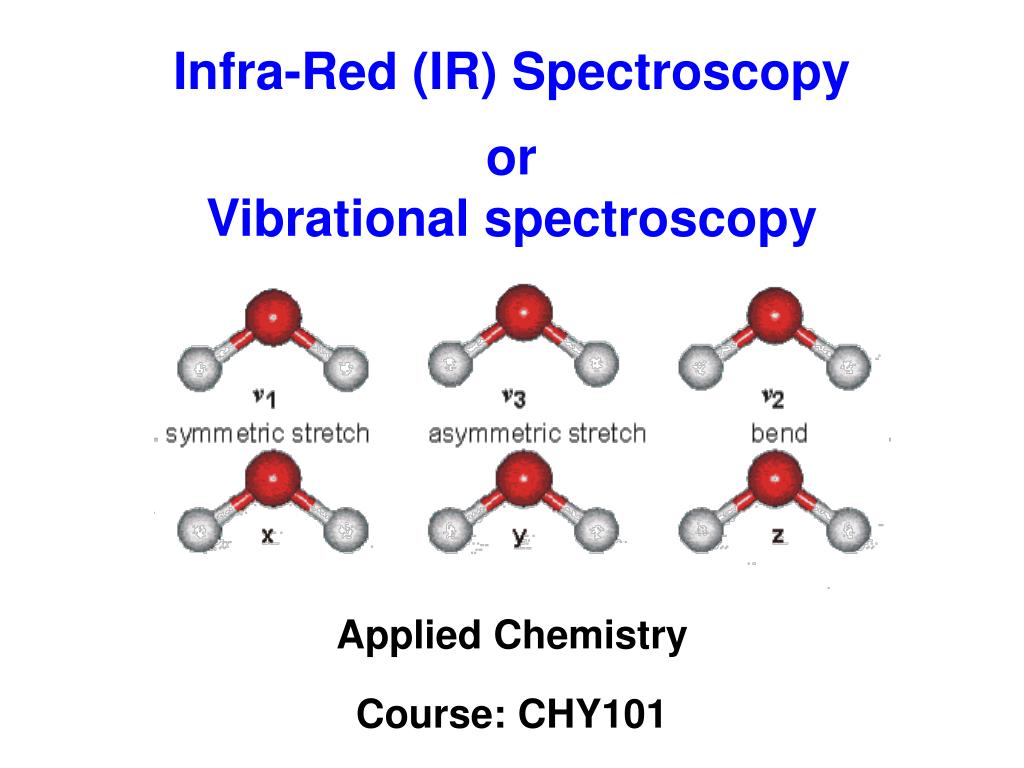

Infra-Red (IR) Spectroscopy

or

Vibrational spectroscopy

Applied Chemistry

Course: CHY101


Infra red ir spectroscopy

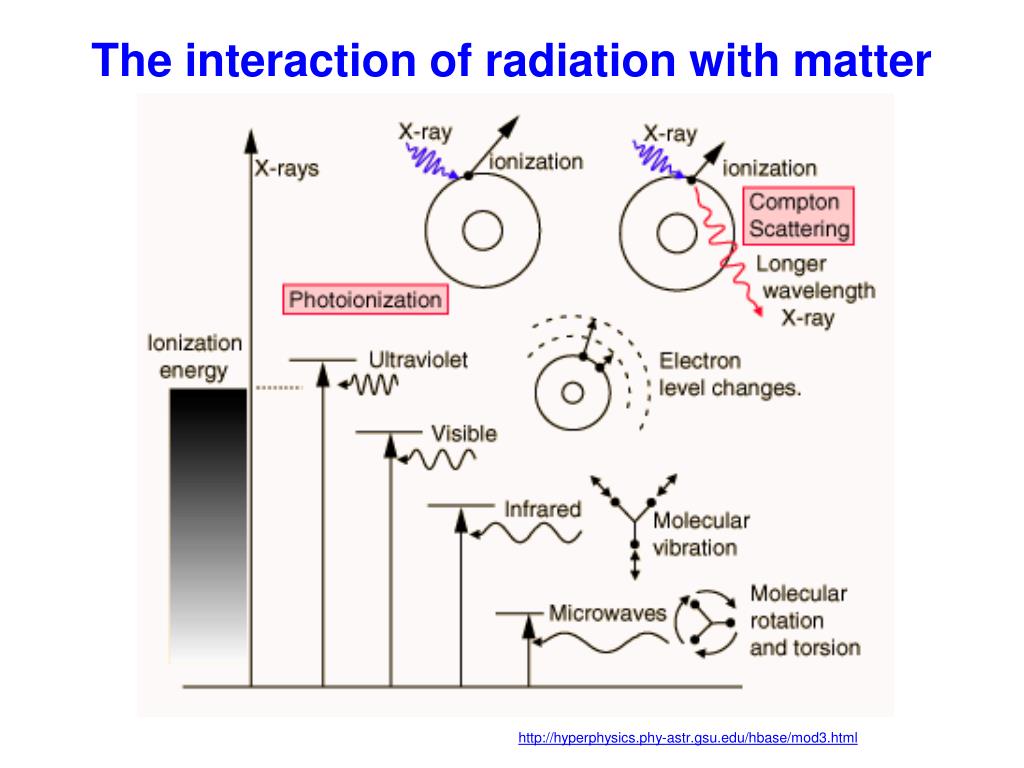

The interaction of radiation with matter

http://hyperphysics.phy-astr.gsu.edu/hbase/mod3.html

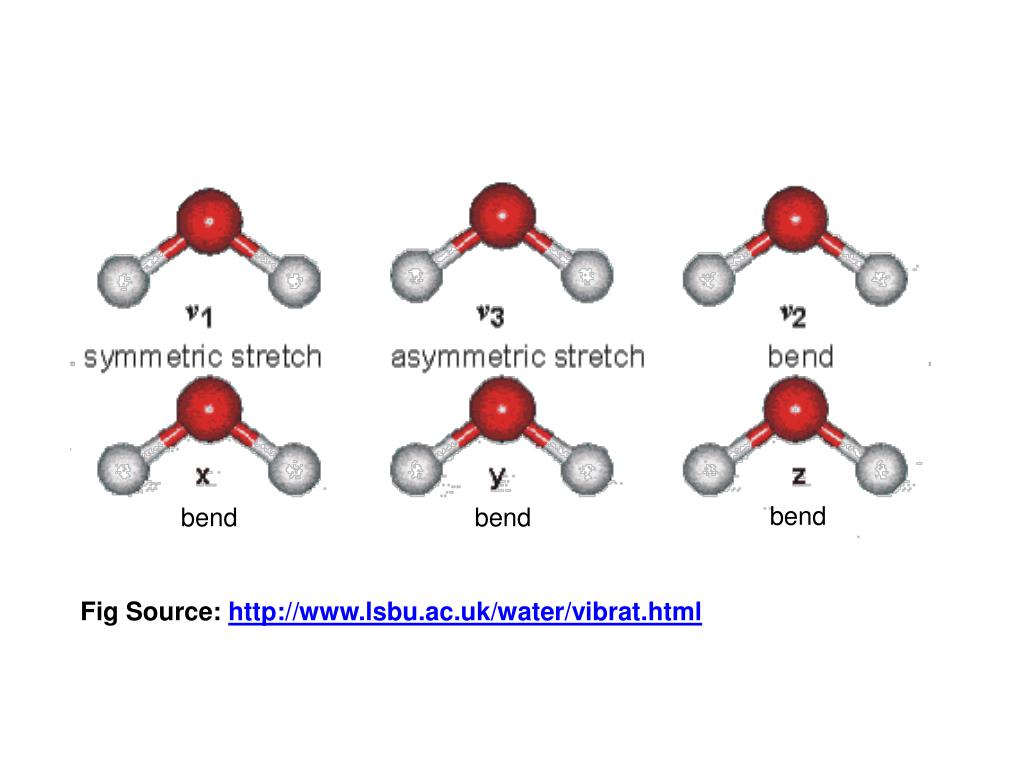

Infra red ir spectroscopy

bend

bend

bend

Fig Source: http://www.lsbu.ac.uk/water/vibrat.html


Stretching and bending

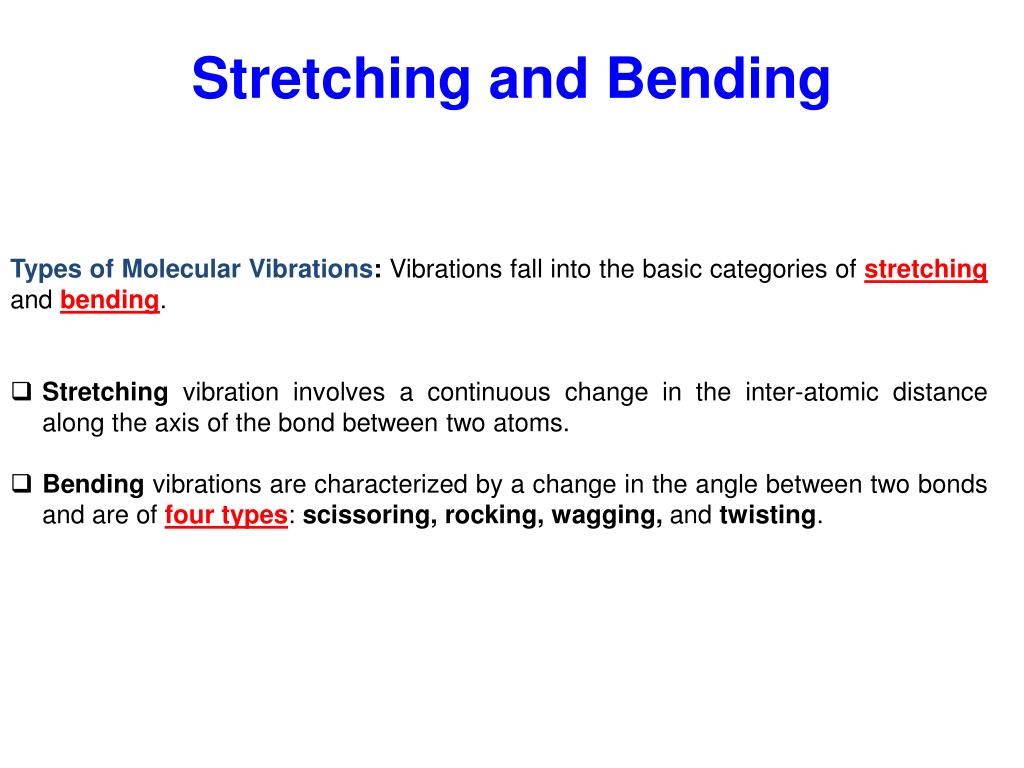

Stretching and Bending

  • Types of Molecular Vibrations: Vibrations fall into the basic categories of stretching and bending.

  • Stretching vibration involves a continuous change in the inter-atomic distance along the axis of the bond between two atoms.

  • Bending vibrations are characterized by a change in the angle between two bonds and are of four types: scissoring, rocking, wagging, and twisting.


Infra red ir spectroscopy

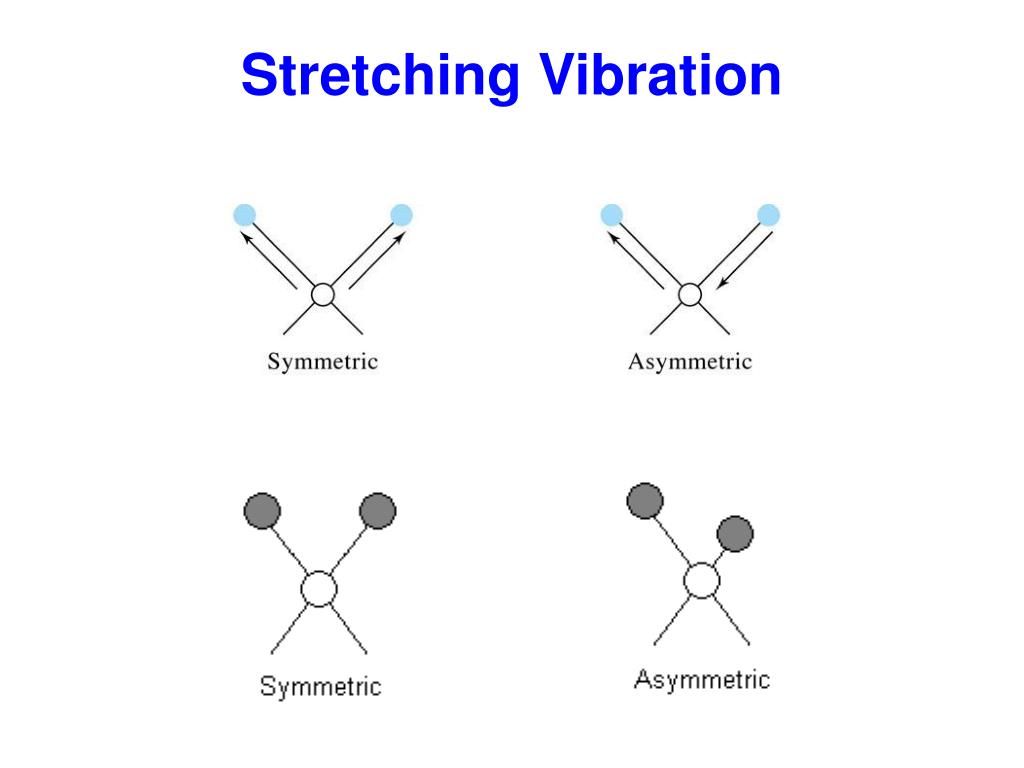

Stretching Vibration


Infra red ir spectroscopy

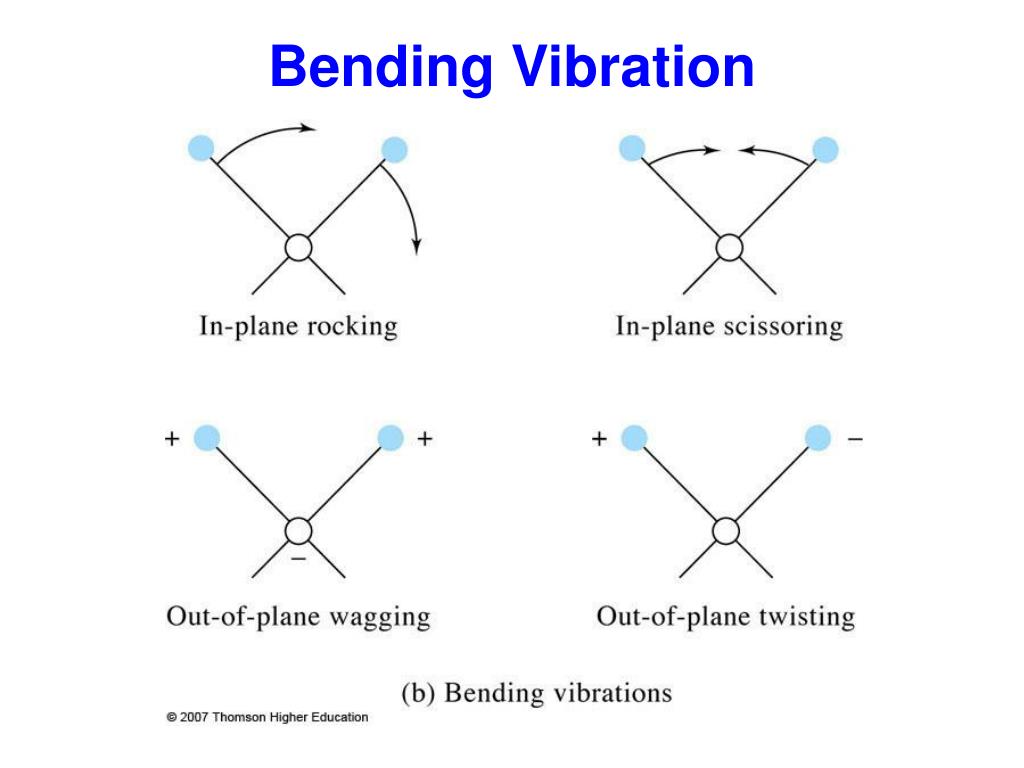

Bending Vibration


Infra red ir spectroscopy

H2O: Stretching and Bending Vibrations

bend

bend

bend

Fig Source: http://www.lsbu.ac.uk/water/vibrat.html

  • Bending is easier than stretching -- happens at lower energy (lower wavenumber)

  • Bond Order is reflected in ordering -- triple > double > single (energy)

  • with single bonds easier than double easier than triple bonds

  • Heavier atoms move slower than lighter ones


Infra red ir spectroscopy

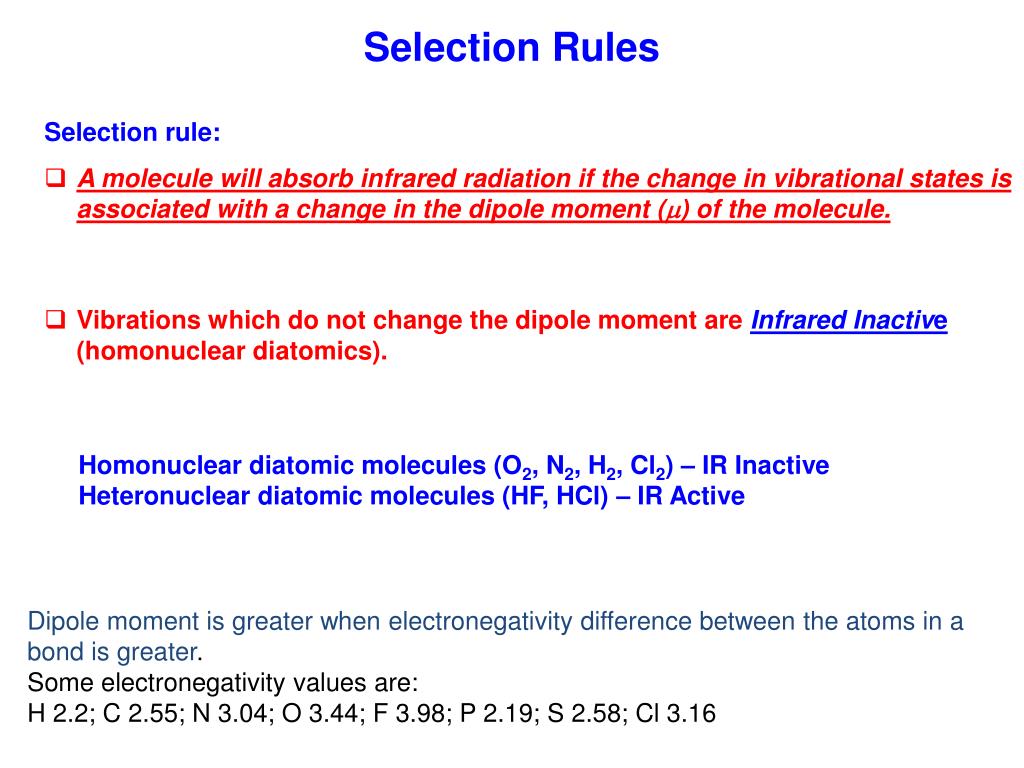

Selection Rules

  • Selection rule:

  • A molecule will absorb infrared radiation if the change in vibrational states is associated with a change in the dipole moment () of the molecule.

  • Vibrations which do not change the dipole moment are Infrared Inactive (homonuclear diatomics).

Homonuclear diatomic molecules (O2, N2, H2, Cl2) – IR Inactive

Heteronuclear diatomic molecules (HF, HCl) – IR Active

Dipole moment is greater when electronegativity difference between the atoms in a bond is greater.

Some electronegativity values are:

H 2.2; C 2.55; N 3.04; O 3.44; F 3.98; P 2.19; S 2.58; Cl 3.16


Infra red ir spectroscopy

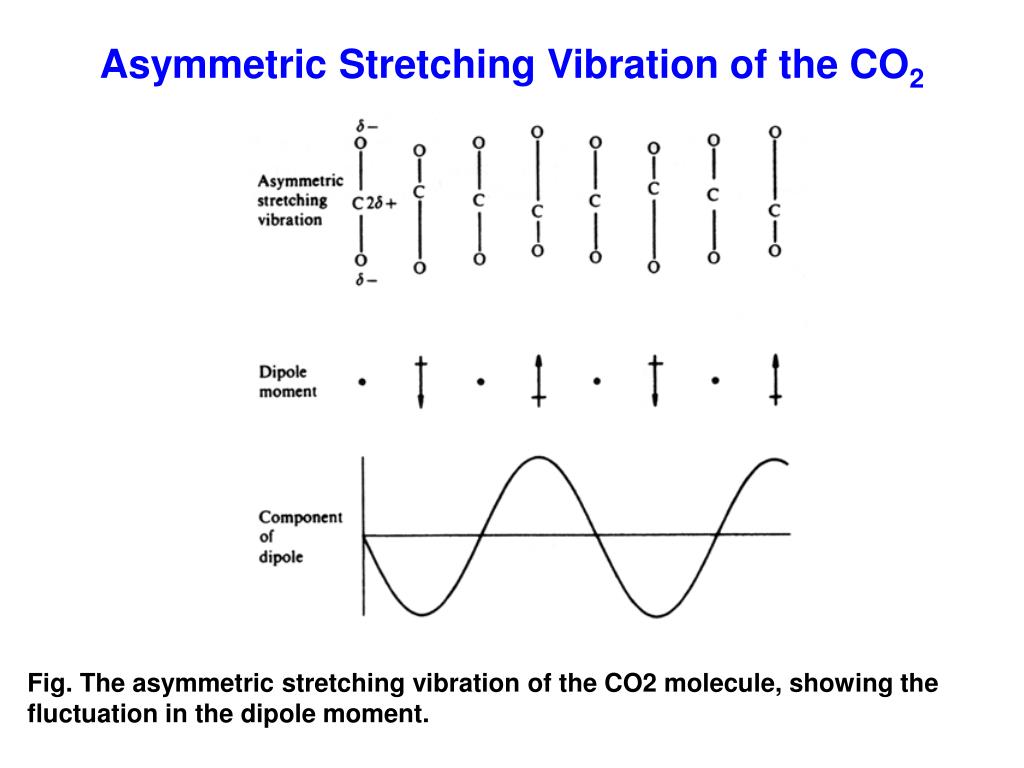

Asymmetric Stretching Vibration of the CO2

Fig. The asymmetric stretching vibration of the CO2 molecule, showing the fluctuation in the dipole moment.


Infra red ir spectroscopy

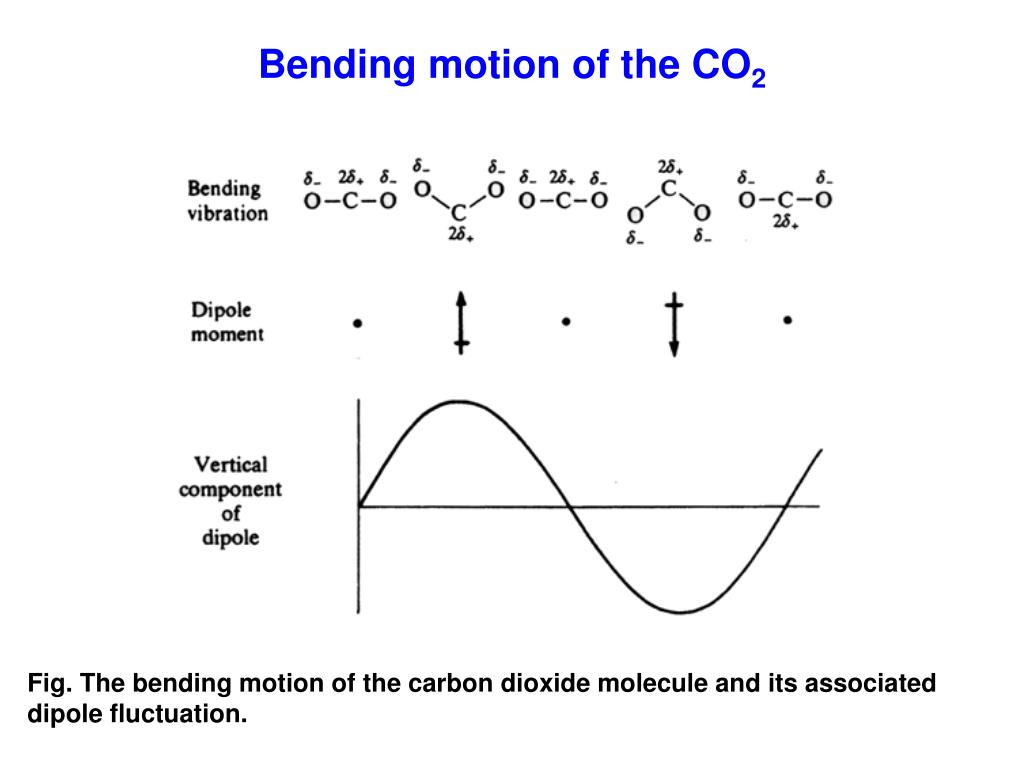

Bending motion of the CO2

Fig. The bending motion of the carbon dioxide molecule and its associated dipole fluctuation.
