Prisms

Prisms. Aim: - Know how to find the volume of any prism - Know how to find the surface area of any prism. What is a prism?. A prism is a 3-D shape that has the same 2-D shape running all the way through it. This 2-D shape is called the cross-section of the prism.

radley
Download Presentation

Prisms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Prisms Aim: - Know how to find the volumeof any prism - Know how to find the surface area of any prism

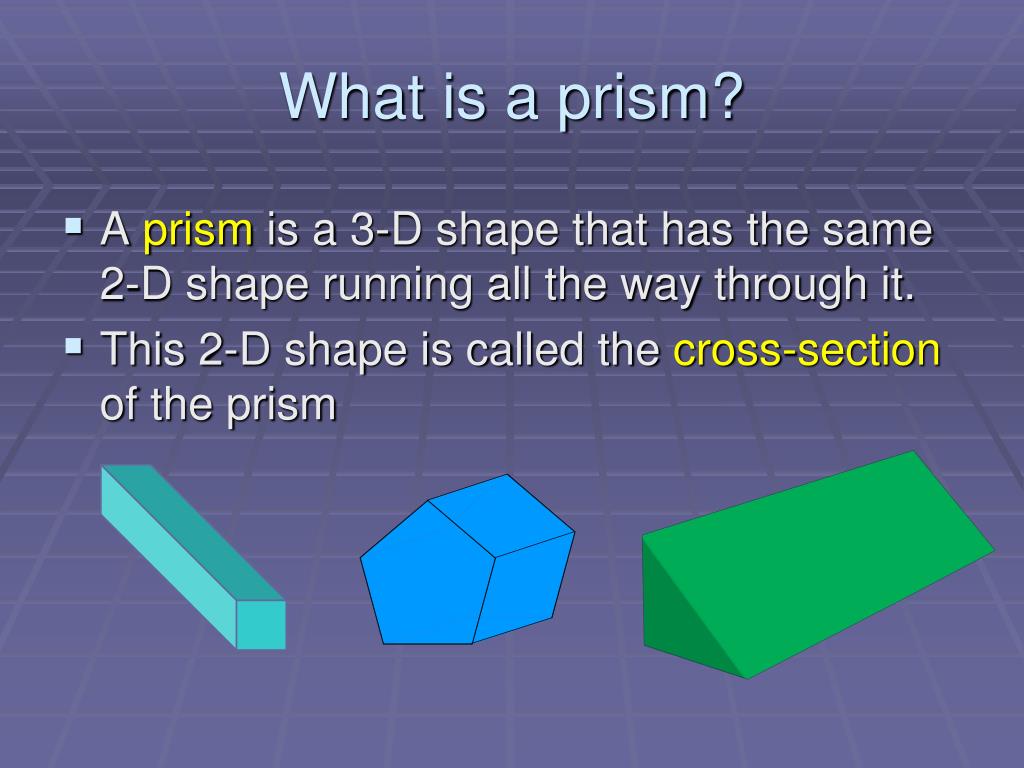

  2. What is a prism? • A prism is a 3-D shape that has the same 2-D shape running all the way through it. • This 2-D shape is called the cross-section of the prism

  3. Real-life examples of prisms

  4. Volume of prisms The volume of a prism is: (Area of front) × (length) This is the length! This is the front!

  5. Step 1: Find the area of the shape at the front Area of front = 3 x 2 = 6 cm2 Step 2: Multiply area by the length of the prism Volume = Area x length = 6 x 10 = 60 cm3 10 cm 2 cm 3 cm

  6. Can you calculate the volume of this prism? 4mm 8mm 5mm Answer: Volume = 80 mm2

  7. Can you calculate the volume of this prism? 2 cm 3 cm 4 cm 6 cm Answer: Volume = 48 cm2

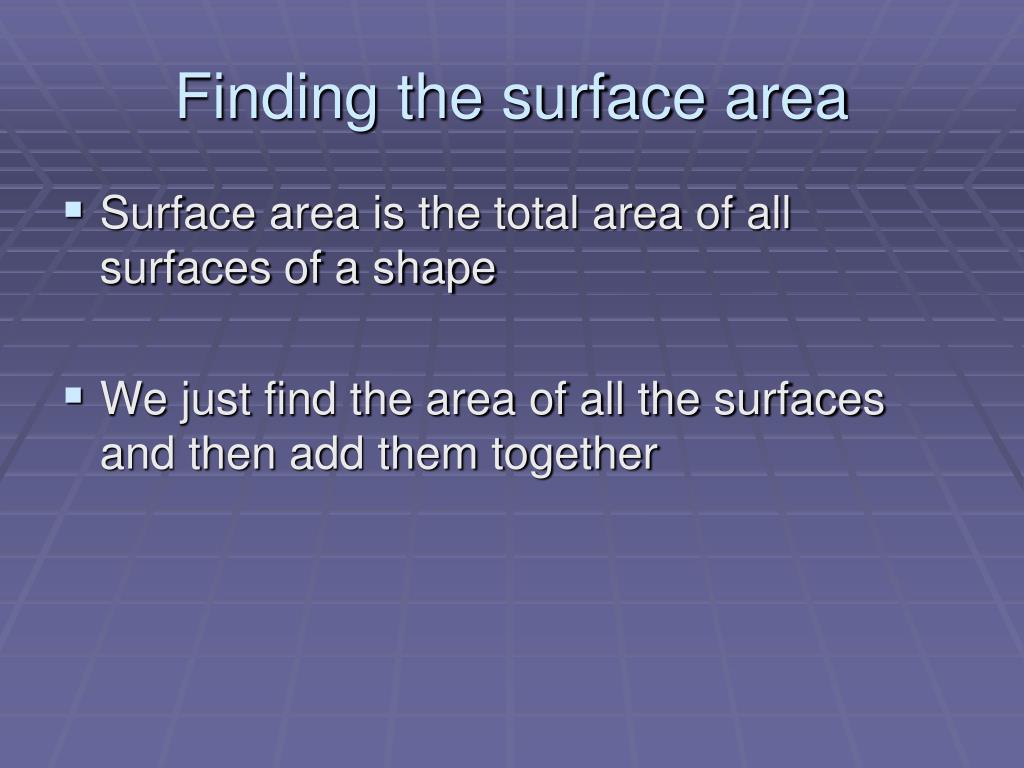

  8. Finding the surface area • Surface area is the total area of all surfaces of a shape • We just find the area of all the surfaces and then add them together

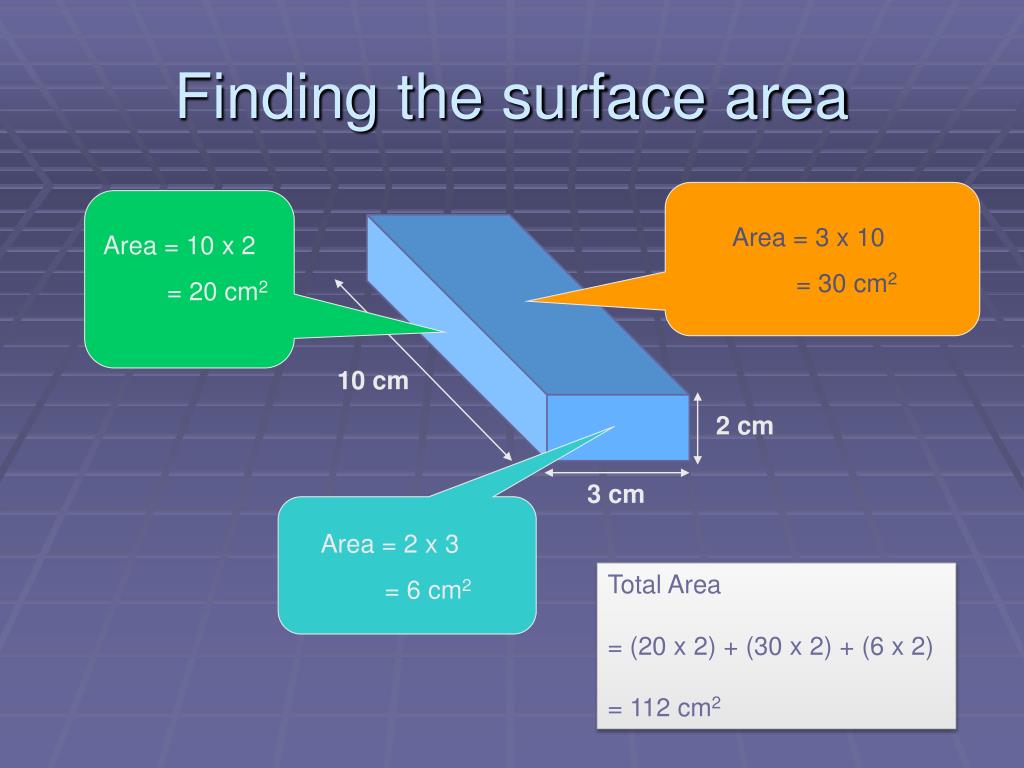

  9. Area = 10 x 2 = 20 cm2 Area = 3 x 10 = 30 cm2 Area = 2 x 3 = 6 cm2 Finding the surface area 10 cm 2 cm 3 cm Total Area = (20 x 2) + (30 x 2) + (6 x 2) = 112 cm2
