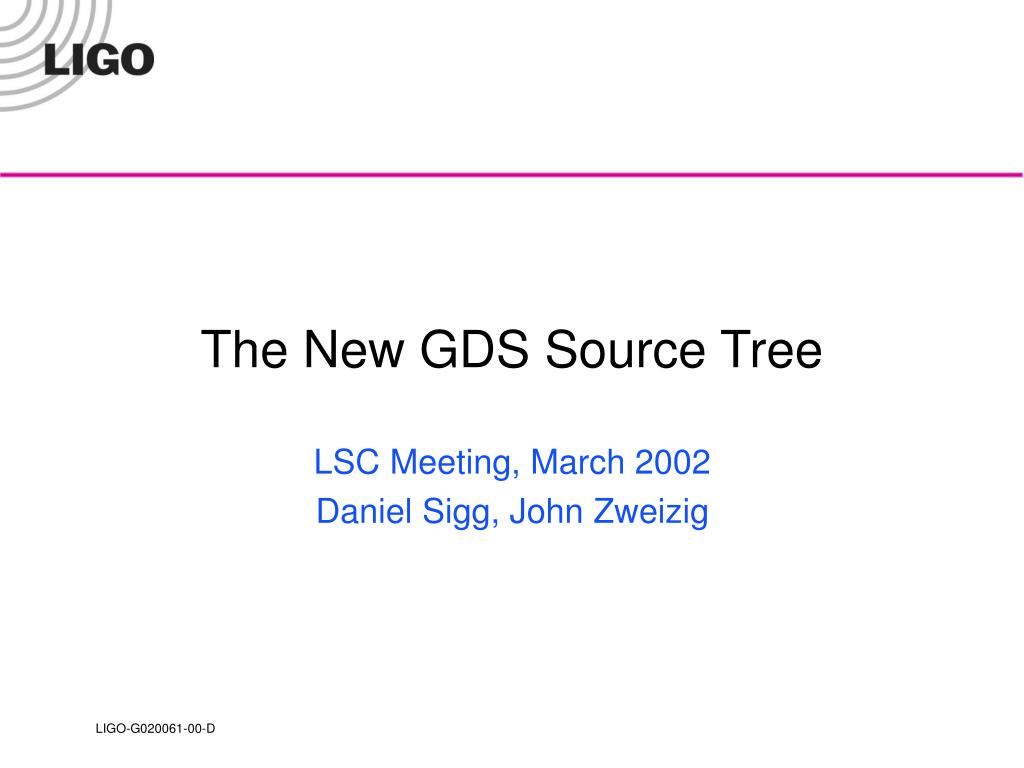

  1. The New GDS Source Tree LSC Meeting, March 2002 Daniel Sigg, John Zweizig

  2. From the User’s Perspective • DMT Environment • Event Tool • Fantom • Monitors • Frame Utilities • FrDir, FrDump, FrTest, FrWriter • fdir, fextract, finfo, fsettime,… • Shared Memory Utilities • DpushM, smdump, smrepair, … • Net Services • webview, mathnds, (nds proxy), … • DTT • DMT Viewer • Lidax • (Data Viewer) LIGO I

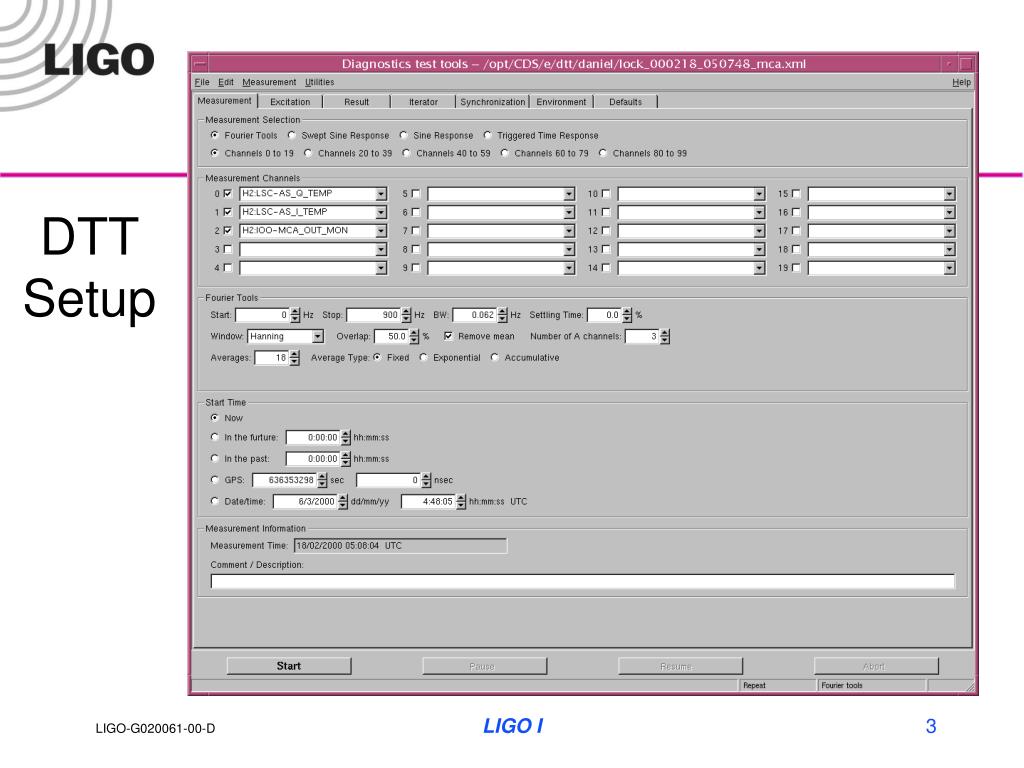

  3. DTTSetup LIGO I

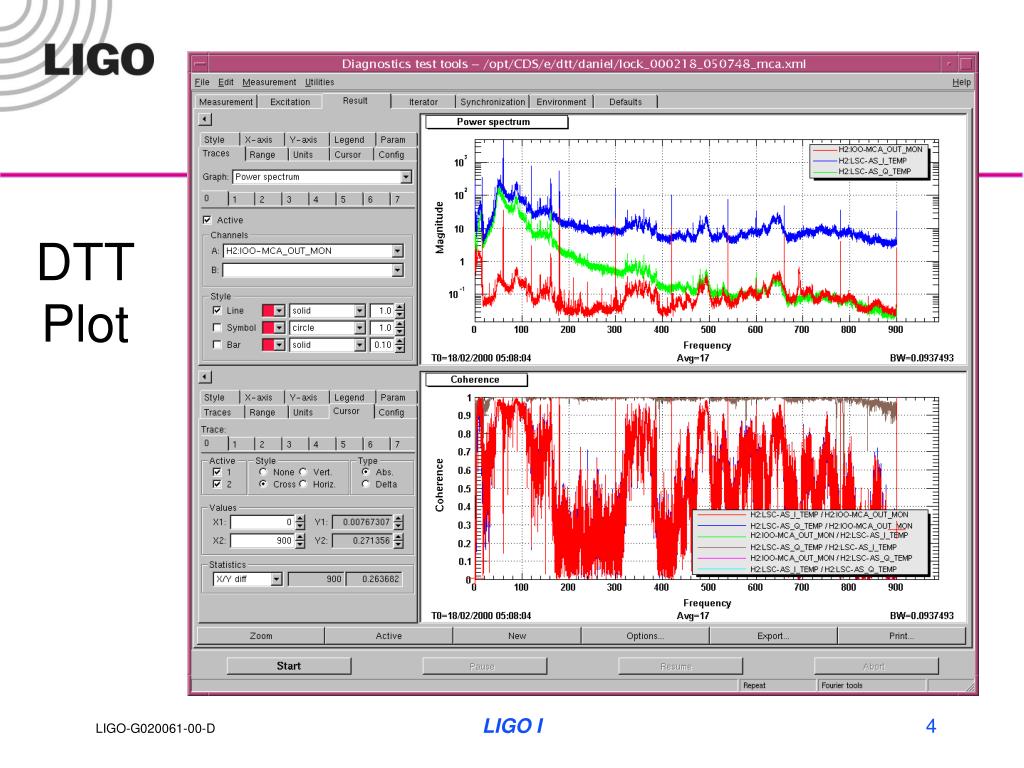

  4. DTTPlot LIGO I

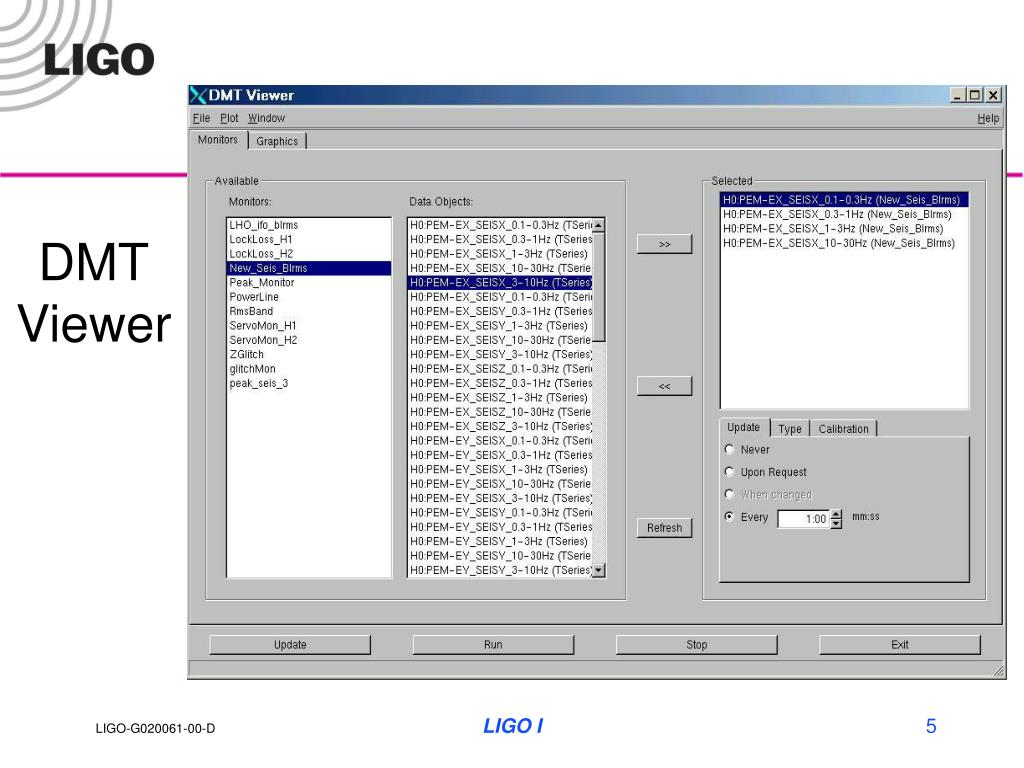

  5. DMTViewer LIGO I

  6. Lidax LIGO I

  7. Data Monitoring Environment • ROOT command line • Support for time/frequency series, PSD, histograms • Data input from SM and file (frames) • Trigger and event analysis • Signal processing library • ROOT graphics, DTT plots, DTT GUI widgets • XML IO, html output, trend output, monitor data server LIGO I
