BELL ATLANTIC VOIP SERVICES OPERATIONS & STANDARDS ISSUES. RAJ SRIKANTIAH BELL ATLANTIC TECHNOLOGY 500 WHITE PLAINS, NEW YORK NY 10604 914-644-2385; rajs@basit.com. CONTENTS. BA VOIP SERVICE HIGHLIGHTS NETWORK ARCHITECTURE - KEY ELEMENTS SERVICE FEATURES NETWORK MANAGEMENT KEY GOALS

raanan
Download Presentation

BELL ATLANTIC VOIP SERVICES OPERATIONS & STANDARDS ISSUES

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

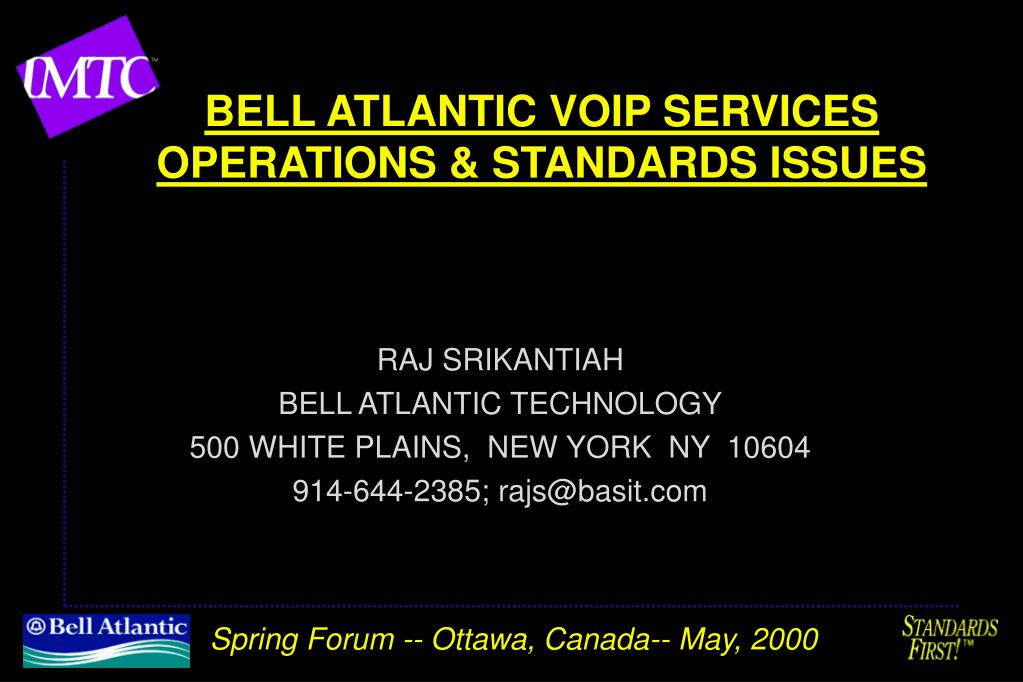

  1. BELL ATLANTIC VOIP SERVICESOPERATIONS & STANDARDS ISSUES RAJ SRIKANTIAH BELL ATLANTIC TECHNOLOGY 500 WHITE PLAINS, NEW YORK NY 10604 914-644-2385; rajs@basit.com

  2. CONTENTS • BA VOIP SERVICE HIGHLIGHTS • NETWORK ARCHITECTURE - KEY ELEMENTS • SERVICE FEATURES • NETWORK MANAGEMENT • KEY GOALS • INTEROPERABILITY - SERVICE PERSPECTIVE • BILLING & USAGE ACCOUNTING - FEATURE REQUIREMENTS • BILLING ARCHITECTURE - NOW

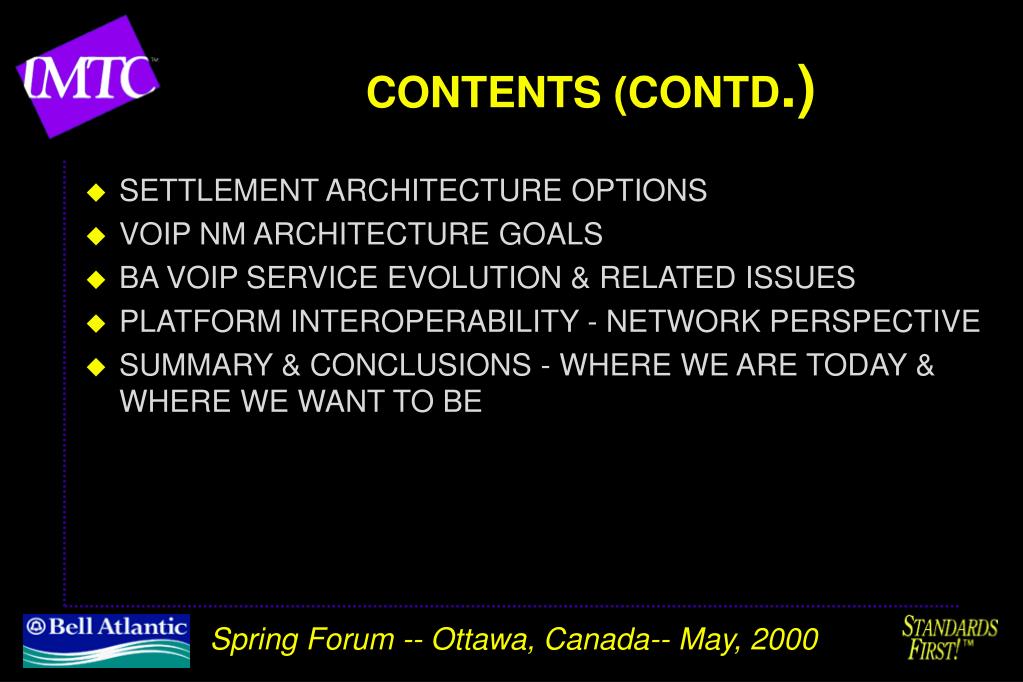

  3. CONTENTS (CONTD.) • SETTLEMENT ARCHITECTURE OPTIONS • VOIP NM ARCHITECTURE GOALS • BA VOIP SERVICE EVOLUTION & RELATED ISSUES • PLATFORM INTEROPERABILITY - NETWORK PERSPECTIVE • SUMMARY & CONCLUSIONS - WHERE WE ARE TODAY & WHERE WE WANT TO BE

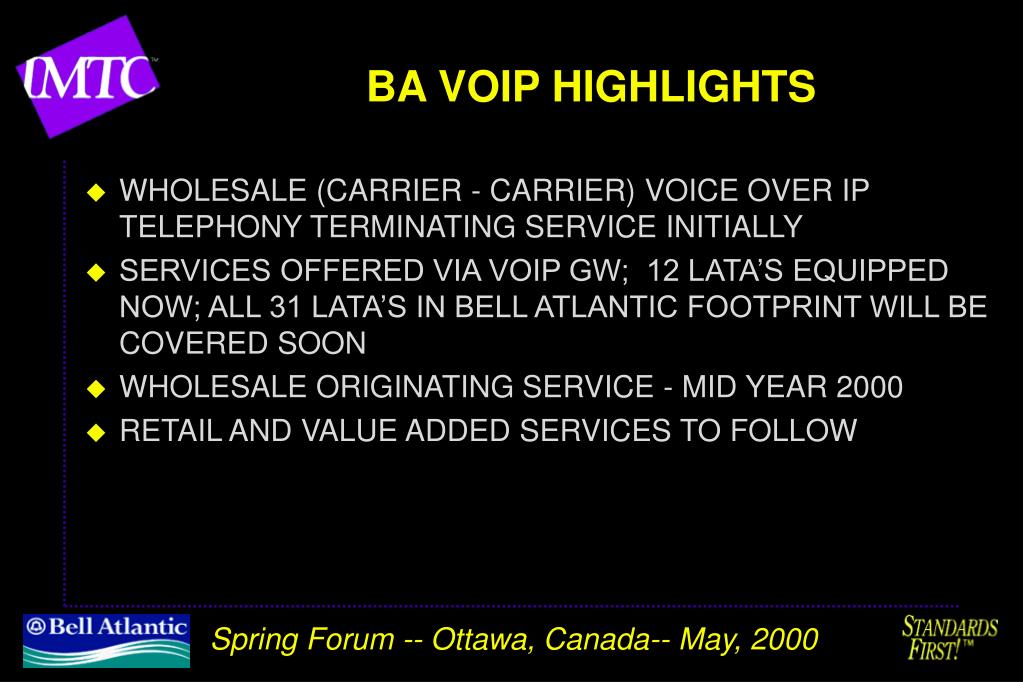

  4. BA VOIP HIGHLIGHTS • WHOLESALE (CARRIER - CARRIER) VOICE OVER IP TELEPHONY TERMINATING SERVICE INITIALLY • SERVICES OFFERED VIA VOIP GW; 12 LATA’S EQUIPPED NOW; ALL 31 LATA’S IN BELL ATLANTIC FOOTPRINT WILL BE COVERED SOON • WHOLESALE ORIGINATING SERVICE - MID YEAR 2000 • RETAIL AND VALUE ADDED SERVICES TO FOLLOW

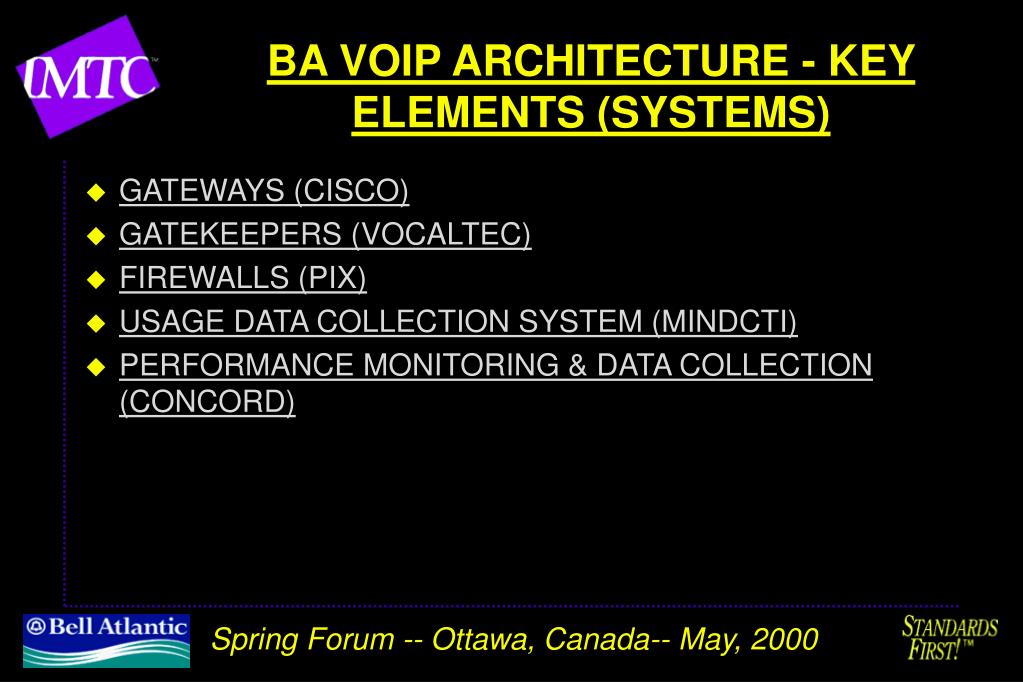

  5. BA VOIP ARCHITECTURE - KEY ELEMENTS (SYSTEMS) • GATEWAYS (CISCO) • GATEKEEPERS (VOCALTEC) • FIREWALLS (PIX) • USAGE DATA COLLECTION SYSTEM (MINDCTI) • PERFORMANCE MONITORING & DATA COLLECTION (CONCORD)

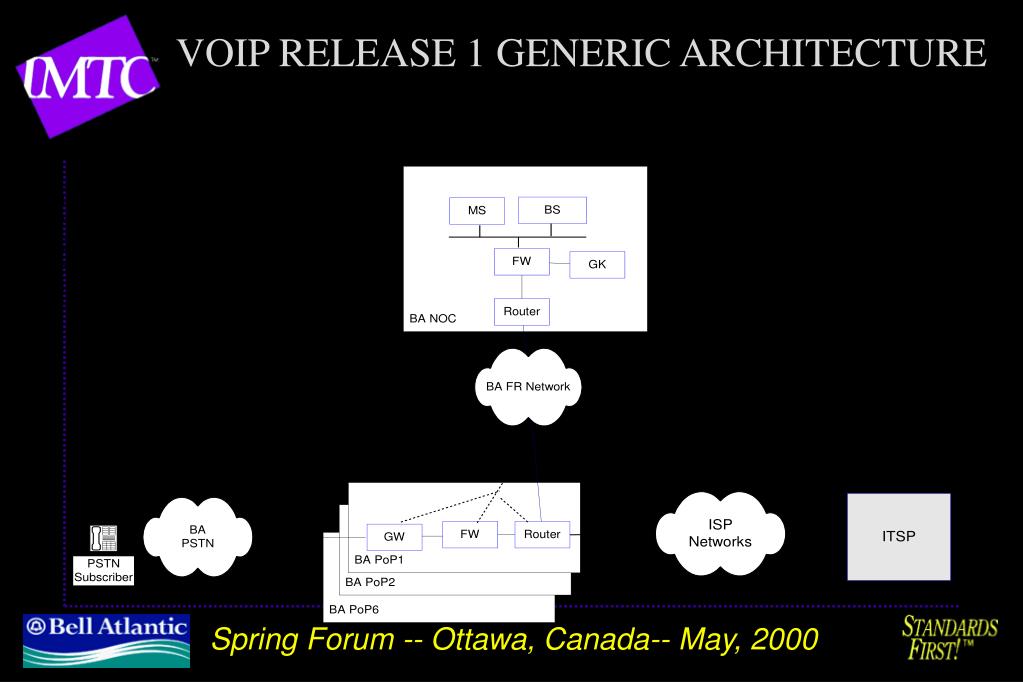

  6. VOIP RELEASE 1 GENERIC ARCHITECTURE

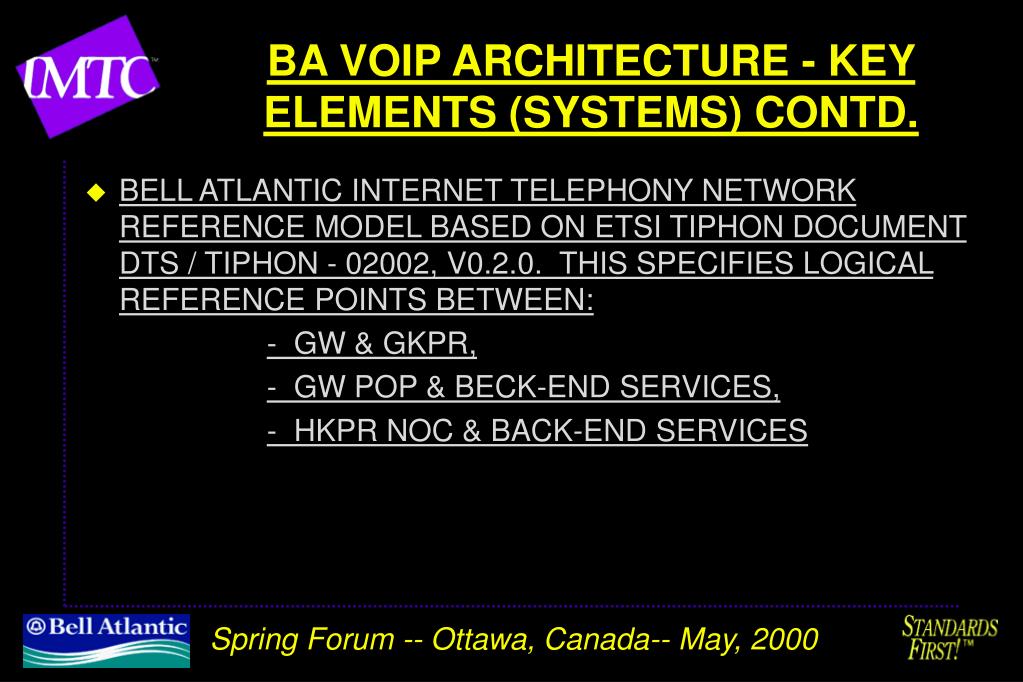

  7. BA VOIP ARCHITECTURE - KEY ELEMENTS (SYSTEMS) CONTD. • BELL ATLANTIC INTERNET TELEPHONY NETWORK REFERENCE MODEL BASED ON ETSI TIPHON DOCUMENT DTS / TIPHON - 02002, V0.2.0. THIS SPECIFIES LOGICAL REFERENCE POINTS BETWEEN: - GW & GKPR, - GW POP & BECK-END SERVICES, - HKPR NOC & BACK-END SERVICES

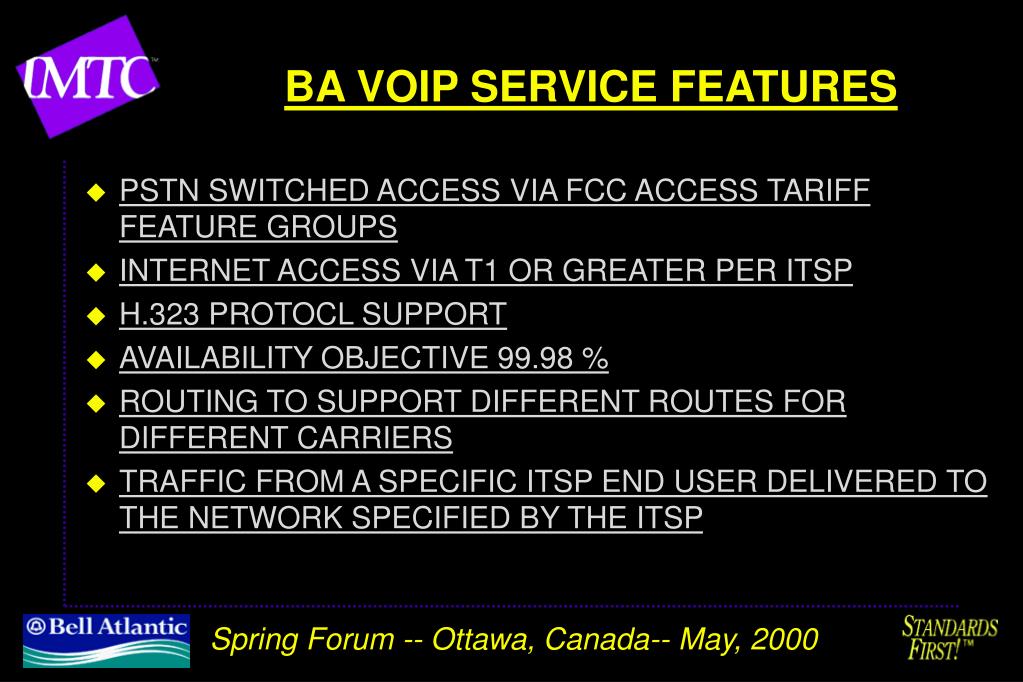

  8. BA VOIP SERVICE FEATURES • PSTN SWITCHED ACCESS VIA FCC ACCESS TARIFF FEATURE GROUPS • INTERNET ACCESS VIA T1 OR GREATER PER ITSP • H.323 PROTOCL SUPPORT • AVAILABILITY OBJECTIVE 99.98 % • ROUTING TO SUPPORT DIFFERENT ROUTES FOR DIFFERENT CARRIERS • TRAFFIC FROM A SPECIFIC ITSP END USER DELIVERED TO THE NETWORK SPECIFIED BY THE ITSP

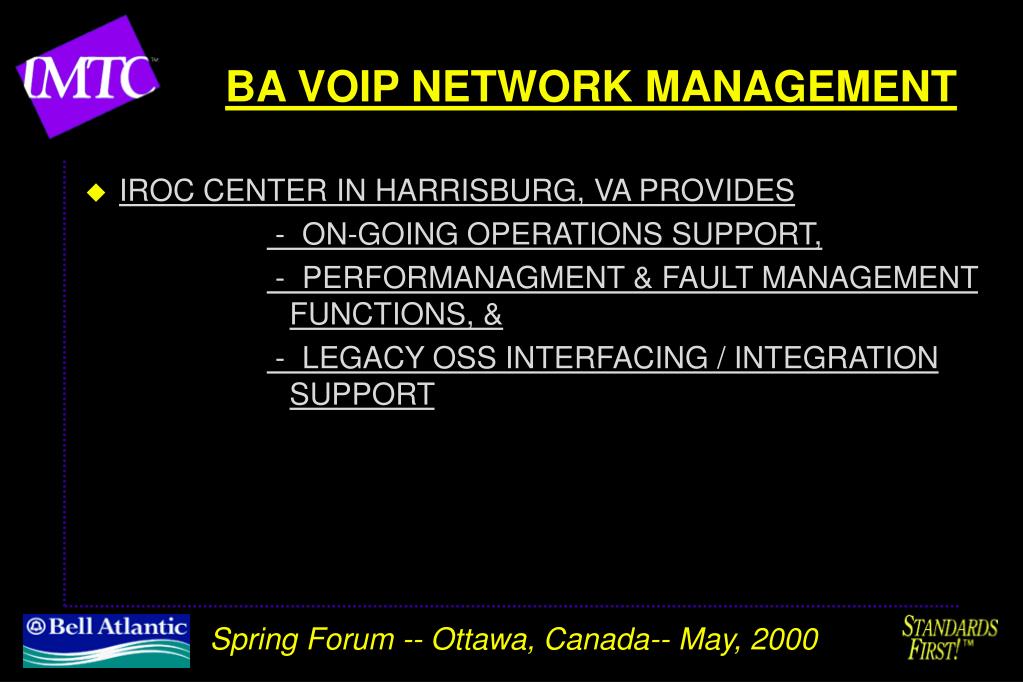

  9. BA VOIP NETWORK MANAGEMENT • IROC CENTER IN HARRISBURG, VA PROVIDES - ON-GOING OPERATIONS SUPPORT, - PERFORMANAGMENT & FAULT MANAGEMENT FUNCTIONS, & - LEGACY OSS INTERFACING / INTEGRATION SUPPORT

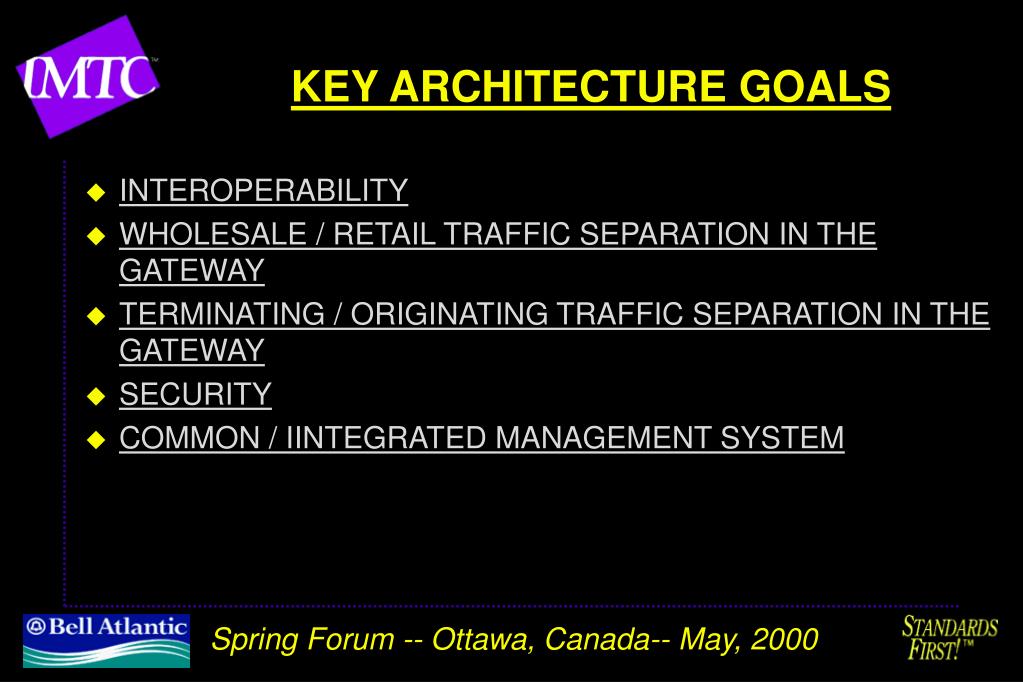

  10. KEY ARCHITECTURE GOALS • INTEROPERABILITY • WHOLESALE / RETAIL TRAFFIC SEPARATION IN THE GATEWAY • TERMINATING / ORIGINATING TRAFFIC SEPARATION IN THE GATEWAY • SECURITY • COMMON / IINTEGRATED MANAGEMENT SYSTEM

  11. KEY ARCHITECTURE GOALS CONTD. - KEY REQUIREMENTS TO BE MET BY VENDORS • TOTAL SOLUTION BASED ON COMMODITIZED, STDS.-COMPLIANT OFF THE SHELF COMPONENTS THAT WOULD SUPPORT PLUG & PLAY • SUPPORT FOR OSP, SIP & H.323, SNMP V.2, ETC. • SYSTEMS TO SUPPORT BILLING & SETTLEMENT IN CONFORMANCE WITH ESTABLISHED (& EVOLVING) STANDARDS • SYSTEM INTERFACES & INTEROPERABILTY BETWEEN GW - GW, GW -GKPR, GPR - GKPR, GKPR - CLEARING HOUSE (CH) AND CH - CH (OSP)

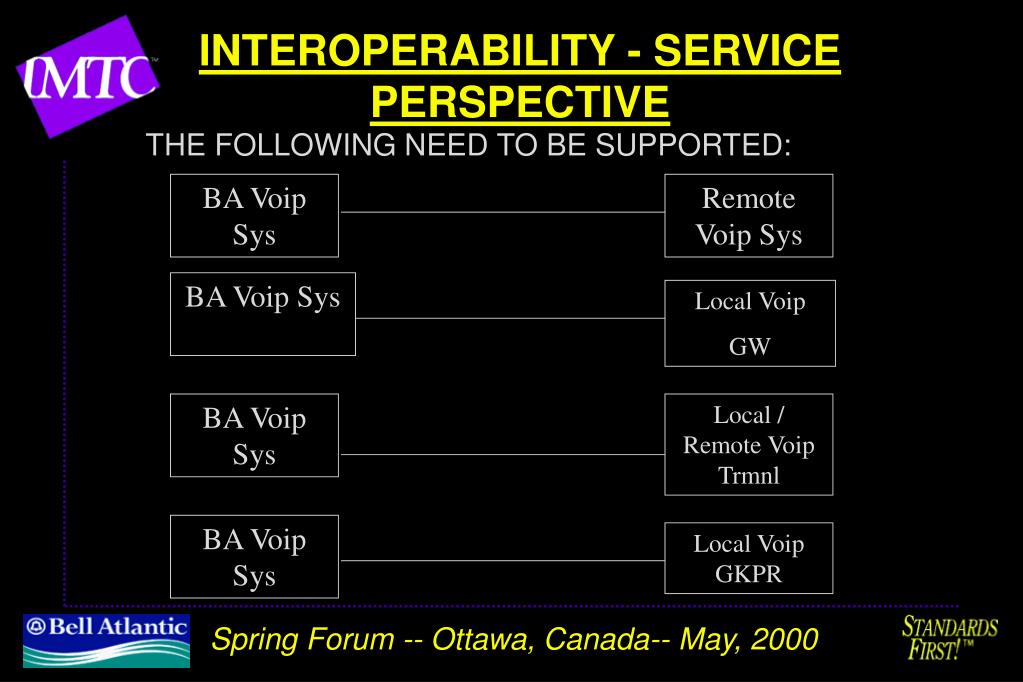

  12. INTEROPERABILITY - SERVICE PERSPECTIVE THE FOLLOWING NEED TO BE SUPPORTED: BA Voip Sys Remote Voip Sys BA Voip Sys Local Voip GW BA Voip Sys Local / Remote Voip Trmnl BA Voip Sys Local Voip GKPR

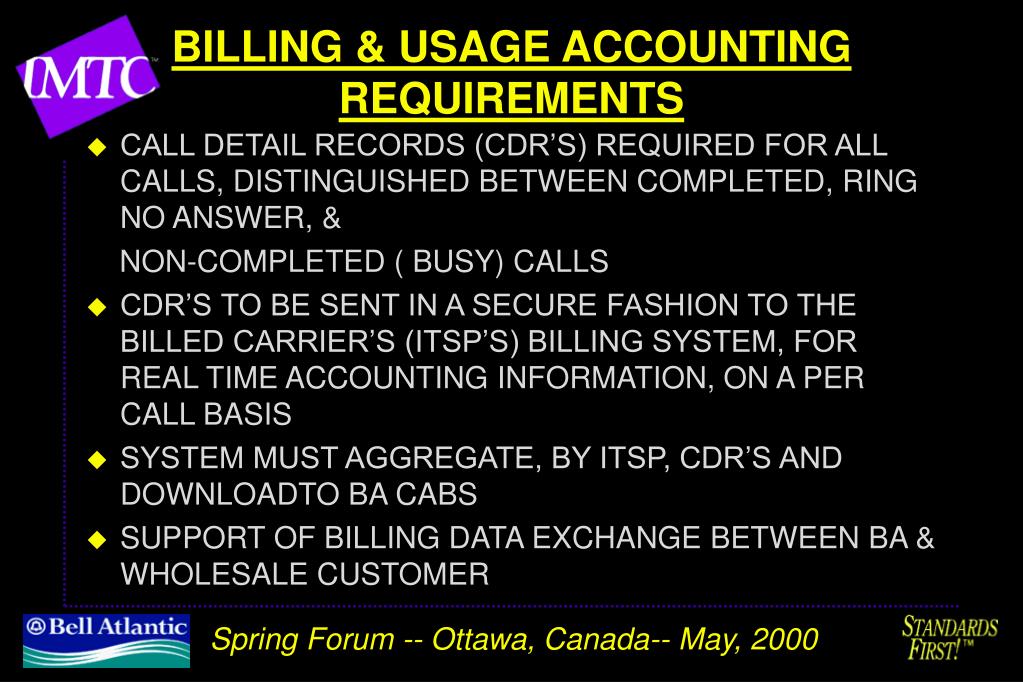

  13. BILLING & USAGE ACCOUNTING REQUIREMENTS • CALL DETAIL RECORDS (CDR’S) REQUIRED FOR ALL CALLS, DISTINGUISHED BETWEEN COMPLETED, RING NO ANSWER, & NON-COMPLETED ( BUSY) CALLS • CDR’S TO BE SENT IN A SECURE FASHION TO THE BILLED CARRIER’S (ITSP’S) BILLING SYSTEM, FOR REAL TIME ACCOUNTING INFORMATION, ON A PER CALL BASIS • SYSTEM MUST AGGREGATE, BY ITSP, CDR’S AND DOWNLOADTO BA CABS • SUPPORT OF BILLING DATA EXCHANGE BETWEEN BA & WHOLESALE CUSTOMER

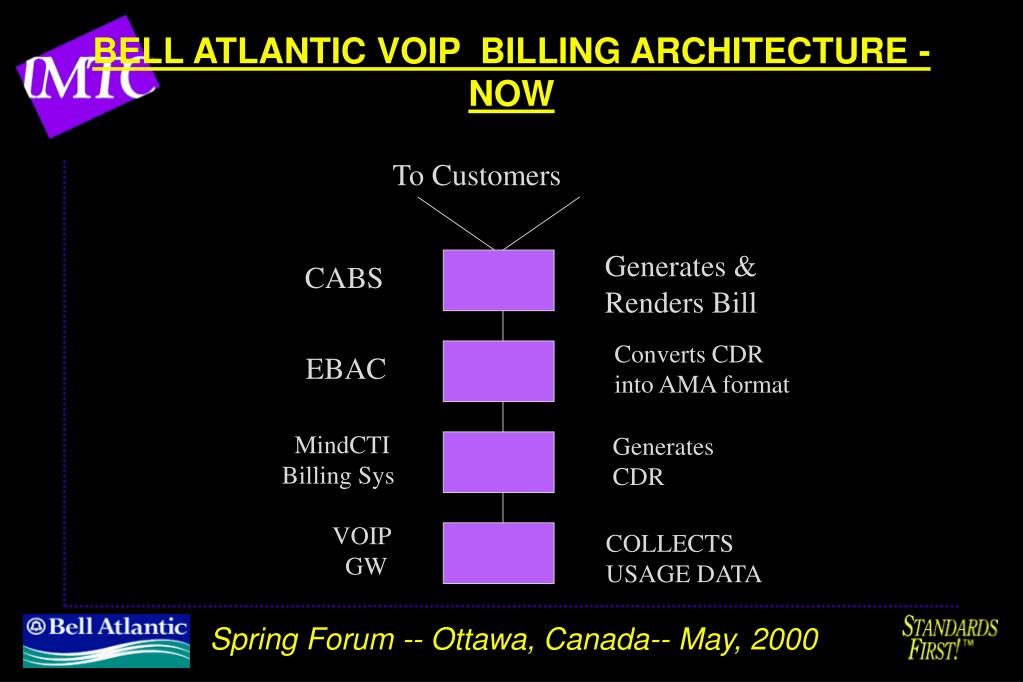

  14. BELL ATLANTIC VOIP BILLING ARCHITECTURE - NOW To Customers Generates & Renders Bill CABS Converts CDR into AMA format EBAC MindCTI Billing Sys Generates CDR VOIP GW COLLECTS USAGE DATA

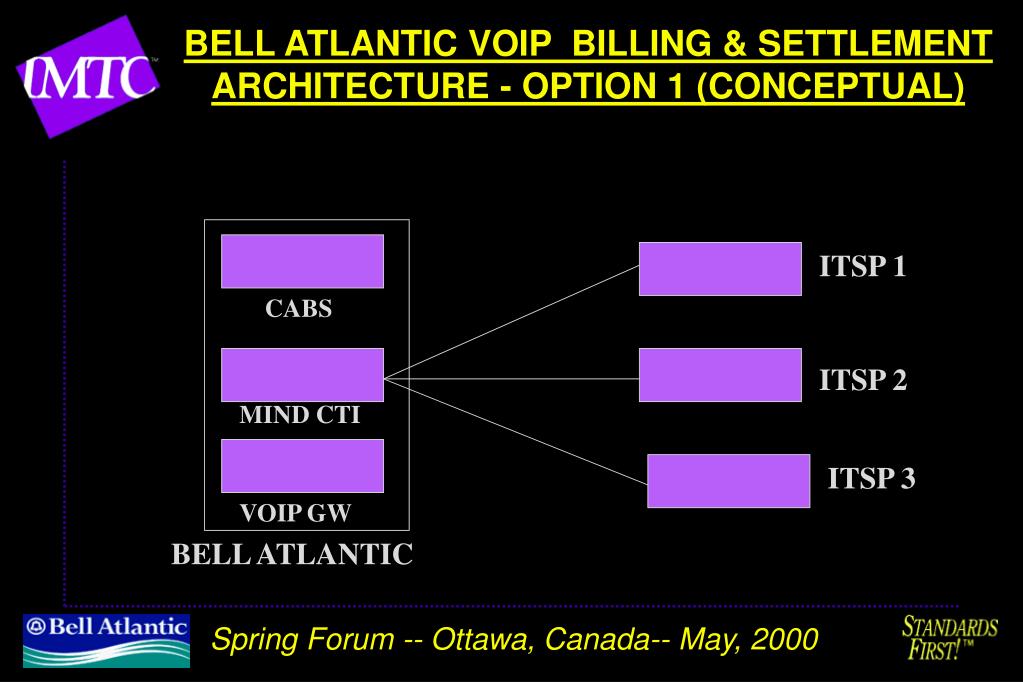

  15. BELL ATLANTIC VOIP BILLING & SETTLEMENT ARCHITECTURE - OPTION 1 (CONCEPTUAL) ITSP 1 CABS ITSP 2 MIND CTI ITSP 3 VOIP GW BELL ATLANTIC

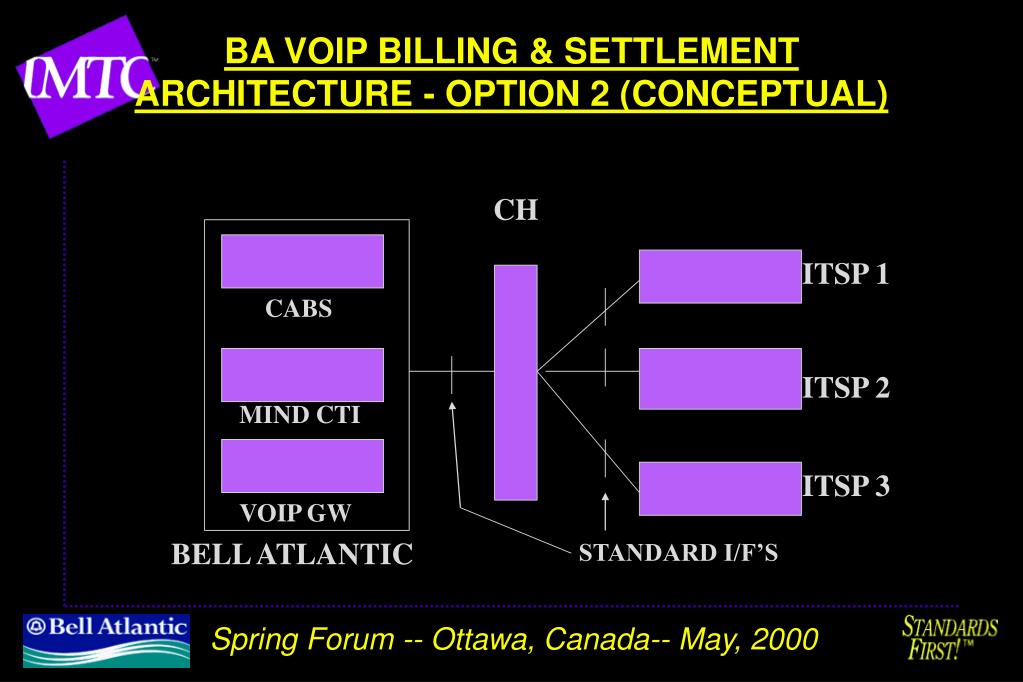

  16. BA VOIP BILLING & SETTLEMENT ARCHITECTURE - OPTION 2 (CONCEPTUAL) CH ITSP 1 CABS ITSP 2 MIND CTI ITSP 3 VOIP GW BELL ATLANTIC STANDARD I/F’S

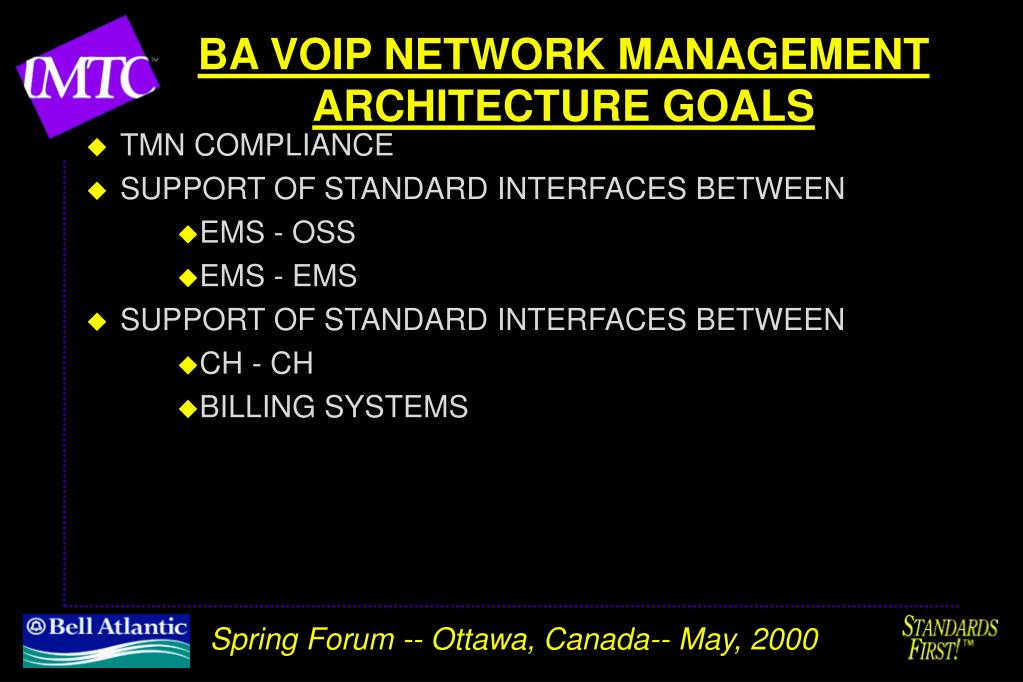

  17. BA VOIP NETWORK MANAGEMENT ARCHITECTURE GOALS • TMN COMPLIANCE • SUPPORT OF STANDARD INTERFACES BETWEEN • EMS - OSS • EMS - EMS • SUPPORT OF STANDARD INTERFACES BETWEEN • CH - CH • BILLING SYSTEMS

  18. TMN • TMN IS A STANDARDS BASED NATIONAL (T1M1) AND INTERNATIONAL (ITU-T) RECOGNIZED NETWORK MANAGEMENT SOLUTION FOR TELECOMMUNICATIONS • PROVIDES A LAYERED MODEL BASED ON FUNCTIONAL AREAS. THESE ARE: FM, CM, AM, PM & SM

  19. WHY TMN • PROVIDES A COMMON UNDERSTANDING AND FRAMEWORK FOR MANAGING A TELECOM. NETWORK VIA STANDARDS COMPLIANT SYSTEMS AND INTERFACES • ENABLES MULTI VENDOR SYSTEMS INTEROPERABILITY BASED ON STANDARD FUNCTIONAL, INFORMATION AND INTERFACE MODELS • SUPPORTS OPEN SYSTEMS & INTEROPERABILITY REQUIRED BY REGULATORY MANDATE • TMN IS BELL ATLANTIC’S TARGET ARCHITECTURE FOR NETWORK MANAGEMENT

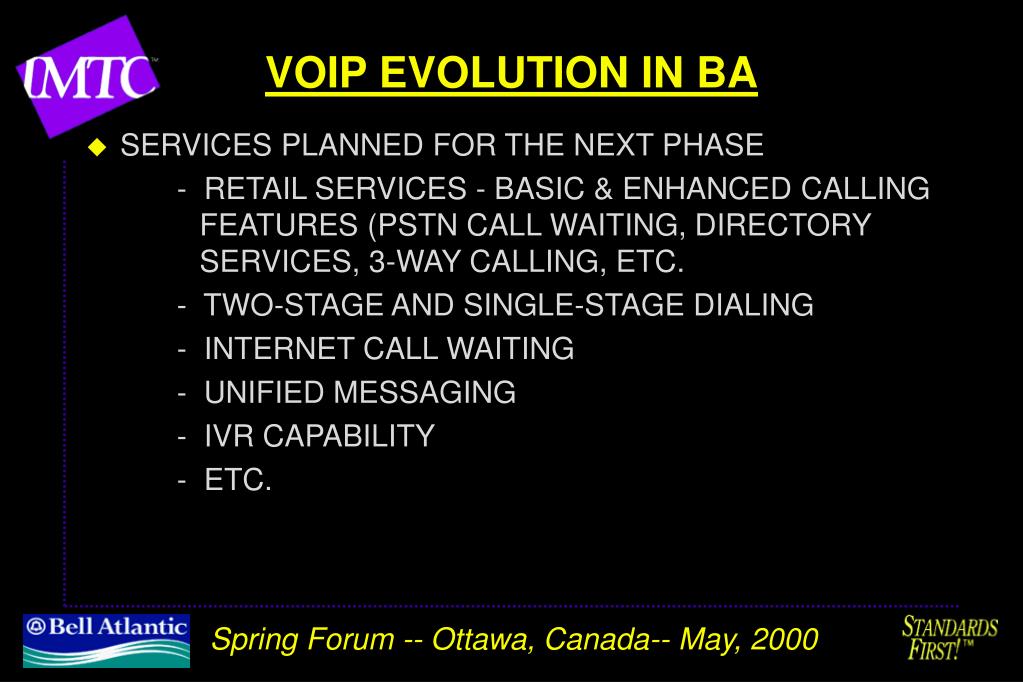

  20. VOIP EVOLUTION IN BA • SERVICES PLANNED FOR THE NEXT PHASE - RETAIL SERVICES - BASIC & ENHANCED CALLING FEATURES (PSTN CALL WAITING, DIRECTORY SERVICES, 3-WAY CALLING, ETC. - TWO-STAGE AND SINGLE-STAGE DIALING - INTERNET CALL WAITING - UNIFIED MESSAGING - IVR CAPABILITY - ETC.

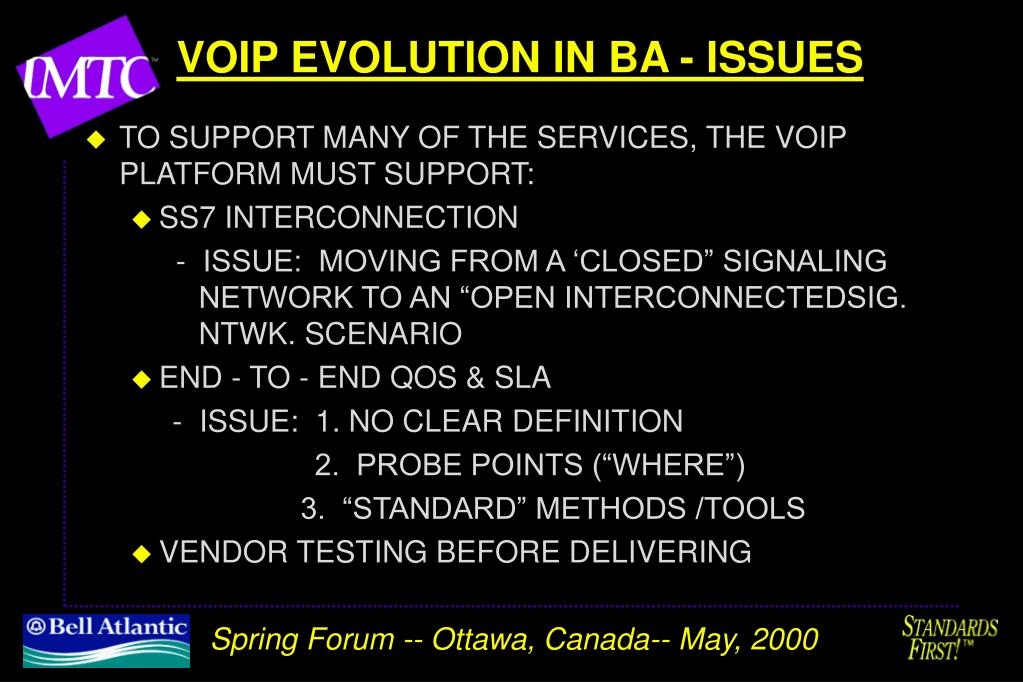

  21. VOIP EVOLUTION IN BA - ISSUES • TO SUPPORT MANY OF THE SERVICES, THE VOIP PLATFORM MUST SUPPORT: • SS7 INTERCONNECTION - ISSUE: MOVING FROM A ‘CLOSED” SIGNALING NETWORK TO AN “OPEN INTERCONNECTEDSIG. NTWK. SCENARIO • END - TO - END QOS & SLA - ISSUE: 1. NO CLEAR DEFINITION 2. PROBE POINTS (“WHERE”) 3. “STANDARD” METHODS /TOOLS • VENDOR TESTING BEFORE DELIVERING

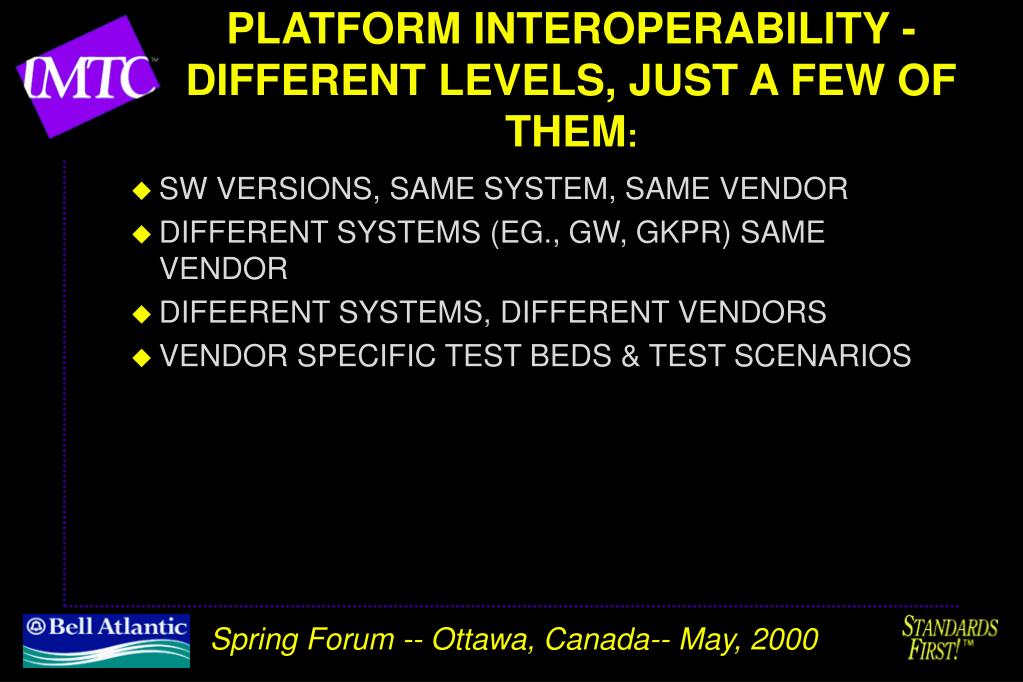

  22. PLATFORM INTEROPERABILITY - DIFFERENT LEVELS, JUST A FEW OF THEM: • SW VERSIONS, SAME SYSTEM, SAME VENDOR • DIFFERENT SYSTEMS (EG., GW, GKPR) SAME VENDOR • DIFEERENT SYSTEMS, DIFFERENT VENDORS • VENDOR SPECIFIC TEST BEDS & TEST SCENARIOS

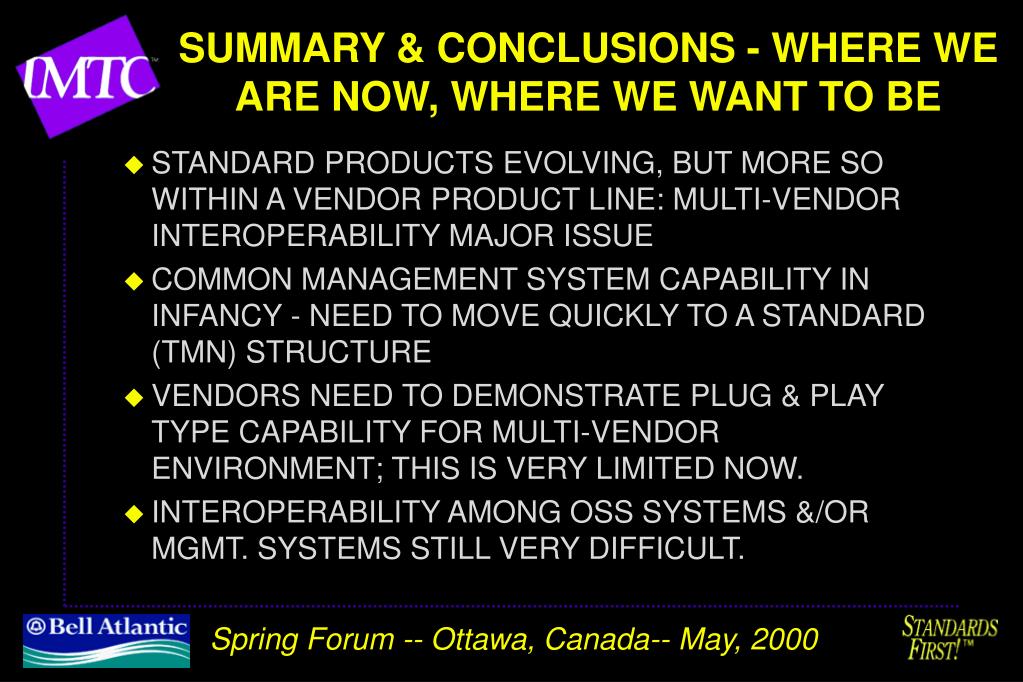

  23. SUMMARY & CONCLUSIONS - WHERE WE ARE NOW, WHERE WE WANT TO BE • STANDARD PRODUCTS EVOLVING, BUT MORE SO WITHIN A VENDOR PRODUCT LINE: MULTI-VENDOR INTEROPERABILITY MAJOR ISSUE • COMMON MANAGEMENT SYSTEM CAPABILITY IN INFANCY - NEED TO MOVE QUICKLY TO A STANDARD (TMN) STRUCTURE • VENDORS NEED TO DEMONSTRATE PLUG & PLAY TYPE CAPABILITY FOR MULTI-VENDOR ENVIRONMENT; THIS IS VERY LIMITED NOW. • INTEROPERABILITY AMONG OSS SYSTEMS &/OR MGMT. SYSTEMS STILL VERY DIFFICULT.

  24. SUMMARY & CONCLUSIONS - WHERE WE ARE NOW, WHERE WE WANT TO BE (CONTD.) • IMTC MUST FURTHER THE WORK ON BILLING & SETTLEMENT INTEROP. RQMNTS • IMTC MUST CONTINUE ITS ROLE IN ENCOURAGING VENDORS TO MOVE MORE QUICKLY TOWARDS INTER-OPERABLE SYSTEMS IN AN OPEN, STANDARDS COMPLIANT FASHION • VENDORS MUST AGREE UPON AND IMPLEMENT VOIP TEST BED THAT WOULD ENABLE THEM TO JOINTLY PERFORM SYSTEM INTEROPERABILITY TESTS BEFORE THEY SHIP PRODUCTS TO THEIR CUSTOMERS.
