  1. SNMP(Simple Network Management Protocol)Overview Draft Version

  2. SNMP Overview • Simple Network Management Protocol (SNMP) • Ethernet is not a supervised protocol • SNMP provides a method to monitor the status, connectionand communication of devices on a LAN • Uses • Traps (notification of events) • Sets (configuration and control) • Gets (retrieves data) • Management Information Base (MIB’s) (device data structure) • Community strings (text strings like passwords)

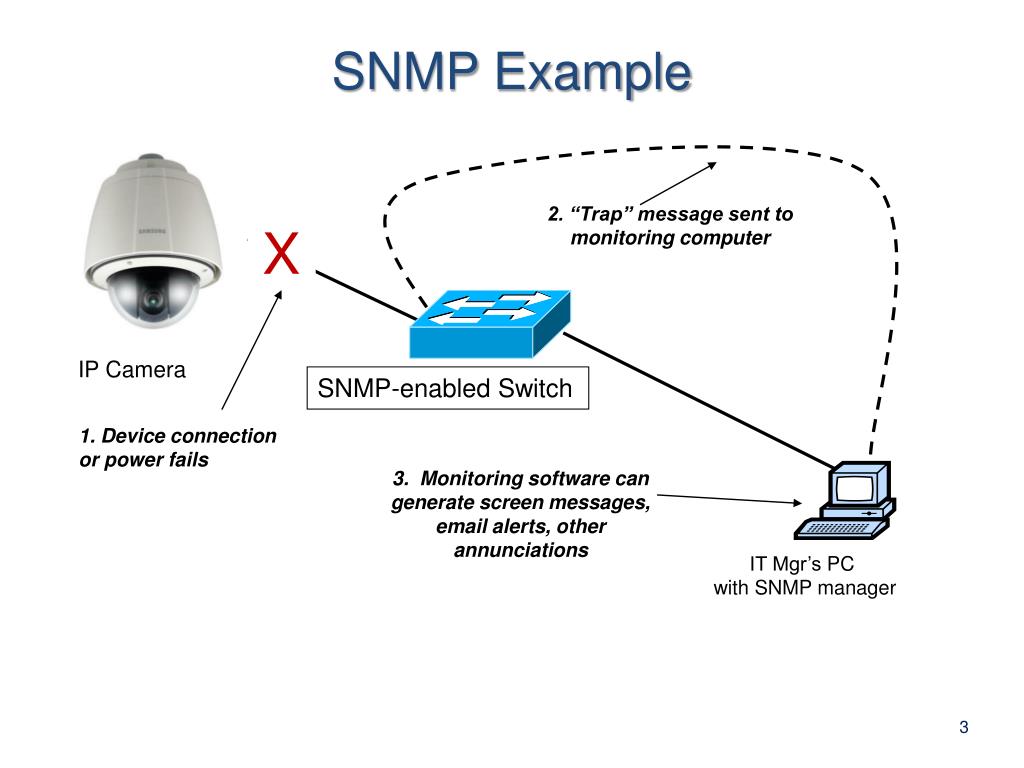

  3. SNMP Example 2. “Trap” message sent to monitoring computer X IP Camera SNMP-enabled Switch 1. Device connection or power fails 3. Monitoring software can generate screen messages, email alerts, other annunciations IT Mgr’s PC with SNMP manager

  4. SNMP Overview • Gets retrieve information • Traps notify of events • Sets configure and control • Manager – server running processes to receive or modify information in the device • Agents – software running on the device; talks to the Manager • SNMP (Simple Network Management Protocol) – defines: • communication rules between SNMP-capable devices • message types • MIB (Management Information Base) – a database of objects in the device tracked by the agent • SMI (Structure of Management Information)– how information is organized • Numerical hierarchy of MIB’s

  5. Graphic courtesy of Microsoft Corporation

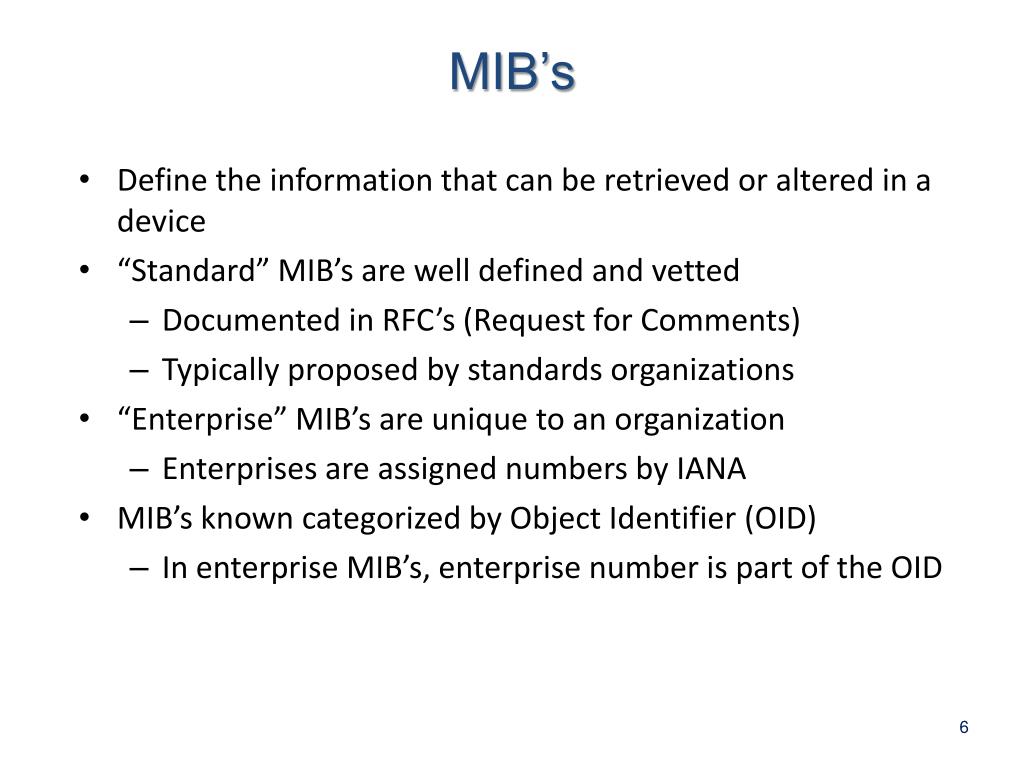

  6. MIB’s • Define the information that can be retrieved or altered in a device • “Standard” MIB’s are well defined and vetted • Documented in RFC’s (Request for Comments) • Typically proposed by standards organizations • “Enterprise” MIB’s are unique to an organization • Enterprises are assigned numbers by IANA • MIB’s known categorized by Object Identifier (OID) • In enterprise MIB’s, enterprise number is part of the OID

  7. MIB OID Hierarchy

  8. SNMP Versions • SNMPv1 (1988) – Initial implementation • Poor security • Used “Community Strings” as surrogates for passwords • SNMPv2c - Most popular version of SNMPv2 (1999) • Widely used • Maintains community strings for security • RFC 2578 • SNMPv3 (2002) – Added cryptographic security • Most secure version if features are used • RFC 3414

  9. Axis Encryption Options

  10. Samsung

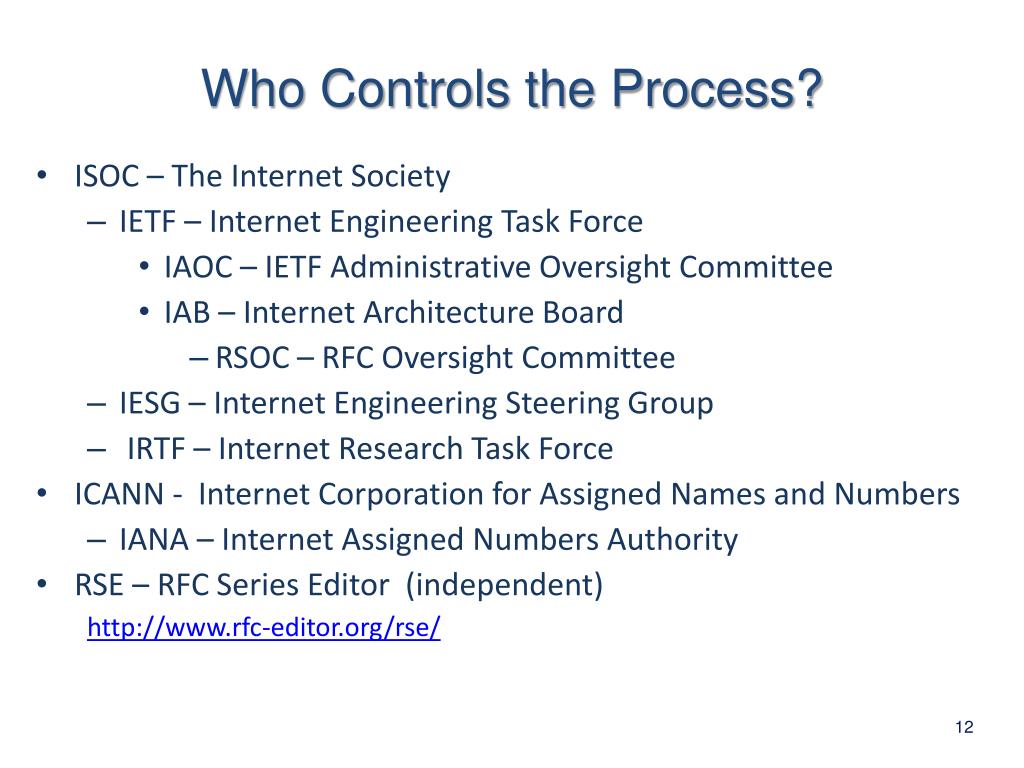

  11. Who Controls the Process? • ISOC – The Internet Society • IETF – Internet Engineering Task Force • IAOC – IETF Administrative Oversight Committee • IAB – Internet Architecture Board • RSOC – RFC Oversight Committee • IESG – Internet Engineering Steering Group • IRTF – Internet Research Task Force • ICANN -  Internet Corporation for Assigned Names and Numbers • IANA – Internet Assigned Numbers Authority • RSE – RFC Series Editor (independent) http://www.rfc-editor.org/rse/

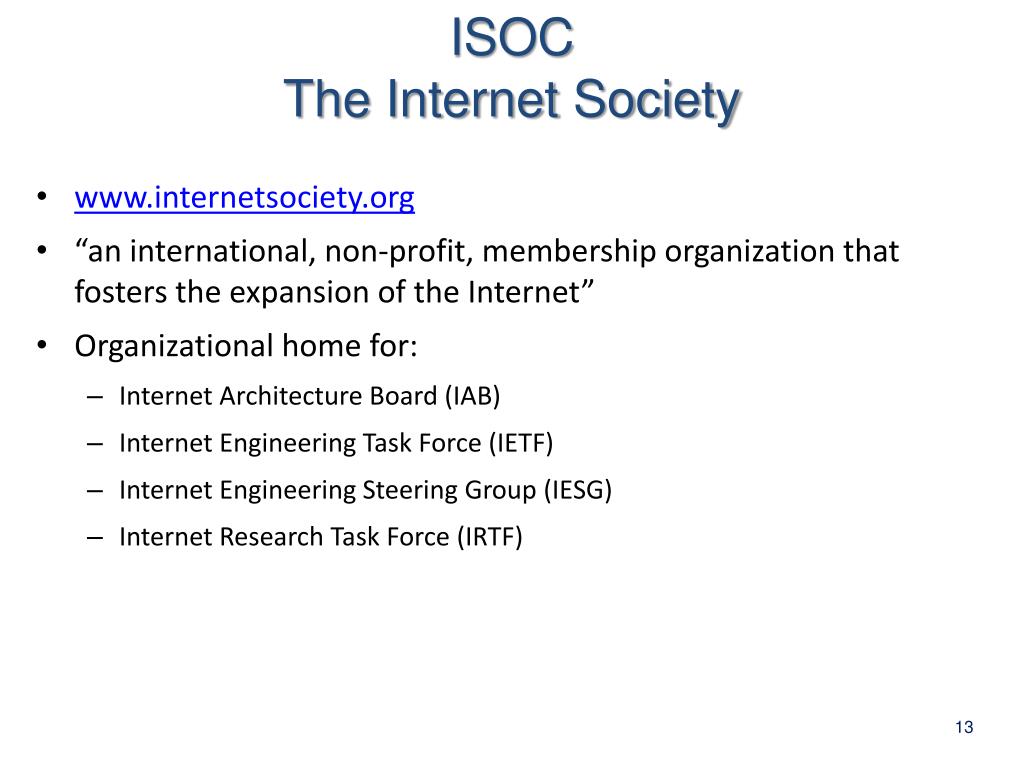

  12. ISOC The Internet Society • www.internetsociety.org • “an international, non-profit, membership organization that fosters the expansion of the Internet” • Organizational home for: • Internet Architecture Board (IAB) • Internet Engineering Task Force (IETF) • Internet Engineering Steering Group (IESG) • Internet Research Task Force (IRTF)

  13. IETF The Internet Engineering Task Force • www.ietf.org • “The mission of the IETF is to make the Internet work better by producing high quality, relevant technical documents that influence the way people design, use, and manage the Internet” • actions associated with entry into and movement along the Internet "standards track" including final approval of specifications as Internet Standards and publication as an RFC • Supervises the IETF Administrative Oversight Committee (IAOC) • Good reference: http://www.ietf.org/tao.html

  14. IAB The Internet Architecture Board • www.iab.org • A committee of the IETF • Architectural Oversight • Standards Process Oversight and Appeal • Editorial management and publication of RFC’s • RSOC - RFC Series Oversight Committee

  15. IESG Internet Engineering Steering Group www.ietf.org/iesg.html Composed of IETF Area Directors Responsible for technical management of IETF activities and the Internet standards Ratifies or steers the output from the IETF's Working Groups (WGs) Gets WGs started and finished Makes sure that non-WG drafts that are about to become RFCs are correct.

  16. ICANN Internet Corporation for Assigned Names and Numbers • www.icann.org • Coordinates a select set of the Internet's technical management functions, such as • the assignment of protocol parameters • the management of the domain name system • the allocation of Internet protocol (IP) address space, • management of the root server system. • Coordinates IANA activities • Defines policies for Internet names and numbers • Revenues derived from DNS registrations

  17. IANA The Internet Assigned Numbers Authority • www.iana.org • “allocates and maintains unique codes and numbering systems that are used in the technical standards (“protocols”) that drive the Internet” • Domain names • Number resources • Protocol assignments (numbering systems)

  18. RFC Series Editor RSE • www.rfc-editor.org/rse • The "RFC Editor" comprises the set of functions that serve the Internet technical community in editing, publishing, and archiving RFCs.  • RSE directs the work of the RFC Editor • See RFC 6635 (http://tools.ietf.org/html/rfc6635)

  19. Ruling Organizations • ICANN • IANA • RFC Series Editor (RSE) • ISOC • IAB • RSOC • IETF • IAOC • IESG • IRTF • IRSG

  20. RFC’s – Requests for Comments • Memoranda describing methods, behaviors, research, or innovations • IETF official publication channel • Means for soliciting feedback • Path for a proposal to become a standard • RFC‘s cover standard MIB’s • Usually the result of a Working Group effort
