Is 426 information systems construction in modern society

IS 426: Information Systems Construction in Modern Society

Downloading and exploring oracle development environments


Needed downloads

Needed downloads

  • Oracle developer suite 10g http://www.oracle.com/technetwork/developer-tools/developer-suite/downloads/index.html

  • Oracle database express edition 11g

    http://www.oracle.com/technetwork/database/database-technologies/express-edition/downloads/index.html


Oracle developer suite 10g

Oracle developer suite 10g

  • Contains forms builder utility and Reports utility

  • http://www.oracle.com/technetwork/developer-tools/developer-suite/downloads/index.html


Oracle developer suite 10g accept

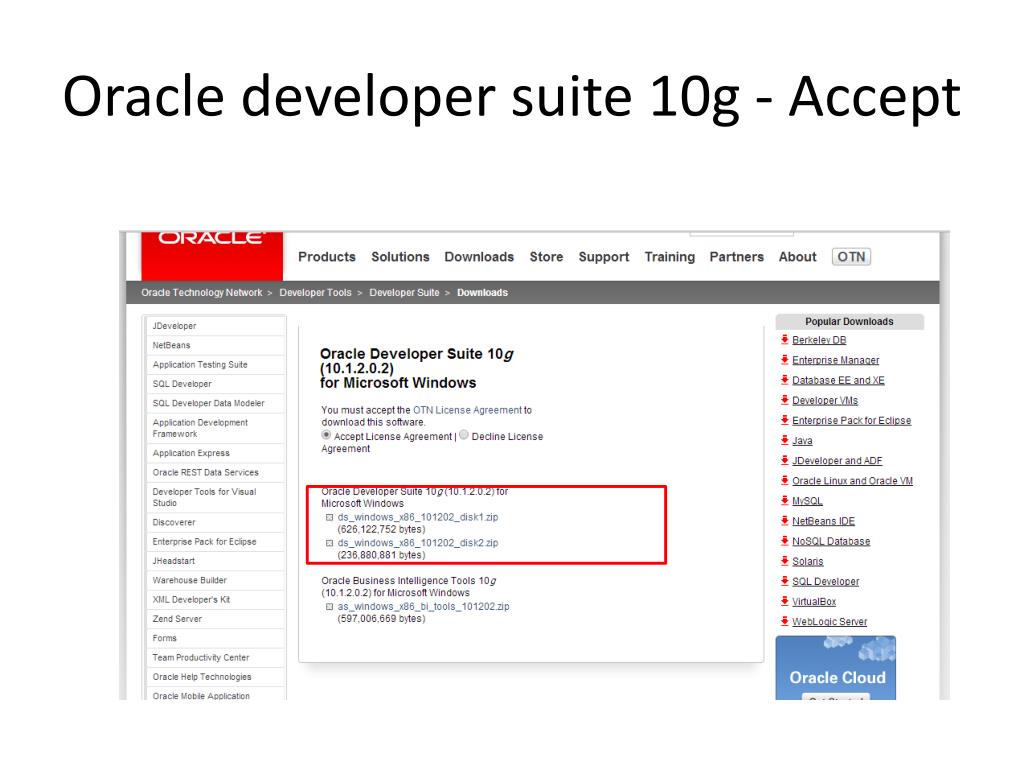

Oracle developer suite 10g - Accept


Oracle developer suite 10g account

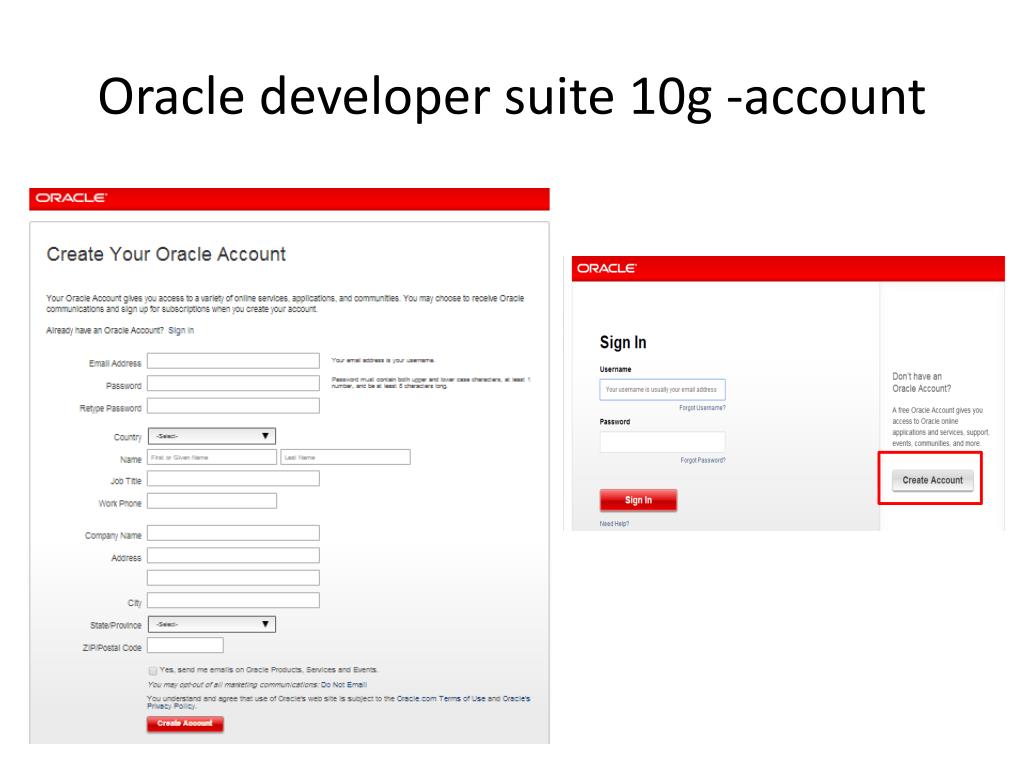

Oracle developer suite 10g -account


Oracle developer suite 10g unzip

Oracle developer suite 10g - unzip

  • Unzip disk 1 and disk 2 files into disk 1 and disk 2 folders.

  • Starting with disk 1:

    • Try running setup file (Oops Error!)

    • Some configurations are needed to run the developer suite 10g.


Required configurations

Required configurations

  • Add 6.0, 6.1,6.2 versions to available windows versions.Disk1/install/oraparam

  • Right click on setup file -> properties-> compatibility -> check Run -> select windows XP Pack 2.

  • Computer-> properties->advanced->performance settings-> advanced-> change-> custom size to 2000 and 8000-> click set and OK


Is 426 information systems construction in modern society

RUN THE SETUP FILE


Error after changes don t forget to click on set in my computer properties

Error after changes- don’t forget to click on set in my computer properties


Useful configurations videos must see

USEFUL CONFIGURATIONS VIDEOS- MUST SEE

  • http://www.youtube.com/watch?v=qYeic14YK-Y

  • http://www.youtube.com/watch?v=BU_QTlUQ1sk


Passing installation starts

Passing – INSTALLATION STARTS


Possible error after starting your installation

Possible Error after starting your installation

  • Change path environment var. from computer properties.

  • Delete unwanted paths

  • Click retry.

  • Appears a lot so try to shorten the path


Disk 2

Disk 2

  • You will be required to specify the stage folder path (disk 2).

  • Browse to disk 2 folder and click on stage folder.

  • Complete installation


Is 426 information systems construction in modern society

SUCCESSFUL INSTALLATION!


Installing database express

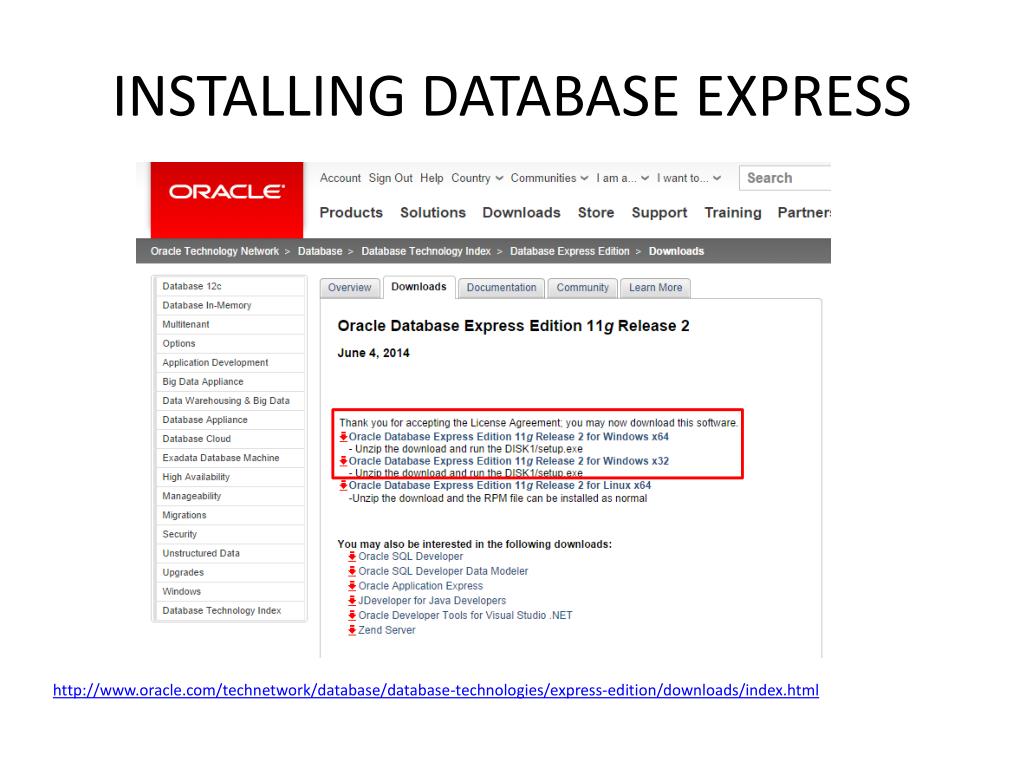

INSTALLING DATABASE EXPRESS

http://www.oracle.com/technetwork/database/database-technologies/express-edition/downloads/index.html


Installing database express1

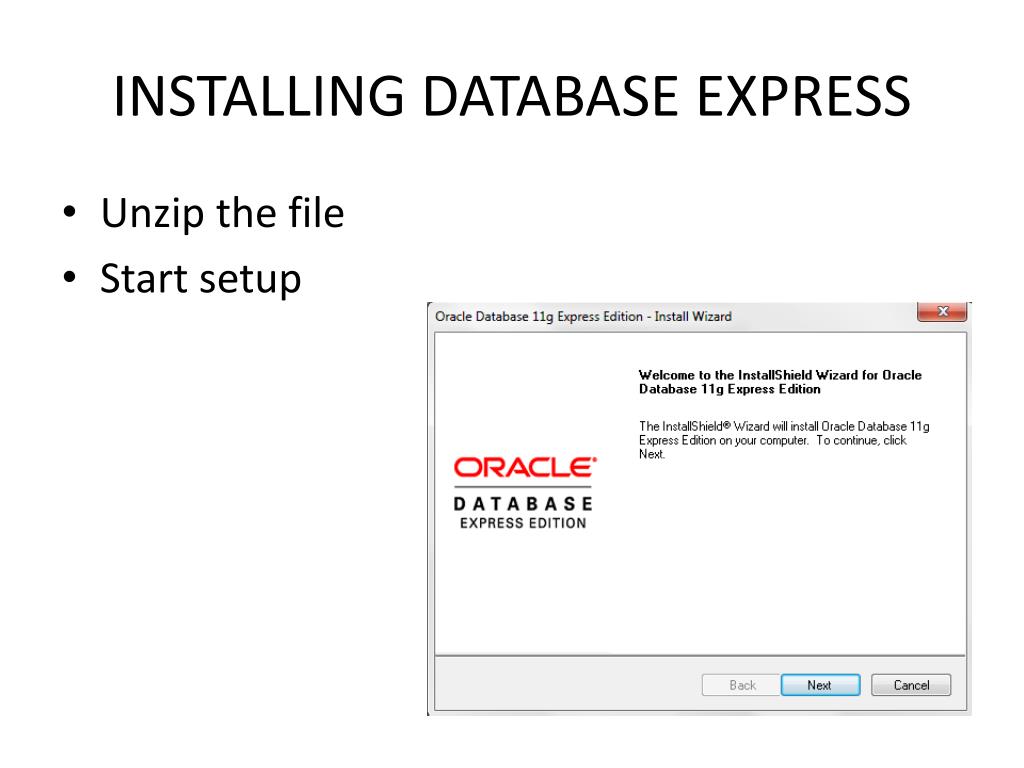

INSTALLING DATABASE EXPRESS

  • Unzip the file

  • Start setup


Is 426 information systems construction in modern society

SUCCESSFUL INSTALLATION!

  • Get started shortcut to start

  • Note: you might get error to start the page if you are using IE or chrome browsers. So change the settings to open the file with Firefox.


Is 426 information systems construction in modern society

EXPLORING FORMS BUILDER

Is426.wordpress.com


Is 426 information systems construction in modern society

Connecting your database 11g express edition to Oracle Developer Suite 10g


Is 426 information systems construction in modern society

  • Go to Net Configuration Assistant in your suiteHome Directory


Is 426 information systems construction in modern society

  • Local net Service Name configuration

  • Add

  • Service name: XE

  • Network Protocol: TCP

  • Host name: your device’s name

  • Accept and finish!!


Is 426 information systems construction in modern society

Now we are ready to Run some FORMS!


Connecting the forms builder

Connecting the forms builder

  • GO TO forms builder and try to connect to the XE database


Database is now accessable

DATABASE IS NOW ACCESSABLE


View database tables and select one

View database tables and select one


Adding tables to your xe database

Adding tables to your XE Database

  • Adding tables to the database can be done by writing SQL stmts using the Run SQL Command Line.

  • Example:

    • CREATE TABLE emp (att1 type, att2 type,…);


  • Login
