5th generation microwave

MW-SDH

5th Generation Microwave


Feathers

Built-in ADM function

Adaptive parameters adjusting

Multi-service platform

Software controlled system

Feathers


Agenda

General introduction

System architecture

Module and interface introduction

System configuration

Networking

System parameter

Application

Summery

Agenda

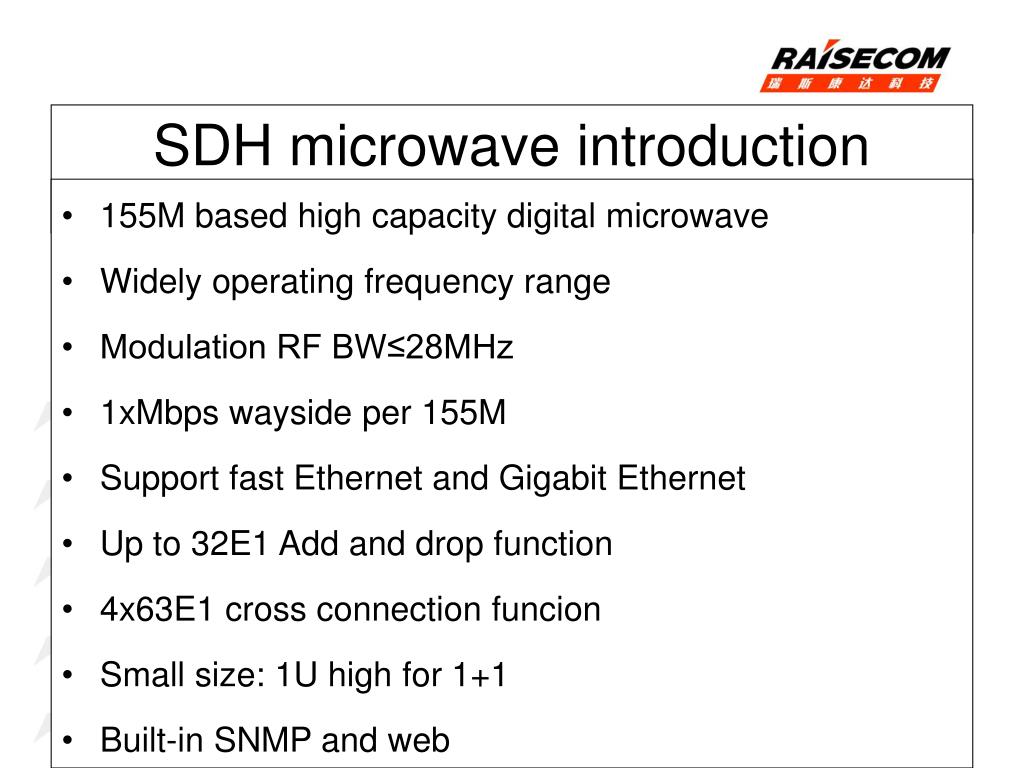

Sdh microwave introduction

155M based high capacity digital microwave

Widely operating frequency range

Modulation RF BW≤28MHz

1xMbps wayside per 155M

Support fast Ethernet and Gigabit Ethernet

Up to 32E1 Add and drop function

4x63E1 cross connection funcion

Small size: 1U high for 1+1

Built-in SNMP and web

SDH microwave introduction

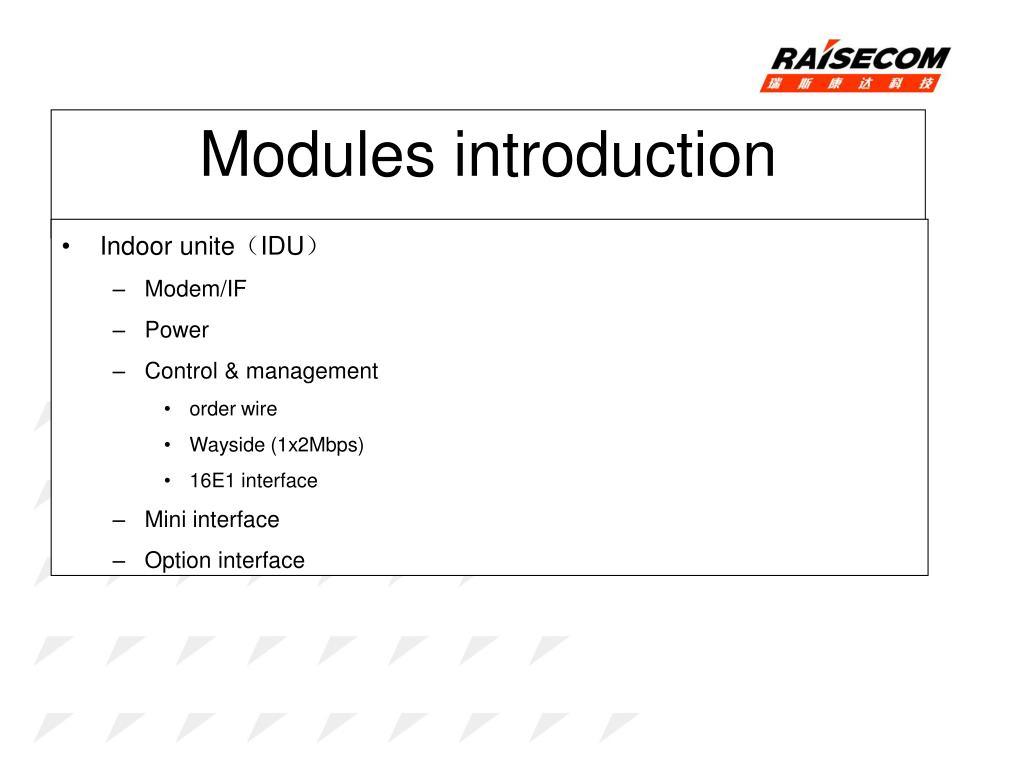

Modules introduction

Indoor unite(IDU)

Modem/IF

Power

Control & management

order wire

Wayside (1x2Mbps)

16E1 interface

Mini interface

Option interface

Modules introduction


Mw sdh idu

MW-SDH IDU

Standard PDH 1+0 Configuration


Sdh 1 0 configuration
SDH 1+0 Configuration

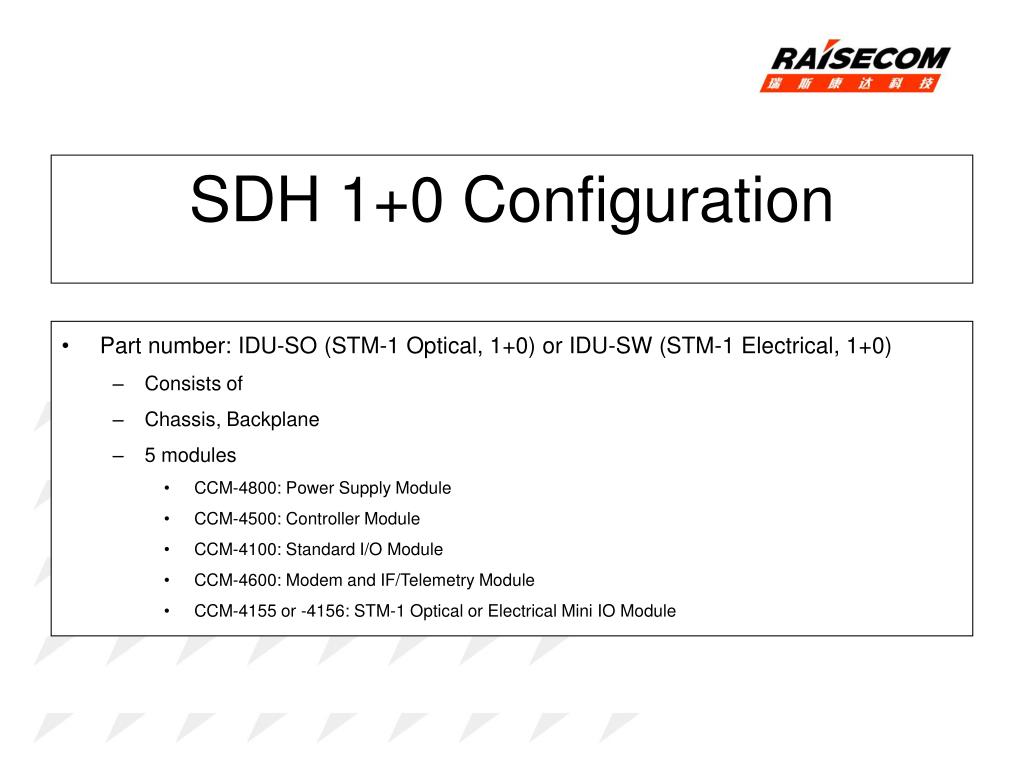

  • Part number: IDU-SO (STM-1 Optical, 1+0) or IDU-SW (STM-1 Electrical, 1+0)

    • Consists of

    • Chassis, Backplane

    • 5 modules

      • CCM-4800: Power Supply Module

      • CCM-4500: Controller Module

      • CCM-4100: Standard I/O Module

      • CCM-4600: Modem and IF/Telemetry Module

      • CCM-4155 or -4156: STM-1 Optical or Electrical Mini IO Module


Sdh 1 0 configuration1

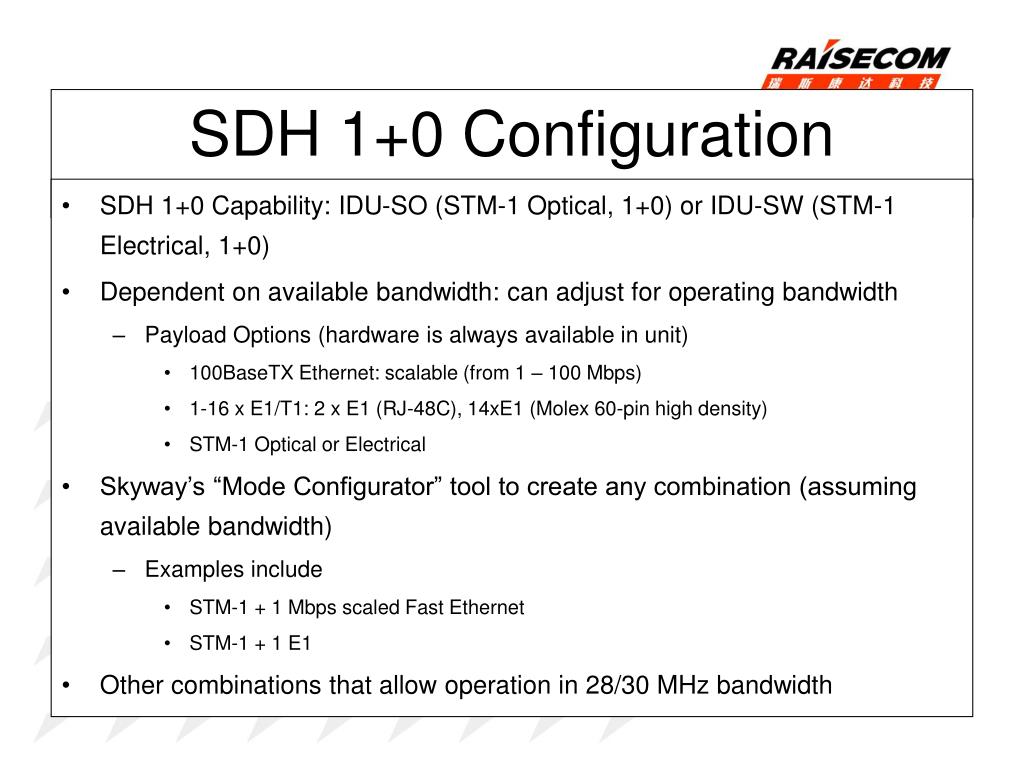

SDH 1+0 Capability: IDU-SO (STM-1 Optical, 1+0) or IDU-SW (STM-1 Electrical, 1+0)

Dependent on available bandwidth: can adjust for operating bandwidth

Payload Options (hardware is always available in unit)

100BaseTX Ethernet: scalable (from 1 – 100 Mbps)

1-16 x E1/T1: 2 x E1 (RJ-48C), 14xE1 (Molex 60-pin high density)

STM-1 Optical or Electrical

Skyway’s “Mode Configurator” tool to create any combination (assuming available bandwidth)

Examples include

STM-1 + 1 Mbps scaled Fast Ethernet

STM-1 + 1 E1

Other combinations that allow operation in 28/30 MHz bandwidth

SDH 1+0 Configuration


Sdh 1 1 configuration
SDH 1+1 Configuration (STM-1 Electrical, 1+0)

  • Part number: IDU-SO (STM-1 Optical, 1+1) or IDU-SW (STM-1 Electrical, 1+1)

  • Consists of

  • Chassis, Backplane

    • 7 modules

    • CCM-4800: Power Supply Module, Qty2 each (for redundancy)

    • CCM-4500: Controller Module

    • CCM-4100: Standard I/O Module

    • CCM-4600: Modem and IF/Telemetry Module, Qty2 each (for redundancy)

    • CCM-4155 or -4156: STM-1 Optical or Electrical Mini IO Module


2 0 or east west configuration

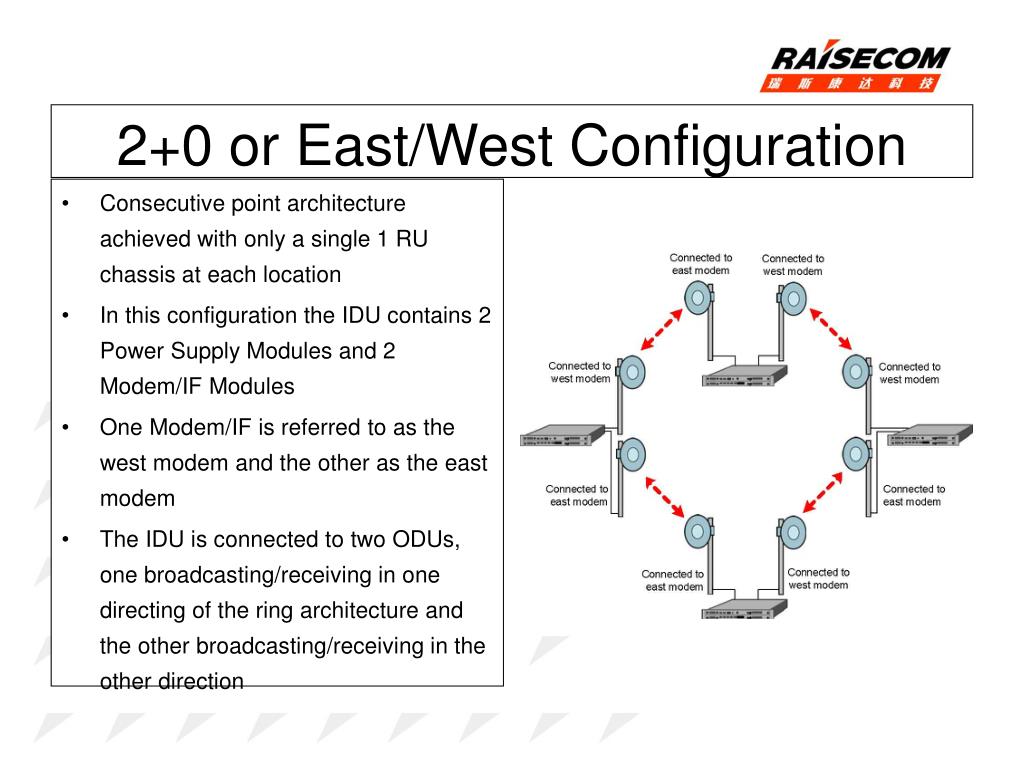

2+0 or East/West Configuration (STM-1 Electrical, 1+0)

  • Consecutive point architecture achieved with only a single 1 RU chassis at each location

  • In this configuration the IDU contains 2 Power Supply Modules and 2 Modem/IF Modules

  • One Modem/IF is referred to as the west modem and the other as the east modem

  • The IDU is connected to two ODUs, one broadcasting/receiving in one directing of the ring architecture and the other broadcasting/receiving in the other direction


Multi hop repeater with d i config

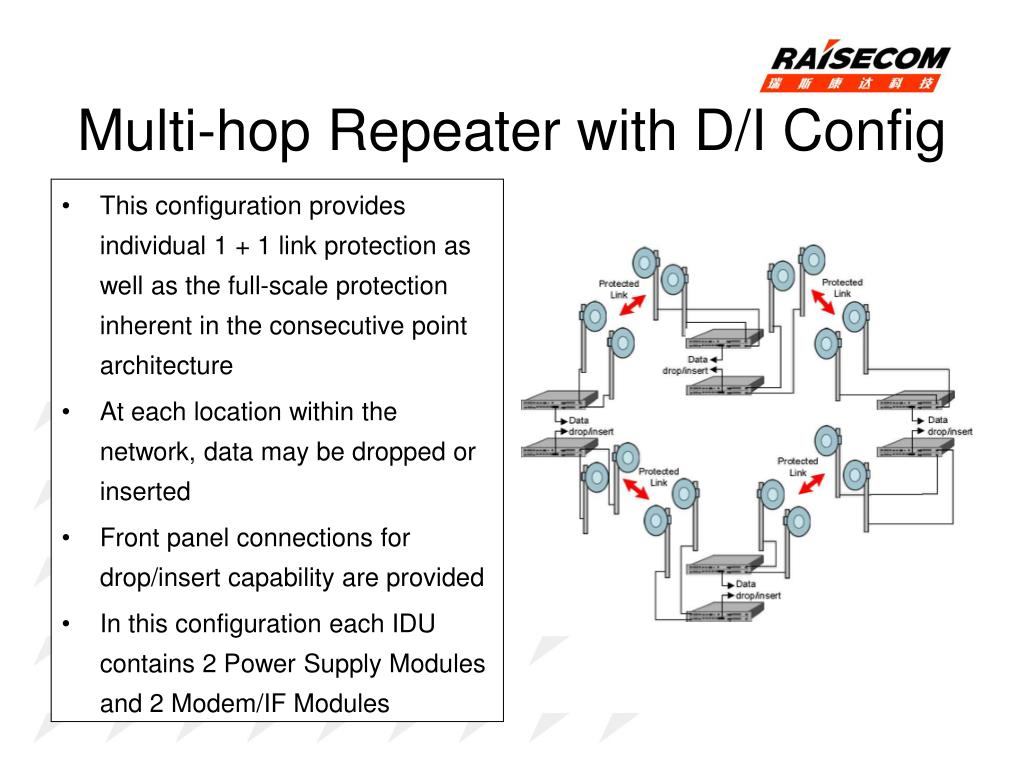

Multi-hop Repeater with D/I Config (STM-1 Electrical, 1+0)

  • This configuration provides individual 1 + 1 link protection as well as the full-scale protection inherent in the consecutive point architecture

  • At each location within the network, data may be dropped or inserted

  • Front panel connections for drop/insert capability are provided

  • In this configuration each IDU contains 2 Power Supply Modules and 2 Modem/IF Modules


1 1 protection diversity

Diversity mode: the link between each pair of modems is the same, providing complete redundancy

This arrangement requires bandwidth for both links and non-interference between the links, but it provides hitless receive and transmit switching

The IDU supports both frequency and spatial diversity

Frequency diversity: two frequencies are used

Spatial diversity: two non-interfering paths are used

In either case, the proprietary framer chooses the best, or error-free, data stream and forwards it to the Line Interface Units (LIUs)

1+1 Protection: Diversity


1 1 protection non diversity

Non-diversity mode: One ODU at each location transmits to both two ODUs at the other location

Does not require the extra bandwidth or interference protection of diversity mode

Provides hitless receive switching and hot standby

IDU automatically switches transmit ODU upon appropriate ODU alarm or ODU interface error, minimizing transmit outage time

The power supply, ODU, IF/telemetry and modem are protected

The digital framing and LUIs are not

1+1 Protection: Non-Diversity


Idu options

PDH (IDU-PB 1+0) to Super PDH both two ODUs at the other location

Additional 16xE1 + standard 16xE1 = 32xE1

CCM-4132: 16E1 Expansion IO Module

Software key to enable 32xE1 operation

Status of 16E1 Expansion IO Module (CCM-4132)

Integration complete

SDH (IDU-SO or IDU-SW) with STM1-to-E1 Mux/Demux

CCM-4132: 16E1 Expansion IO Module

CCM-4100X: Standard IO with enhanced operation

Software key to enable STM-1 to E1 (up to 32E1) Mux/Demux operation

Status of STM1-to-E1 Mux/Demux

Integration in progress

IDU: Options


E1 t1 cross connect switch

Provides any-to-any connection between both two ODUs at the other location

Front-panel E1/T1 ports (16 or 32)

STM-1 payload (63xE1 or 84xT1)

East Radio Link (63xE1 or 84xT1)

West Radio Link (63xE1 or 84xT1)

Mapping configurations may be developed in Excel and uploaded to the IDU.

Mappings are selected on the IDU via a drop-down box.

Up to 32 pre-defined (via Excel) mappings may be specified

A custom mapping can be edited directly on the IDU

E1/T1 Cross-Connect Switch


Stm 1 mux demux
STM-1 MUX/DEMUX both two ODUs at the other location

  • STM-1 Multiplex/Path Terminating

  • Mux/Demux

    • 63xE1

    • 84xT1

  • E1/T1 Cross-Connect Switch

  • Any-to-Any connection of E1/T1 signals

  • 1+0/1+1 operation

  • Up to 63xE1or 84xT1 over-the-air

  • 2+0 operation

  • Up to 126xE1 or 168xT1 over-the-air


  • Additional options
    Additional Options both two ODUs at the other location

    • Skyway would like Customer feedback on other network option cards

      • CCM-4132: 16E1/T1 Expansion IO

      • In prototype verification

      • CCM-4150: DS-3/E3/STS-1

        • Single DS-3 or E3 or STS-1

      • CCM-4xxx: Multi DS-3/E3/STS-1

        • 3 x DS-3, 4xE3, 3xSTS-1


    16 32 e1 crosspoint capability
    16/32 E1 Crosspoint Capability both two ODUs at the other location

    • The IDU cross point switch provides any-to-any E1/T1 routing between the front-panel ports, east and west RF links.

    • Flexible channel mapping allows pointand- click selection of predefined routings or custom routing.

    • Custom routing selections may be uploaded to the IDU via FTP.


    16 32 e1 crosspoint capability1
    16/32 E1 Crosspoint Capability both two ODUs at the other location

    • Add/Drop Example: E1/T1s may be dropped from east or west to the front-panel ports.


    Scalable sdh stm 1 mux demux capability

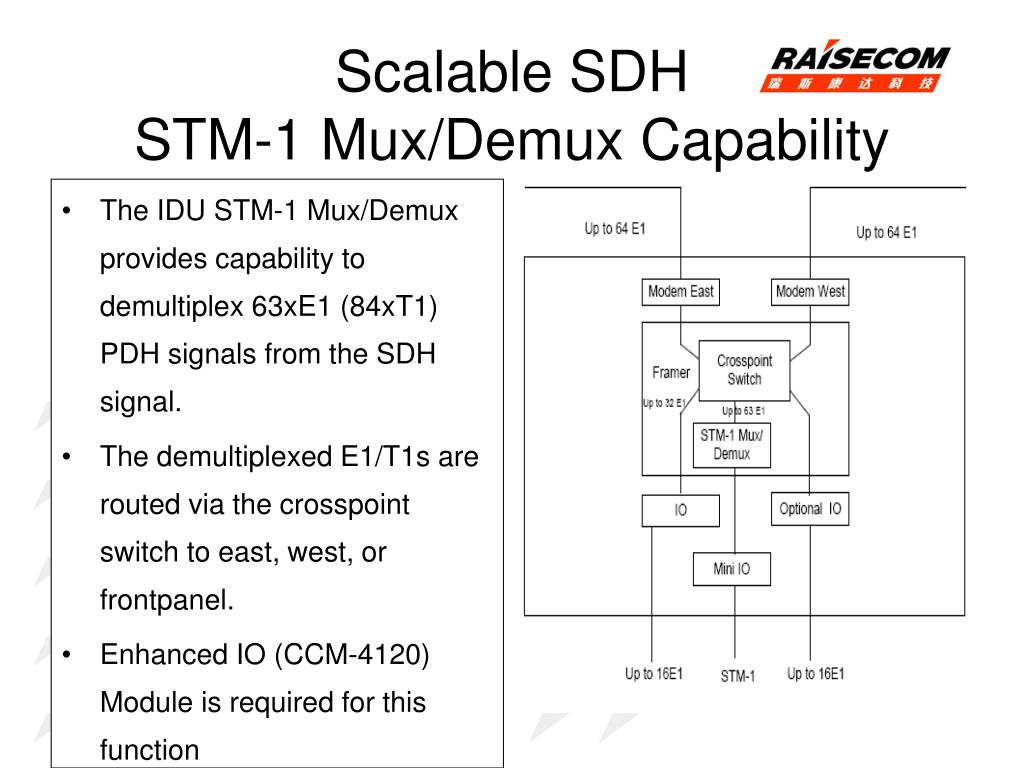

    Scalable SDH both two ODUs at the other location STM-1 Mux/Demux Capability

    • The IDU STM-1Mux/Demux providescapability to demultiplex63xE1 (84xT1) PDHsignals from the SDHsignal.

    • The demultiplexedE1/T1s are routed viathe crosspoint switch toeast, west, or frontpanel.

    • Enhanced IO (CCM-4120)Module isrequired for this function


    Modules introduction1
    Modules Introduction both two ODUs at the other location

    • Outdoor unit(ODU)

      • Power

      • U/D transducer

      • HPA

      • LNA

      • OMT


    Odu outdoor unit

    Pure ideal physical characteristic both two ODUs at the other location

    Light weight, small size and low power consume

    Easy to change the polarization

    Low wind load

    Hard flange connector

    QCPSK/QPSK~128QAM Modulation

    Only 3.0KG

    ODU outdoor unit


    Odu roadmap
    ODU Roadmap both two ODUs at the other location

    2002

    2008

    2004

    2005
