Improved howland current pump stability

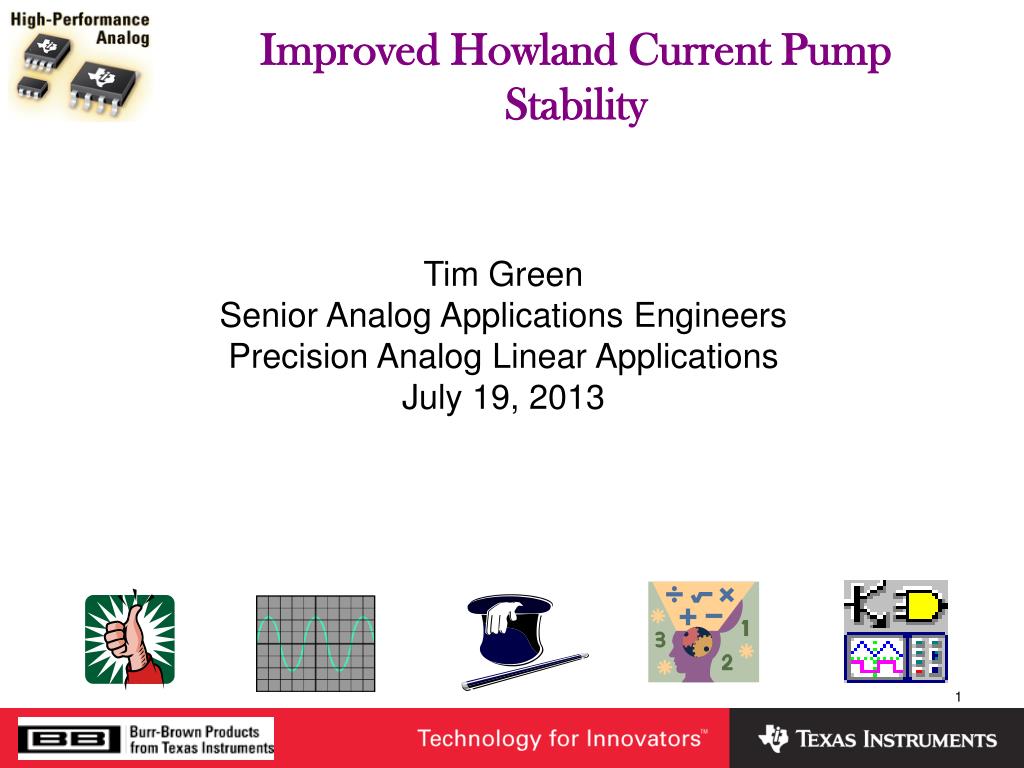

Improved Howland Current Pump Stability

Tim Green

Senior Analog Applications Engineers

Precision Analog Linear Applications

July 19, 2013


Improved howland current pump il accuracy circuit

Improved Howland Current PumpIL Accuracy Circuit

RT allows for trim to optimum ZOUT and improved DC Accuracy

Ideal Op Amp


Improved howland current pump v i dc accuracy calculations

Improved Howland Current PumpV-I DC Accuracy Calculations

1% Resistors (w/RT=0) could yield only 9% Accuracy at T=25°C

Still useful for V-I control in Motors/Valves  V-Torque Control

Outer position feedback adjusts V for final position


Improved howland current pump simplified equation

Improved Howland Current PumpSimplified Equation


Improved howland ac analysis

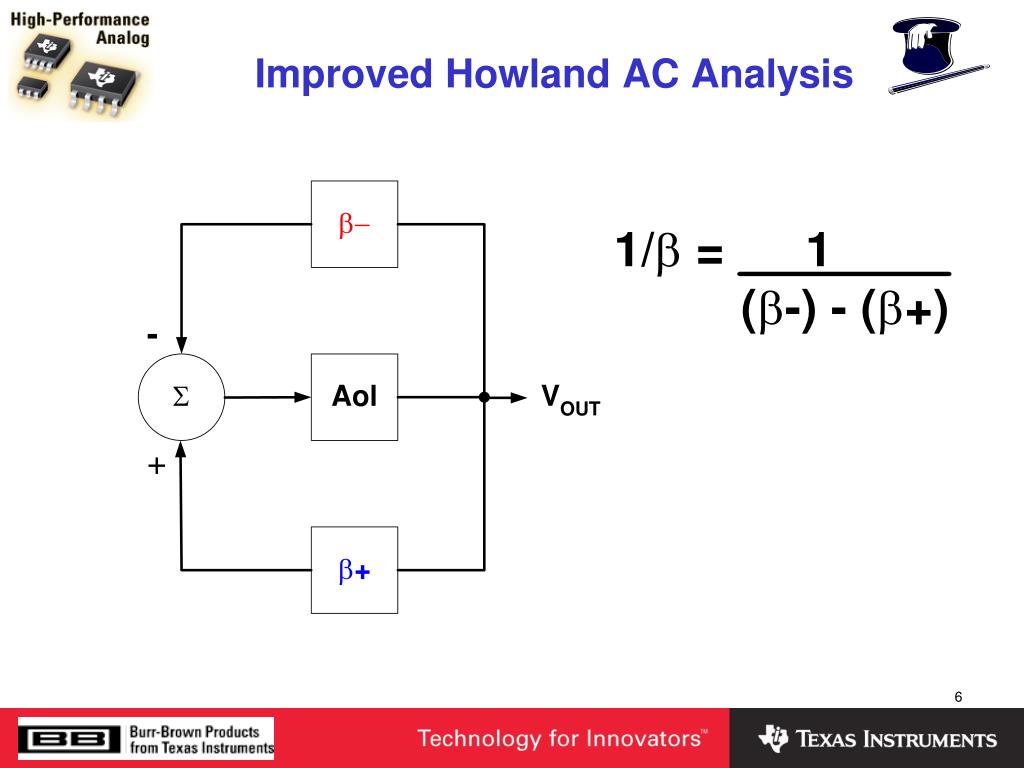

Improved Howland AC Analysis

RI

RF

Op Amp sees differential [(-IN) – (+IN)] feedback

b=b- -b+ (Must be positive number else oscillation!)


Improved howland ac analysis1

Improved Howland AC Analysis

-

+


Improved howland 1 b plot full load

Improved Howland 1/b Plot - Full Load


Improved howland 1 b calculation no load full load

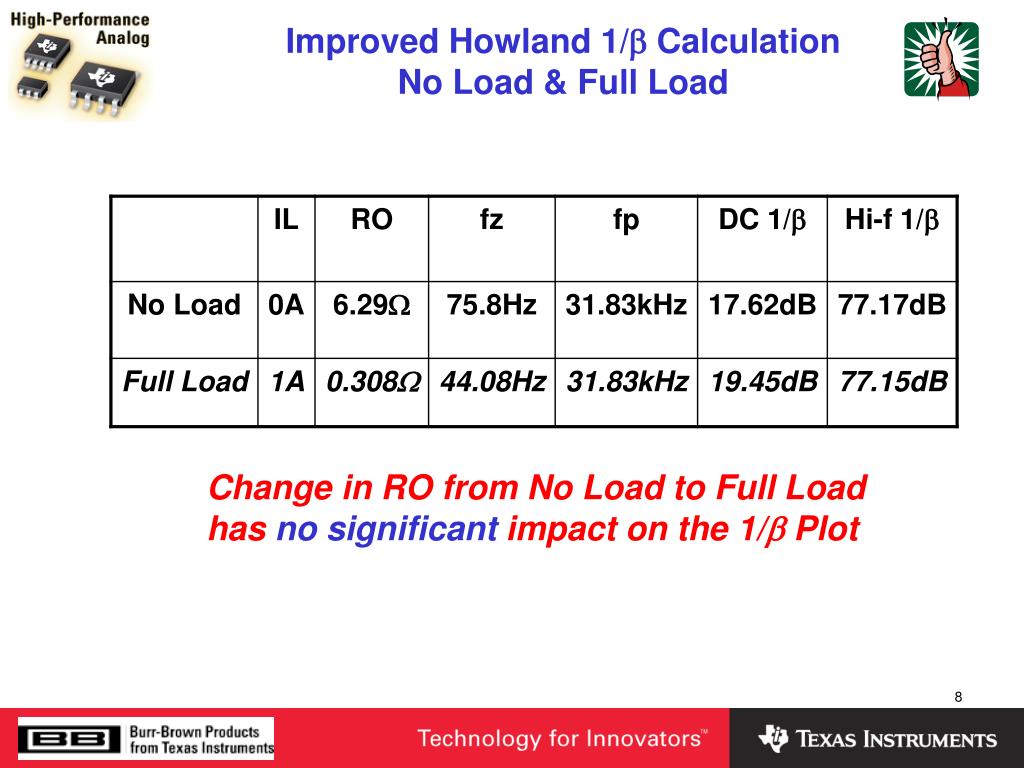

Improved Howland 1/b CalculationNo Load & Full Load

Change in RO from No Load to Full Load

has no significant impact on the 1/b Plot


Improved howland tina transient analysis circuit

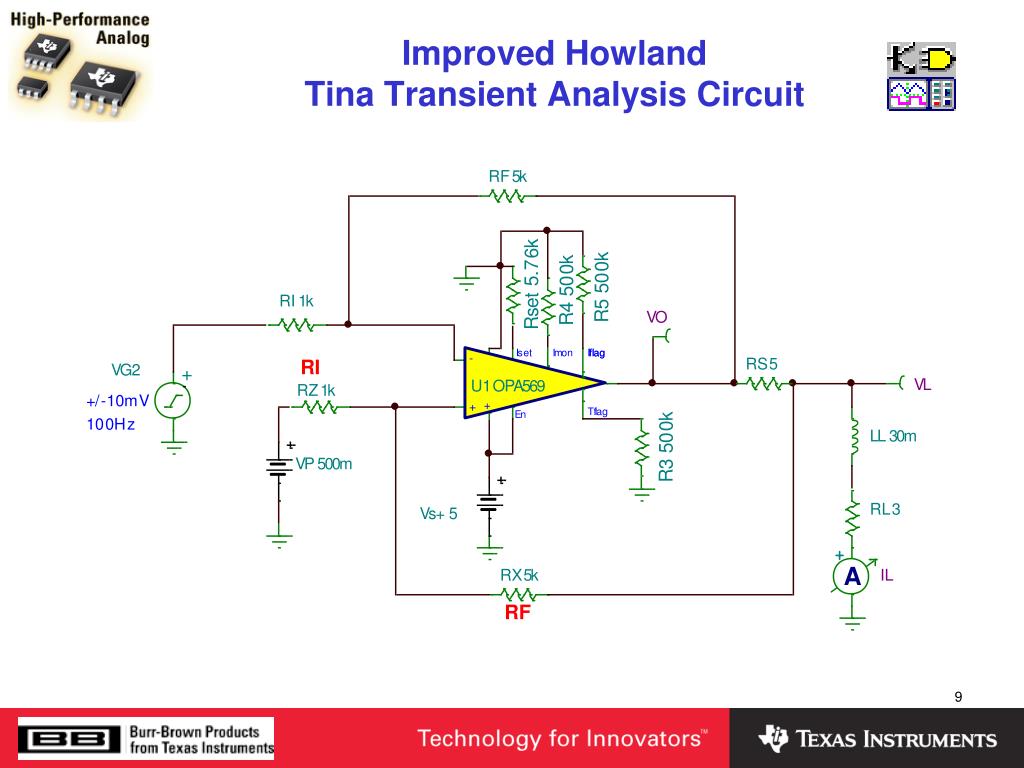

Improved Howland Tina Transient Analysis Circuit

RI

RF


Improved howland tina transient analysis results

Improved Howland Tina Transient Analysis Results


Improved howland modified 1 b for stability

Improved HowlandModified 1/b for Stability


Improved howland ac analysis final design for stability

Improved Howland AC AnalysisFinal Design for Stability

RI

RF


Improved howland ac analysis 1 b final design for stability

Improved Howland AC Analysis1/b - Final Design for Stability

fcl


Improved howland ac analysis loop gain final design for stability

Improved Howland AC AnalysisLoop Gain - Final Design for Stability

fcl


Improved howland ac transfer analysis il vin final design for stability

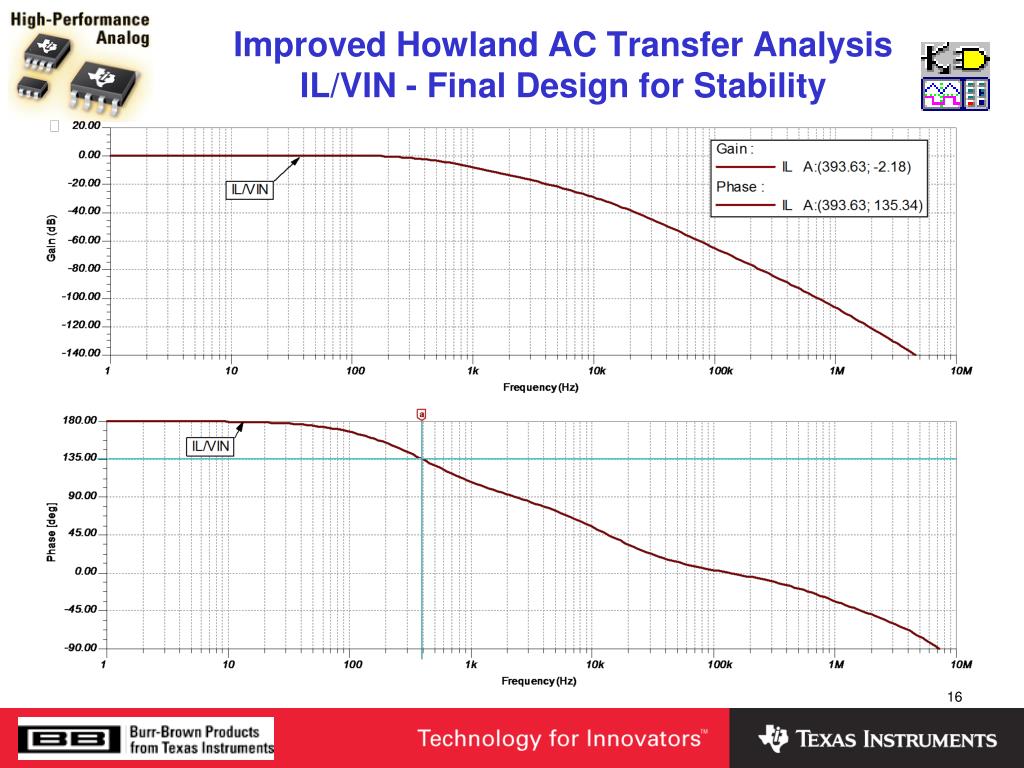

Improved Howland AC Transfer AnalysisIL/VIN - Final Design for Stability

RI

RF


Improved howland ac transfer analysis il vin final design for stability1

Improved Howland AC Transfer AnalysisIL/VIN - Final Design for Stability


Improved howland transient analysis il vin final design for stability

Improved Howland Transient AnalysisIL/VIN - Final Design for Stability

RI

RF


Improved howland transient analysis il vin final design for stability1

Improved Howland Transient AnalysisIL/VIN - Final Design for Stability
