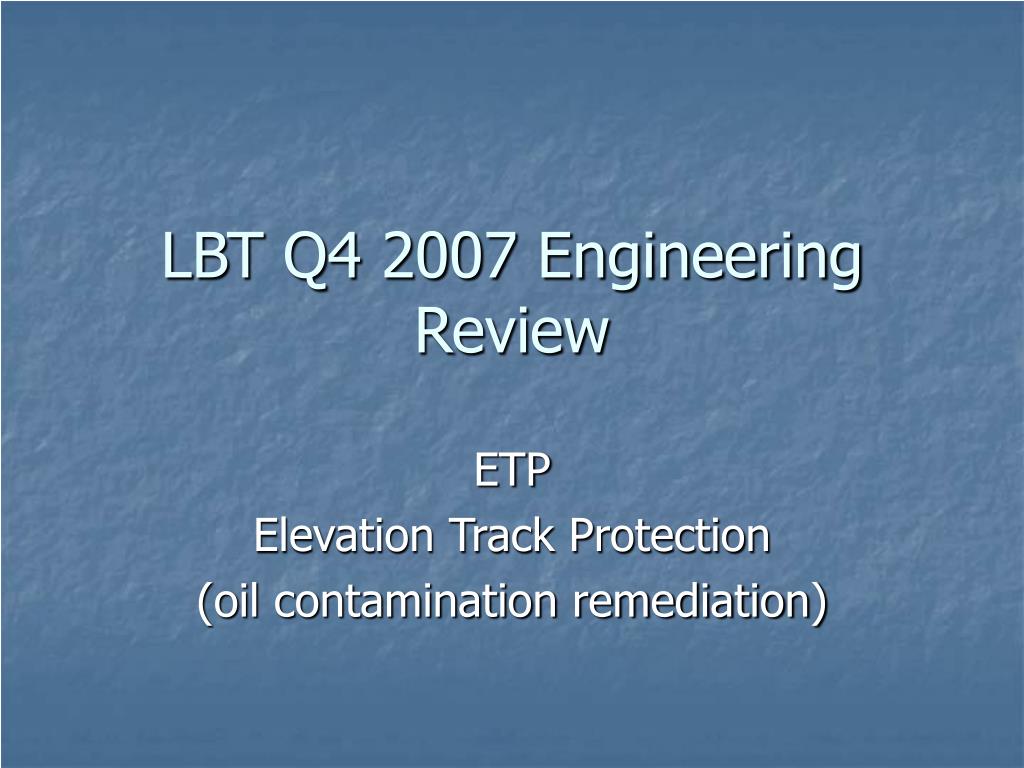

  1. LBT Q4 2007 Engineering Review ETP Elevation Track Protection (oil contamination remediation)

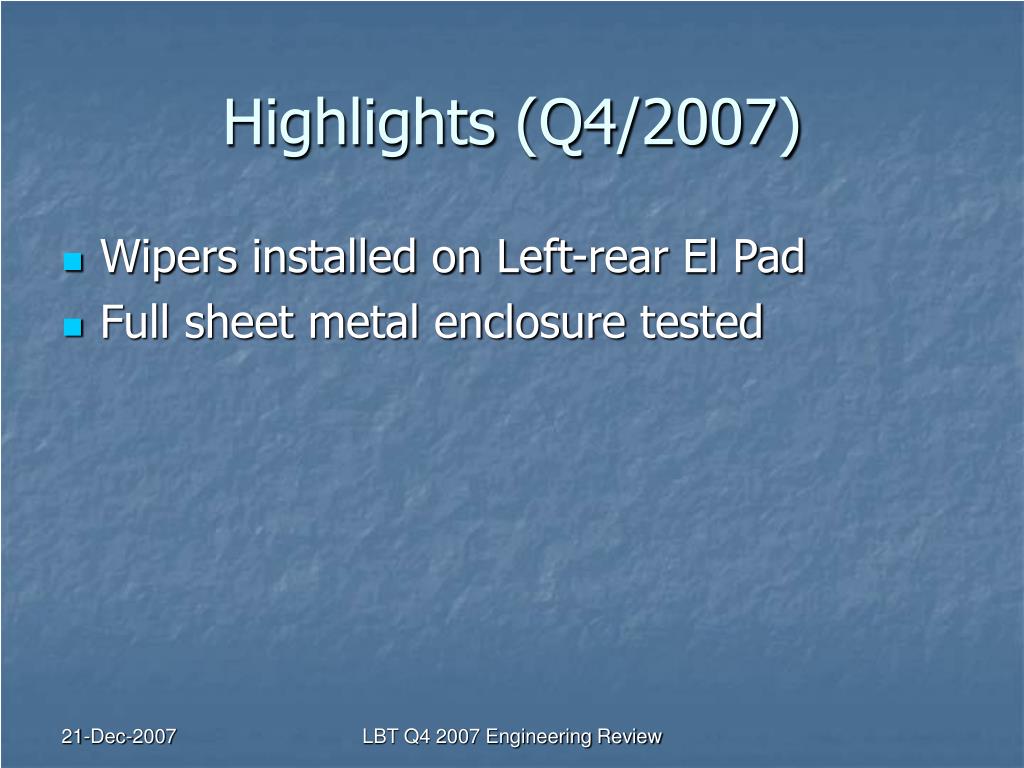

  2. Highlights (Q4/2007) • Wipers installed on Left-rear El Pad • Full sheet metal enclosure tested LBT Q4 2007 Engineering Review

  3. LBT Q4 2007 Engineering Review

  4. LBT Q4 2007 Engineering Review

  5. LBT Q4 2007 Engineering Review

  6. LBT Q4 2007 Engineering Review

  7. Open Issues • Technical • Vacuum system on hold to see if wipers are practical • Spring clip still needs to be finessed in all installations • Lateral Capillaries need characterization and length adjustment • Inboard laterals/gear clearance did not conform to model so wipers lift and leak at gear radius • Schedule • None • Financial • None, cost of wipers is low • Resource • Mountain support pacing operation LBT Q4 2007 Engineering Review

  8. Progress (Q4/2007) • Wipers installed on Left-rear El Pad • Sheet metal full enclosure tested LBT Q4 2007 Engineering Review

  9. Planning (Q1/2008) • Characterize and prove system during 1st qtr. • Identify and correct problems, measure oil extraction rate. LBT Q4 2007 Engineering Review
