Presentation Transcript


Multi segment pseudowire setup maintenance using ldp draft balus mh pw control protocol 02 txt

Multi-Segment Pseudowire Setup & Maintenance using LDPdraft-balus-mh-pw-control-protocol-02.txt

Authors

David McDysan (MCI),

Mike Duckett (Bellsouth),

Yeongil Seo (Korea Telecom),

Yuichiro Wada (NTT Communications)

Andy Malis (Tellabs),

Chris Metz (Cisco),

Paul Doolan (Mangrove),

Ping Pan (Hammerhead),

Prayson Pate (Overture),

Vasile Radoaca (Consultant)

Florin Balus,

Mike Loomis,

Jeff Sugimoto (Nortel)


Key principles draft balus mh pw

Key Principles – draft-balus-mh-pw…

  • Develop MS-PW Solution as a Super Set of SS-PW procedures

    • SS-PW, VPLS Implementations, Deployments based on LDP Signaling

    • Re-use Signaling Procedures, Current Addressing

  • Operational Consistency, Familiarity with SS-PWs

    • Same Service Management, Provisioning Models...

    • OSS Touches at only U-PEs

  • Add Minimal Changes to satisfy the MS-PW Requirements

  • Easily applicable to existing LDP-VPLS Implementations

Extend existing PW Signaling Protocol

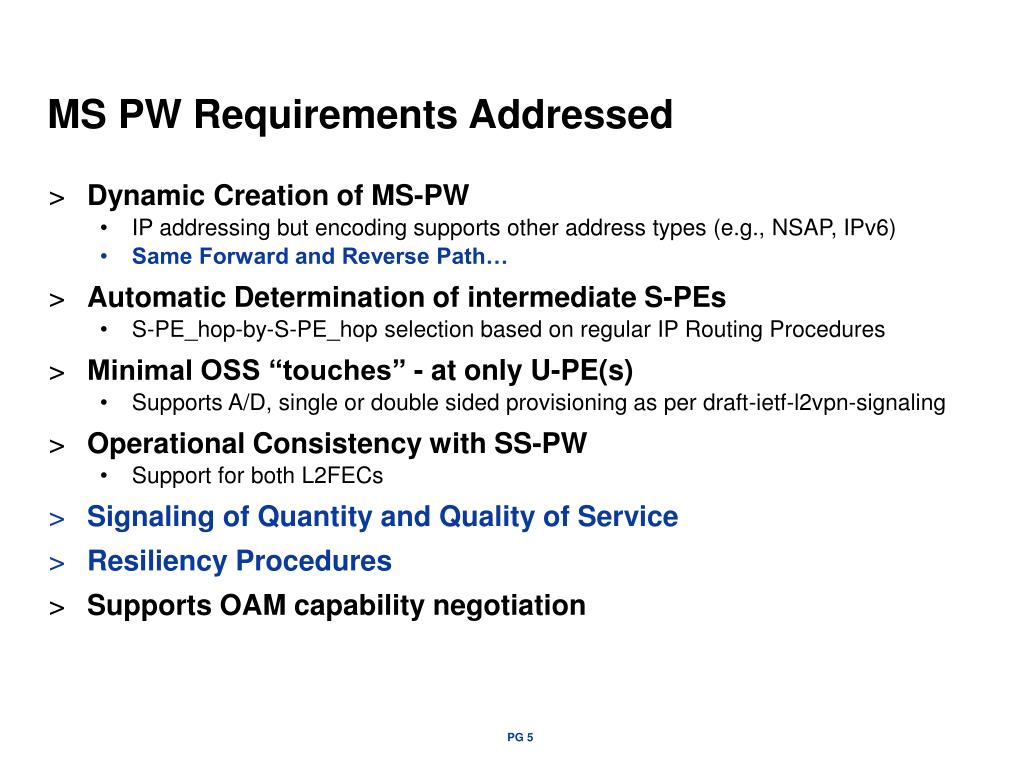

Ms pw requirements addressed

MS PW Requirements Addressed

  • Dynamic Creation of MS-PW

    • IP addressing but encoding supports other address types (e.g., NSAP, IPv6)

    • Same Forward and Reverse Path…

  • Automatic Determination of intermediate S-PEs

    • S-PE_hop-by-S-PE_hop selection based on regular IP Routing Procedures

  • Minimal OSS “touches” - at only U-PE(s)

    • Supports A/D, single or double sided provisioning as per draft-ietf-l2vpn-signaling

  • Operational Consistency with SS-PW

    • Support for both L2FECs

  • Signaling of Quantity and Quality of Service

  • Resiliency Procedures

  • Supports OAM capability negotiation


Multi segment pseudowire setup maintenance using ldp draft balus mh pw control protocol 02 txt

Provisioning

Fault

Accounting

Billing

MS-PW Operational Consistency with SS-PWsRe-use of Existing Information Model, OAM Procedures for SS-PW

Service Provisioning

Service Instance: (AGI, SAII, TAII)

Remote Peer: PE Loopback

PW

LDP

PE 1

PE 2

VF

VF

U-PE 1

S-PE

U-PE 2

SP

VF

VF

MS PW

LDP

LDP

Service Provisioning

Service Instance: (AGI, SAII, TAII)

Remote Peer: U-PE Loopback

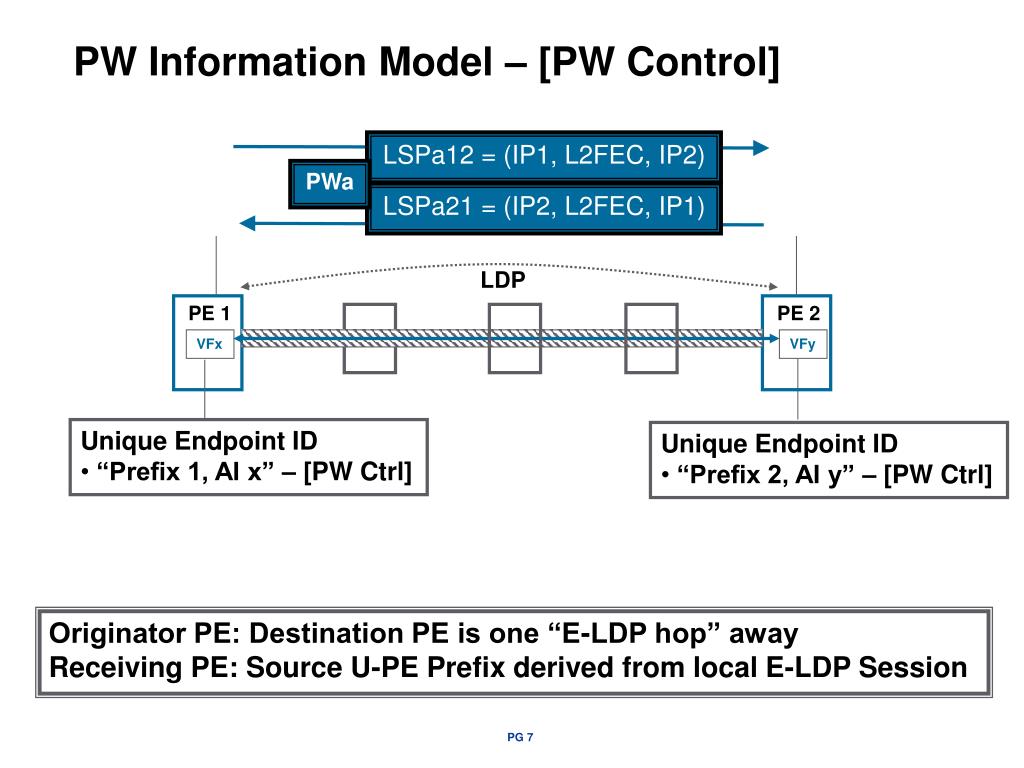

Pw information model pw control

LSPa12 = (IP1, L2FEC, IP2)

PWa

LSPa21 = (IP2, L2FEC, IP1)

PW Information Model – [PW Control]

LDP

PE 1

PE 2

VFx

VFy

  • Unique Endpoint ID

  • “Prefix 1, AI x” – [PW Ctrl]

  • Unique Endpoint ID

  • “Prefix 2, AI y” – [PW Ctrl]

Originator PE: Destination PE is one “E-LDP hop” away

Receiving PE: Source U-PE Prefix derived from local E-LDP Session

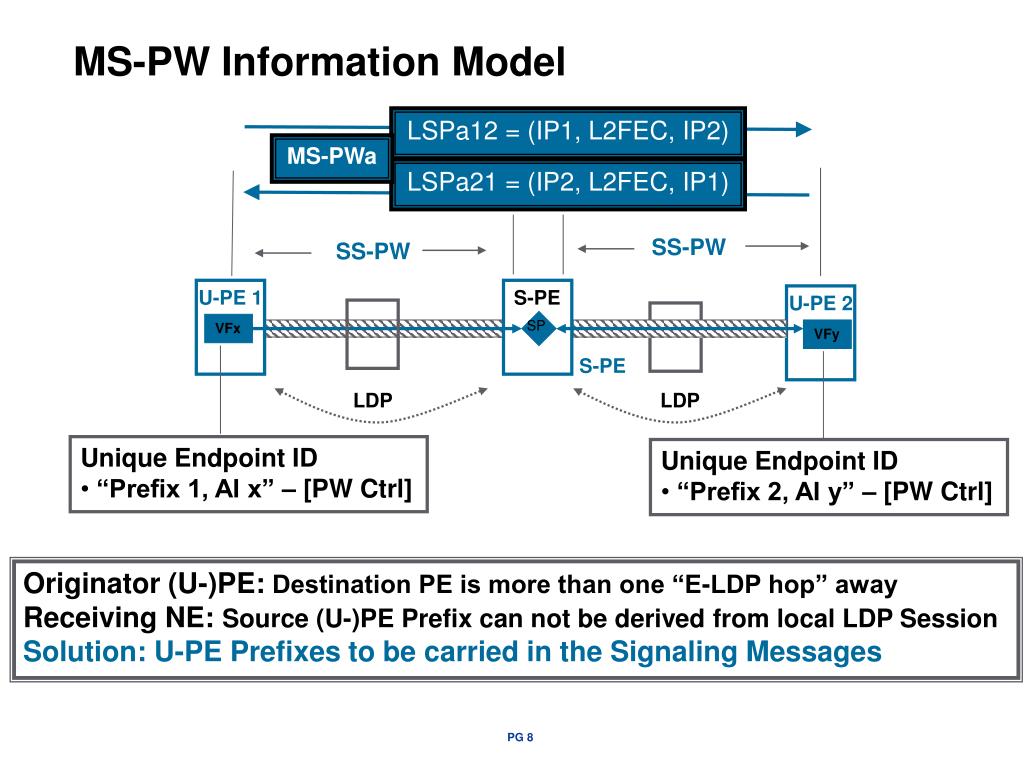

Ms pw information model

LSPa12 = (IP1, L2FEC, IP2)

MS-PWa

LSPa21 = (IP2, L2FEC, IP1)

  • Unique Endpoint ID

  • “Prefix 1, AI x” – [PW Ctrl]

  • Unique Endpoint ID

  • “Prefix 2, AI y” – [PW Ctrl]

MS-PW Information Model

SS-PW

SS-PW

U-PE 1

S-PE

U-PE 2

SP

VFx

VFy

S-PE

LDP

LDP

Originator (U-)PE: Destination PE is more than one “E-LDP hop” away

Receiving NE: Source (U-)PE Prefix can not be derived from local LDP Session

Solution: U-PE Prefixes to be carried in the Signaling Messages


Multi segment pseudowire setup maintenance using ldp draft balus mh pw control protocol 02 txt

SAII

TAII

How to carry sU-PE, dU-PE Prefixes?Two possibilities, orthogonal to the procedures described in the draft

1’. Use the Generalized ID - PW FEC 129

Complete Address Information in one TLV

FEC TLV

Label TLV

  • Source U-PE “Prefix” – Identifies the Originating U-PE

  • Allows peer discovery or verification

  • Destination U-PE “Prefix” – Identifies the Remote U-PE

  • Enables S-PE to automatically determine Next “PW Segment”

Other TLVs

….

MS PW

TLV

1. Use a Separate MS-PW TLV

Accommodates also PW FEC 128 (PWID) Implementations

Ready to mandate implementation of PW FEC 129 for MS-PWs?

Ready to start assigning AII Types – see draft-metz-aii-aggregate?


Multi segment pseudowire setup maintenance using ldp draft balus mh pw control protocol 02 txt

4. On receipt of the LM: use destination U-PE to find the next signaling hop.

30.

22.

5. SS-PWb LSP Fwd

3. SS-PWa LSP Fwd

7. SS-PWb LSP Rev

8. SS-PWa LSP Rev

  • Reverse Path Signaled through previously used LDP Sessions

    • To guarantee Bi-directionality of individual PW Segments

MS PWs using E2E LDP Signaling – Operational WalkthroughHighlighting only the Steps Specific to MS PW

  • 1b. U-PE2 is provisioned with

  • AGI = 40, SAII=100, TAII=200

  • Destination PE = IP1

  • 1. U-PE1 is provisioned with

  • AGI = 40, SAII=100, TAII=200

  • Destination PE = IP2

6. On receipt of the LM: check Destination U-PE = itself.

Verify Source Address against provisioned Destination U-PE.

2. U-PE1 Use dU-PE to find next signaling hop.

U-PE2

U-PE1

S-PE1

P

P

P

LDP1

LDP2


Related procedures

Related Procedures

  • Determining Next Signaling Hop

    • Static Provisioning - Default Gateway/Summarized Prefixes

    • BGP AD - See [L2VPN SIGN] Procedures for LDP-VPLS

  • QoS TLVs may be included in the Signaling Message

    • TSPEC format for Quantity Of Service, DiffServ TLV for Quality of Service

    • CAC Executed Against the Tunnel to Originator of the Local LDP Session

  • Resiliency

    • Re-routing around Failure

  • OAM Negotiation

    • End-to-end Capability Negotiation between U-PEs – VCCV Ping, BFD


Next steps

Next Steps

  • Do we still need support in the Information Model for PW FEC 128?

  • PW Protection Options (e.g. 1:1)

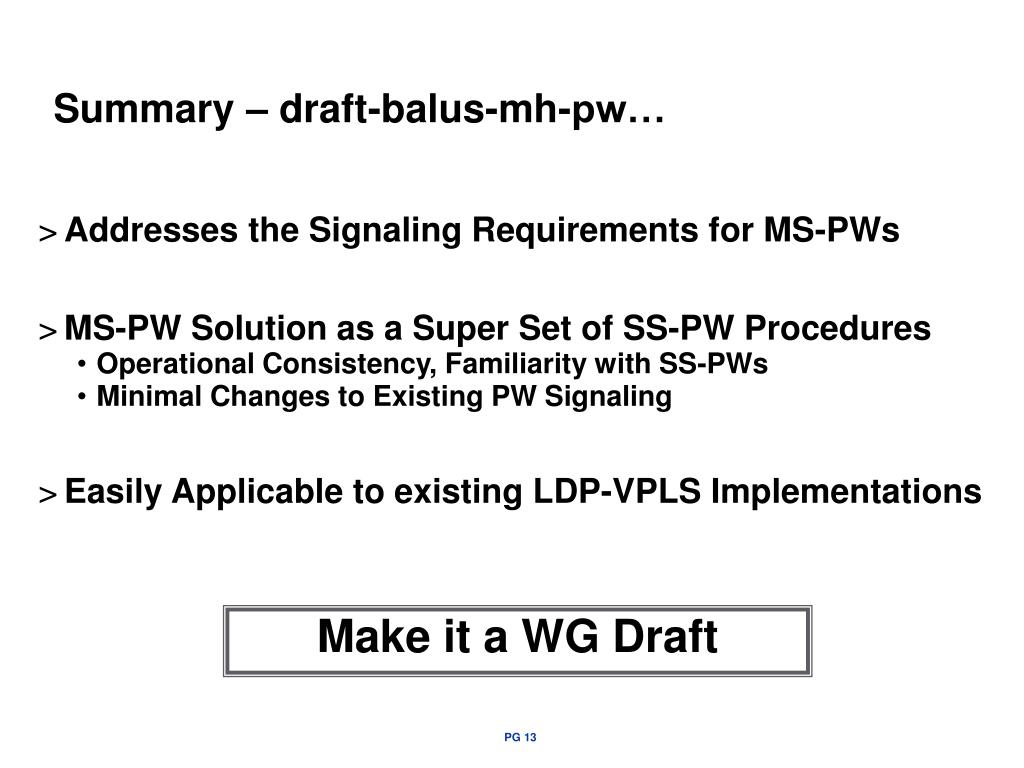

Summary draft balus mh pw

Summary – draft-balus-mh-pw…

  • Addresses the Signaling Requirements for MS-PWs

  • MS-PW Solution as a Super Set of SS-PW Procedures

    • Operational Consistency, Familiarity with SS-PWs

    • Minimal Changes to Existing PW Signaling

  • Easily Applicable to existing LDP-VPLS Implementations

Make it a WG Draft
