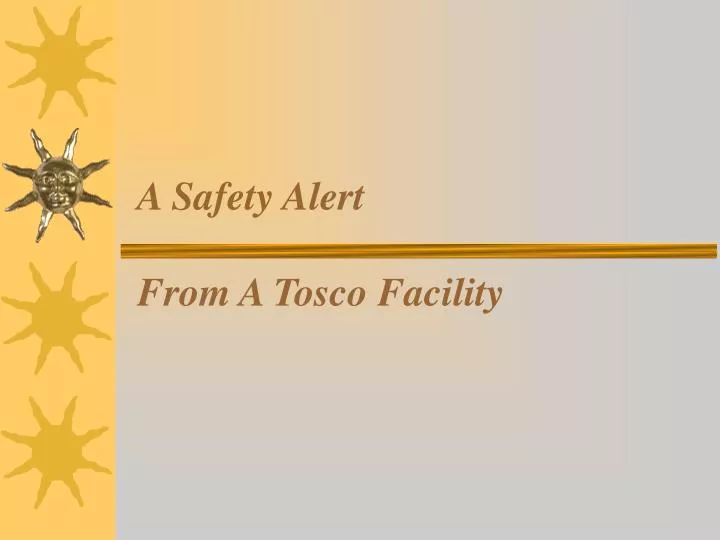

A safety alert from a tosco facility

A Safety Alert From A Tosco Facility


A safety alert from a tosco facility1

The contractor was dewatering a 10 mile section after hydrostatic test. They were pushing a foam pig with air to displace the water.

The pig got stuck somewhere and they began pressuring up the section to approximately 400 psig.

The water was being removed from a 12" bypass line.

They decided that the restriction was not allowing the pig to move freely so they opened the end of the temporary trap. At this point, the pig was seeing downstream pressure of ambient and upstream pressure of 400 psig.

The differential force was almost ¬Ĺ million pounds.

A Safety Alert From A Tosco Facility


A safety alert from a tosco facility2

In order to "catch" the pig, a large front end loader was placed in front of the open trap.

Needless to say, the pig shot out of the trap, completely flipped the loader and continued to fly approximately 150 yards in the air, destroying a wooden platform along the way.

A Safety Alert From A Tosco Facility


A safety alert from a tosco facility3

The contractor did have the foresight not to have anyone in the path of the pig or there surely would have been fatalities.

This last photo shows pieces of the pig and the overhead line in the background is where it launched.
